Aluminum Rail Jib Crane, ANVER Vacuum Lifter

Long cartons are not heavy but they are bulky, and a worker carrying one loses sight ahead and easily dents the corners. This area sits right next to a column, leaving no room to install a standalone crane post.

FullSharp uses the existing column, mounting a column-mounted aluminum rail jib crane and hanging an ANVER vacuum tube lifter at the end of the rail. The operator presses the pad against the carton, lifts it with the handle, and swings the arm through 180 to 270 degrees to move the load onto a pallet or conveyor.

Column-Mounted Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Long Cartons

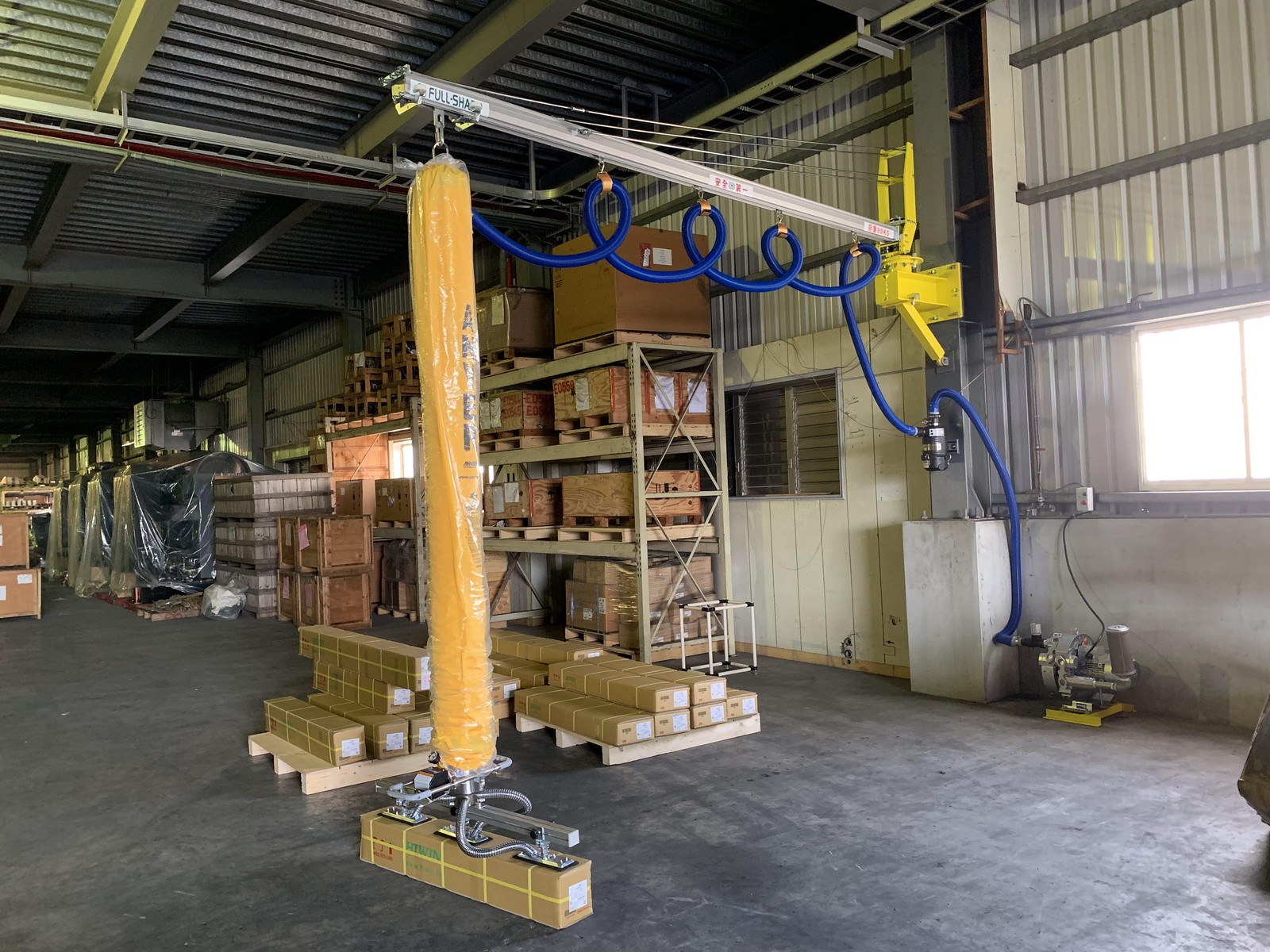

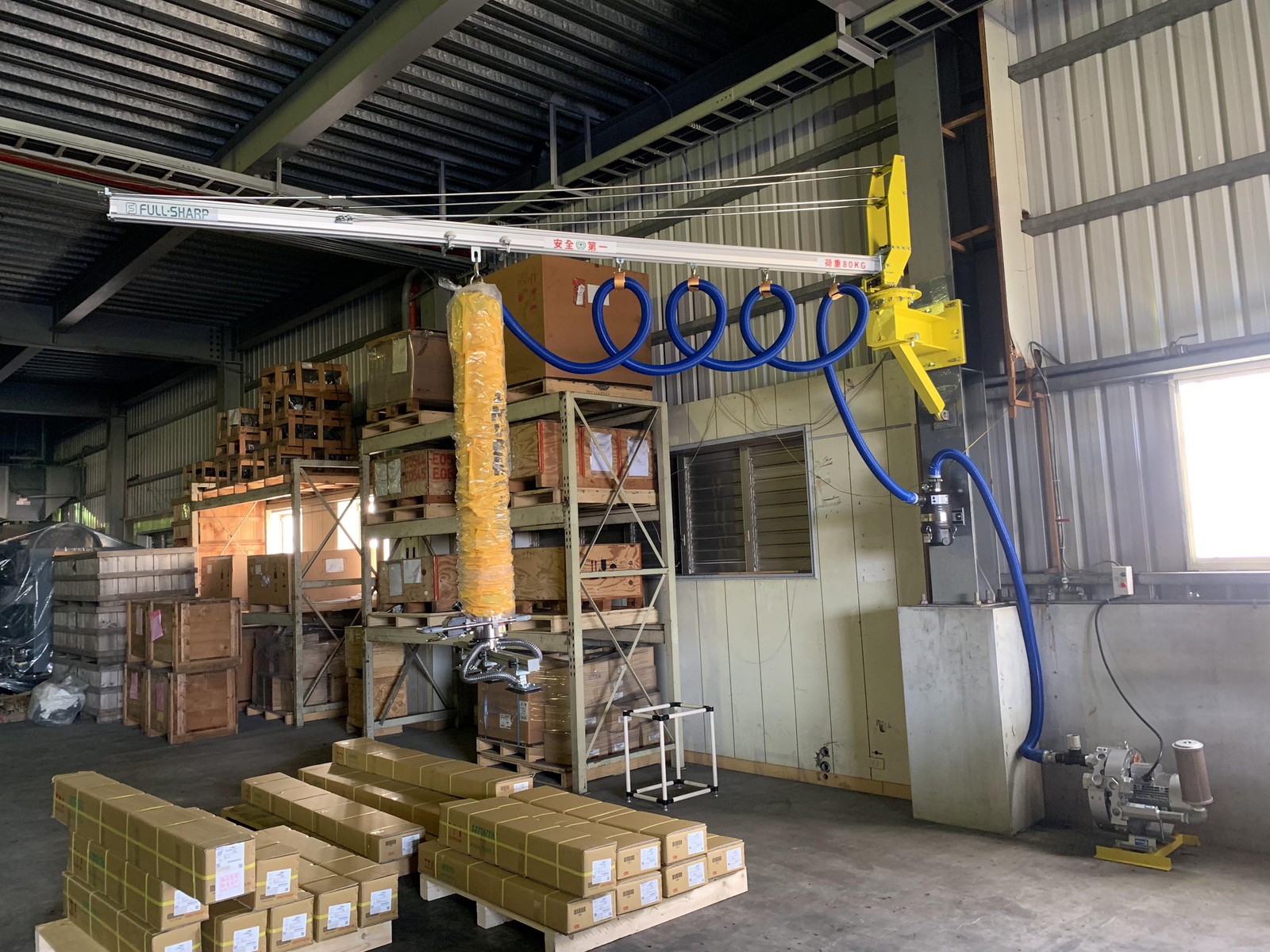

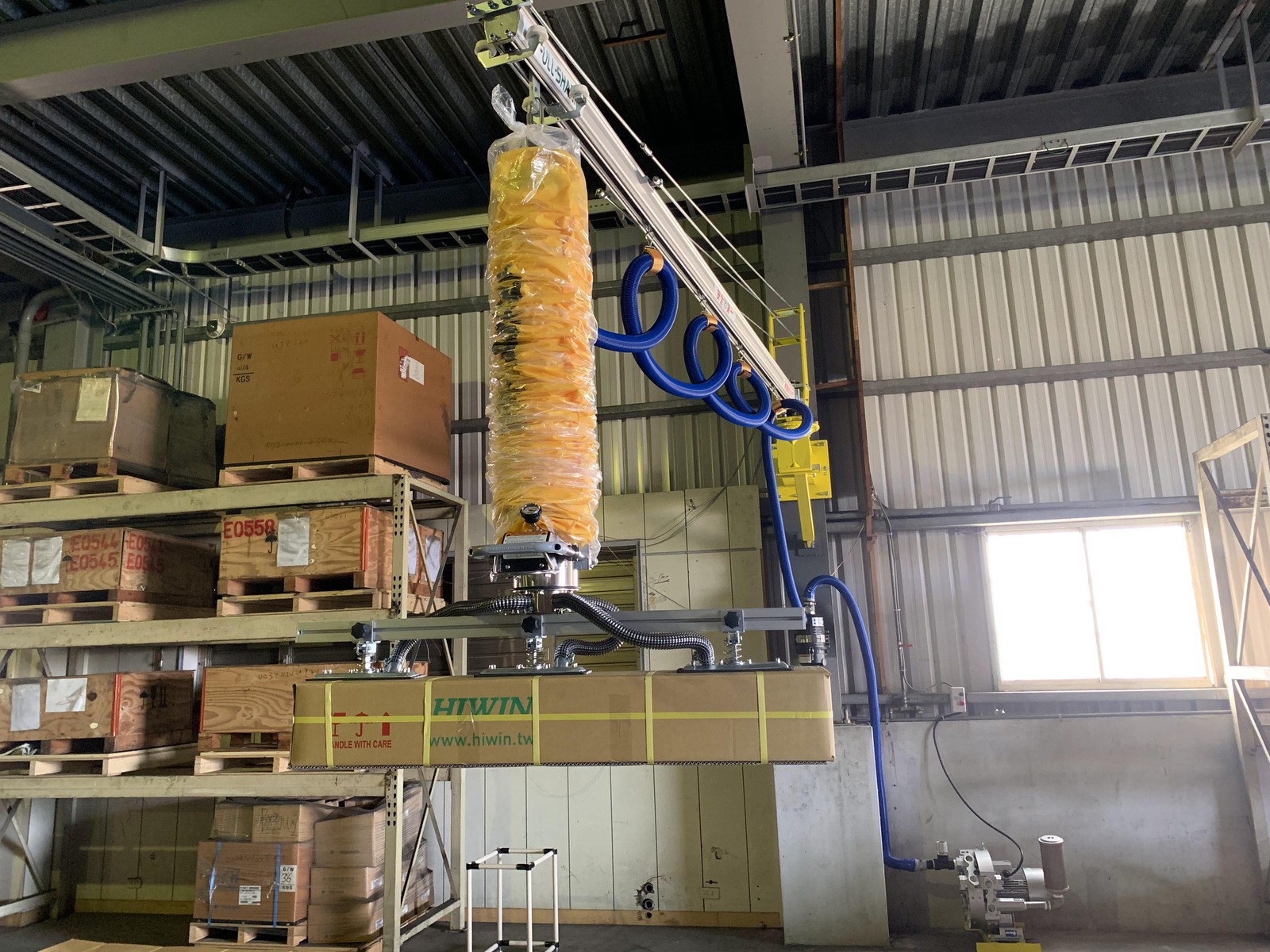

Column-mounted aluminum rail jib crane fitted with an ANVER vacuum tube lifter, lifting a long carton at the customer's warehouse.

Equipment Installed

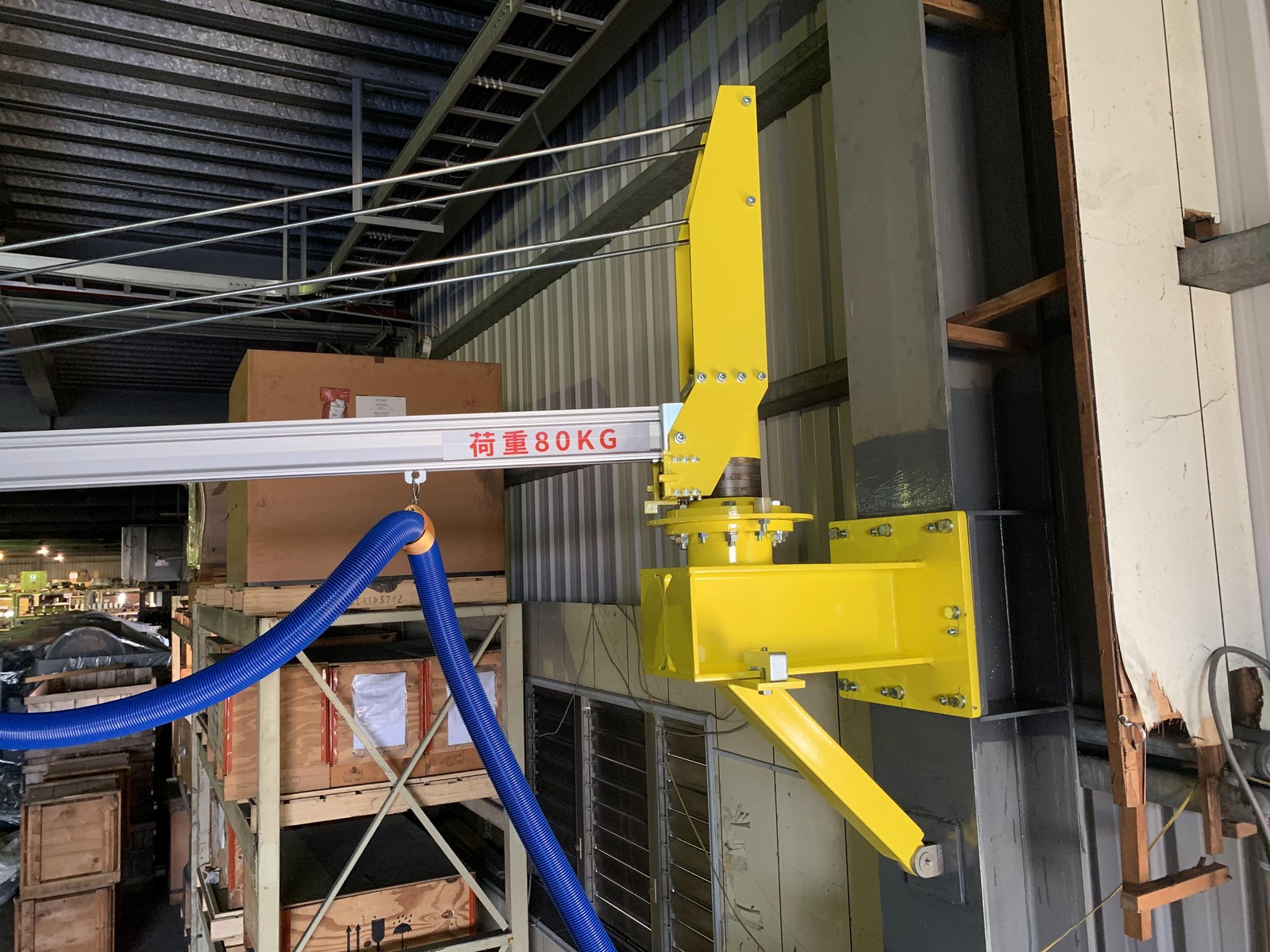

Column mount: clamps onto the factory column with a mounting plate and bolts, taking up no floor space and requiring no foundation.

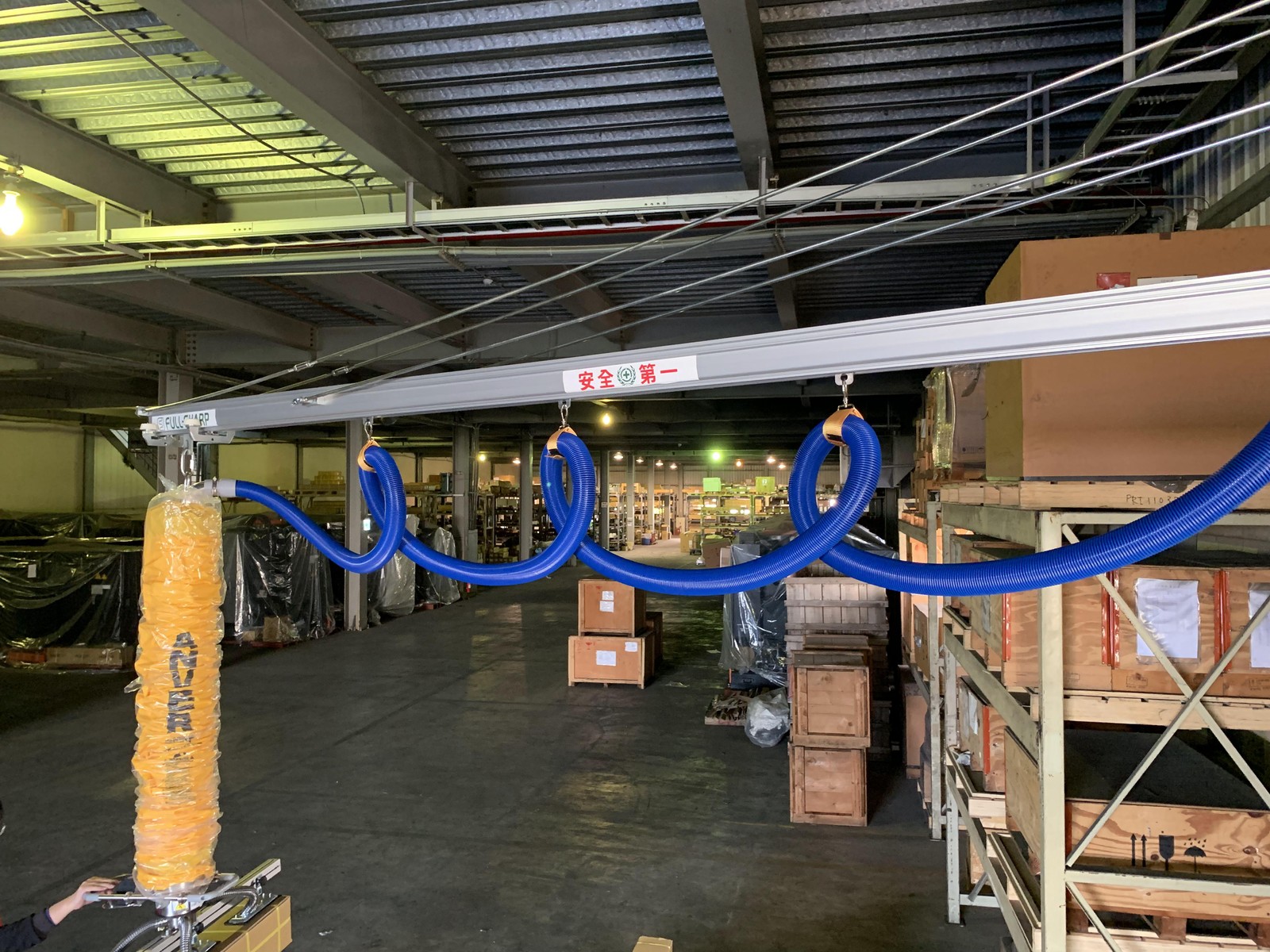

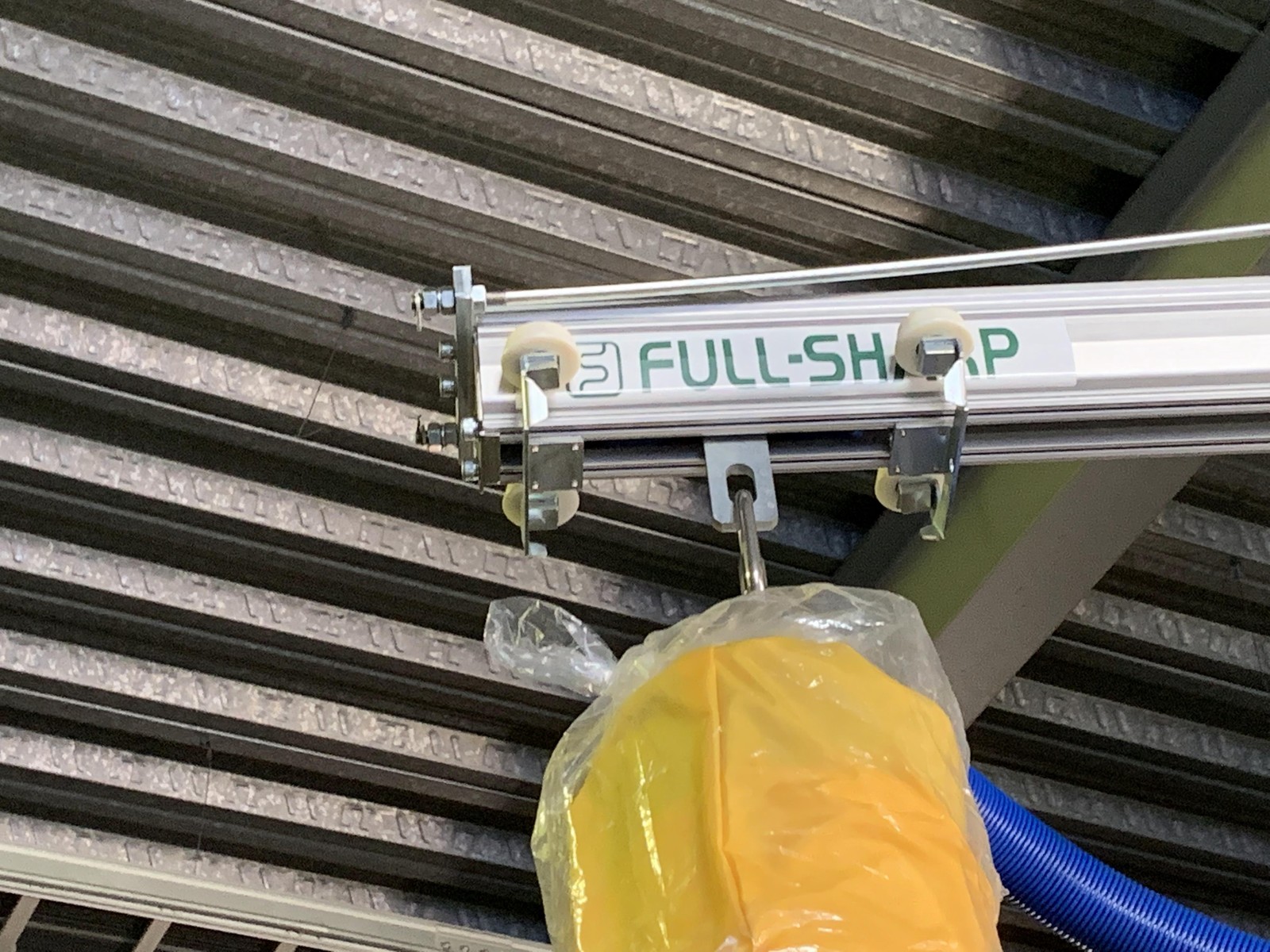

Aluminum rail and trolley: lightweight aluminum beam with a smooth-running trolley, so a light push moves the load along.

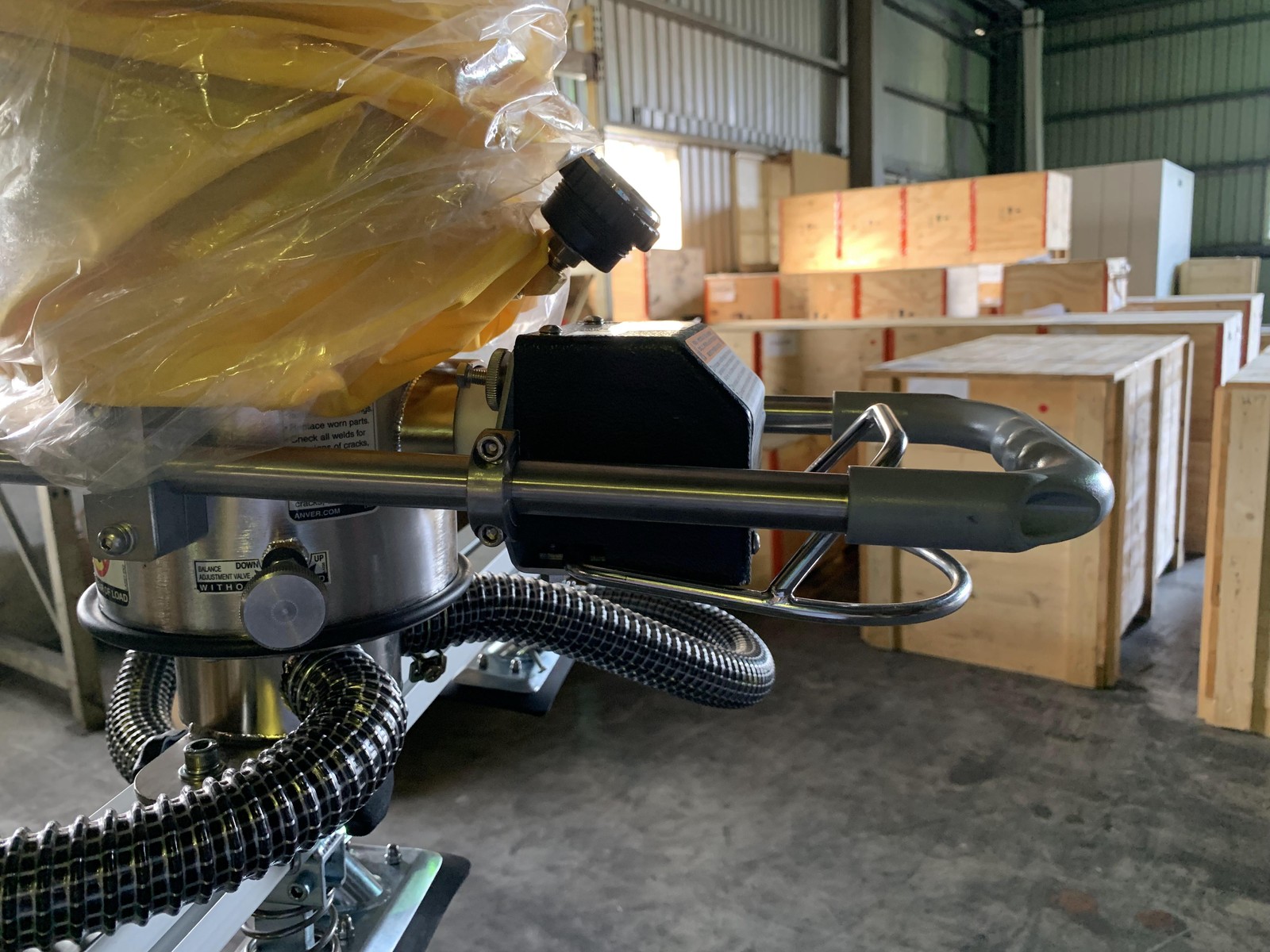

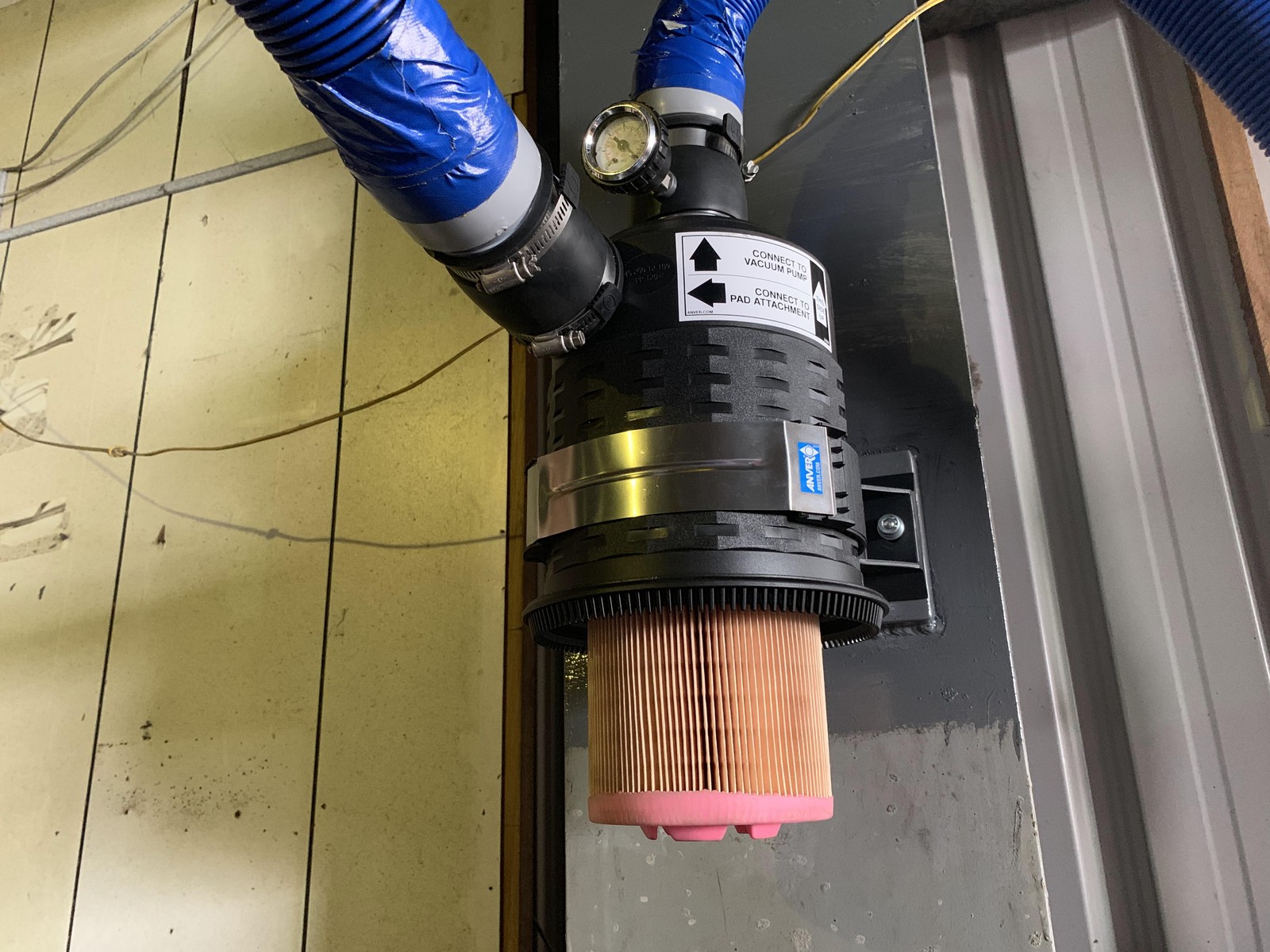

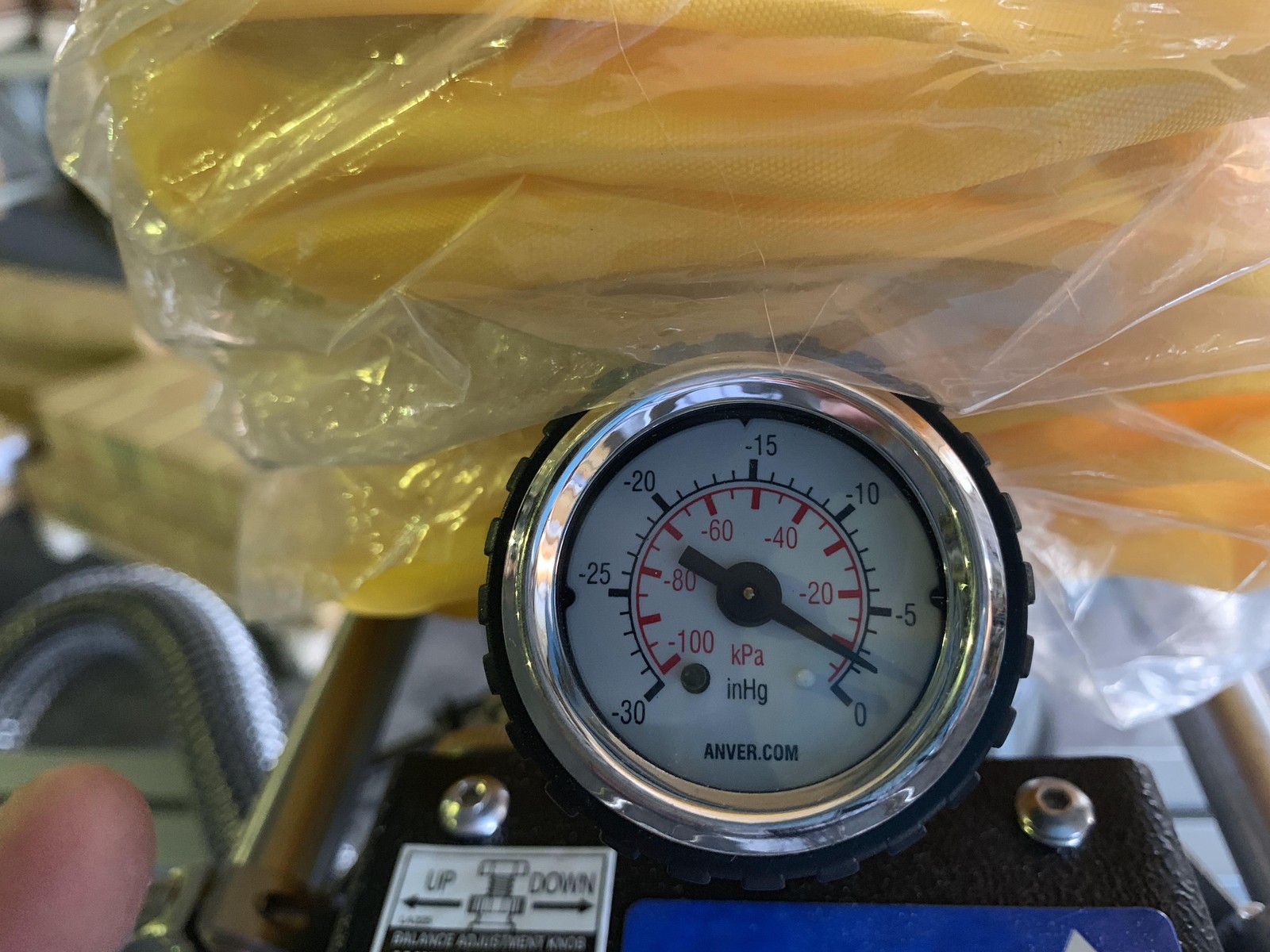

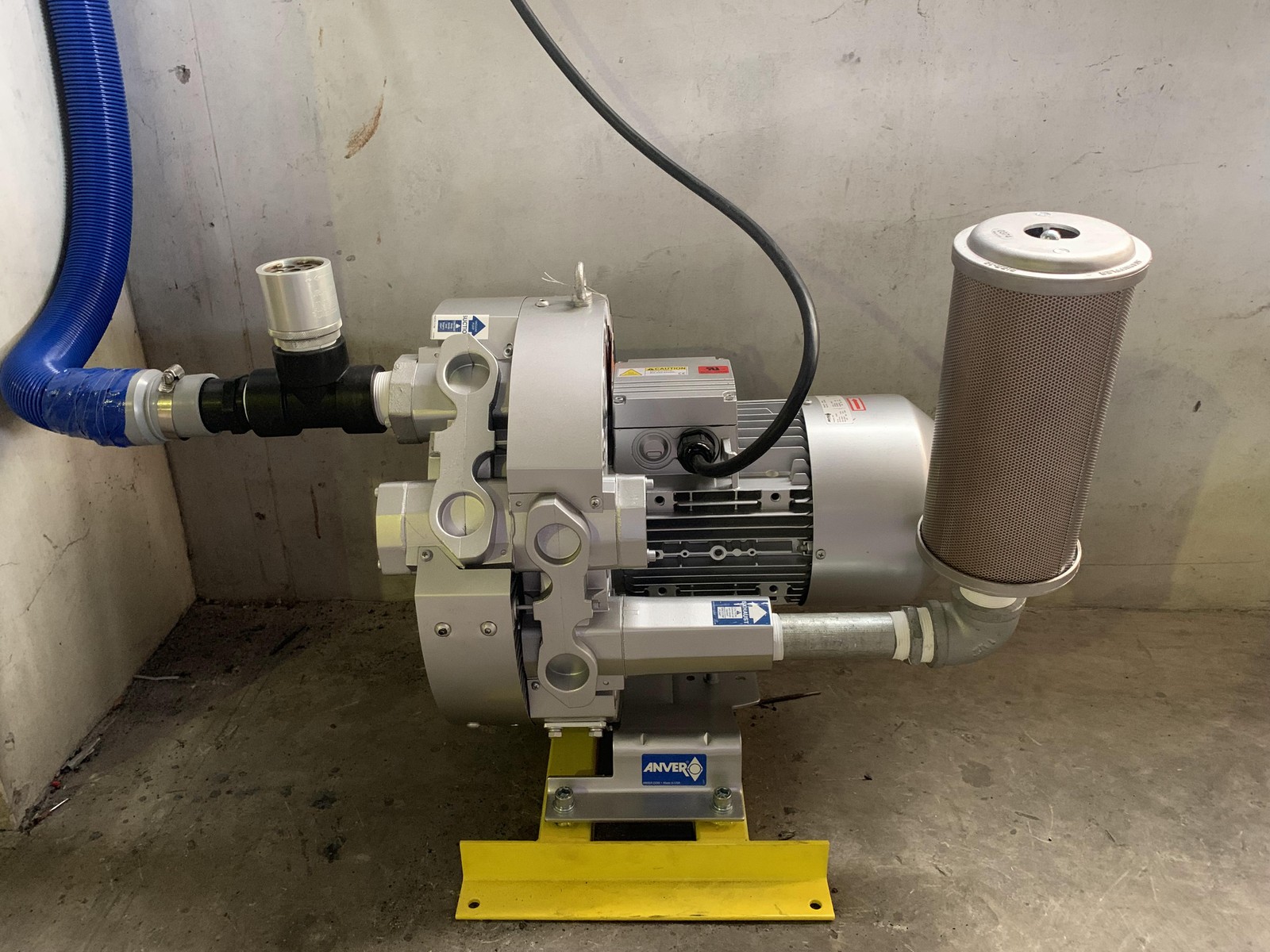

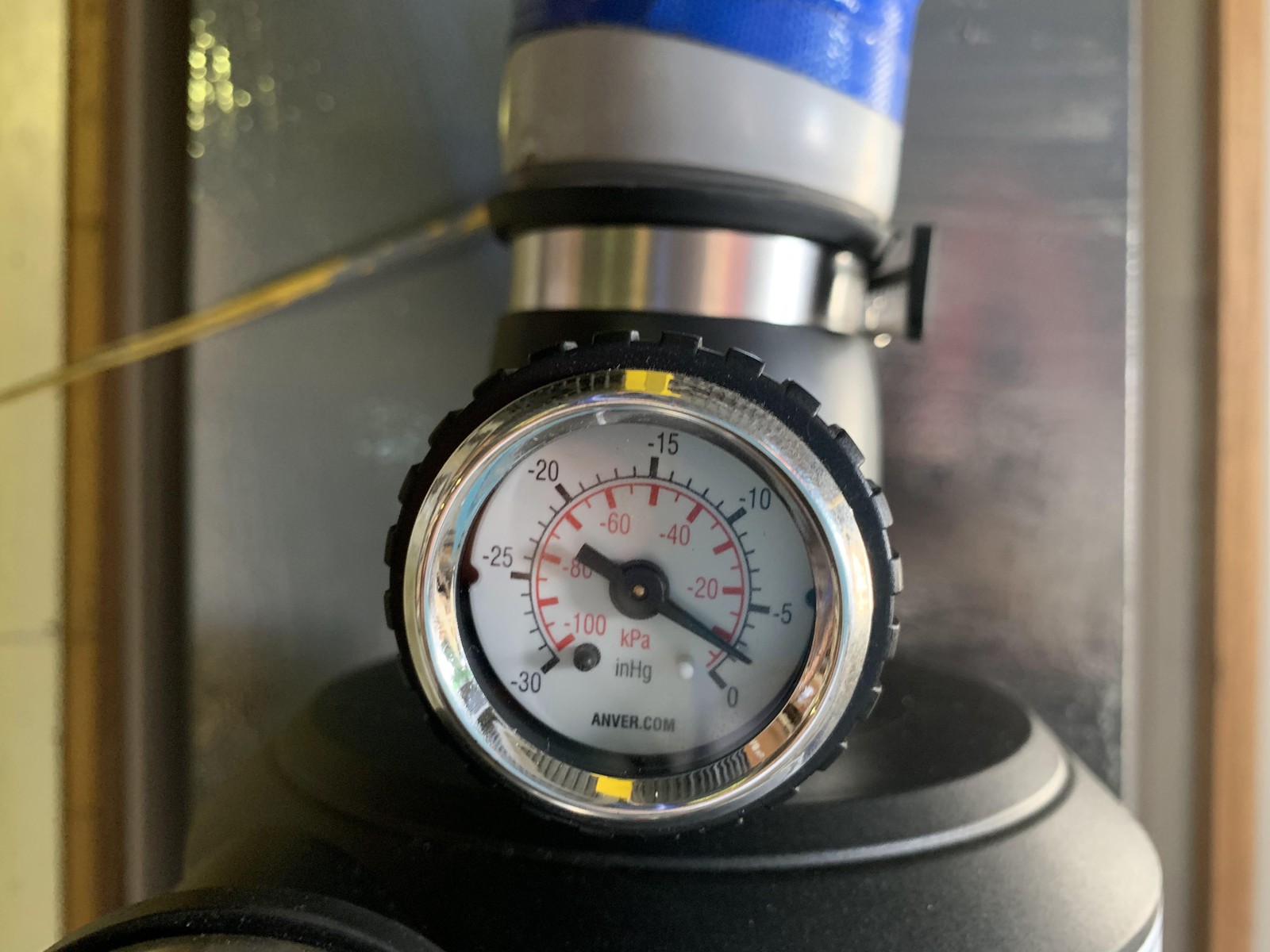

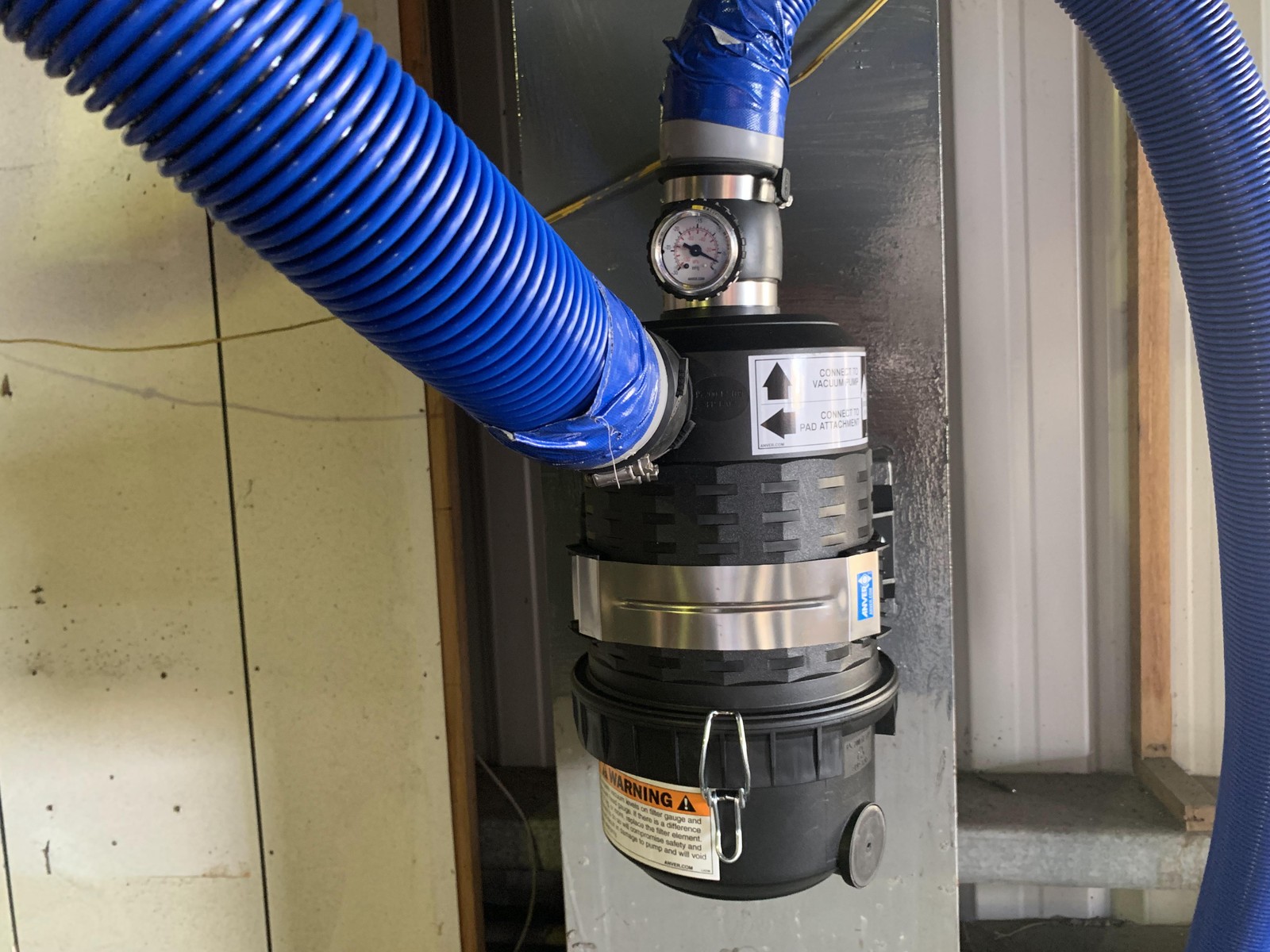

ANVER vacuum tube lifter: a vacuum pump lifts the carton through a bellows tube, raised and lowered with a lever on the handle.

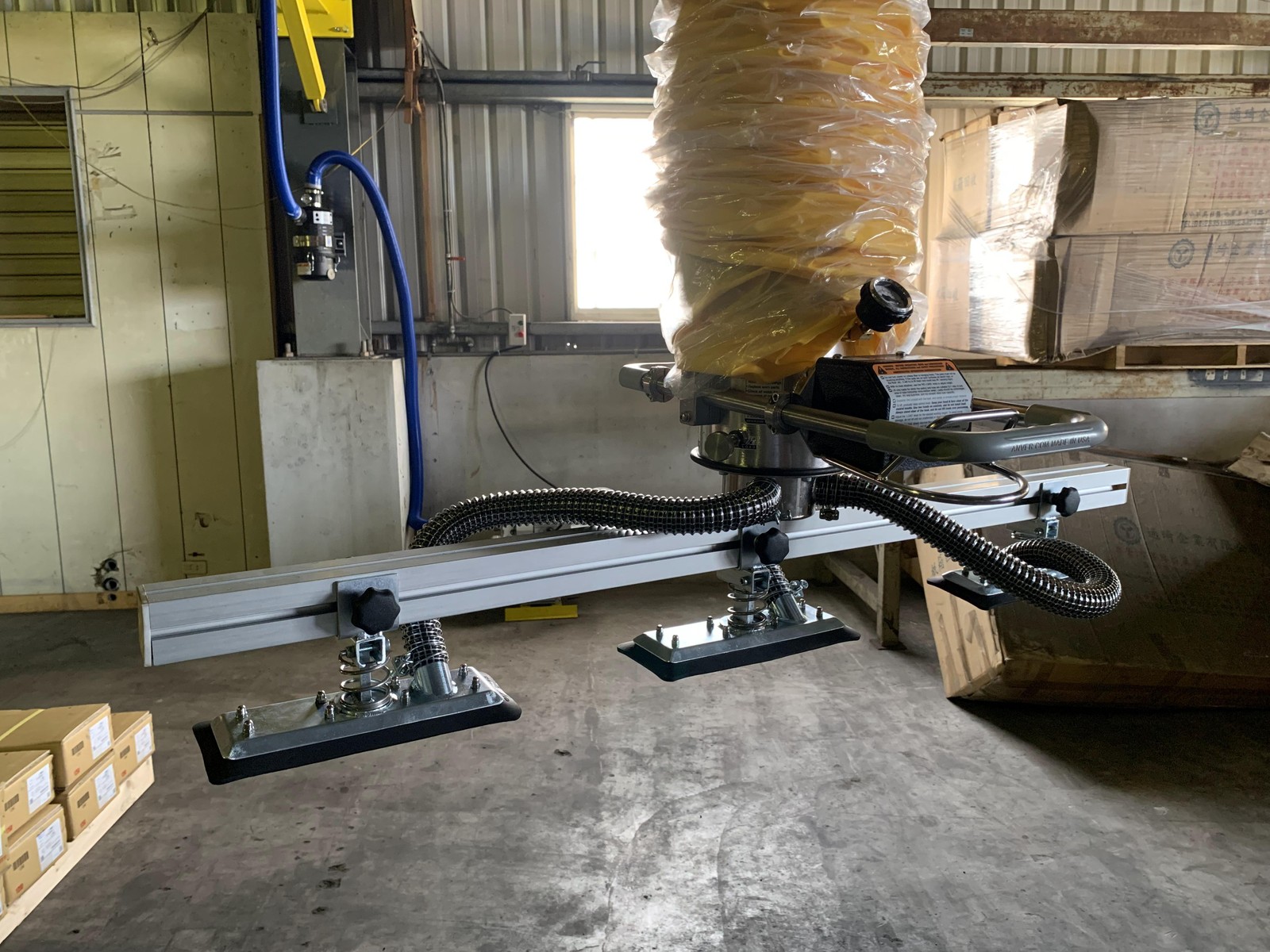

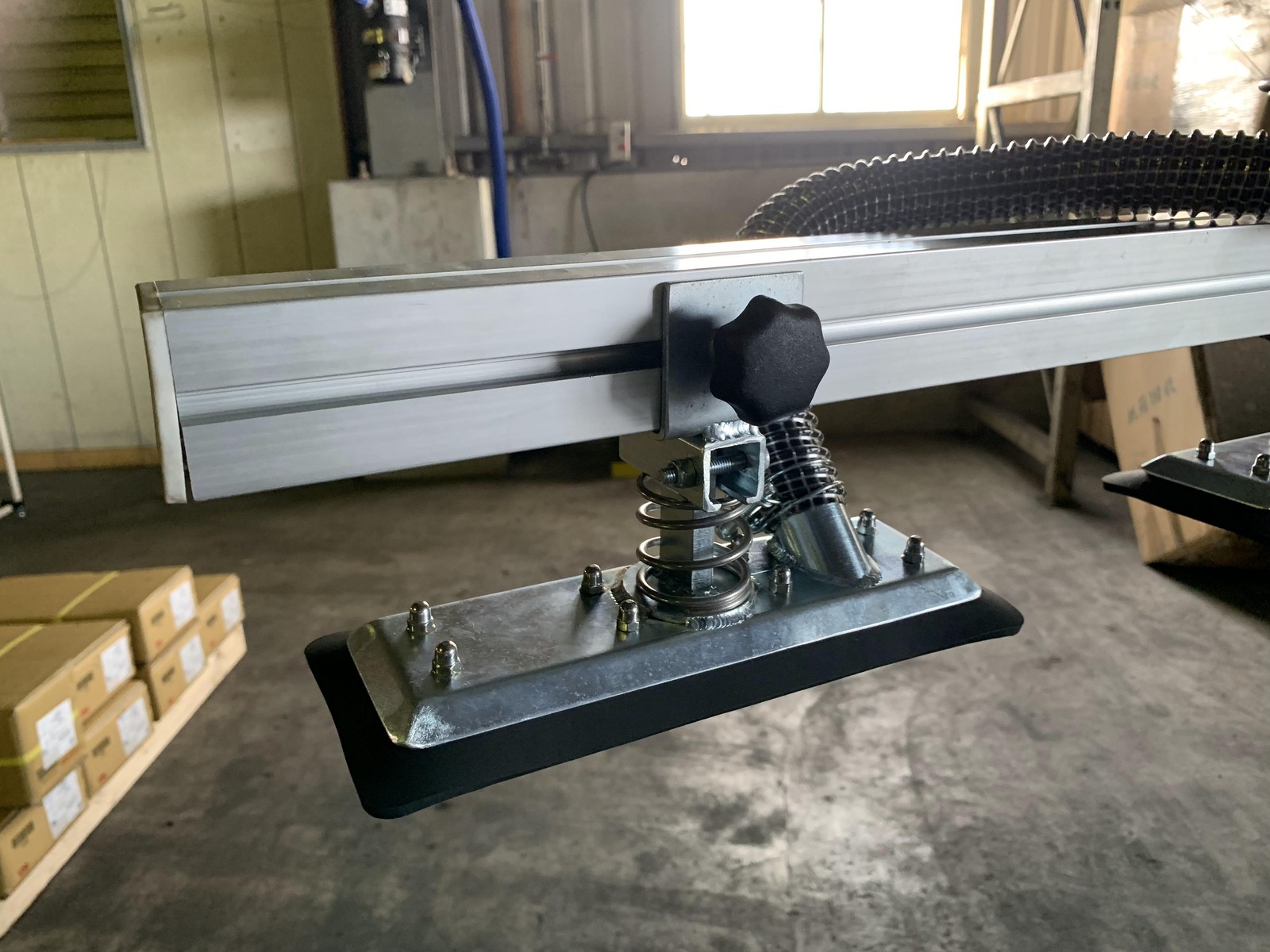

Pad for long cartons: multiple suction cups arranged along the length of the carton keep it balanced and prevent sagging in the middle.

Key Specifications

Load capacity50-100 kg
Rotation angle180-270 degrees
Mounting typeFactory column-mounted
Installation photos15

Benefits for Your Facility

Saves floor space

The crane mounts on an existing column, so no space is needed for a post. Walkways and storage areas stay unchanged.

Keeps cartons dent-free

The pad distributes suction evenly along the long carton. The carton is not squeezed at the edges as it would be when carried by hand.

One person does the job

The vacuum lifter carries the full weight of the carton. The worker only guides and releases the load.

Actual Installation Photos

Column-Mounted Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Long Cartons - ảnh 1

Column-Mounted Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Long Cartons - ảnh 2

Column-Mounted Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Long Cartons - ảnh 3

Column-Mounted Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Long Cartons - ảnh 4

Column-Mounted Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Long Cartons - ảnh 5

Column-Mounted Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Long Cartons - ảnh 6

Column-Mounted Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Long Cartons - ảnh 7

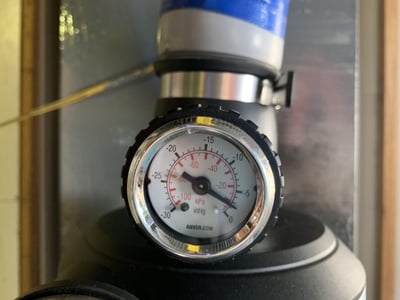

Column-Mounted Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Long Cartons - ảnh 8

Column-Mounted Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Long Cartons - ảnh 9

Column-Mounted Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Long Cartons - ảnh 10

Column-Mounted Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Long Cartons - ảnh 11

Column-Mounted Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Long Cartons - ảnh 12

Column-Mounted Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Long Cartons - ảnh 13

Column-Mounted Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Long Cartons - ảnh 14

Click a photo to enlarge. Album of 14 photos taken on site.

Suitable Applications

Carton packaging manufacturing plants
Finished goods warehouses stacking cartons on pallets
End of packaging lines for long items
Distribution centers sorting shipments

Installation Consultation for Your Facility

When surveying this type of equipment, FullSharp measures the column's cross-section, checks its load-bearing capacity, and measures the size of the cartons to be lifted. From there we select the rail length, rotation angle, and pad layout to match your cartons exactly. Call FullSharp to schedule a site visit.
