Soundproofing bags are bulky but soft-shelled — a firm squeeze or bump can dent the surface and ruin its acoustic performance. Two workers carrying one together lose sight of the path ahead, making it easy to bump into scaffolding on a construction site.

FullSharp installs a mobile aluminum rail jib crane with an ANVER vacuum lifting device. The suction head grips the bag's surface with evenly distributed force, lifts it, then rotates 360 degrees to the installation point. The mobile base lets the whole unit be pushed along as construction progresses through each zone.

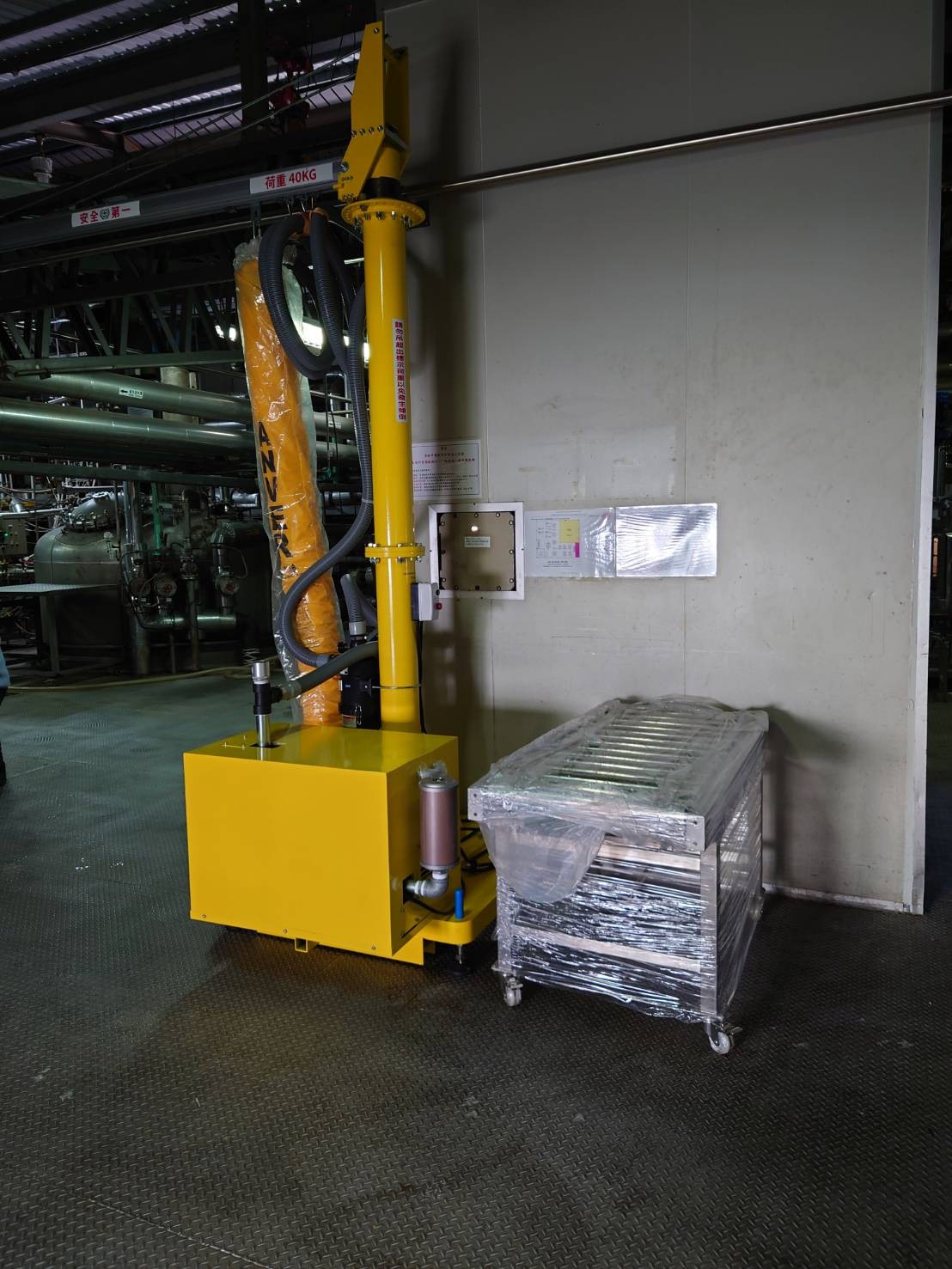

Mobile Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Soundproofing Panels

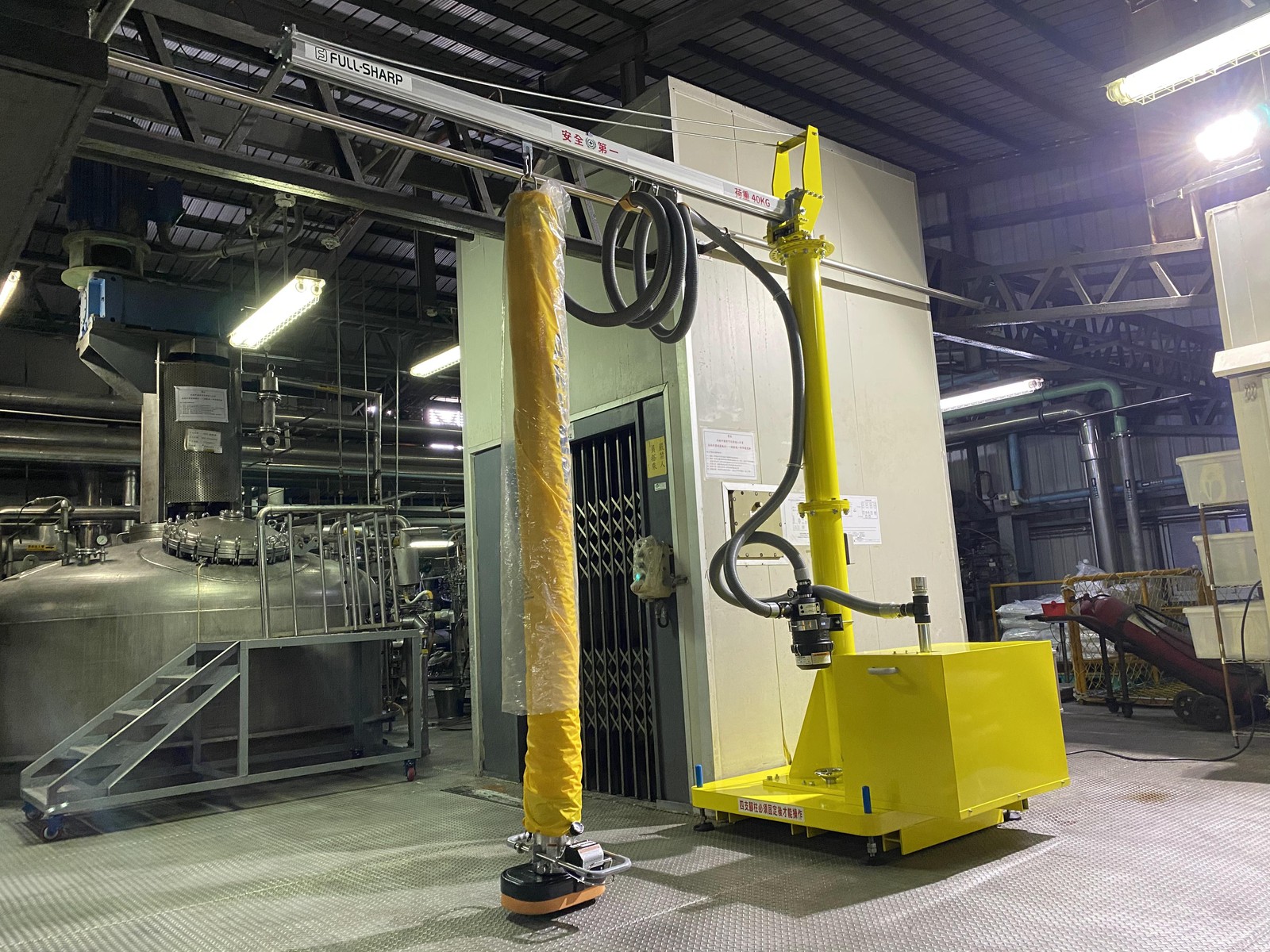

ANVER vacuum lifting device on a mobile aluminum rail jib crane, lifting a soundproofing bag.

Installed Equipment

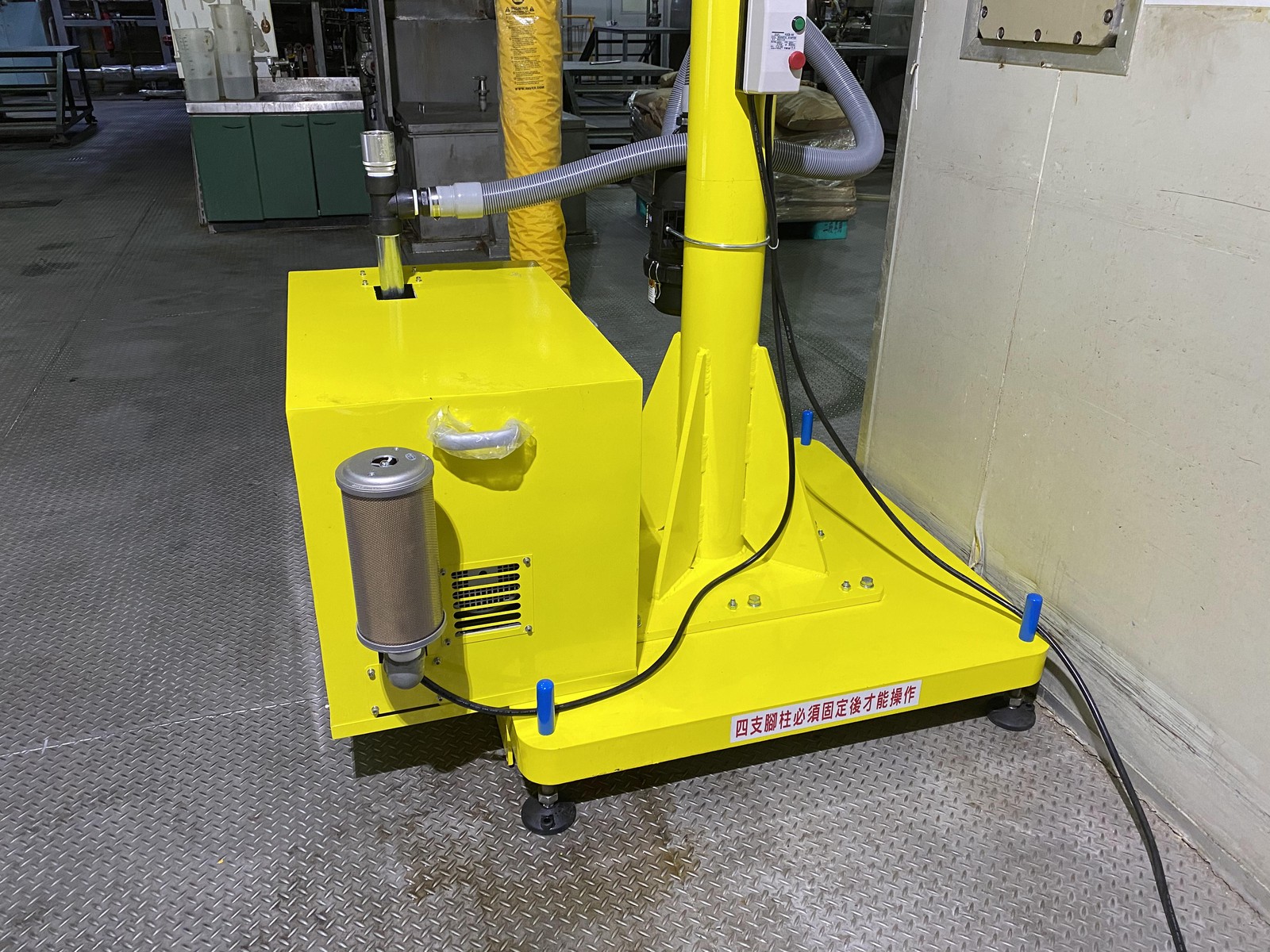

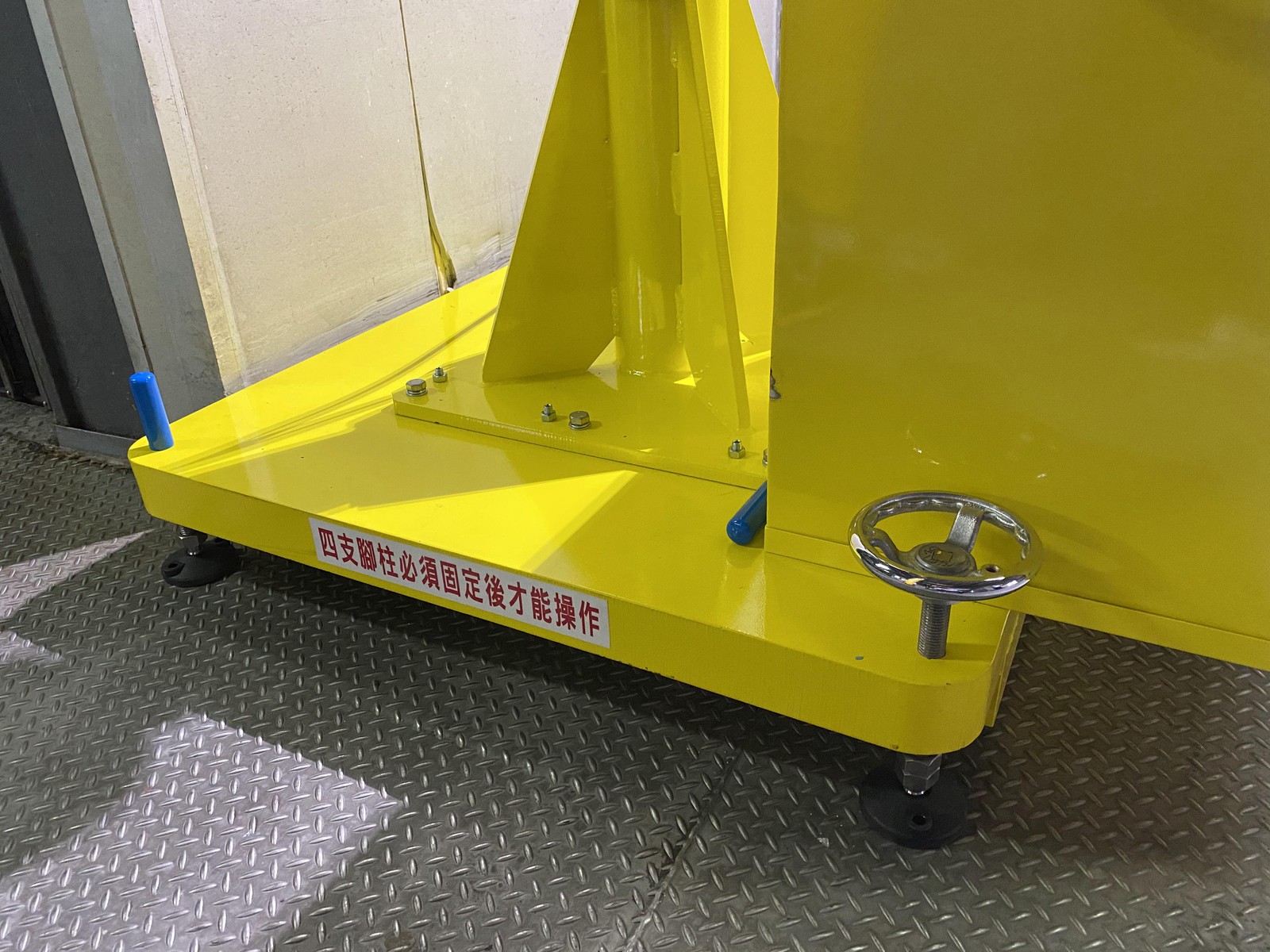

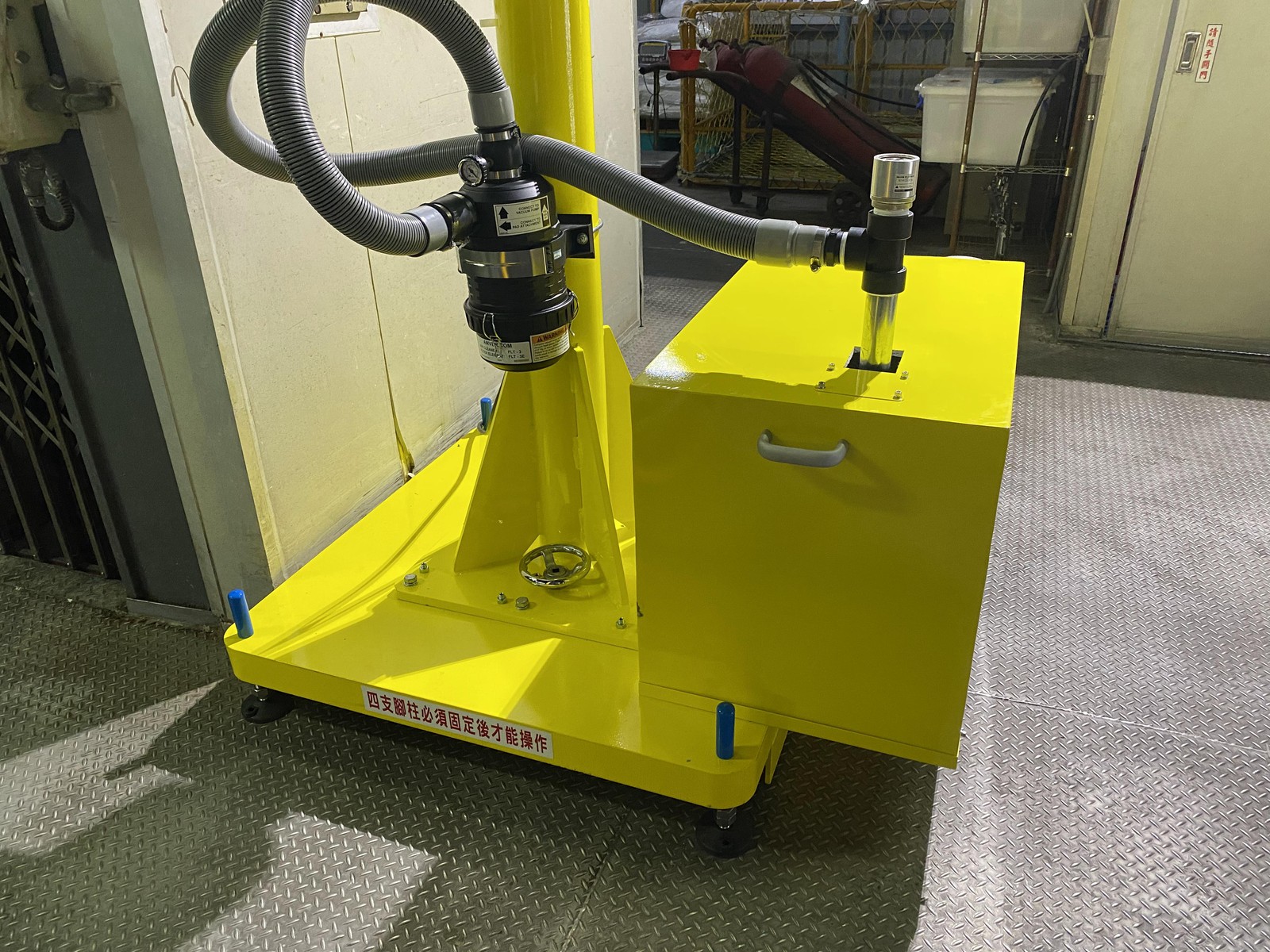

Mobile base: wheels and outriggers push the unit along as construction progresses through each area.

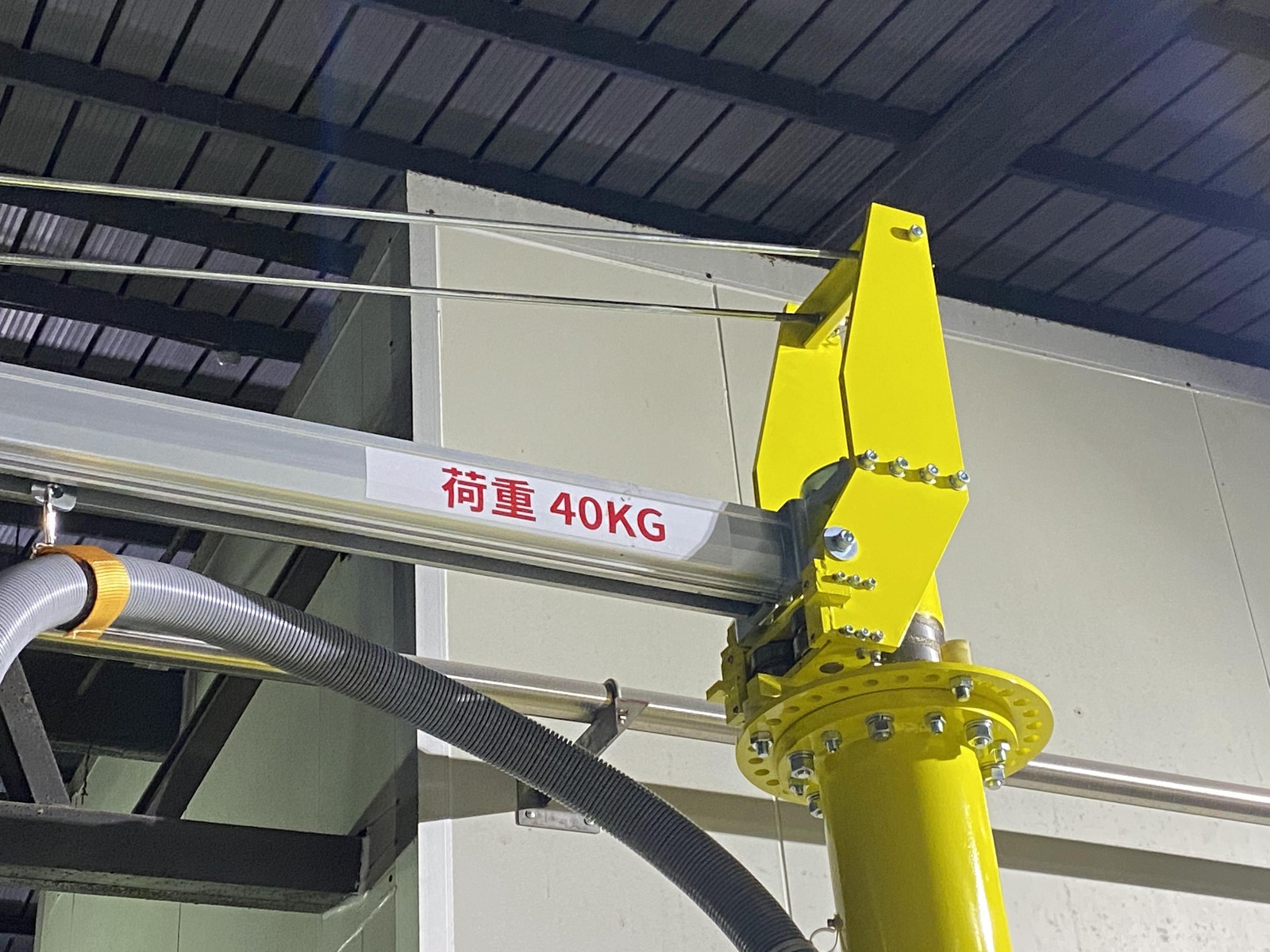

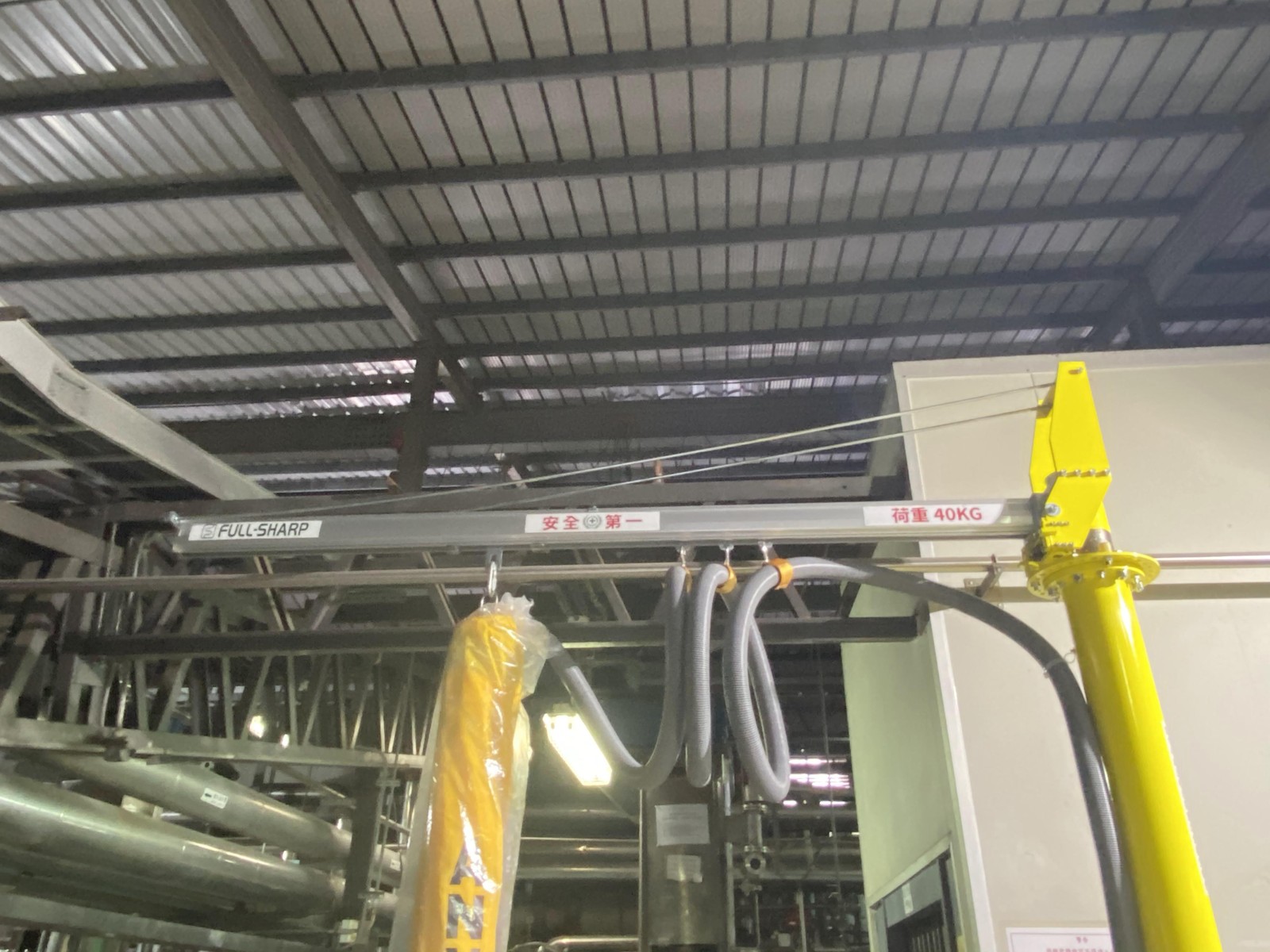

Aluminum rail jib arm: lightweight aluminum beam, rotates 360 degrees, with the trolley running smoothly along the arm.

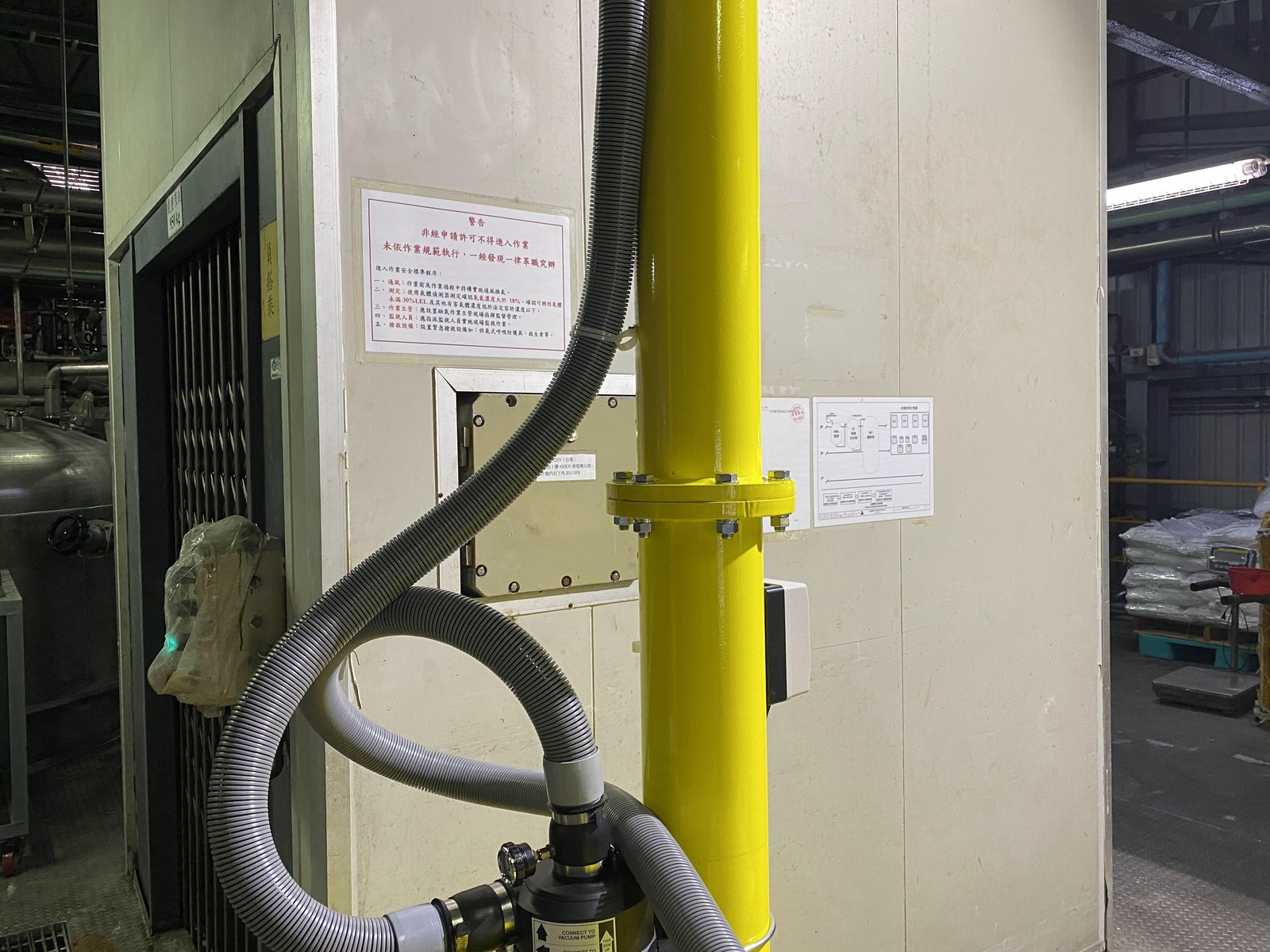

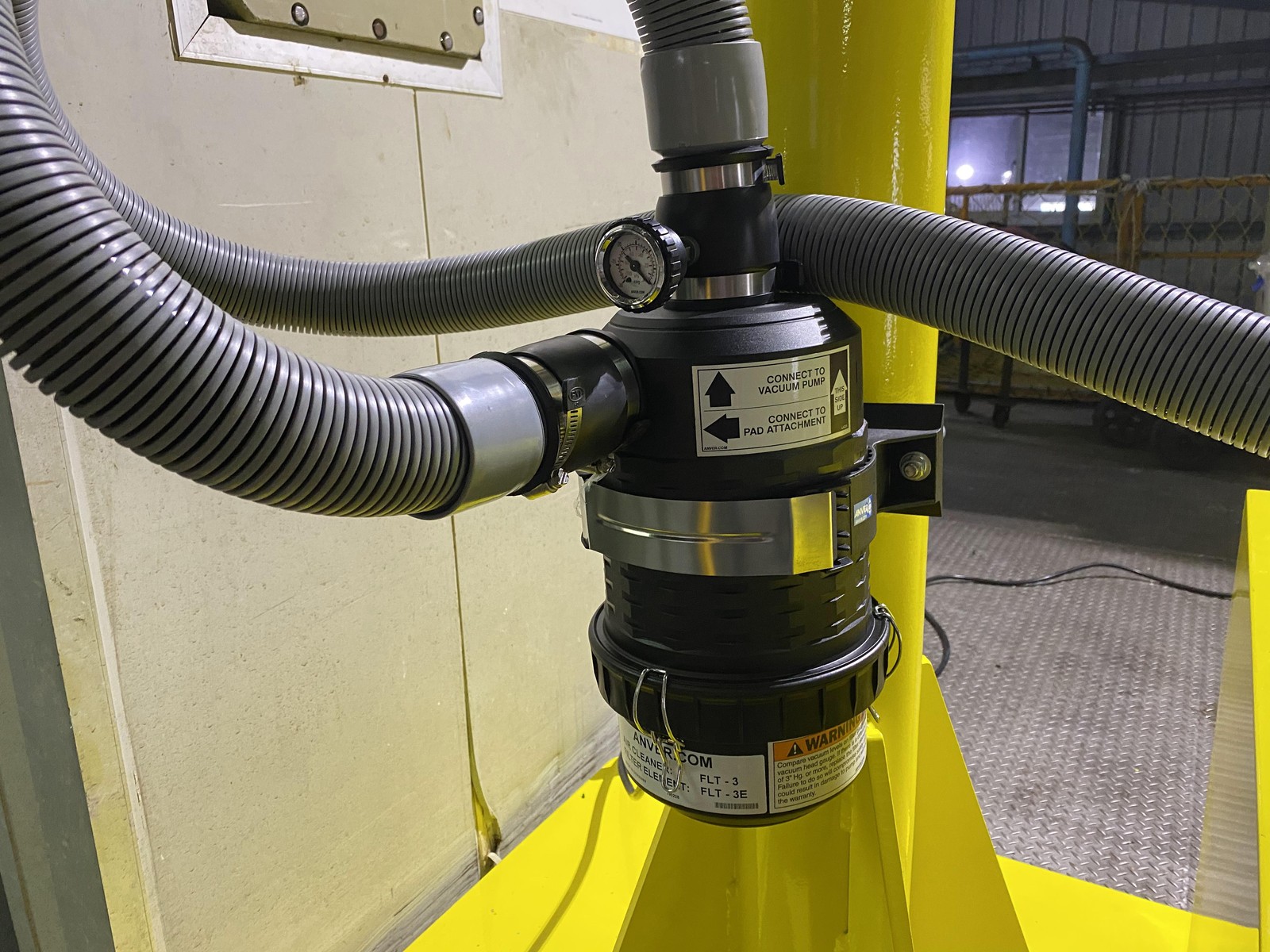

ANVER vacuum lifting device: flexible suction hose, raised and lowered with a lever on the handle.

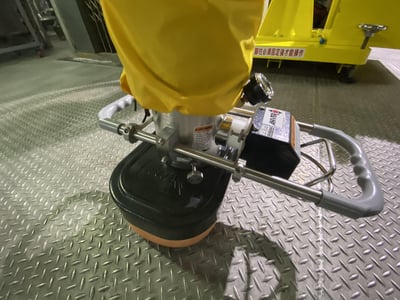

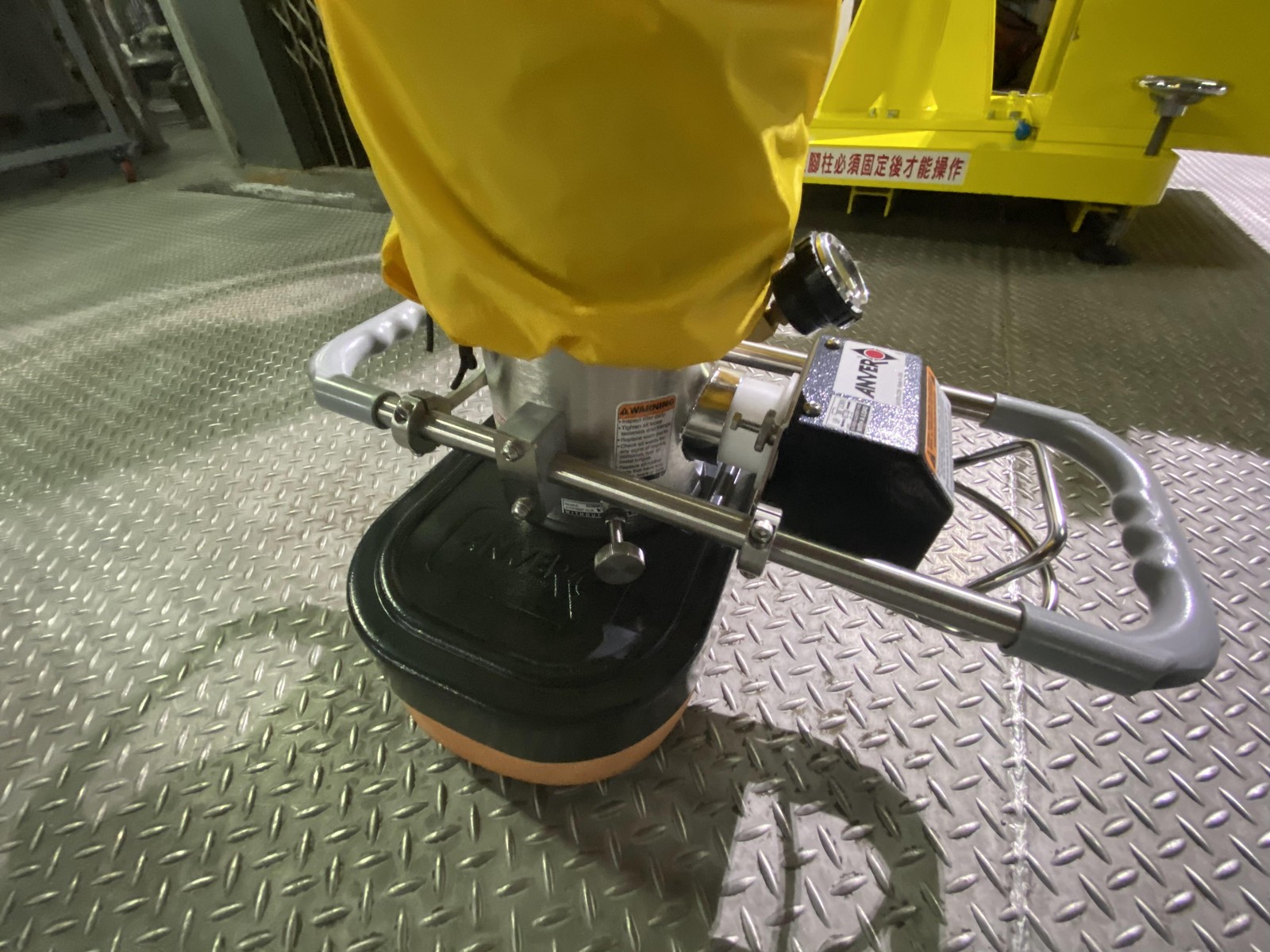

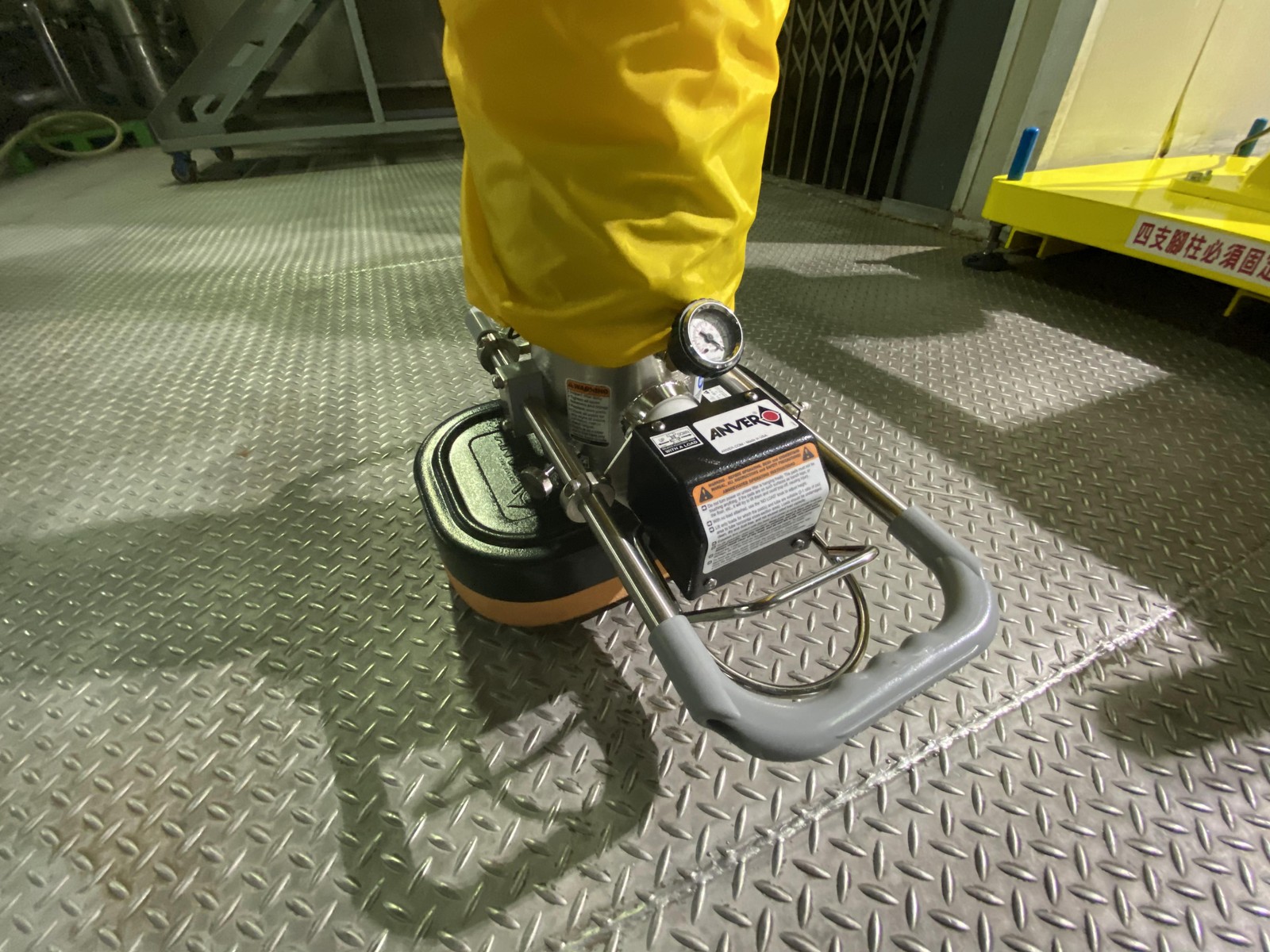

Suction head for soft materials: wide-area suction pad with evenly distributed force so the bag surface doesn't dent.

Key Specifications

Rotation angle360 degrees
Mounting typeMobile base
Lifting deviceANVER vacuum
Lifted itemsSoundproofing bags, acoustic panels

Benefits for Your Plant

Surface stays intact

The wide-area suction pad doesn't squeeze the bag's shell. Soundproofing material keeps its exact shape.

Safer to move around

The bag hangs from the suction head, so the operator sees the path clearly. Fewer bumps into scaffolding and equipment.

Follows the work

The mobile base pushes over to the area under construction. No need to install fixed units at each location.

Actual Installation Photos

Mobile Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Soundproofing Panels - ảnh 1

Mobile Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Soundproofing Panels - ảnh 2

Mobile Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Soundproofing Panels - ảnh 3

Mobile Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Soundproofing Panels - ảnh 4

Mobile Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Soundproofing Panels - ảnh 5

Mobile Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Soundproofing Panels - ảnh 6

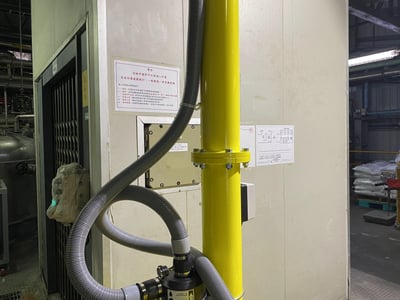

Mobile Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Soundproofing Panels - ảnh 7

Mobile Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Soundproofing Panels - ảnh 8

Mobile Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Soundproofing Panels - ảnh 9

Mobile Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Soundproofing Panels - ảnh 10

Mobile Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Soundproofing Panels - ảnh 11

Mobile Aluminum Rail Jib Crane with ANVER Vacuum Lifter for Soundproofing Panels - ảnh 12

Click a photo to enlarge. 12-photo album taken on site.

Suitable Applications

Soundproofing system installation
Acoustic panel installation in plants
Insulation material manufacturing plants
Storage of light materials prone to denting

Installation Consulting for Your Plant

FullSharp surveys the size, weight, and shell material of the soundproofing bags to choose a suction head that won't damage the surface. We also check the floor where the mobile base will stand and the working radius needed. Contact FullSharp to schedule an on-site survey.
