The bagging area is the most physically demanding spot in the plant: workers carry each bag by hand from the conveyor to the pallet, a few hundred trips per shift of bending and lifting. Bags are heavy with slippery surfaces, and stacking above head height easily causes drops and back or shoulder injuries.

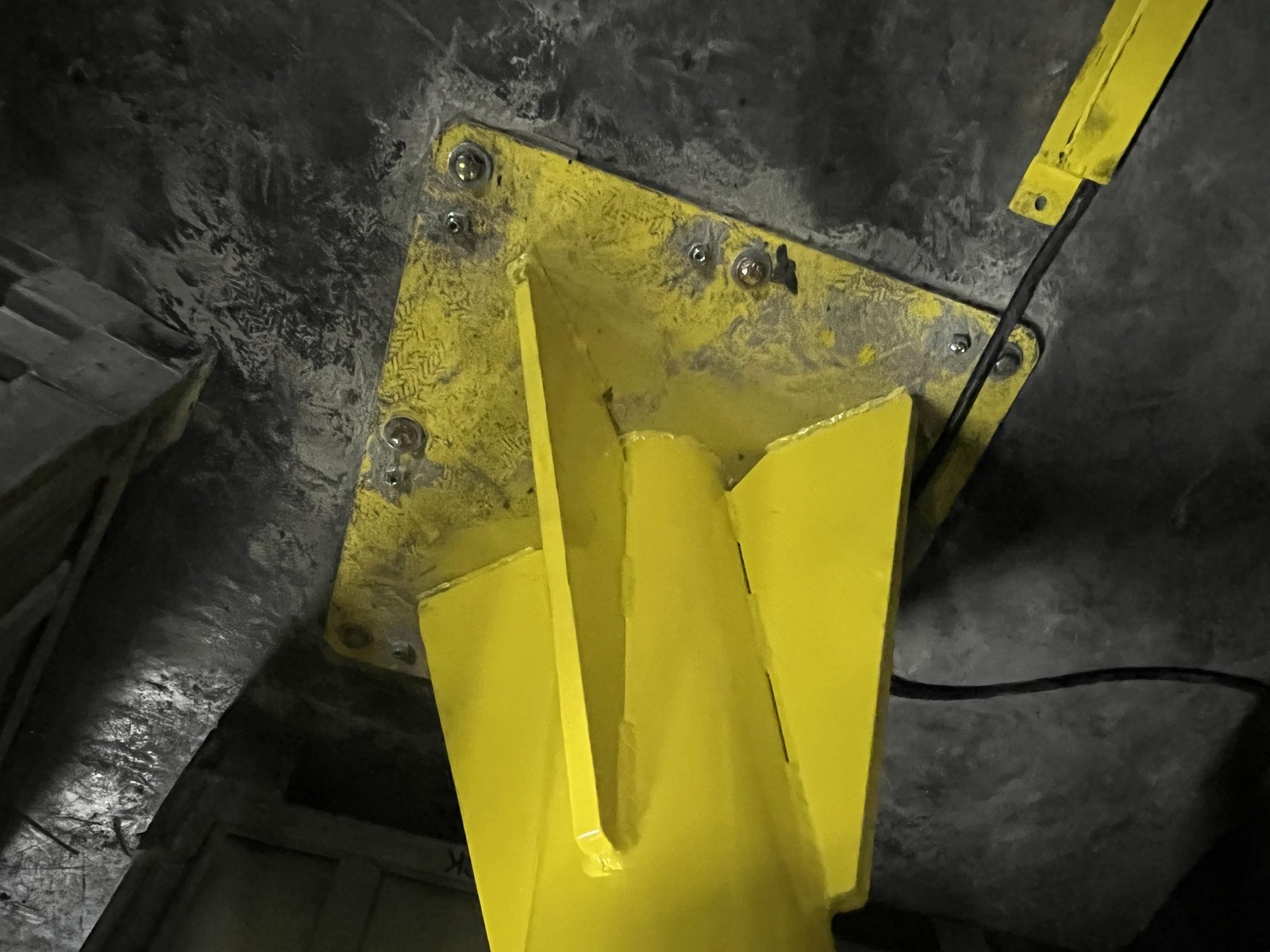

FullSharp installs a lightweight aluminum-rail jib crane suspended overhead, combined with an ANVER vacuum tube lifter. The operator presses the suction pad onto the bag, pulls the handle to lift it, and pushes gently along the rail to the stacking position. The lifting force comes from the vacuum pump, while the operator's hand only guides direction.

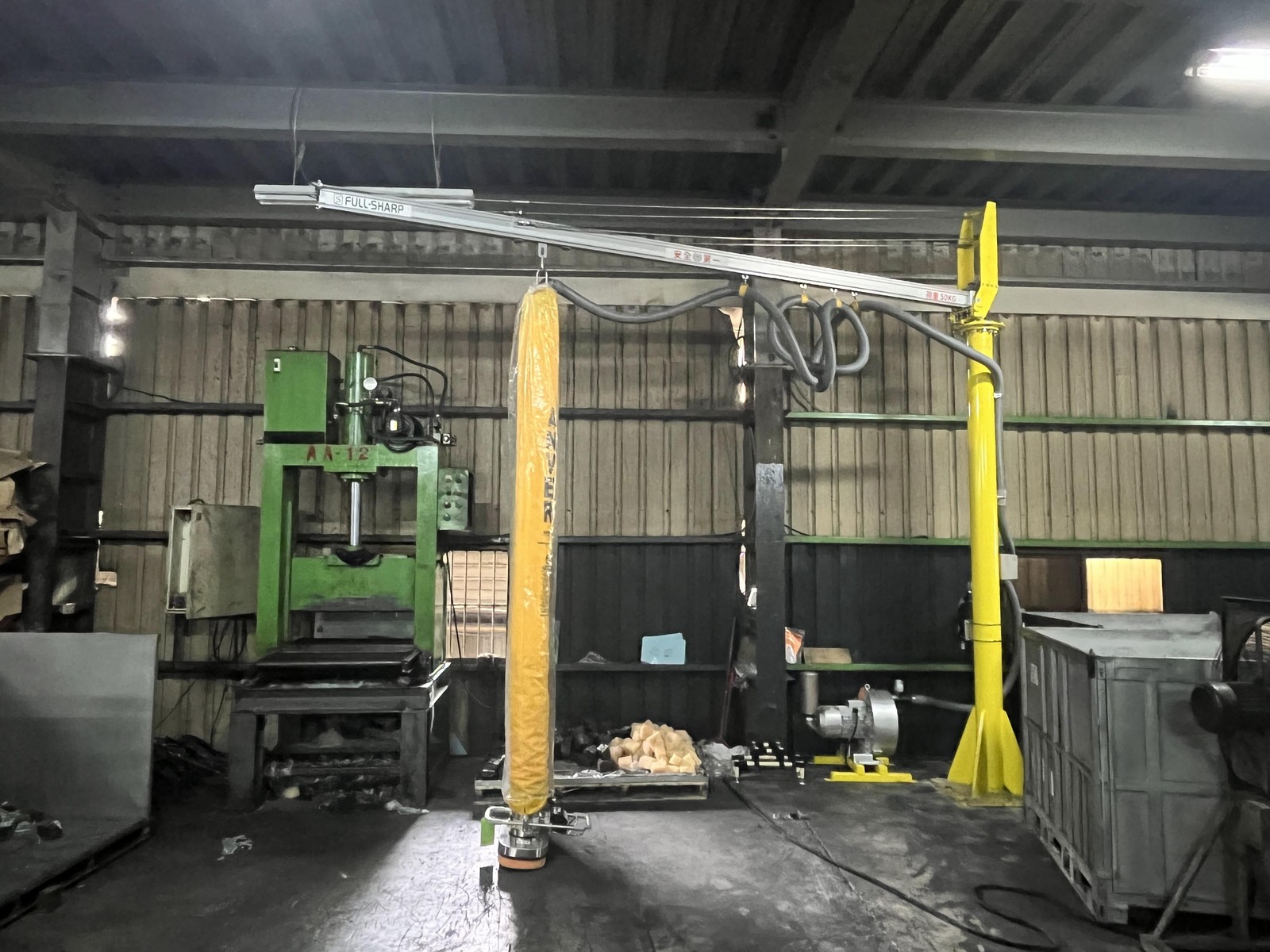

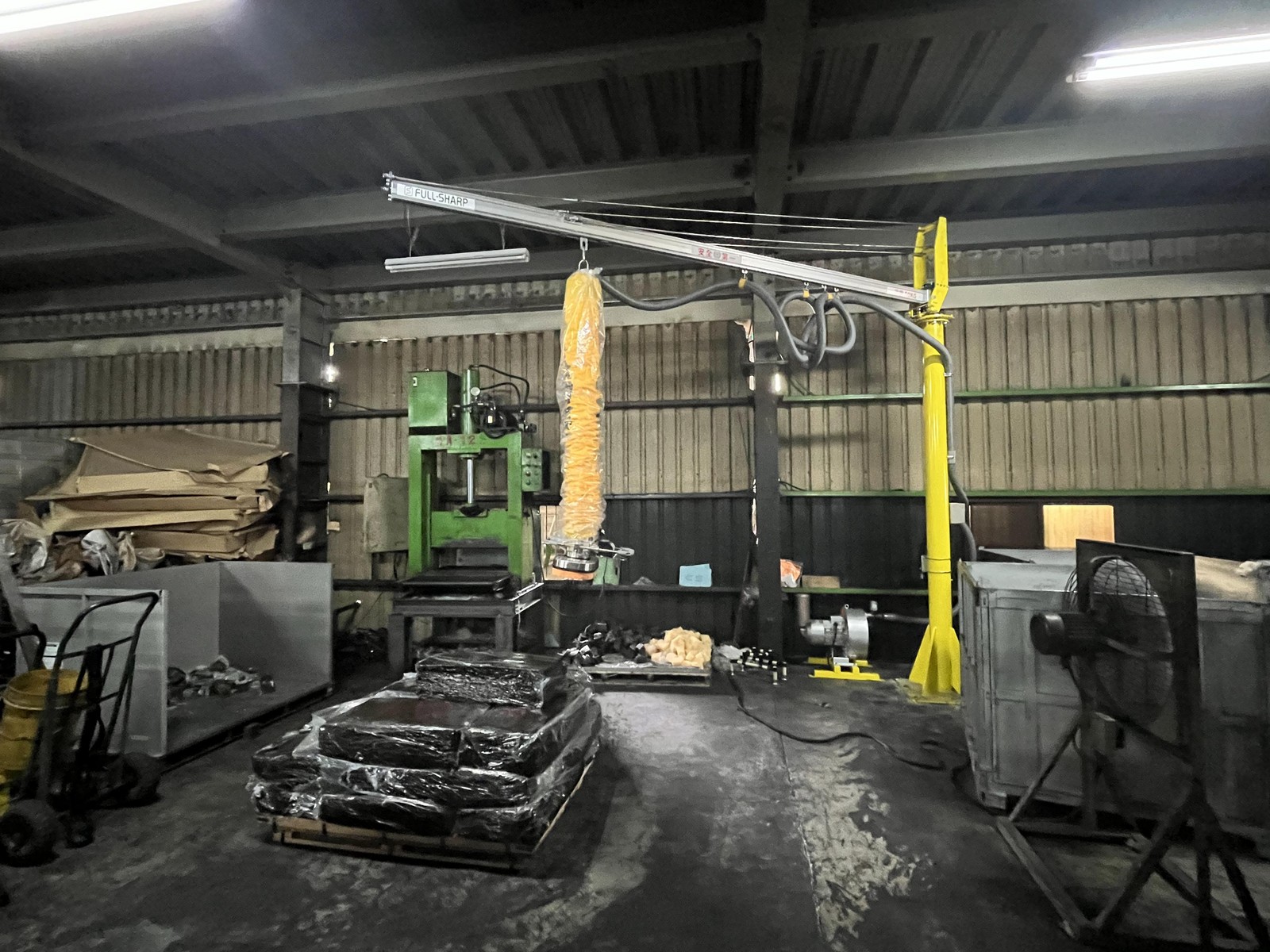

An ANVER vacuum tube lifter suspended on an aluminum-rail jib crane, lifting a bag in the plant's bagging area.
Equipment Included

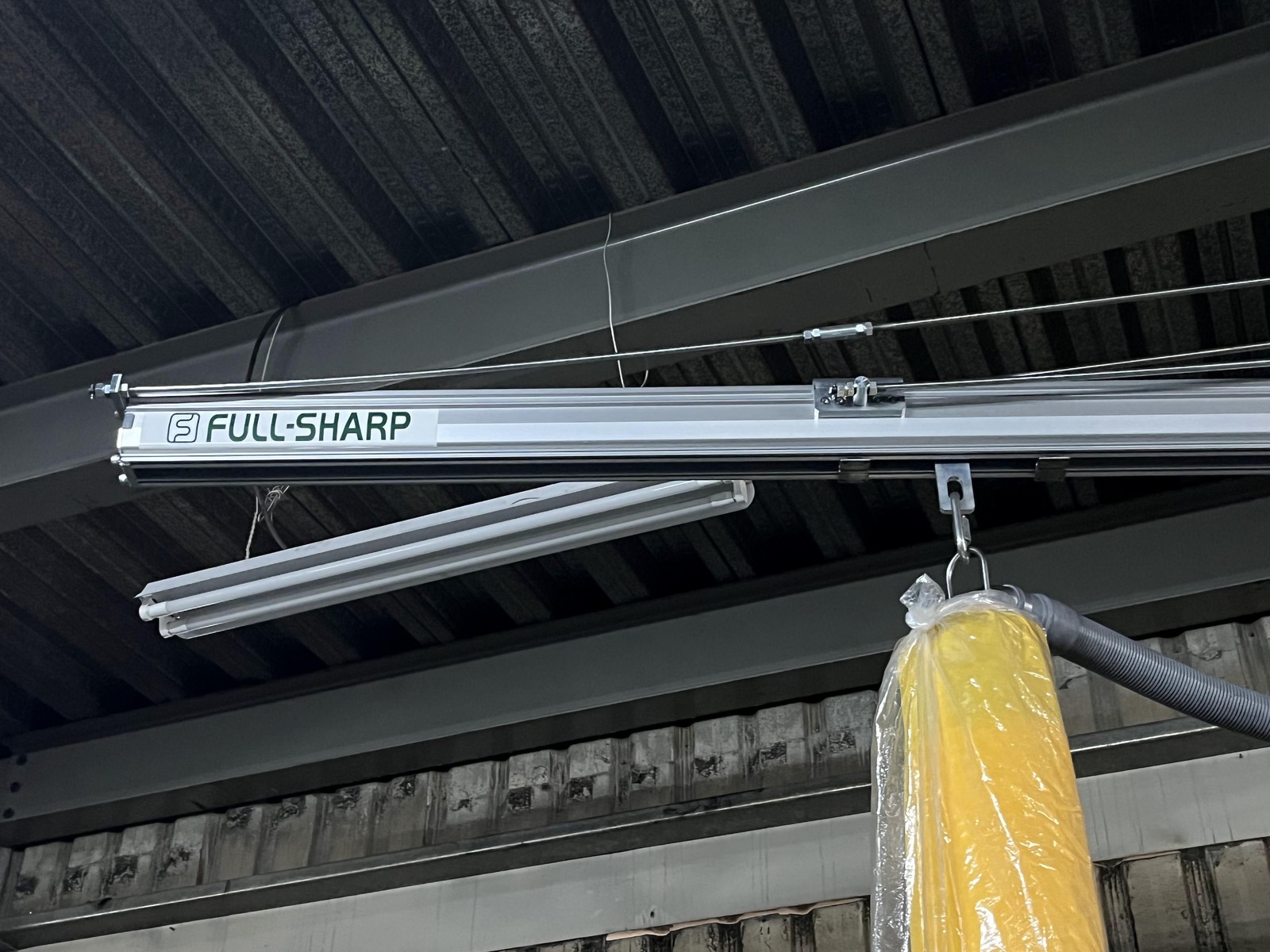

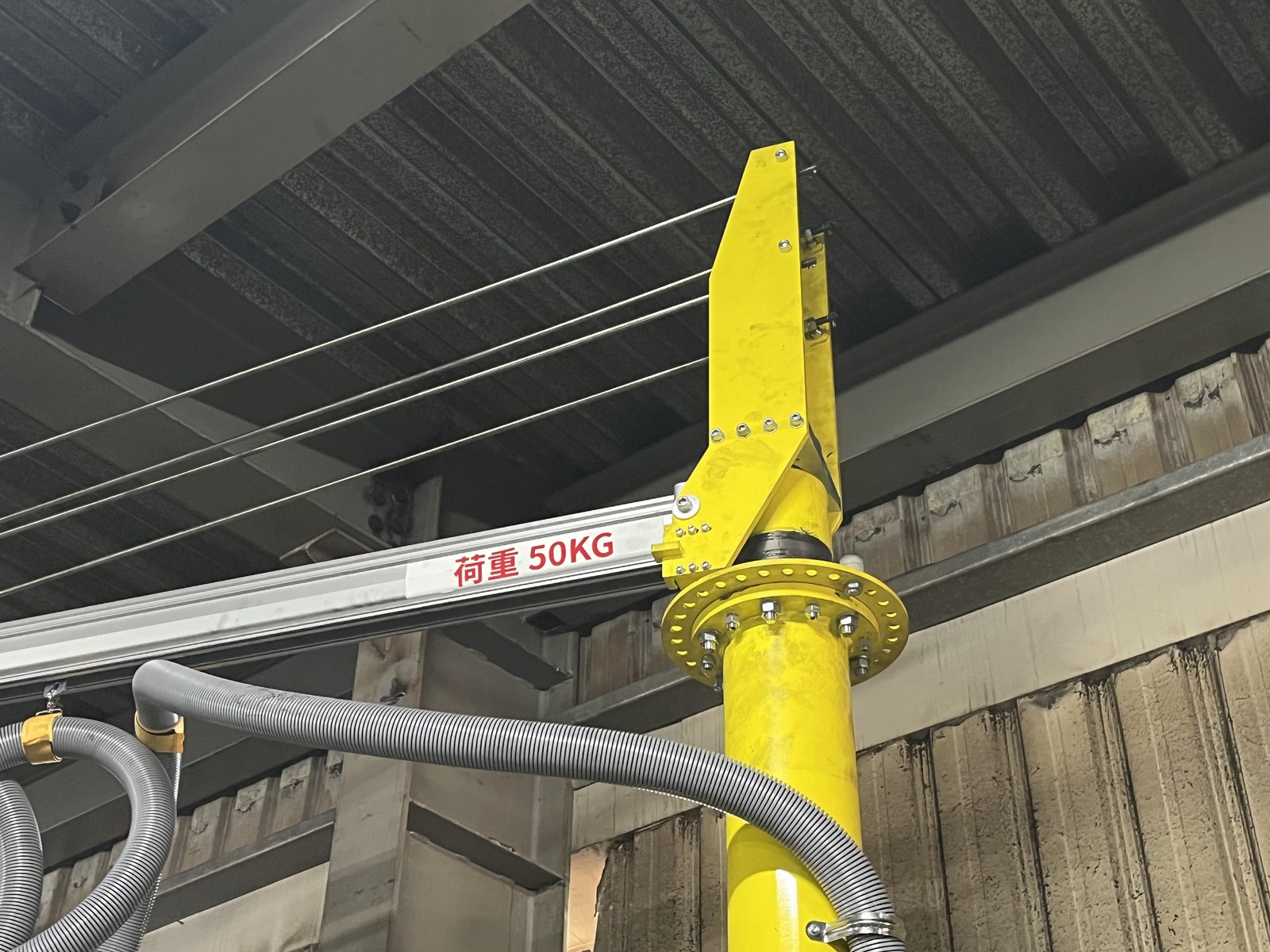

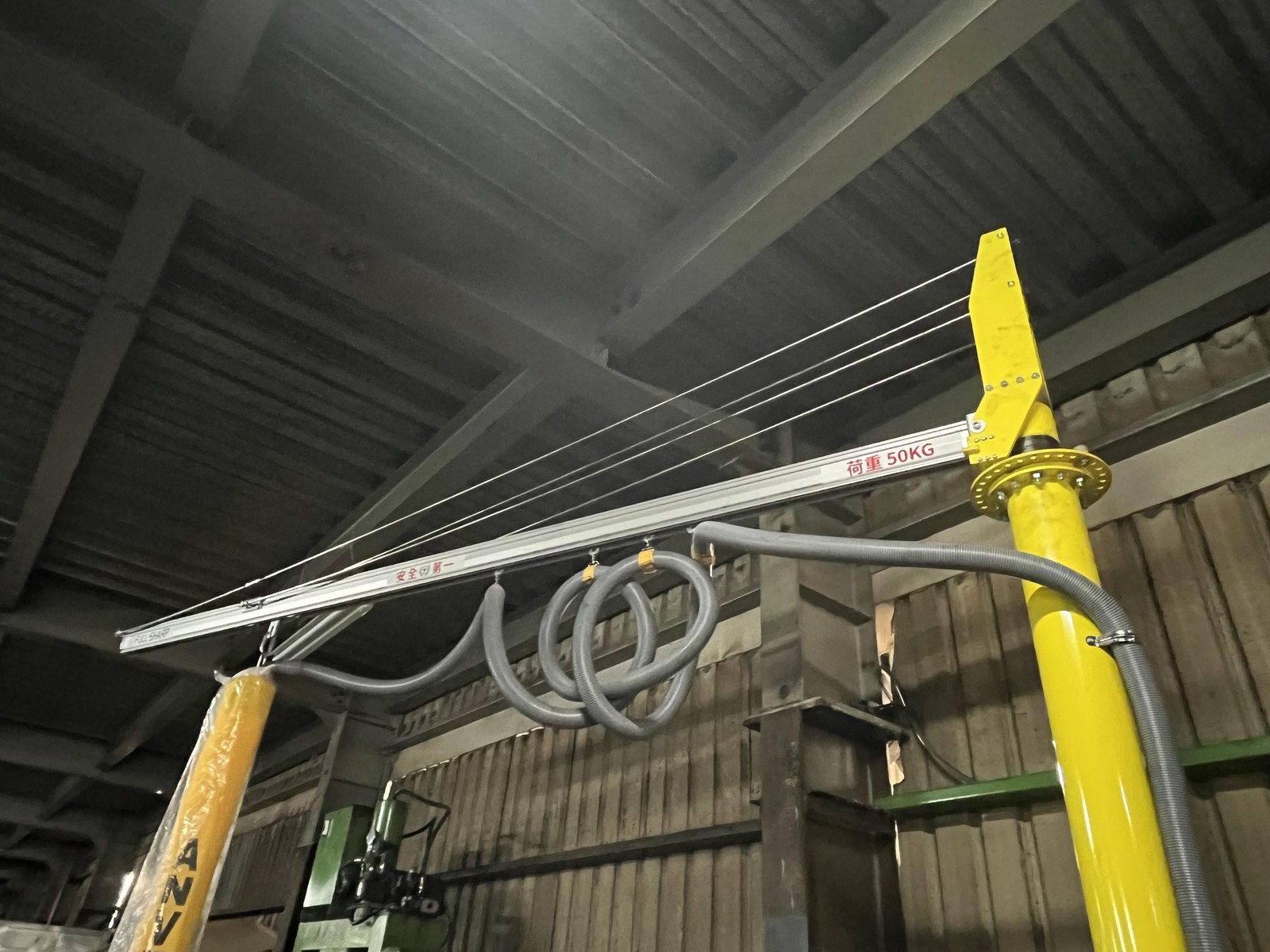

- Aluminum rail and rotating arm: lightweight aluminum rail with a smooth-running trolley, so a light push spins the arm without the drag of a steel rail.

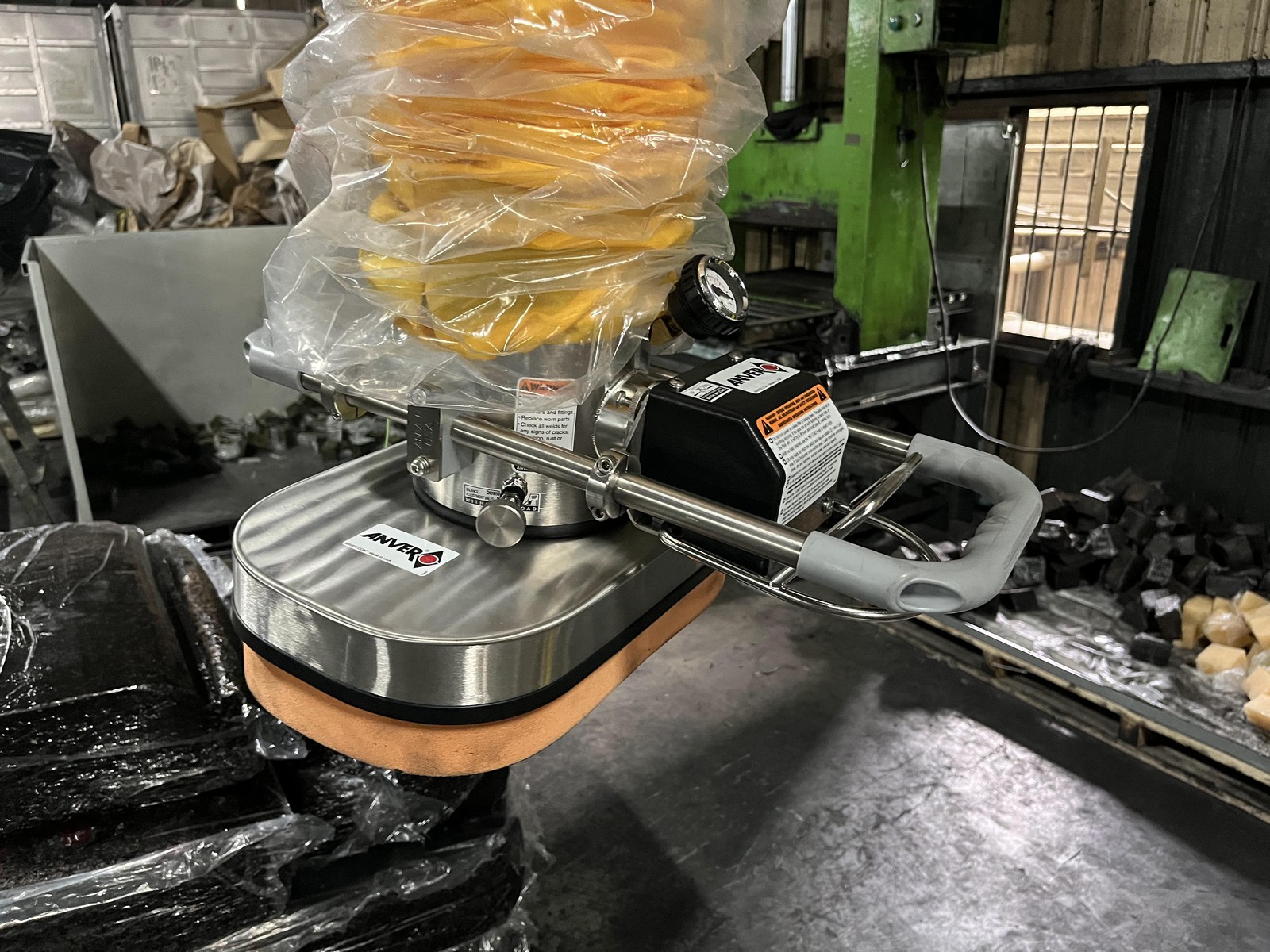

- ANVER vacuum tube lifter: the flexible bellows tube extends with the lifting stroke, raised and lowered by a squeeze on the handle.

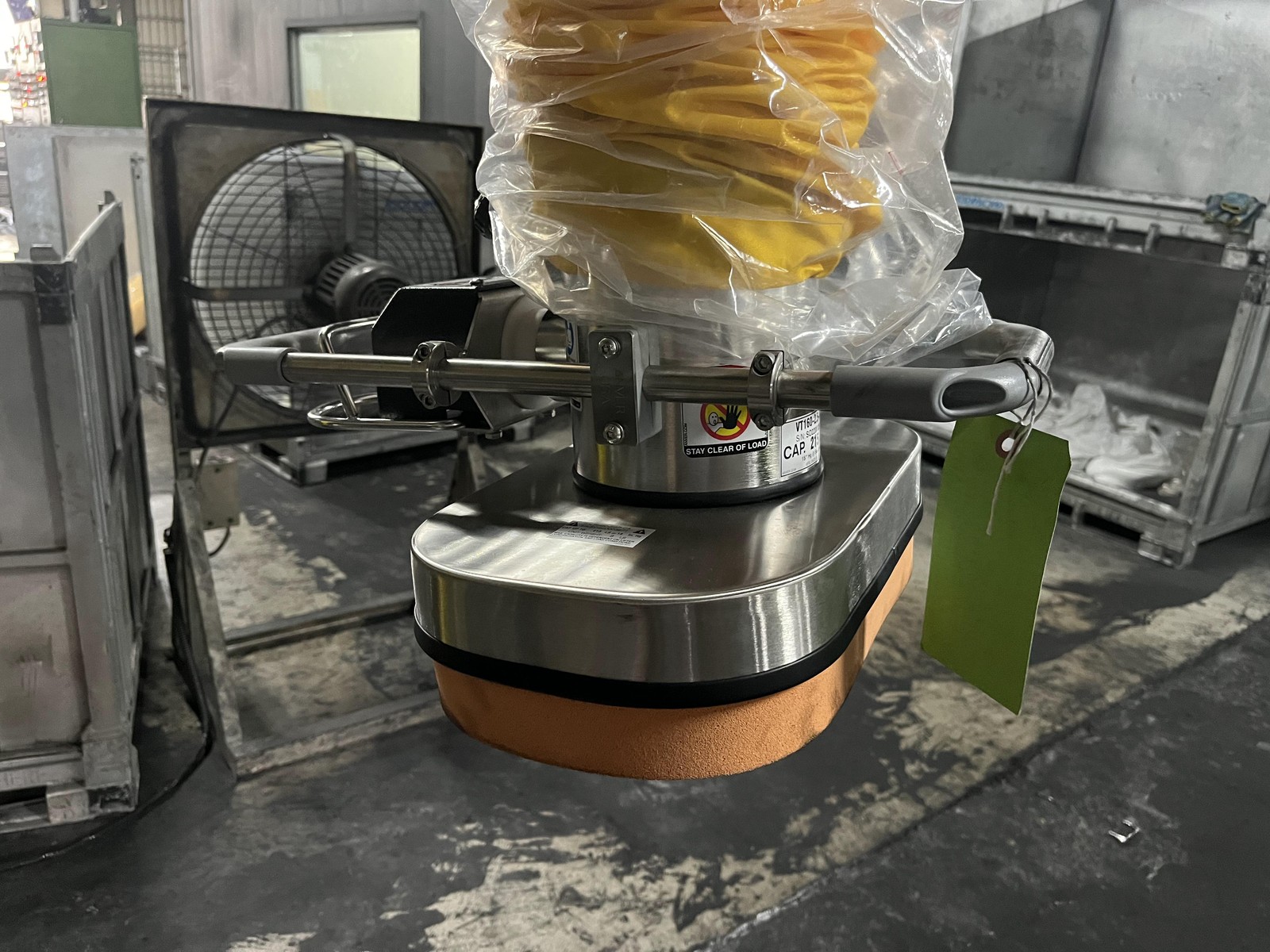

- Bag-specific suction pad: grips evenly onto PP woven or paper bag surfaces without tearing the bag's mouth.

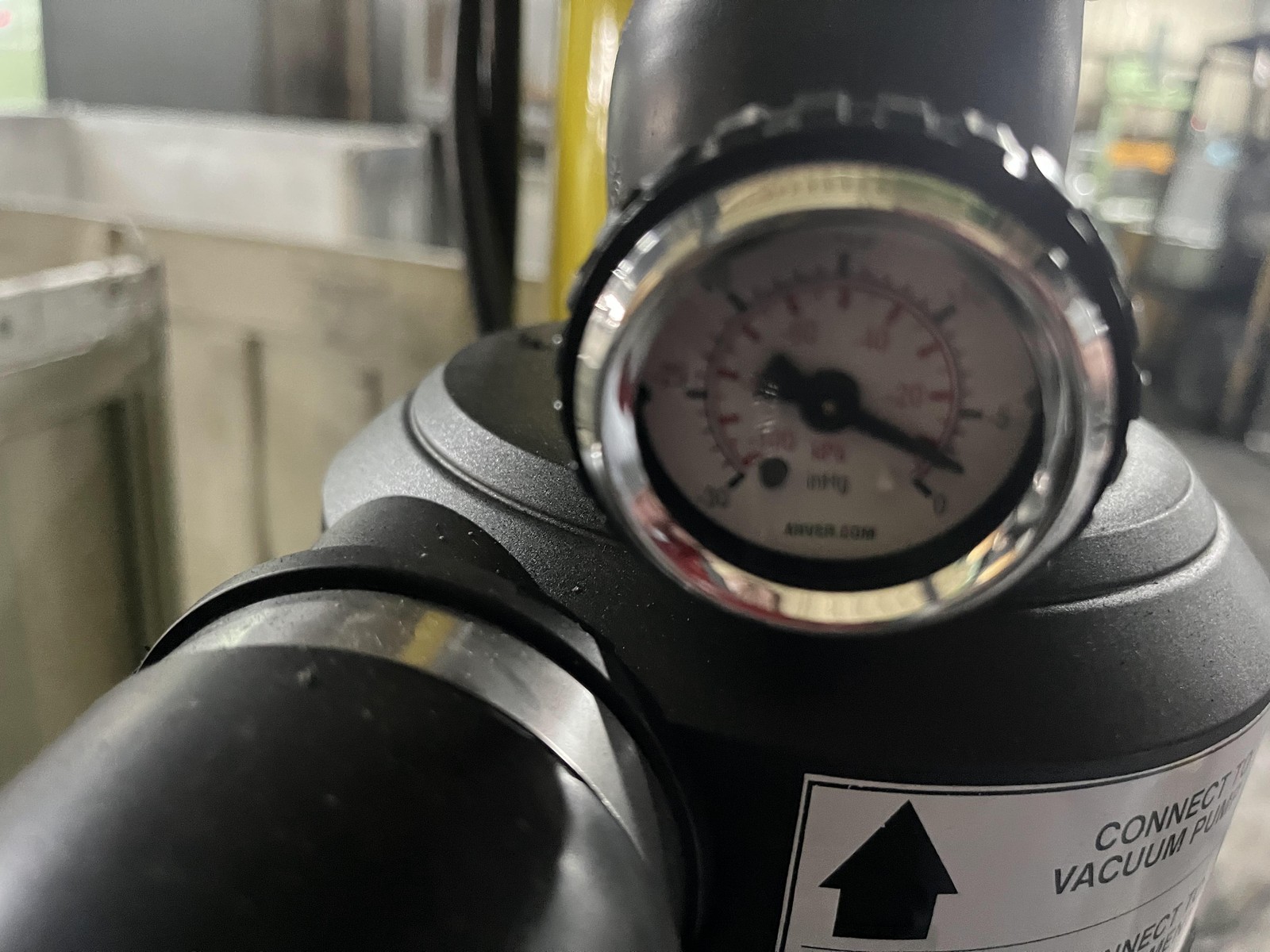

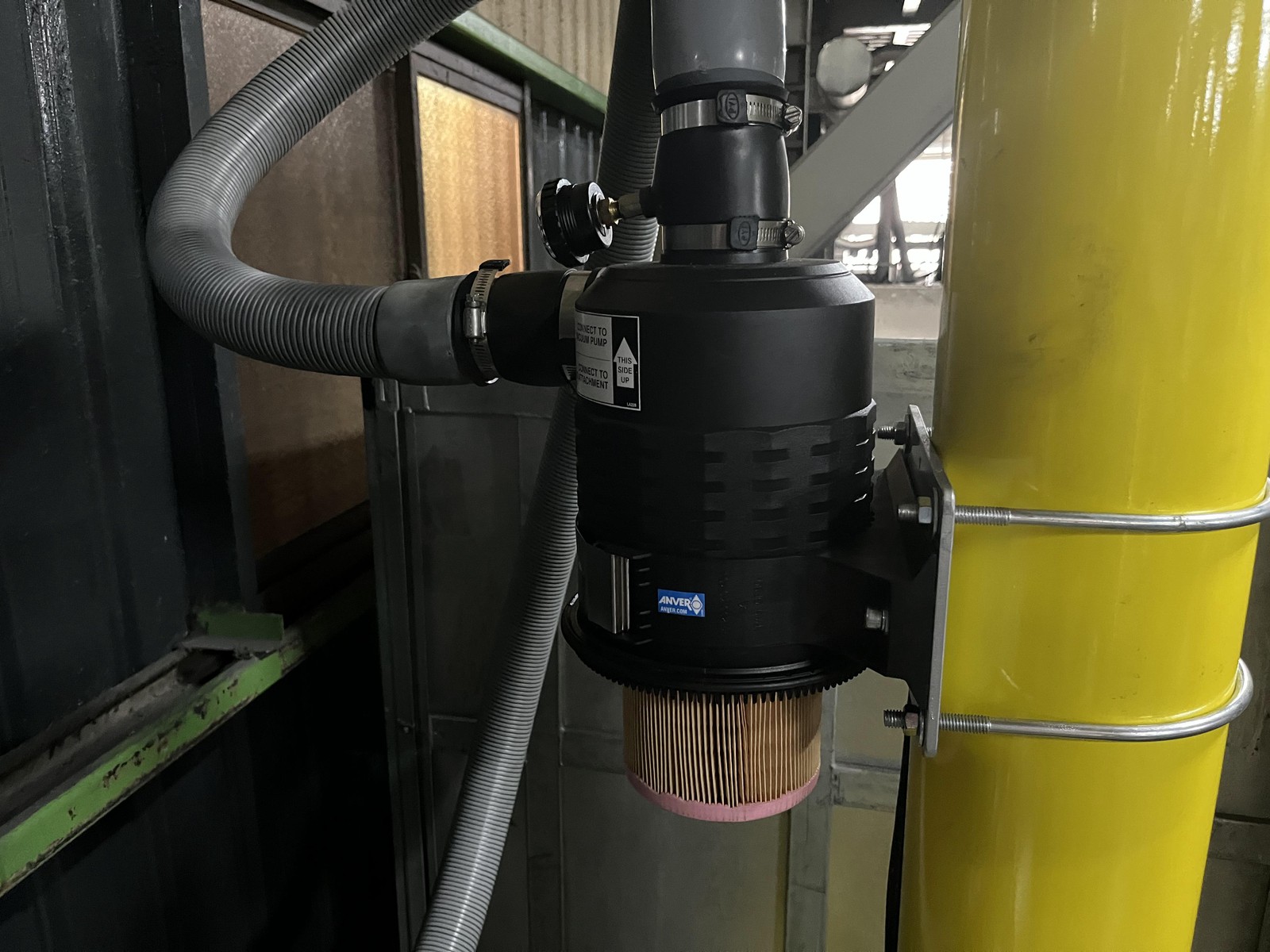

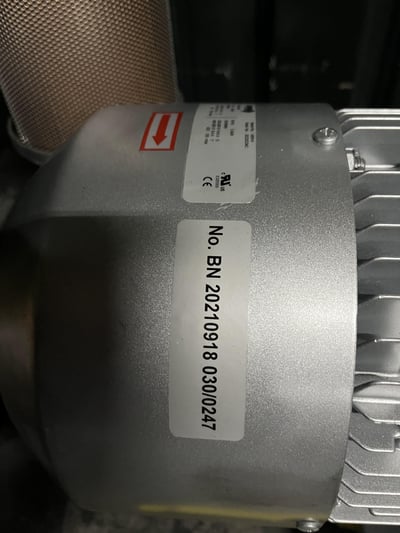

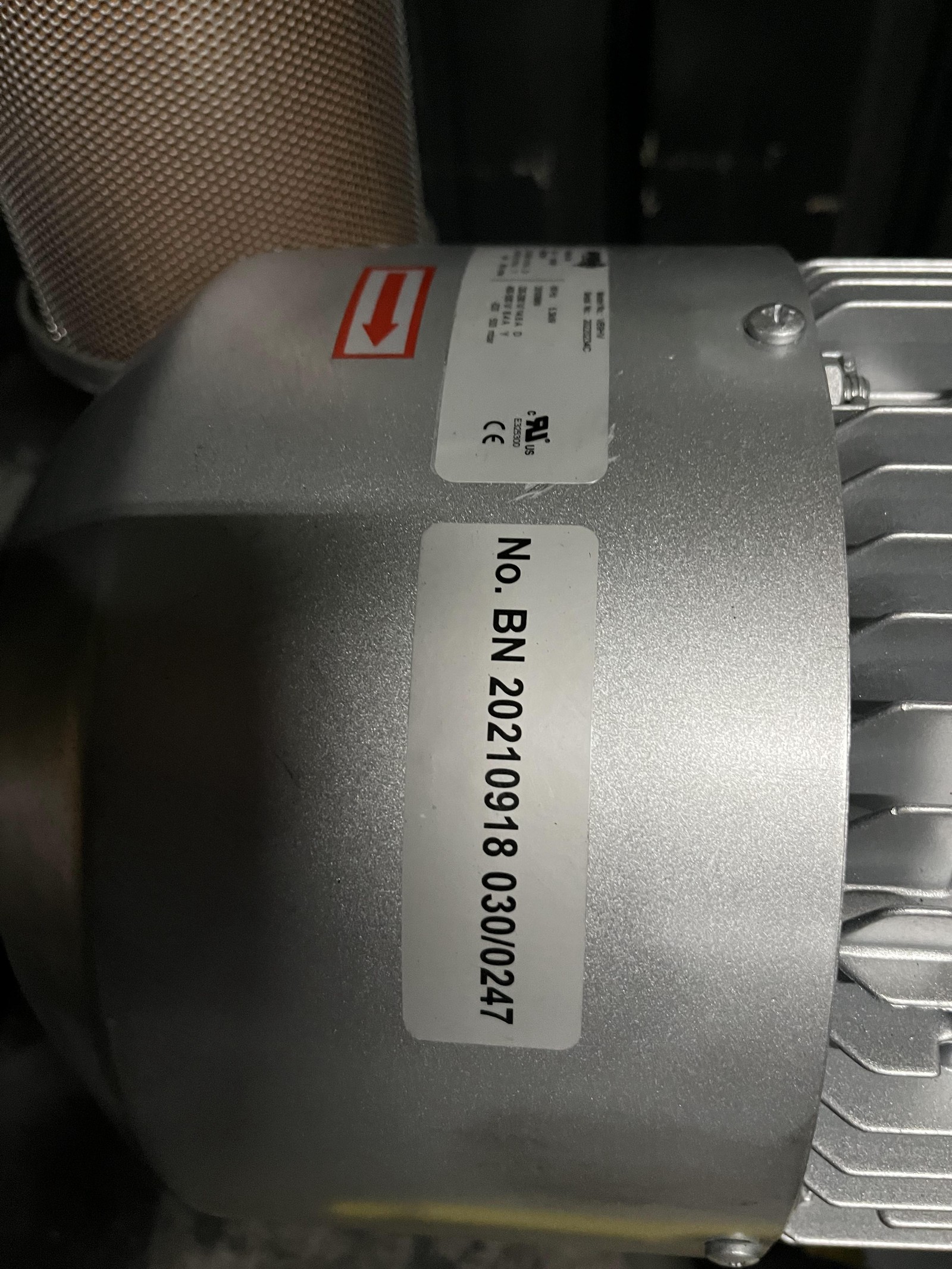

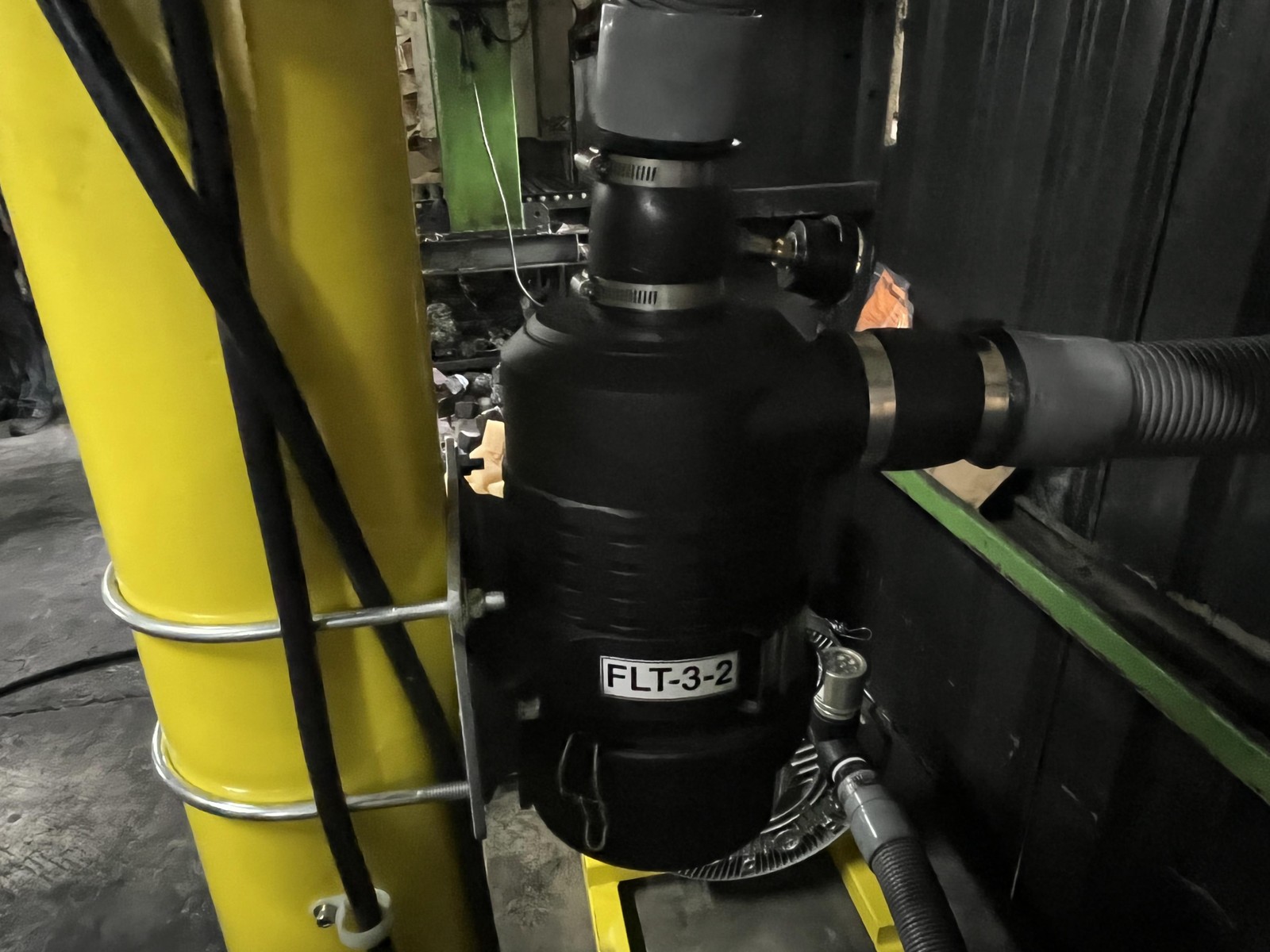

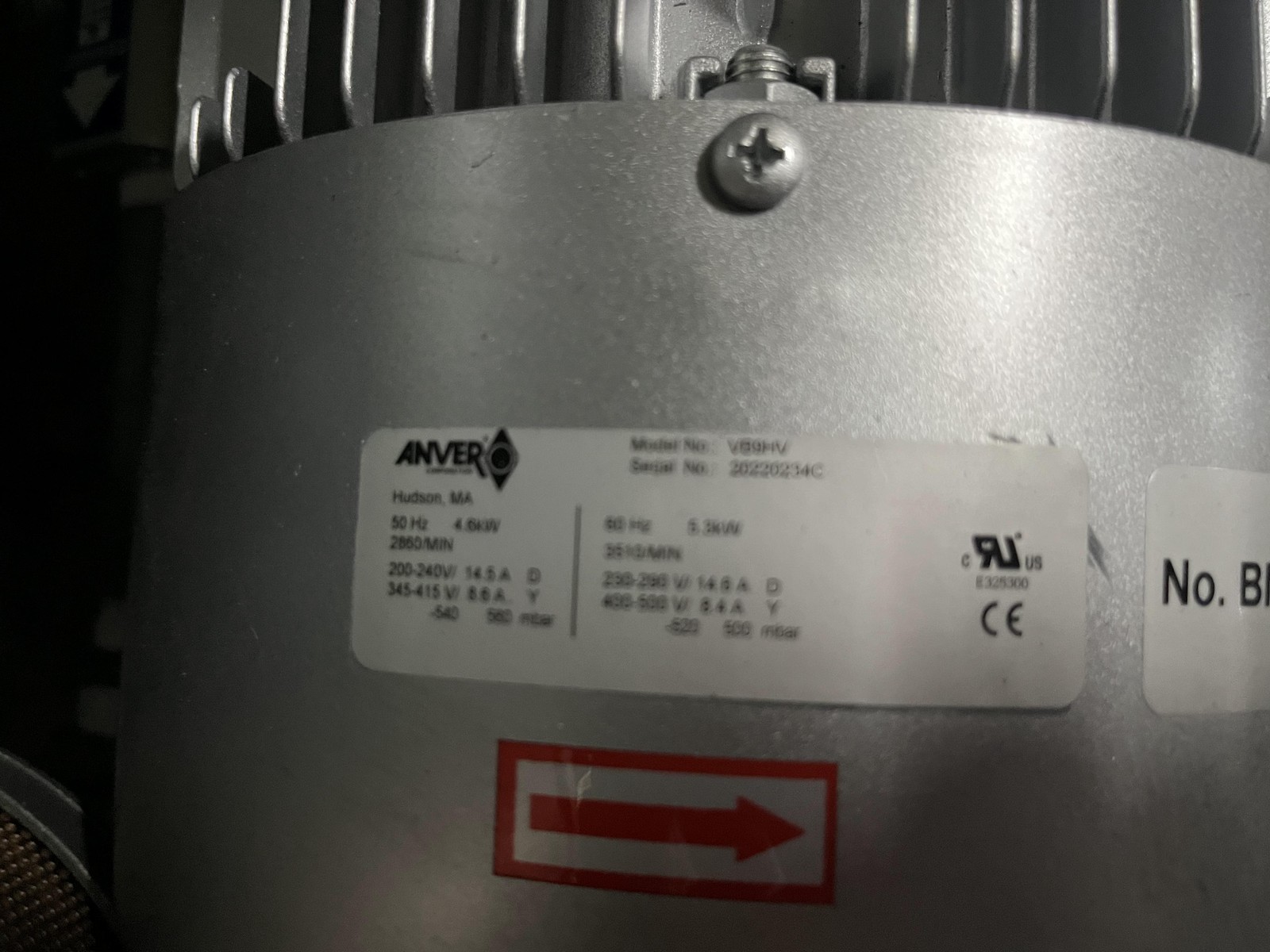

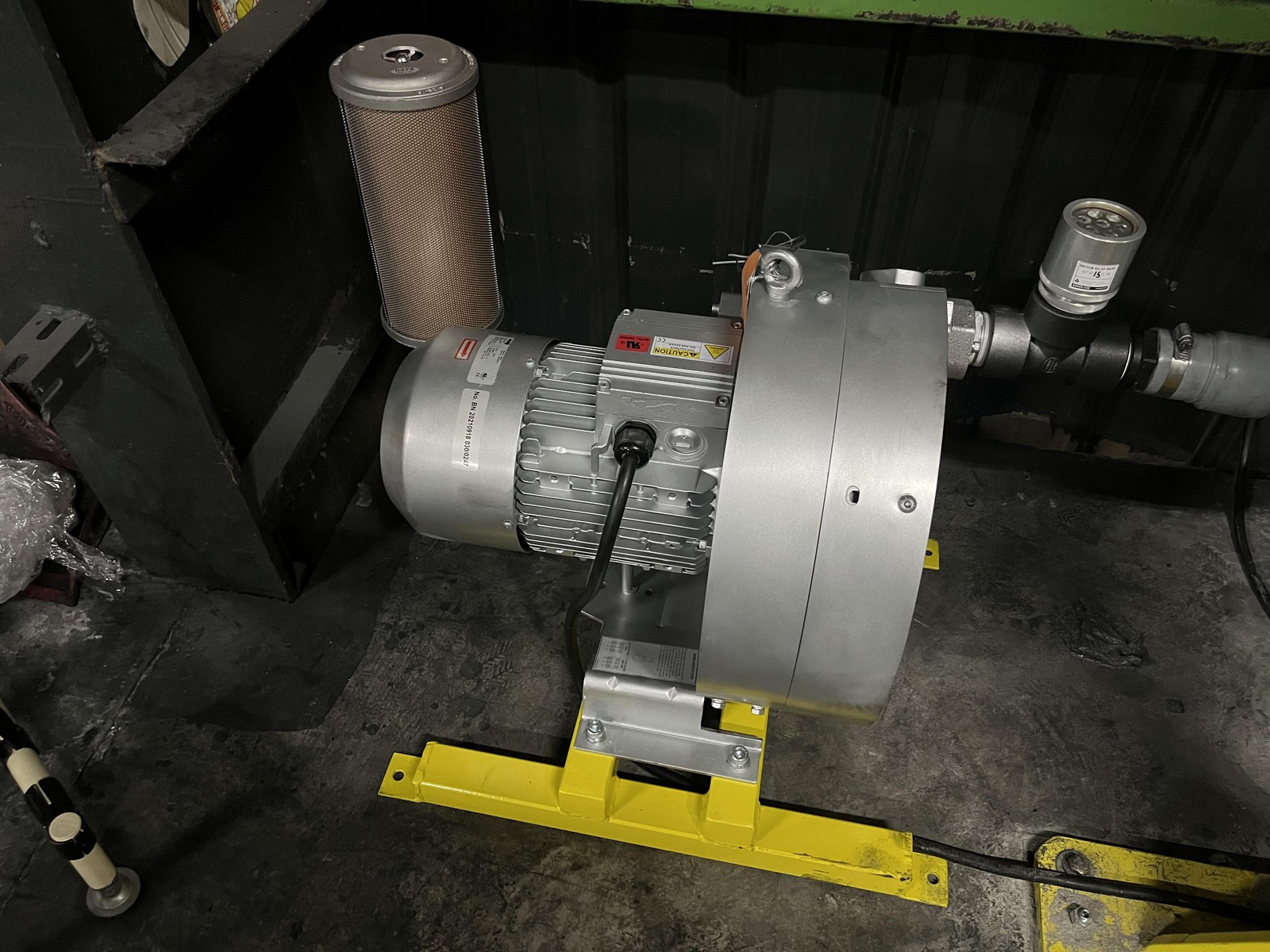

- Vacuum pump: runs continuously, keeping a stable vacuum so the bag doesn't slip mid-lift.
- Vacuum-hold valve: if power or pressure drops, the bag stays held instead of free-falling.
Key Specifications
- Lifting device typeANVER vacuum tube lifter
- Rail structureAluminum rail
- Installation photos17 photos
Benefits for Your Facility
No more shouldering bags
Workers only guide direction, while the vacuum handles all the lifting force, sharply cutting back injuries.
Faster stacking
The suck, lift, swing, and place cycle takes just seconds, so one person does the work that used to take two.
Lightweight aluminum rail
The aluminum rail reduces the load on the ceiling structure and lets the trolley run smoothly with a light push.
Real Installation Photos
Click a photo to enlarge. Album of 17 photos taken on site.
Suitable Applications
- Cement, fertilizer, and chemical bagging plants
- Plastics workshops receiving bagged raw pellets
- Animal feed, flour, and rice mills
- Warehouses and distribution centers stacking bags on pallets
Related Products and Projects
Consultation for Your Facility
FullSharp visits the plant to measure the ceiling height, the rail length needed to cover the area, and to test-weigh your actual bags. We take a sample of the bag material to select the right suction pad, then propose the aluminum rail layout and ANVER tube lifter size. Contact FullSharp to schedule a survey.
