Articulating Jib Crane, Air Balancer & Box Lifter

The work area has many obstacles, so a straight jib crane cannot reach every pickup and drop-off point. Workers have to carry boxes around the obstacles, which is slow and tiring on the arms throughout the shift.

FullSharp uses an articulating jib crane on a mobile base so the arm can fold around obstacles, combined with a FullSharp air balancer and a vacuum carton lifter tool. The air balancer keeps the box balanced at any height, so the operator only needs a light push in the direction it should go.

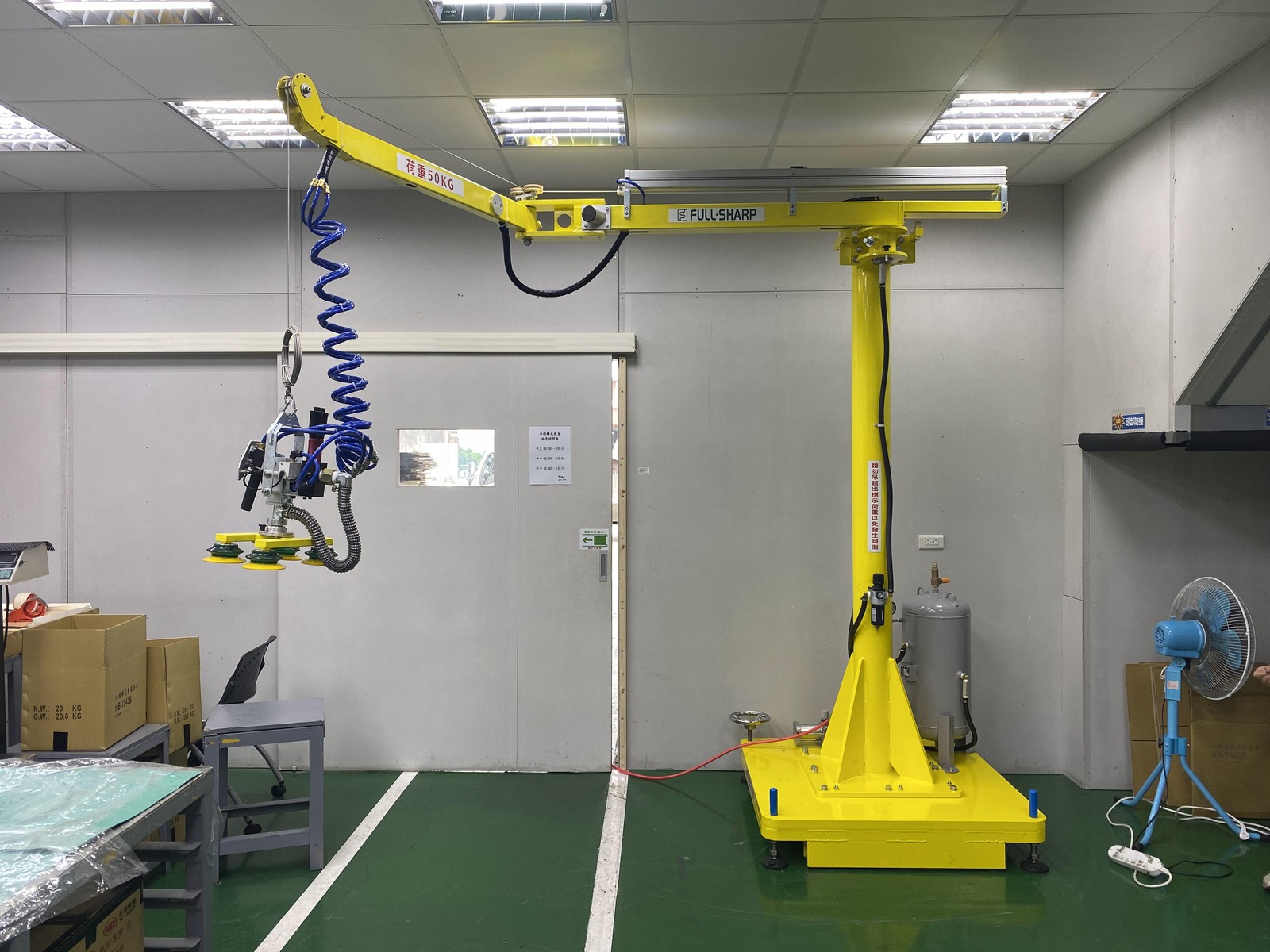

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter

Articulating jib crane on a mobile base with a FullSharp air balancer and a vacuum carton lifter tool.

Installed Equipment

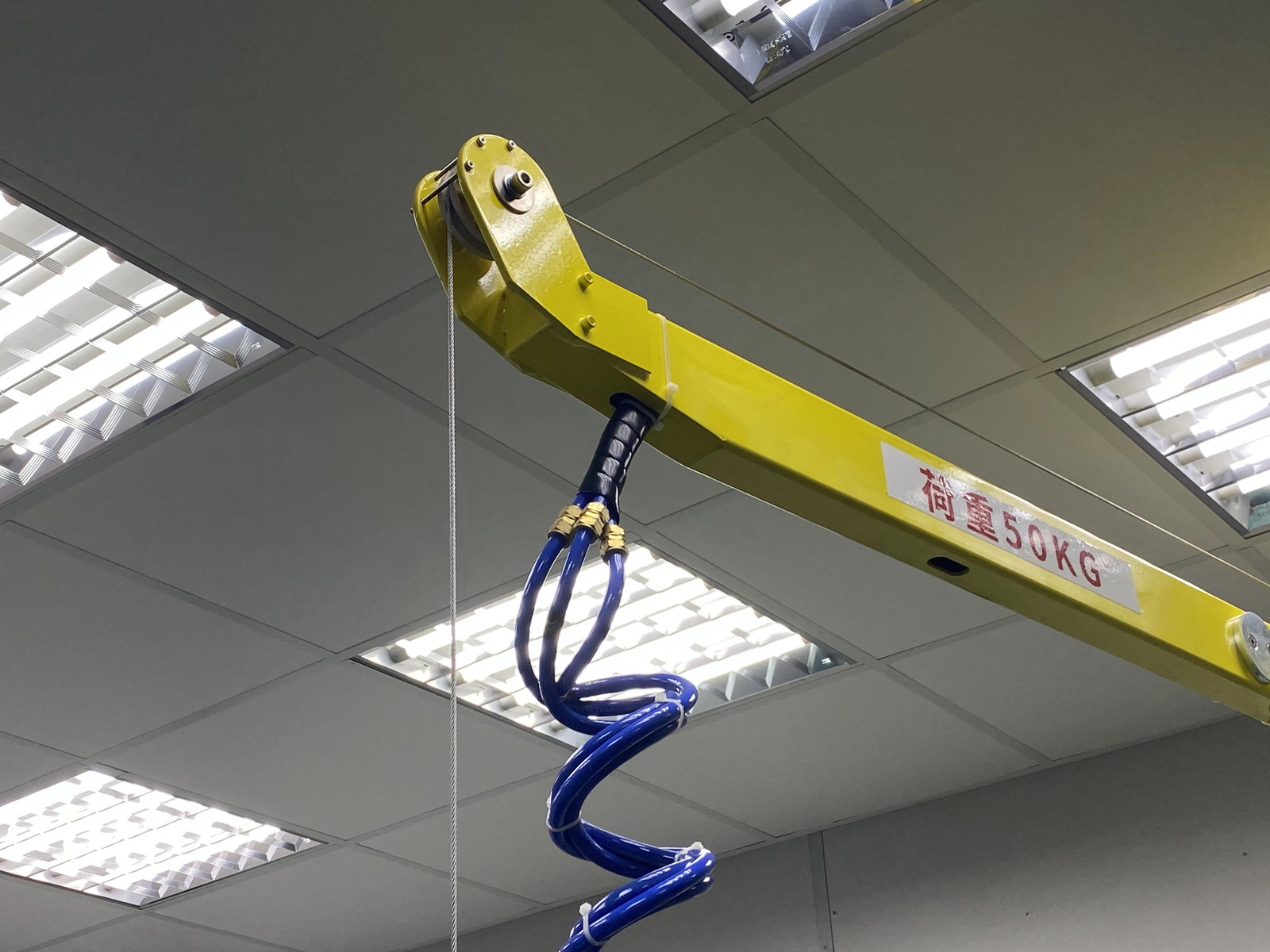

Articulating jib arm: two folding sections reach hidden spots that a straight arm cannot.

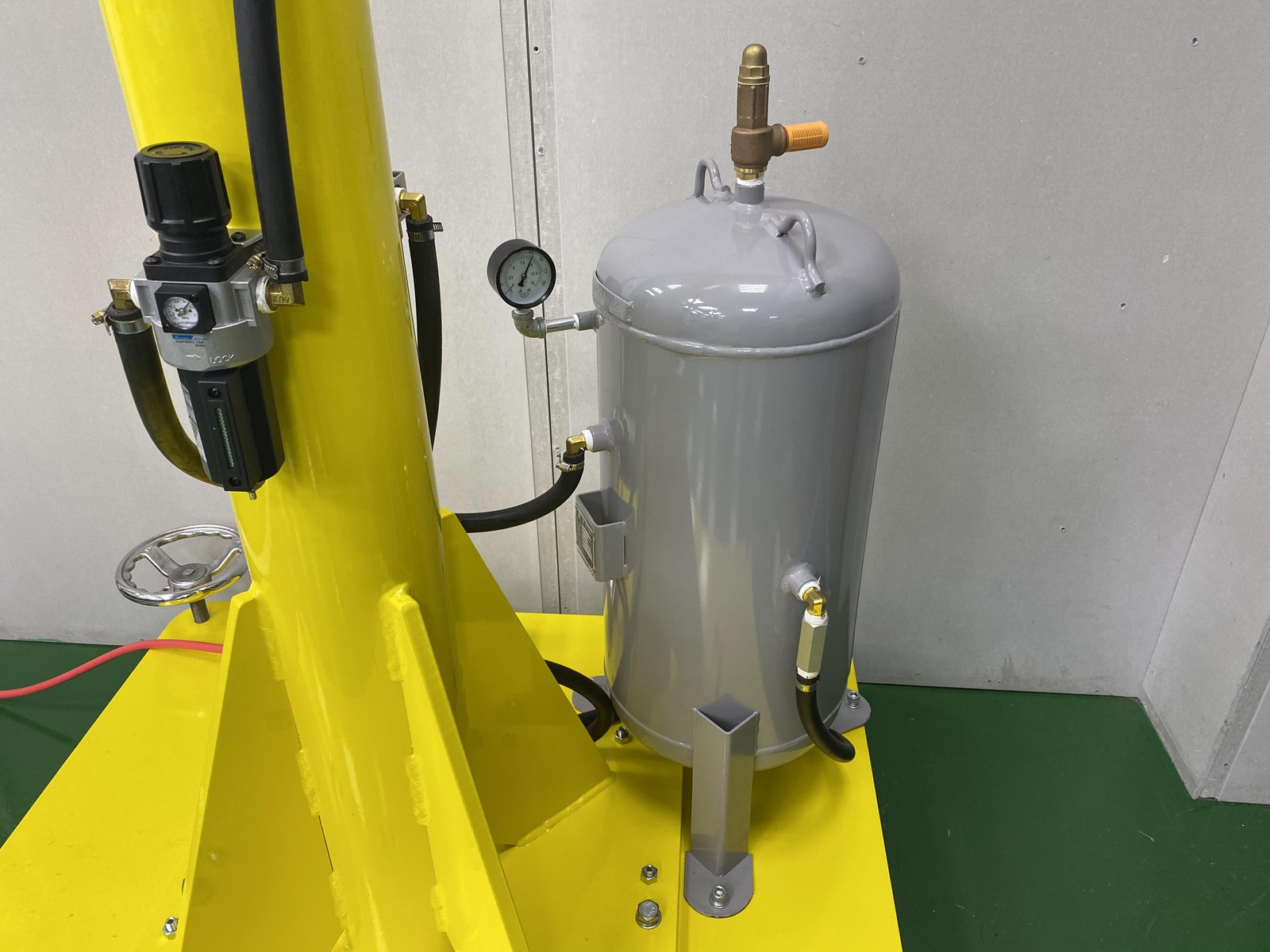

FullSharp air balancer: balances the box's weight with compressed air; the box stays still when released.

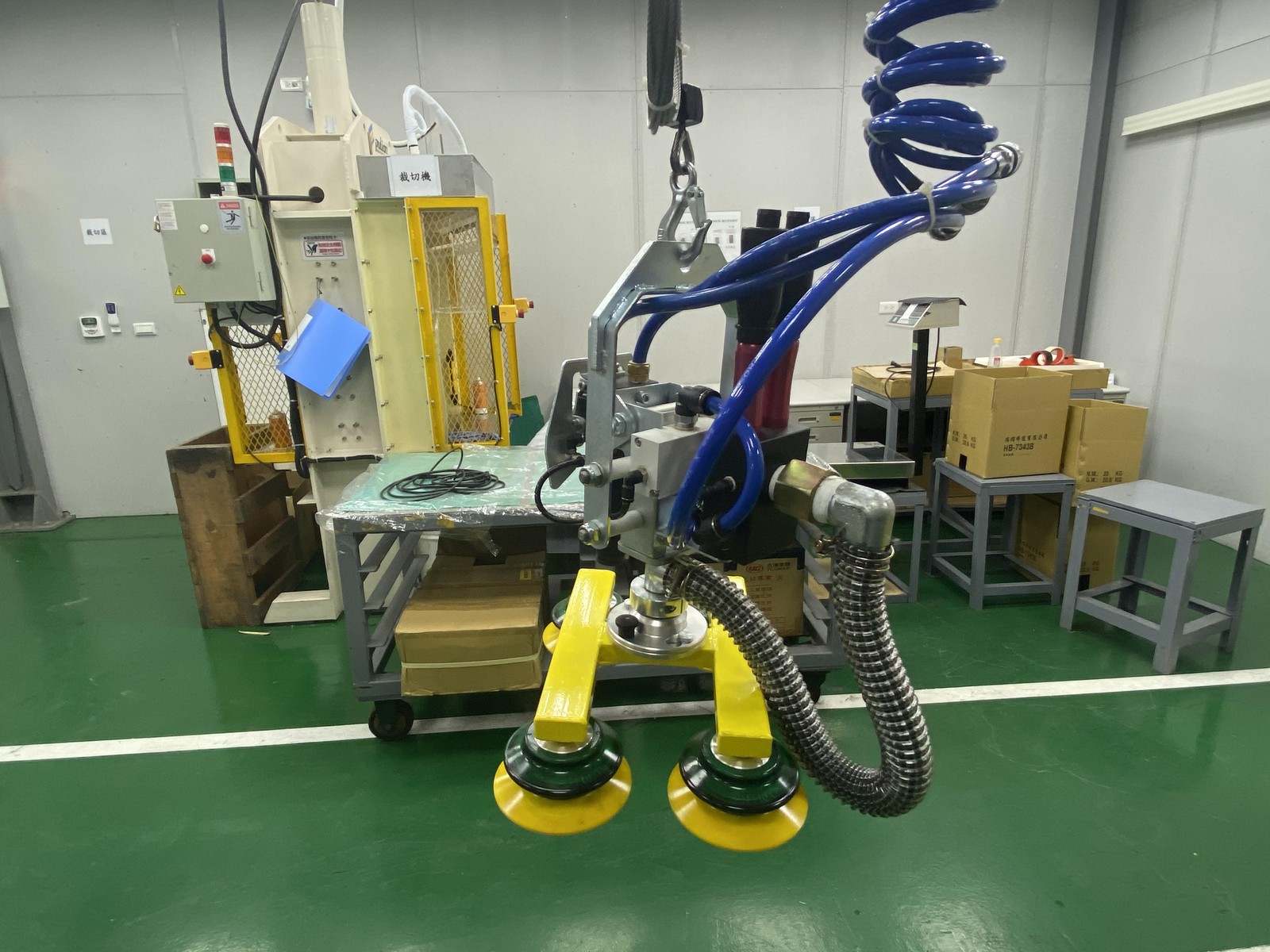

Carton vacuum lifter tool: the suction pad presses onto the box lid and releases with a lever on the handle.

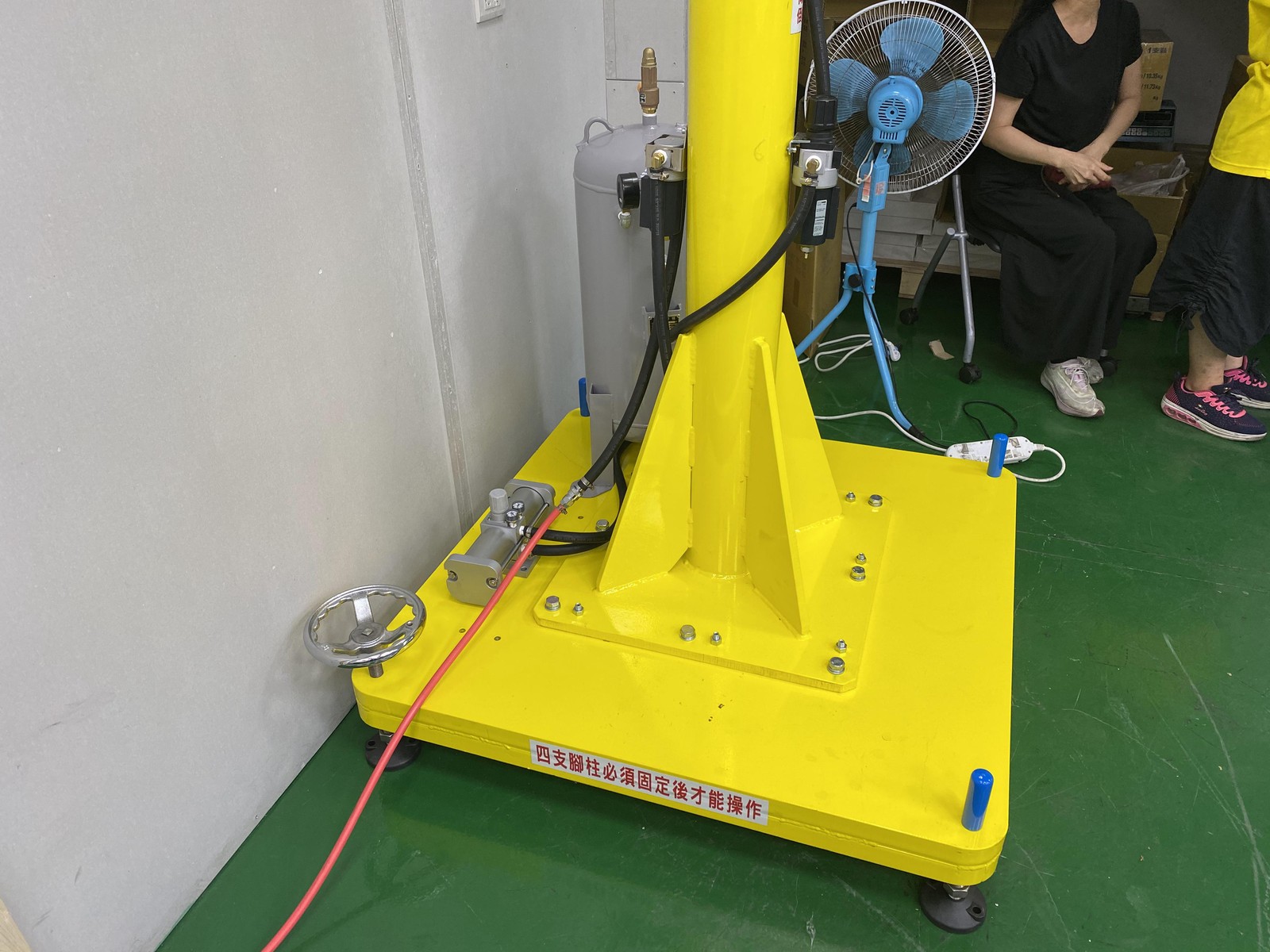

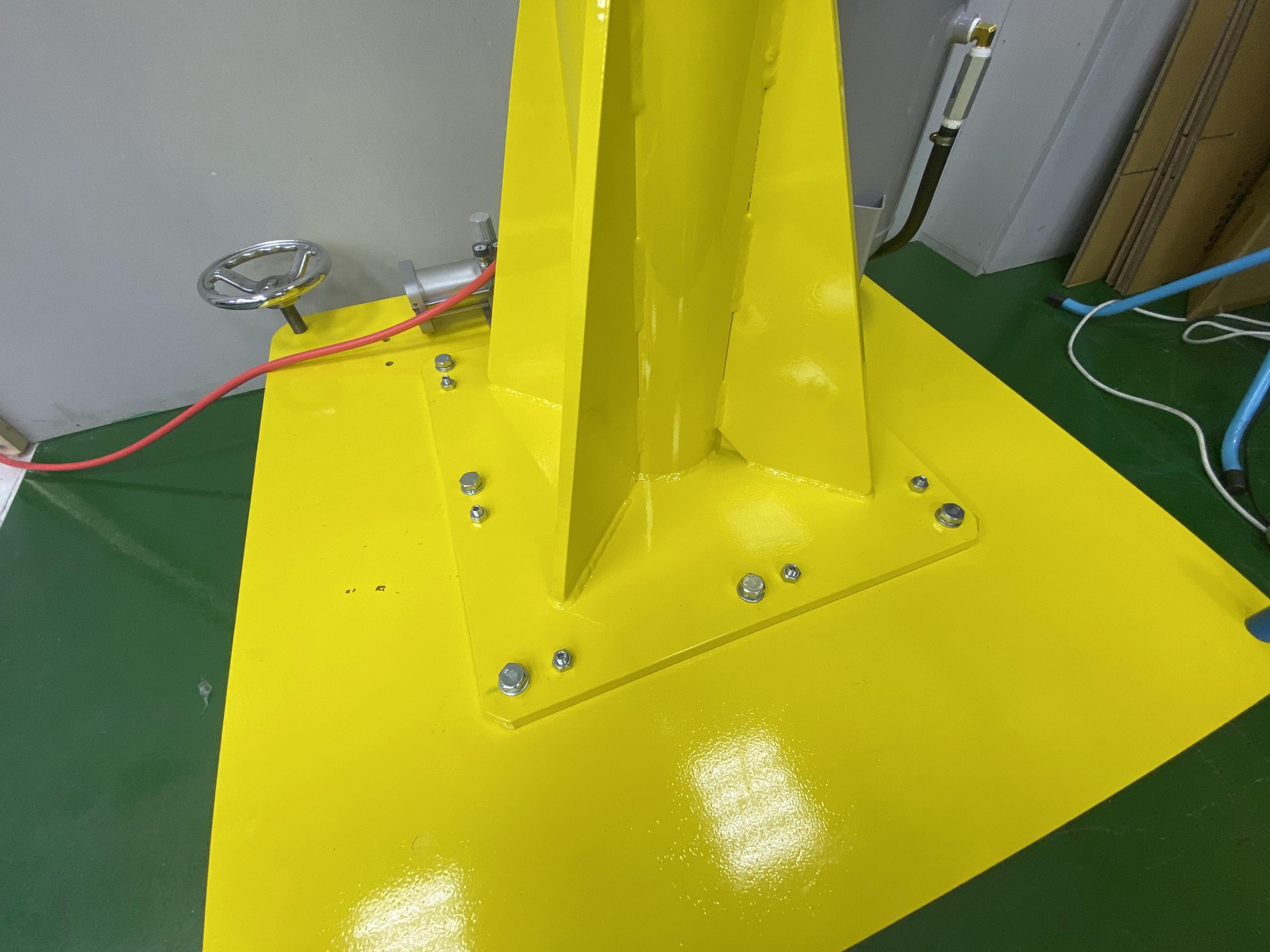

Mobile base: push by hand to change areas; lower the outriggers and it's ready to work.

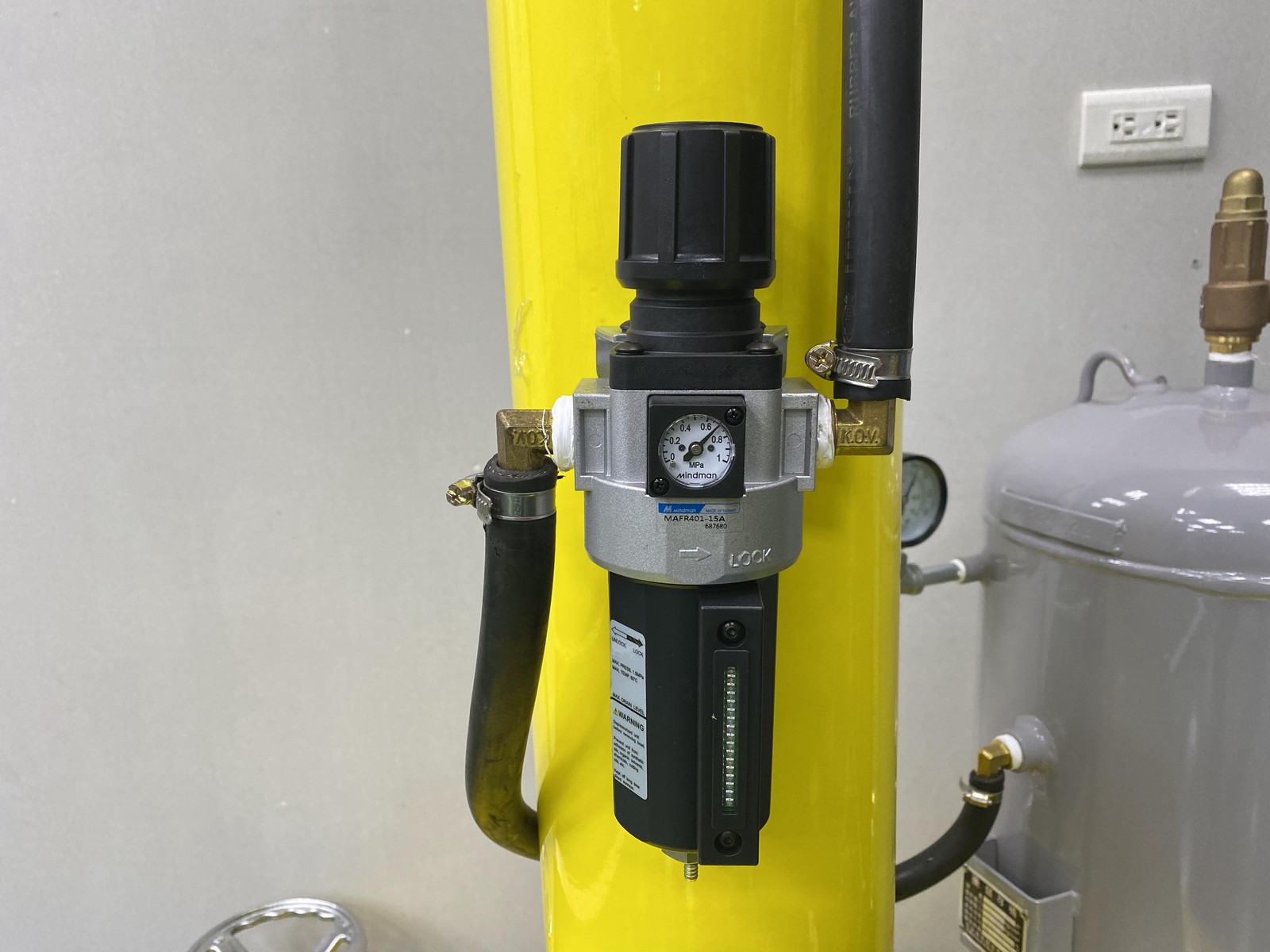

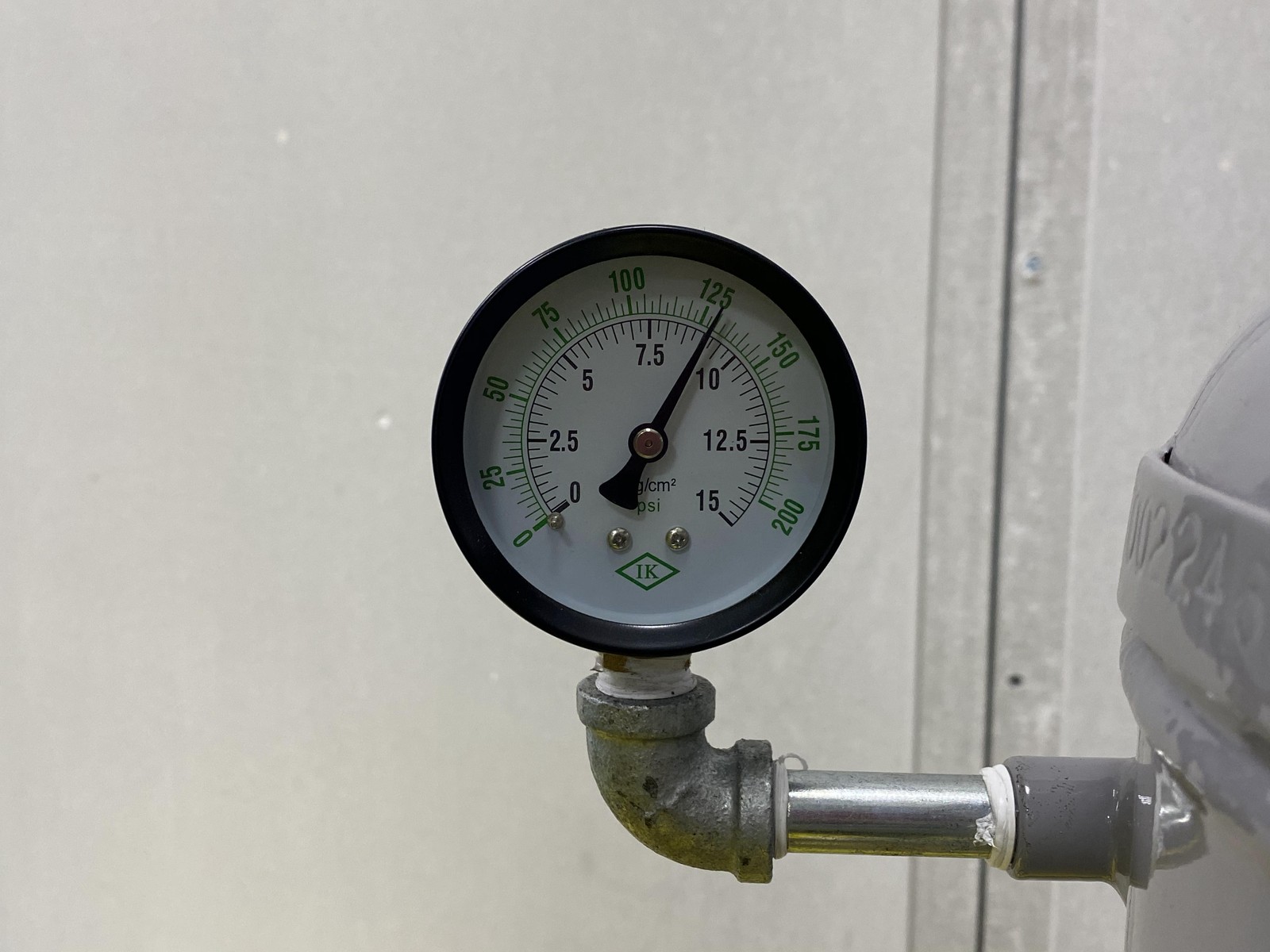

Pressure gauges: monitor vacuum and air pressure before every lift.

Key Specifications

Rotation angle360 degrees
Mounting typeMobile base
Balancing deviceFullSharp air balancer
Installation photos30

Benefits for Your Plant

Reaches hidden spots

The joint lets the arm fold around columns and machinery. No more carrying boxes the long way around.

Effortless lifting

The air balancer keeps the box balanced at any height. The operator applies almost no force.

Flexible installation

The mobile base replaces a foundation and anchor bolts. Still usable after the layout changes.

Actual Installation Photos

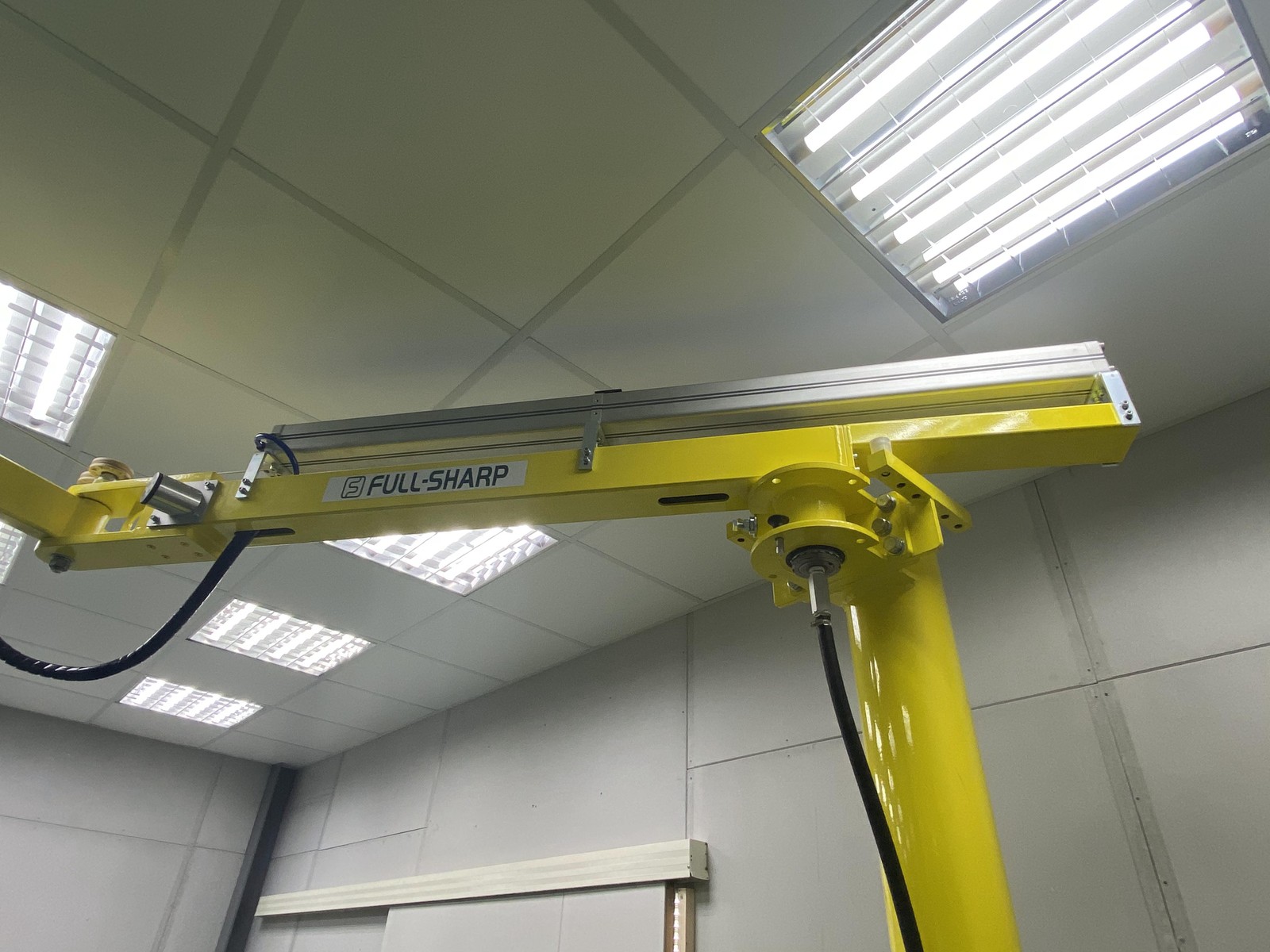

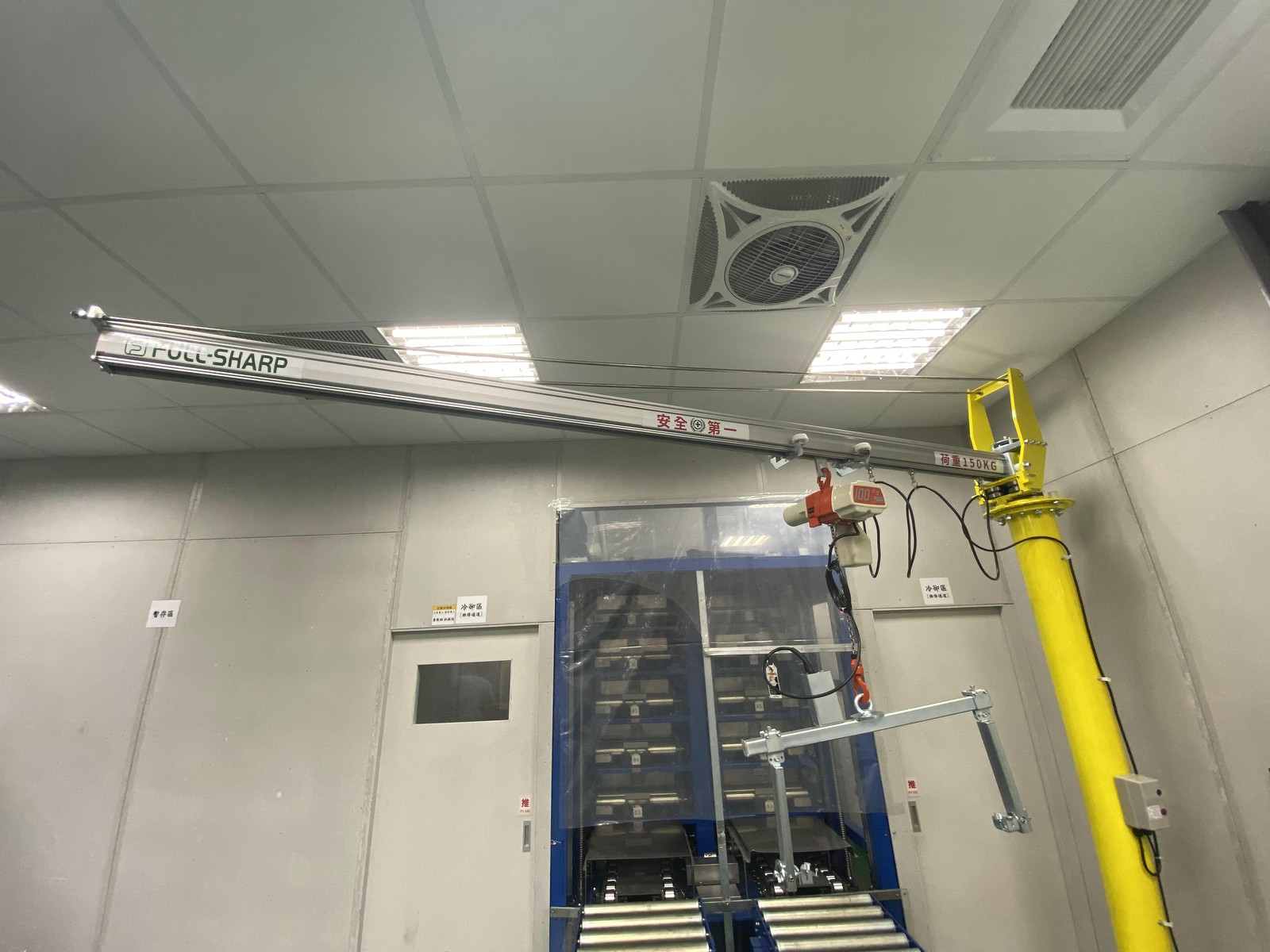

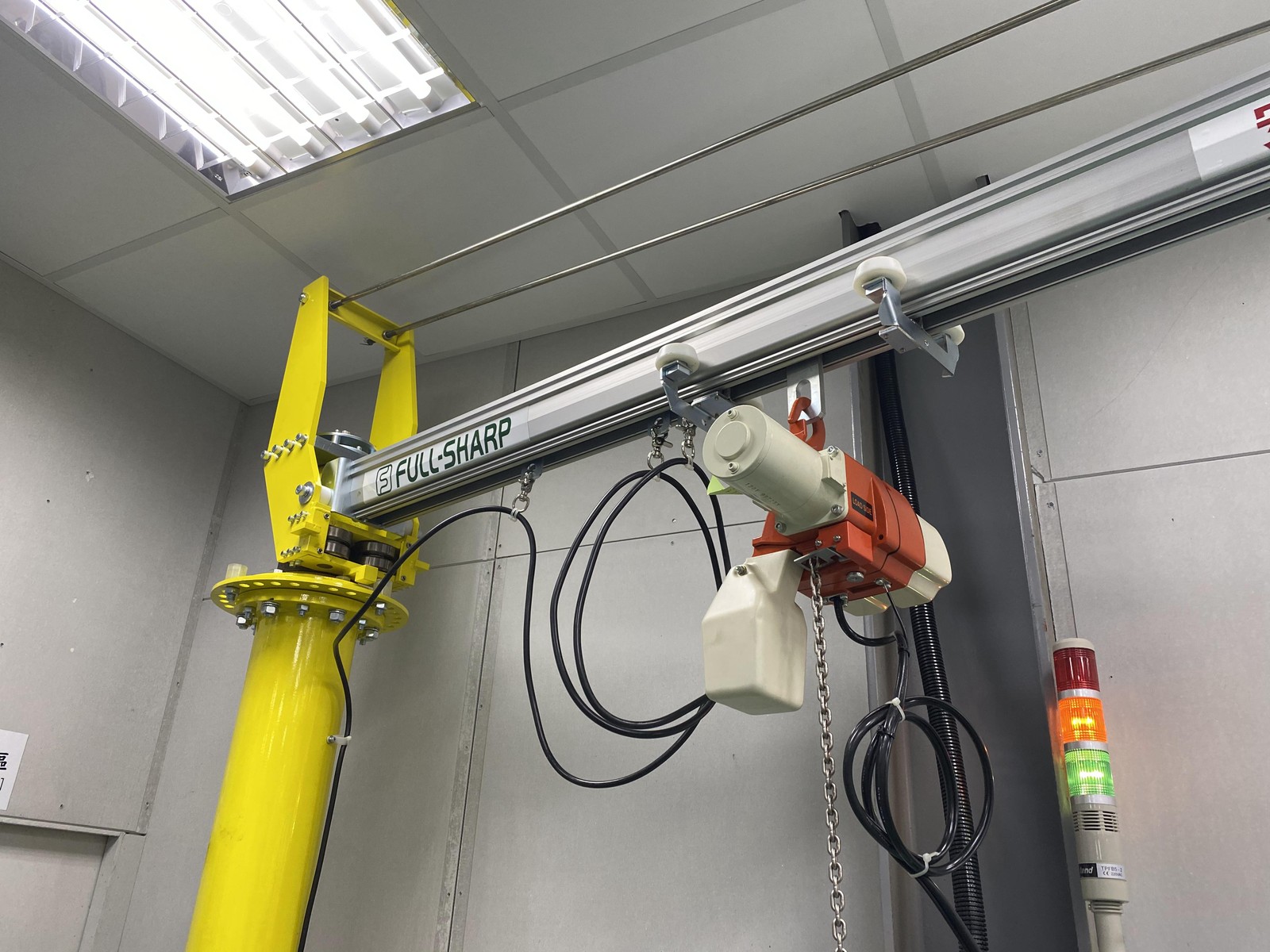

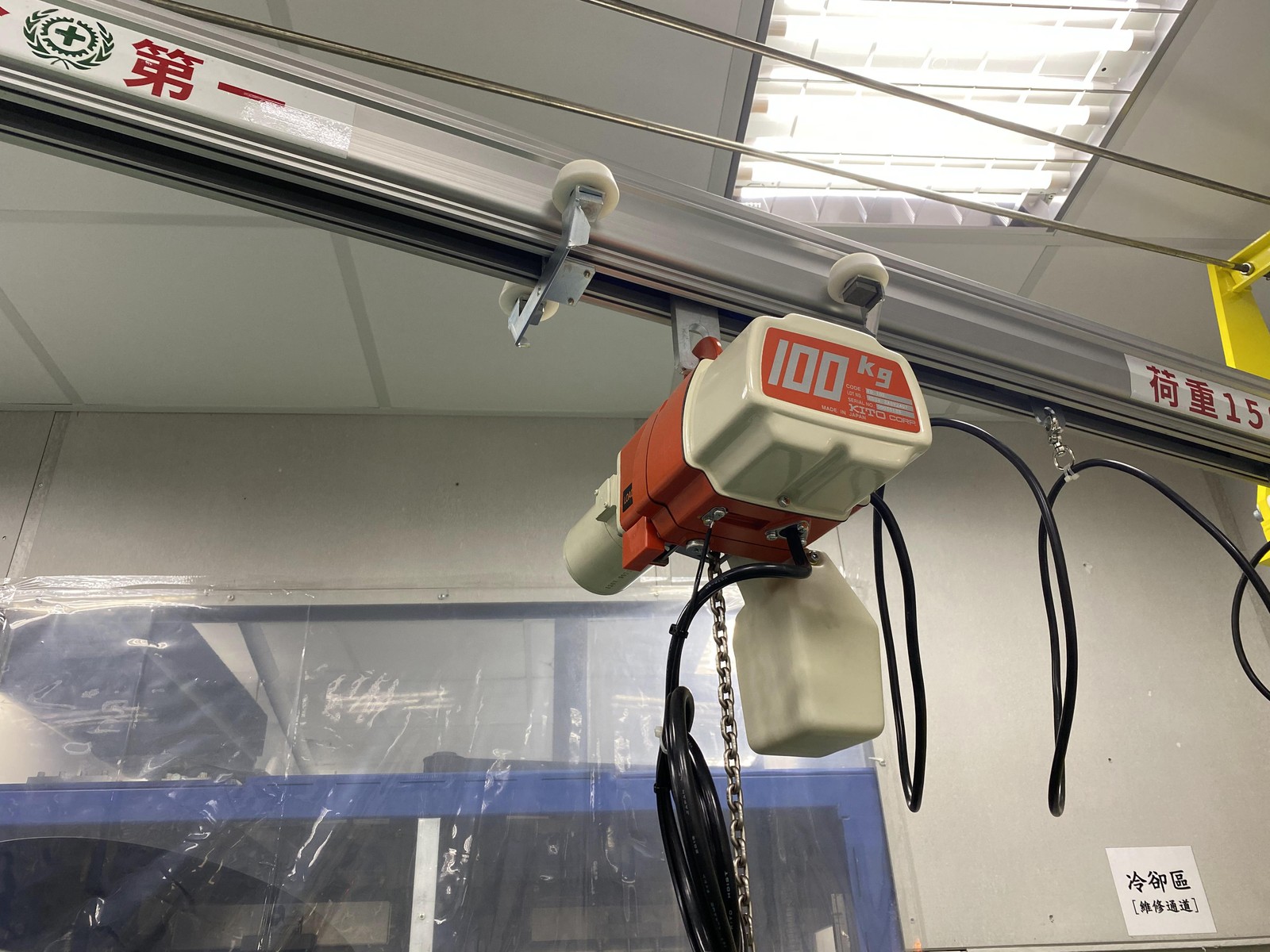

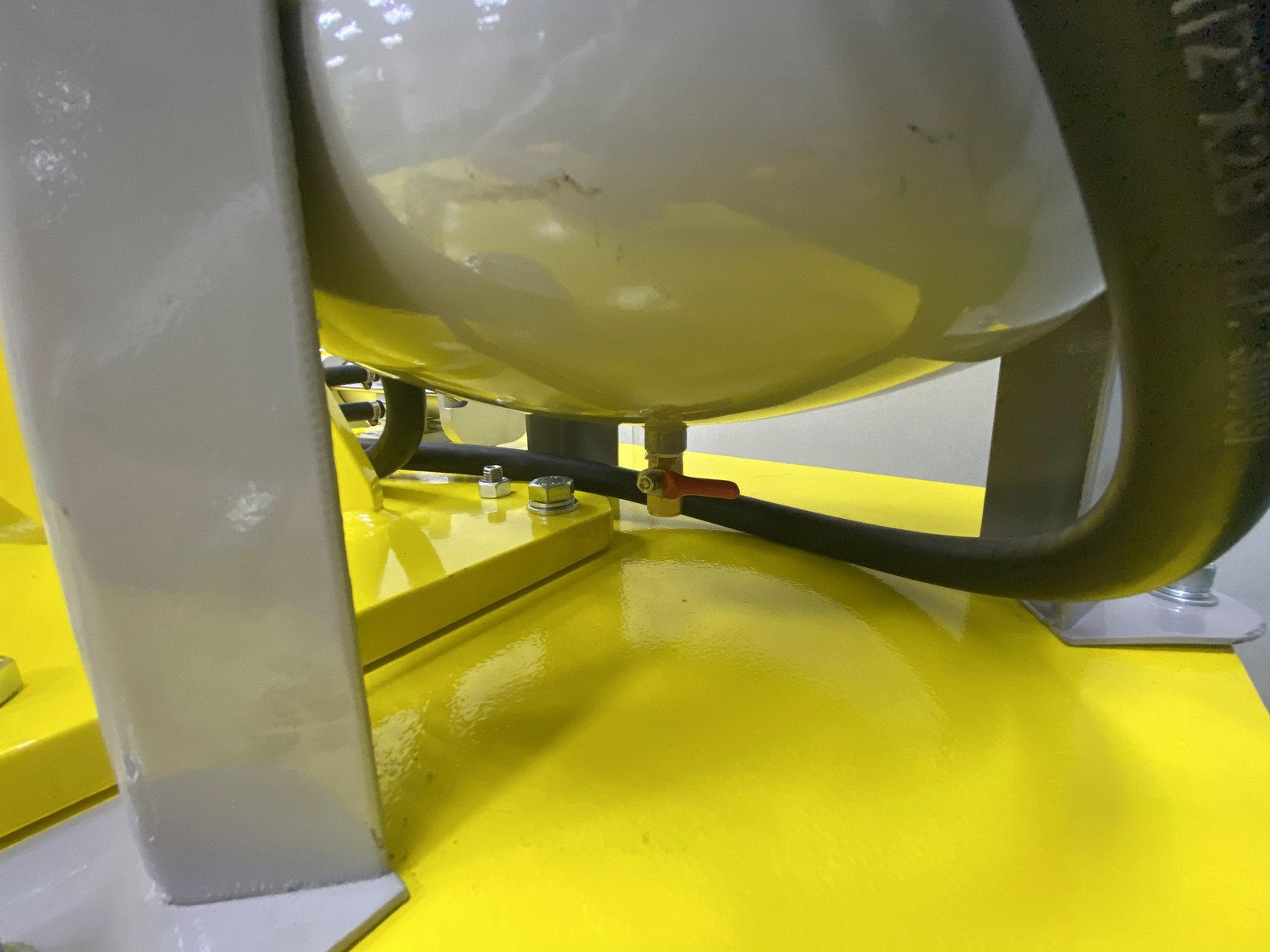

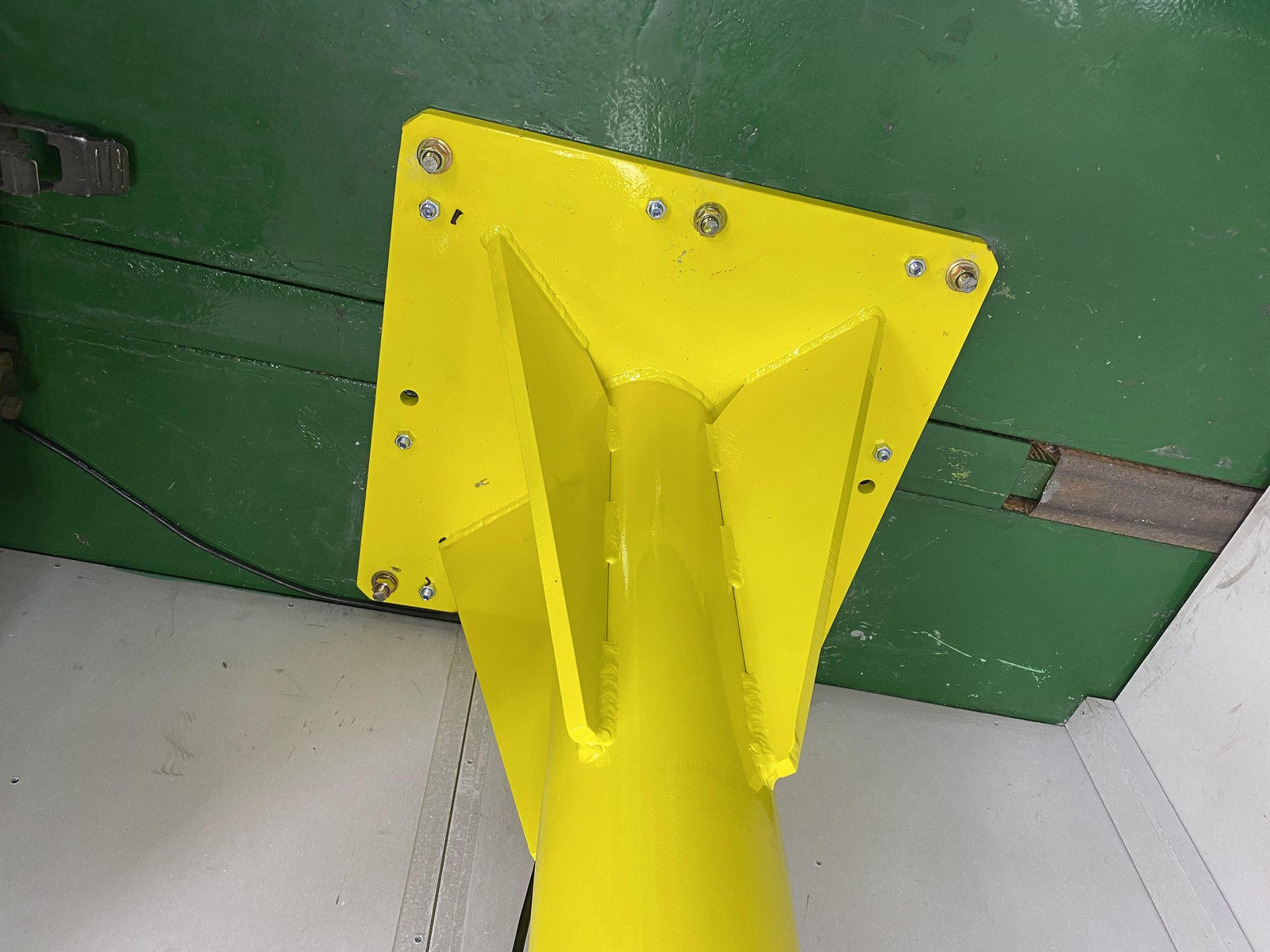

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 1

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 2

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 3

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 4

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 5

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 6

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 7

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 8

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 9

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 10

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 11

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 12

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 13

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 14

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 15

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 16

Mobile Articulating Jib Crane with Air Balancer and Carton Vacuum Lifter - ảnh 17

Click a photo to enlarge. 17-photo album taken on site.

Suitable Applications

Warehouses with many obstacles and narrow aisles
Multi-station packing lines
Distribution centers sorting orders
Packaging manufacturing plants

Installation Consulting for Your Plant

FullSharp surveys the site to identify the hidden spots the arm must reach, and measures box weight and working height. We select the length of each articulating arm section, the air balancer size, and the right suction head. Contact FullSharp to schedule a site visit.
