Bal-Trol

Name: Bal-Trol
Brand: FullSharp

Made in USA – distributed in Vietnam by FULLSHARP.

Download PDF spec sheet

Made in USA

FULLSHARP distributes genuine Bal-Trol® in Vietnam.

Bal-Trol – Pneumatic lifting cylinder

Lift and balance loads up to 600 kg as if they were weightless – smooth operation, lightweight aluminum, the “heart” of every Lifts All lifting system.

Weightless lifting with Bal-Trol

All Lifts All lifting tools are powered by the Bal-Trol. The Bal-Trol is a unique single-acting pneumatic lifting cylinder that lifts up to 600 kg – it works like an air hoist but far more smoothly, and is often used in place of chain hoists or manual lifting.

The Bal-Trol is made of aluminum, so it is light and moves easily along a rail or crane arm. The operator can easily adjust the lifting and lowering speed. The standard lifting height is 1.5 m, customizable up to 8 meters.

The Bal-Trol comes in two ranges – Mini and Full-Scale – each available in horizontal and vertical versions. Which version to choose depends on the ceiling height at your workstation.

Max. lifting capacity600 kg
Max. lifting height8 m
Free load positioning±10 cm
Air pressure6–7 bar

More than a hoist

Compared with a conventional hoist, a load on the Bal-Trol can move freely at the lifted position (at least ±10 cm with proportional control). You do not need millimeter-precise control inputs to place the load correctly – simply guide it into position by hand, for example when fitting a tire onto an axle.

Combined with a gripper and an overhead rail system or jib crane, the Bal-Trol becomes a complete lifting system.

Bal-Trol: Range & controls

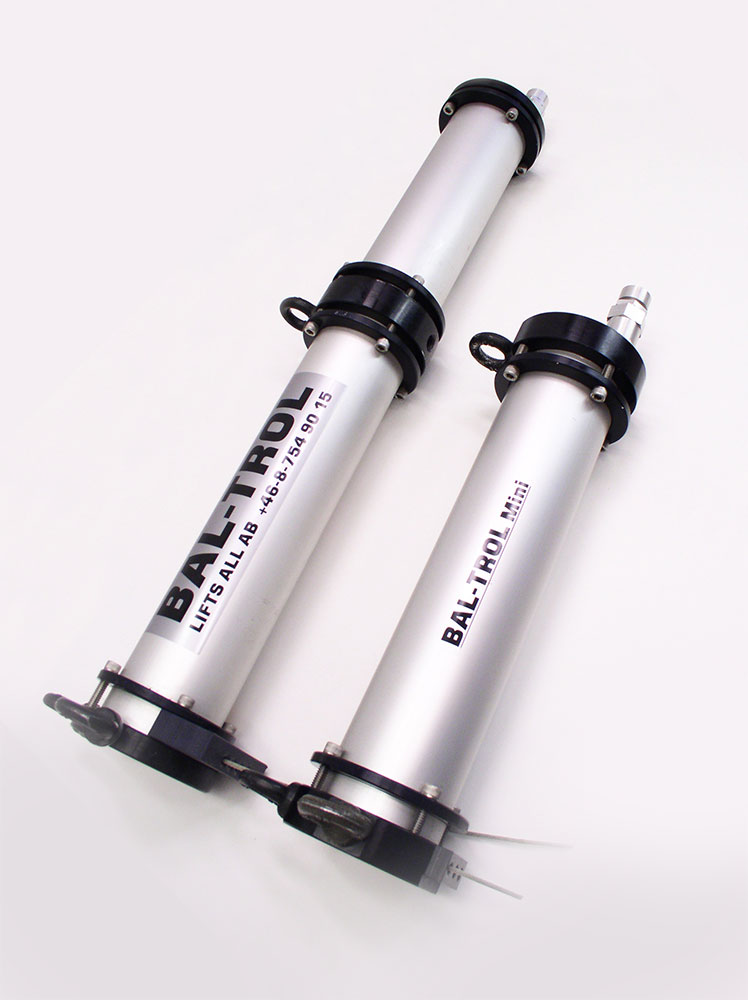

Bal-Trol Mini40 – 150 kg

The most compact and most compatible range, saving both equipment weight and space. The Bal-Trol Mini comes in 3 capacity configurations of 40 kg, 65 kg and 150 kg, with a customizable lifting height from 0.3 to 8 m. Both horizontal and vertical versions are available to suit the ceiling height.

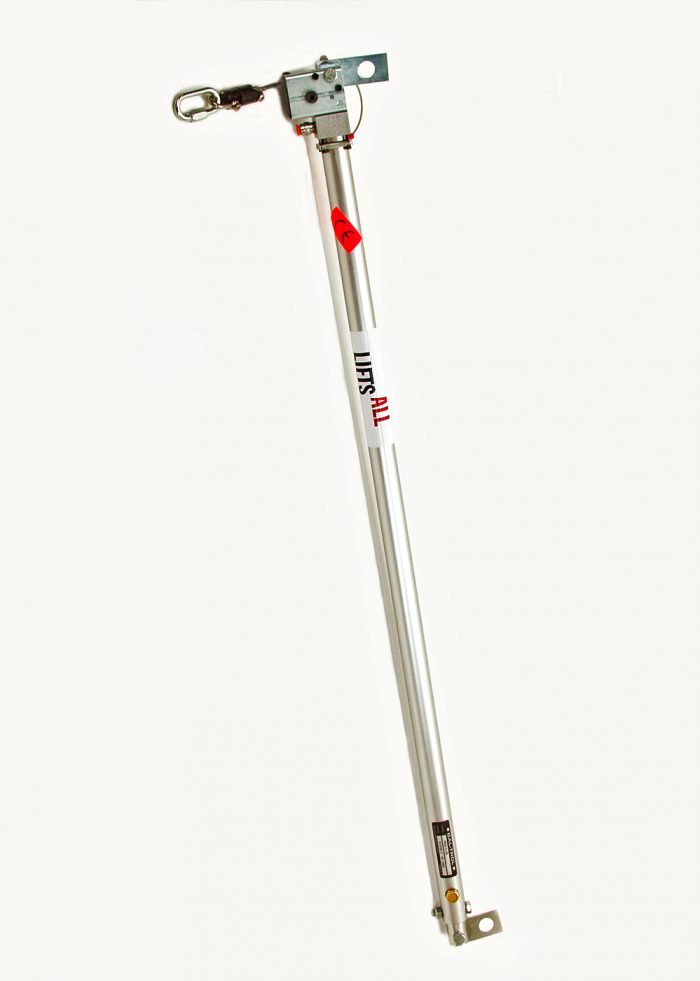

Full-Scale Bal-TrolUp to 600 kg

The largest air hoist range, with 9 configurations and lifting capacities increasing in steps from 25 kg up to 600 kg. The cylinder length equals the lifting height; the lifting height is customizable from 0.3 to 3 m. Horizontal and vertical versions are available to suit different workshop ceilings.

Bal-Trol controls4 control types

The Bal-Trol offers 4 control types depending on the load: Balancing – weightless lifting/lowering by hand (loads of the same weight); PSH – speed proportional to lever pressure (loads of varying weight); Sensi-Touch – pull the handle, fine adjustment ±5 cm; Equalizer – digital balancing, precise to the millimeter.

Specification	Value
Power supply (compressed air)	6–7 bar / 90–100 psi
Max. lifting capacity	Up to 600 kg (1,400 lbs)
Standard lifting height	1.5 m
Custom lifting height	0.3 – 8 m (depending on range)
Material	Aluminum (light, easy to move)
Free load positioning	±10 cm (proportional control)
Mounting versions	Horizontal & vertical
Safety certification	ATEX assessed – no inherent ignition source

Safe in explosive atmospheres

The Bal-Trol is a patented product and a globally registered trademark. It has been ATEX assessed as having no inherent ignition source, meaning it is safe to use in potentially explosive atmospheres, and therefore does not carry CE marking under ATEX Directive 2014/34/EU.

Why choose the Lifts All Bal-Trol?

The Bal-Trol runs quietly and smoothly, an effective replacement for chain hoists or manual lifting – reducing fatigue and increasing operator productivity.

The ability to move the load freely at the lifted position makes placing heavy objects exactly where they belong as easy as handling something weightless.

Combined with Lifts All articulated jib cranes, aluminum rail systems and grippers, the Bal-Trol forms a complete ergonomic lifting solution – flexible enough for almost any production need.

FULL-SHARP AUTOMATIZED VN (FULLSHARP)
Authorized distributor of Lifts All AB (Sweden) lifting tools in Vietnam
Product images and specifications are copyright of Lifts All AB.

The three Bal-Trol series (manufacturer catalogue)

Bal-Trol comes in three series: Pro-Air (P), Single Mount (SM) and Modular Ratio (M). All three lift pneumatically, offer a float range for precise hand positioning without damaging the product, and contain no electronic components that could fail from heat, moisture or programming errors.

Pro-Air (P) – 4 models: P-03, P-06, P-12, P-20

The smallest, most compact Bal-Trol: a horizontal PH06 is only 15.25 in (387 mm) long
Horizontal (H) or vertical (V) mounting
Travel made to order from 1 ft to 30 ft or more
Same lifting capacity as the M, F and SM models
Simple to operate, for all repetitive lifting applications

Ratio	P-03 80 PSI	P-06 80 PSI	P-12 80 PSI	P-20 80 PSI
8:1	18 kg (40 lbs)	34 kg (75 lbs)	68 kg (150 lbs)	N/A
6:1	27 kg (60 lbs)	45 kg (100 lbs)	91 kg (200 lbs)	N/A
4:1	36 kg (80 lbs)	57 kg (125 lbs)	136 kg (300 lbs)	227 kg (500 lbs)

Single Mount (SM) – 3 models: SM-03, SM-06, SM-12

Horizontal cylinder that mounts like a vertical: one mounting point
Inline or perpendicular to the rail, only one trolley needed
Travel made to order from 1 ft to 10 ft
Same 200 lb capacity and 6 ft travel as the M model, in a far more compact package (about 3 ft 7 in long)

Ratio	SM-03 80 PSI	SM-06 80 PSI	SM-12 80 PSI
6:1	27 kg (60 lbs)	45 kg (100 lbs)	91 kg (200 lbs)
4:1	36 kg (80 lbs)	57 kg (125 lbs)	136 kg (300 lbs)

Modular Ratio (M) – 4 models: M-03, M-06, M-12, M-40

Modular, space-saving units
Horizontal or vertical mounting
Each model covers several capacities through 8:1, 6:1 and 4:1 ratios
Easy to install and maintain, field repairable
Travel made to order from 1 ft to 15 ft or more

Ratio	M-03 80 PSI	M-06 80 PSI	M-12 80 PSI	M-40 100 PSI
8:1	18 kg (40 lbs)	34 kg (75 lbs)	68 kg (150 lbs)	181 kg (400 lbs)
6:1	27 kg (60 lbs)	45 kg (100 lbs)	91 kg (200 lbs)	272 kg (600 lbs)
4:1	36 kg (80 lbs)	57 kg (125 lbs)	136 kg (300 lbs)	363 kg (800 lbs)

How to read the order code

The code is: series (P / SM / M) – mounting (V vertical, H horizontal) – model – ratio – travel (feet) – control (B: Balance Control, H: Speed Handle, SL: Slim-Line Sensi-Touch).

Example code	Meaning
PV03/6-6-B	Pro-Air, vertical, 60 lb capacity at 80 PSI, 6 ft travel, Balance Control
PH12/6-7-H	Pro-Air, horizontal, 200 lb capacity, 7 ft travel, Speed Handle
SM06/6-4-SL	Single Mount, horizontal, 100 lb capacity, 4 ft travel, Slim-Line Sensi-Touch
MH12/6-7-H	Modular, horizontal, 200 lb capacity, 7 ft travel, Speed Handle

Capacities at 80 PSI (5.5 bar); M-40 at 100 PSI (6.9 bar). kg values converted from lbs and rounded. FULLSHARP helps you choose the series, ratio and travel for your actual load.
