What Is Bal-Trol®?
Almost every Lifts All lifting device is powered by a Bal-Trol. It is a pneumatic (compressed-air-driven) hoist used to balance or lift a load. It runs quietly and smoothly and is typically used in place of a chain hoist or manual lifting. Combined with a lifting device (gripper) and an overhead rail or crane, Bal-Trol becomes a complete lifting system.
01
Smallest Model
The most compact model in the Bal-Trol range — saves on both unit weight and installation space, ideal for tight workstations.
02
3 Load Configurations
Available in 3 lifting-capacity versions: 40 kg, 65 kg and 150 kg — choose based on your actual load.
03
Horizontal or Vertical
Choose a horizontal or vertical mounting version to suit your ceiling height.
04
Flexible Lifting Height
Lifting stroke customizable from 0.3 m to 8 m (standard 1.5 m), adapting to different ceiling heights.
Safety & Quiet Operation
Bal-Trol® is a patented product and a globally registered trademark. Notably, Bal-Trol has been ATEX certified to confirm it has no internal ignition source — meaning it is safe to use in explosive atmospheres of any zone, without risk. This is a major advantage for chemical, paint, solvent plants and other sensitive environments.
Typical applications: Compact workstations, assembly lines, repetitive lifting up to 150 kg, plants requiring explosion-proof (ATEX) environments, warehouses and workshops looking to replace chain hoists with a quiet, noise-free lifting solution.
9 Configurations for Every Load Range

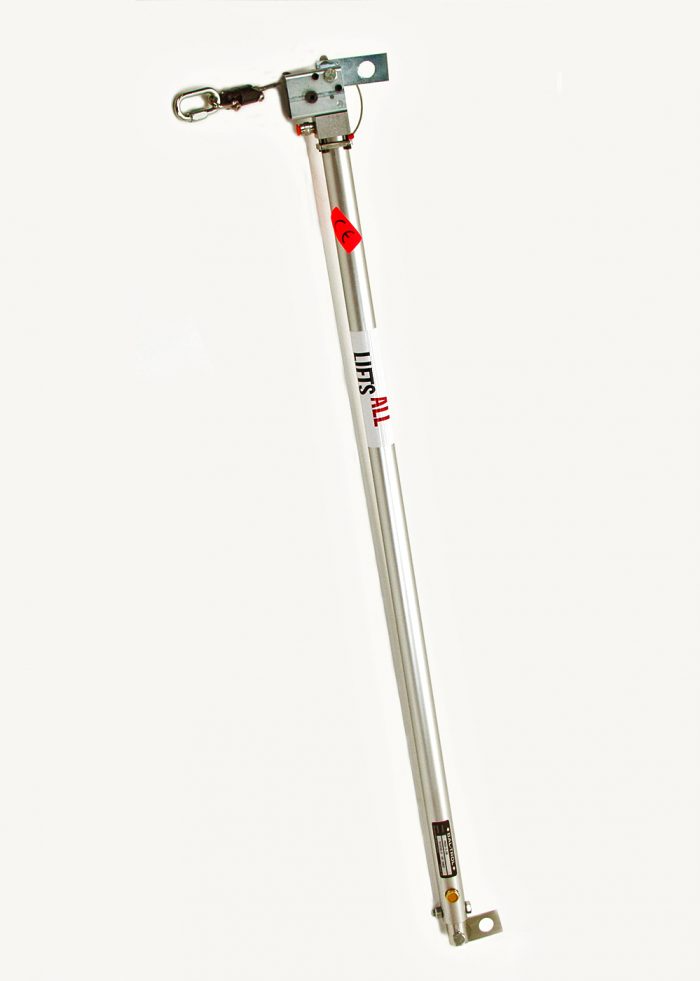

Full-Scale Bal-Trol — our largest pneumatic hoist — comes in up to 9 different configurations. These configurations differ in maximum load limit, increasing in tiers starting from 25 kg and up to 600 kg. The Full-Scale Bal-Trol's cylinder length matches its lifting height exactly, though the lifting height can be customized within a range of 0.3 – 3 m.
01
Load Up to 600 kg
Outstanding lifting capacity up to 600 kg — the most powerful model in the Bal-Trol range, handling heavy-duty industrial lifting tasks.
02
Horizontal & Vertical
To adapt to different ceiling heights, Full-Scale is available in both horizontal and vertical mounting versions.
03
Lightweight Aluminum Body
The aluminum body keeps Bal-Trol lightweight and easy to move along a rail or crane arm. Lifting/lowering speed is easily adjustable.
04
Free Positioning
Compared to a traditional hoist, a load on Bal-Trol can move freely at the lifted height (±10 cm or more with proportional control) — precise, hand-guided positioning.
Load Balancing — "Weightless" Lifting
Almost every Lifts All lifting device uses a Bal-Trol. It is a pneumatic hoist used to balance or lift loads, running quietly and smoothly, typically replacing a chain hoist or manual lifting. Combined with a gripper and an overhead rail or crane, it becomes a complete lifting system. Bal-Trol® is a patented product and a globally registered trademark, ATEX certified for explosive atmospheres.
Typical applications: Lifting engines/gearboxes, heavy coils, metal sheets, large drums up to 600 kg, automotive assembly lines, heavy-duty machine shops, manufacturing plants — anywhere a chain hoist needs to be replaced with a quiet, safe and energy-efficient lifting solution.
Balancing — Fast & Weightless
Balancing is the unbeatable choice when you need fast, "weightless" lifting of multiple objects of the same weight — for example, from an assembly line in the automotive industry. "Weightless" lifting means the user can raise and lower the object using only their hands, without pressing any button on the lifting device. This offers maximum flexibility and precision: simply press the green button to grip the object and the two red buttons to release it.
01

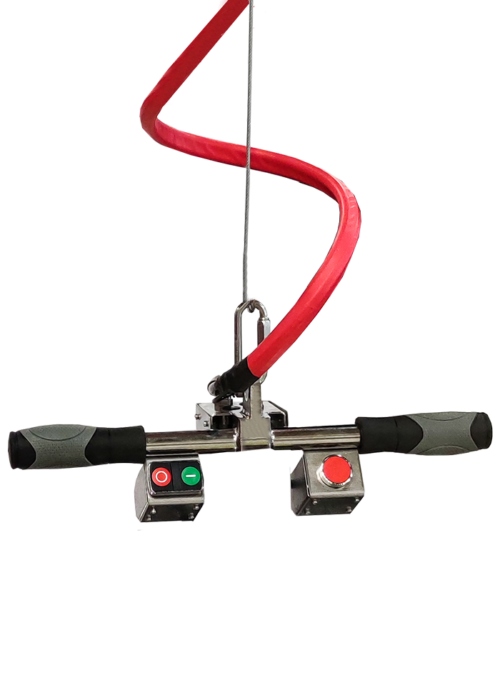

Balancing
Manual raise/lower, no buttons
Ideal for objects of the same weight, for fast handling on an assembly line. Press the green button to grip, the two red buttons to release.
02

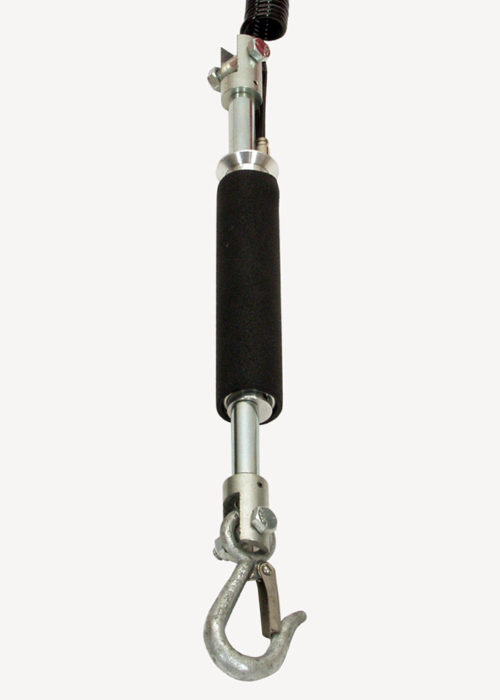

Slim Line Sensi-Touch
For loads of varying weight
Used when the loads to be lifted are not the same weight. The user simply pulls the handle up or down to raise or lower the load.
03

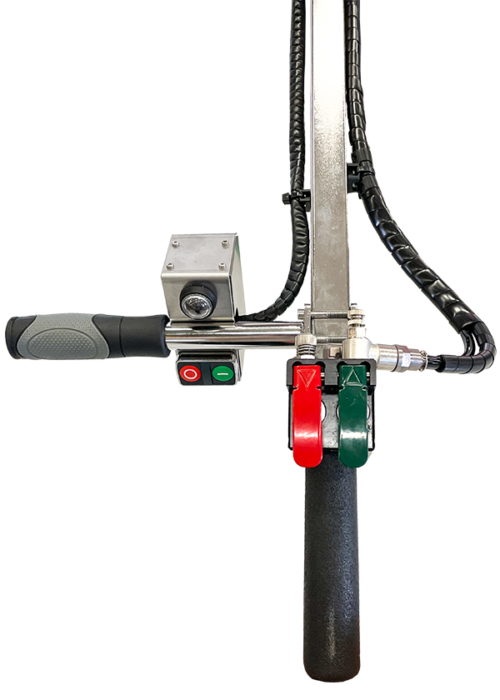

Proportional Speed-Handle
Speed control by grip pressure
Raise/lower controlled by two levers. Speed is proportional to grip pressure — a light squeeze moves the load slowly — used for loads with varying weight.
04

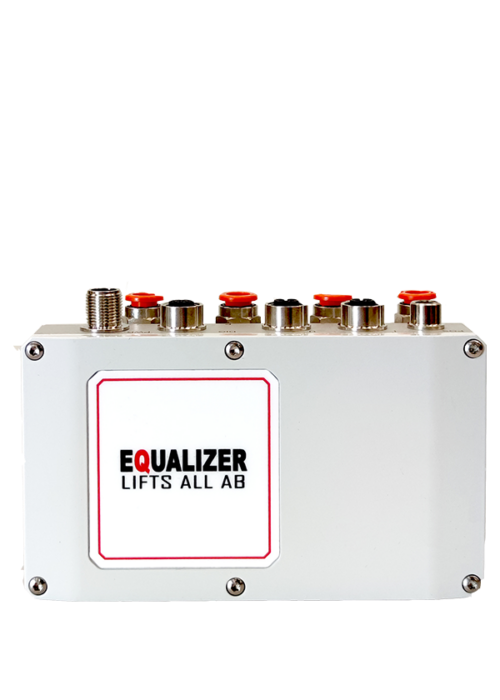

Equalizer — Digital Balancing
Digital balancing — millimeter precision
An electro-pneumatic control system that continuously monitors cylinder pressure (50–200 times per second), enabling millimeter-precise lifting. Fits any lifting device, for any load regardless of weight.
Precision & Flexibility
For added precision, built-in flexibility in Bal-Trol lets the user manually raise and lower the load by ±5 cm. The Equalizer is a load-balancing control unit with digital precision — the perfect aid for lifting in tight spaces with millimeter accuracy. It can be fitted to all our lifting devices and used for any load, regardless of weight.
Typical applications: Automotive assembly lines (multiple objects of the same weight), assembly stations lifting variable loads (Sensi-Touch / Speed-Handle), precision assembly in tight spaces (Equalizer), any process requiring quiet, safe and precise "weightless" lifting.
