Baggage Lifters

Name: Baggage Lifters
Brand: FullSharp

Download PDF spec sheet

Airport baggage handling solutions

Fast, ergonomic and energy-efficient baggage lifters for airports – fewer work injuries, higher productivity and a more sustainable working environment.

Effortless, ergonomic baggage lifting

Lifts All supplies airports with fast, ergonomic and energy-efficient baggage lifters. We provide custom-designed container loading and unloading systems, along with vacuum lifters that handle all kinds of baggage from open trolleys to the conveyor and back.

These baggage lifters minimize occupational injuries and the physical wear and tear common with manual lifting — less back pain, fewer sick days and a more sustainable workplace.

Dedicated solutions4
Unlimited load rotation360 °
Quiet operation66 dB
Integration & full service100 %

Why choose Lifts All?

Ergonomics

Eliminates heavy manual lifting, reducing back pain and repetitive strain injuries for baggage handlers.

Energy-efficient

Pneumatic vacuum equipment uses only a fraction of the energy of conventional vacuum lifters — lower cost and better for the environment.

Fast & efficient

Intuitive and easy to learn, speeding up baggage loading and unloading from trolleys to the conveyor and into containers.

Safe & sustainable

Safety mechanisms prevent unexpected load release, backed by training and after-installation maintenance to keep the system running perfectly for the long term.

Baggage handling equipment range

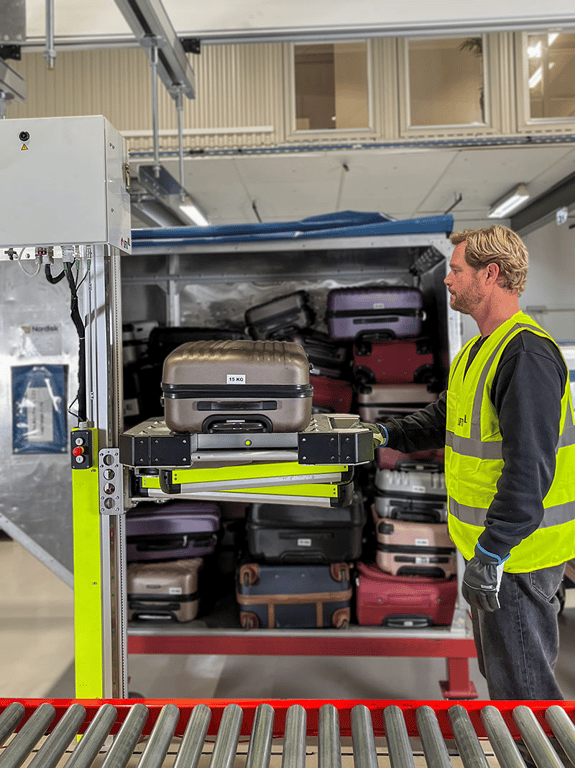

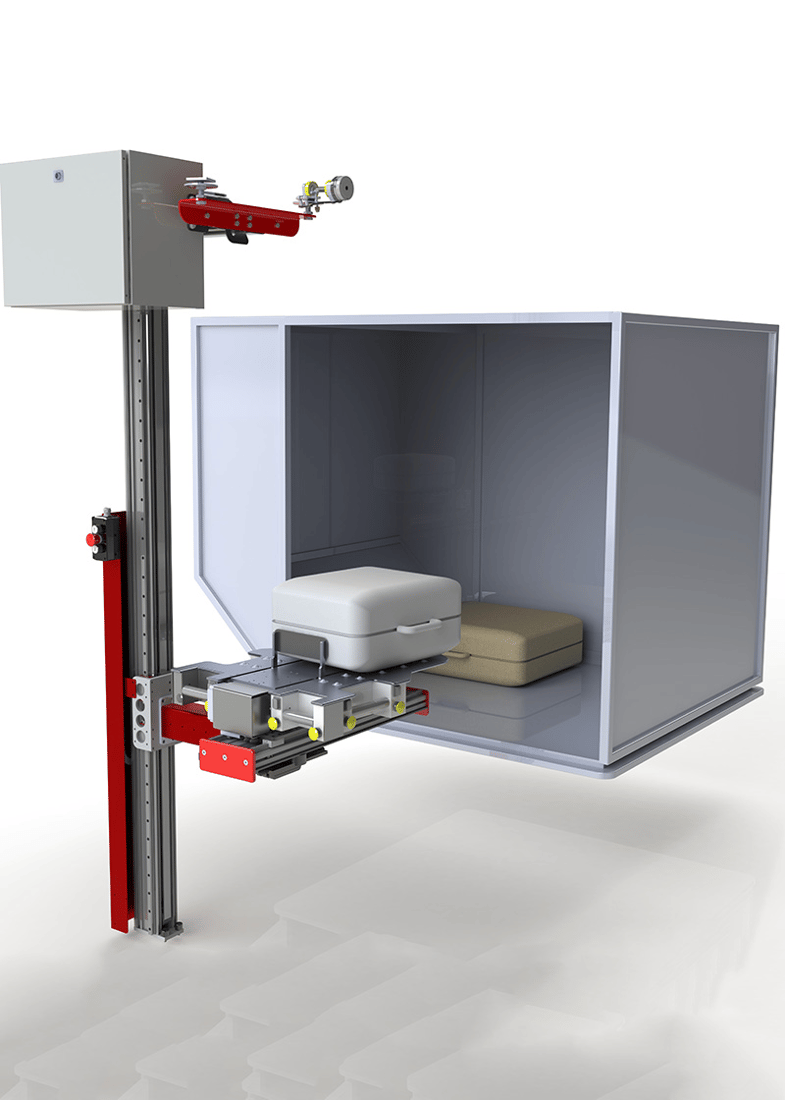

Lifts All e-CLS – electric container loading system

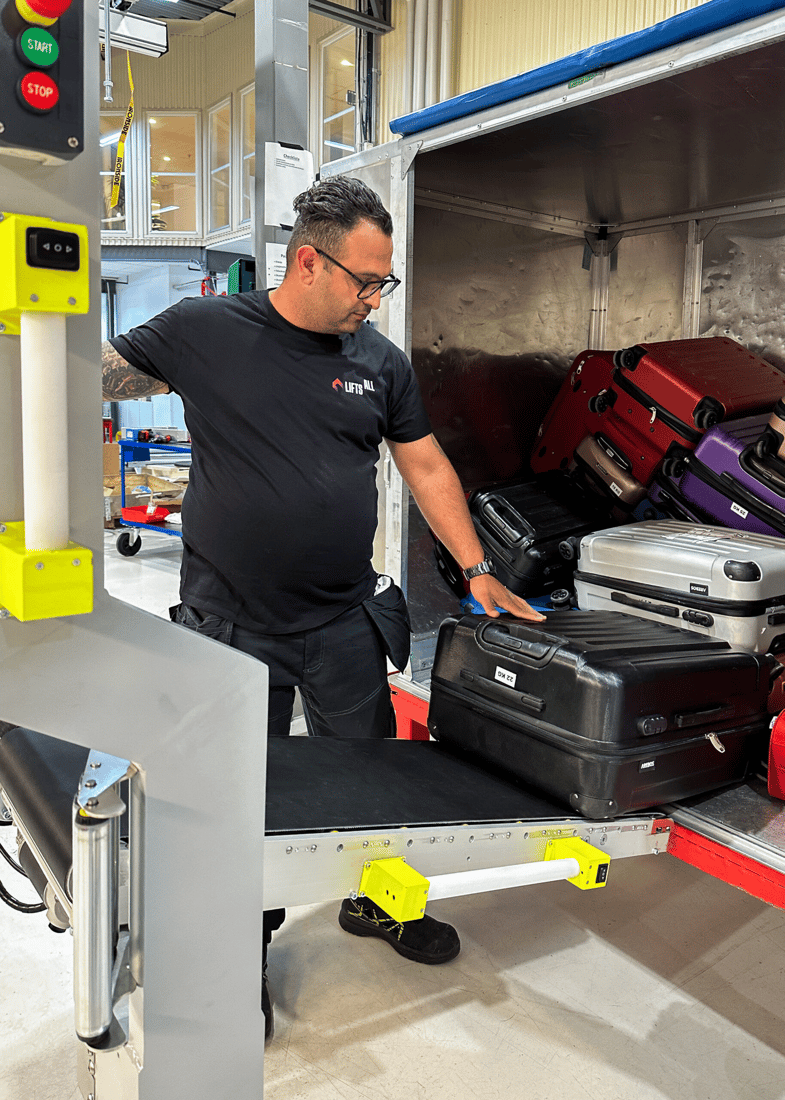

Lifts All e-CUS – Electric Container Unloading System

Lifts All Basic Baggage Gripper with Hook

Spotlight: Basic vacuum lifter

Lift any baggage – Easy, quiet & safe

Basic is a vacuum lifter that is extremely easy to learn, with intuitive controls. To lift hard-shell baggage, simply place the vacuum head on the suitcase — it grips firmly and is ready to lift. To lift soft baggage, just fold down the auxiliary hook.

Ambidextrous handle: designed for left- and right-handed users and all hand sizes — no adjustment needed when switching hands.
Automatic park position: the user presets a parking height and Basic returns there automatically when not in use.
Safety first: will not lift when vacuum is below 40%, and will not release a suspended load until the user presses the release button.
Energy-efficient: pneumatically driven, using only a fraction of the energy of conventional vacuum lifters, and very quiet.

Specifications – Basic (vacuum lifter with hook)
Specification	Value
Lifting height	1.5 m
Max. lifting capacity	35 / 50 kg (77 / 110 lbs)
Load rotation	360° endless
Noise (soft baggage)	66 dB
Noise (hard baggage)	0 dB
Article no. (max. 50 kg)	93-20033 (vertical mounting), 93-20034 (horizontal mounting)
Drive	Pneumatic (energy-efficient, quiet operation)
Safety mechanism	No lifting when vacuum < 40%; load released only when the release button is pressed

Complete solutions for airports

Lifts All does more than supply equipment — we design complete baggage handling systems, from lifting devices and travel systems (overhead rails or articulating jib cranes) to container loading and unloading systems.

Each solution is selected based on the actual dimensions and layout of your airport's baggage handling area, ensuring a precise fit with your operating process.

This comes with operator training and after-installation maintenance, keeping your baggage system running perfectly and reliably over time.

Get advice & a quote

FULLSHARP advises on and designs the baggage handling solution best suited to your airport's area and operating process.
