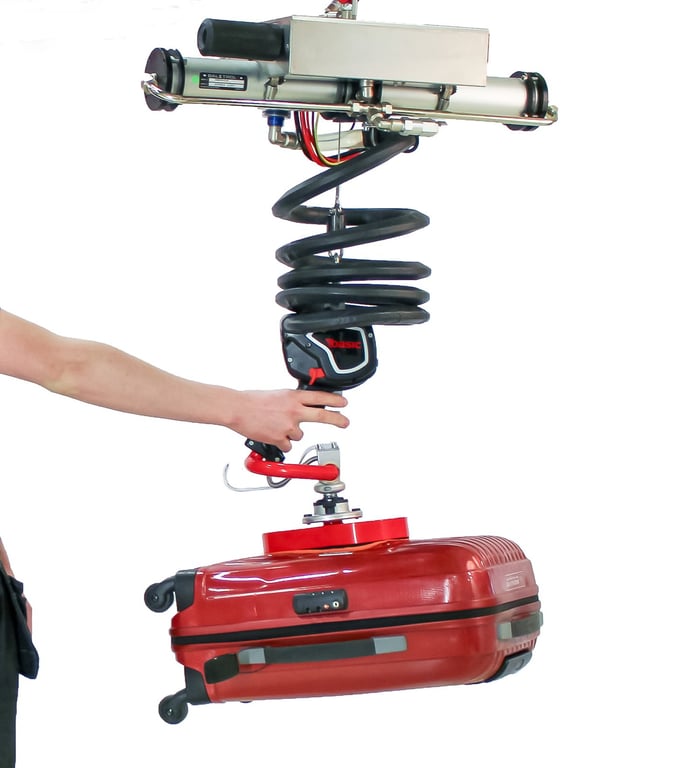

Lifts All Basic Baggage Gripper with Hook

Maximum capacity 50 kg, stroke 1500 mm
Gripping: vacuum combined with hook
Proportional up/down buttons, endless load rotation
Works with Bal-Trol (Made in USA) Horizontal SM or Vertical
For large and small airports

FullSharp – official Lifts All representative in Vietnam

Basic baggage gripper with hook – ergonomic lifting that replaces manual handling

The Basic baggage gripper with hook is an all-round lifting device, ideal for airports where bags must be handled quickly and smoothly. By replacing manual lifting, it significantly reduces the risk of repetitive strain and other work-related injuries, and spares baggage handlers the awkward postures that are so common in the job. It is widely used at both large and small airports to move baggage from open carts onto conveyor belts.

Lifts All Basic Baggage Gripper with Hook

Controlled lifts

As soon as the Basic touches a surface, it locks on and is ready to lift. The user decides when and how fast to lift with the up and down buttons, which give proportional speed: the further the button is pressed, the faster the Basic raises or lowers. Combined with endless rotation of the load, this makes careful, precise positioning easy.

Intuitive and easy to learn

The handle fits all hand sizes and switches between left- and right-handed use without any adjustment. Thanks to the ergonomic design and intuitive controls, operators learn the Basic quickly and soon find the work faster and easier than lifting alone or with a colleague, with a rapid drop in work-related injuries.

Safer lifting

The Basic is a dependable lifting device. It will not allow a lift until the preset vacuum level is reached, and if the vacuum drops during a lift, it lowers itself slowly to the floor. There are two release options:

Release in the air: a firm press on the red button releases the load.
Unload first: the load must be resting on a surface before the red button will release it.

Proven lifting technology

Lifts All has manufactured lifting aids since 1994 and has developed thousands of custom lifting solutions since then. The Basic vacuum gripper is built on that proven, reliable technology.

Video

Technical specifications

Item	Specification
Height (mm)	1143, 671
Weight (kg)	13.5, 16.7215
Maximum capacity (kg)	50
Gripping technique	Vacuum/hook
Bal-Trol model	Horizontal SM, Vertical
Stroke length (mm)	1500
Type of item to be lifted	Luggage

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
