ANVER VPE1-GEN3 series electric vacuum generators

VPE1-GEN3 self-contained electric vacuum stations handle non-porous to semi-porous loads, with heavy duty frames or for remote mounting. Features, controls and specifications below.

Request a quote

Vacuum generators and vacuum stations
Self-contained electric vacuum stations
VPE1-GEN3 series with ANVER vacuum control module & safety lock-out
Manufacturer PDF

ANVER’s VPE1-GEN3 series Vac-Packs are suitable for handling non-porous to semi-porous loads. Designed for use with a wide assortment of vacuum pad attachments and lifter assemblies, these high quality Vac-Packs are ruggedly designed for heavy production use. Units are available with heavy duty frames or for mounting remotely.

Safety features:

Load sensing lifting bail with safety lock-out
Pendant controls are only active when the lifter and load are lowered completely, to remove the risk of accidental release by the operator. (Not on the VPE1-GEN3-RD series, which is a standalone version, or the VPE1-GEN3-TD, which is a tilter version.) Once on load, attach is almost instantaneous.
Vacuum control
A solid-state vacuum control combines all the required vacuum generator controls in one rugged unit. It controls all vacuum pump functions and safety lights, and is fitted with a standard audible vacuum leakage warning system.

ANVER Air Saver tag

Audible vacuum leakage warning system
Integrated electronically controlled vacuum leakage sensor monitors vacuum level and will sound an alarm if a slow vacuum leak is present when the vacuum level drops to a pre-determined set point.
Vacuum retention
The system includes an internal check valve to stop leakage of vacuum in the event of a power failure (non-porous loads). A 627 cu. in. vacuum reservoir assists in maintaining a safe vacuum level during a power failure (non-porous loads).

Additional features:

Front control panel and gauges
All gauges, lights and power switches are mounted on the front of the control panel. The two vacuum gauges on the face of the panel display the level of vacuum in the manifold and in the reservoir.
Indicator lights
Green light indicates “safe” vacuum level.
Red light indicates “unsafe” vacuum level.
White light indicates “power on.”
Ergonomic control handlebar
Easy to grasp, large loop handlebar enables the operator to easily and safely maneuver the attached load without touching the load itself. Handlebar can be adjusted for smaller size loads.
4 ft (1.2 m) power cord with twistlock plug and receptacle
The twist-lock receptacles, both male and female, are supplied, which helps prevent accidental disconnection from the power source.

Maintenance:

Bottom hinged front & rear panel cover
The front and back covers fold open for easy access to all components.
Air filter
Over-sized air filter provided inside the front cover features a screw-on clear filter bowl for easy filter inspection and cleaning.

Generator shown with radio controls

Your choice of four control styles to suit your application:

Standard controls

Electric self-cycling attach/release
Instant attach/release is provided via the hoist up and down movement. The attach and release alternate each lift cycle for fast, efficient handling. Similar to our line of mechanical generators. .

Features:

No pendant or radio controls required for attach/release.
Extremely safe: load cannot be released until it is set down on a surface.
Simple to operate.

Optional controls

Radio controlled 3 button attach / release / interlock transmitter with plug-in receiver
Hand held device with attach, release and safety interlock push buttons, with holster mounted on the front handlebar. Plug-in receiver is mounted on the side of the vacuum generator.

Includes:

Radio control transmitter and mounting holster
Radio control receiver and mounting bracket

Plug-in attach / release / interlock control pendant
Attach/release momentary switch and safety interlock push-button located on control pendant with 10 ft long coiled cord.

Includes:

Pendant control and mounting holster
Plug-in, replaceable coil cord, 10 ft. long.

Plug-in harness, customer radio receiver interface
Control harness allows you to wire your own radio receiver for integration of attach / release / interlock.

Includes:

Cord, 3 ft. long.

Vacuum pump:

High performance oil-less dry piston vacuum pump motor
Vacuum pump is thermally overload protected and requires 115V/1PH/60Hz* 15 amps service unless otherwise specified.
Operating temperature: 35°F to 135°F (1.7°C to 57.2°C)

Options:

Optional moisture traps (32000216)
For damp applications: prevents saturation of the filter and possible damage to the pump. Not for handling wet loads. Mounts on vacuum manifold.
*Optional generator configurations available:
In addition to our standard line of Vac-Packs noted above, other configurations and set-ups are available to suit application requirements.

Specifications with standard vacuum pump:

Generator series model no.	VPE1-GEN3-FD	VPE1-GEN3-HD	VPE1-GEN3-XD	VPE1-GEN3-XDH
Rated load capacity [lbs (kg)]	2200 (998)	4600 (2087)	4600 (2087)	4600 (2087)
Unit weight [lbs (kg)]	182 (83)	184 (84)	190 (87)	190 (87)

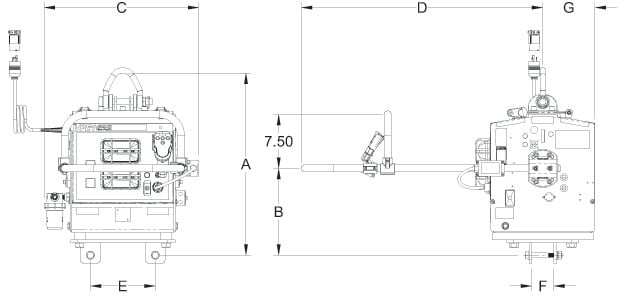

A Max. headroom [in. (mm)]	25.19 (640)	27.19 (691)	28.19 (716)	28.19 (716)
B Handlebar height [in. (mm)]	12.00 (304)	14.00 (356)	15.00 (381)	15.00 (381)
C Handlebar width [in. (mm)]	18.00 (457)	18.00 (457)	18.00 (457)	18.00 (457)
D Handlebar length max. [in. (mm)]	33.50 (851)	33.50 (851)	33.50 (851)	33.50 (851)
E Hardware centers [in. (mm)]	9.00 (229)	12.00 (305)	12.00 (305)	12.00 (305)
F Fits tube size [in. (mm)]	3 x 3 (76 x 76)	3 x 6 (76 x 152)	5 x 7 (127 x 178)	5 x 7 (127 x 178)
G Vac-Pack depth [in. (mm)]	7.31 (186)	7.31 (186)	7.31 (186)	7.31 (186)
Vacuum level at sea level [in. Hg]	24	24	24	24
Incoming power requirement [AC]	115V/1PH/60Hz 15 amps	115V/1PH/60Hz 15 amps	115V/1PH/60Hz 15 amps	115V/1PH/60Hz 15 amps
Energy saver / quiet automatic shut-off	YES	YES	YES	YES

*Note: VPE1-GEN3-XDH series for use with beams longer than 231 inches with three sets of hardware. Not compatible with lift frames using center pads or crossarms.

Specifications for remote mounting:

Generator series model no.	VPE1-GEN3-RD	VPE1-GEN3-TD
Unit weight [lbs (kg)]	144 (65)	144 (65)
A Max. headroom [in. (mm)]	20.00 (498)	17.31 (440)
B Unit height [in. (mm)]	16.59 (421)	16.75 (425)
C Unit width [in. (mm)]	14.80 (376)	16.43 (372)

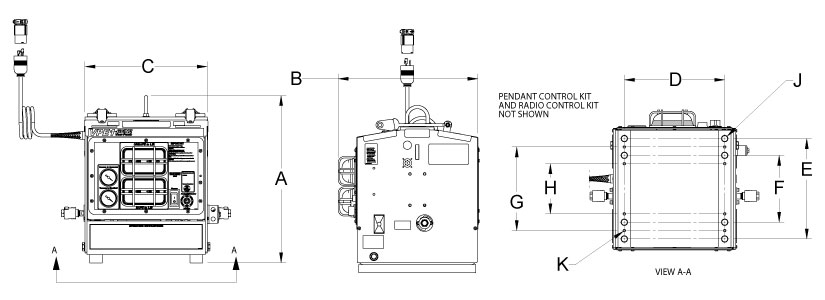

D x E x J Hardware mounting [in. (mm)]	12 x 12 (305 x 305) M20X2.5	12 x 12 (305 x 305) M20X2.5
D x F x J Hardware mounting [in. (mm)]	12 x 8 (305 x 203) M20X2.5	12 x 8 (305 x 203) M20X2.5
D x G x K Hardware mounting [in. (mm)]	12 x 10 (305 x 254) M8X1.25	12 x 10 (305 x 254) M8X1.25
D x H x K Hardware mounting [in. (mm)]	12 x 6 (305 x 152) M8X1.25	12 x 6 (305 x 152) M8X1.25
Vacuum level at sea level [in. Hg]	24	24
Incoming power requirement [AC]	115V/1PH/60Hz 15 amps	115V/1PH/60Hz 15 amps*
Energy saver / quiet automatic shut-off	YES	YES
Operator control style options	Radio control or pendant control (electric self-cycling not compatible with this model)	Radio control or pendant control (electric self-cycling not compatible with this model)

*Note: for VPE1-GEN3-TD series generators, amperage may be different than noted to accommodate additional components and accessories.
