ANVER vacuum lifting attachments with SSR slip-on sealing rings

These pad attachments fit most ANVER standard vacuum generators and use short lip SSR slip-on sealing rings replaced by hand without tools. Dimensions for each model below.

Made in the USA
ISO 9001:2015 certified
More than 58 years of experience

Request a quote

Vacuum lifting pad attachments
Featuring vacuum pads with hand replaceable slip-on sealing rings

ANVER vacuum lifters can be outfitted with a variety of interchangeable vacuum pads and vacuum lifting attachments for a wide range of material handling applications. Various multiple vacuum pad configurations can be installed on most of our standard vacuum generators. The vacuum lifting pad attachments below feature ANVER’s proprietary SSR series of hand replaceable slip-on vacuum sealing rings. With SSR sealing rings, ANVER vacuum lifters are more economical to operate, as the vacuum seals can easily be replaced in minutes with no tools required for removal or installation. ANVER SSR sealing rings also feature a short lip design for rapid vacuum attachment and release.

Note: not compatible with EZ-Tilt (series) attachments.

Double pad vacuum lifting attachments
Manufacturer PDF


Product photo	Pad attachment no.	Rated load capacity	Unit weight	A Pad diameter	B Pad attachment headroom	C Beam length	D Hardware mounting centers	E Pad distances
Product photo	Pad attachment no.	Rated load capacity	Unit weight	A Pad diameter	B Pad attachment headroom	C Beam length	D Hardware mounting centers	Max.	Min.
	PA62-2-24-3	220 lb 100 kg	18 lb 8 kg	6.0 in. 165 mm	5 in. 127 mm	24 in. 610 mm	9 in. 229 mm	25.69in. 652 mm	19.50 in. 495 mm
	PA62-2-36-3	220 lb 100 kg	22 lb 10 kg	6.0 in. 165 mm	5 in. 127 mm	36 in. 914 mm	9 in. 229 mm	37.50 in. 953 mm	19.50 in. 495 mm
	PA66-2-24-3	220 lb 100 kg	18 lb 8 kg	6.6 in. 168 mm	5 in. 127 mm	24 in. 610 mm	9 in. 229 mm	26.25 in. 666 mm	20.13 in. 512 mm
	PA66-2-36-3	220 lb 100 kg	22 lb 10 kg	6.6 in. 168 mm	5 in. 127 mm	36 in. 914 mm	9 in. 229 mm	38.25 in. 971 mm	20.13 in. 512 mm
	PA72-2-24-3	320 lb 145 kg	18 lb 8 kg	6.6 in. 168 mm	5 in. 127 mm	24 in. 610 mm	9 in. 229 mm	26.63 in. 676 mm	20.50 in. 520 mm
	PA72-2-36-3	320 lb 145 kg	22 lb 10 kg	6.6 in. 168 mm	5 in. 127 mm	36 in. 914 mm	9 in. 229 mm	38.63 in. 981 mm	20.50 in. 520 mm
	PA76-2-24-3	320 lb 145 kg	20 lb 9 kg	7.8 in. 198 mm	5 in. 127 mm	24 in. 610 mm	9 in. 229 mm	27.38 in. 695 mm	21.25 in. mm
	PA76-2-36-3	320 lb 145 kg	24 lb 11 kg	7.8 in. 198 mm	5 in. 127 mm	36 in. 914 mm	9 in. 229 mm	39.38 in. 1000 mm	21.25 in. 540 mm
	PA82-2-24-3	440 lb 200 kg	22 lb 10 kg	8.0 in. 203 mm	5 in. 127 mm	24 in. 610 mm	9 in. 229 mm	27.63 in. 702 mm	21.50 in. 546 mm
	PA82-2-36-3	440 lb 200 kg	26 lb 12 kg	8.0 in. 203 mm	5 in. 127 mm	36 in. 914 mm	9 in. 229 mm	39.63 in. 1006 mm	21.50in. 546 mm
	PA86-2-24-3	440 lb 200 kg	22 lb 10 kg	8.8 in. 224 mm	5 in. 127 mm	24 in. 610 mm	9 in. 229 mm	28.44 in. 722 mm	22.31 in. 567 mm
	PA86-2-36-3	440 lb 200 kg	26 lb 12 kg	8.8 in. 224 mm	5 in. 127 mm	36 in. 914 mm	9 in. 229 mm	40.44 in. 1027 mm	22.31 in. 567 mm
	PA92-2-24-3	550 lb 249 kg	24 lb 11 kg	9.13 in. 232 mm	5 in. 127 mm	24 in. 610 mm	9 in. 229 mm	28.75 in. 730 mm	22.63 in. 575 mm
	PA92-2-36-3	550 lb 249 kg	28 lb 13 kg	9.13 in. 232 mm	5 in. 127 mm	36 in. 914 mm	9 in. 229 mm	40.75 in. 1035 mm	22.63 in. 575 mm
	PA96-2-24-3	550 lb 249 kg	24 lb 11 kg	10 in. 254 mm	5 in. 127 mm	24 in. 610 mm	9 in. 229 mm	29.63 in. 752 mm	23.50 in. 597 mm
	PA96-2-36-3	550 lb 249 kg	28 lb 13 kg	10 in. 254 mm	5 in. 127 mm	36 in. 914 mm	9 in. 229 mm	41.63 in. 1057 mm	23.50 in. 597 mm

13600100

Triple pad vacuum lifting attachments
Manufacturer PDF

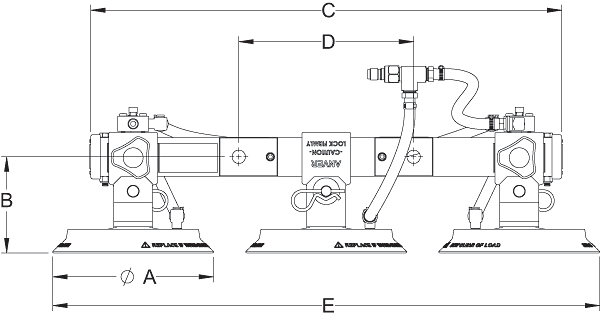

Product photo	Pad attachment no.	Rated load capacity	Unit weight	A Pad diameter	B Pad attachment headroom	C Beam length	D Hardware mounting centers	E Pad distances
Product photo	Pad attachment no.	Rated load capacity	Unit weight	A Pad diameter	B Pad attachment headroom	C Beam length	D Hardware mounting centers	Max.	Min.
	PA62-3-24-3	330 lb 150 kg	24 lb 11 kg	6.0 in. 165 mm	5 in. 127 mm	24 in. 610 mm	9 in. 229 mm	25.69 in. 652 mm	19.50 in. 495 mm
	PA62-3-36-3	330 lb 150 kg	28 lb 13 kg	6.0 in. 165 mm	5 in. 127 mm	36 in. 914 mm	9 in. 229 mm	37.50 in. 953 mm	19.50 in. 495 mm
	PA66-3-24-3	330 lb 150 kg	24 lb 11 kg	6.6 in. 168 mm	5 in. 127 mm	24 in. 610 mm	9 in. 229 mm	26.3 in. 668 mm	24.1 in. 612 mm
	PA66-3-36-3	330 lb 150 kg	28 lb 13 kg	6.6 in. 168 mm	5 in. 127 mm	36 in. 914 mm	9 in. 229 mm	38.3 in. 973 mm	24.1 in. 612 mm
	PA72-3-24-3	480 lb 218 kg	26 lb 12 kg	6.6 in. 168 mm	5 in. 127 mm	24 in. 610 mm	9 in. 229 mm	26.63 in. 676 mm	20.50 in. 520 mm
	PA72-3-36-3	480 lb 218 kg	30 lb 14 kg	6.6 in. 168 mm	5 in. 127 mm	36 in. 914 mm	9 in. 229 mm	38.63 in. 981 mm	20.50 in. 520 mm
	PA76-3-24-3	480 lb 218 kg	26 lb 12 kg	7.8 in. 198 mm	5 in. 127 mm	24 in. 610 mm	9 in. 229 mm	27.5 in. 699 mm	25.3 in. 643 mm
	PA76-3-36-3	480 lb 218 kg	30 lb 14 kg	7.8 in. 198 mm	5 in. 127 mm	36 in. 914 mm	9 in. 229 mm	39.5 in. 1003 mm	25.3 in. 643 mm
	PA82-3-24-3	660 lb 299 kg	27 lb 12 kg	8.0 in. 203 mm	5 in. 127 mm	24 in. 610 mm	9 in. 229 mm	27.63 in. 702 mm	21.50 in. 546 mm
	PA82-3-36-3	660 lb 299 kg	31 lb 14 kg	8.0 in. 203 mm	5 in. 127 mm	36 in. 914 mm	9 in. 229 mm	39.63 in. 1006 mm	21.50 in. 546 mm
	PA86-3-24-3	660 lb 299 kg	27 lb 12 kg	8.8 in. 224 mm	5 in. 127 mm	24 in. 610 mm	9 in. 229 mm	28.5 in. 724 mm	26.5 in. 673 mm
	PA86-3-36-3	660 lb 299 kg	31 lb 14 kg	8.8 in. 224 mm	5 in. 127 mm	36 in. 914 mm	9 in. 229 mm	40.5 in. 1029 mm	26.5 in. 673 mm
	PA92-3-36-3	825 lb 374 kg	32 lb 15 kg	9.13 in. 232 mm	5 in. 127 mm	36 in. 914 mm	9 in. 229 mm	40.75 in. 1035 mm	22.63 in. 575 mm
	PA96-3-36-3	825 lb 374 kg	32 lb 15 kg	10 in. 254 mm	5 in. 127 mm	36 in. 914 mm	9 in. 229 mm	41.7 in. 1059 mm	30.0 in. 762 mm

13600101 A

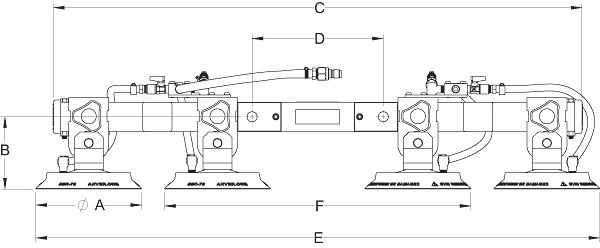

Quadruple pad vacuum lifting attachments
Manufacturer PDF

Product photo

Pad attachment no.

Rated load capacity

Unit weight

A Pad diameter

B Pad attachment headroom

C Beam length

D Hardware mounting centers

E Outer pad distances

F Inner pad distances

Max.

Min.

Max.

Min.

PA62-4-36-3

440 lb 200 kg

24 lb 11 kg

6.0 in.
165 mm

5 in.
127 mm

36 in.
914 mm

9 in.
229 mm

37.63 in. 956 mm

32.50 in.
826 mm

23.38 in.
594 mm

19.50 in.
495 mm

PA62-4-48-3

440 lb 200 kg

27 lb 12 kg

6.0 in.
165 mm

5 in.
127 mm

48 in.
1219 mm

9 in.
229 mm

49.63 in.
1260 mm

32.50 in.
826 mm

36.63 in.
930 mm

19.50 in.
495 mm

PA66-4-36-3

440 lb 200 kg

24 lb 11 kg

6.6 in.
168 mm

5 in.
127 mm

36 in.
914 mm

9 in.
229 mm

38 in.
965 mm

37.5 in.
953 mm

24.0 in.
610 mm

24.0 in.
612 mm

PA66-4-48-3

440 lb 200 kg

27 lb 12 kg

6.6 in.
168 mm

5 in.
127 mm

48 in.
1219 mm

9 in.
229 mm

50 in.
1270 mm

37.5 in.
953 mm

36.5 in.
927 mm

24.0 in.
612 mm

PA72-4-36-3

640 lb 290 kg

29 lb 13 kg

7.0 in.
178 mm

5 in.
127 mm

36 in.
914 mm

9 in.
229 mm

38.63 in.
981 mm

35.50 in.
901 mm

23.63 in.
600 mm

20.50 in.
521 mm

PA72-4-48-3

640 lb 290 kg

35 lb 16 kg

7.0 in.
178 mm

5 in.
127 mm

48 in.
1219 mm

9 in.
229 mm

50.63 in.
1286 mm

35.50 in.
901 mm

35.63 in.
905 mm

20.50 in.
521 mm

PA76-4-36-3

640 lb 290 kg

29 lb 13 kg

7.8 in.
198 mm

5 in.
127 mm

36 in.
914 mm

9 in.
229 mm

51 in.
1295 mm

40.5 in.
1029 mm

35.5 in.
902 mm

25.0 in.
635 mm

PA76-4-48-3

640 lb 290 kg

29 lb 13 kg

7.8 in.
198 mm

5 in.
127 mm

48 in.
1219 mm

9 in.
229 mm

51 in.
1295 mm

40.5 in.
1029 mm

35.5 in.
902 mm

25.0 in.
635 mm

PA82-4-48-3

880 lb 399 kg

35 lb 16 kg

8.0 in.
203 mm

5 in.
127 mm

48 in.
1219 mm

9 in.
229 mm

51.63 in.
1311 mm

38.50 in.
978 mm

34.63 in.
880 mm

21.50 in.
546 mm

PA86-4-48-3

880 lb 399 kg

35 lb 16 kg

8.8 in.
224 mm

5 in.
127 mm

48 in.
1219 mm

9 in.
229 mm

52 in.
1321 mm

44 in.
1118 mm

34.5 in.
876 mm

26.0 in.
660 mm

Adjustment knobs
Product photo	Part number	Description
	KNM16X50P	Hand knob, M16 x 50 mm stud, black plastic. Replaces HDLM16X50ZRAT & HDLM16X60ZRAT
	KNM12X45P	Hand knob, M12 x 45 mm stud, black plastic. Replaces HDLM12X40ZRAT
	KNM12X35SP	Hand knob, M12 x 35 mm stud, small black plastic Replaces HDLM12X40ZRAT, HDLM12X30ZRAT & KNM12X45SP

13600102 B

*The cup capacities shown above are based on 24″Hg at sea level with a safety factor of two (2) in the horizontal (flat),
and four (4) in the vertical (upright).
Rated load capacities are estimated; actual capacity will vary based on the load surface and the level of vacuum.

**”A” = minimum distance between inner cup centers
***”B” = minimum distance between outer cup centers

Need an ANVER system for your load?

Send photos, weight and dimensions of the load. FullSharp represents ANVER and replies with a configuration and quote within 24 hours.
