ANVER PA86-2-XX-3 double pad vacuum lifting attachment

PA86-2-XX-3 is a two pad attachment mounted under ANVER vacuum generators, with hand replaceable SSR-86 slip-on sealing rings. Horizontal and vertical (220 lb) capacities, headroom and seal number below.

Request a quote

Vacuum lifting pad attachments
Double pad vacuum lifting attachment
Featuring vacuum pads with hand replaceable slip-on sealing rings

Double pad vacuum lifting attachments XX = available beam lengths: 24 inch and 36 inch
Vacuum lifting attachment no.	With M83M generator	With other generators		Headroom added to generator (bottom of pad to mounting holes) in. (mm)	Vacuum seal no.	Vacuum seal dia. in. (mm)
	Rated load capacity* (horizontal) lb (kg)	Rated load capacity* (horizontal) lb (kg)	Rated load capacity* (vertical) lb (kg)
PA86-2-XX-3	400 (181)	440 (200)	220 (100)	4.41 (112)	SSR-86	8.81 (224)

*PA80-2-XX-3 with SSR pads is also available. Consult factory

*The cup capacities shown above are based on 24″Hg at sea level with a safety factor of two (2) in the horizontal (flat),
and four (4) in the vertical (upright).
Rated load capacities are estimated; actual capacity will vary based on the load surface and the level of vacuum.

More information about vacuum generators

PA66-2-XX-3 two pad attachment PA76-2-XX-3 two pad attachment PA96-2-XX-3 two pad attachment PA66-3-XX-3 three pad attachment PA76-3-XX-3 three pad attachment PA86-3-XX-3 three pad attachment PA96-3-XX-3 three pad attachment PA66-4-XX-3 four pad attachment PA76-4-XX-3 four pad attachment PA86-4-XX-3 four pad attachment

Need an ANVER system for your load?

Send photos, weight and dimensions of the load. FullSharp represents ANVER and replies with a configuration and quote within 24 hours.

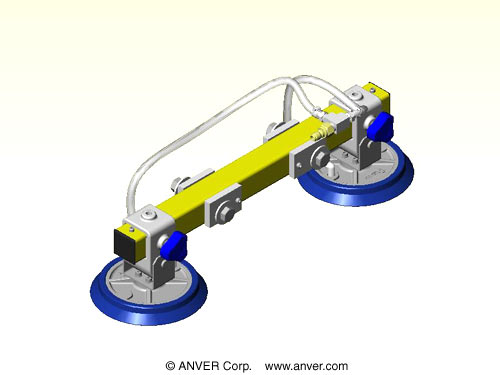

ANVER PA86-2-XX-3 double pad vacuum lifting attachment
