ANVER GF10T 10 ton vacuum generator lifting frame

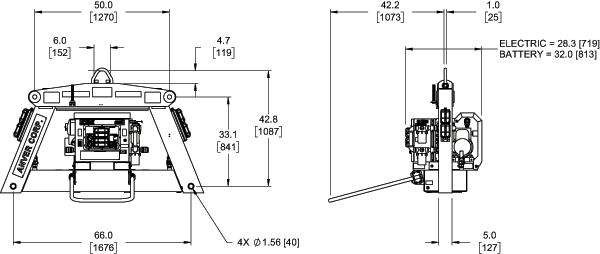

The GF10T is a 10 ton (9072 kg) GF series heavy duty electric powered vacuum generator lifting frame with a large vacuum reservoir and four attach/release control styles. Drawing, GF10TB10-17, GF10T3, GF10T24, GF10T48, GF10T75 model table, optional controls and recommended spare parts below.

Request a quote

GF series heavy duty electric powered vacuum generator lifting frames
10 ton (9072 kg)
Manufacturer PDF

The GF series generators incorporate the latest in sophisticated lifting technology for the handling industry, increasing speed, productivity and efficiency. Available in electric and battery powered. Vac-Packs can be replaced in minutes to minimize downtime in case of service. The GF series speeds production due to a large reservoir allowing the lifter to attach almost instantly, decreasing attach time. The large reservoir not only increases efficiency but also increases safety in the case of power failure due to the vacuum that remains in the system.

Your choice of four control styles to suit your application:

Standard controls

ESC electric self-cycling attach/release system

Electric self-cycling attach/release
Instant attach/release is provided via the hoist up and down movement. The attach and release alternate each lift cycle for fast, efficient handling. Similar to our line of mechanical generators.

Features:

No pendant or radio controls required for attach/release.
Extremely safe: load cannot be released until it is set down on a surface.
Simple to operate.

Optional controls

Radio controlled 3 button attach / release / interlock transmitter with plug-in receiver
Hand held device with attach, release and safety interlock push buttons with holster mounted on front handlebar. Plug-in receiver is mounted on side of vacuum generator.

Includes:

Radio control transmitter and mounting holster
Radio control receiver and mounting bracket

Plug-in attach / release / interlock control pendant
Attach/release momentary switch and safety interlock push-button located on control pendant with 10 ft long coiled cord.

Includes:

Pendant control and mounting holster
Plug-in, replaceable coil cord, 10 ft. long.

Plug-in harness, customer radio receiver interface
Control harness allows you to wire your own radio receiver for integration of attach / release / interlock.

Includes:

Cord, 3 ft. long.

GF10T24 vacuum generator with ESC control
Generator shown with ESC electric self-cycling control

ANVER Energy Saver tag

Features:

State-of-the-art vacuum control which minimizes vacuum pump use, greatly increasing the number of hours between servicing.
Dual redundancy safety lock-out lifting bail that requires the operator to first set the unit down before they release the load.
Front control panel and gauges
Indicator lights
Vacuum retention
Thermal overload protection
Ergonomic adjustable front handlebar
Audible vacuum leakage warning system

For electrical power requirements, refer to individual vacuum generator series pages (see table below).

Note: maximum lifter capacity and lifter weight combined cannot exceed 22,500 lb (10,205 kg)

Generator series model no.	GF10TB10-17	GF10T3	GF10T24	GF10T48	GF10T75
Vacuum generator series	BAE10-17	VPE3-GEN2	VPEHE24	VPEHE48	VPEHE75
Motor [HP]	1	2x 3/4	1.5	3	5
Vacuum pump [SCFM]	17	2x 8	24	50	78
Unit weight [lb (kg)]	978 (444)	837 (380)	730 (332)	932 (423)	1050 (477)
Vacuum level at sea level [in. Hg (mmHg)]	24	24	24	24	24
Reservoir size [gallon (L)]	30 (114)	33 (126)	30 (114)	30 (114)	30 (114)
Energy saver / quiet automatic shut-off	Yes	Yes	Yes	Yes	Yes

Optional controls
Product photo	Part number	Description
	RCPK-ARI	Radio control kit for Vac-Packs, attach/release/interlock Kit includes: Radio control transmitter and mounting holster Radio control receiver and mounting bracket
	EPK-AC/DC-ARI	Pendant control kit for Vac-Packs, attach/release/interlock Kit includes: Pendant control and mounting holster Plug-in, replaceable coil cord, 10 ft. long.
	34000332	Plug-in harness, customer radio receiver interface Kit includes: Cord, 3 ft. long.

Recommended spare parts
Product photo	Part number	Description	Item weight oz. (grams)
	34000152	Pendant coil cable replacement / extension, 10 ft. long, plug-in	N/A
	UB-125	Utility bar assembly for 1.25″ dia. handlebars (VPE3-GEN3 / BAE3-GEN3 / GF series)	N/A
	21301186	Radio control transmitter holster assembly, bolt-on for utility bar (mounting hardware included)	N/A
	21301187	Pendant mounting bracket assembly, bolt-on for utility bar (mounting hardware included)	N/A
	RCT-PCLIP	Plastic belt clip for RCT transmitter	0.441 (12.5)
	RCT-MCLIP	Metal belt clip for RCT transmitter	0.758 (21.5)
	RCT-SCREW	Belt clip screw for RCT transmitter	0.0004 (0.01)
	RCT-NYLONCOVER	Protective nylon cover for RCT transmitter	1.111 (31.5)

13600119
