ANVER BAE10 battery vacuum station with 17 CFM rotary vane pump

The BAE10 is a battery powered Vac-Pack station for non-porous to porous loads, for heavy duty frames or stand-alone use, with a 17 CFM rotary vane pump and two 105 Ah batteries.

Request a quote

Vacuum pumps and vacuum generators
Battery Vac-Pack stations
BAE10 series
Manufacturer PDF

ANVER’s BAE10 Vac-Packs are suitable for handling non-porous to porous loads. Designed for use with a wide assortment of lifter assemblies, these high quality Vac-Packs are ruggedly designed for heavy production use. Units are available for heavy duty frames or for stand-alone vacuum stations.

Your choice of two control styles to suit your application:

Radio controlled 3 button attach / release / interlock transmitter with plug-in receiver
Hand held device with attach, release and safety interlock push buttons, with holster mounted on the front handlebar. Plug-in receiver is mounted on the side of the vacuum generator.

Kit includes:

Radio control transmitter and mounting holster
Radio control receiver and mounting bracket

Plug-in attach / release / interlock control pendant
Attach/release momentary switch and safety interlock push-button located on control pendant with 10 ft long coiled cord.

Kit includes:

Pendant control and mounting holster
Plug-in, replaceable coil cord, 10 ft. long.

Safety features

Vacuum control module
A solid-state vacuum control module combines all the required vacuum generator controls in one rugged unit. This controls all vacuum pump functions, safety lights, and is fitted with a standard audible vacuum leakage warning system.
Audible vacuum leakage warning system
Integrated electronically controlled vacuum leakage sensor monitors vacuum level and will sound an alarm if a slow vacuum leak is present and the vacuum level drops to a pre-determined set point.
Vacuum retention
The system includes an internal check valve to stop loss of vacuum in the event of a power failure (non-porous loads). A 30 gallon (6939 cu. in.) vacuum reservoir is recommended to assist in maintaining a safe vacuum level during a power failure (non-porous loads) or to provide a longer safe period if a slow leak is detected, to lower your load safely on the ground out of harm’s way.

Additional features

Front control panel and gauges
All gauges, lights, and power switches are mounted on the front of the control panel. The two vacuum gauges on the face of the panel display the level of vacuum in the manifold and in the reservoir.
Indicator lights – front enclosure, left & right auxiliary
Green light indicates “safe” vacuum level.
Red light indicates “unsafe” vacuum level.
White light indicates “power on.”
Battery charger maintainer (CHARGER-BAE10) (sold separately)
Integrated two bank 20 amp (10 amps per bank) battery charger can charge (2) batteries at the same time. It is designed specifically for today’s high performance, deep-cycle lead-acid batteries. The flush mounted straight blade plug accommodates a standard extension cord using a 110V AC wall outlet. Two battery cables with cable plugs allow easy connection and disconnection for each battery.

Maintenance

Electrical enclosure door
All generators provided with hinged electrical enclosure door for easy access to electrical components
Moisture trap / air filters
Mounted outside of the electrical enclosure are (2) over-sized screw-on clear filter bowls for easy inspection and cleaning
Removable battery case cover
Standard battery case with strap and cover provides easy access to the battery, which is mounted on a rugged mounting bracket(s) bolted directly to the Vac-Pack
Battery cable plugs
Allows easy connection and disconnection to and from the Vac-Pack during battery maintenance or replacement.

Vacuum pump

PMP-17-12V: The 17 CFM rotary vane type vacuum pump is driven by 1 h.p. 12 volt D.C. motor and generates 24” Hg. (at sea level) of vacuum. The ANVER vacuum control module maintains a safe vacuum level by cycling the vacuum pump motor on or off as required, which extends both vacuum pump life and battery charge.

Battery specification:

BAE10-17: (2) 105 Amp hour @ 20 hr (110 A.H. @ 100 hr.), deep-cycle batteries can provide continual operation in many applications.

Specifications for BAE10 series vacuum station

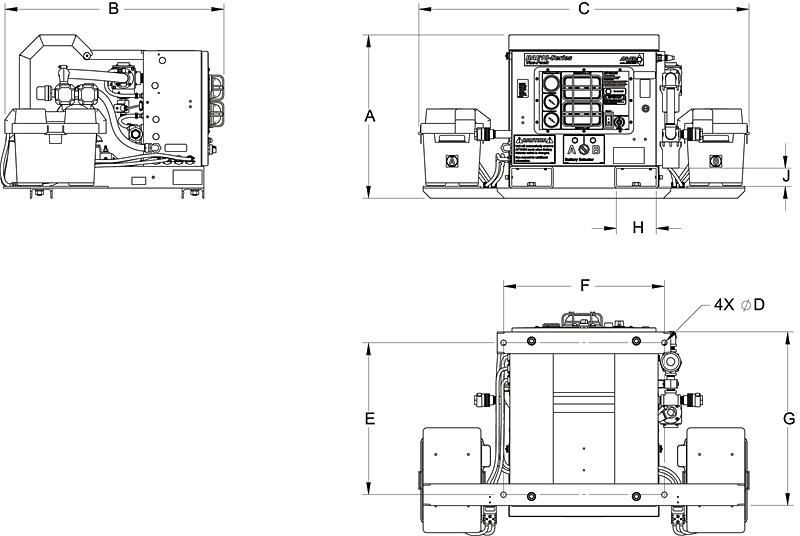

Model number	BAE10-17
Vac-Pack voltage	12 VDC
Vac-Pack amperage	80
Unit weight [lbs. (kg)]	550 (250)
A Height [in. (mm)]	24 (610)
B Depth [in. (mm)]	29 (736)
C Width [in. (mm)]	47 (1193)
D Mounting holes	.75 (19)
E Mounting [in. (mm)]	21.5 (546)
F Mounting [in. (mm)]	14.5 (368)
G Fork pocket length [in. (mm)]	24 (610)
H Fork pocket [in. (mm)]	5.5 (140)
J Fork pocket height [in. (mm)]	2.5 (64)
Vacuum level at sea level [in. Hg (mmHg)]	24 (680)
Vacuum flow [CFM (l/min)]	17 (481.4)
Vacuum pump HP	1
Vacuum pump model	PMP-17-12V
Battery part number	AGM-12V-110 (x2)

Standard lifting frames, vacuum pads, and pad attachments require derating of the lifting capacity by 6.25% when using BAE10-10.

Choose your control style below
Product photo	Part number	Description
	RCPK-AC/DC-ARI	Radio control kit for Vac-Packs, attach/release/interlock Kit includes: Radio control transmitter and mounting holster Radio control receiver and mounting bracket
	EPK-AC/DC-ARI	Pendant control kit for Vac-Packs, attach/release/interlock Kit includes: Pendant control and mounting holster Plug-in, replaceable coil cord, 10 ft. long.

Battery charger maintainer (CHARGER-BAE10) (sold separately)

Vacuum stations are easily transported via forklift
(Note: electrical generator shown in photo below)

13600126

Need an ANVER system for your load?

Send photos, weight and dimensions of the load. FullSharp represents ANVER and replies with a configuration and quote within 24 hours.
