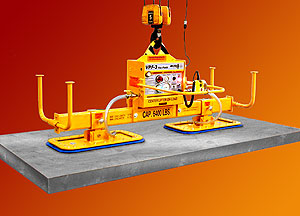

ANVER E640M2-86 heavy mill-duty vacuum lifter for steel plate

The E640M2-86 and E560M2-86 are heavy mill-duty lifters using VP1834 pads. Pads set perpendicular to or in-line with the beam to handle maximum and minimum plate sizes.

Request a quote

Standard heavy mill-duty vacuum lifters
for metal and other heavy industries using VP1834 vacuum pads

Model number	Vacuum generator	Rated load capacity lb. (kg)	Vacuum pad position	Plate dimensions		Seal number	Unit weight* lb. (kg)
				Max. ft (m)	Min. in. (mm)
E560M2-86	VPE3	5600 (2540)	Perpendicular to beam	12 x 8 (3.7 x 2.4)	54 x 30 (1372 x 762)	SR-2129M	605 (274)

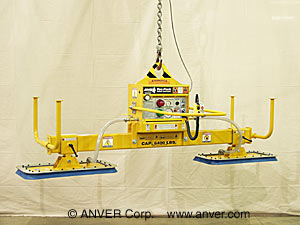

			In-line with beam	12 x 6 (3.7 x 1.8)	65.5 x 22 (1664 x 559)
E640M2-86	VPE3	6400 (2903)	Perpendicular to beam	12 x 8 (3.7 x 2.4)	51 x 36 (1295 x 914)	SR-1834-DP	675 (306)
			In-line with beam	12 x 6 (3.7 x 1.8)	72 x 20 (1829 x 486)

*Note: unit weight does not include optional accessories.

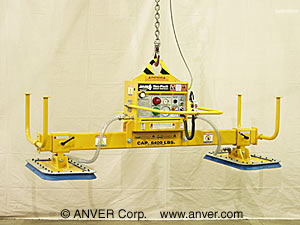

E640M2-86 with pads perpendicular to beam

Pad position perpendicular to beam, drawing

Adjusting pads for maximum and minimum plate sizes

Example of how pads can be adjusted to handle maximum and minimum plate sizes
