Pneumatic Jib Crane for Assist Lifting in Workshops

For tasks between a few dozen and a few hundred kilograms where a large crane is too slow, FullSharp installs a pneumatic jib crane that uses compressed air as the lifting force. The 360 degree joint covers the area around the column, and the end tool can be a hook, gripper or suction cup to suit motors, molds or other parts.

Many tasks don't need a large crane, just lifting an item of a few dozen to a few hundred kilograms and setting it down in the right spot. Manual handling is heavy and easy to misplace, while a large crane is bulky and slow. This is the gap that an assist lifting device fills.

The pneumatic jib crane uses compressed air as the lifting force, so the operator only needs to push and guide direction. A 360-degree rotating joint extends the working range around the column. The end tool is interchangeable, from a hook and gripper to a suction cup, depending on each workshop's goods.

Pneumatic Assist Jib Crane for Workshops

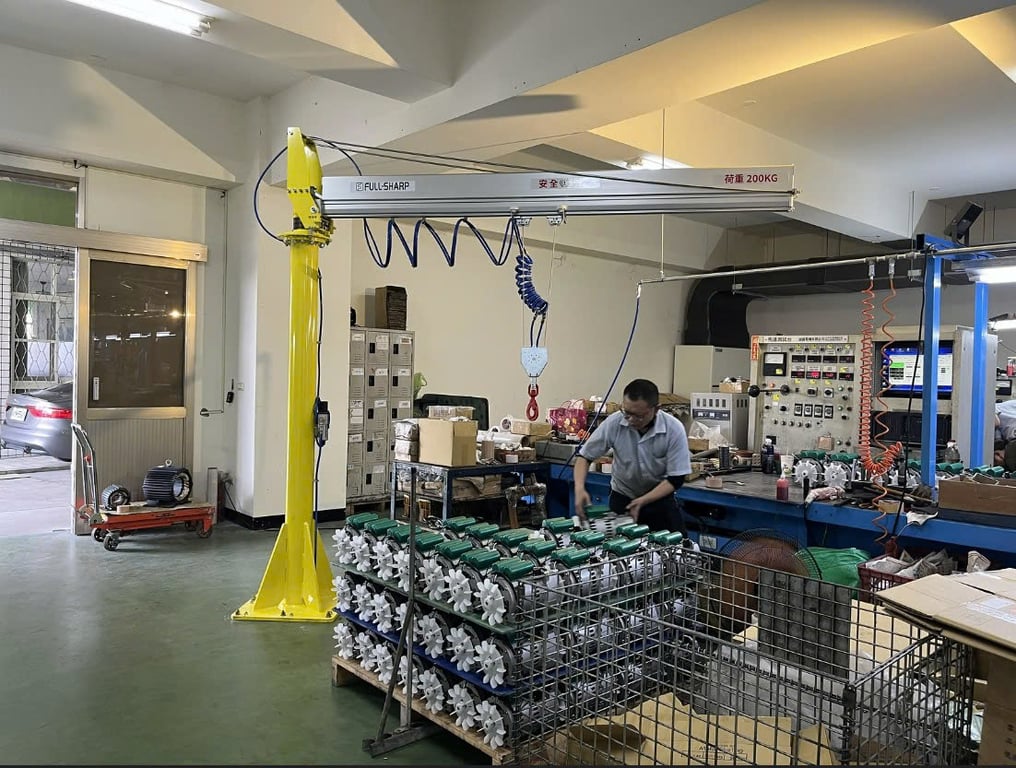

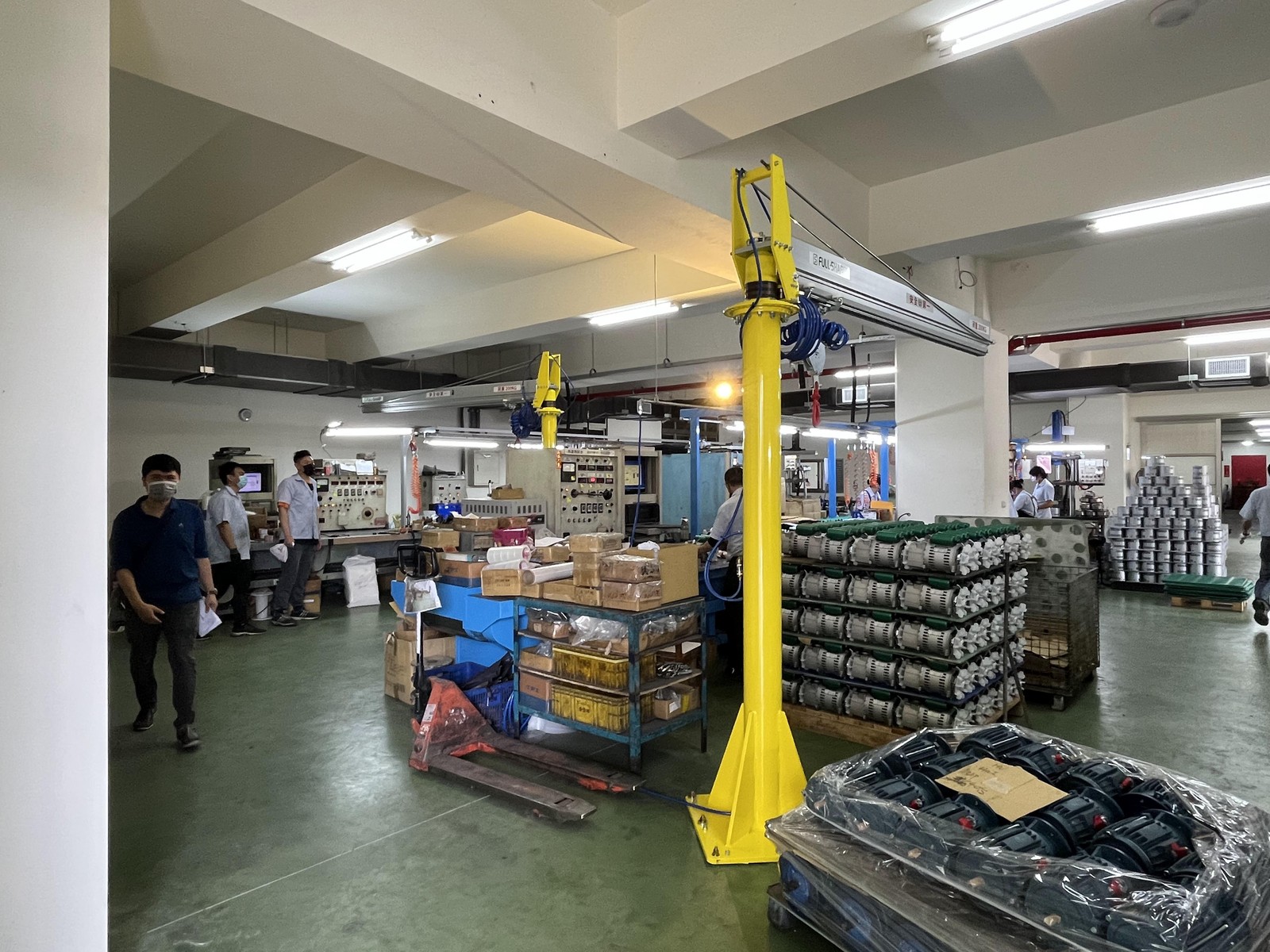

A pneumatic jib crane installed in the production area of the workshop.

Equipment Included

Steel column and arm: load-bearing, installed right at the work station, taking up little floor space.

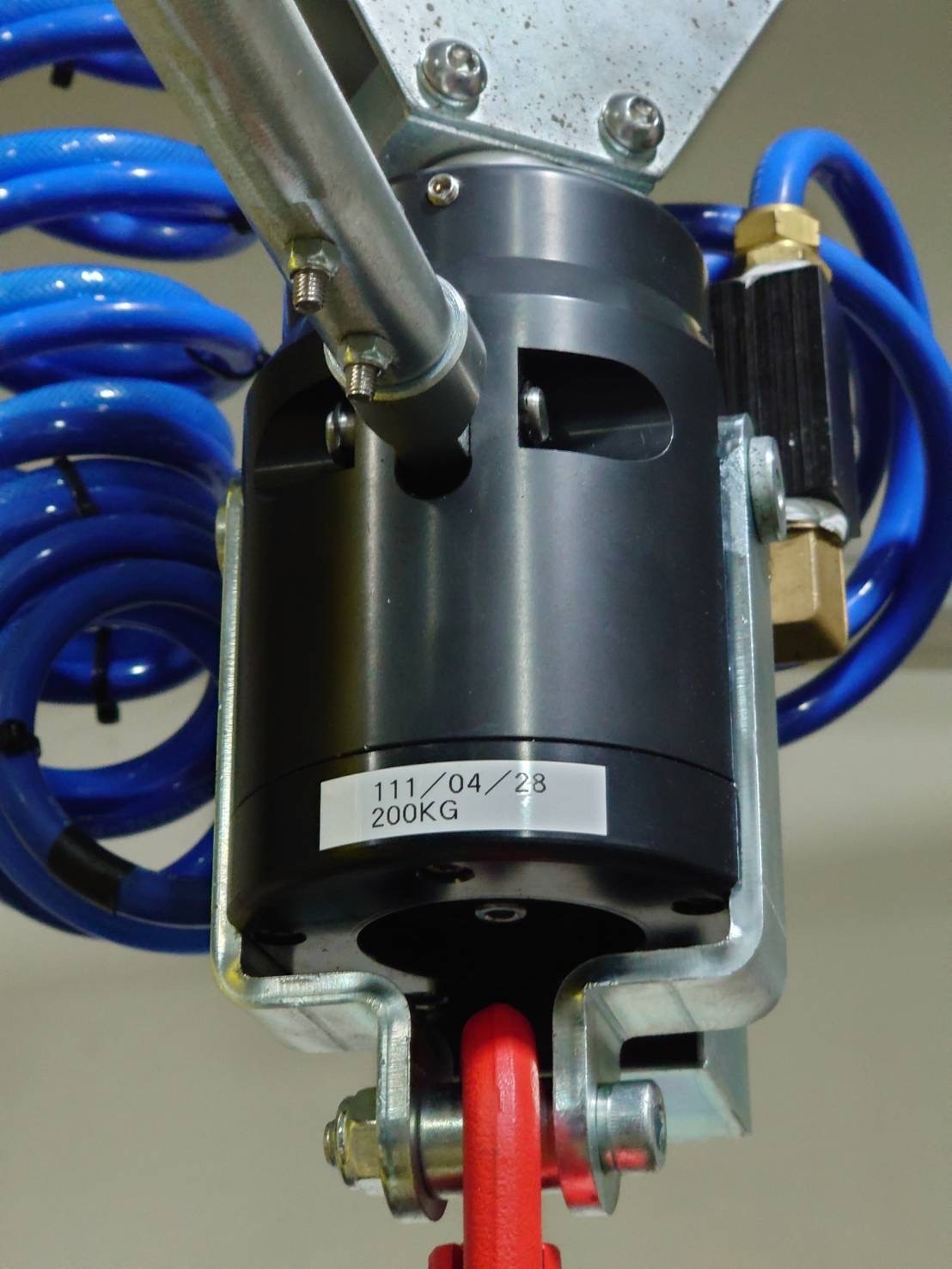

Pneumatic cylinder and valve assembly: creates smooth lifting force, holding the load suspended for precise positioning.

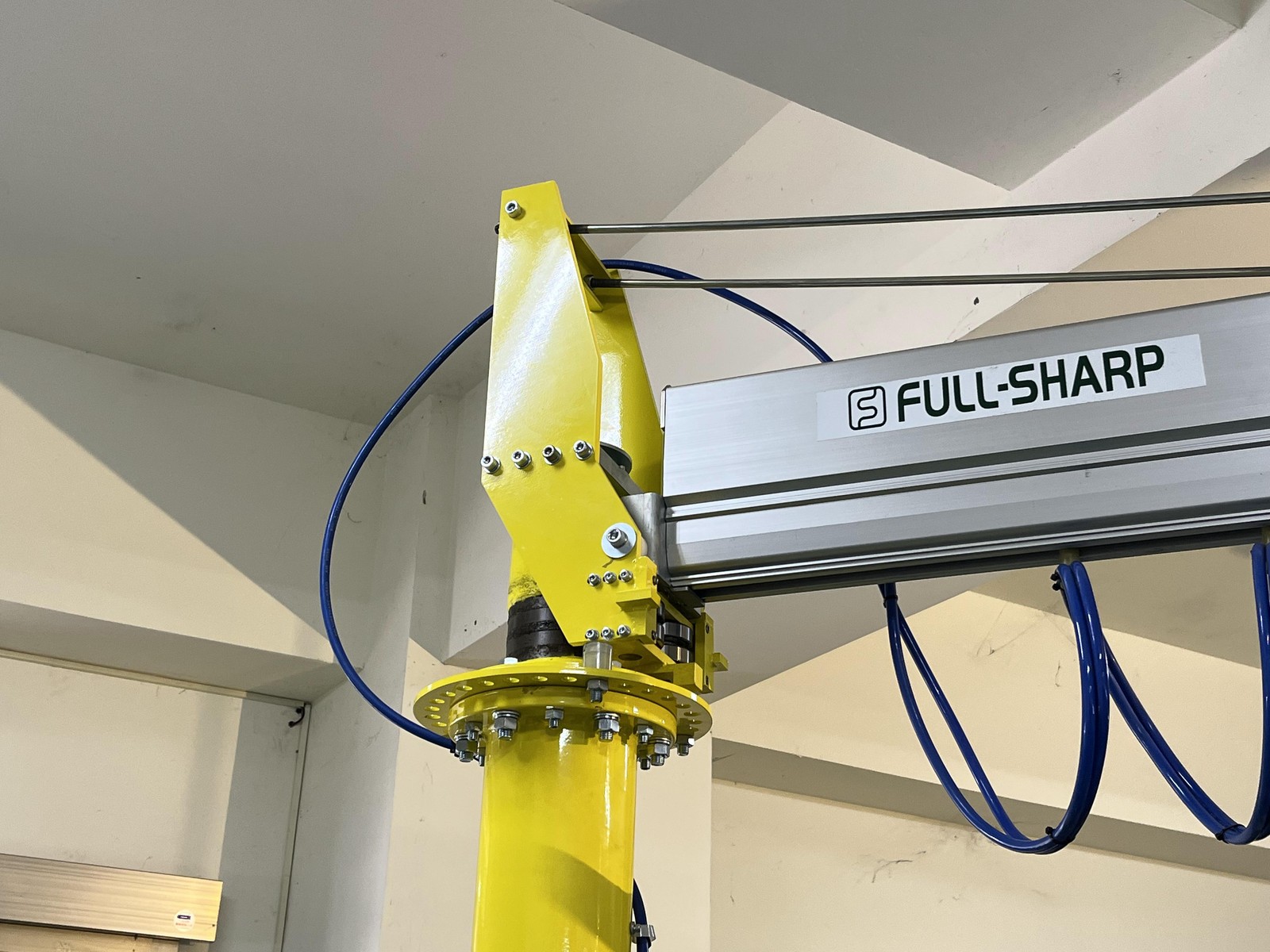

360-degree rotating joint: sweeps the whole work area around the column without moving the load by hand.
Interchangeable end tool: lifting hook, gripper, or suction cup to match the type of goods.

Key Specifications

Joint rotation angle360 degrees

Benefits for Your Facility

Light-effort operation

Compressed air carries the weight, workers only use force to push and guide direction.

Accurate placement

Holding the load suspended and lowering slowly makes it easier to align into a machine or onto a stack.

Low noise

Runs on compressed air without a large electric motor, for a more pleasant work environment.

Real Installation Photos

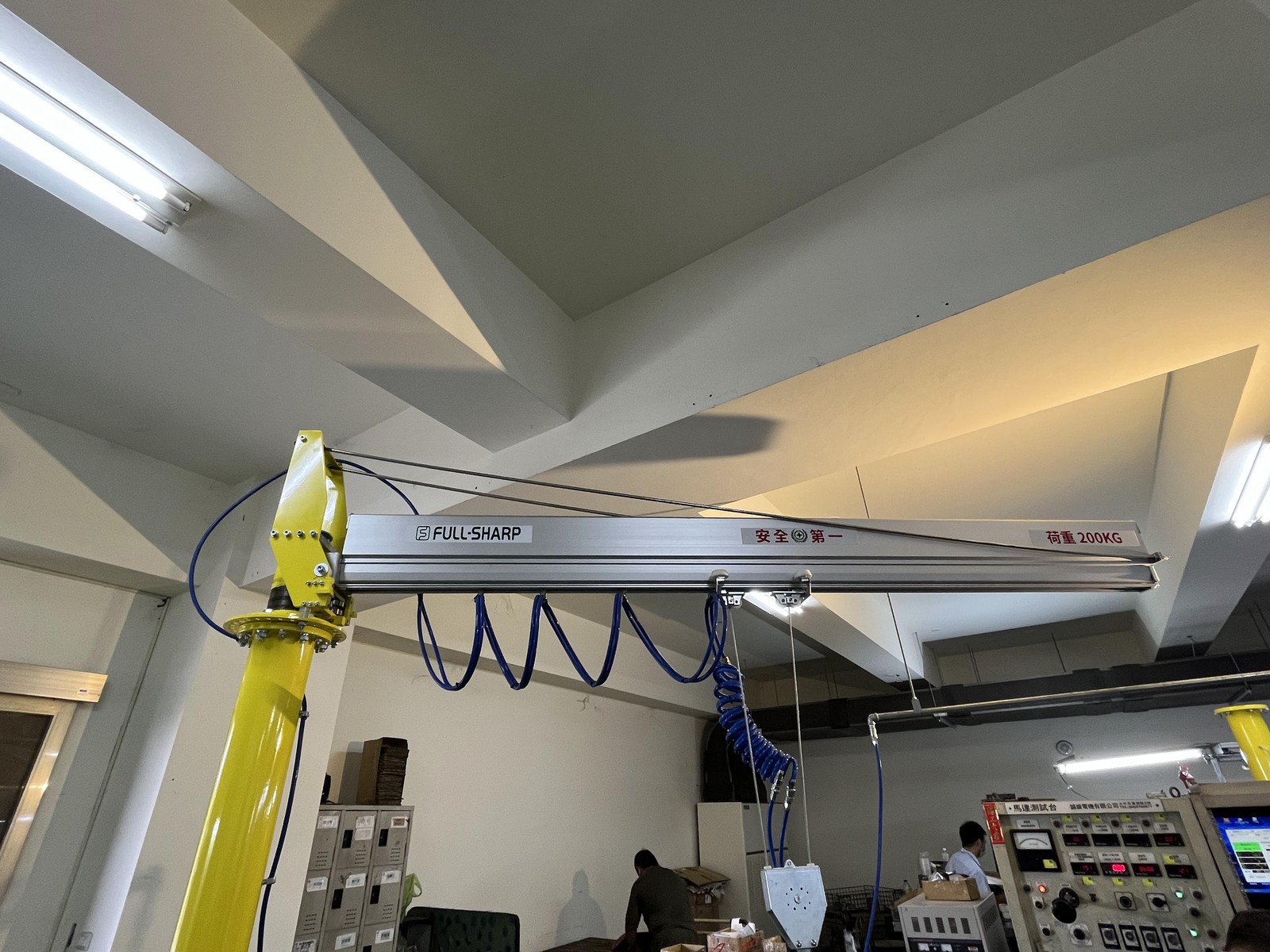

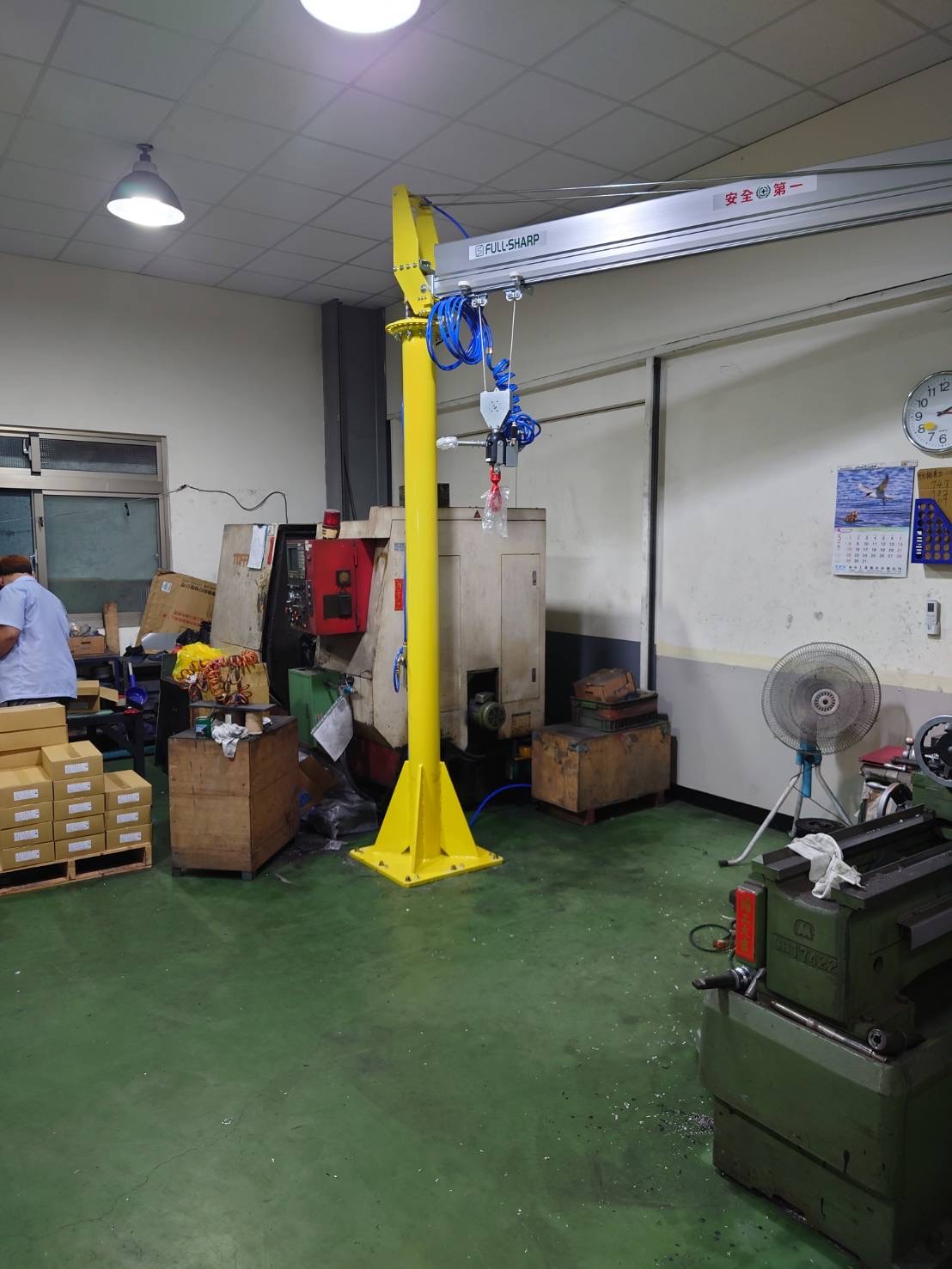

Pneumatic Assist Jib Crane for Workshops - photo 1

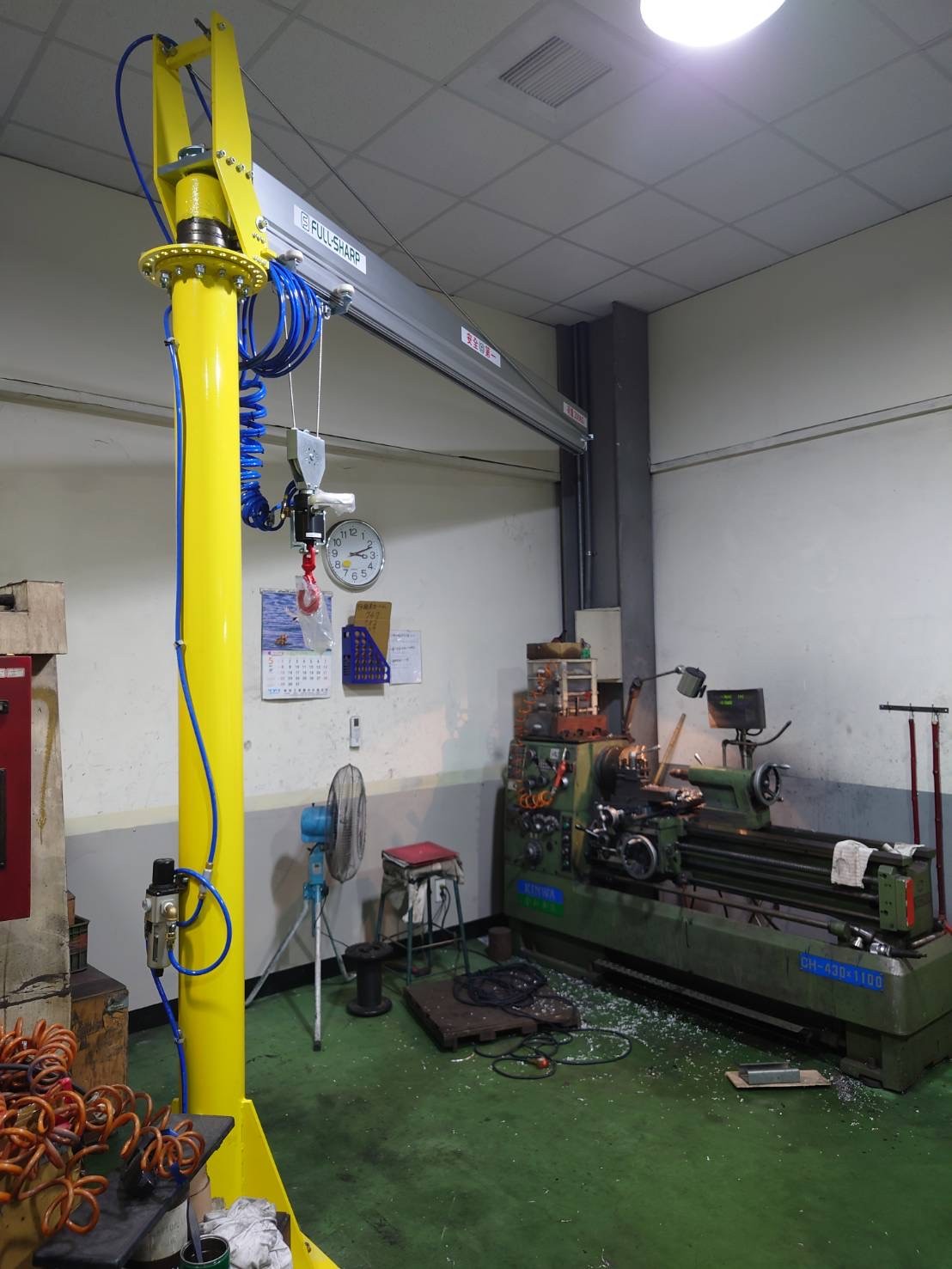

Pneumatic Assist Jib Crane for Workshops - photo 2

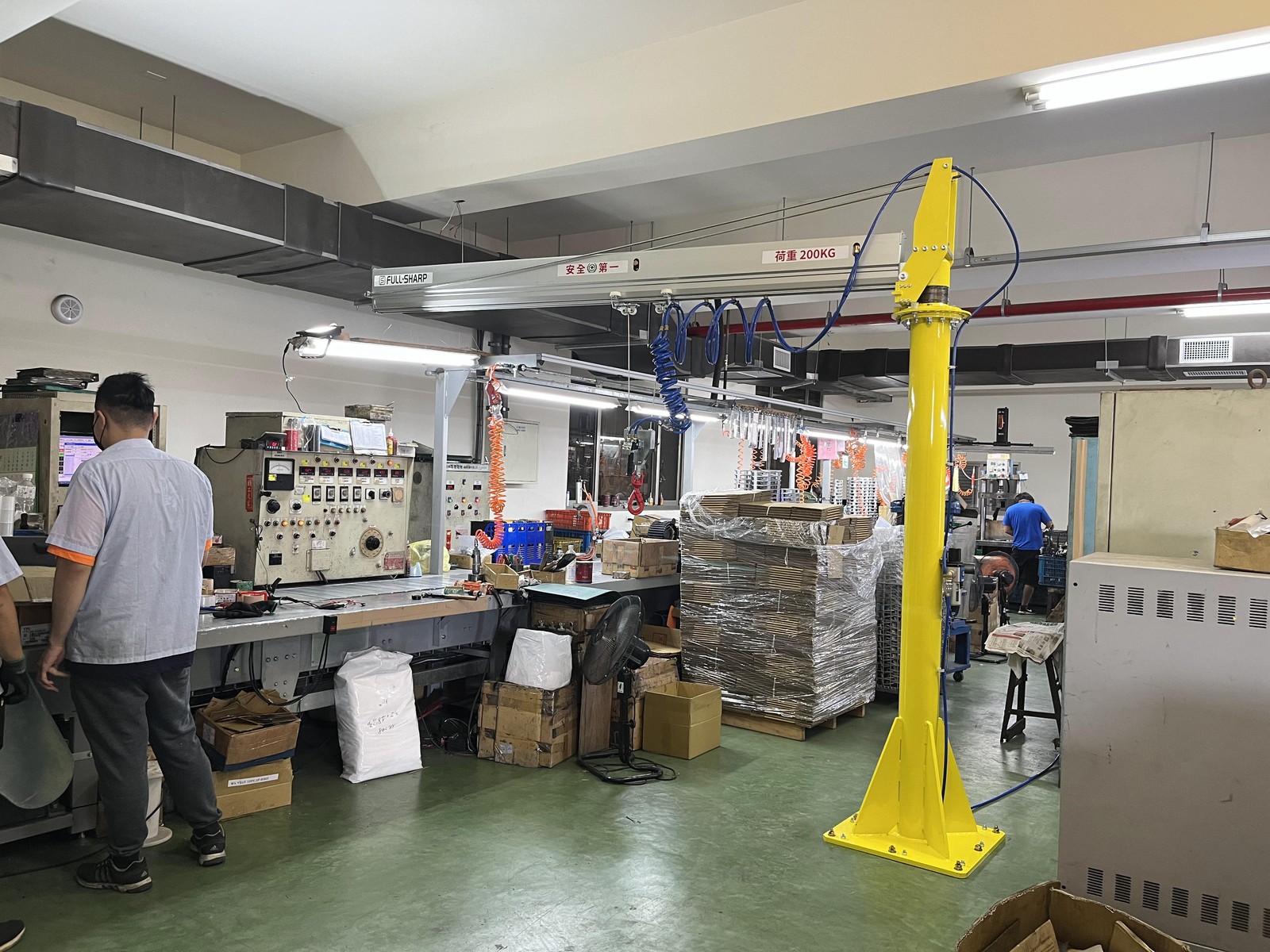

Pneumatic Assist Jib Crane for Workshops - photo 3

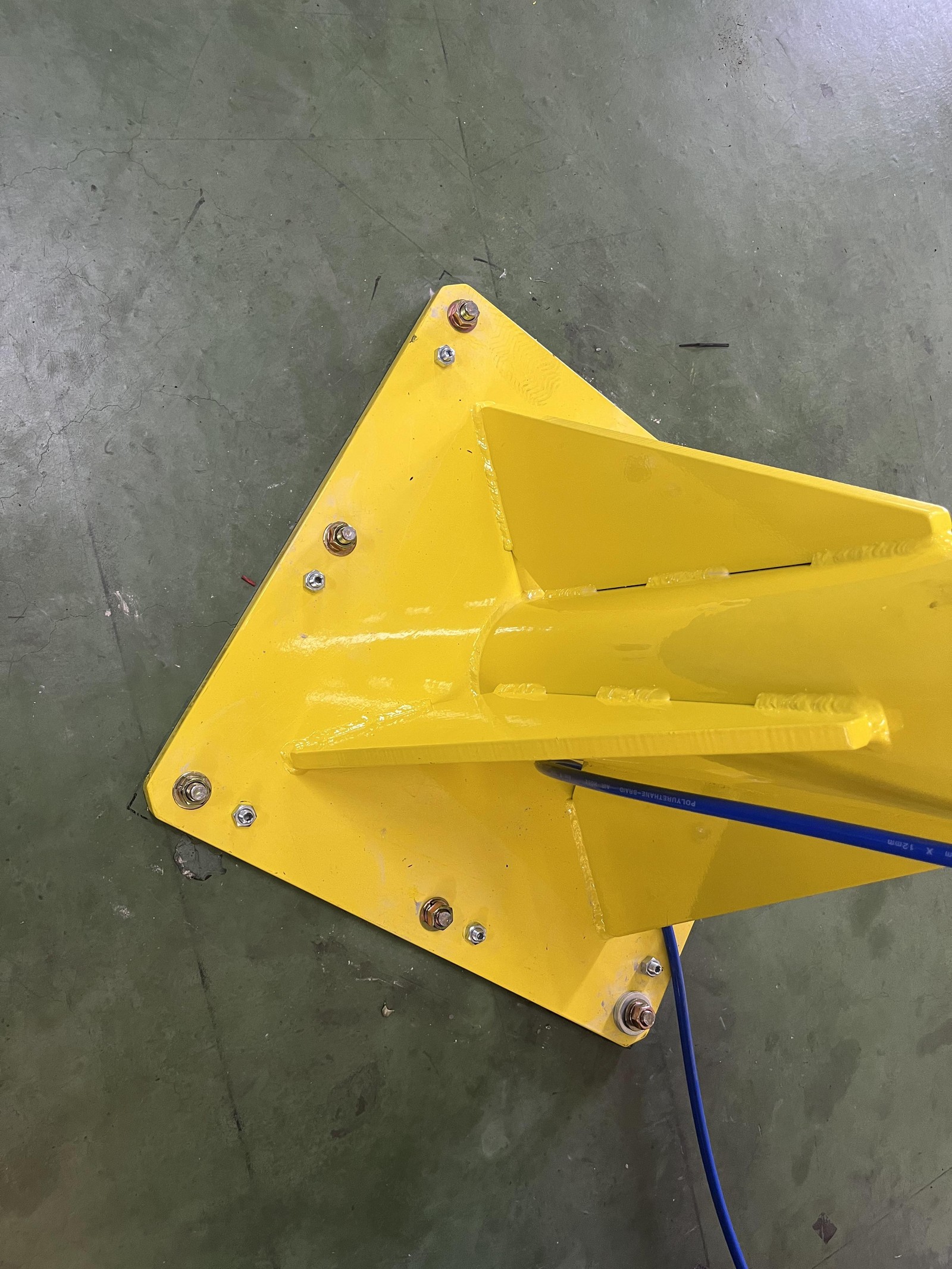

Pneumatic Assist Jib Crane for Workshops - photo 4

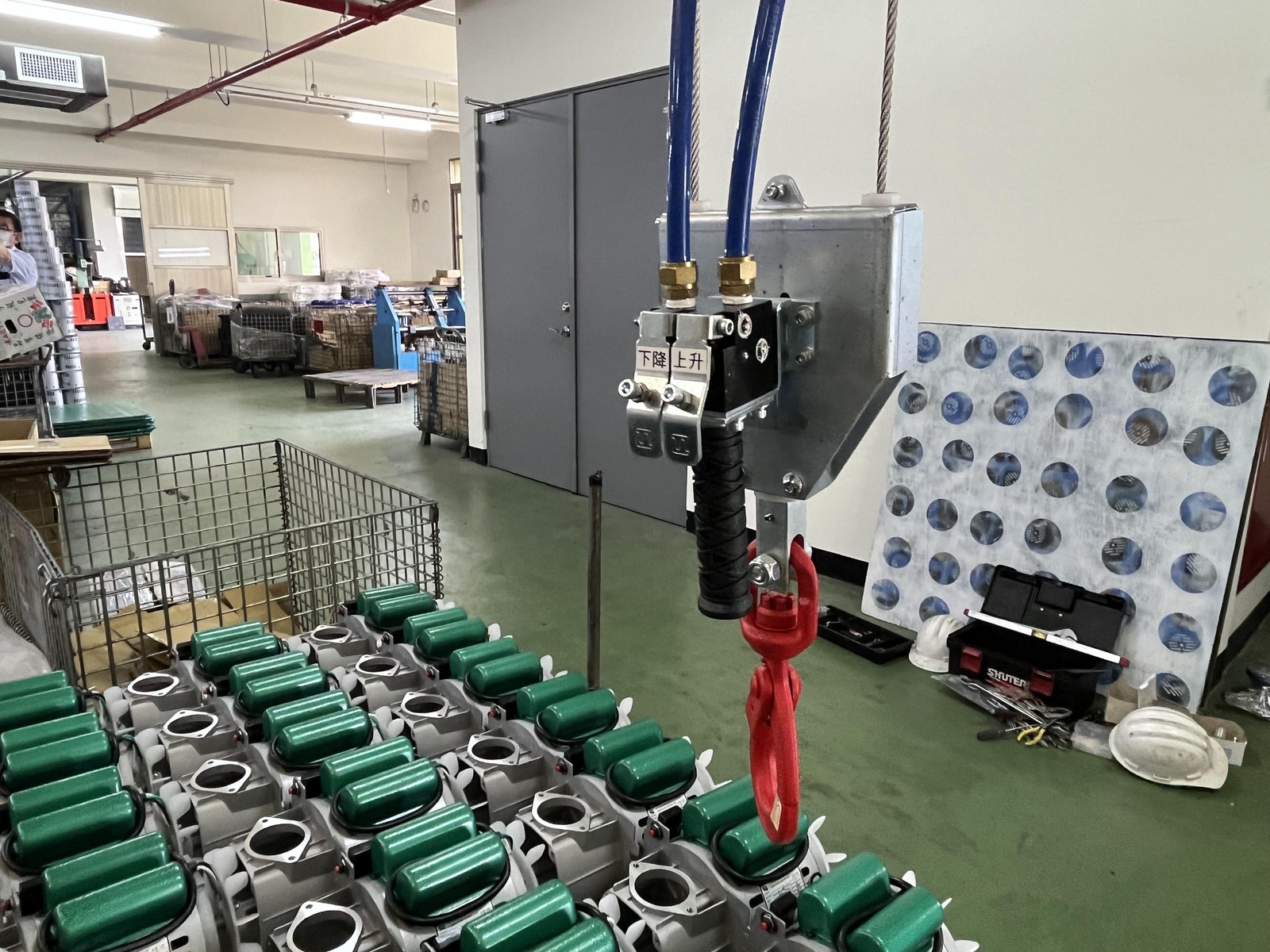

Pneumatic Assist Jib Crane for Workshops - photo 5

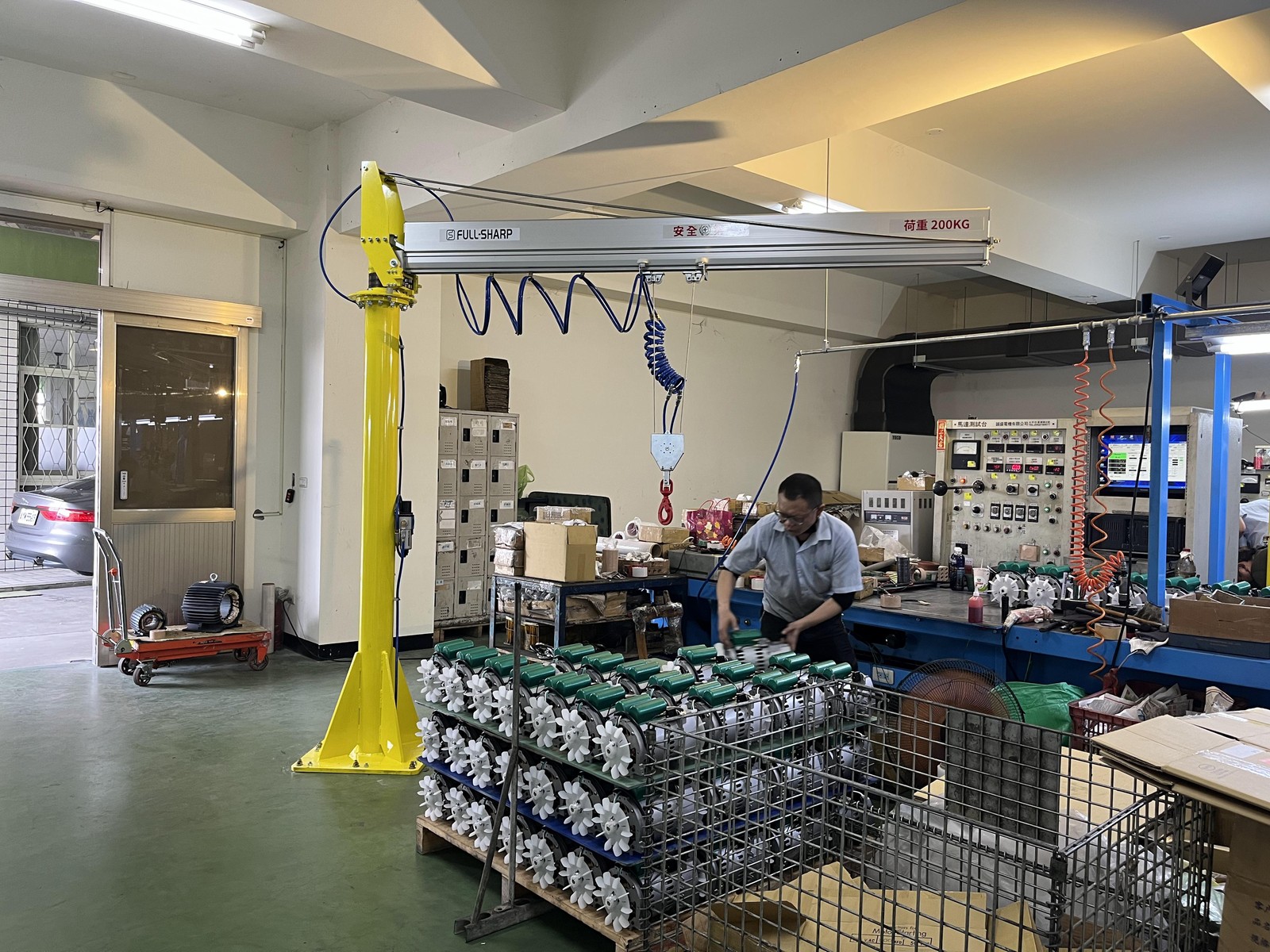

Pneumatic Assist Jib Crane for Workshops - photo 6

Pneumatic Assist Jib Crane for Workshops - photo 7

Pneumatic Assist Jib Crane for Workshops - photo 8

Pneumatic Assist Jib Crane for Workshops - photo 9

Pneumatic Assist Jib Crane for Workshops - photo 10

Pneumatic Assist Jib Crane for Workshops - photo 11

Pneumatic Assist Jib Crane for Workshops - photo 12

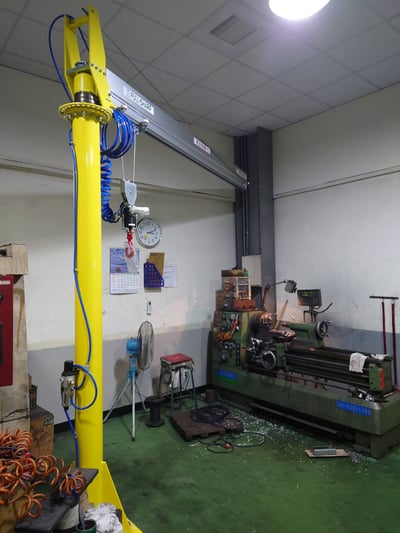

Pneumatic Assist Jib Crane for Workshops - photo 13

Click a photo to enlarge. Album of 13 photos taken on site.

Suitable Applications

Lifting motors, molds, and mechanical parts
Automotive, motorbike, and electronics assembly lines
Warehouses and loading areas
Food, pharmaceutical, and packaging plants

Frequently asked questions

What is a pneumatic jib crane used for?

It fills the gap between manual handling and a large overhead crane, lifting items of a few dozen to a few hundred kilograms and placing them accurately. Compressed air carries the weight while the operator pushes and guides.

Can the end tool be changed for different goods?

Yes. The end tool can be a lifting hook, a gripper or a suction cup, depending on what the workshop handles. FullSharp selects the tool after looking at the actual parts.

Is a pneumatic jib crane noisy?

It runs on compressed air without a large electric motor, so it is relatively quiet. Holding the load suspended and lowering slowly also makes placement into a machine easier.

Similar projects

Consultation for Your Facility

FullSharp surveys the type of goods, weight, required reach, and the workshop's available air supply. From there, we design the column, arm, and end tool to fit the job. Contact FullSharp to schedule a survey.

Pneumatic Jib Crane with 360-Degree Rotation and Interchangeable End Tools for Workshops
