Hook Grippers

Pneumatic Hook Gripper

Lift cans, containers, buckets, bags and anything with a handle or hook eye – just hook on and lift as if weightless. The simplest, safest and most popular solution from Lifts All.

Lift anything with a handle or hook eye – Virtually weightless

The Lifts All hook gripper solution consists of a lifting tool fitted with a hook, connected to a Bal-Trol pneumatic hoist. The hook can be a safety hook, snap hook or carabiner – all of which hold the load securely with no risk of dropping it.

With a hook gripper you can easily lift plastic cans, containers, buckets, bags or any container with a handle. Items with a ring or hook eye, such as rims, wheels, gears and small parts, can be lifted too. Once the load is raised it becomes completely weightless – the tool carries the full weight and the operator simply guides the load by hand.

Hook grippers are very easy to use – anyone can operate them regardless of physical strength. Because workers no longer bear the weight of the load, their bodies are spared strain, helping prevent repetitive strain injuries (RSI) and raising productivity.

Max. lifting capacity65 kg
Simultaneous lift (3094 series)5 items
Perceived weight0 kg
Air pressure6–7 bar

Simple operation in 3 steps

Hook the load

Place the hook in the handle of the can/container or through the hook eye of the item. The safety hook holds the load firmly with no risk of slipping.

Lift & move

Use the control (Sensi-Touch slider or push buttons) to raise the load. The load becomes weightless and the user freely guides it to the right position.

Lower & unhook

Move the load to the pallet or drop-off point, lower it gently and unhook. The whole sequence mirrors a manual lift, but without feeling the weight.

3 featured hook gripper models

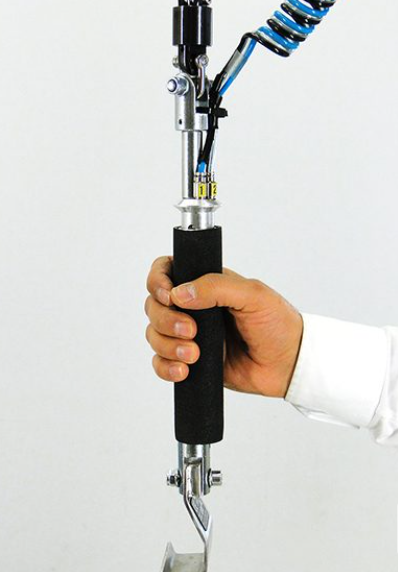

Container Gripper 3658Lifts up to 30 kg

Model: 3658 · Can / container hook
This hook gripper is designed specifically to hold cans and containers securely, so users can move them quickly and safely. Simply place the hook in the can handle, pull the SLS slider up to lift, then move to the pallet to set the load down. The comfortable, convenient handle makes guiding the load easy.

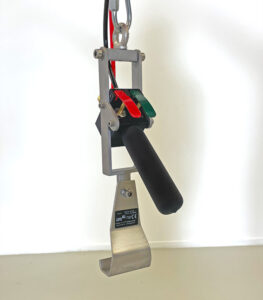

Bucket Gripper 92-10059Multi-purpose hook

Article: 92-10059 · Universal hook
A compact hook gripper that takes up very little space and is extremely easy to use. The control has just a green button (up) and a red button (down). It can lift almost anything with a handle or hook ring: buckets, containers, bags, rims, wheels, gears and small parts – for a wide range of industries.

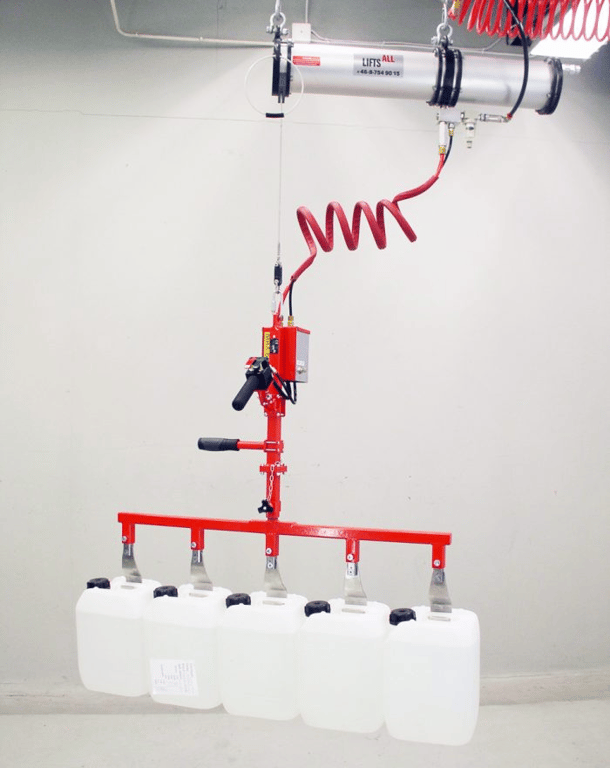

Multi-Container Gripper 3094Lifts 5 cans at once

Serial: 3094 · Up to 65 kg · Multi-item hook
Why lift one at a time when you can lift five at once? The Multi-Container 3094 has interchangeable hook sets for lifting several cans simultaneously – just change the hook layout to match the quantity. It saves considerable time and protects workers from repetitive strain injuries.

Specification comparison of the 3 hook gripper models
Specification	Container Gripper 3658	Bucket Gripper 92-10059	Multi-Container 3094
Max. lifting capacity	30 kg (66 lbs)	Depends on configuration	65 kg (143 lbs)
Control	Slim Line Sensi-Touch (SLS)	Up/down push buttons (green/red)	Proportional control (PSH)
Tool weight	3 kg (7 lbs)	Compact	15 kg (33 lbs)
Air supply	6–7 bar / 90–100 psi	6–7 bar / 90–100 psi	6–7 bar / 90–100 psi
Items per lift	1	1	Up to 5 (interchangeable hook sets)
Model / Serial	Serial 3658	Article 92-10059	Serial 3094

Safety hooks – hold the load securely, no risk of dropping

All Lifts All hook grippers use safety hooks, snap hooks or carabiners – hooks that keep the load secure throughout lifting and moving, protecting both the operator and the goods.

Controls

Slim Line Sensi-Touch (SLS)

On the Container Gripper 3658, instead of pressing buttons the user operates the black slider on the SLS: pull the slider up to lift and push it down to lower. This control mirrors every movement of a manual lift – except that the weight of the load is not felt.

Push buttons & proportional control (PSH)

The Bucket Gripper 92-10059 uses a simple green button (up) and red button (down), lifting and lowering as fast or slow as required. The Multi-Container 3094 uses proportional speed control – the harder you pull, the faster it moves, for precise load placement.

Typical industries

Kho vận & logistics — **Warehousing & logistics**

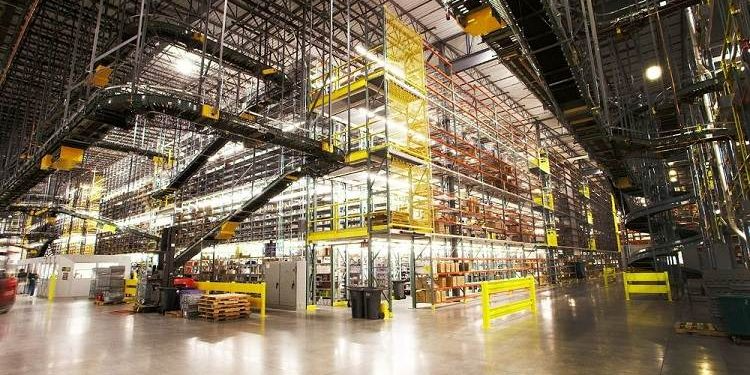

Trung tâm phân phối — **Distribution centers**

Hóa chất & chất lỏng — **Chemicals & liquids**

Ngũ cốc & nguyên liệu rời — **Grain & bulk materials**

Why choose Lifts All hook grippers?

Hook grippers are the most popular solution in industries handling grain, liquids or chemicals – where cans, containers and buckets must be lifted continuously in large volumes.

A compact design that takes up very little space and is extremely easy to use. The Multi-Container 3094 can lift up to 5 cans at once – saving time and protecting workers from repetitive strain injuries.

Combined with Lifts All Bal-Trol pneumatic hoists, articulating jib cranes and aluminum rail systems, hook grippers form a complete ergonomic lifting solution for production lines.
