FS-S custom vacuum lifter

Safe working load100–5,000 kg
DesignBuilt to the load, size, weight and process
HandlingFlat, upright, tilting, double-sided clamp
SuspensionOverhead crane, pneumatic gantry, jib crane, mobile frame
IndustriesRV, automotive, semiconductor silicon, battery packs, glass

FS-S Custom Vacuum Lifting Equipment, 100–5,000 kg

FullSharp builds vacuum lifting equipment to the actual needs of customers in different industries. Each FS-S unit is designed around the load: its shape, size, weight, surface material and how it must be placed in the process (flat, upright, tilted, clamped from both faces…). Safe working loads in the series range from 100 to 5,000 kg.

Industries already using custom-built units include:

RV (recreational vehicle) manufacturing
Automobile manufacturing
Processing and production of semiconductor silicon rods and blocks
Handling of new energy battery packs
Glass deep processing
Glass curtain wall installation

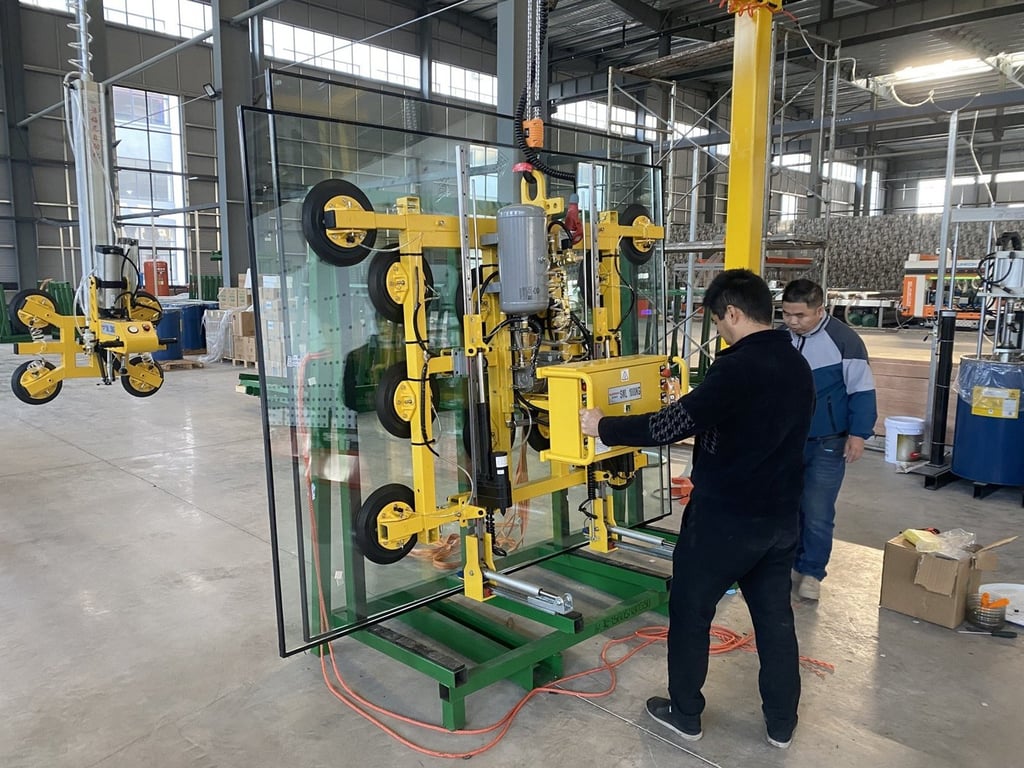

Multi-pad lifter holding an upright insulating glass unit

Specifications of typical custom builds

Case	Load	Handling / design	Safe working load
1	C-type RV roof	Horizontal handling	100 kg
2	C-type RV roof	45° tilting	300 kg
3	Stainless steel tank head	Horizontal handling	400 kg
4	Stainless steel sheet	Horizontal handling, pneumatic gantry type	300 kg
5	Glass sheet on rack	Vertical handling, double-sided clamp type	500 kg
6	Large insulating glass unit	Vertical handling, electric support-hook type	2,000 kg
7	Glass sheet	Glass assembly in a laminating room	400 kg

Each case is a one-off design; the table lists the safe working load of each build. For a new design, send FullSharp the material, dimensions and weight of the load and the handling you need, and we will work out the concept and specifications.

Custom builds in pictures

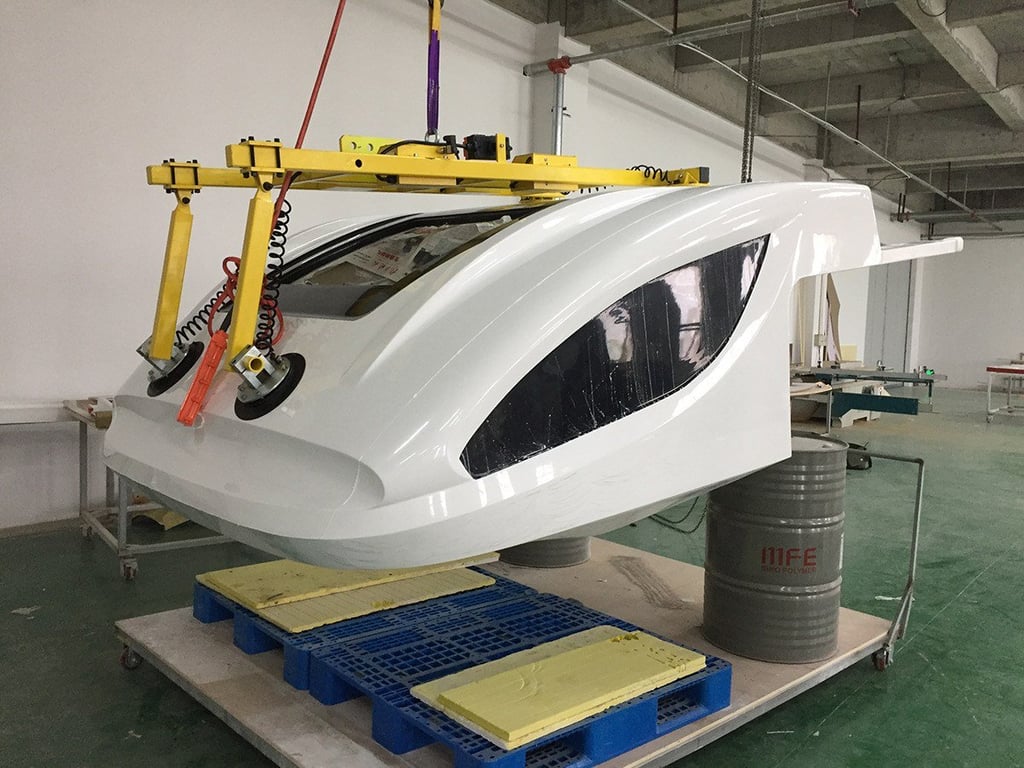

**Horizontal handling of a C-type RV roof**100 kg SWL

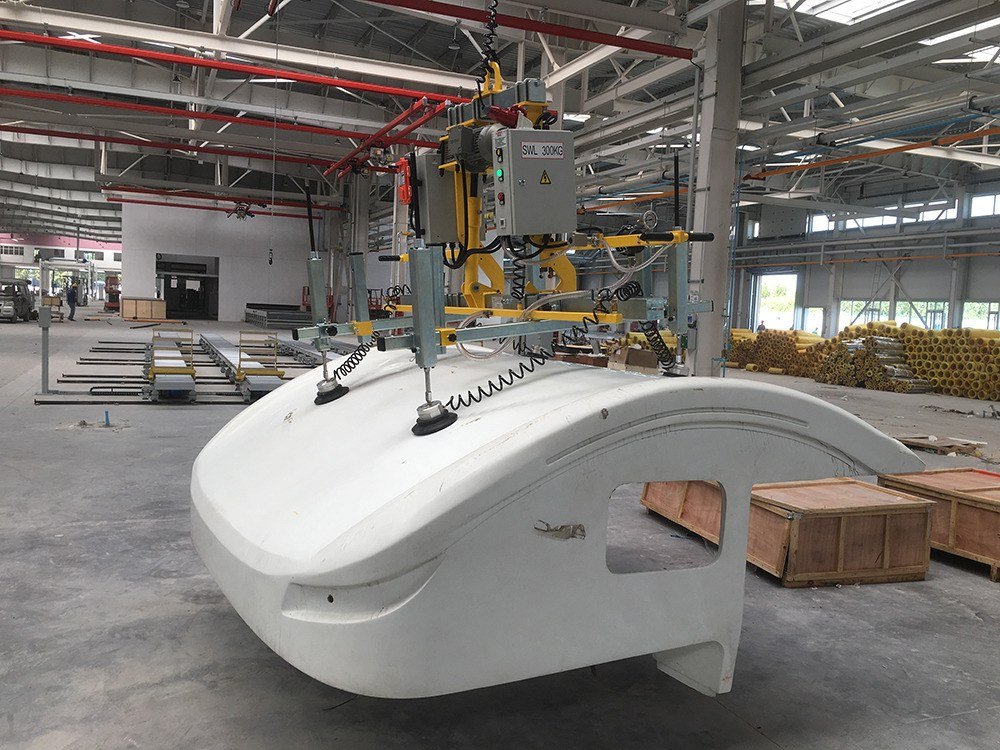

**45° tilting of a C-type RV roof**300 kg SWL

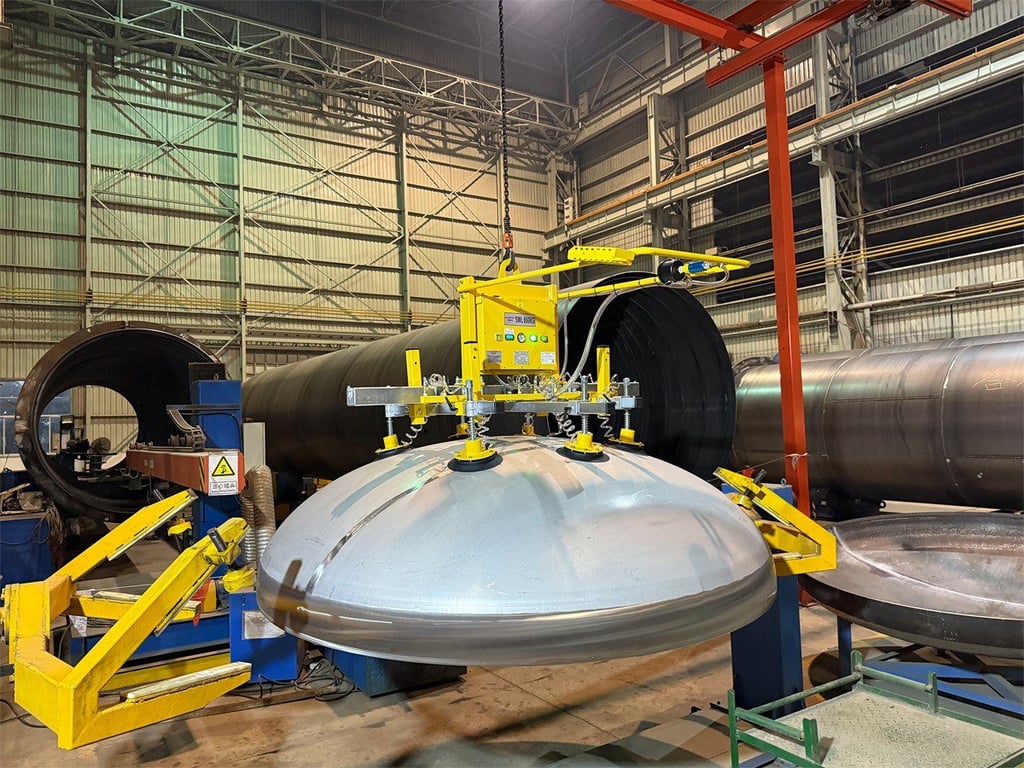

**Horizontal handling of a stainless steel tank head**400 kg SWL

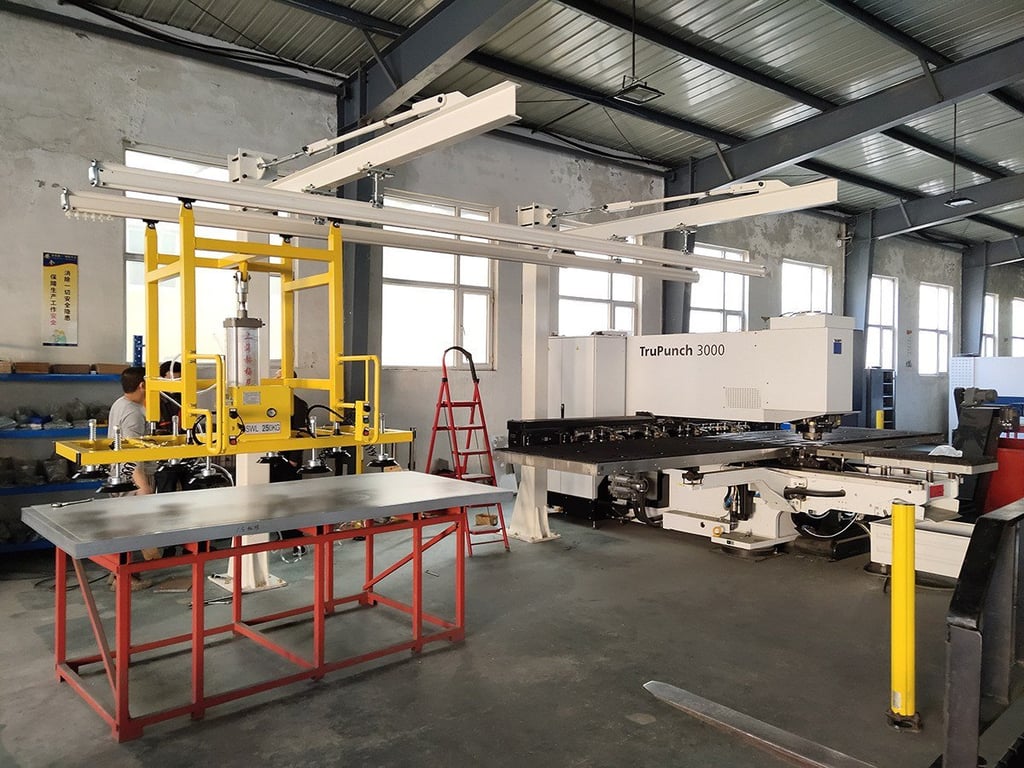

**Horizontal handling of stainless sheet (pneumatic gantry type)**300 kg SWL

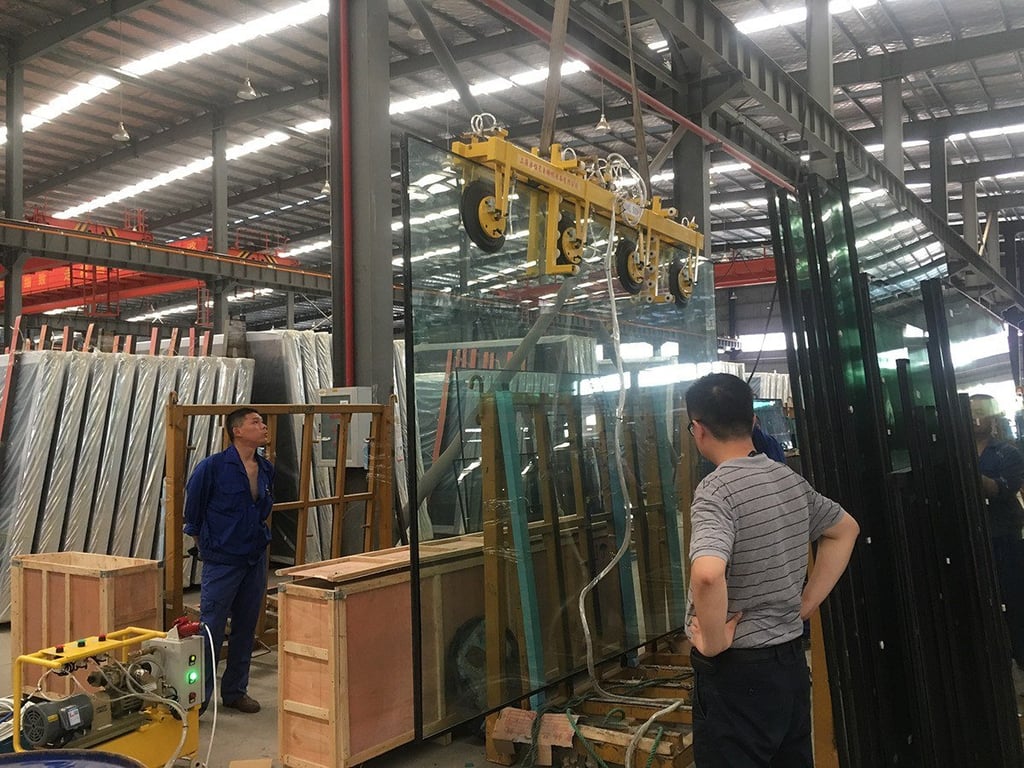

**Vertical handling, double-sided clamp type**500 kg SWL

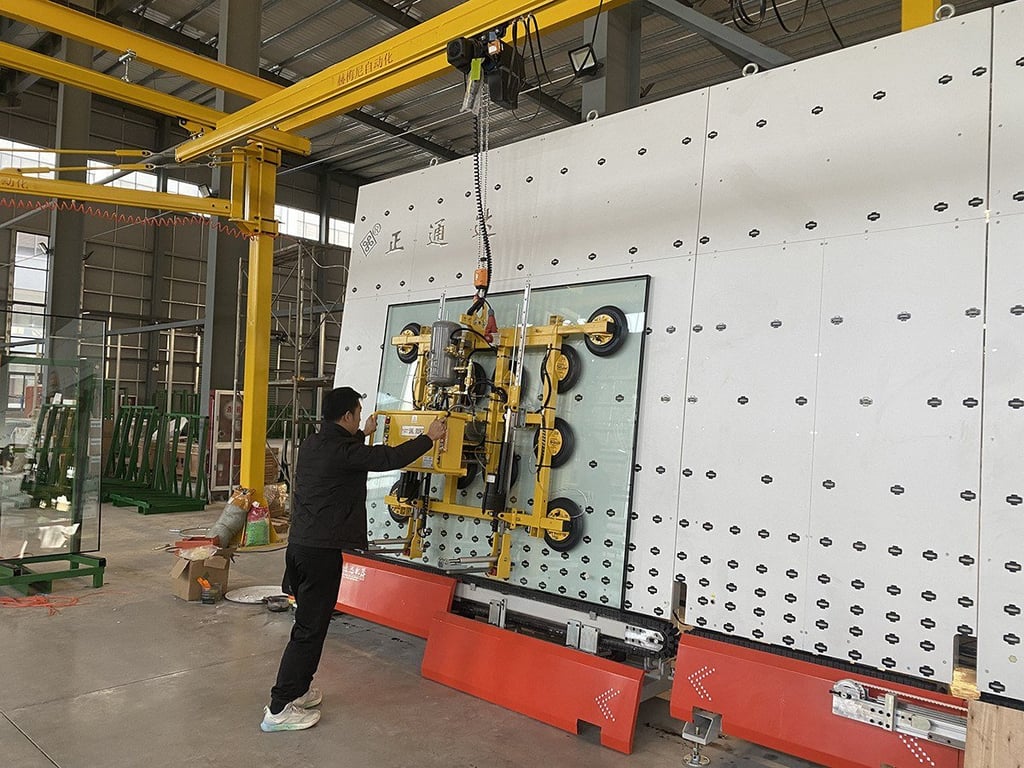

**Vertical handling of large insulating glass (electric support-hook type)**2,000 kg SWL

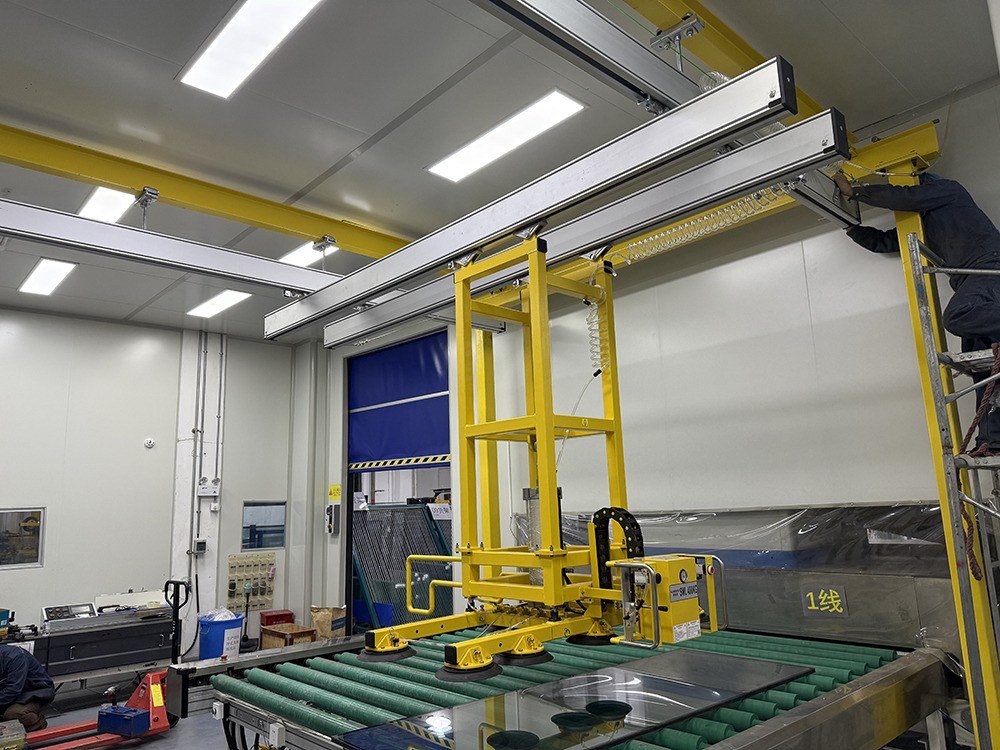

**Glass assembly in a laminating room**400 kg SWL

Applications

**Multi-pad frame placing glass onto a roller table**

**Long vacuum beam with large pads on trial assembly**

**Multi-arm frame lifting a large panel flat**

**Mobile frame with electric hoist and control cabinet**

**Long beam with spring-cushioned pads lifting a long, narrow sheet**
