FullSharp · since 1991

FS-M stone lifter

Capacity400–800 kg (FS-MSFX), series 0.5–20 t
Suction pads4, 6 or 8 × Φ300
PowerDC12V battery, AC version available
Functions0–90° manual tilt, 0–360° manual rotation
ControlManual or remote
ForMarble, refractory bricks, concrete pipes

FS-M Vacuum Lifter for Stone

FS-M is a vacuum lifter series for stone and other rough-surfaced materials. Several power system options are available.

Product features: suitable for marble installation lifting, refractory brick lifting, stone slab cutting and handling, crucible handling in production, concrete pipe lifting and similar work. Depending on each customer's process requirements, the lifter can be built with 0–90° tilting, 0–360° rotation and other functions. For rough, uneven stone surfaces, a dedicated sponge suction pad can be chosen.

FS-M series characteristics

Capacity0.5–20 t
Power systemAC or DC
TiltingManual, 90°
RotationManual, 360°
ApplicationsMarble installation, stone slab cutting and handling, etc.
Control methodManual control or remote control

Equipment on site:

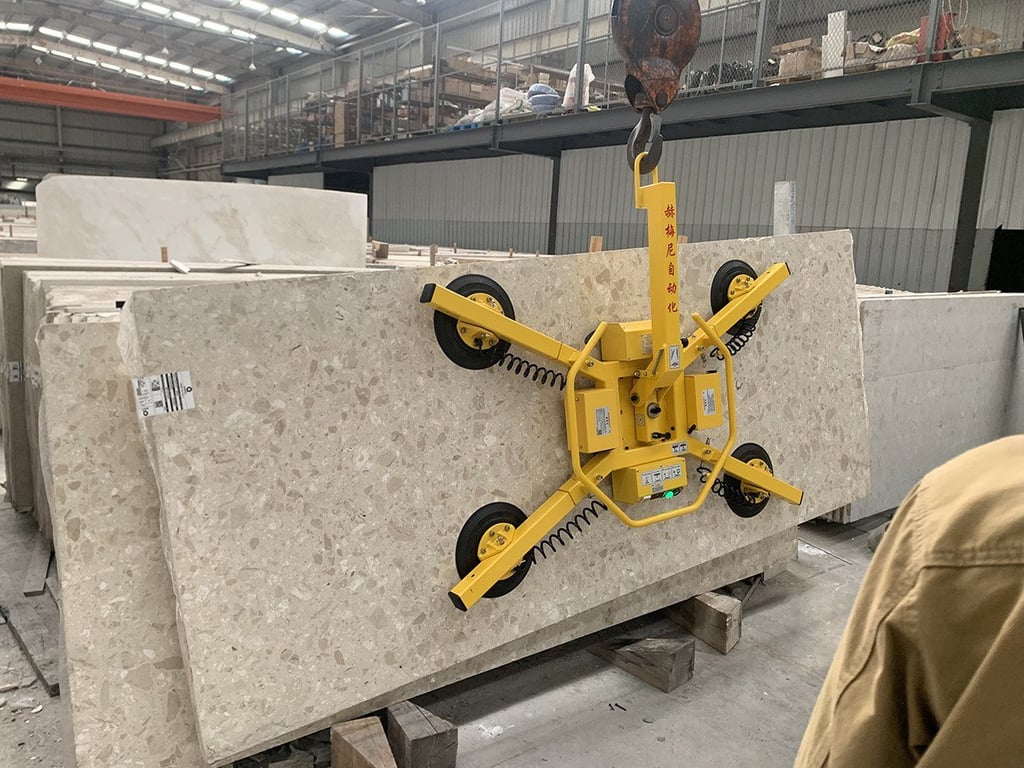

**Taking a terrazzo slab in the store**4-pad version, 400 kg

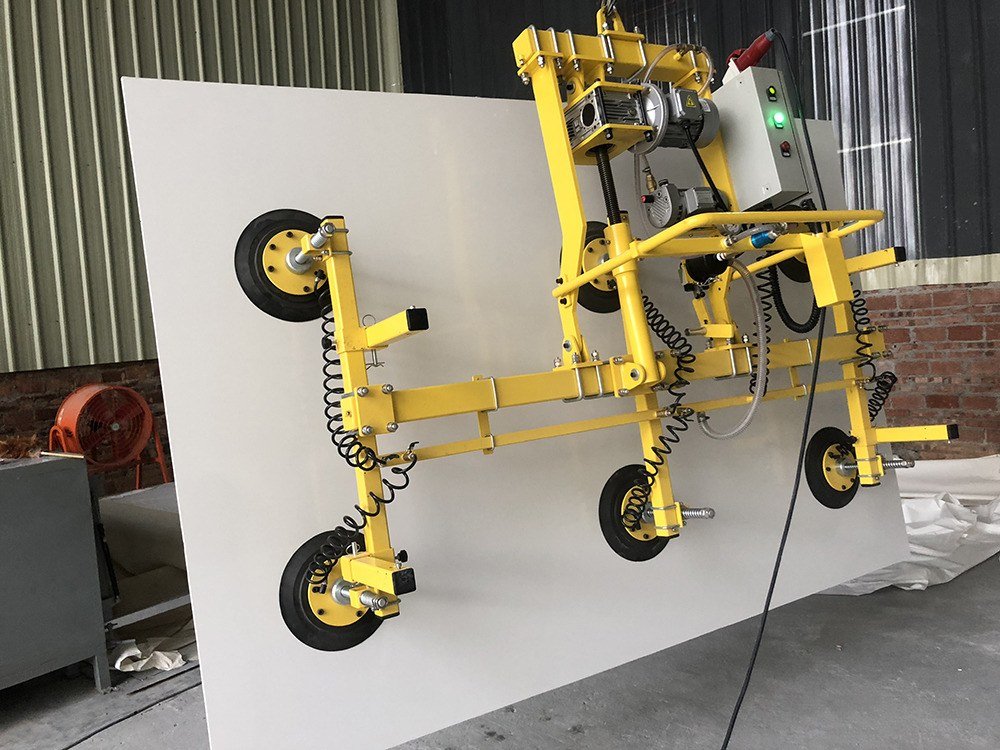

**6-pad frame lifting a large thin stone panel**600 kg

Technical specifications

Model	Safe working load	Size (mm)	Pad diameter (mm)	Number of pads	Power system	Control	Function
FS-MSFX400-4S	400 kg	900×730×240	Φ300	4	DC12V	Manual / Remote	0–90° manual tilt + 0–360° manual rotation
FS-MSFX600-6S	600 kg	1800×1190×240	Φ300	6	DC12V	Manual / Remote	0–90° manual tilt + 0–360° manual rotation
FS-MSFX800-8S	800 kg	1800×1190×240	Φ300	8	DC12V	Manual / Remote	0–90° manual tilt + 0–360° manual rotation

All three models run on a DC12V battery and have 0–90° manual tilting and 0–360° manual rotation. The FS-M series goes up to 20 t and is also available with AC power; capacity, frame size and number of pads are chosen to suit the actual size and weight of the stone.

Main components

Vacuum pump

Low energy consumption / High vacuum, strong suction / International brand pump, runs 24 hours continuously with more stable performance

Vacuum suction pad

New upgraded suction pad / Three sealing rings prevent air leakage and hold vacuum for a long time

Battery

International brand battery of very high quality / Stable voltage / Sturdy, durable and reliable

Electric control box

Stainless steel fasteners / Digital pressure display / Intelligent vacuum pressure control

Spare parts

When ordering the lifter, it is worth ordering suction pads, seals and other key spare parts with it. The equipment is built to last, but these are usually the first items to need replacing in service.

Suction pads and seals
Vacuum filter and filter element
Vacuum hoses and fittings
Manual ball valve
Battery
Battery charger
Battery level indicator
Vacuum pressure switch

On-site photos

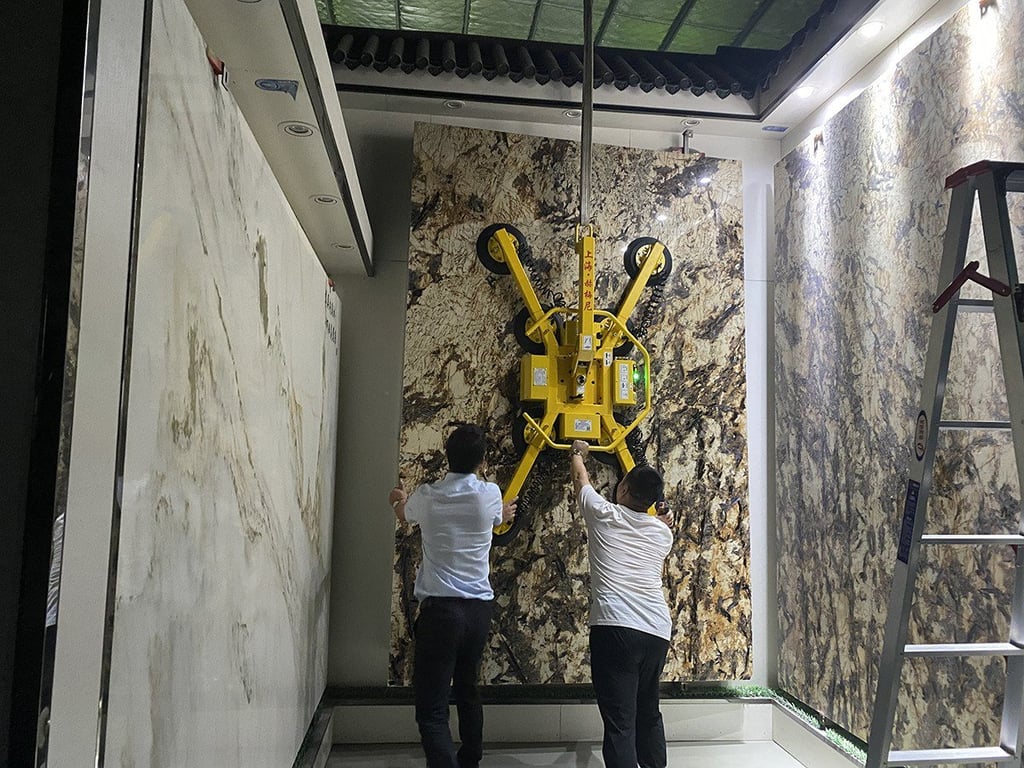

**Installing a large marble slab in a showroom**

**Multi-pad frame lifting a stone slab flat next to the saw**

**Two operators guiding an upright black-veined slab**

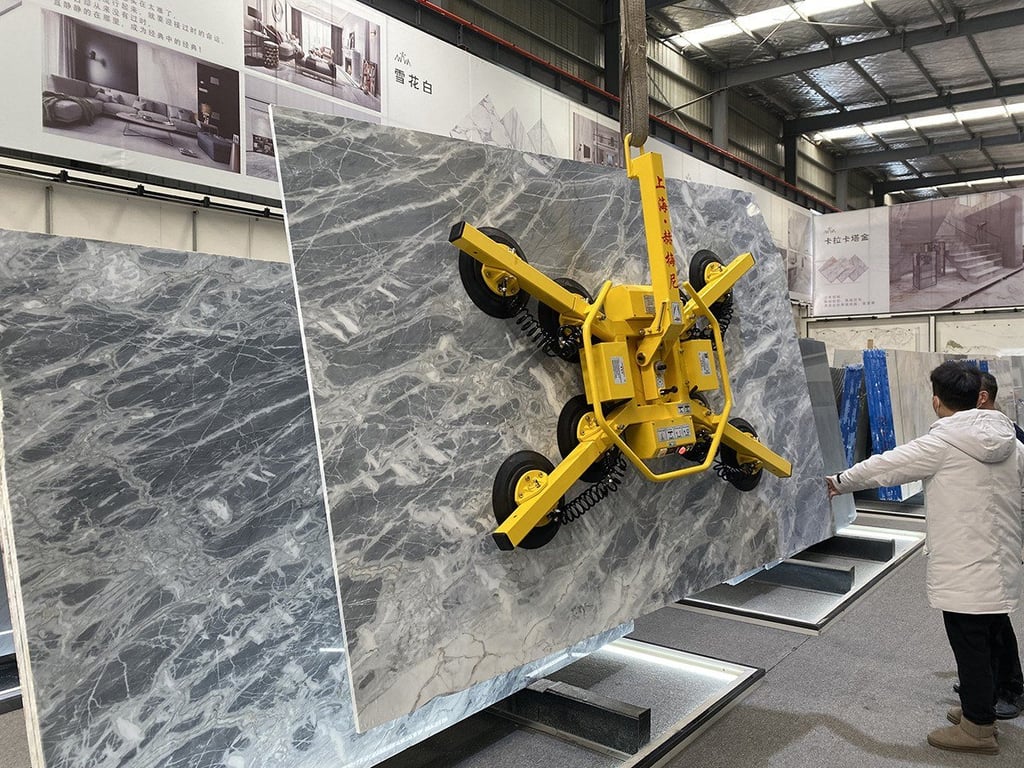

**Moving a grey marble slab in the workshop**8-pad version, 800 kg

**Positioning a wall cladding slab**8-pad version, 800 kg

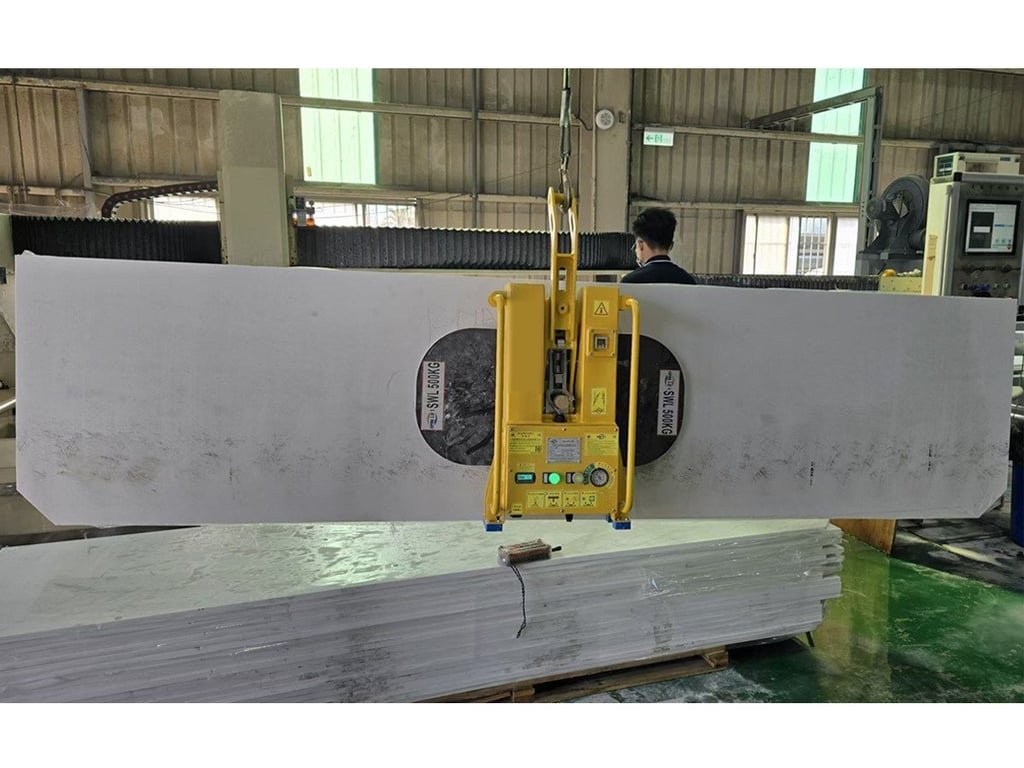

**Lifting a long stone slab flat**500 kg

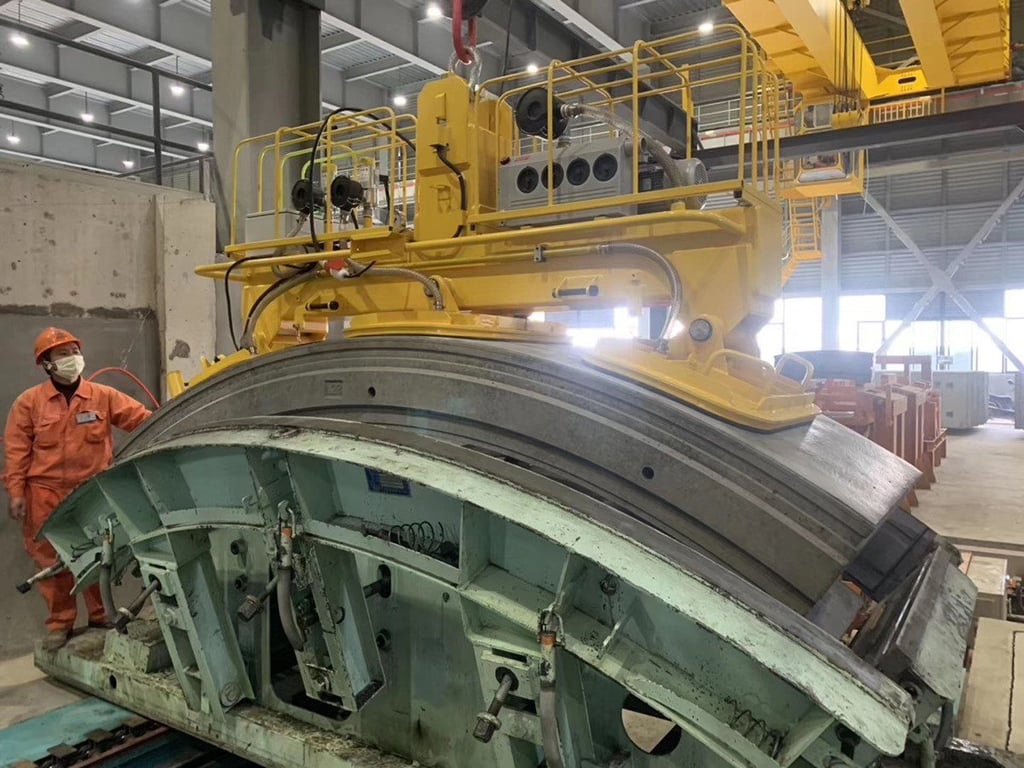

**Demoulding a concrete tunnel segment**5,000 kg, 3 pads

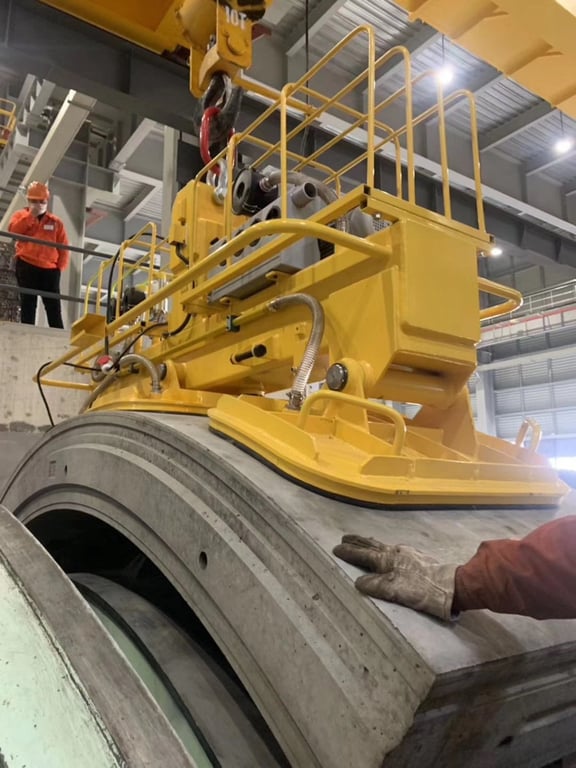

**Large-pad lifter on a concrete tunnel segment**5,000 kg, 3 pads
