FS-DFXA

Safe load400 kg, 600 kg
Suction cups8 or 12 × Φ240
PowerDC48V battery
ControlWireless remote, two-button release
Function0–90° electric flip, 0–360° electric rotation
UseCurved glass hoisting, outdoor curtain walls

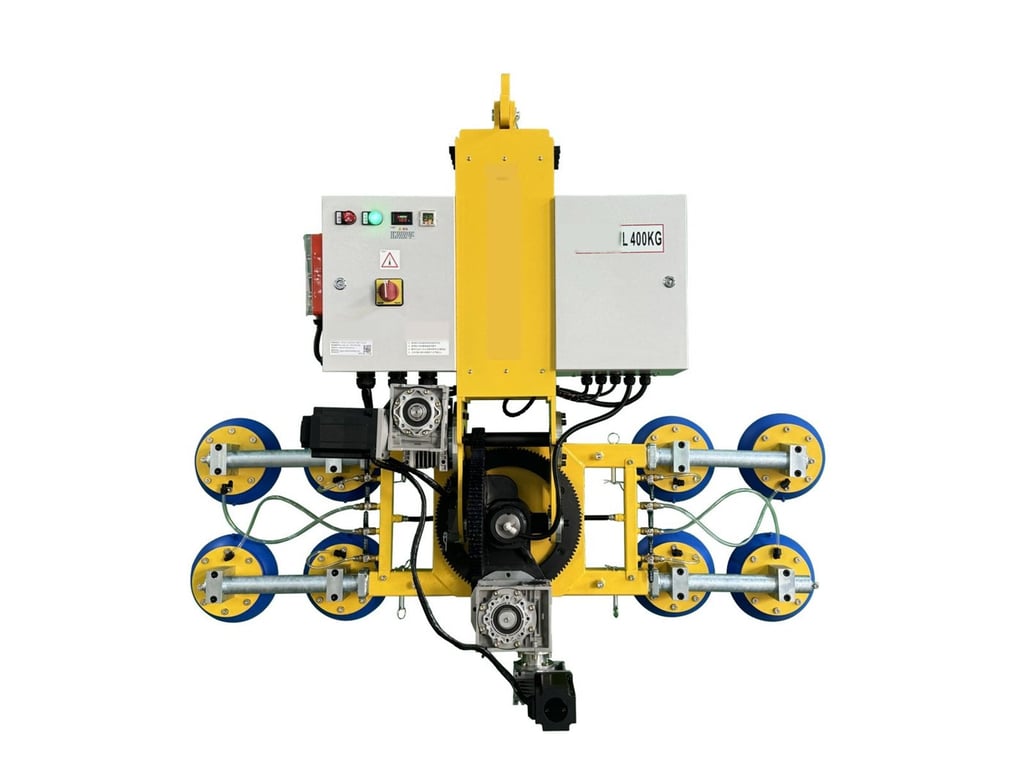

FS-DFXA curved glass vacuum lifter with electric flip and rotation

FS-DFXA series: curved glass lifter with electric flip and rotation

Load: 400 kg, 600 kg
Power system: DC48V battery

Features

Suitable for hoisting curved glass and installing outdoor curtain walls.
A high-precision gear structure gives 0–90° electric flip and 360° electric rotation of curved glass, stable and reliable.
Wireless remote control; releasing the vacuum needs two buttons.
The angle of the suction cups can be adjusted by hand to suit curved glass of different curvatures.

FS-DFXA curved glass vacuum lifter with electric flip and rotation

Specifications FS-DFXA

Model	Safe load	Size (mm)	Suction cup diameter (mm)	Number of cups	Power system	Control mode	Function
FS-DFXA400-8S	400 kg	1800×560	Φ240	8 pcs	DC48V	Wireless remote	0–90° electric flip + 0–360° electric rotation
FS-DFXA600-12S	600 kg	2400×560	Φ240	12 pcs	DC48V	Wireless remote	0–90° electric flip + 0–360° electric rotation

Main components

Vacuum pump

Low energy consumption / High vacuum purity / Strong suction from an internationally known brand, runs 24 hours continuously with more stable performance

Vacuum suction cup

Suction cup rubber 300 mm in diameter, nitrile rubber / Three-ring multi-cavity seal with good pressure holding, safer

Equipment frame

Custom made by the factory / National standard structural steel profiles / Welded, machined, shaped and finished with baked paint, durable

Other spare parts

Power switches, high-quality brushless motor, etc. from internationally known brands / UL and other international certifications / Low failure rate, durable

On-site photos

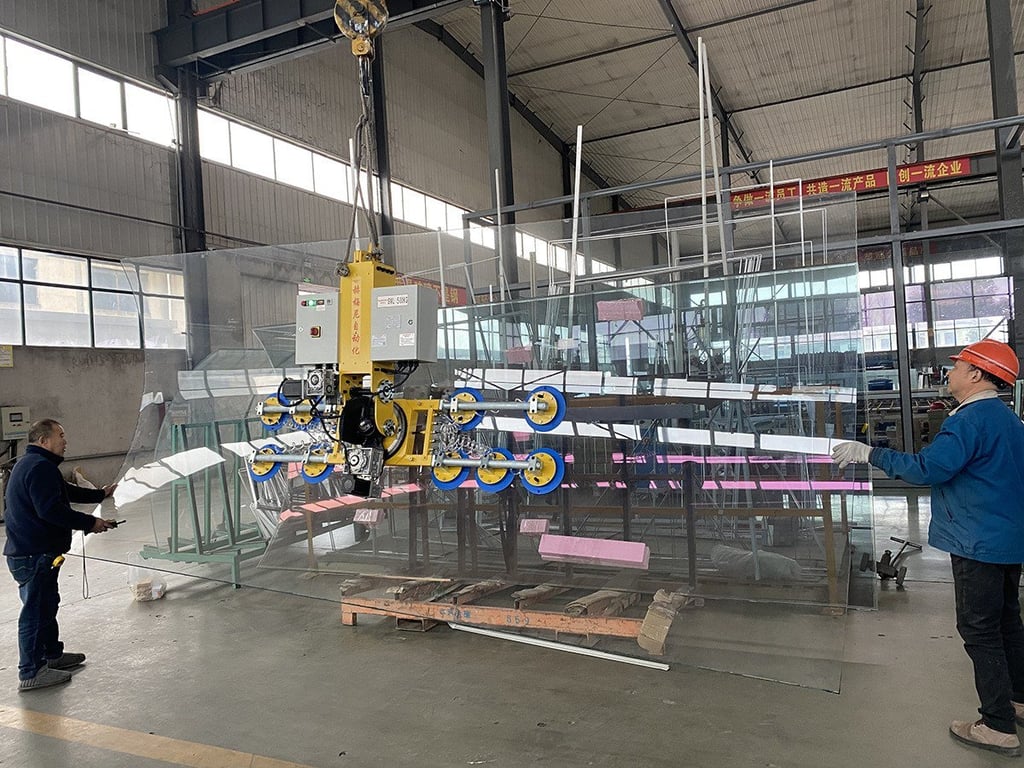

**Taking curved glass from the rack, two operators guiding**

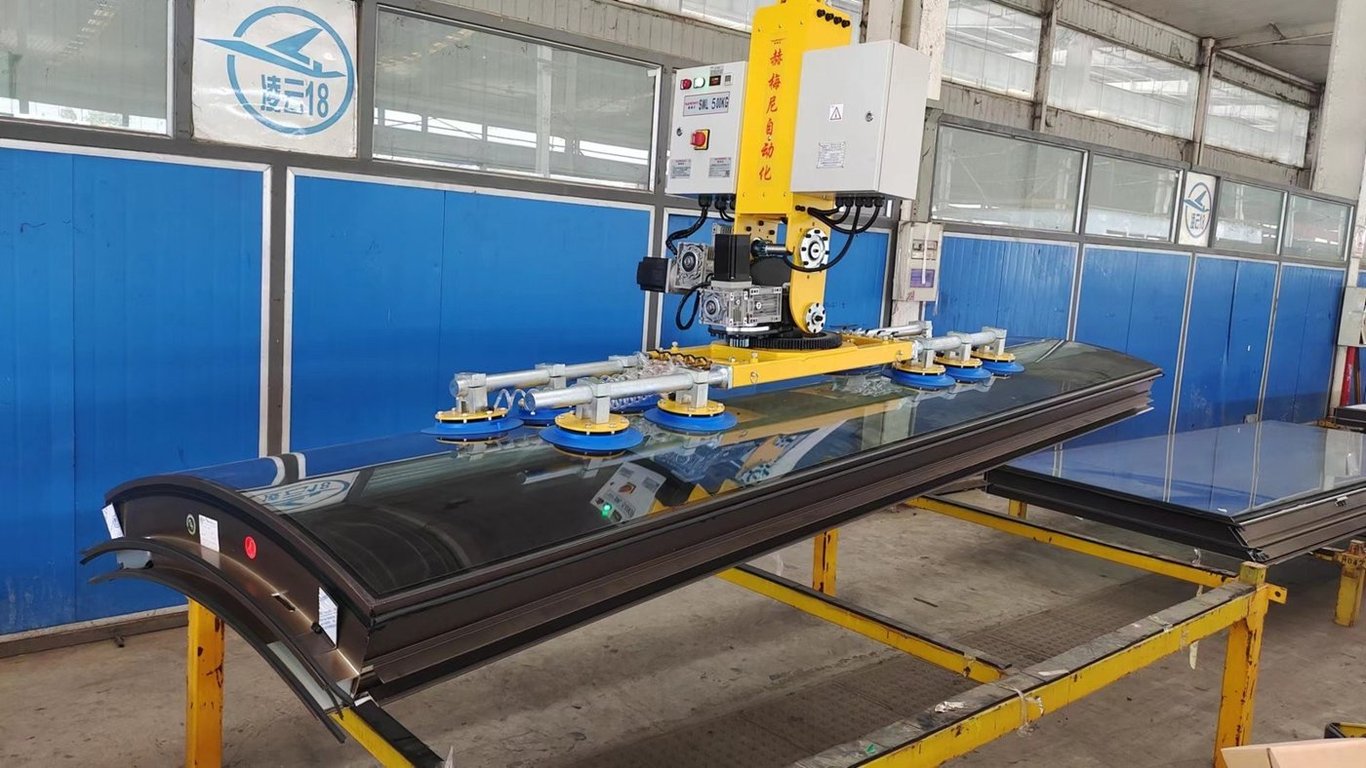

**Placing a curved glass panel on the support table**

Advantages

Smooth, reliable electric flip and rotation

FS-DFXA is designed for precise and safe handling of curved glass and for outdoor curtain wall installation. A high-precision gear structure gives seamless 0–90° electric flipping and 360° electric rotation of curved glass, so the lifter runs stably and reliably and the operator can work with confidence throughout the lift.

Wireless remote, two-button release

One of the main features of FS-DFXA is its wireless remote control, which is easy and quick to use. At the touch of a button the operator controls lifting, flipping and rotation of the glass, making the whole process smooth and worry-free. The lifter also has a two-button vacuum release, so the glass is released more safely after installation.

Cup angle adjusts to the curvature

The lifter is designed with flexibility in mind: the angle of the suction cups can be adjusted by hand to suit curved glass of different curvatures. One lifter can therefore handle curved glass of many shapes and sizes and serve a wide range of installation needs.

Built for modern glass projects

Safety and precision drive the design, to meet the needs of today's glass installation projects. Whether the job is a building facade, a curved window or another curved glass application, FS-DFXA is an efficient and safe glass handling solution.
