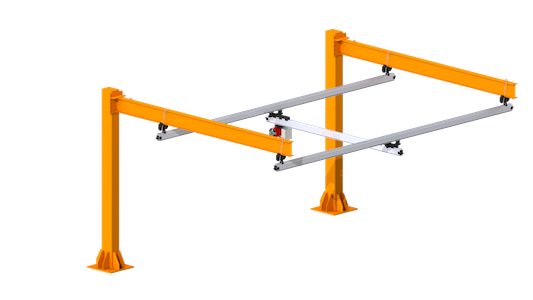

CMRS1000 - Hệ Ray Console (1 cột) — **CMRS1000 - cantilevered rail system (single post)**

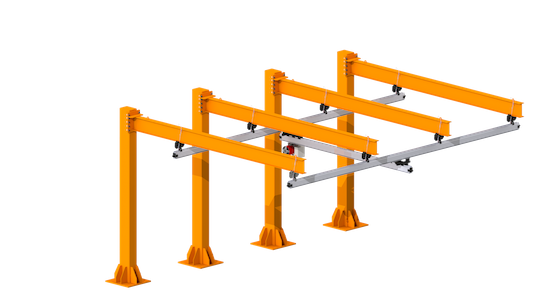

CMRS1000 - Tải Trọng Tăng Cường — **CMRS1000 - enhanced load capacity**

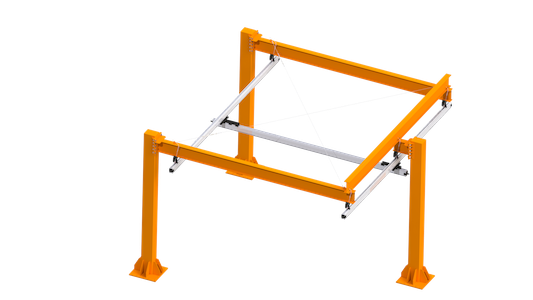

CMRS1000 - Cấu Hình 3 Cột Lệch — **CMRS1000 - offset three-post configuration**

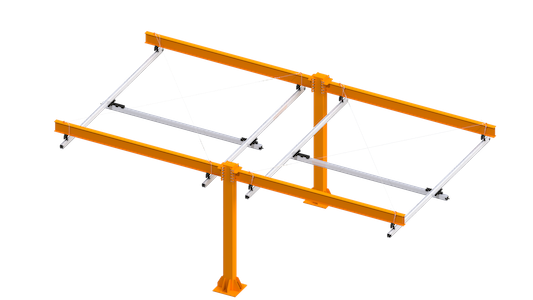

CMRS1000 - Cấu Hình 2 Cột Đôi — **CMRS1000 - dual cantilevered configuration**

MRAS4203 - Cột Thép Đứng Sàn Lệch — **MRAS4203 - offset floor mounted steel post**

Knight Global floor mounted rail systems

Series: AFMRS1000 / AFMRS2000 / CMRS1000 / MRAS4203

Knight Global Floor Mounted Rail Systems Rail Systems are designed to provide a safe, efficient solution to ergonomic challenges on the factory floor. A wide range of configuration options covers each customer's specific technical requirements and applications.

The suspension rail system uses an enclosed trolley track that resists dust buildup for quieter, smoother operation. Floor mounted rail systems are available in both Single Bridge and Dual Bridge configurations to suit a wide range of lifting needs.

*Note: Every system configuration is custom-engineered for the project. A FULLSHARP representative will help you select the right option and develop alternatives during rail system design.

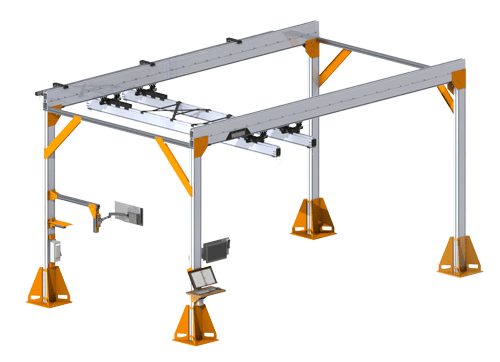

AFMRS1000 - aluminum floor mounted rail system

Features

Supports Knight RAD4110, RAD6110 and RAD7510 bridges.
Engineered aluminum posts.
Engineered aluminum diagonal bracing.
Bridge type: Single / Dual.
Runway type: RAD7510.
Max. runway length: 9,144 mm (30 ft).
Max. bridge length:
- RAD7510: 9,144 mm (30 ft)
- RAD6110 / RAD4110: 7,620 mm (25 ft)
Max. post height: 4.5 m (15 ft) to the bottom of the runway.
Max. capacity: up to 1,360 kg (3,000 lbs).

Benefits

No welded construction on posts - shorter lead times.
Integrated slots on the posts allow mounting of accessories such as:
- Control boxes, FRLs, monitors, etc.
Bolt-together construction.
Easy assembly.
Integrated runway rails.
Integrated inspection gate on the runway.

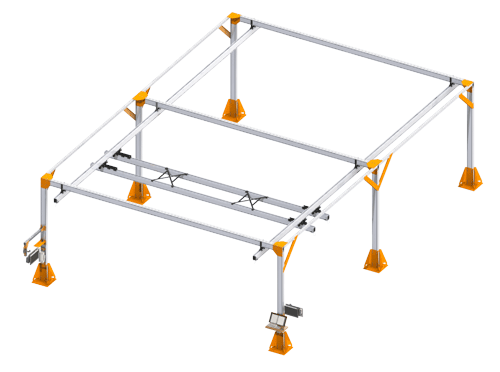

AFMRS2000 - expandable floor mounted rail system

Features

Supports Knight RAD4110, RAD6110 and RAD7510 bridges.
Engineered aluminum posts.
Engineered aluminum diagonal bracing.
Bridge type: Single / Dual.
Runway type: RAD7510 / RAD6110 / RAD4110.
Max. bridge length:
- RAD7510: 8,229 mm (27 ft)
- RAD6110 / RAD4110: 7,620 mm (25 ft)
Max. post height: 4.5 m (15 ft) to the bottom of the runway.
Max. capacity: up to 1,360 kg (3,000 lbs).

Benefits

Flexible expansion - allows more than 4 posts and continuous runway options.
Unlimited runway length.
No welded construction on posts - shorter lead times.
Integrated slots on the posts allow mounting of accessories:
- Control boxes, FRLs, monitors, etc.
Bolt-together construction.
Easy assembly.
Optional integrated inspection gate on the runway.

CMRS1000 - cantilevered rail system

Features

Max. post height: 5,181 mm (17 ft).
Max. bridge length: 7,010 mm (23 ft).
Rigid end trucks - prevent bridge skewing under sudden loading and ensure accurate lifting and lowering.
Cushioned end caps - absorb impact when the bridge reaches the end of the rail.
Extended stack hangers with 38 mm (1.5 in.) of vertical adjustment in 6 mm (0.25 in.) increments.
Sway bracing cables with adjustable turnbuckles.
Built-in pad eyes on the beams for attaching safety cables and lateral bracing cables.
Beam pad eyes also aid in lifting the beams during system assembly.
Maximum capacity varies with system requirements. See the spec sheet for details.

Benefits

Additional posts can be added to minimize deflection.
Runways longer than 8,230 mm (27 ft):
- Require a runway splice kit.
Optional mid rail stops.
Dual cantilevered configuration.
Offset three post configuration.

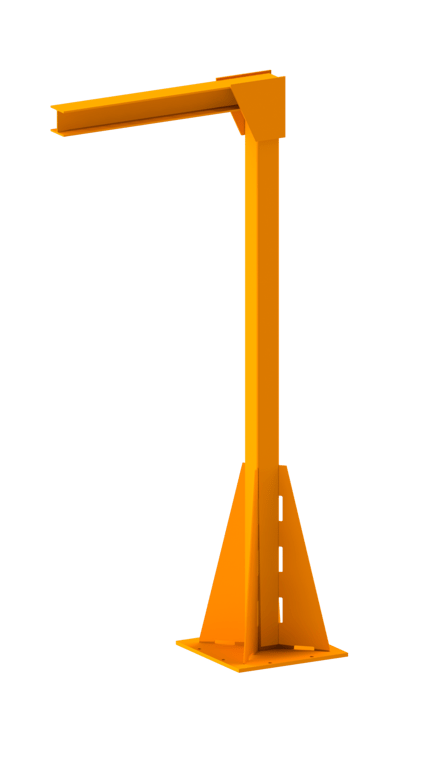

MRAS4203 - offset floor mounted steel post

Features

Supports Knight RAD4110, RAD6110 and RAD7510 workstation crane systems.
Floor mounted heavy duty steel posts.
Available heights: up to 6 m (20 ft).
Max. capacity: varies by application.

Benefits

Custom-designed for each application and the customer's specific load requirements.
Suited to workshops with limited ceiling height or building structures that cannot support overhead mounting.
Rigid steel construction - handles heavy loads with long-term stability.

Product line comparison

Model	Post Material	Max. Post Height	Max. Bridge Length	Max. Capacity	Key Features
AFMRS1000	Engineered aluminum	4.5 m (15 ft)	9,144 mm (30 ft)	1,360 kg (3,000 lbs)	Bolt-together, integrated inspection gate
AFMRS2000	Engineered aluminum	4.5 m (15 ft)	8,229 mm (27 ft)	1,360 kg (3,000 lbs)	Expandable - unlimited runway
CMRS1000	Cantilevered steel	5,181 mm (17 ft)	7,010 mm (23 ft)	Per configuration	Cushioned end caps, extended stack hangers
MRAS4203	Heavy duty steel	6 m (20 ft)	Per project	Per application	Offset post, fully custom design

*Note: All systems are compatible with Knight RAD4110, RAD6110, RAD7510 aluminum rails and the full range of Knight Global trolleys and hangers. Contact FULLSHARP for help configuring a system for your project.

Typical applications

When to use AFMRS / CMRS

Facilities without a suitable ceiling structure for overhead rail mounting.
A standalone work area is needed, independent of the existing building structure.
Areas with multiple intersecting rail systems or a need for clearly defined zones.
Automotive assembly stations and heavy industrial production lines.
Maintenance and repair areas for heavy equipment.

Choosing a configuration

AFMRS1000: Suited to fixed work areas with no need for expansion.
AFMRS2000: Suited when you need to extend the runway or plan future expansion.
CMRS1000: Suited when one side must stay open (e.g. against a wall or next to machinery).
MRAS4203: Suited to extra heavy load applications or highly customized requirements.

Technical documents

Brochure

Spec sheets

Manuals

Cantilevered Rail System - Installation Manual PDF

Installation guides

FULL-SHARP AUTOMATIZED VN (FULLSHARP)
Authorized distributor of Knight Global aluminum rail systems and lifting equipment in Vietnam
For help configuring a floor mounted rail system (AFMRS1000 / AFMRS2000 / CMRS1000 / MRAS4203) for your project, contact a FULLSHARP representative for a quotation and detailed design drawings.
