Some workshops have low ceilings, where a vertical hoist would cut into the lifting height. Carton boxes come out continuously and need to be lifted and swung to the next spot all day. Repetitive manual handling tires workers' shoulders and risks dropped loads.
FullSharp uses a horizontal pneumatic hoist mounted on an articulating jib crane. The hoist lies flat, taking up little height and leaving more travel for the load. The vacuum suction head grips the box surface, and the air valve gives smooth lifting and precise stops.

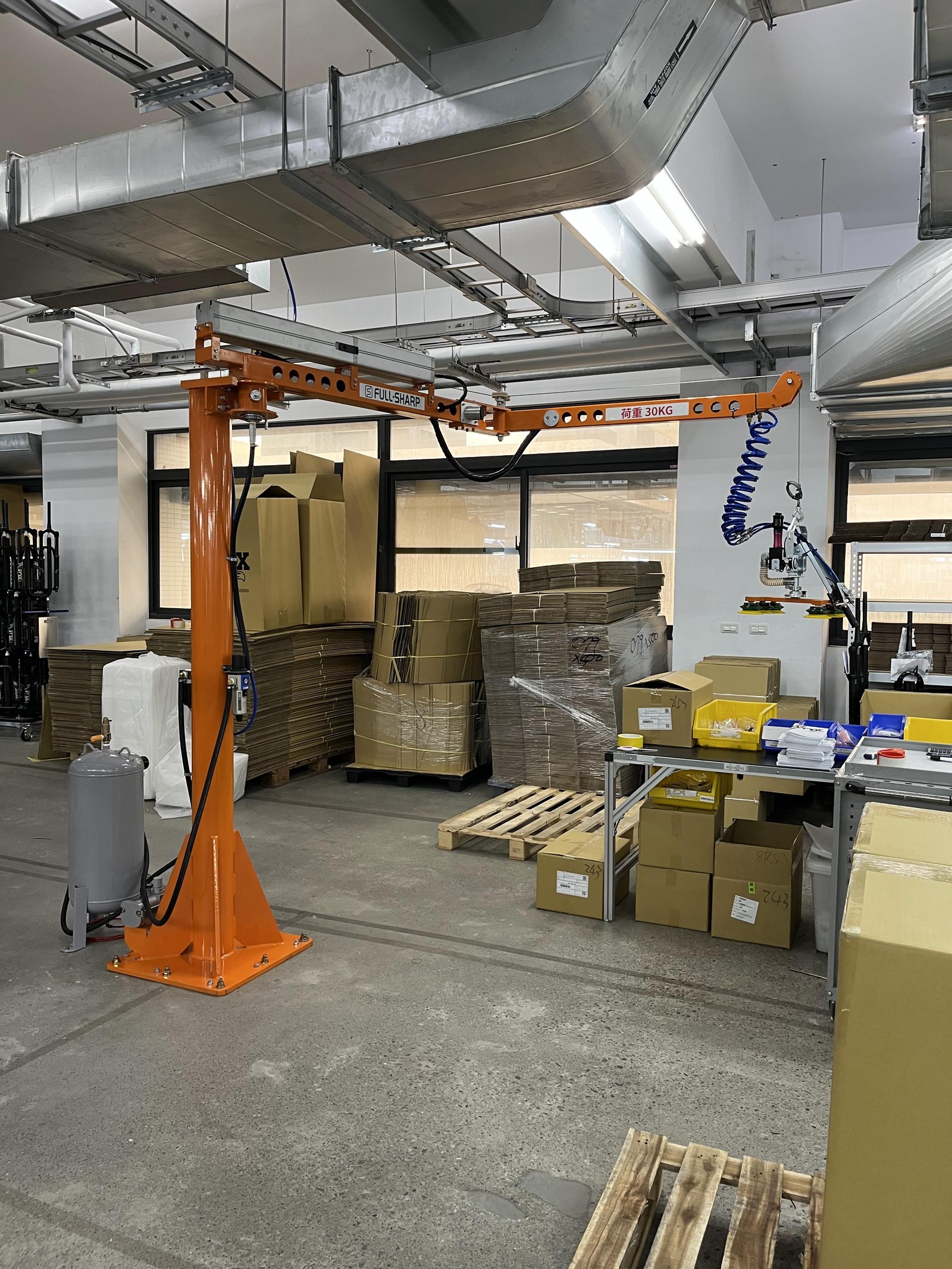

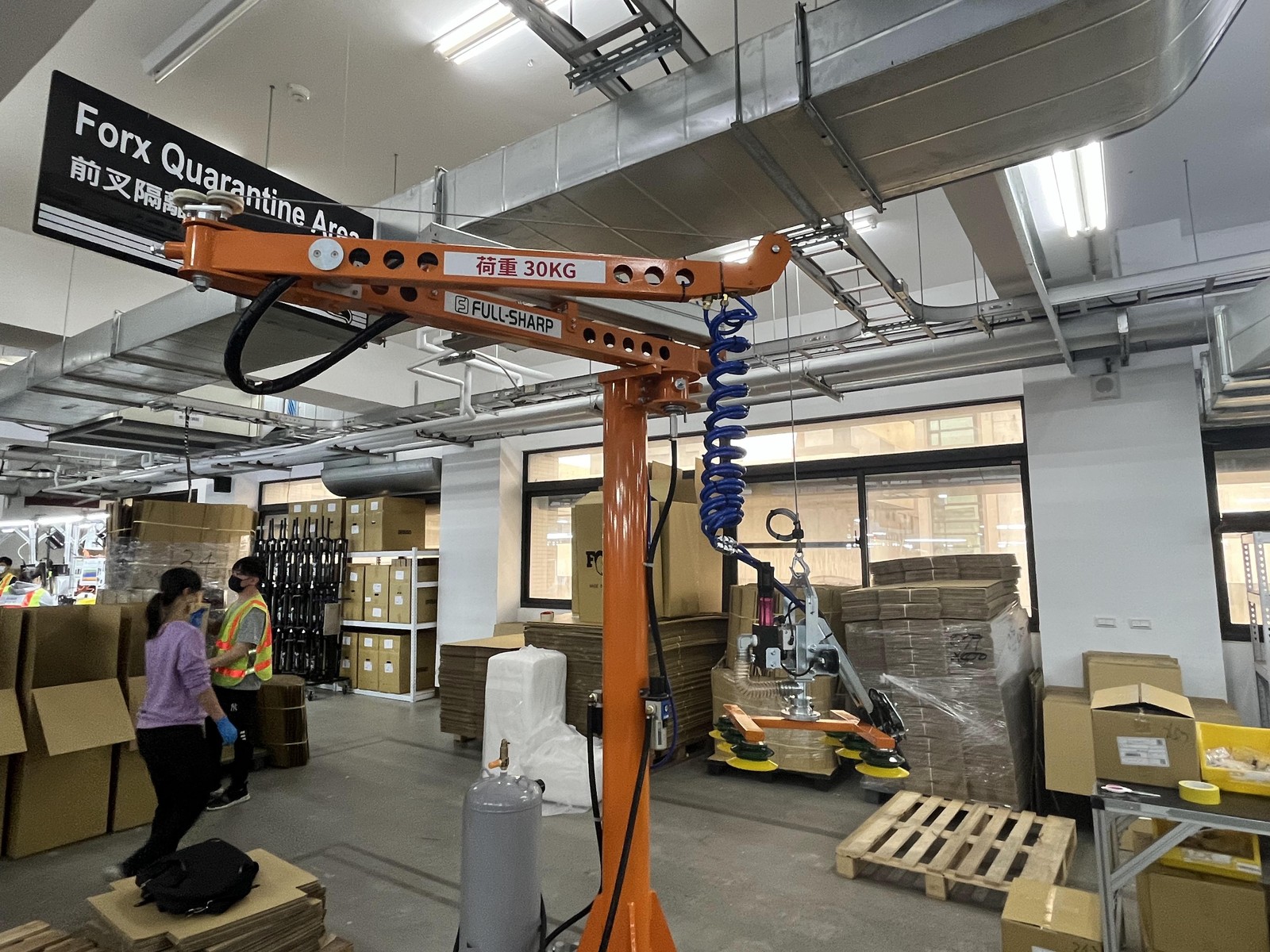

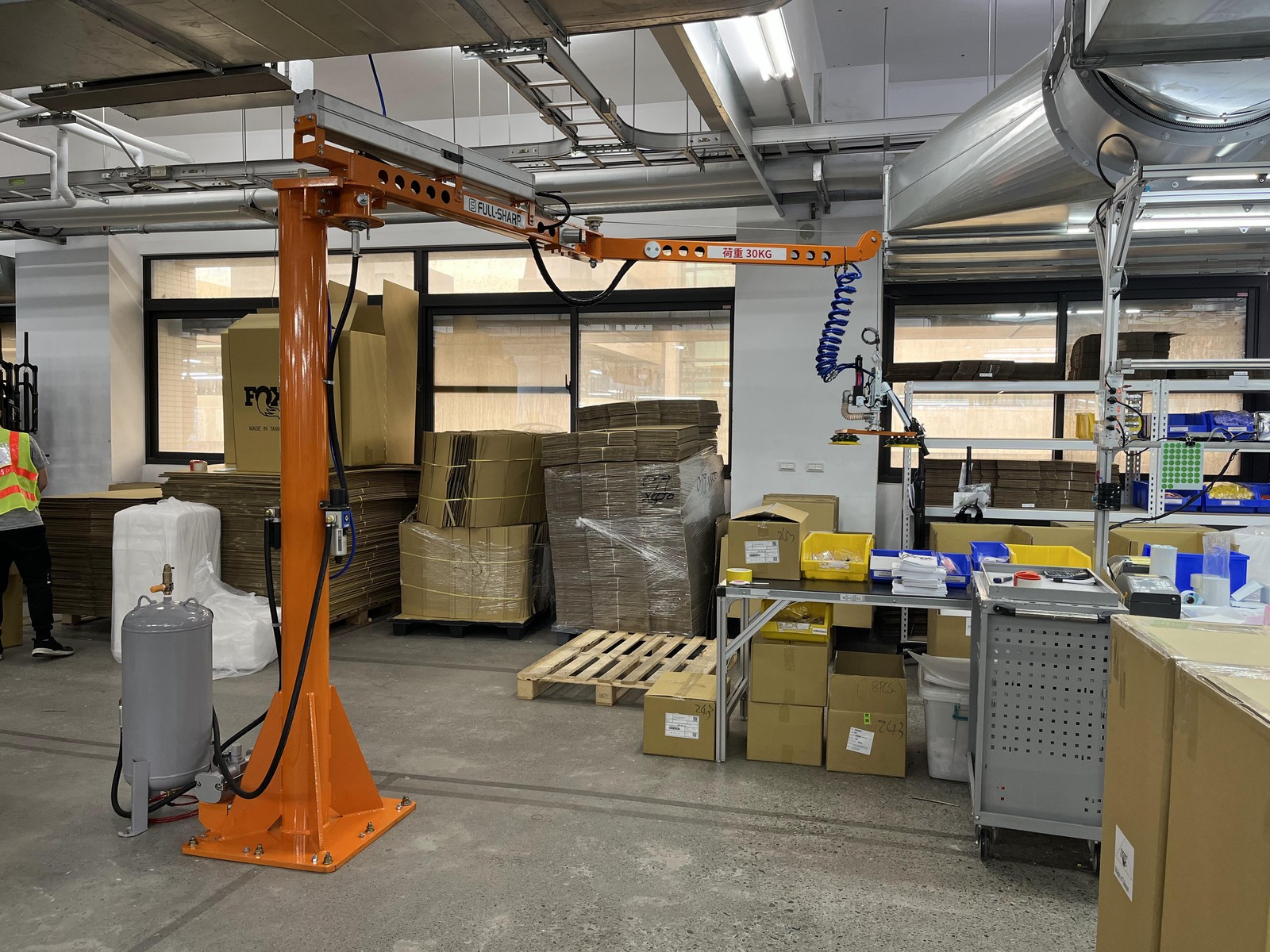

An articulating jib crane with a horizontal pneumatic hoist and carton-box suction head in the workshop.
Equipment Included

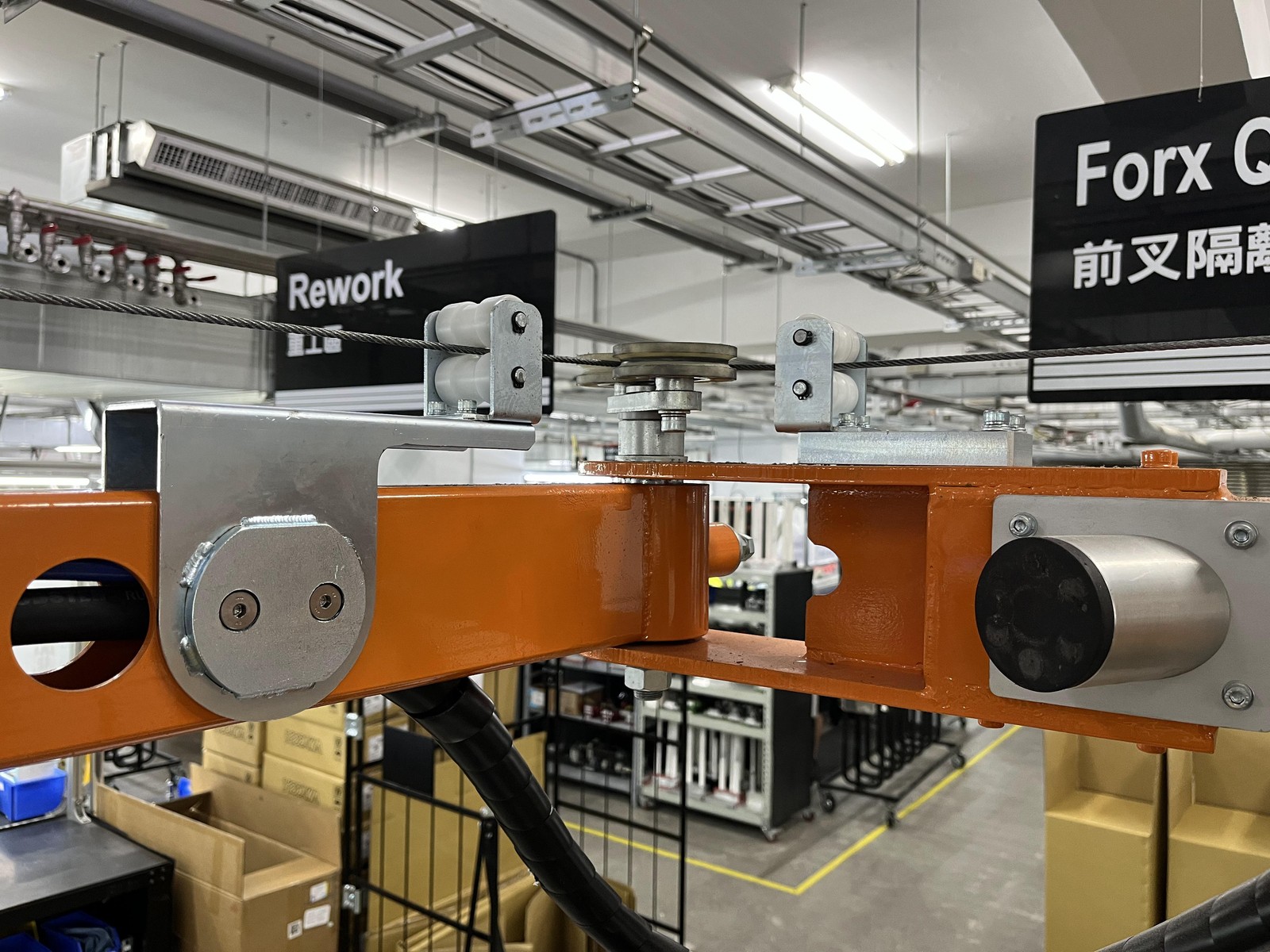

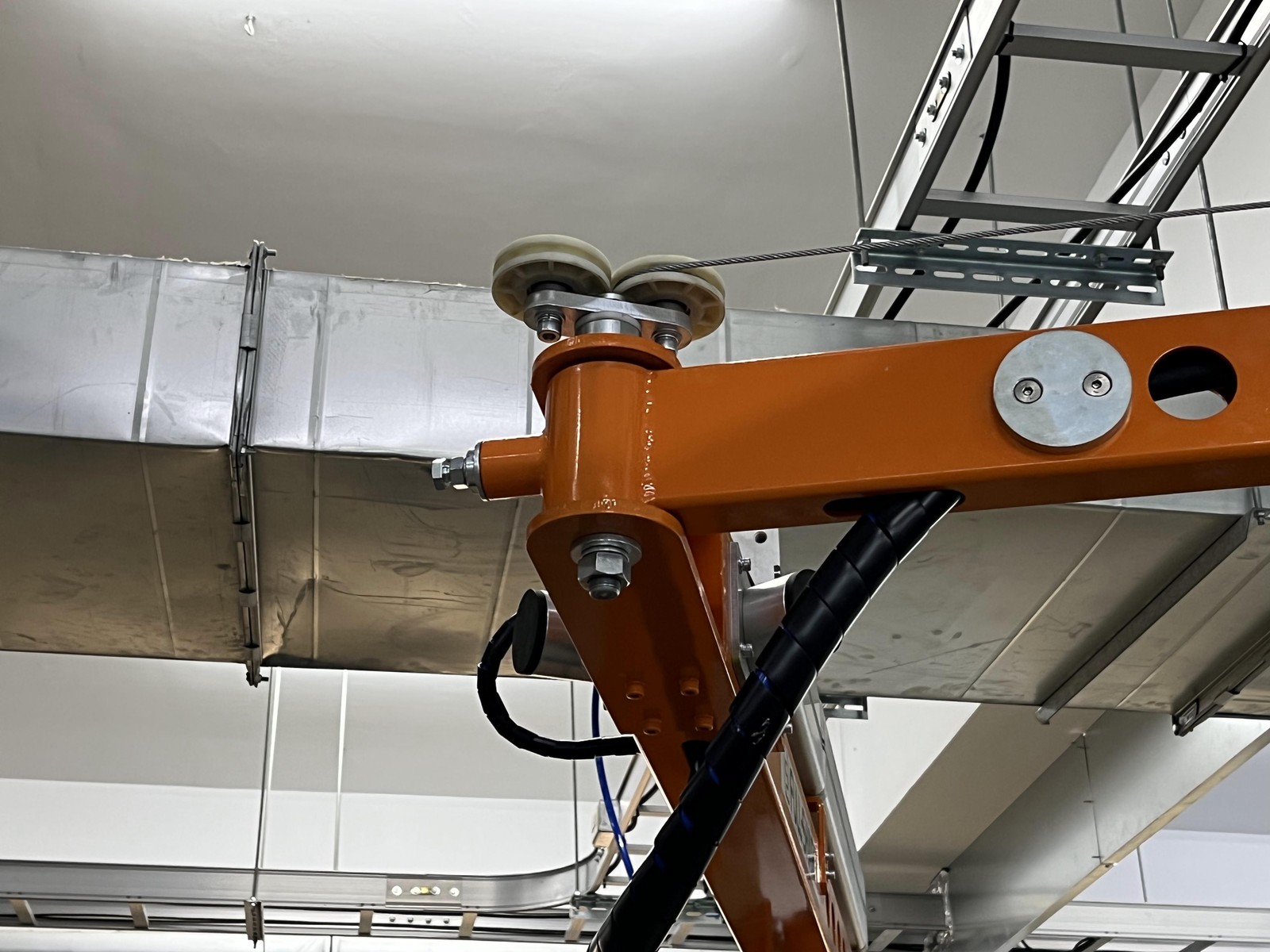

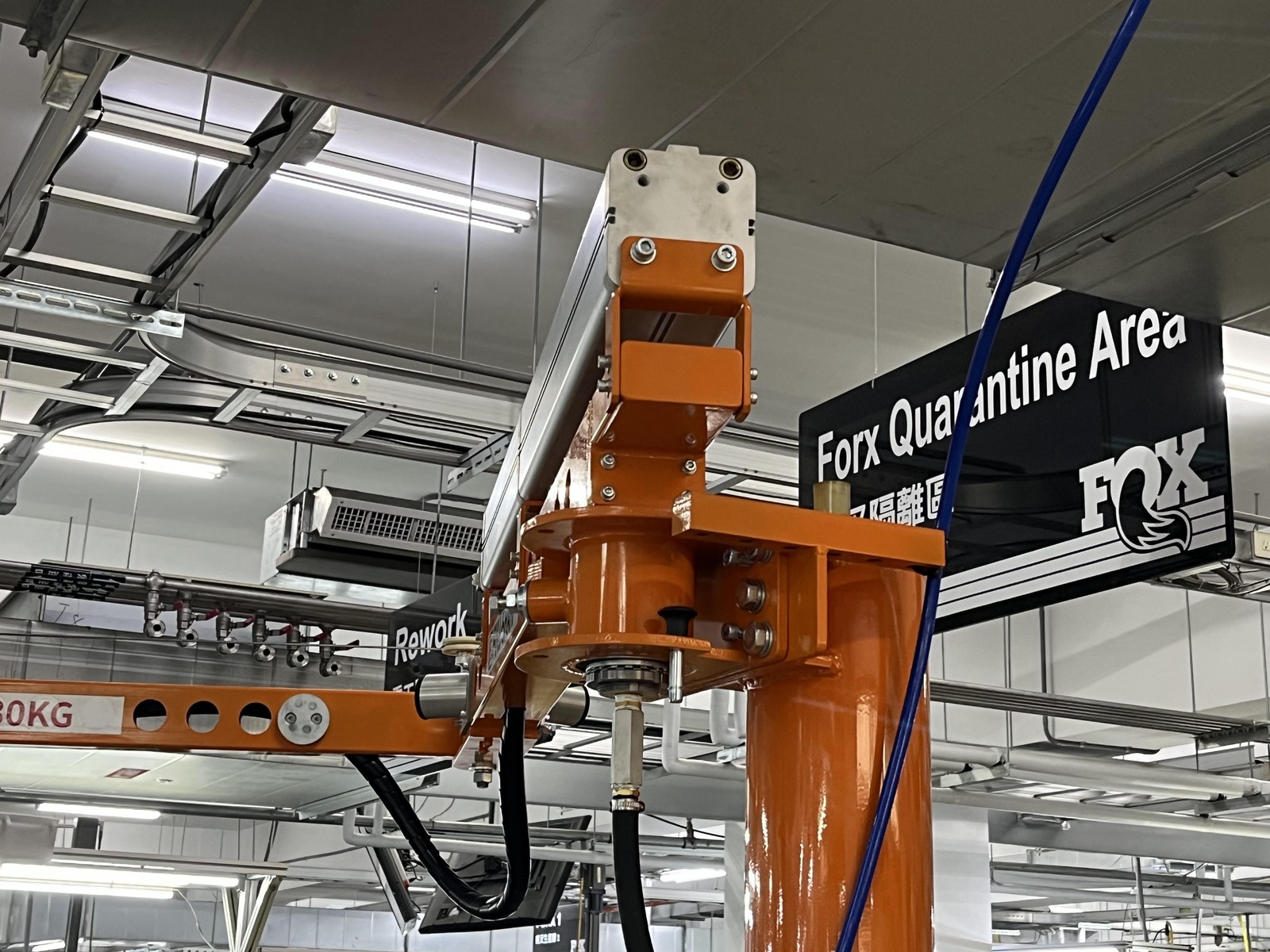

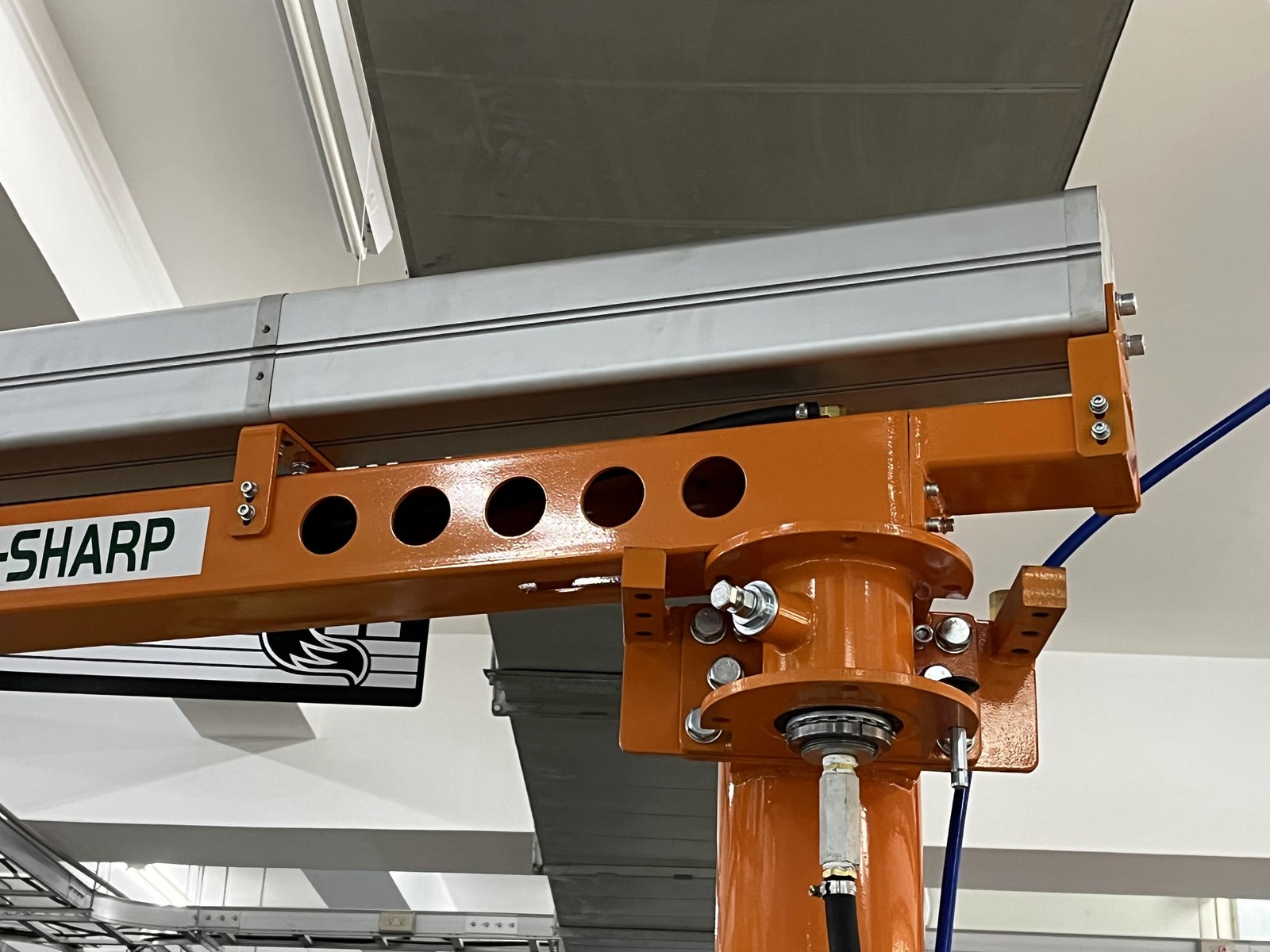

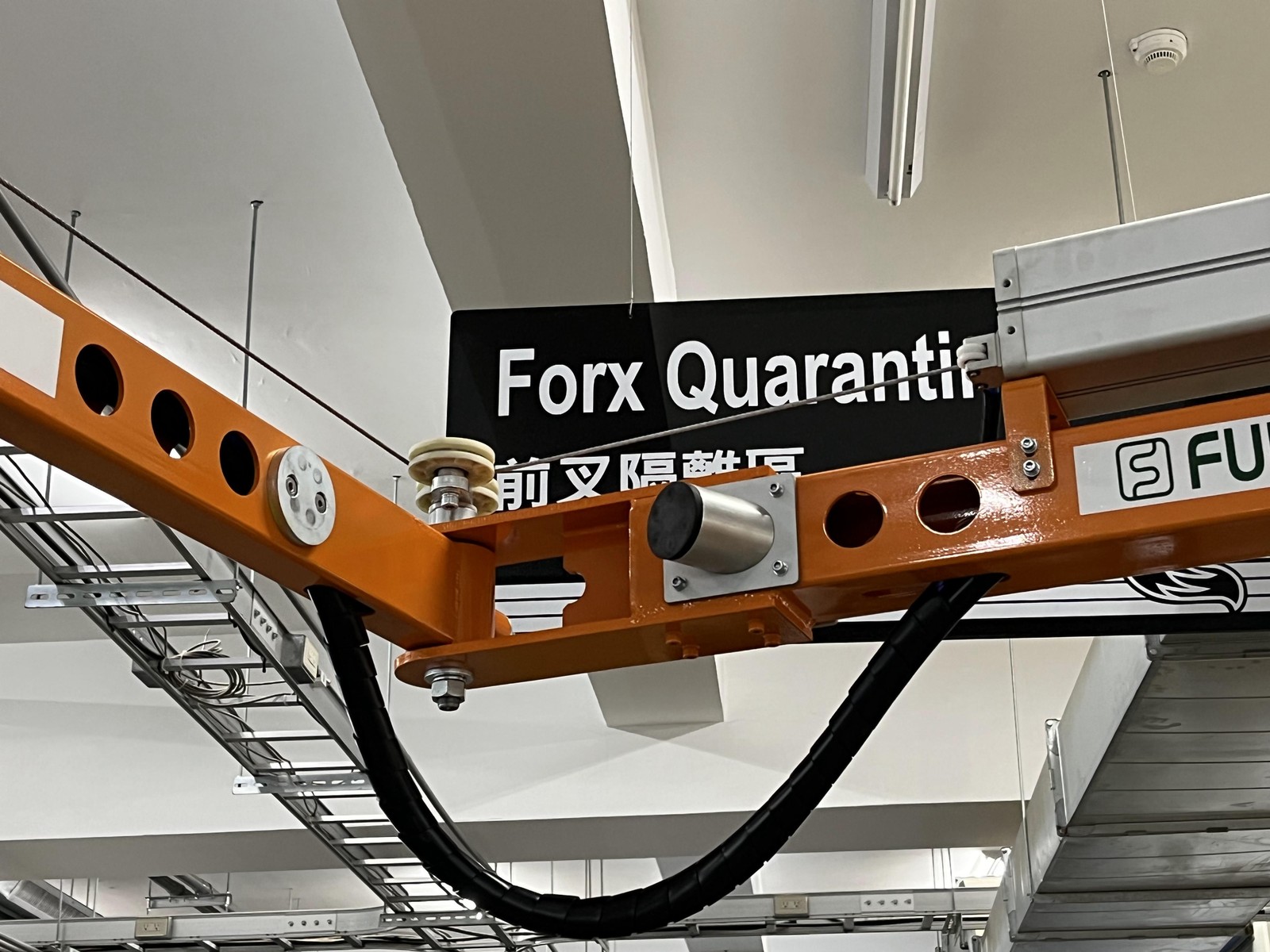

- Articulating rotating arm: folds and swings in multiple directions, reaching tight corners around the work area.
- Horizontal pneumatic hoist: mounted flat to save height, suited to low-ceiling workshops.

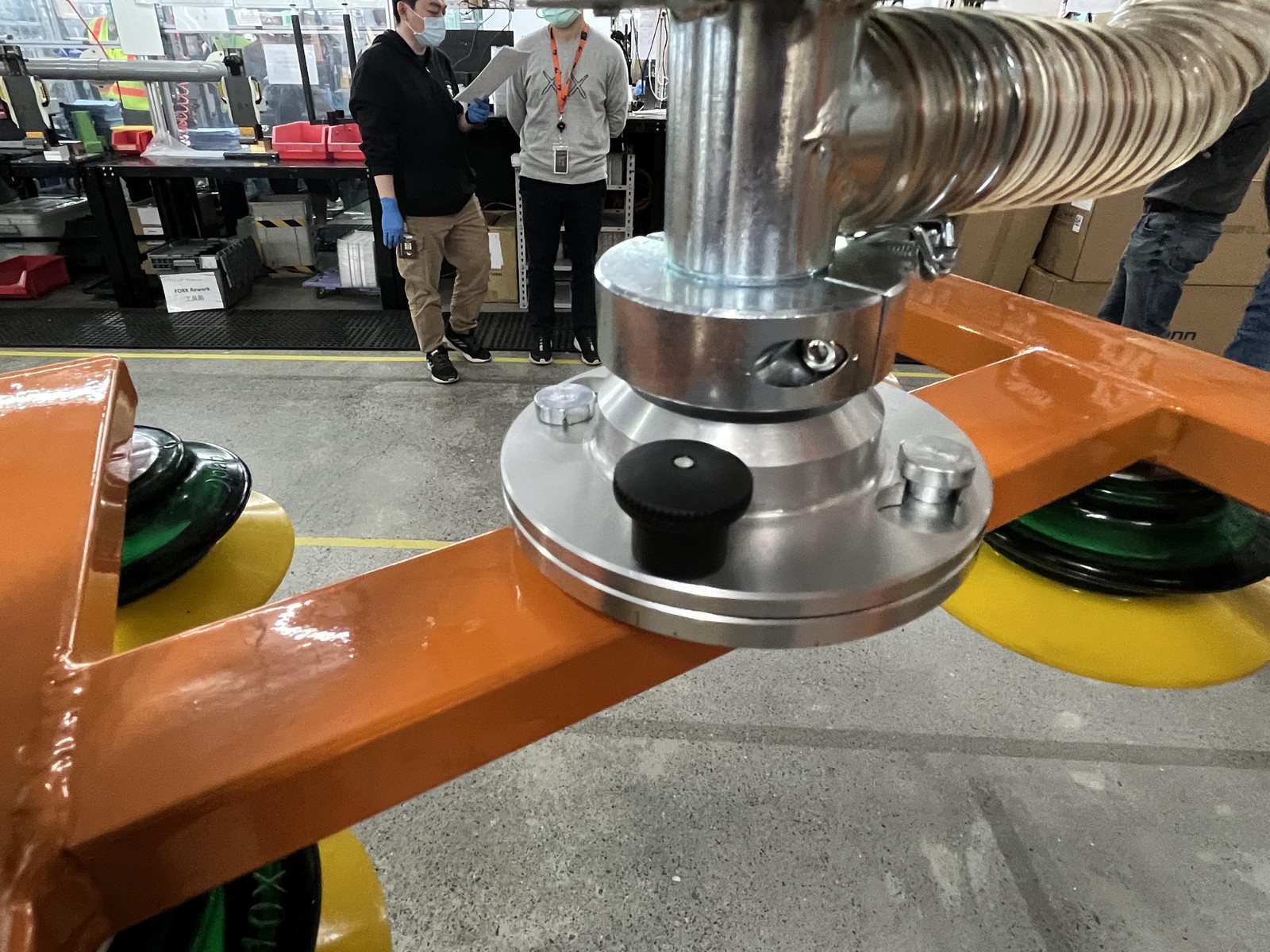

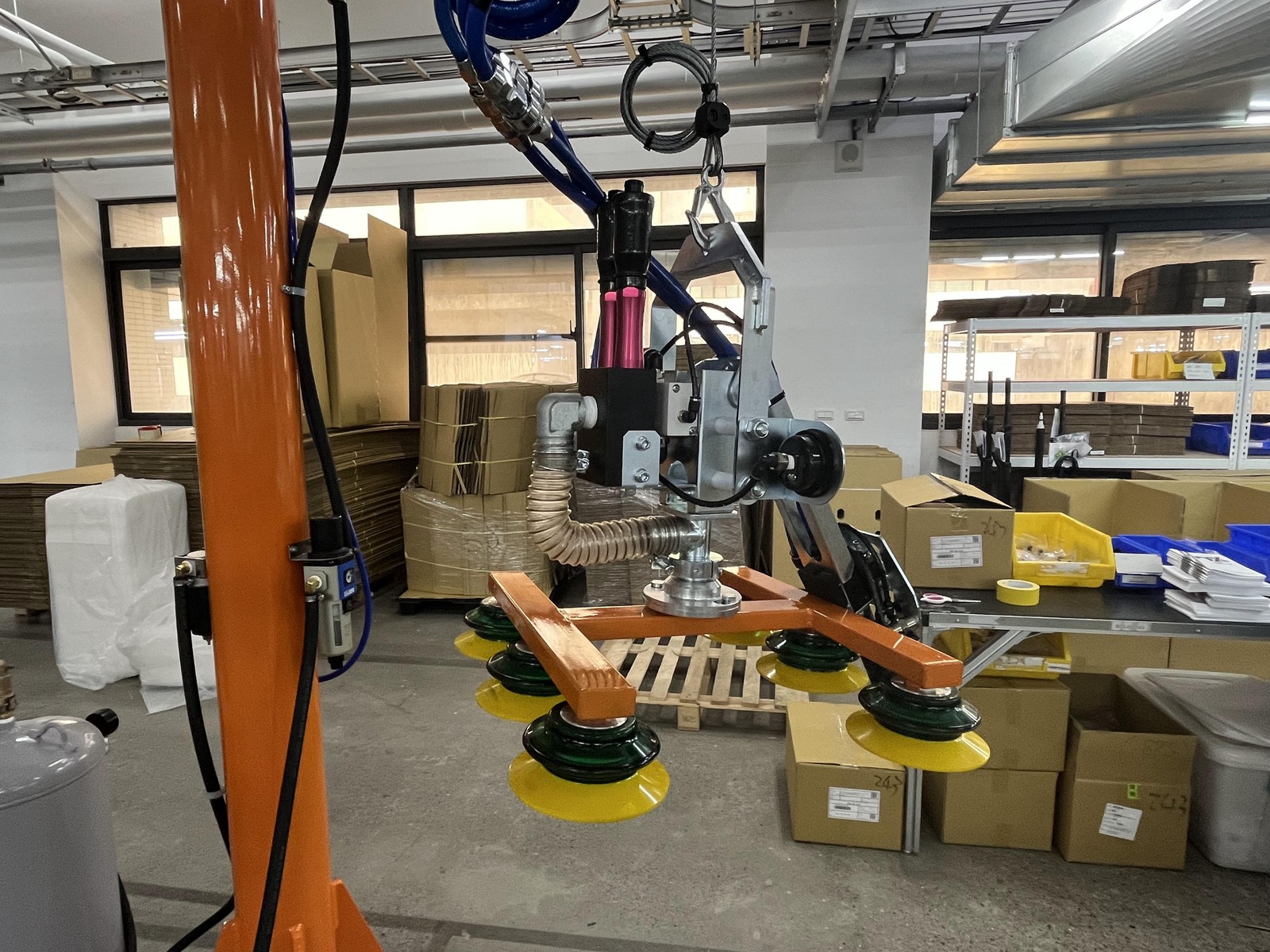

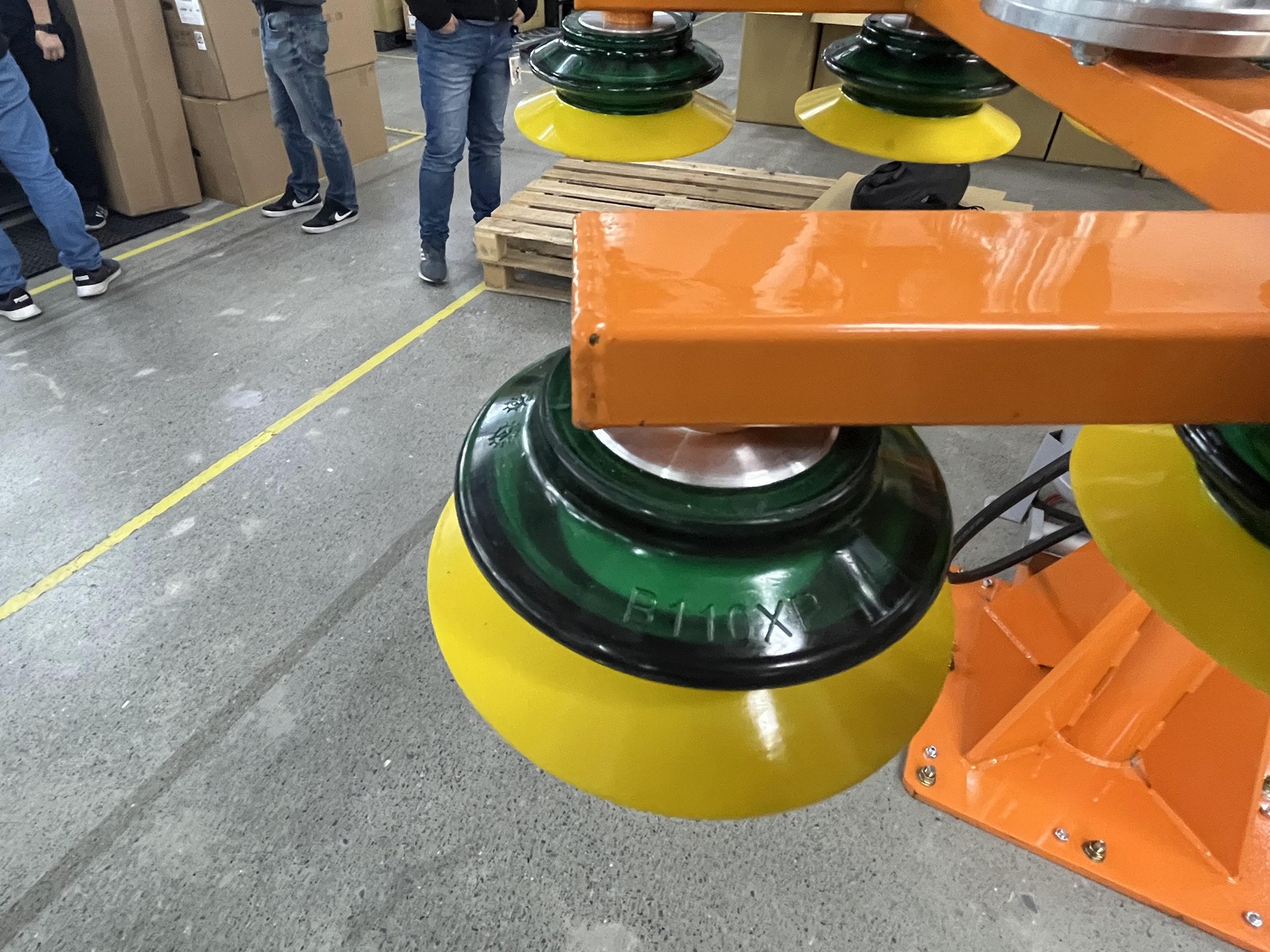

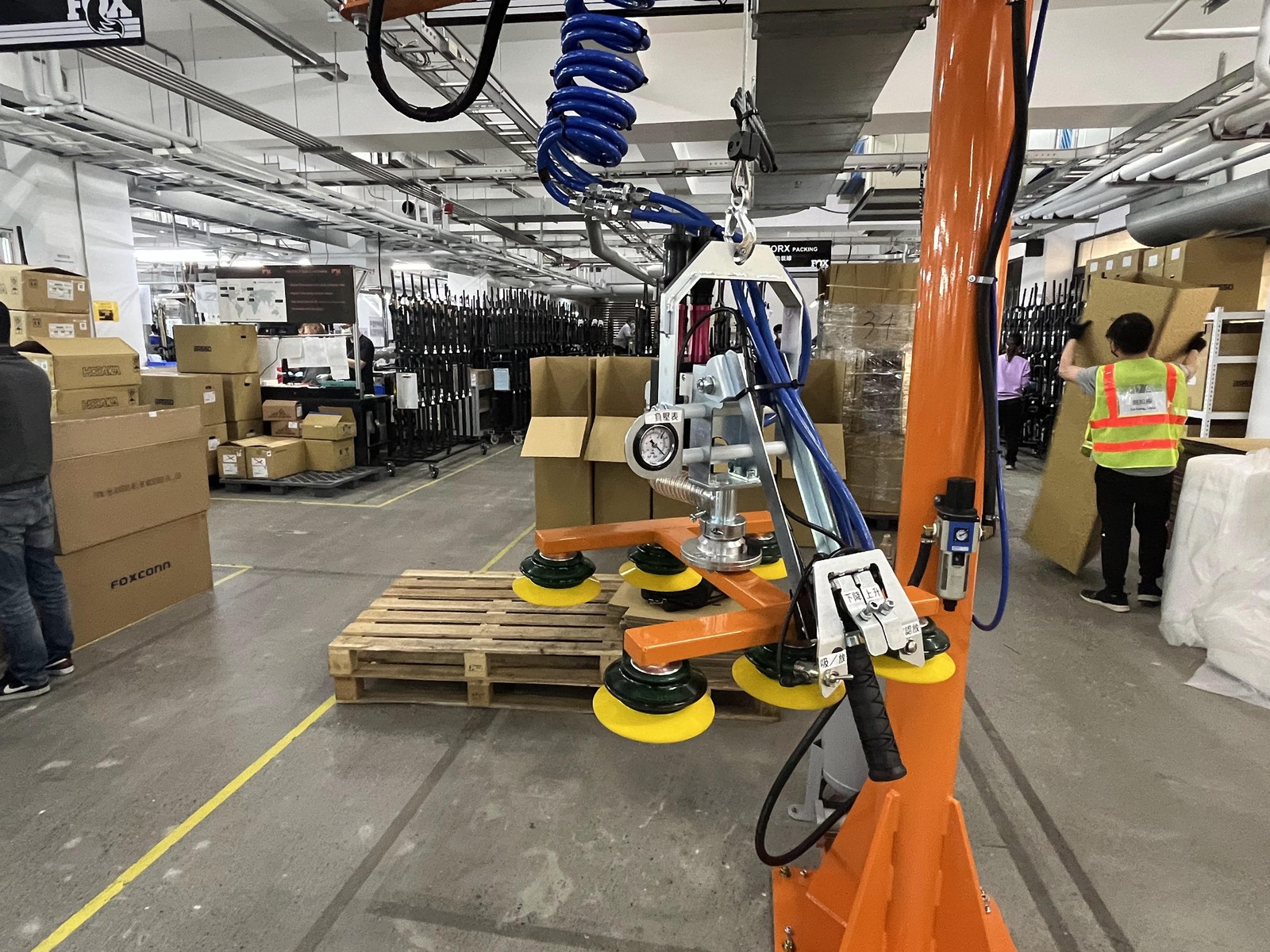

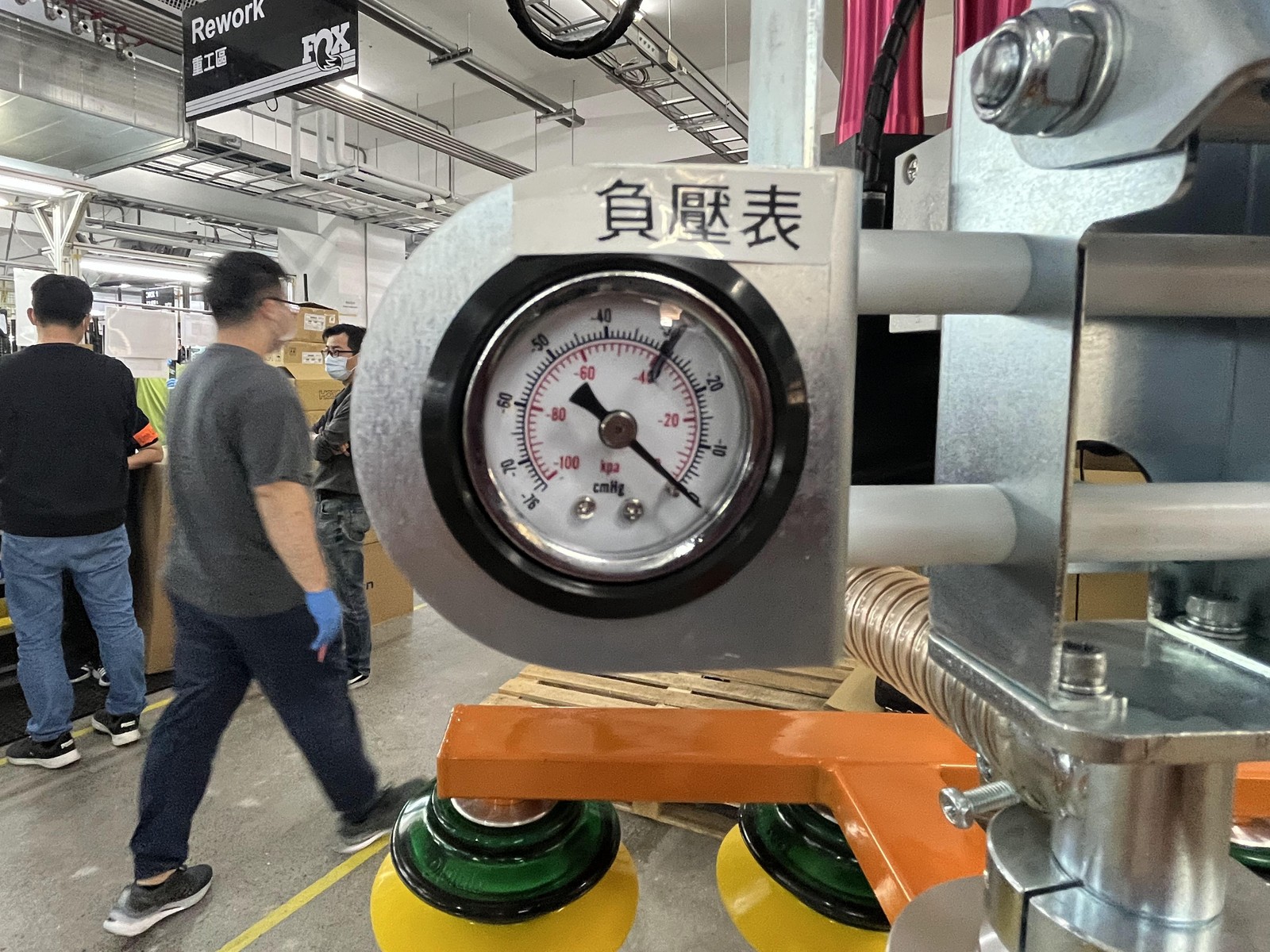

- Carton box vacuum suction head: grips the box surface securely, releases quickly without denting the packaging.

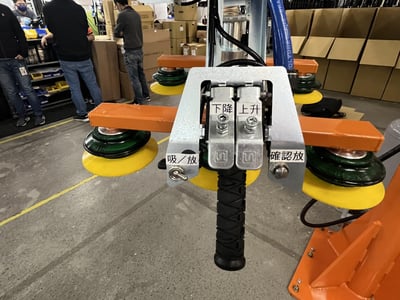

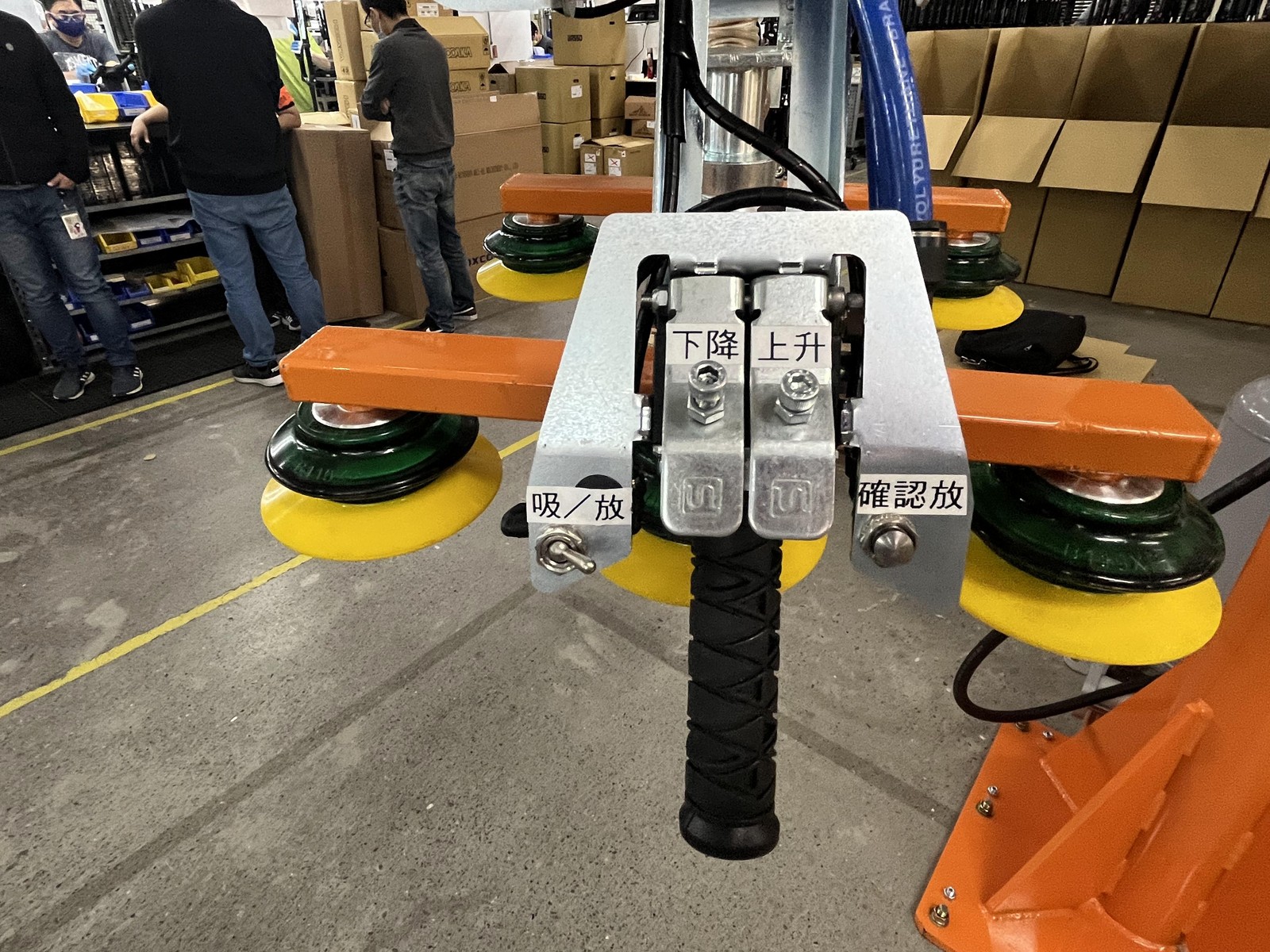

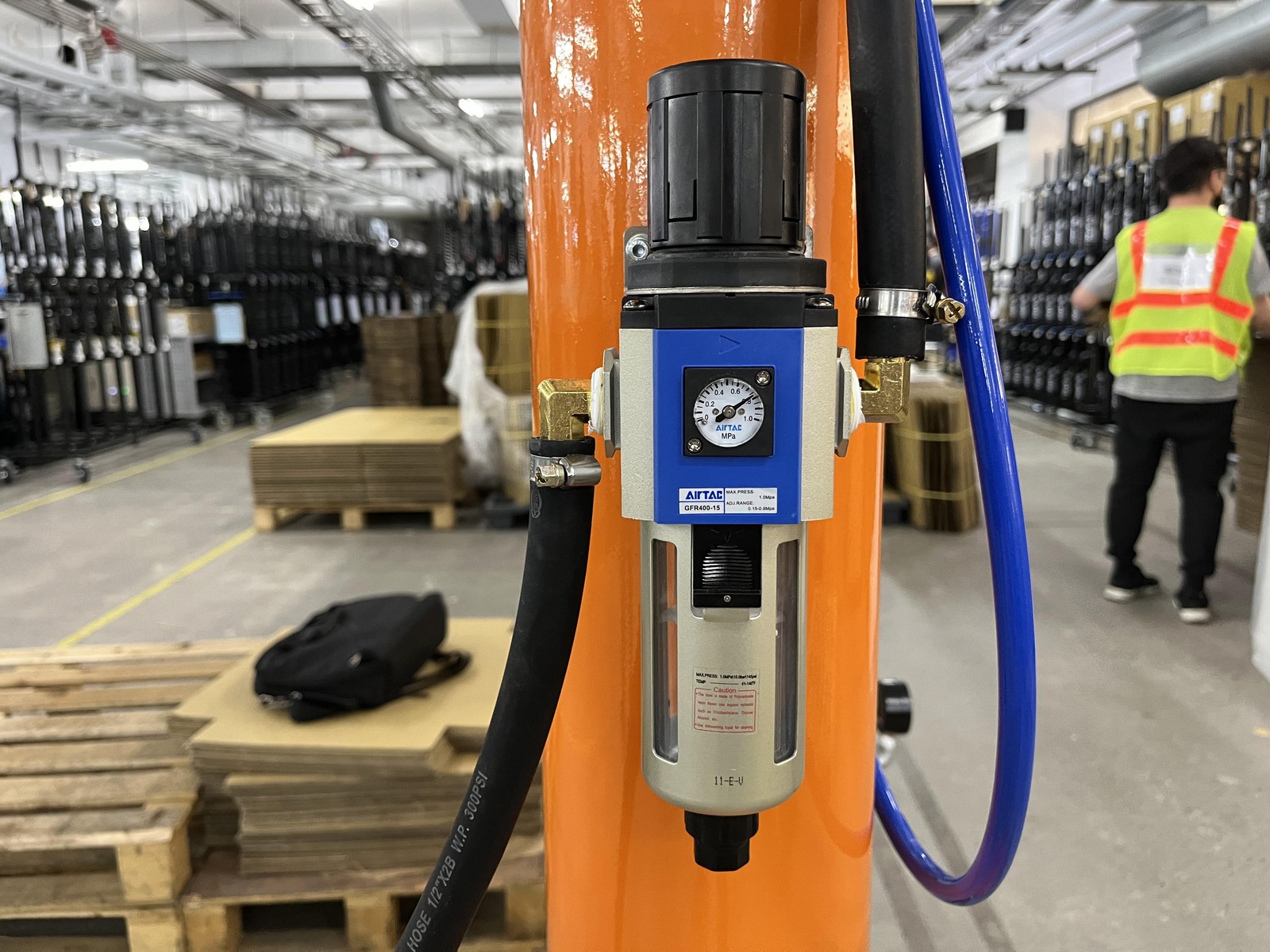

- Air valve control assembly: smooth, step-by-step lifting and lowering, holding the load when the operator releases the control.

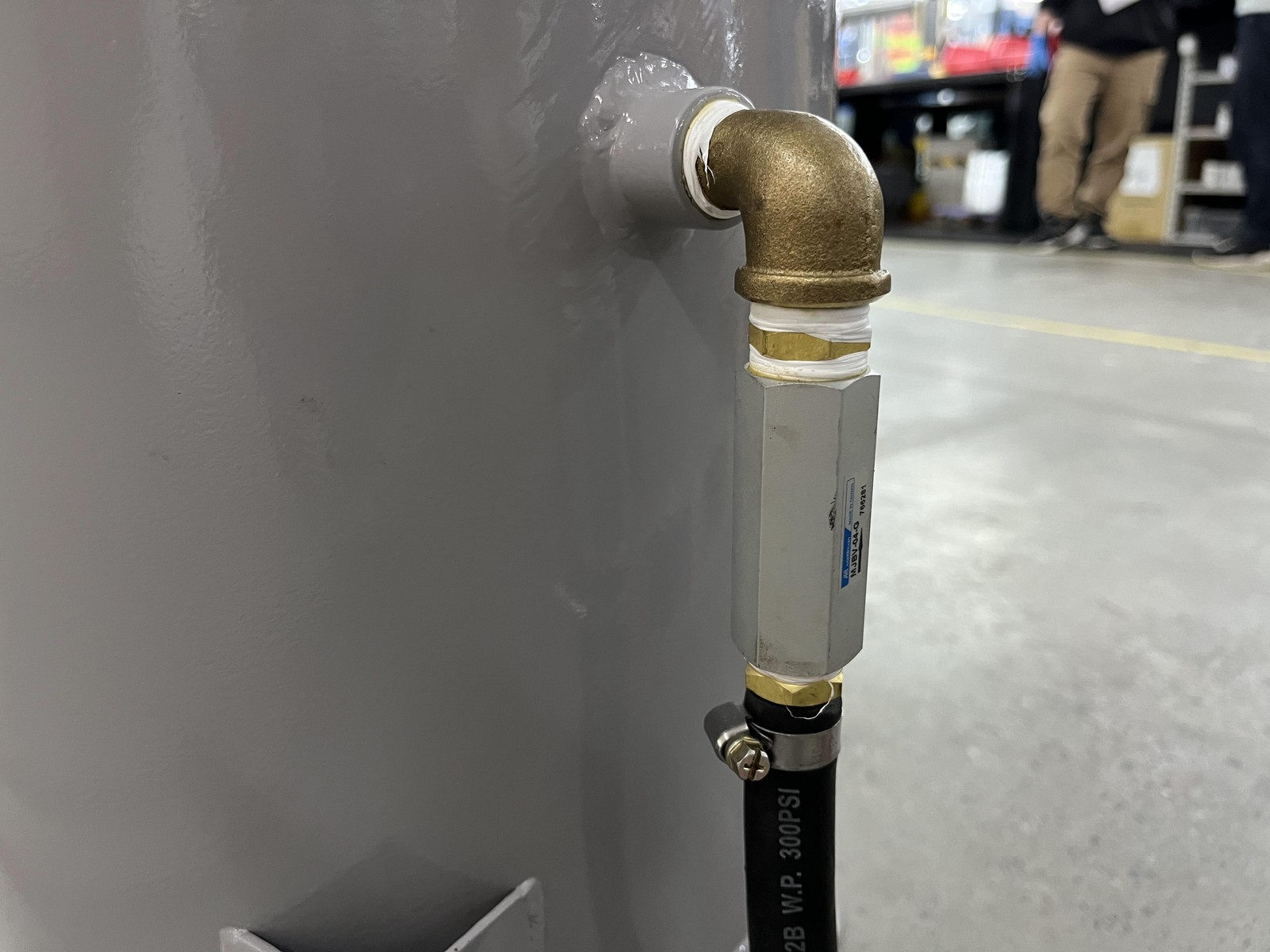

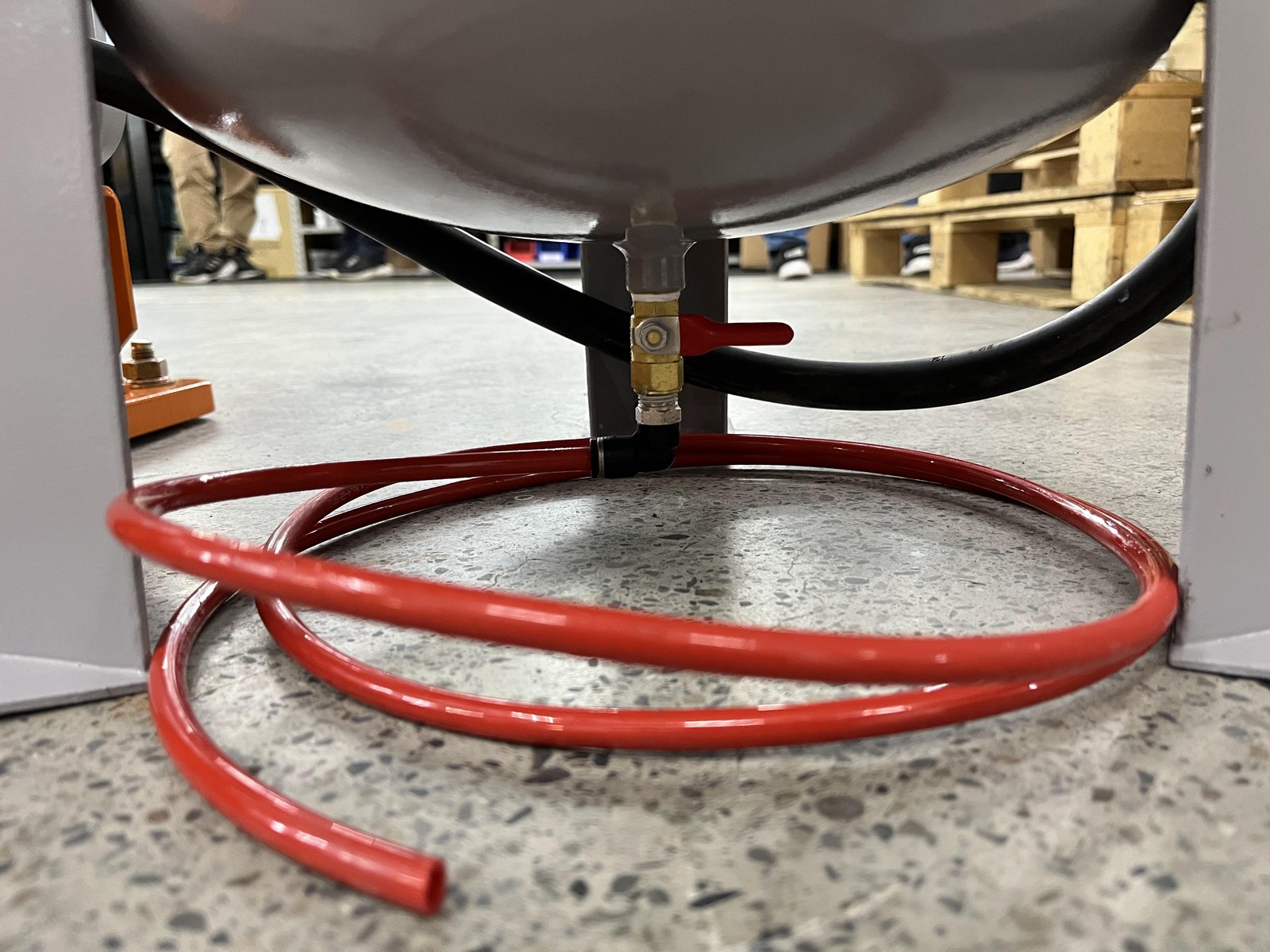

- Air supply hose: routed neatly along the arm, out of the operator's way.
Benefits for Your Facility
Fits low ceilings
The horizontal hoist reduces the height it occupies while keeping the needed lifting stroke.
One person does it all
Suction, lifting, swinging, and placing all run from a single control, no helper needed.
Precise handling
The air valve allows slow, staged lowering so boxes land squarely on the stack without bumping corners.

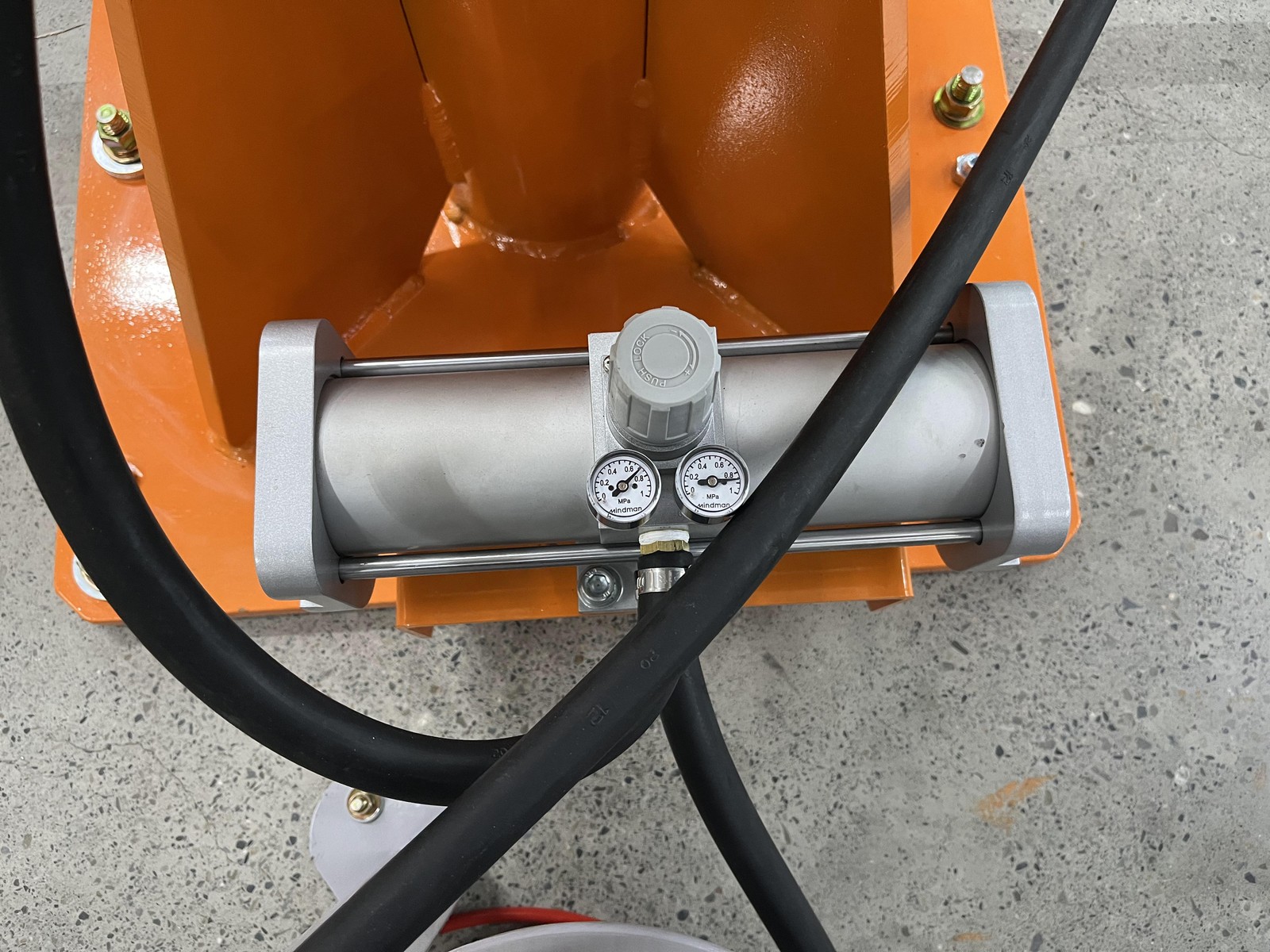

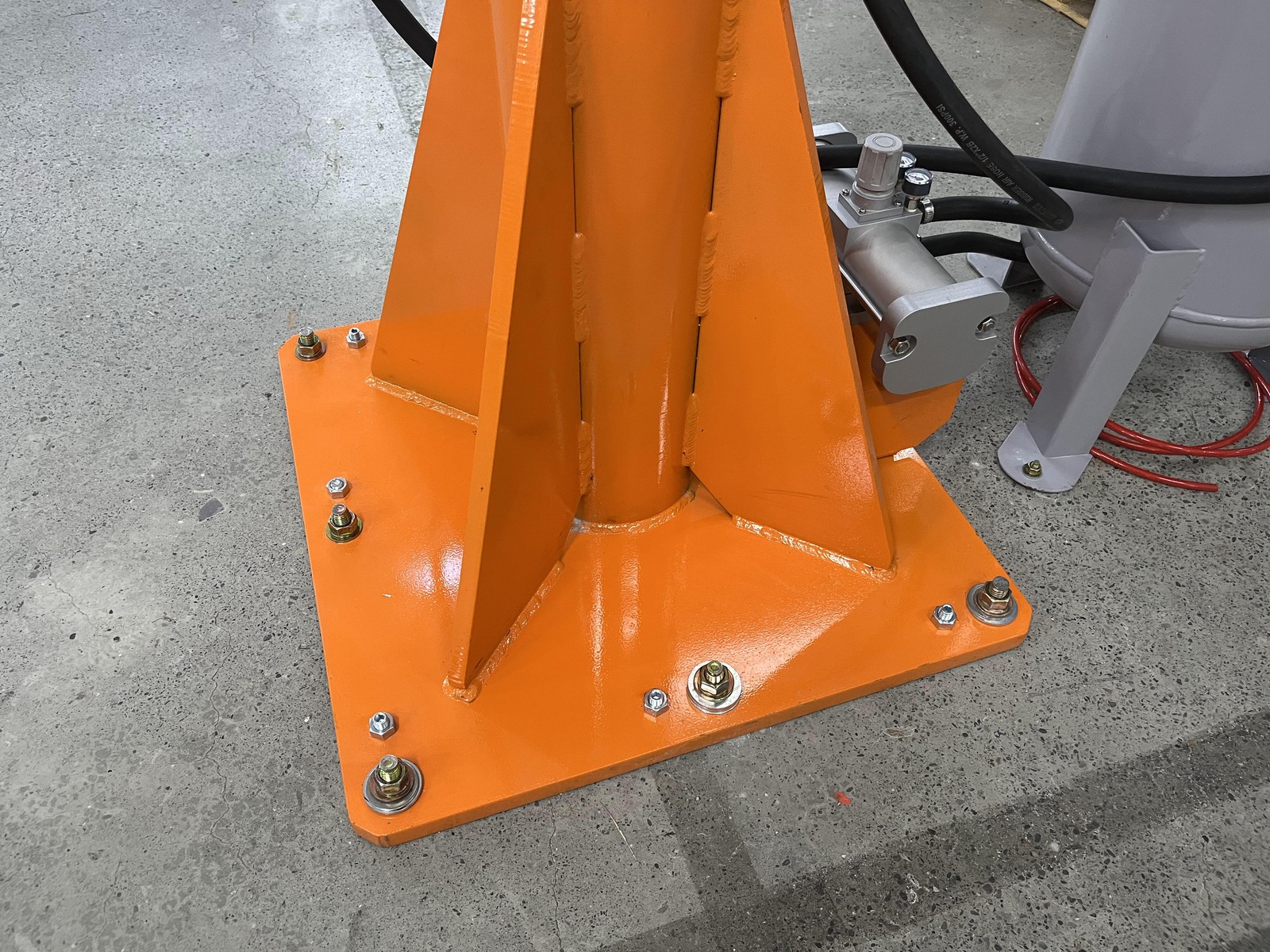

Real Installation Photos
Click a photo to enlarge. Album of 22 photos taken on site.
Suitable Applications
- Paper mills and carton packaging plants
- Warehouses and packing workshops
- Light industrial production lines
- Logistics and distribution centers
Related Products and Projects
Consultation for Your Facility

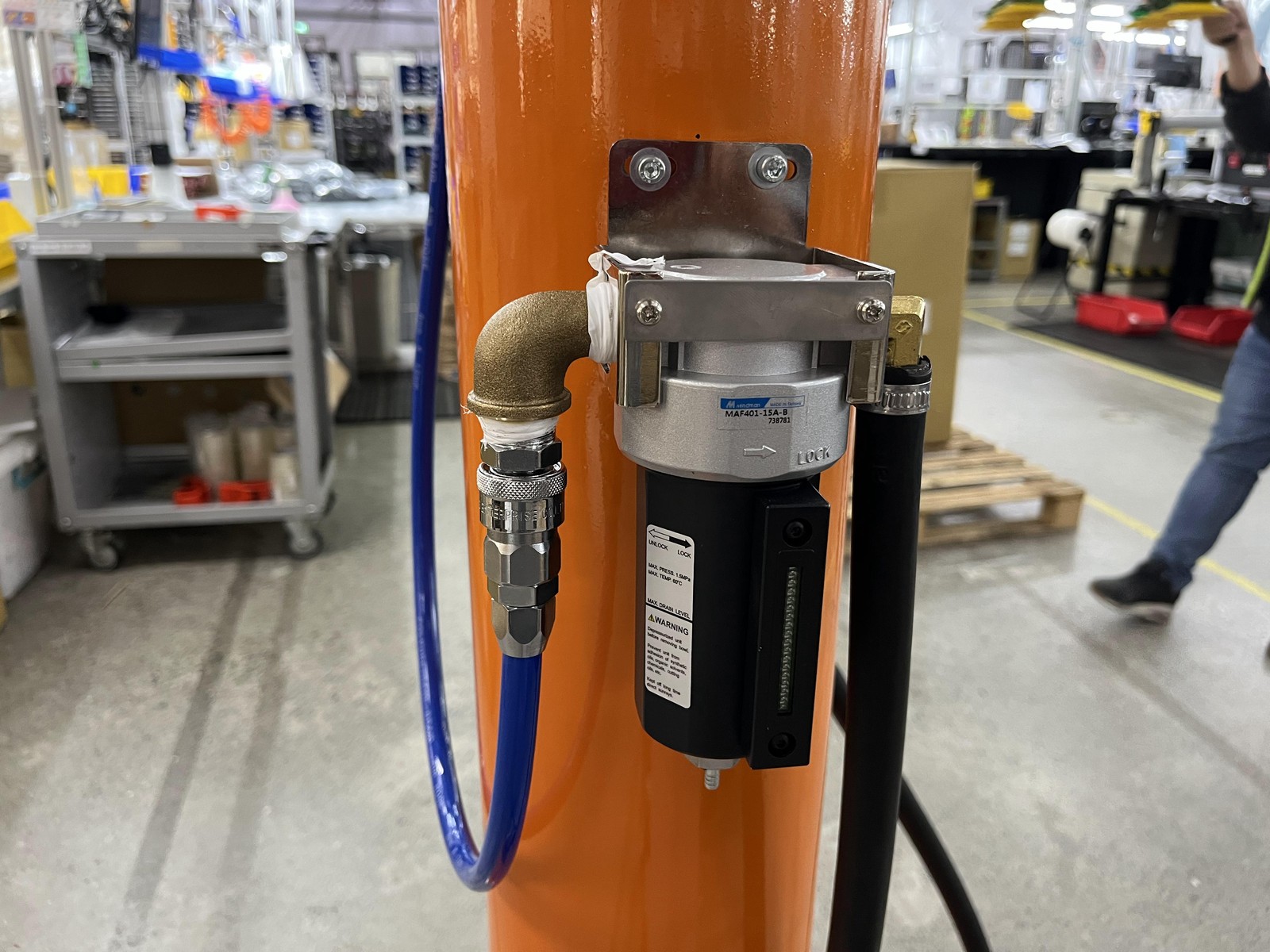

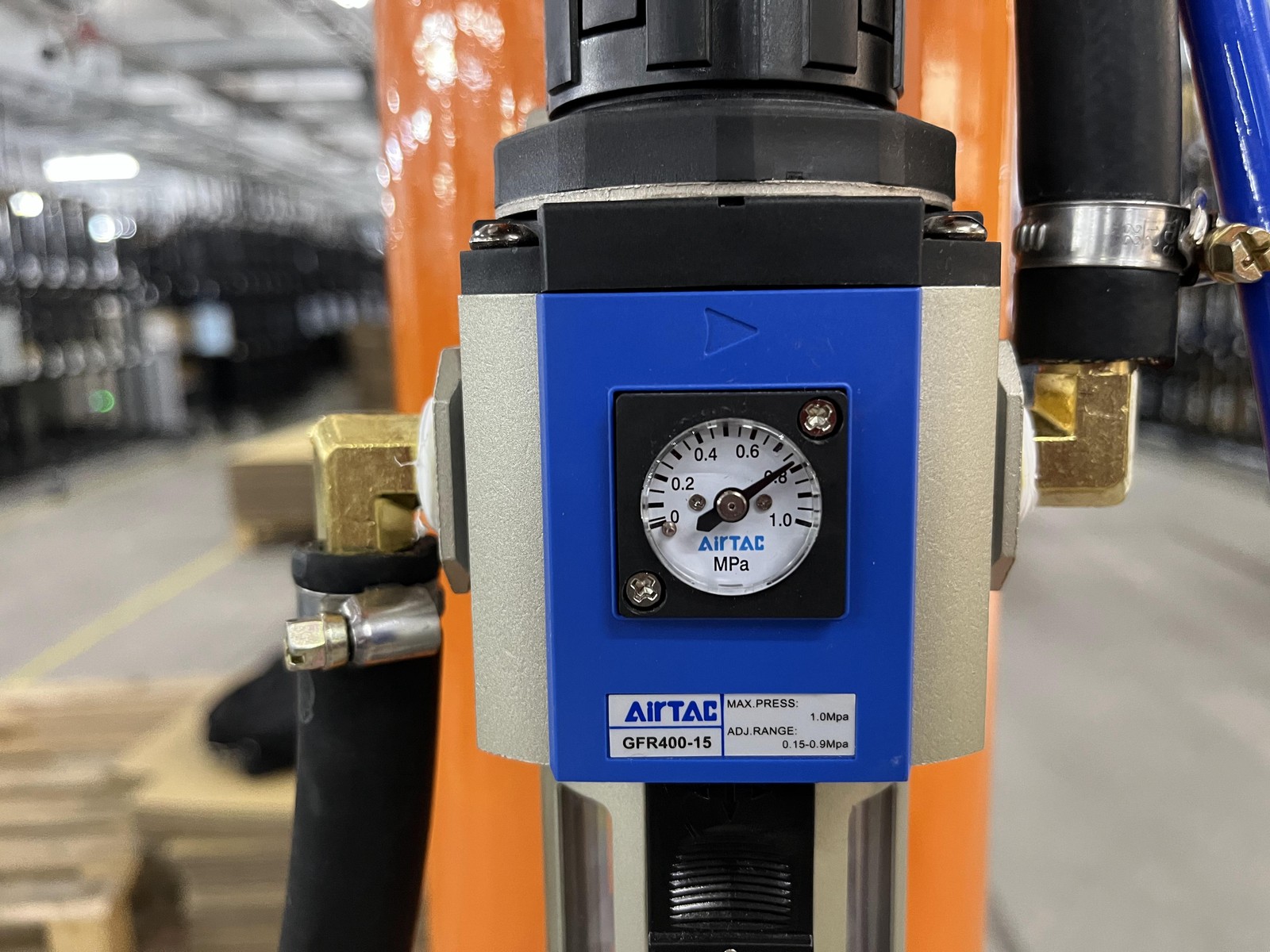

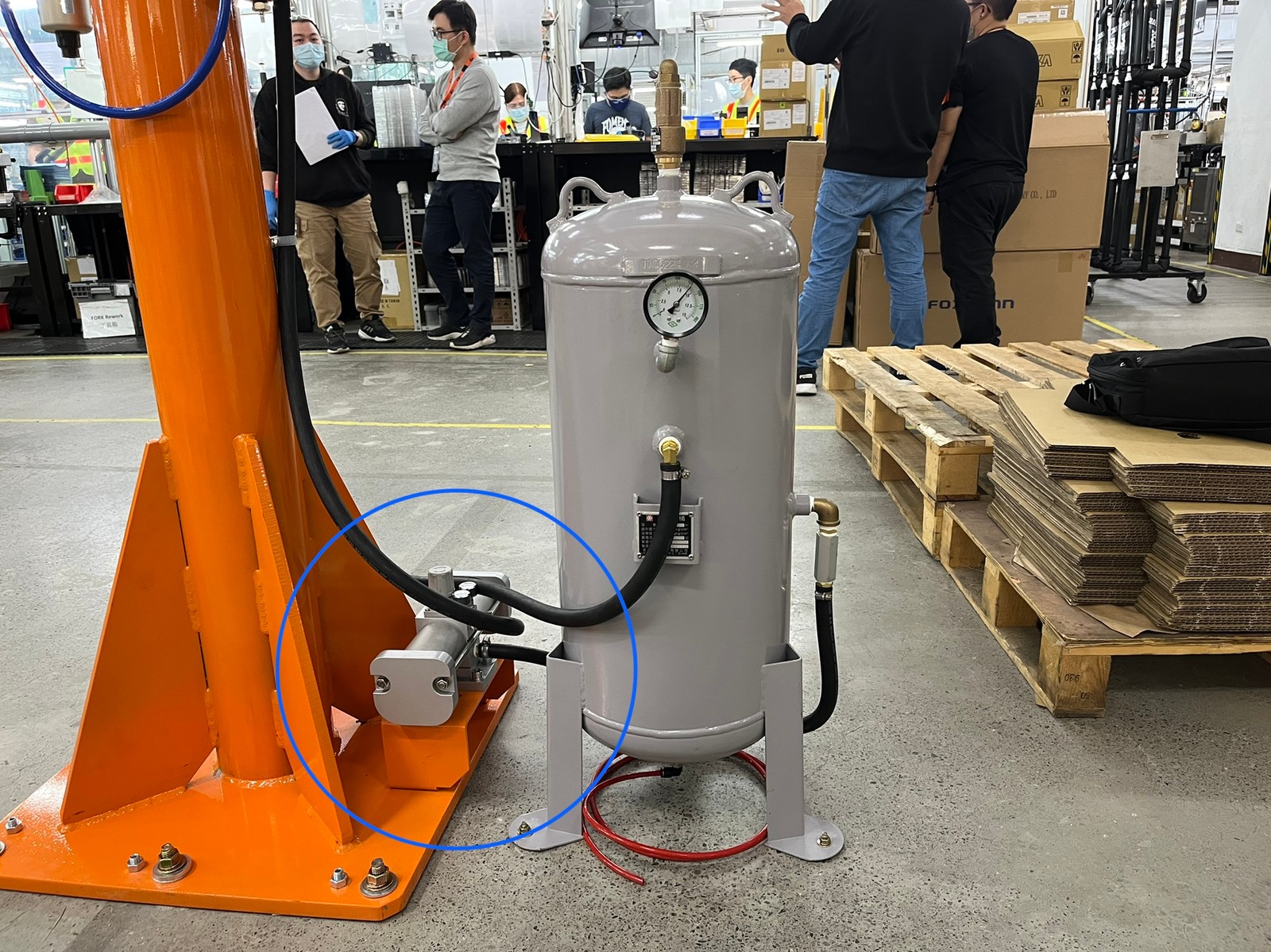

FullSharp measures the ceiling height, required lifting height, and box dimensions before choosing the hoist type. Our engineers also check whether the workshop's air supply has enough pressure and flow. Contact FullSharp to schedule a survey.
