Carton boxes often hold fragile goods, and every bump or hard grip can damage what's inside. Lifting by hand is slow, while mechanical clamps often leave dents on the box surface.

FullSharp chose a vacuum lifting pad with evenly distributed suction to grip the box surface without squeezing the sides. The whole assembly hangs on an articulating jib crane with a horizontal pneumatic hoist, lifting smoothly and turning to the drop point with one hand.

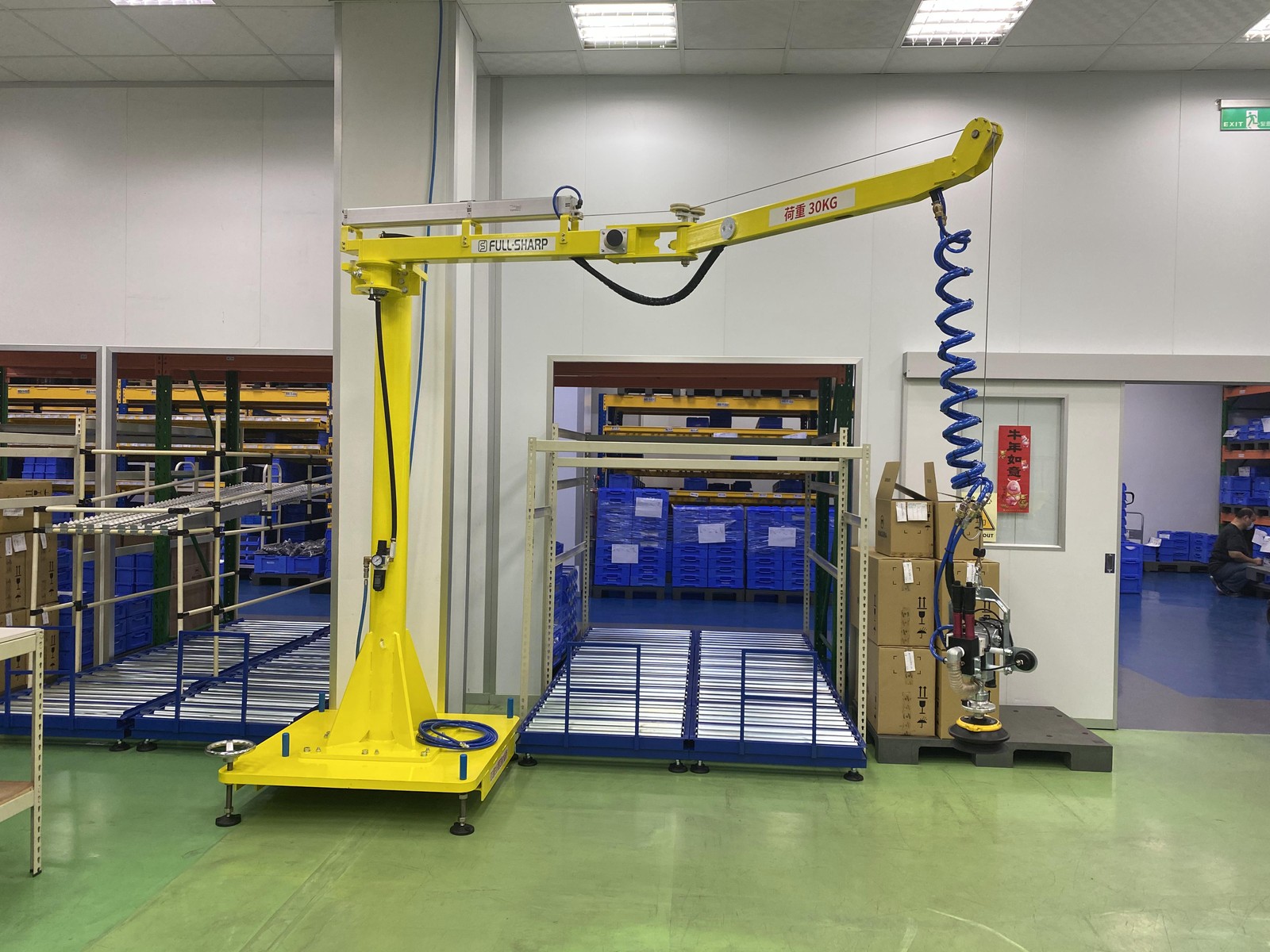

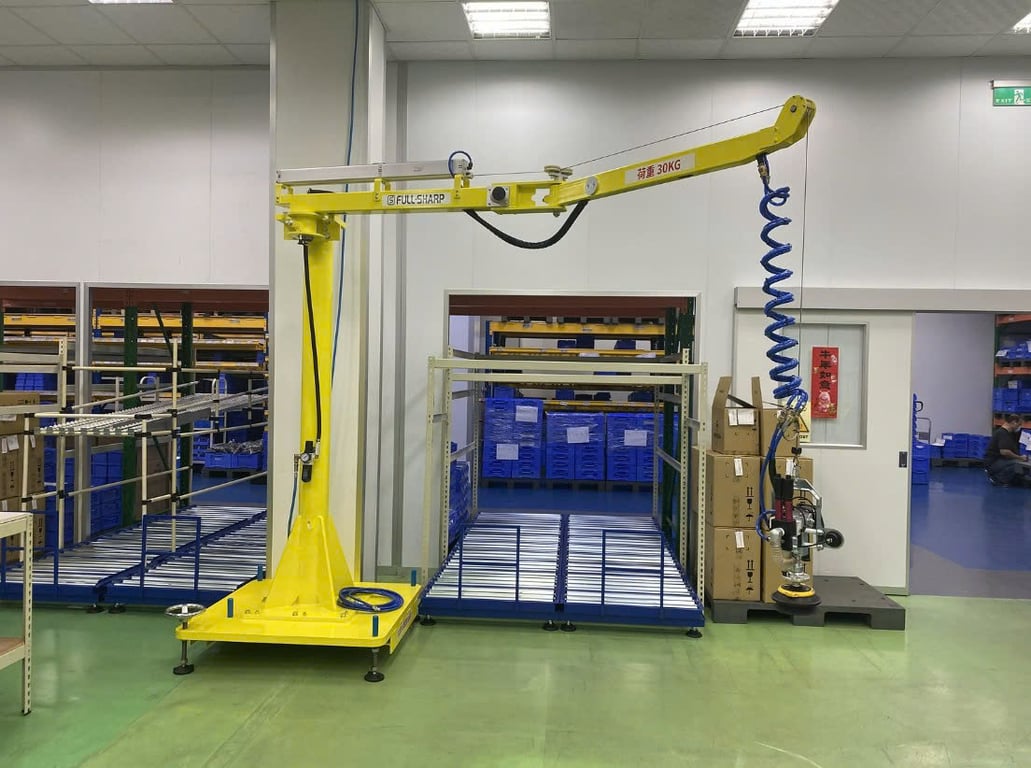

Articulating Jib Crane with Vacuum Lifting Pad for Carton Boxes

Vacuum lifting pad for carton boxes mounted on an articulating jib crane with a horizontal pneumatic hoist.

Equipment installed

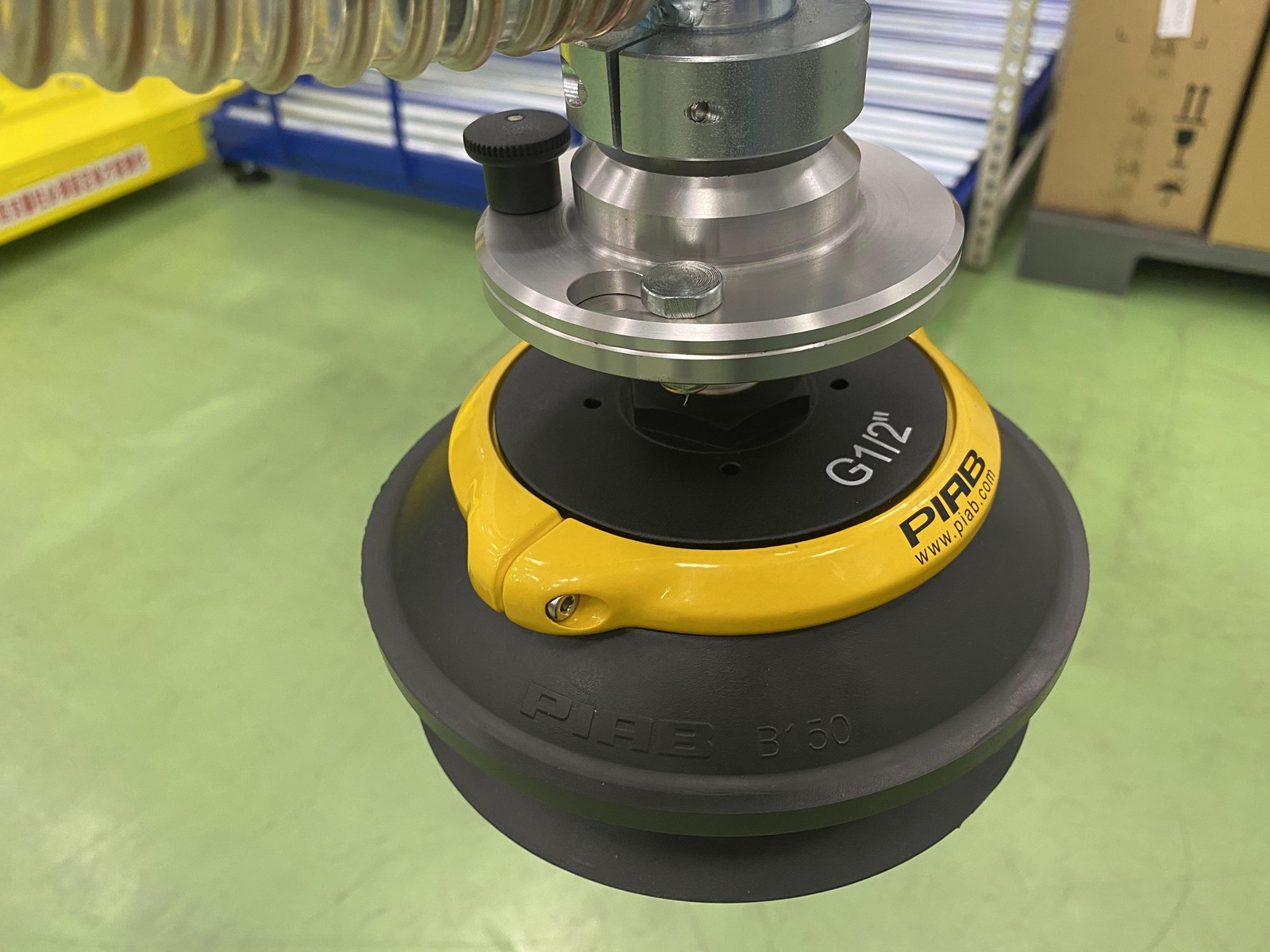

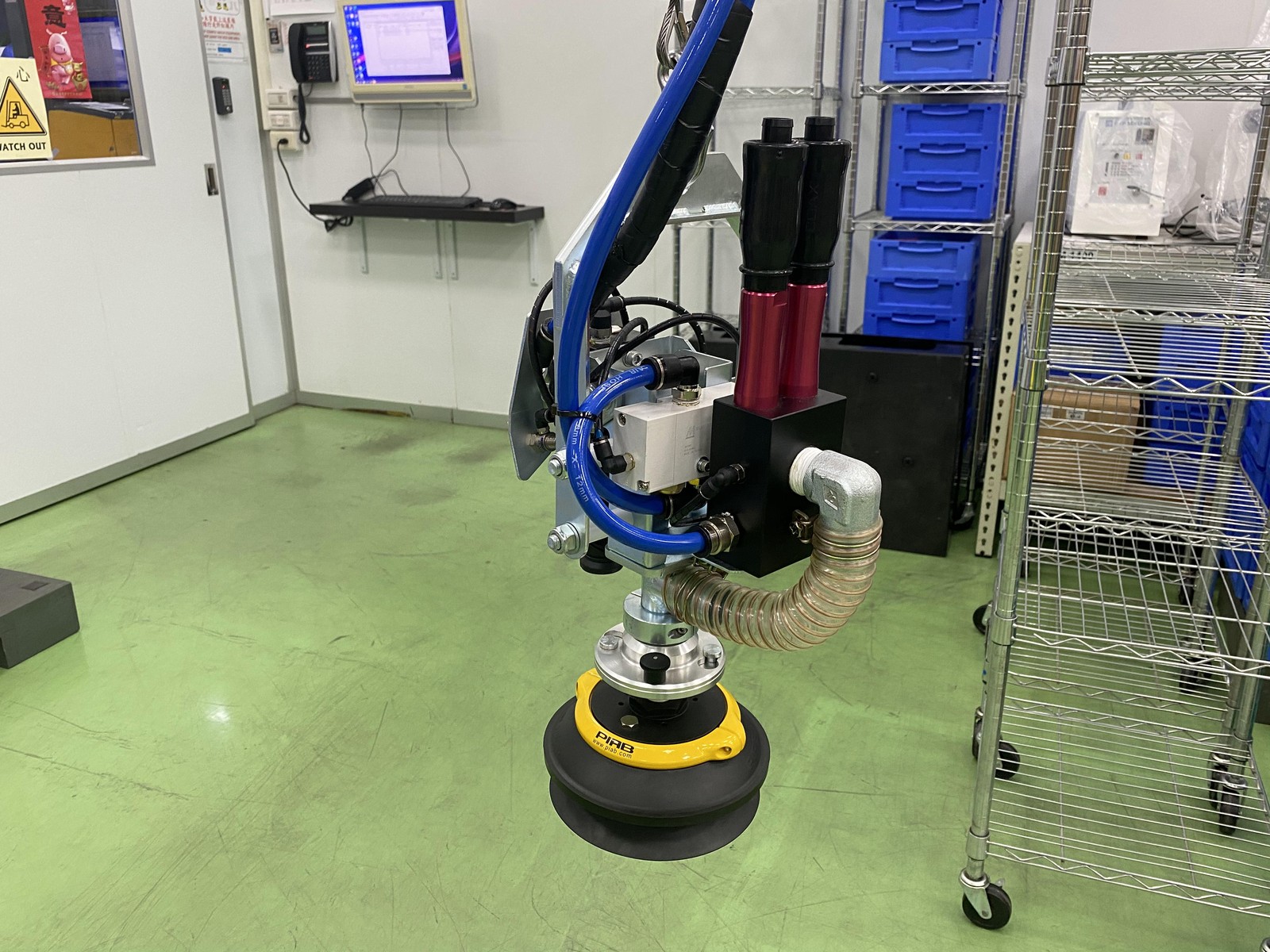

  • Vacuum lifting pad: suction cups spread evenly across the box lid, distributing suction so the cardboard is not marked.
  • Horizontal pneumatic hoist: mounted flat on the arm, keeps the load balanced, slowing down as it nears the pallet.

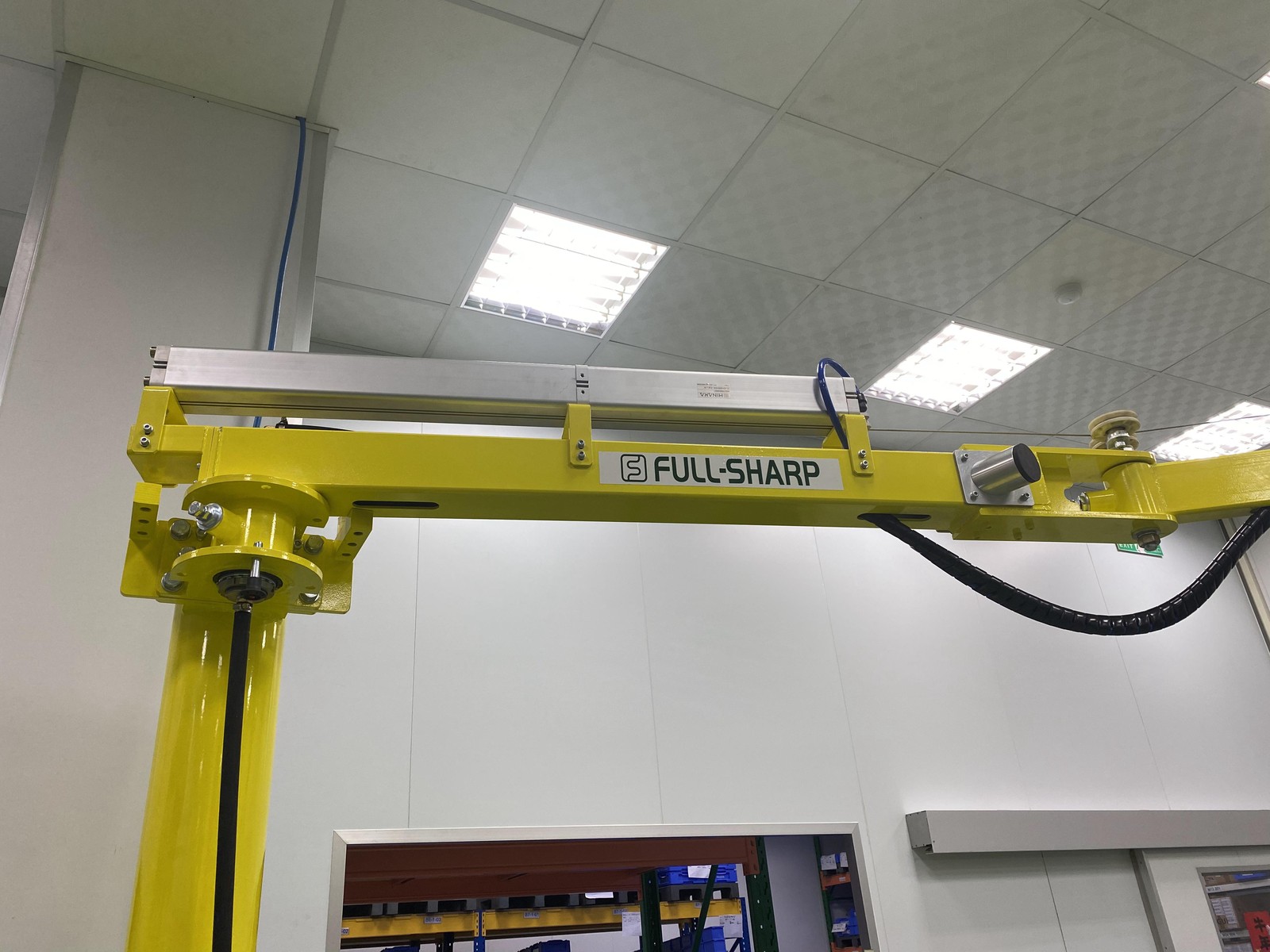

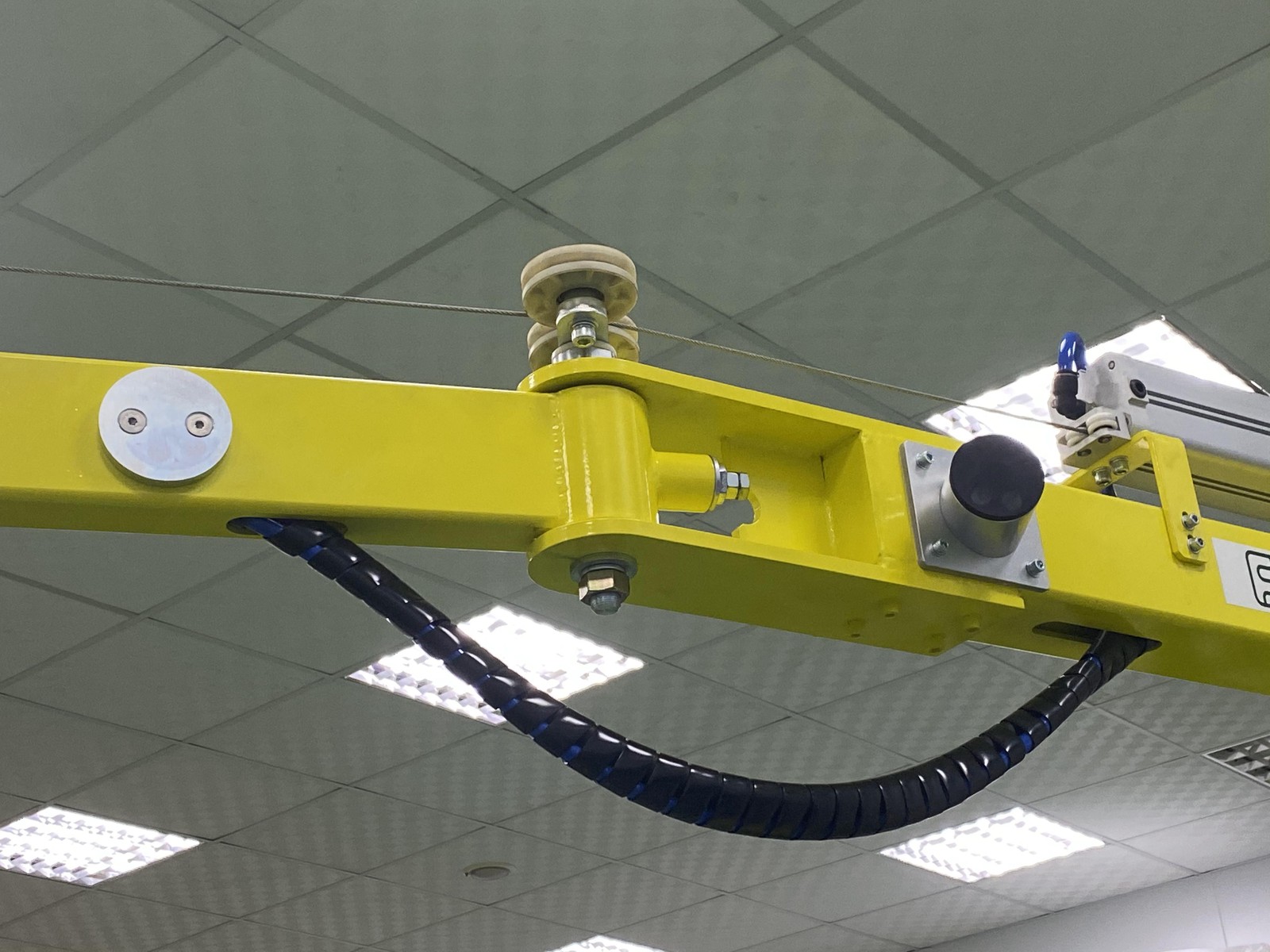

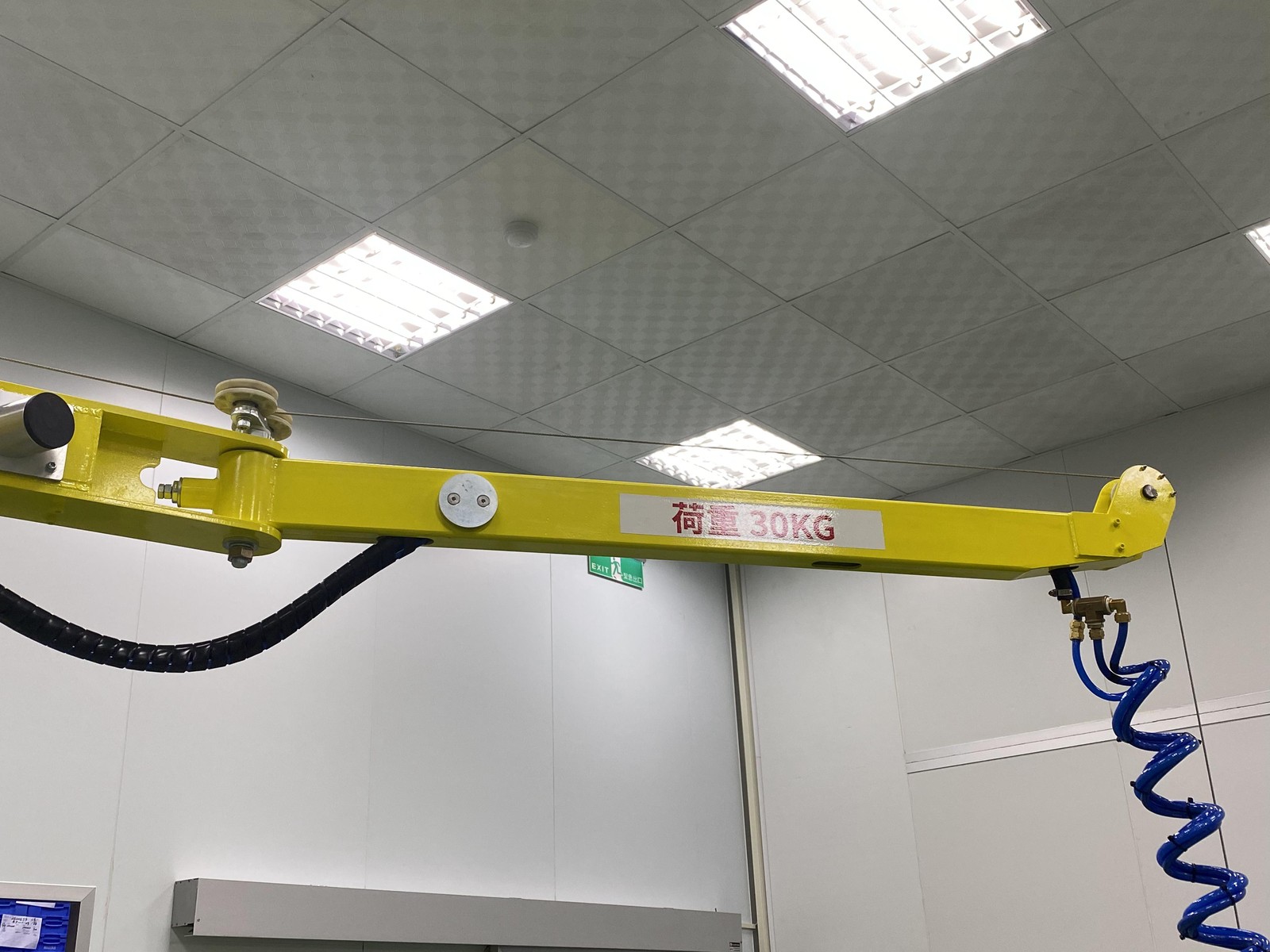

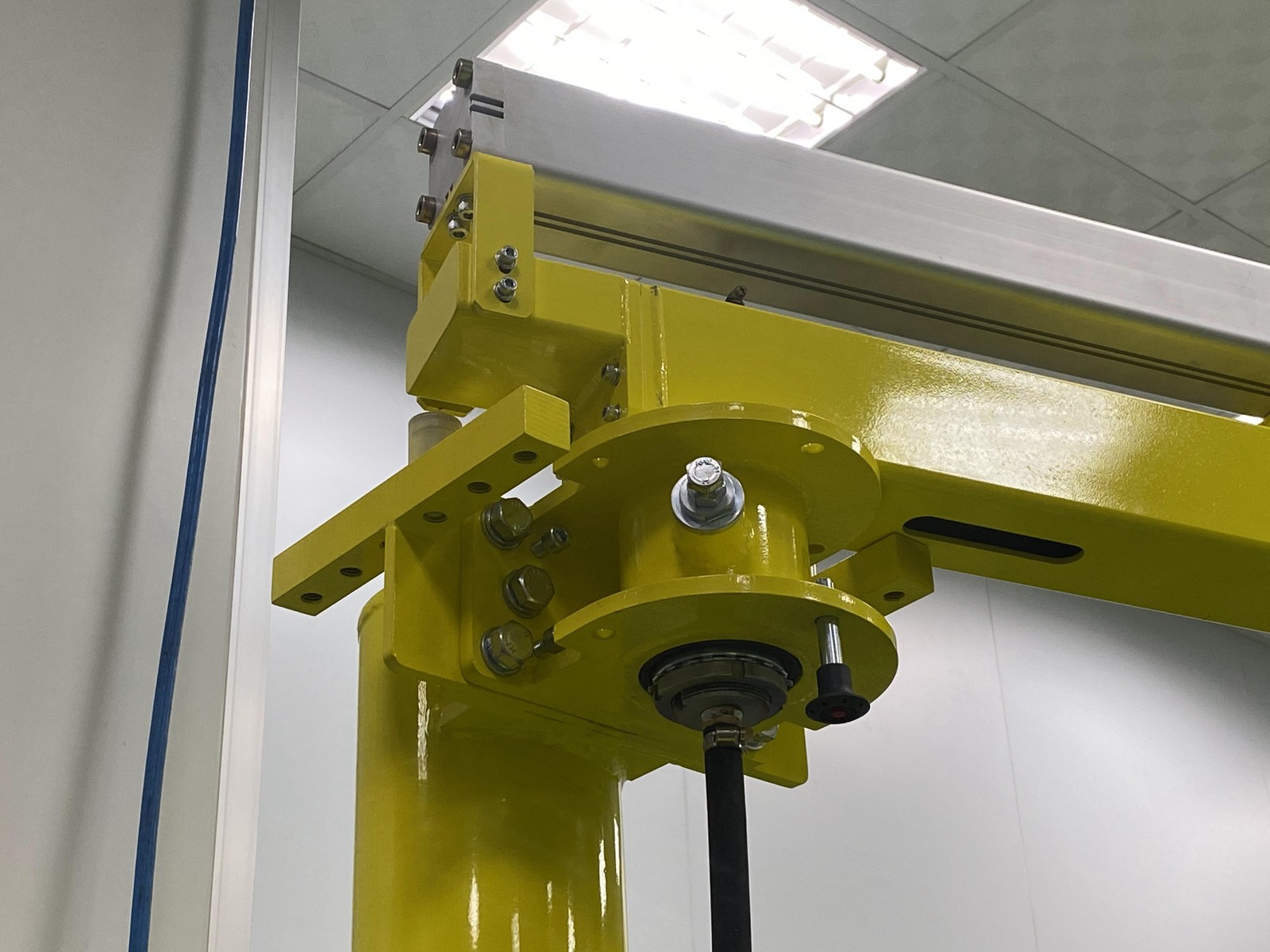

  • Articulating arm: folds and rotates flexibly, picking up loads from many directions within the work area.

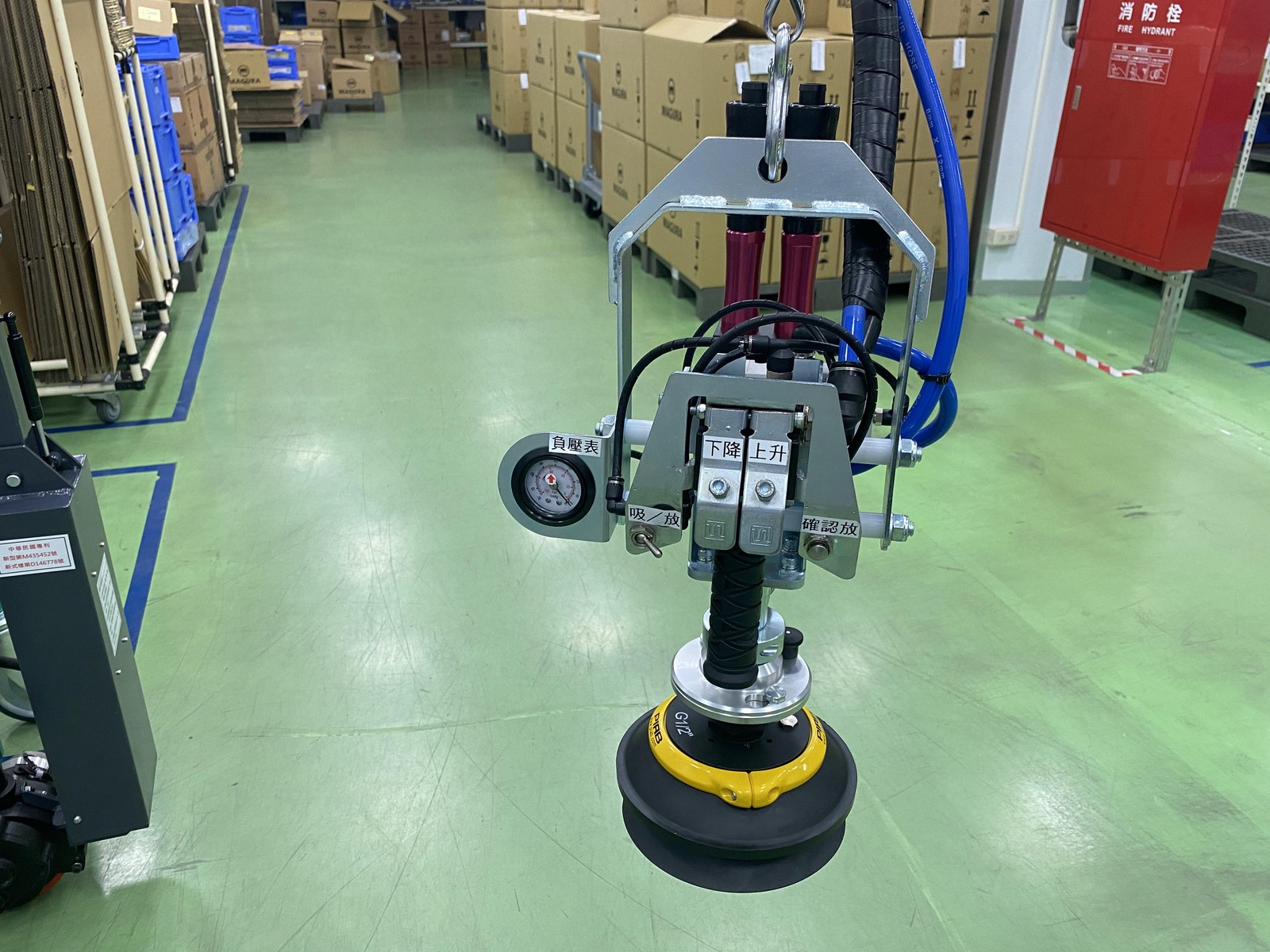

  • Air valve and vacuum generator: runs on the plant's existing compressed air, with a check valve to hold the box if pressure drops.

Benefits for the plant

Protects contents

Smooth lifting without clamping keeps fragile products inside the box safe.

No marks on the box

Soft, evenly spread suction cups keep the box surface intact for delivery.

Single-operator use

Suction, lifting, and turning are all handled comfortably by one person.

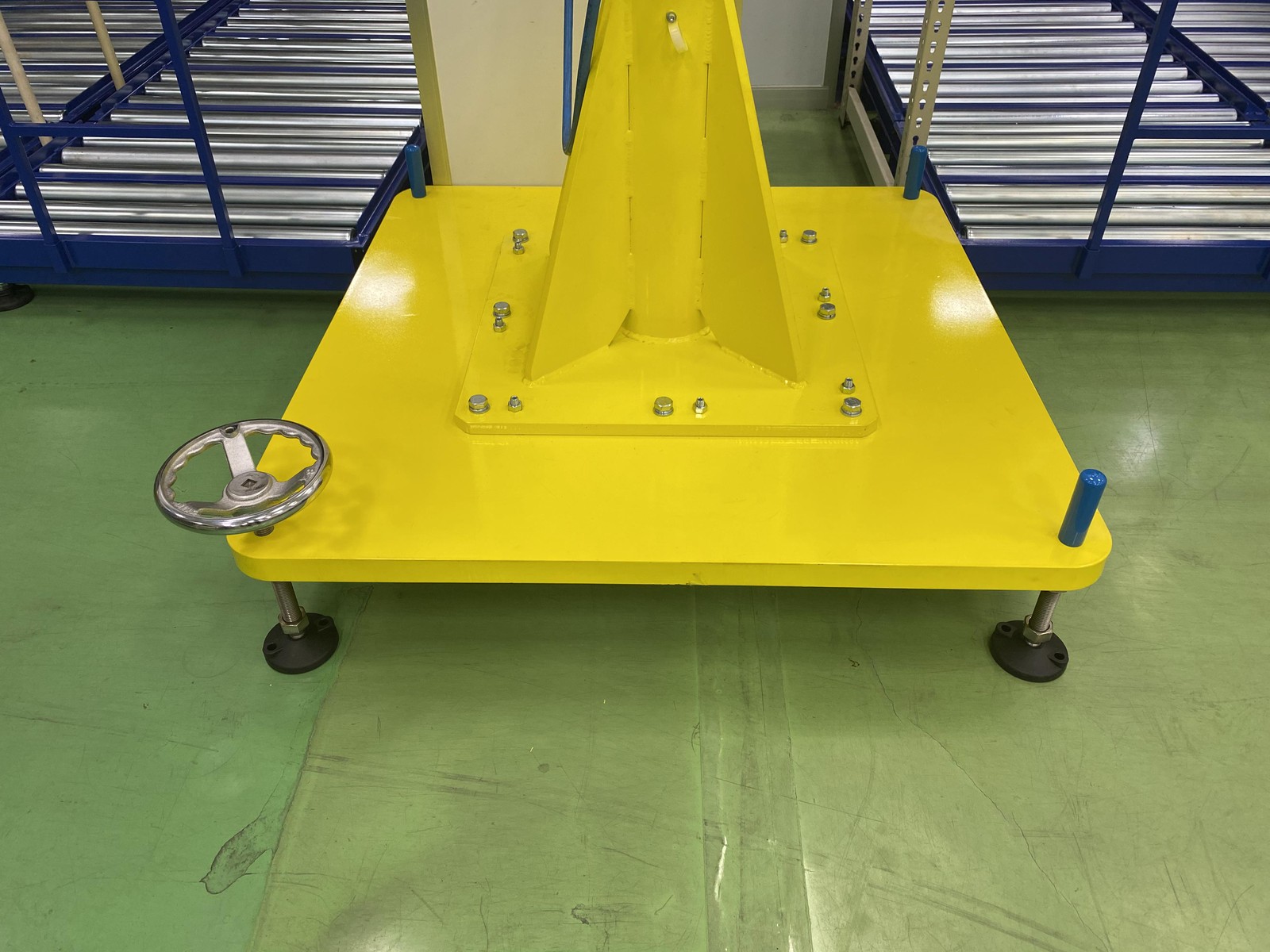

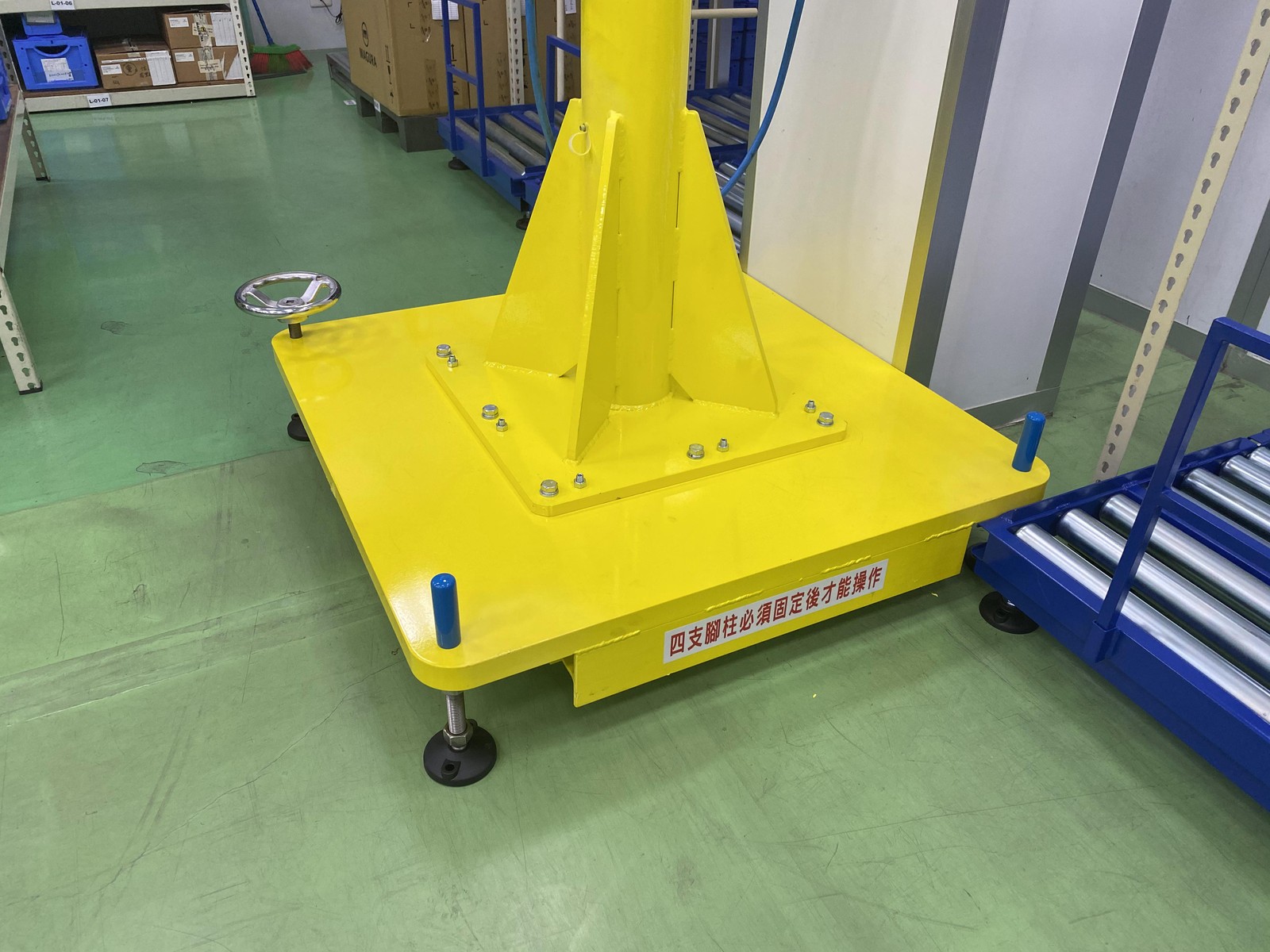

Installation photos

Articulating Jib Crane with Vacuum Lifting Pad for Carton Boxes - ảnh 1 Articulating Jib Crane with Vacuum Lifting Pad for Carton Boxes - ảnh 2 Articulating Jib Crane with Vacuum Lifting Pad for Carton Boxes - ảnh 3 Articulating Jib Crane with Vacuum Lifting Pad for Carton Boxes - ảnh 4 Articulating Jib Crane with Vacuum Lifting Pad for Carton Boxes - ảnh 5 Articulating Jib Crane with Vacuum Lifting Pad for Carton Boxes - ảnh 6 Articulating Jib Crane with Vacuum Lifting Pad for Carton Boxes - ảnh 7 Articulating Jib Crane with Vacuum Lifting Pad for Carton Boxes - ảnh 8 Articulating Jib Crane with Vacuum Lifting Pad for Carton Boxes - ảnh 9 Articulating Jib Crane with Vacuum Lifting Pad for Carton Boxes - ảnh 10

Click a photo to enlarge. 10-photo album taken on site.

Suitable applications

  • Carton packaging plants
  • Warehouses and distribution centers
  • Food and printing packing lines
  • Areas for stacking boxes onto pallets or trucks

Related products and projects

Get an installation plan for your plant

FullSharp measures the box size and weight and checks the cardboard surface to select the number of suction cups and pad type. Our engineers calculate the articulating arm's reach based on the actual layout and check the air supply. Contact FullSharp to schedule a survey.
