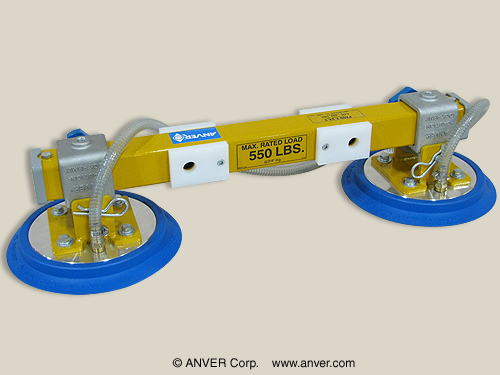

ANVER PA90-2-XX-3 double pad vacuum lifting attachment

PA90-2-XX-3 is a two pad attachment mounted under ANVER vacuum generators, with hand replaceable slip-on sealing rings. Horizontal and vertical capacities and seal number below.

Request a quote

Vacuum lifting pad attachments
Double pad vacuum lifting attachment
Featuring vacuum pads with hand replaceable slip-on sealing rings

Double pad vacuum lifting attachments XX = available beam lengths: 24 inch and 36 inch
Vacuum lifting attachment no.	With M83M generator	With other generators		Headroom added to generator (bottom of pad to mounting holes) in. (mm)	Vacuum seal no.	Vacuum seal dia. in. (mm)
	Rated load capacity* (horizontal) lb (kg)	Rated load capacity* (horizontal) lb (kg)	Rated load capacity* (vertical) lb (kg)
PA90-2-XX-3	500 (227)	550 (250)	275 (125)	4.28 (109)	SSR-90	9.25 (235)

*The cup capacities shown above are based on 24″Hg at sea level with a safety factor of two (2) in the horizontal (flat),
and four (4) in the vertical (upright).
Rated load capacities are estimated; actual capacity will vary based on the load surface and the level of vacuum.

More information about vacuum generators

Need an ANVER system for your load?

Send photos, weight and dimensions of the load. FullSharp represents ANVER and replies with a configuration and quote within 24 hours.
