ANVER OCP series large hinged oval vacuum cups for pipe

OCP series large oval vacuum cups are hinged down the center to conform to varying pipe diameters. Three sizes with a steel mounting hub, used with a clevis mount.

Request a quote

Vacuum cups and suction cups
OCP series – large hinged oval vacuum cups for handling pipe and cylinders

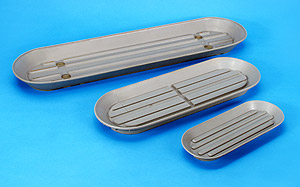

OCP series large hinged oval vacuum cups for handling pipe and cylinders

ANVER’s OCP series oval vacuum cups have been specifically designed for lifting pipe and other cylindrical loads. These cups are hinged down the center in order to conform to varying diameters, making them a practical and economical lifting solution for a variety of situations.

The OCP series vacuum cups should be used in conjunction with a clevis mounting configuration in order to maximize the cup’s versatility. OCP series oval vacuum cups are available in three sizes with a steel mounting hub.

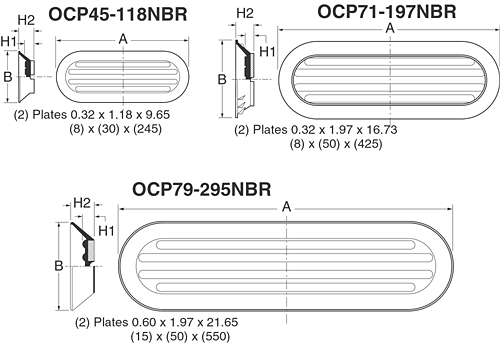

Drawing of OCP series hinged oval vacuum cups

Product photo	Part number and material	A in. (mm)	B in. (mm)	H1 in. (mm)	H2 in. (mm)	Rated capacity lb (kg)	Minimum pipe diameter in. (mm)
	OCP45-118NBR (nitrile)	11.8 (300)	4.5 (115)	0.71 (18)	1.34 (34)	150 (68)	9 (229)
	OCP71-197NBR (nitrile)	19.7 (500)	7.1 (180)	0.75 (19)	1.61 (41)	450 (204)	14 (356)
	OCP79-295NBR (nitrile)	29.5 (750)	7.9 (200)	0.98 (25)	2.13 (54)	750 (340)	16 (407)

Large hinged oval vacuum cup for below-the-hook lifting of pipe and cylinders
