ANVER GUP two pad air powered gravity tilt stone lifters

Three standard double pad GUP models for longer stone slabs, rated 1000, 1500 and 2000 lb. The tables list pad size, dimensions A and B, and unit weight.

Request a quote

Powered vacuum lifters – air powered vacuum lifter with gravity tilt for the stone industry

Standard double pad GUP lifters

Model no.

Rated load

“A”

“B”

Vacuum pad size
W x L

Unit weight

GUP-A100M2-1025

1000 lbs
454 kg

22.0 in.
559 mm

53.13 in.
1349 mm

10.13 x 25.13 in 257 x 638 mm

166 lb
(76 kg)

GUP-A100M2-1025 two pad air powered vacuum lifter with gravity tilt

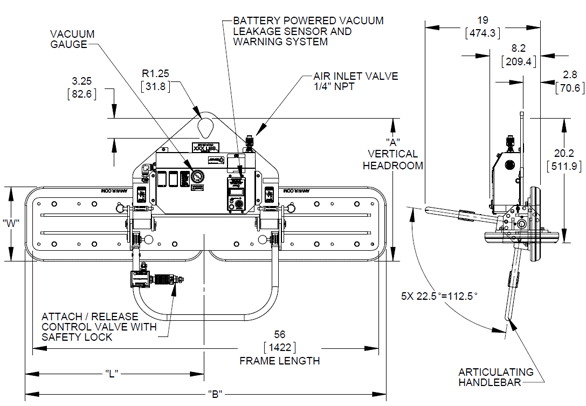

Dimension drawing of two pad GUP lifter 13200351

Model no.

Rated load

“A”

“B”

Vacuum pad size
W x L

Unit weight

GUP-A150M2-1229

1500 lbs
680 kg

23.0 in.
584 mm

58.63 in.
1489 mm

12.13 x 29.13 in. 308 x 740 mm

182 lb
(83 kg)

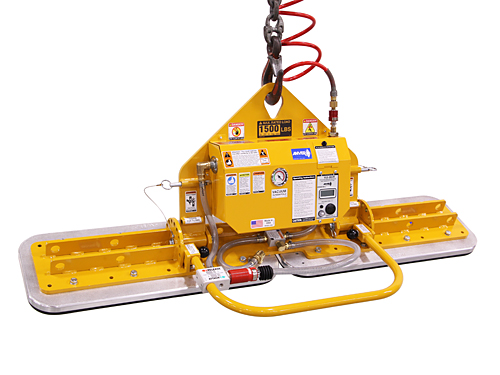

GUP-A150M2-1229 two pad air powered vacuum lifter with gravity tilt

Dimension drawing of two pad GUP lifter 13200351

Model no.	Rated load	“A”	“B”	Vacuum pad size W x L	Unit weight
GUP-A200M2-1432	2000 lbs 909 kg	24.0 in. 610 mm	66.13 in. 1680 mm	14.13 x 32.13 in 359 x 816 mm	202 lb (92 kg)
13200351

GUP air powered vacuum lifter with gravity tilt
Air powered lifters
with gravity tilt

GUP with SSR-1220 seals GUP single pad 500–1000 lb

Need an ANVER system for your load?

Send photos, weight and dimensions of the load. FullSharp represents ANVER and replies with a configuration and quote within 24 hours.
