ANVER offers a large catalog of accessories for mounting virtually any type of vacuum cup onto your system. Whether you are replacing worn cups or building a complete vacuum lifting system, these high-quality components make finding the right solution simple and cost-effective.
The SLSA Series Level Compensators are the standard solution for compensating load height differences, allowing every cup to make even contact with the material surface — even when the surface is not perfectly flat.
SLSA-1
Small Cups — M5 / 10-32
- For small cups under 30 mm diameter
- Connection thread: M5 or 10-32 UNF
- Spring-based height compensation
- Available in free-rotating and non-rotating versions
SLSA-2
Medium Cups — G 1/8, 3/8, 1/2
- For medium cups 30-75 mm diameter
- Threads: G 1/8, G 3/8, G 1/2
- Multiple spring stiffness options
- Aluminum or galvanized steel body
SLSA-3 / SLSA-4
Large Cups — 1/4″ NPT, G 3/8
- For large cups 75-150 mm diameter
- Threads: 1/4″ NPT, G 3/8
- Heavy-duty spring
- Long compensation stroke

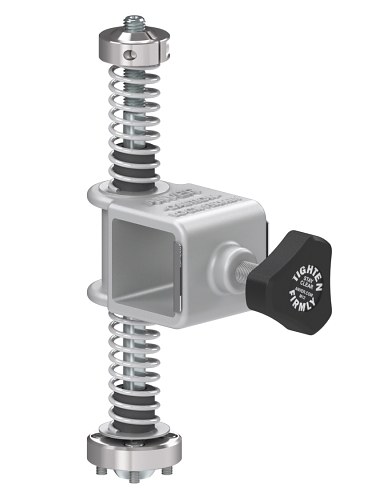

Group 10 — Complete Assembly
- For medium VP cups 100-150 mm
- Integrated compensation spring
- Anodized aluminum body
- Load up to 50 kg / cup

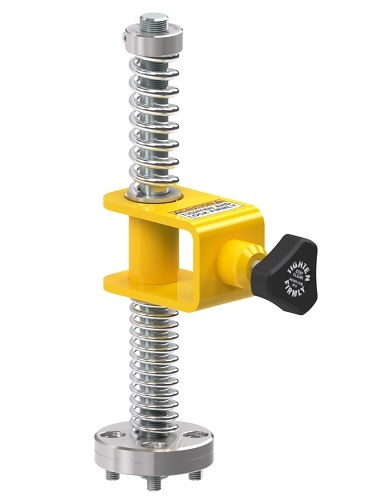

Group 20 — Complete Assembly
- For large VP cups 200-320 mm
- Compensation stroke 50-80 mm
- Load up to 200 kg / cup
- Suited for large metal panels
Individual Adapters
- Standalone adapters
- Mount cups onto standard beams
- Multiple thread sizes
- Replacement part when upgrading older lifters
Non-Rotating SLSA Mount
- Example configuration: SLSA Non-Rotating
- Fits oval / rectangular cups
- Keeps orientation fixed
- Connection diagrams available
Adjustable Bracket
- Adjustable bracket for SLSA
- Mounts onto standard square beams
- Easy-adjust lock screws
- Durable anodized aluminum
Brackets SLSA-1 & 2
- Dedicated to SLSA-1 and SLSA-2
- Allows height and angle adjustment
- Optimizes cup spacing
- Flexible setup
Cup Fittings & Components
- General fittings for all cup types
- Materials: aluminum, steel, brass
- Wide range of threads and sizes
- See P-Series
Side-Ported Suspensions
- Side-port spring suspension
- Hose connects from the side — avoids collisions
- For small to medium cups
- Integrated compensation spring
Ball Swivels
- Ball Swivel — free angle adjustment
- Cup adapts to angled surfaces
- Multiple thread sizes
- Stainless steel body
▸ Common Features Across the Entire Suspension Line
ANVER offers a wide range of single-stage and multi-stage vacuum pumps that run on plant compressed air using the Venturi principle. These pumps are designed for material handling, automation, assembly fixtures and other industrial applications — optimized from the smallest to the largest flow and vacuum levels.
While other suppliers only offer Multi-Stage or Inline types, ANVER manufactures every type of air-powered pump, ensuring you get the best product for your specific application. Venturi pumps have no moving parts — no motor, no bearings, no switches — meaning no breakdowns and a very long service life.
JV Series — Mini Plastic
Miniature Plastic Single-Stage Valve-Controllable
- Ultra-lightweight plastic body — just a few dozen grams
- Integrated control valve
- For small automation applications
- Flow rate 6-15 NL/min
- Maximum vacuum level 85%
VR Series — Mini Inline
Miniature Aluminum Inline Single-Stage
- Aluminum body, inline design
- Can be mounted directly on the hose
- Compact, easy to install
- Flow rate 10-30 NL/min
- Low air consumption
J Series — Single-Stage Pumps
J Series Single-Stage Vacuum Pumps
- Rugged anodized aluminum body built to last
- Flow range 30-150 NL/min
- JE25H version resists dust/stone clogging
- 1/4″ NPT air inlet port
- Optional integrated pressure gauge
CV Series — CVM Style
CVM Style Single-Stage Vacuum Pumps
- Compatible with the CVM (Coval) standard
- Direct replacement for CVM pumps
- Wide range of sizes and flow rates
- Cost-optimized
- Easy maintenance
MSP Series — Multi-Stage
MSP Series Multi-Stage Vacuum Pumps
- Higher performance — up to 3x that of single-stage
- Saves ~60% compressed air
- Flow rate 100-1000 NL/min
- External filter, easy to remove
- Vacuum level up to 90%
Air-Miser Series
Energy Saving Multi-Stage Pumps
- Maximum compressed air savings
- Automatically shuts off once set vacuum is reached
- Integrated sensor
- Cuts compressed air cost by 80-90%
- Fast ROI in continuous-duty environments
TT Series — Fixed Flow
- High-flow air transfer tube
- Transports granular material
- Low vacuum, high flow
- No moving parts
- Fixed flow rate by design
FT — Adjustable-Flow Air Amplifier
- Amplifies airflow
- Adjustable flow rate
- Suited for local ventilation systems
- Cools equipment
- Amplifies inlet flow 10-25 times
The Q-VDF Adjustable Vacuum Pumps line features a high-flow, clog-free design built for pick-and-place applications on production lines.
- Adjustable flow to match specific needs
- Clog-resistant design — suited for porous, perforated, and vented materials
- Fast response — quick pick-and-place cycles
- Reasonable air consumption
- Durable aluminum body, simple assembly
In addition to a wide range of electric vacuum pumps and regenerative blowers for special applications, ANVER offers complete regenerative vacuum stations for all major vacuum tube lift system brands — including air, battery and electric powered stations.
Each station is a complete, fully integrated unit: vacuum pump, filter, check valve, vacuum gauge, main switch, indicator light, and control components — simply supply power and connect the hose to the lifter to operate.
EP Series — Mini Electric
EP Series Mini Electric Powered Vacuum Stations
- Standard model EP1001 — widely used on ETL/EVL
- Power: 115V/60Hz/1ph/5A
- Pump 4.3 SCFM (121.8 l/min), 1/2 HP
- Thermal sensor prevents overheating
- 100% duty cycle
- Integrated gauge and main switch

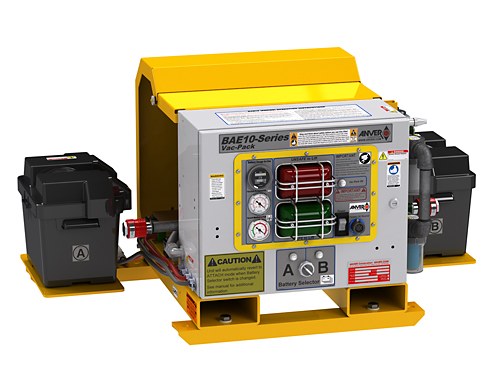

BAE10 — Large Battery Vac-Pack
Large Capacity Battery Powered Vac-Packs
- High-capacity rechargeable battery
- No external power required
- Suited for job sites and outdoor use
- Runs continuously for hours
- Integrated charger with status light
VPEHE — Large Electric Vac-Pack
Large Capacity Electric Powered Vac-Packs
- Large capacity for big lifters
- Oilless rotary vane pump
- High flow, high vacuum level
- Suited for loads of 1,000-10,000 lb
- 220-380V power depending on model
VB Series — Regenerative
VB Series Regenerative Vacuum Stations for Tube Systems
- Dedicated to vacuum tube lifters (VT/VB/VM)
- Regenerative blower with very high flow
- Low-to-medium vacuum level
- Suited for porous / vented loads
- Low noise with dedicated muffler
Mitey-AirVac — Compact
Compact Air Powered Vacuum Stations
- Compact, lightweight — mounts directly on the lifter
- Runs on 90 PSI plant compressed air
- Multi-port for multi-pad applications
- No electricity required
- Fast response
AL Series — Mini Air
AL Series Mini Air Powered Vacuum Stations
- Standard model AL1001 — common on ATL/AVL
- 6.1 SCFM compressed air (172.7 l/min)
- Single-stage Venturi + check valve
- Vacuum & pressure gauge
- 100% duty cycle
AP Series — Large Air
Compressed Air Powered Vacuum Stations
- Large capacity for big lifters
- Multi-stage venturi
- Optional energy saver
- Attach/release control module available
- Front-mounted gauge and indicator light
MSP — Multi-Stage Air
Multi-Stage Air Pumps with External Silencer
- High-efficiency multi-stage Venturi
- External silencer, very low noise
- Saves compressed air
- Used in noise-sensitive environments
- Flow up to 800 NL/min
APU Series — Pickup
- Pickup unit combining a cup and pump
- Plug-and-play for automation
- Mounts on a robot arm
- Integrated VP6520 pad or equivalent
- Multi-pad versions available
VPF-57 — Modular Vac-Pack
- Standard Vac-Pack for lifting frames
- AC/DC/AIR configurations
- Load up to 4,400 lb
- Full safety features integrated
- VLS system available
PMPHE — Standalone Electric Pump
- Oilless rotary vane
- High vacuum, medium flow
- For automation, lab use
- Minimal maintenance
- Various power ratings
ANVER offers a wide range of electric vacuum pumps for every industrial application — from oilless rotary vane pumps for high vacuum levels (up to 29 in. Hg), to regenerative blowers for extremely high flow.
Each type has its own advantages — choosing the right pump lets the system run at peak efficiency and cuts energy costs significantly.
▸ Electric Pump Types by Application
Rotary Vane Oilless
For High Vacuum, Medium Flow
- High vacuum level up to 29 in. Hg
- Oil-free — no contamination
- Suited for non-porous loads: steel, glass, plastic
- Maintenance: periodic vane replacement
- Service life 8,000-20,000 hours
- Noise level 60-70 dB
Regenerative Blower
For Very High Flow, Low Vacuum
- Very high flow 100-1,000 m³/h
- Low vacuum ~7 in. Hg
- Suited for porous / perforated loads
- Maintenance-free — sealed bearings
- Very long service life (20,000+ hours)
- Dedicated to vacuum tube lifters
Liquid Ring
For Wet / Vapor Environments
- Uses water or oil as the sealing medium
- Handles gas containing water vapor or oil
- Medium vacuum level
- Used in food, pharma, chemical applications
- Available to order
Claw / Screw
For Medium-to-Large Plants
- Contact-free — no wear
- High energy efficiency
- Low noise
- Very long service life
- Available to order
▸ Electric Pump Selection Guide
ANVER offers a complete range of components and accessories for vacuum systems, including: vacuum hose, clamps, mounts, barb fittings, gauges, manifolds, sensors and leak detection devices.
All accessories are compatible with any brand's vacuum system — not limited to ANVER products, making it simple and cost-effective to maintain and upgrade older systems.

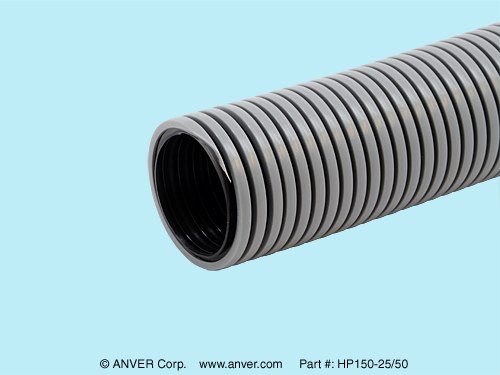

HP Series — High Flow Plastic
High Flow Plastic Vacuum Hose
- High-flow plastic hose, gray or black-and-white
- Inner diameter 12-50 mm
- High vacuum resistance
- Flexible, easy to bend
- Cost-effective
FT Series — High Flow Reinforced
High Flow Reinforced Plastic Vacuum Hose
- Plastic hose with reinforced core
- Withstands high pressure and vacuum
- Gray or black
- Suited for large tube lifters
- Long service life in harsh environments
HS Series — Clear
High/Moderate Flow Clear Vacuum Hose
- Clear hose — see the airflow
- High/medium flow
- Easy to check for accumulated dust
- For cleanroom, lab applications
- Diameter 6-25 mm
PC Series — Push-To-Connect
Tubing for Push-To-Connect Fittings (Clear)
- Tubing for push-to-connect fittings
- Clear, polyurethane / nylon
- Standard diameters 4, 6, 8, 10, 12 mm
- Fast assembly, no clamps needed
- For automation & robotics
Connection Accessories
- Cuffs, connectors, adapters in multiple sizes
- Aluminum or engineering plastic
- Quick hose-to-pump connection
- Fits HP/FT/HS series
Hose Clamps
- Clamps that secure hose to fittings
- Worm Drive, T-Bolt, Quick-Release types
- Stainless steel or galvanized
- Various diameters
Barb Fittings
- Barbed fitting for plastic hose
- NPT, BSP, or plain thread
- Aluminum, brass, steel
- Secure connection with clamps
Plastic Quick-Snap Mounts
- Quick-snap — tool-free install/remove
- For hose and vacuum pumps
- Durable engineering plastic
- Reusable
Vacuum Gauges
- Vacuum gauge measuring Hg/bar level
- 40, 50, 63 mm sizes
- Back / bottom mount thread
- Red/black dial, clear needle indicator
- Glycerin-filled for vibration resistance
Aluminum Vacuum Manifolds
- Aluminum manifold distributing vacuum
- Multiple outlet ports (2/4/6/8/12 ports)
- One inlet, multiple outlets
- For multi-pad systems
- Check-valve integrated versions available
VLS — Vacuum Loss Sensor
- Vacuum loss alarm system
- Uses a 9V battery — independent of main power
- Audible alarm when vacuum drops
- Standard on new ANVER lifters
- Retrofittable on older lifters
Vacuum Reservoir
- Vacuum reservoir tank
- Holds vacuum if air/power is lost
- Adds safety during lifting
- Stainless steel or aluminum
- 0.5-10 liter capacity
ANVER has a complete solution for every filtration and exhaust-handling need in a vacuum system. Choose from metal or plastic filters, drum filters, metal mufflers and breather vents — all reasonably priced and readily available.
Proper filtration is the key to a long service life for vacuum pumps. Dust, moisture, or debris that gets into the pump will quickly damage the vanes, blower, or Venturi.
Barbed Vacuum Filters
Disposable Barbed Filters
- Disposable filter — barbed end
- Mounts directly on the hose
- Low cost, quick to replace
- For small-capacity systems
- Filters dust down to micron level
CVM Style Filters
Small CVM Style Vacuum Filters
- Compatible with the CVM (Coval) standard
- Replaceable filter element
- For small/medium pumps
- Easy to remove for maintenance
- Multiple filtration grades
FLTP — Plastic In-Line
Plastic In-Line Vacuum Filters
- Clear plastic body
- Easy to see dust build-up
- Inline, mounted between hose sections
- Various sizes
- Good value
FLTM — Metal Snap-On
Metal Vacuum Filters with Snap-on Covers
- Durable metal body
- Snap-on cover, easy to open
- Replaceable filter element
- Withstands high pressure
- For large systems
FLT — High-Flow Filters
For Vacuum Tube Lifting Systems
- Very high flow for tube lifters
- Cellulose or polyester filter element
- High dust-holding capacity
- For VT/VB/VM systems
- Replace when pressure rises
FLT Drum Filters
Drum Vacuum Filters
- Large drum-style filter
- Extremely high dust-holding capacity
- For very dusty applications
- Stone, wood, metal plants
- Regular cleaning required
Plastic Exhaust Mufflers
Standard Plastic Exhaust Mufflers
- Standard plastic muffler
- For small-to-medium pumps
- Reduces noise by 10-15 dB
- Good value
- Easy to replace
Compact Plastic Mufflers
Small Plastic Exhaust Mufflers
- Compact plastic muffler
- For mini Venturi pumps
- Mounts directly on the exhaust port
- A few standard thread sizes
- Long service life
Metal Exhaust Mufflers
Metal Mufflers — Silencers
- Heat-resistant metal body
- For large-capacity electric pumps
- Reduces noise by 15-25 dB
- Very long service life
- Withstands oil vapor
Heavy Duty Mufflers
Heavy Duty Vacuum Exhaust Mufflers
- Heavy-duty for regenerative blowers
- Reduces noise by 20-30 dB
- Replaceable sound-absorbing core
- For large-capacity VB stations
- Meets OSHA noise standards
AVB — Silent Breather Vents
Super Quiet Silent Breather Vents
- Super-quiet breather valve
- Releases air with virtually no noise
- Prevents cup damage from rapid load release
- Mounts on the exhaust line
- Suited for noise-sensitive environments
Flow-Through Silencers
ANVER Flow Through Silencers
- Silencer that lets air flow through
- Does not restrict flow
- For continuous-flow applications
- Reduces noise while maintaining flow
- Metal or plastic body
ANVER offers a complete range of vacuum valves for every role in the system — from check valves that hold vacuum during a power loss, to relief valves that protect equipment, ball valves for on/off control, and sensing valves for automatic control.
Choosing the right valve keeps the system safe, reliable and energy-efficient — especially with Venturi pumps, where the check valve prevents vacuum loss if the air supply fails.
Inline Check Valves
Standard Inline Check Valves
- Standard inline check valve
- Allows flow in one direction only
- Holds vacuum during a power loss
- Protects the load during a fault
- Various hose sizes
- Low cracking pressure (~0.1 bar)
High-Flow Check Valves
High Flow Check Valves for Tube Lifters
- High-flow check valve
- For vacuum tube systems
- Minimal pressure loss
- Fast response
- Stainless steel spring
- Durable under high cycle rates
Vacuum Relief Valves
Vacuum Relief Valves
- Vacuum relief valve
- Limits maximum vacuum level
- Prevents damage to fragile loads
- Adjustable setpoint
- Adjustable spring
- Protects foam pads and thin bags
Ball Valves
Manual Ball Valves
- Manually operated on/off ball valve
- Isolates individual system branches
- Fast operation — 90° turn
- Near-zero pressure loss when open
- Aluminum, brass or steel body
- 2-way or 3-way types
Vacuum Sensing Valves
Vacuum Sensing Valves for Energy Saving
- Vacuum sensing valve
- Automatically cuts off airflow once set vacuum is reached
- Maximum air savings (Energy Air Saver)
- Re-engages when vacuum drops below the threshold
- For energy-saving Venturi systems
- Adjustable setpoint
Solenoid Valves
2-way and 3-way Solenoid Valves
- Solenoid valve controlled by PLC
- 2-way (on/off) or 3-way (diverting)
- 24VDC, 110VAC, 220VAC voltages
- Fast response < 50ms
- For automation and pick-and-place
- Very high cycle life
Attach / Release valves are dedicated control valves for vacuum lifters — letting the operator activate vacuum (attach) to pick up a load, or release vacuum (release) to set it down.
- Slide valve — manual slide valve with safety lock
- Pendant valve — remote control via electric pendant
- Lever valve — lever valve for pneumatic lifters
- Push button — push-button for automation
- All feature a safety lock-out to prevent accidental release
- Integrated quick-release valve for releasing vacuum without straining the load
Vacuum sensors are the heart of the safety system in modern vacuum lifters and automation. They continuously monitor the vacuum level and trigger a signal once a threshold is reached — activating the control system or alerting the operator.
ANVER offers everything from simple mechanical pressure switches to electronic sensors with analog output and standalone battery-powered VLS alarm systems.
The VLS (Vacuum Loss Sensor) system is a standard safety feature on most modern ANVER lifters. VLS monitors the vacuum level independently from the main control system and triggers an audible alarm once vacuum drops below a safe level.
- 9V battery power — works even if main power is lost
- Clear audible alarm
- Setpoint cannot be adjusted by the user (ensures safety)
- Connects to the hose line via a T-fitting
- Can be retrofitted onto older lifters
- Battery life ~12 months under normal use
Mechanical Pressure Switch
Simple, Durable Mechanical Design
- Mechanical sensor using a diaphragm + spring
- Output: NO/NC contact
- No power required
- Setpoint adjusted via screw
- Resistant to vibration
- For simple automation
Electronic Vacuum Switch
Electronic with Display
- Electronic sensor with LCD/LED
- Output: PNP/NPN digital + analog
- Setpoint configured via buttons
- Real-time value display
- Adjustable hysteresis
- Versatile for modern PLCs
Analog Pressure Transducer
Analog 4-20mA / 0-10V
- Continuous analog output
- 4-20 mA or 0-10 V
- High resolution
- For closed-loop control systems
- Integrates with PID, dataloggers
- Accuracy ±0.5% FS
IO-Link Sensors
Smart Sensors Industry 4.0
- Smart IO-Link sensor
- Multi-dimensional digital data transfer
- Self-diagnostics, predictive-failure alerts
- For smart factories
- Integrates with MES/SCADA
- Remote configuration via master
▸ Typical Vacuum Sensor Applications
ANVER's modular vacuum generators are the core unit that combines with a lifting frame and cup to form a complete vacuum lifter. This is the most flexible approach — letting customers combine modules for the configuration that best fits their application.
ANVER offers 4 main Vac-Pack lines: VPFL4 (legacy — for 3″ frames), VPF-57 (current — for 3″ and 5×7″ frames), VPE1-GEN3 (electric — Generation 3), and BAE1-GEN3 (battery — Generation 3). Each line has AIR / AC / DC / BATTERY variants depending on the power source.
VPF-57-AIR
Compressed Air
- Power: 90 PSI plant compressed air
- Load up to 2,200 / 4,400 lb
- Air-saving multi-stage venturi
- Smooth auto shut-off once vacuum is reached
- VLS leak-sensing system
- Slide valve with safety lock
VPF-57-AC
Electric AC
- Power: 115V / 220V AC
- Load up to 2,200 / 4,400 lb
- Oilless rotary pump
- 100% duty cycle
- Thermal sensor prevents overheating
- Ideal for plants with power already available
VPF-57-DC
Battery / DC
- Power: 12V / 24V DC battery
- Fully portable
- For job sites, outdoor storage
- Integrated charger
- Battery status indicator light
- Load up to 2,200 lb
VPE1-GEN3 — Electric AC
Electric Powered, Generation 3
- Up to 4,600 lb (2,090 kg)
- Mounting configurations: 3″×3″ / 3″×6″ / 5″×7″ beam
- Voltage: 115V/1PH/60Hz or 220-240V/1PH/50-60Hz
- Vacuum control with Energy Saving / Auto Idle
- Load-sensing suspension hook with safety lock
- 4 control types: Auto / Pendant / Radio / Customer PLC integration
- Front-mounted control panel and gauge, indicator lights
- Thermal overload protection
- Ergonomic, adjustable front handle
- Twist-lock plug
- Audible vacuum-loss alarm system
BAE1-GEN3 — Rechargeable Battery
Battery Powered, Generation 3
- Up to 4,600 lb (2,090 kg)
- Power: rechargeable battery — no external power required
- Mounting configurations: 3″×3″ / 3″×6″ / 5″×7″ beam
- Vacuum control with Energy Saving / Auto Idle
- Load-sensing suspension hook with safety lock
- 4 control types: Auto / Pendant / Radio / Customer PLC integration
- Front-mounted control panel and gauge
- Thermal overload protection
- Ergonomic handle
- Audible vacuum-loss alarm system
- Removable battery compartment cover, battery cable plug
The VPFL4 line is a previous-generation Vac-Pack, still manufactured and available as a replacement part for older lifters. FULLSHARP now recommends upgrading to the VPF-57 or VPE1-GEN3 for new projects.
- Load up to 2,200 lb (998 kg) for a 3″ square beam
- Energy saving / smooth auto shut-off
- Lightweight, low profile
- Easy access to dual vacuum filters
- Front-mounted gauge
- Ergonomic front handle
- Slide-control valve with safety lock
- Vacuum loss sensing system
▸ Comparison: VPFL4 vs VPF-57 vs VPE1-GEN3
| Feature | VPFL4 | VPF-57 | VPE1-GEN3 |
|---|---|---|---|
| Max load | 2,200 lb | 4,400 lb | 4,600 lb |
| Beam | 3″ | 3″, 5×7″ | 3″, 5×7″ |
| Power | AIR/AC/DC | AIR/AC/DC | AC only |
| Control | Slide | Slide | Multi |
| Generation | Legacy | Current | Premium |
Choose a Vac-Pack
- VPFL4 (legacy)
- VPF-57 AIR/AC/DC
- VPE1-GEN3 (AC)
- BAE1-GEN3 (Battery)
- Based on load and power source
Choose a Pad / Frame
- Single Pad (1 cup)
- Multi-Pad Frame (2-14 cups)
- Rubber / foam pad
- Oval / rectangular pad
- Based on load size & type
Choose Accessories
- EZTILT (manual tilt)
- Extended handle
- Support leg, stand
- Fork truck adapter
- Crane hook, sliding hook
Made in USA
Manufactured in the USA
ISO 9001:2015
Quality certification
All ANVER components comply with ANSI/ASME B30.20, meet OSHA and most European requirements. 58 years of US manufacturing experience — FULLSHARP is the official distributor in Vietnam.
FULL-SHARP AUTOMATIZED VN CO., LTD
Address: Factory A1-1, Lot IN3-11*A, VSIP Hai Phong
Technical consulting & quotes: FULLSHARP's Sales Engineer team will respond to your inquiry as quickly as possible.
Authorized distributor of: ANVER, Knight Global, Lifts All, Hero-Lift
