Manhattan Series Overview — Lifting High & Into Tight Spaces
Lifts over 2 meters high · Replaces forklifts · Loads up to 150 kg · Custom-designed

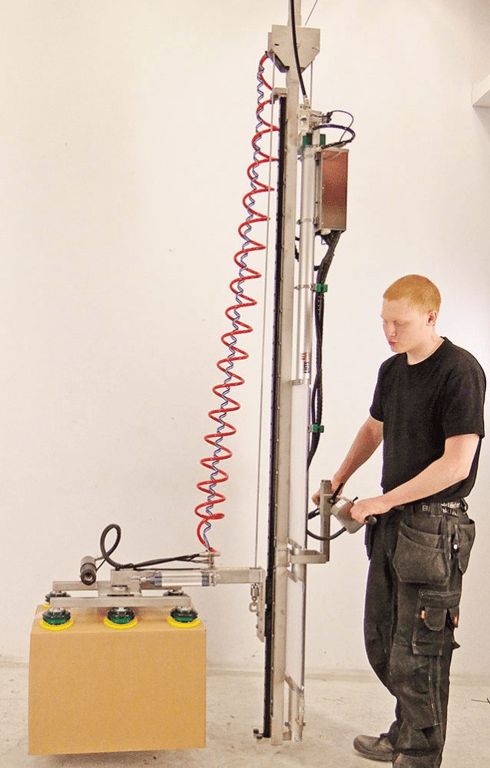

The Lifts All lifting-high attachment — called Manhattan, also known as the "Mini-Truck" — is the ideal lifting tool when you need to lift very high and/or move loads into tight spaces. This dedicated, purpose-built design is exactly what makes Manhattan an essential lifting device.
Manhattan can lift most types of loads gently and is widely used in warehouses — where a forklift or pallet truck is simply too bulky. Bakeries, for example, have bought Manhattan to lift and stack bakery trays. Manhattan is a family of lifting devices, created specifically for anyone who needs to lift objects up high or down low: use it to place cartons on a high shelf or rack — which is also why it often replaces a forklift.
*Customised design: Every Manhattan unit is custom-designed by Lifts All to match your needs and the load you need to lift. Maximum load capacity, rotate and tilt functions, and other features can all be added and customised. Manhattan comes in many versions for lifting different load types — such as rotors, coils, cartons, car doors, and more. Describe what you need to lift, and FULLSHARP will recommend the optimal configuration.
MANHATTAN · MECHANICAL GRIPPER · ADJUSTABLE FORK

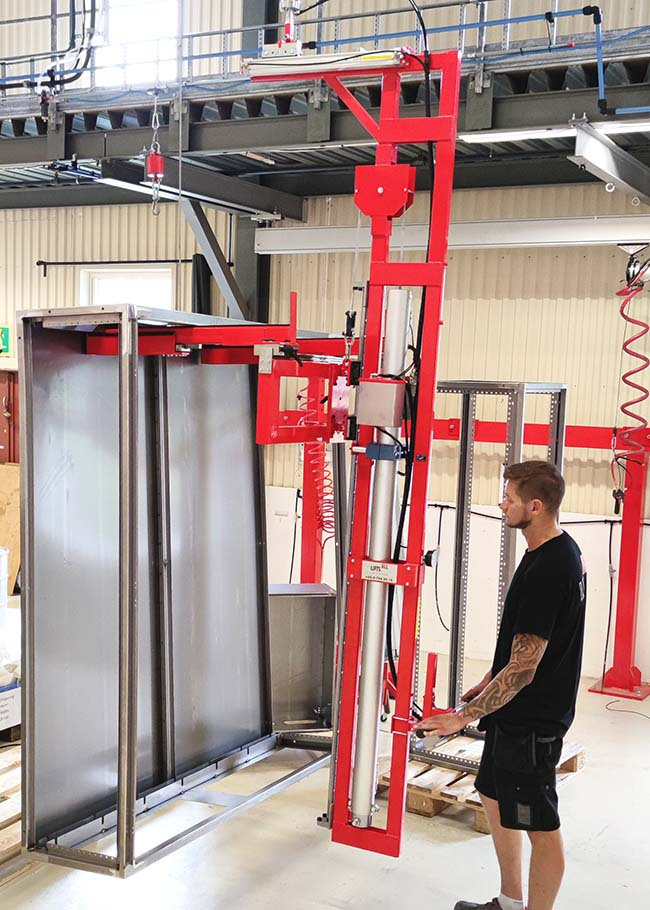

Manhattan Cabinet Lifter 89-12105
A mechanical fork-type gripper used to lift cabinets and cabinet frames up and down from a pallet or conveyor. The gap between the two fork prongs is adjustable, and the prongs are padded to protect the cabinet — safe for lifting both painted and unpainted cabinets.
Maximum load150 kg (331 lbs)
Lifting mechanismMechanical gripper (fork)
Control systemProportional speed handle (PSH)
Unit weight148 kg (309 lbs)
Air pressure6–7 bar (90–100 psi)
Item code89-12105
Lifts cabinets to the top of high warehouse racks
Lifting Cabinets High — Beyond Human Reach
This is the Manhattan Cabinet Lifter — built to lift cabinets and cabinet frames. The device lifts cabinets up and down from a pallet or conveyor. It is a mechanical fork-type gripper, and the gap between the two prongs is also adjustable in width, allowing it to lift many different cabinet sizes. To lift cabinets higher than a person could manually, the fork is mounted on a Manhattan — a lifting-high attachment that lets you place loads onto (or retrieve them from) the very top of a warehouse rack.
How It Works — Anti-Sway Center-of-Gravity Bar
The Manhattan Cabinet Lifter is a mechanical lifting device with forks. The gap between the two prongs is manually adjusted by the operator to fit the cabinet being lifted. The unit also has a center of gravity bar that keeps the lift smooth and free of swaying. The operator's only task is to move the gripper to place (or pick up) the cabinet from a pallet, conveyor, or the floor. Once the cabinet is securely positioned, the gripper releases when the "release" button is pressed — the fork prongs withdraw from the cabinet.
01
Width-Adjustable Fork
The gap between the prongs adjusts to cabinet width — one device lifts many different cabinet sizes.
02
Padded Fork Prongs
Padded prongs prevent damage to the load — safely lifts both painted and unpainted cabinets.
03
Center-of-Gravity Bar
The CoG bar ensures a smooth, sway-free lift, even when placing cabinets atop high warehouse racks.
04
Custom-Built for Your Load
If your cabinets vary in size, material, or weight, Lifts All optimizes a Manhattan unit specifically for you.
Typical applications: Lifting cabinets and cabinet frames on and off pallets or conveyors; placing cabinets atop high warehouse racks; cabinet, furniture, and electrical equipment manufacturing where lifting beyond human reach is required.
▶ Demo video
YouTube
MANHATTAN · SUCTION CUP · 2.1 M STROKE

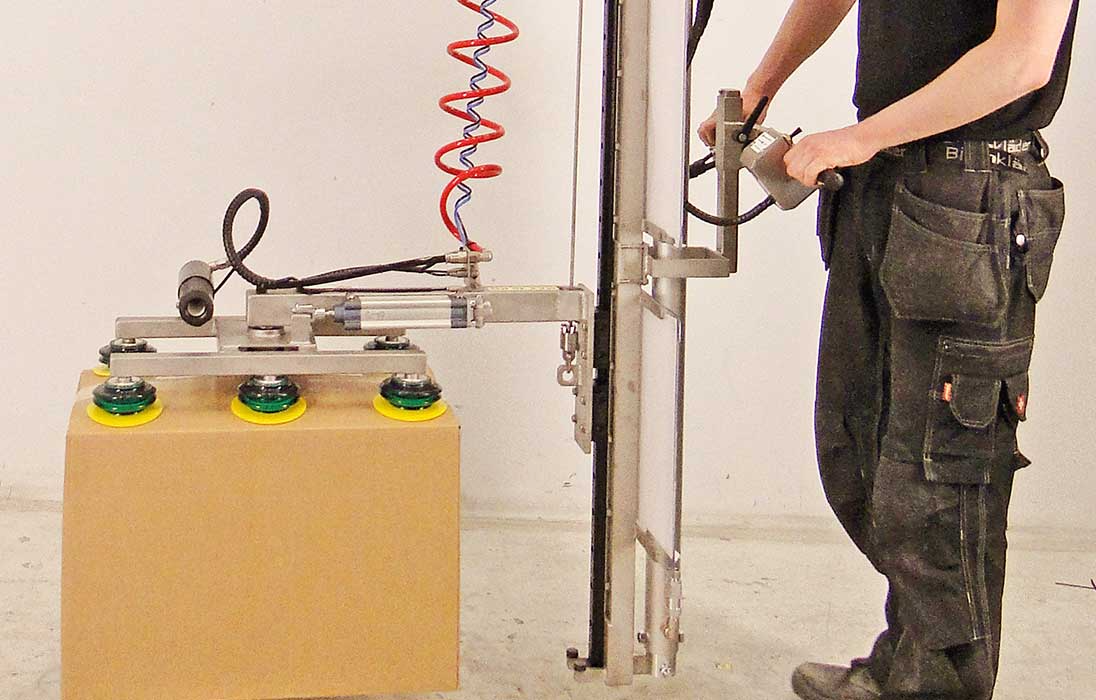

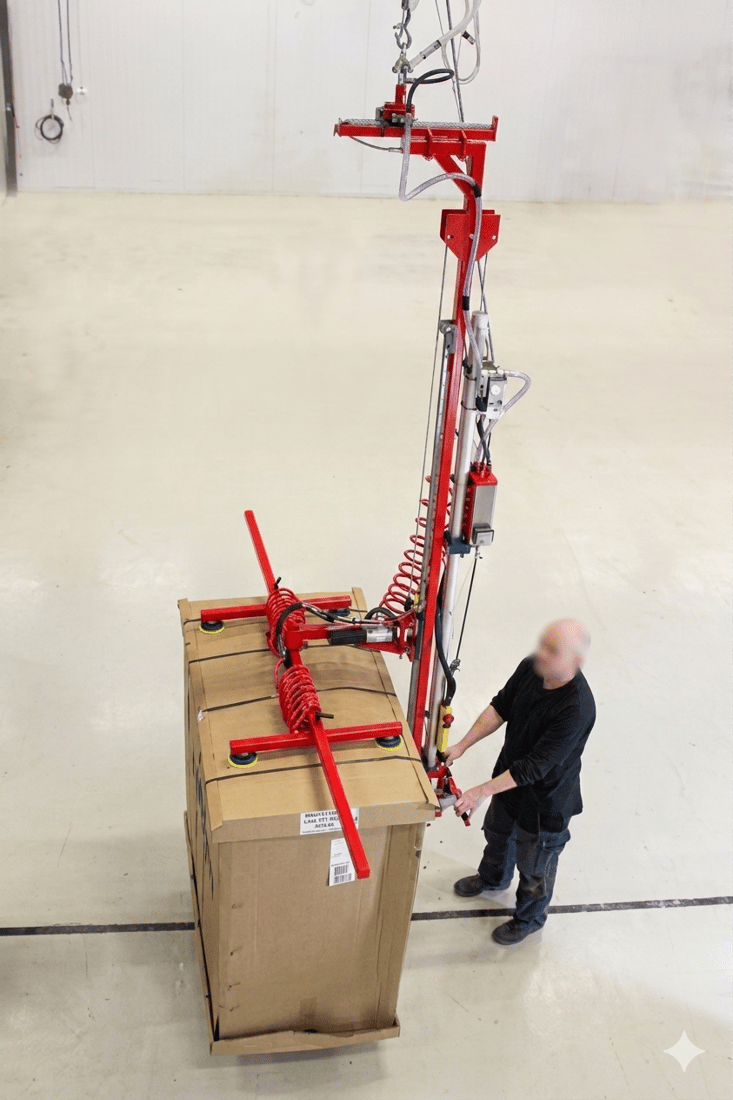

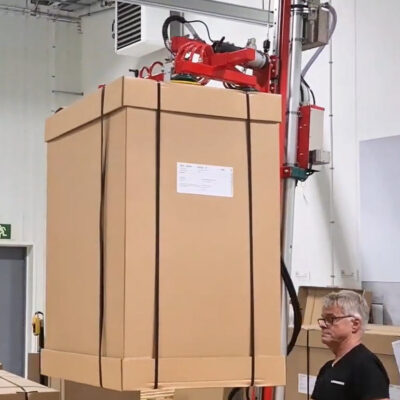

Manhattan Large Carton Lifter 89-11789
Built to lift and stack large cartons on top of each other — especially useful for the furniture industry. Comes with two interchangeable attachment sets (suction heads) for boxes of different sizes and weights.
Lifting mechanismVacuum suction cups
Lifting stroke2.1 meters
Attachments2 interchangeable sets
Load typeLarge cartons
Typical industryFurniture
Item code89-11789
Stacks cartons high in tight spaces
Lifting & Stacking Large Cartons
The Manhattan Carton Lifter is built to lift and stack large cartons on top of each other — especially useful in the furniture industry. This gripper comes with two interchangeable attachment sets (suction heads), suited to boxes of different sizes and weights. The suction cups on these attachments are designed to grip the carton surface securely and safely.
With a 2.1-meter lifting stroke, the Manhattan Carton Lifter is ideal for lifting boxes high in tight spaces. Ergonomically, the operator's hands stay at hip height throughout the process — keeping posture comfortable and reducing fatigue.
01
2.1 M Lifting Stroke
Raises large cartons high even in tight spaces, stacking multiple layers neatly.
02
Two Interchangeable Heads
Quickly switch between two suction head sets for boxes of different sizes and weights.
03
Secure Grip
Suction cups purpose-designed to grip the carton surface safely without damaging the box.
04
Hip-Height Handle
The operator's hands stay at hip height — an ergonomic posture that reduces fatigue during long shifts.
Typical applications: Furniture manufacturers lifting and stacking large cartons; packaging lines in low-ceiling, narrow-aisle spaces; distribution warehouses that need to stack cartons high using suction lifters.
▶ Demo video
YouTube
MANHATTAN · COMBI · VENTILATION INDUSTRY

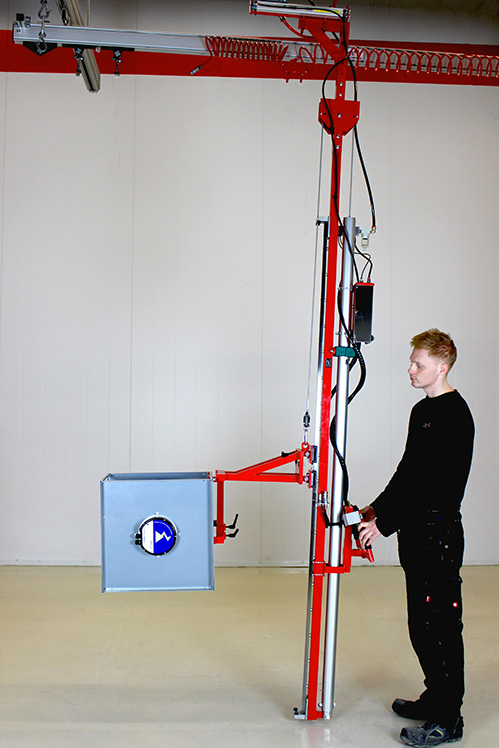

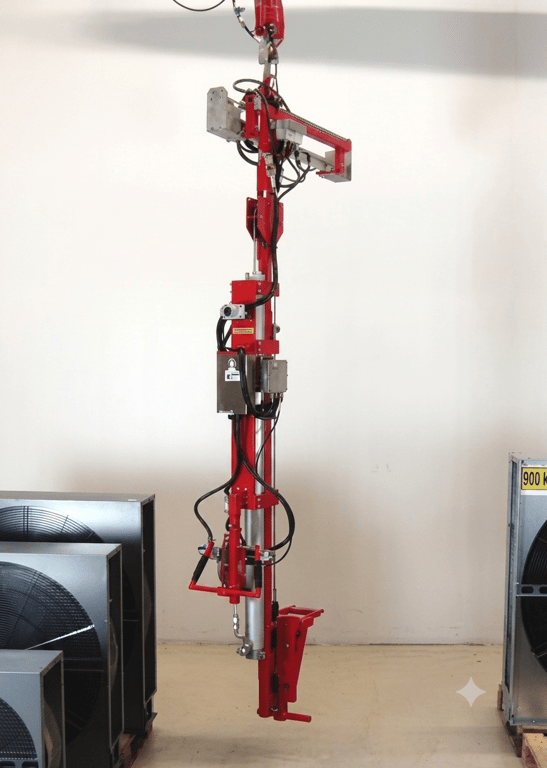

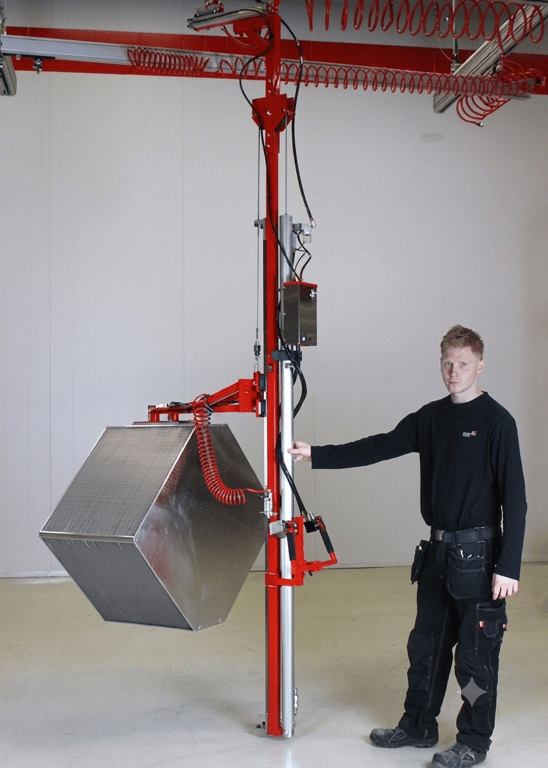

Manhattan Combi-Gripper 89-11763
A versatile lifter for the ventilation industry: lifts heat exchangers and electric motors from pallets into a chassis — combining Manhattan's lifting-high capability with two different gripping mechanisms.
Unit typeManhattan Combi-Gripper
Load typeHeat exchangers, electric motors
Unit weight47 kg
Control systemProportional speed handle (PSH)
Item code89-11763
Combi unit for ventilation assembly lines
Versatile for the Ventilation Industry
The Manhattan Combi-Gripper 89-11763 is used to lift heat exchangers and electric motors from pallets and place them into a chassis in ventilation equipment manufacturing. As a "combi" attachment built on the Manhattan platform, it combines Manhattan's lifting-high capability with multiple gripping mechanisms — letting the operator handle several component types on the same assembly line with just one tool.
01
Lifts Ventilation Components
Specialized for lifting heat exchangers and electric motors — heavy components that are difficult to lift manually.
02
Pallet to Chassis
Helps move components from a pallet precisely into place on the ventilation unit's chassis, quickly and accurately.
03
Manhattan Lifting-High Base
Uses Manhattan's lifting-high structure to install components at high positions in tight spaces.
04
Combi — Multiple Mechanisms
Combines several gripping mechanisms in one lifter, handling diverse components on the same line.
Typical applications: Ventilation (HVAC) equipment manufacturing and assembly plants, lifting heat exchangers and electric motors from pallets into a chassis; assembly lines needing lifting-high capability across multiple component types.
▶ Demo video
YouTube
MANHATTAN · MECHANICAL + VACUUM

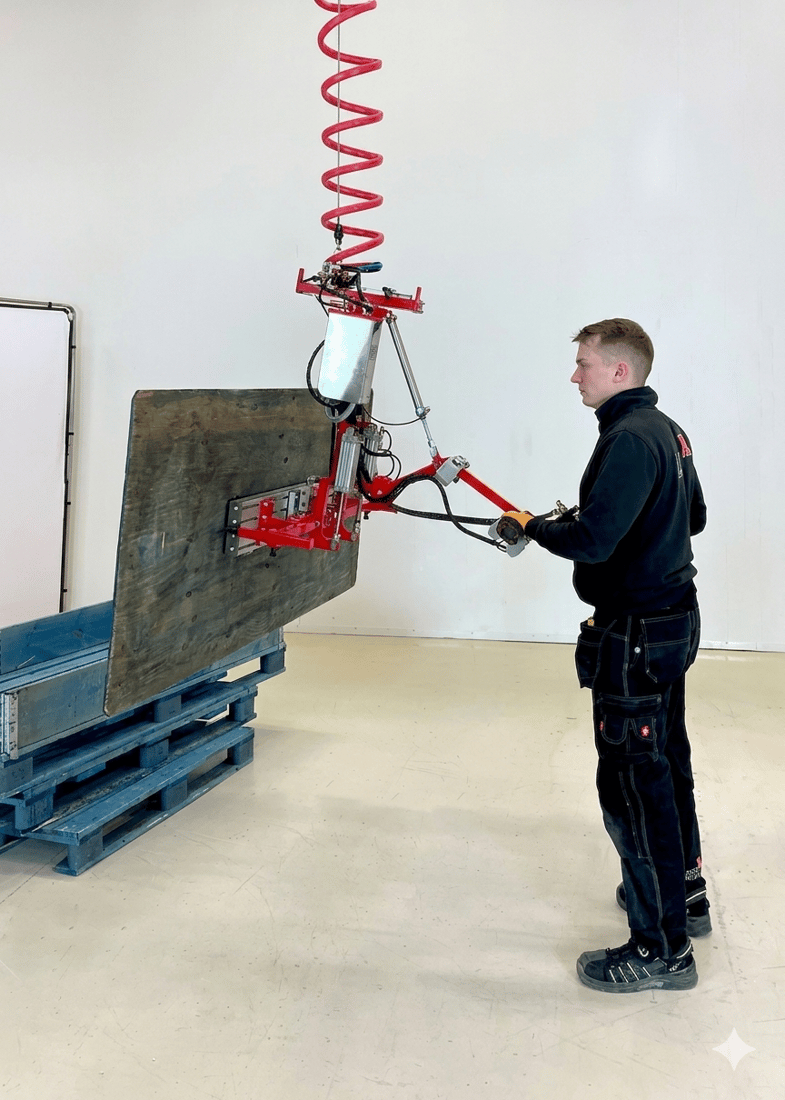

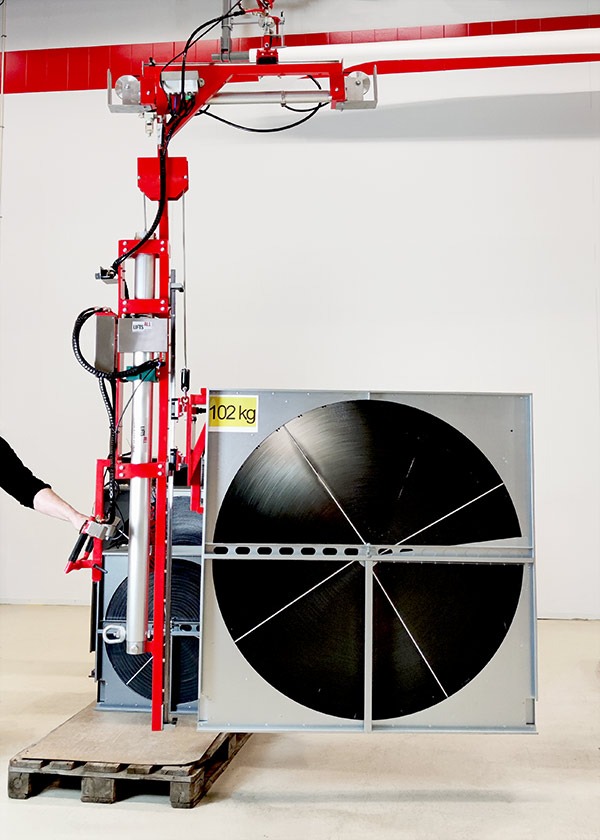

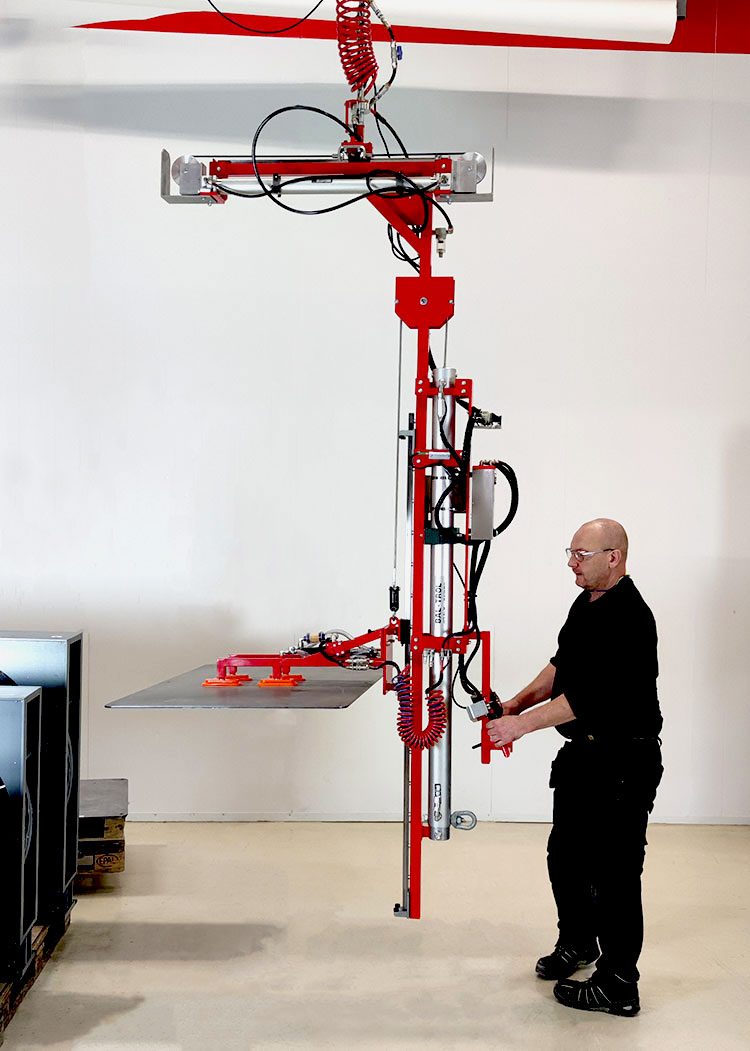

Manhattan Combi-Gripper for Rotors 89-12106
A versatile combi lifter on the Manhattan platform: lifts rotors with a mechanical gripper, and lifts metal sheets with a vacuum mechanism — two mechanisms in one lifting-high device.
Unit typeManhattan Combi-Gripper
Maximum load50 kg · 140 kg
Unit weight100 kg
Lifting mechanismMechanical gripper + vacuum
Lifts rotors viaMechanical gripper
Control systemProportional speed handle (PSH)
Item code89-12106
Two mechanisms — rotors & metal sheets
One Unit — Two Lifting Mechanisms
This is a versatile Manhattan combi lifter for rotors, custom-designed with the ability to lift using both a mechanical mechanism and a vacuum suction mechanism. With the mechanical mechanism, the operator can easily lift rotors weighing from 20 to 140 kg. As a combi lifter, it can also handle other loads — in this case metal sheets, lifted with the vacuum suction mechanism. The unit also includes an Equalizer that balances the load with millimeter-level precision, giving the operator easy control over the lifter and the load — even bulky loads in confined spaces. The maximum load for the mechanical mechanism is 140 kg, and for the vacuum mechanism, 50 kg.
01
Mechanical Grip for Rotors
The mechanical gripper holds rotors firmly — suited to shapes and surfaces unsuitable for vacuum lifting.
02
Vacuum Suction for Sheets
The vacuum mechanism lifts flat metal sheets quickly and cleanly, leaving no marks.
03
Two in One
One unit handles both rotors and metal sheets — saving cost and space on the line.
04
Lifting High
The Manhattan base lets you lift and place loads at high positions or in tight spaces.
Typical applications: Ventilation and mechanical industries needing to alternately lift rotors (mechanical) and metal sheets (vacuum); multi-component assembly lines requiring one lifting-high attachment with two mechanisms.
MANHATTAN · MECHANICAL GRIPPER · DRILL BIT

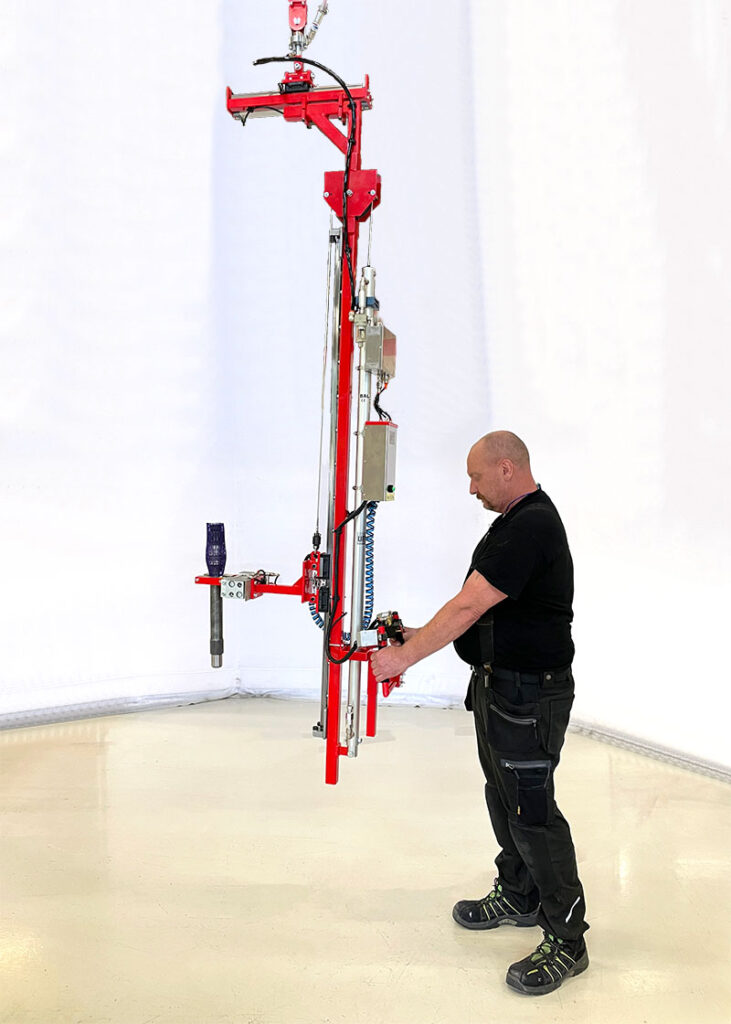

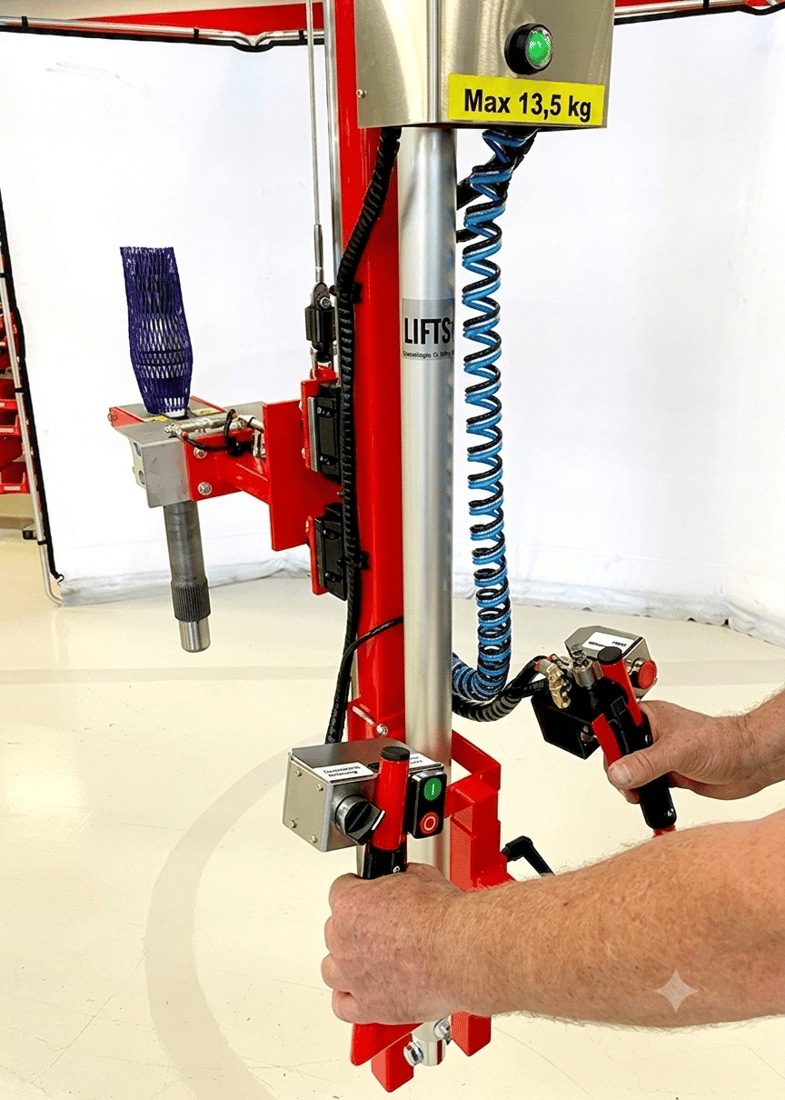

Manhattan Drill Bit Lifter 89-12197
A custom mechanical lifting solution for drill bits of various sizes and weights — moving them from pallet to blaster and back, with an adjustable center of gravity.
Maximum load13.5 kg (30 lbs)
Lifting mechanismMechanical gripper
Control systemProportional speed handle (PSH)
Unit weight50.5 kg (111 lbs)
Center of gravity (CoG)Manually adjustable
Air pressure6–7 bar (90–100 psi)
Item code89-12197
Grips the drill collar — one-button operation
Lifting Drill Bits — Pallet to Blaster
This is the Manhattan Drill Bit Lifter — a custom mechanical lifting solution for drill bits. The unit grips drill bits of different sizes and weights, moving them from pallet to blaster and back. Its center of gravity (CoG) is manually adjustable, and the maximum load is 13.5 kg.
Drill bits are gripped while standing upright on a pallet placed on a cart. After moving the lifter and positioning the jaws around the drill collar, the operator presses the green button to grip. The entire heavy-lifting operation is carried out gently and safely for the operator.
01
Grips the Drill Collar
Jaws wrap around the drill collar; press the green button to grip — firm hold, safe lift.
02
Pallet ↔ Blaster
Easily moves drill bits between pallet and blaster, repeatedly, without fatigue.
03
Adjustable Center of Gravity
Manually adjustable CoG for balanced lifting of drill bits of varying sizes and weights.
04
Multiple Sizes
Grips many drill bit sizes and weights, with a maximum load of 13.5 kg.
Typical applications: Machining and cutting-tool manufacturing; lifting drill bits standing on a pallet, moving between pallet and cleaning blaster; repeated pick-and-place of drill bits on the line.
MANHATTAN · SUCTION CUP · AUTOMOTIVE INDUSTRY

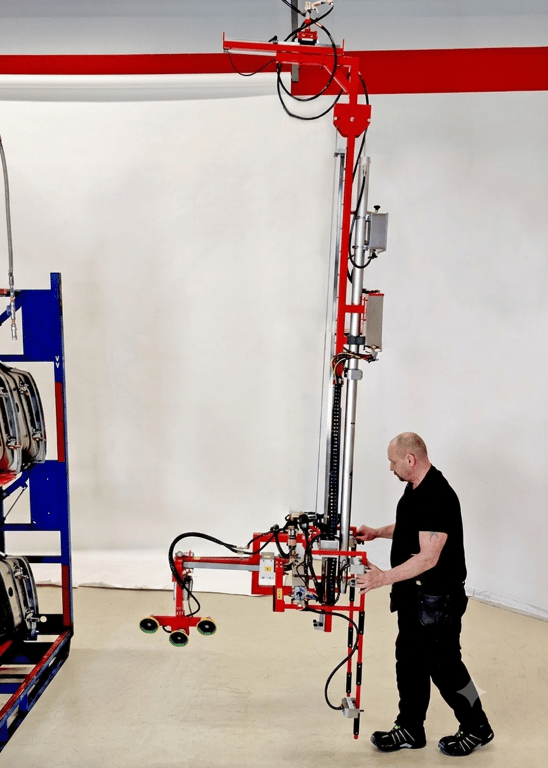

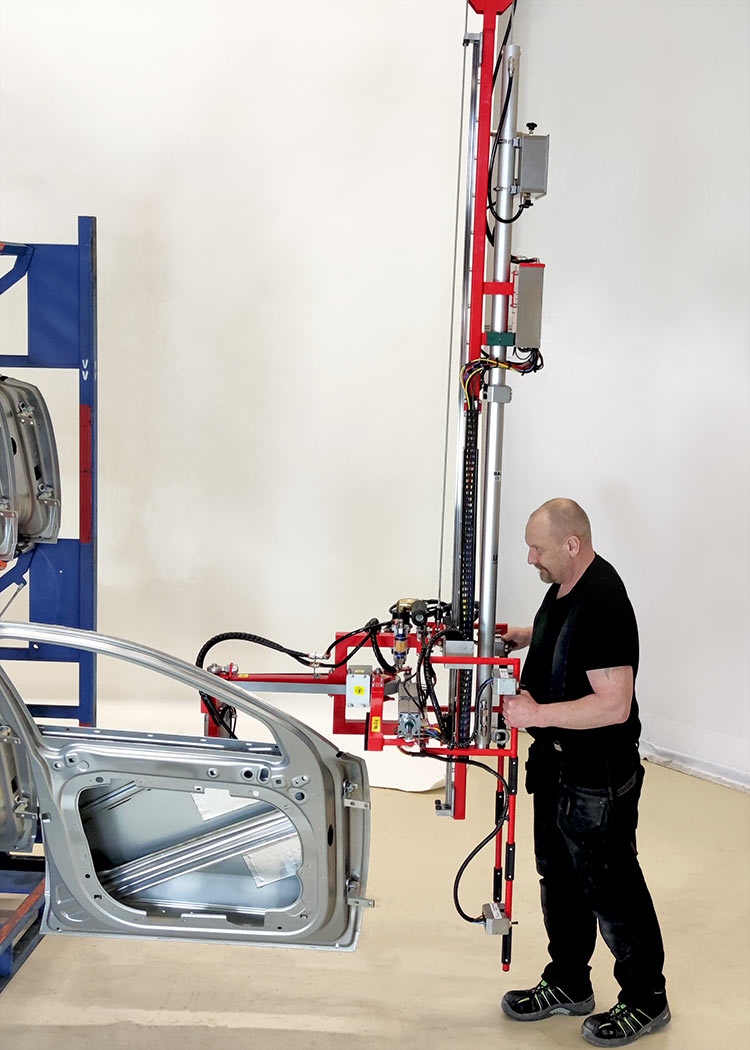

Manhattan Car Door Lifter 89-12025
Purpose-built to lift and tilt car doors — using vacuum suction cups on the door's outer surface, turning a heavy task (doors of ~20 kg) into a one-person job, with the reach to access high racks.
Maximum load30 kg (66 lbs)
Lifting mechanismVacuum suction cups
FunctionLift + Tilt
Control systemBalancing control
Unit weight138 kg (304 lbs)
Air pressure6–7 bar (90–100 psi)
Item code89-12025
Lifting car doors — a one-person job
Lifting & Tilting Car Doors with Ease
The Manhattan Car Door Lifter is purpose-built to lift and tilt car doors. It helps move doors from a rack to a cart (or vice versa) with ease. A car door weighs about 20 kg, and manual lifting is difficult and strenuous — especially when repeated many times a day, this weight is often too much for one person. Manhattan turns lifting car doors into a light, one-person job.
The lifter can also reach higher to retrieve doors sitting on high racks — normally unreachable without a ladder. Manhattan uses vacuum suction and suction cups to grip the outer surface of the door firmly, making it nearly weightless. The operator simply presses the control buttons to lift the door, and the unit guides it off the rack; the door can also be tilted slightly for convenient handling.
01
A One-Person Job
A ~20 kg door once needed real effort — now one person lifts it gently, all day, without fatigue.
02
Reaches High Racks
Retrieves doors from high racks without a ladder — using Manhattan's lifting-high capability.
03
Outer-Surface Suction
Vacuum suction cups grip the door's outer surface firmly, making the door nearly weightless.
04
Tilt Function
The door can tilt slightly for alignment and convenient placement on a cart or rack.
Click "Lift the door" to see the unit's 4 key features
Typical applications: Automotive industry — door assembly and painting plants; moving doors between racks and carts; retrieving doors from high racks; repeated lift-and-tilt operations throughout the day.
▶ Demo video
YouTube
MANHATTAN · SUCTION CUP · COMPACT

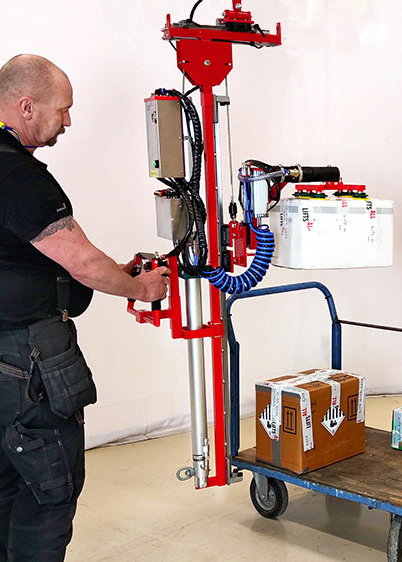

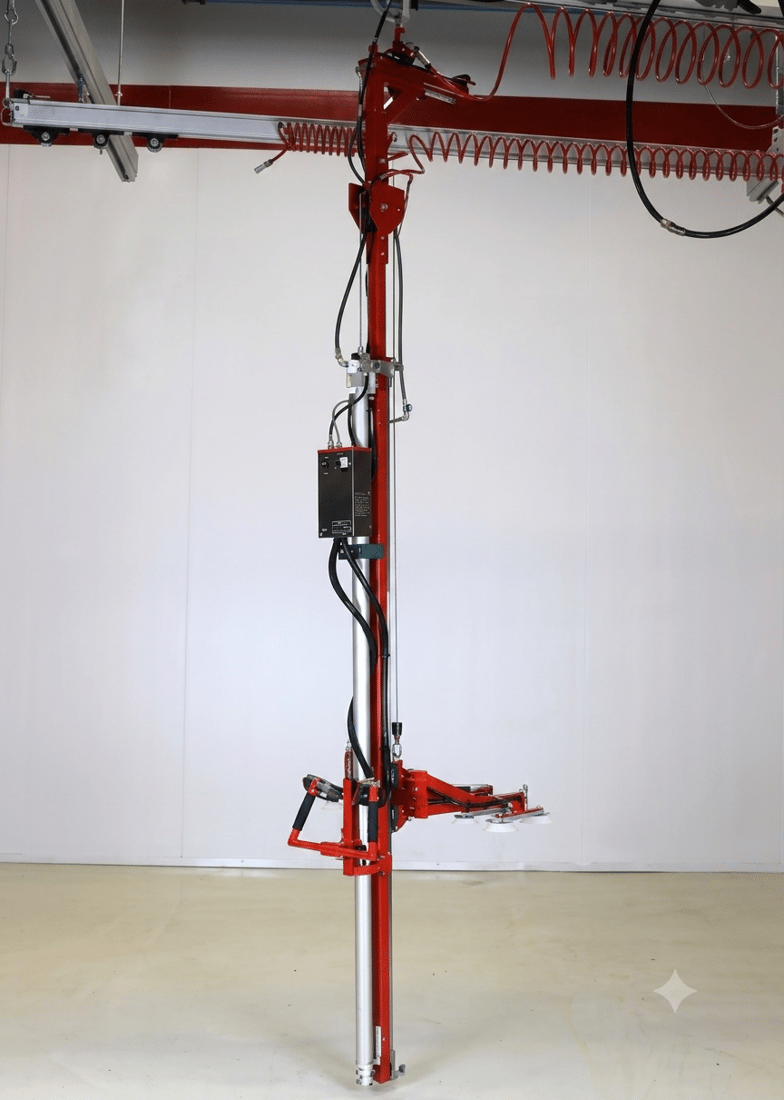

Manhattan Mini 89-12052
A compact Manhattan version using vacuum suction cups to grip and lift cartons up to a height of 170 cm — even in low-ceiling, tight-space rooms. Ideal for warehouses and distribution centers.
Maximum load30 kg
Lifting mechanismVacuum suction cups
Lifting stroke170 cm
Control systemProportional speed handle (PSH)
Unit weight45 kg
Air pressure6–7 bar
Item code89-12052
Lifts up to 170 cm in tight spaces
Compact — Lifts Cartons Up to 170 cm
Manhattan Mini is a vacuum suction lifter that uses suction cups to grip and lift cartons to a stroke height of up to 170 cm. The suction cups create a vacuum that forms a firm, stable grip on the load without leaving marks. The unit is easy to learn: with just a few button presses, the load is gripped, lifted, and placed exactly where needed.
The operator never has to bend over, maintaining a comfortable working posture throughout the lift — contributing to a more ergonomic environment with fewer repetitive strain injuries. The Manhattan Mini is optimized to lift up to 170 cm even in small spaces, such as rooms with standard ceiling height — which is why it often replaces a forklift.
01
170 cm Stroke
Places cartons on high shelves or racks up to 170 cm — even in low-ceiling rooms.
02
Mark-Free Suction
Vacuum suction creates a firm, stable grip on cartons without leaving marks on the surface.
03
Learn It in Minutes
Just a few button presses to grip, lift, and place the load; no bending, comfortable posture.
04
Replaces a Forklift
Compact and agile in tight spaces — often replaces a bulky forklift.
Typical applications: Warehouses and distribution centers lifting cartons onto high shelves up to 170 cm; low-ceiling rooms, narrow aisles; packaging lines needing a compact, ergonomic forklift replacement.
▶ Demo video
YouTube
MANHATTAN · COIL LIFTER · WITH CAMERA

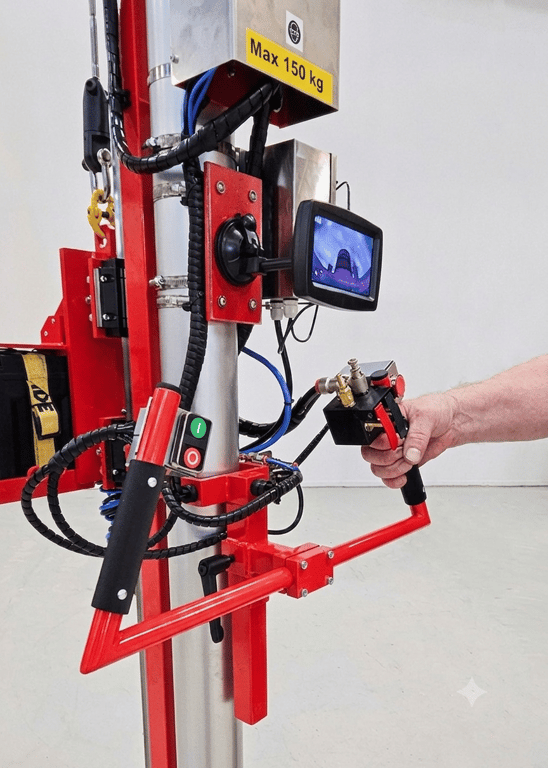

Manhattan Coil Lifter with Camera 89-12535
An efficient, ergonomic coil lifter for quickly lifting heavy coils: steel strapping, paper, wire, and plastic coils — featuring a built-in camera to assist with positioning when lifting high.
The Manhattan Coil Lifter is an efficient, ergonomic lifting device that quickly lifts heavy coils such as steel strapping, paper coils, wire coils, and plastic coils. What sets model 89-12535 apart is its built-in camera — helping the operator observe and position the load accurately, especially useful when lifting to high, hard-to-see positions.
01
Built-In Camera
Camera assists with accurate coil observation and positioning when lifting high, out of direct view.
02
Multiple Coil Types
Lifts steel strapping, paper, wire, and plastic coils — flexible for many manufacturing sectors.
03
Fast & Efficient
Lifts heavy coils quickly, reducing handling time on the line and in the warehouse.
04
Ergonomic
Frees the operator from the coil's weight, reducing injury risk during repeated lifts.
Typical applications: Lifting steel strapping, paper, wire, and plastic coils in manufacturing and warehousing; high-position coil lifting that requires precise camera-assisted positioning.
▶ Demo video
YouTube
MANHATTAN · PALLET STACKING

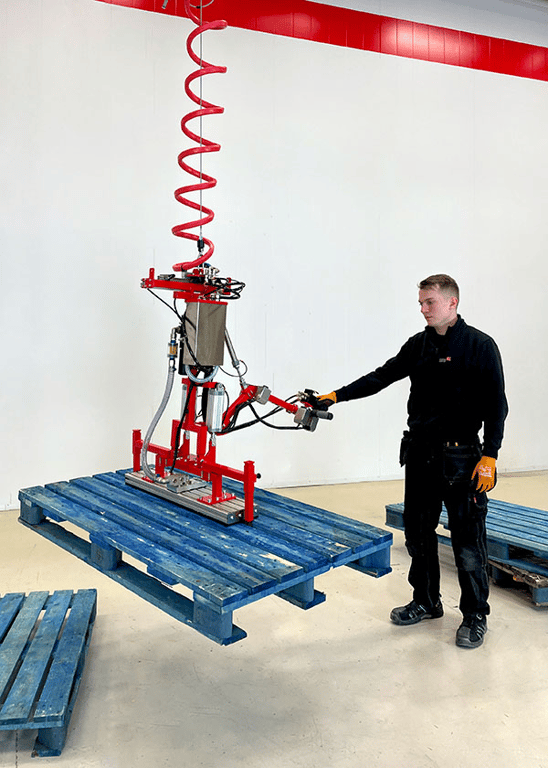

Manhattan Pallet Lifter 89-12178
A lifting device used mainly to lift and stack pallets — leveraging Manhattan's lifting-high structure to stack pallets neatly and safely, reducing strenuous manual handling.
Maximum load45 kg
Unit weight32 kg (72 lbs)
Unit typeManhattan pallet lifter
Main functionLifting & stacking pallets
FeaturesTilt & proportional speed control
Pallet sizes2400×800 · 1400×800 · 800×800 mm
Working principleVacuum (suction cups)
Item code89-12178
Lifting & Stacking Pallets
The Manhattan Pallet Lifter 89-12178 is a lifting device used mainly to lift and stack pallets. Leveraging the lifting-high structure of the Manhattan series, it helps stack pallets neatly and safely — reducing the strenuous, injury-prone manual lifting that warehouse workers would otherwise face.
↑
Click a pallet to have the lifter pick it up and see the benefit in detail.
01
Gentle, Ergonomic Lifting
The pallet lifter works nearly weightlessly and ergonomically — better protecting workers' health.
02
No Repetitive Strain Injuries
The pallet lifter keeps workers healthy, avoiding repetitive strain injuries from heavy lifting. Its maximum load is 99 lbs (~45 kg).
03
A One-Person Job
One person can now handle pallet-stacking work that used to require two — streamlining the process, boosting productivity, and freeing up labor for other tasks.
04
High-Frequency Lifting
The vacuum lifter enables high-frequency lifting of packages and cartons in place of "back-breaking" manual labor, maintaining fast, comfortable work.
05
Fast & Comfortable
Maintains high speed while working comfortably — the pallet lifter handles repetitive tasks quickly without causing fatigue.
06
No Splinters, No Scrapes
The pallet lifter lets you work without wood splinters or scrapes, even without gloves — an extra layer of protection for your hands.
07
Optimizes Warehouse Space
Efficiently stacks empty pallets to high levels in the facility — optimizing storage space.
08
Suits Every Operator
Ergonomically designed to suit any arm length as well as both left- and right-handed operators.
Each pallet represents one benefit — tap it and the lifter will pick it up
Typical applications: Warehouses and logistics centers lifting and stacking pallets; end-of-line pallet collection and stacking; facilities wanting to optimize vertical storage space.
MANHATTAN · PRODUCT COIL LIFTING

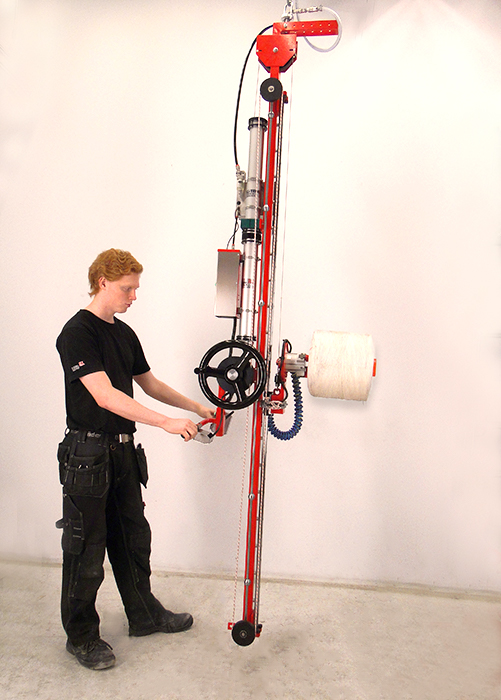

Manhattan Coil Lifter 89-10117
The ideal lifting device for workplaces handling product coils — moving coils safely and almost weightlessly, combined with Manhattan's lifting-high capability.
Unit typeManhattan coil lifter
Load typeProduct coils
Unit weight53 kg
Control systemProportional speed handle (PSH)
FeatureSafe, weightless coil lifting
Base unitManhattan lifting-high
Item code89-10117
Coils feel weightless — safe handling
Safe, Weightless Coil Handling
The Manhattan Coil Lifter 89-10117 is the ideal lifting device for workplaces that handle product coils. It lets the operator control and move coils safely and almost weightlessly. Combined with the Manhattan series' lifting-high structure, this coil lifter is well suited to placing coils at high positions or retrieving them from height.
01
Nearly Weightless Coils
Moves product coils gently and safely — freeing the operator from the coil's weight.
02
Purpose-Built for Coils
Ideal for workplaces that regularly lift and move various types of product coils.
03
Manhattan Lifting-High Base
Easily places coils at high positions or retrieves them from height, even in tight spaces.
04
Custom-Built for Your Coils
Lifts All customizes the gripping mechanism and load capacity to match your exact coil type and size.
Typical applications: Printing, textile, paper, plastic, and coiled-material industries; workplaces regularly lifting and moving product coils; safely raising or lowering coils at height, ergonomically.
▶ Demo video
YouTube
MANHATTAN · PLASTIC BOX LIFTING · POPULAR

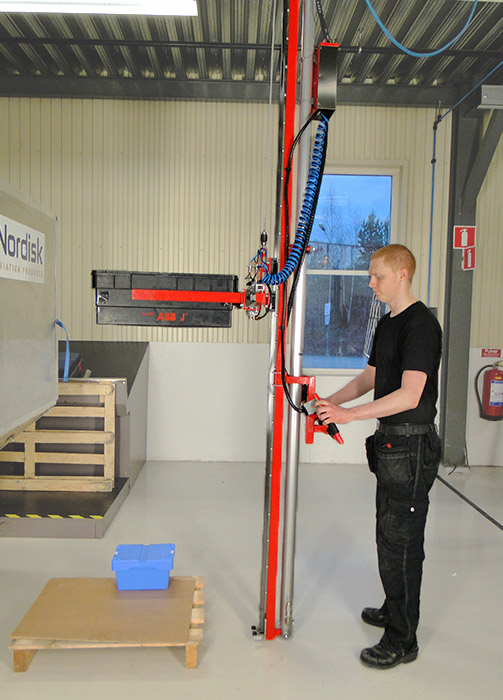

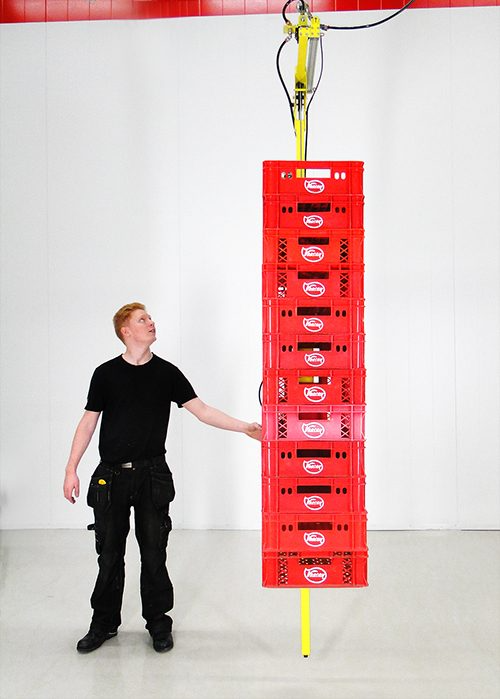

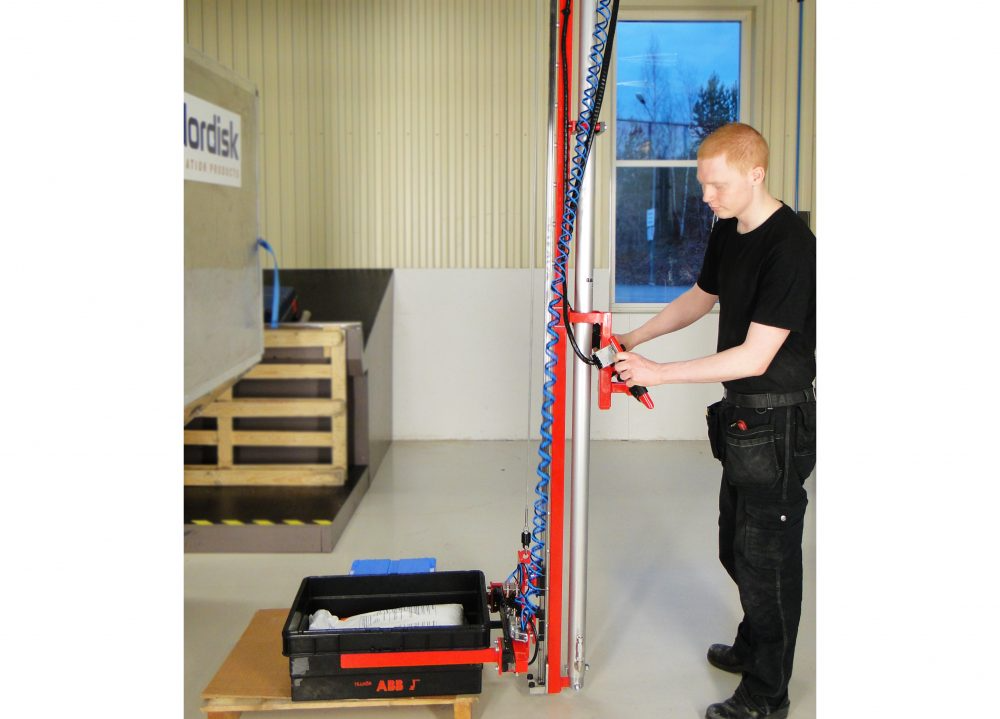

Manhattan Plastic Box Lifter 89-10465
One of Lifts All's most popular lifting devices — convenient for lifting plastic boxes and placing them high on shelves. Leverages Manhattan's signature lifting-high structure.
Unit typeManhattan box lifter
Load typePlastic boxes
Item code89-10465
Places plastic boxes on high shelves
Easily Placing Plastic Boxes on High Shelves
The Manhattan Plastic Box Lifter 89-10465 is one of Lifts All's most popular lifting devices — very convenient for lifting plastic boxes and placing them high on shelves. Leveraging the Manhattan series' signature lifting-high structure, it helps place boxes at positions a normal operator couldn't otherwise reach, safely and gently.
01
Places Boxes on High Shelves
Lifts plastic boxes to high shelf positions that a normal operator cannot reach.
02
Popular Model
One of Lifts All's most widely used and favored lifters — proven and reliable.
03
Convenient & Safe
Gentle operation reduces injury risk when repeatedly lifting and placing plastic boxes.
04
Custom-Built for Your Boxes
Lifts All customizes the gripping mechanism and load capacity to match your exact box type and size.
Typical applications: Warehouses, manufacturing and packaging lines lifting plastic boxes onto high shelves; food, logistics, and component manufacturing industries needing to regularly place boxes at height.
MANHATTAN · SUCTION CUP · FORKLIFT REPLACEMENT
Manhattan Carton Lifter 89-10224
Suction cups grip cartons quickly, moving them gently. Purpose-designed for small work spaces, replacing both pallet trucks and forklifts — lifting high to low, pallet to pallet.
Unit typeManhattan carton lifter
Lifting mechanismVacuum suction cups
Unit weight70 kg
Control systemProportional speed handle (PSH)
Control handleHeight-adjustable
Item code89-10224
Cartons feel weightless — anyone can use it
Replacing Forklifts in Small Spaces
The suction cups on the Manhattan Carton Lifter grip cartons quickly, after which the carton can be moved fast and easily. The unit is purpose-designed for use in small work spaces, and can replace both pallet trucks and forklifts, since it lifts from high to low (and vice versa), as well as pallet to pallet.
Regardless of the operator's build, this remains an easy-to-use device — designed ergonomically with exactly that in mind: whether the operator is strong or not, tall or short, anyone can operate this tool. The control handle position is easily adjustable to suit different heights. Cartons become nearly weightless when lifted, and the unit moves gently and flexibly.
01
Replaces Forklifts
Replaces both pallet trucks and forklifts — lifting high to low, pallet to pallet, in tight spaces.
02
Fast Suction Grip
Suction cups grip the carton surface quickly, moving cartons fast and easily.
03
Anyone Can Operate It
Strong or not, tall or short — the ergonomic design lets anyone operate it easily.
04
Adjustable Handle
The control handle position adjusts to each operator's height for comfortable handling.
Typical applications: Warehouses and packaging lines in small spaces; lifting cartons from high to low, pallet to pallet; replacing bulky forklifts while protecting workers' backs and shoulders.
MANHATTAN · TRAY LIFTING · BAKERY

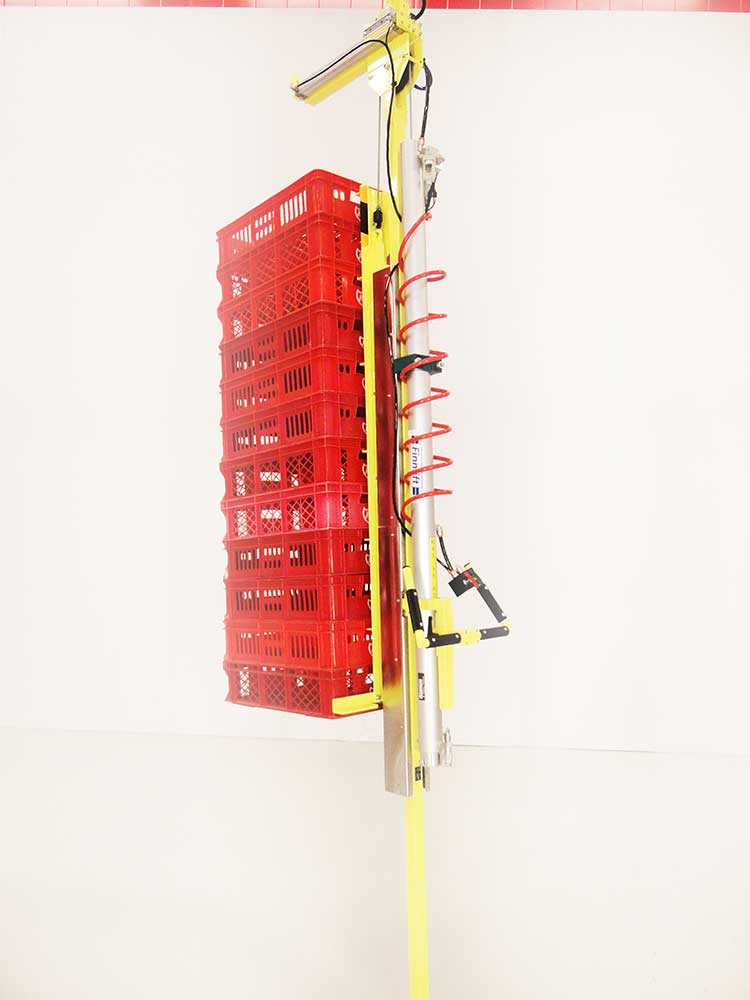

Manhattan Tray Lifter 89-10310
A popular lifter for efficient bakery tray handling — a seemingly simple design that securely holds a full stack, lifting up to 12 trays with a total weight of 90 kg.
Maximum load96 kg
Unit weight75 kg
Control systemProportional speed handle (PSH)
Maximum trays12 trays
Load typeBakery trays
Item code89-10310
12 trays — 90 kg per lift
Handling Bakery Trays — 12 Trays at a Time
The Manhattan Tray Lifter is a popular lifter that handles bakery trays efficiently. Despite its seemingly simple design, this tool securely holds an entire stack of trays, which can then be moved onto a pallet or conveyor. The Manhattan Tray Lifter can lift up to 12 trays with a total weight of 90 kg — tray handling has never been this efficient.
01
Lifts Up to 12 Trays
Securely holds a stack of up to 12 trays, totaling 90 kg — moved in one trip instead of many.
02
Secures the Whole Stack
Safely grips the entire tray stack, moving it quickly onto a pallet or conveyor without spilling.
03
Built for Bakeries
Ideal for bakeries and food plants handling large volumes of trays repeatedly.
04
Efficient & Simple
A simple yet effective design — fast handling that significantly boosts tray-processing throughput.
Typical applications: Bakeries and food plants handling large volumes of trays; lifting tray stacks from racks or carts onto pallets or conveyors; lines needing to lift many trays at once to boost productivity.
MANHATTAN · LIFT & ROTATE STONE BLOCKS

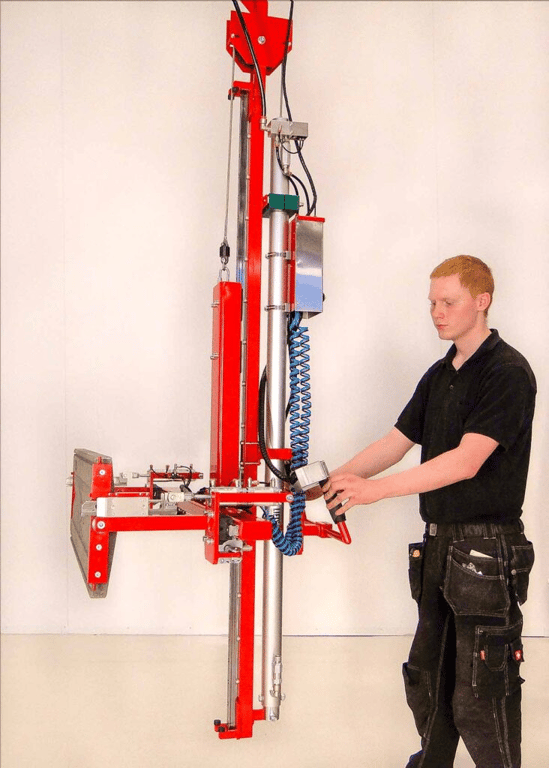

Manhattan Stone Block Lifter 89-10288
A lifter purpose-built for stone blocks up to 50 kg — both flexible and efficient, capable of lifting and rotating stone blocks into the desired position.
Maximum load50 kg
Unit weight70 kg
Lifting mechanismMechanical gripper
Control systemProportional speed handle (PSH)
FunctionLift + Rotate
Load typeStone blocks
Item code89-10288
Lifts & rotates stone blocks up to 50 kg

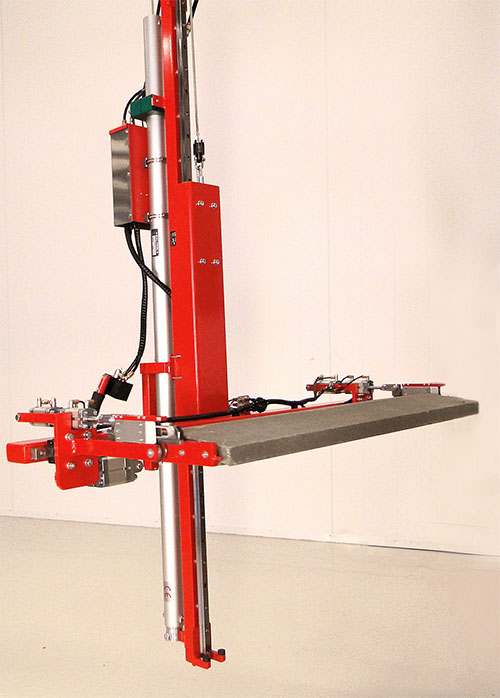

Flexible Lifting & Rotating of Stone Blocks
The Manhattan Stone Block Lifter 89-10288 is a lifter purpose-built for stone blocks, with a maximum load of 50 kg. The unit is both flexible and efficient: besides lifting, it can also rotate the stone block so the operator can place it in the desired orientation and position — especially useful in machining and installation steps requiring precise alignment.
01
50 kg Stone Block Capacity
Lifts stone blocks weighing up to 50 kg — freeing the operator from manual stone lifting.
02
Rotation for Alignment
Rotates the stone block into the desired orientation and position for machining and installation.
03
Flexible & Efficient
Flexible, efficient operation — handles stone blocks quickly and safely, reducing workplace injuries.
04
Custom-Built
Lifts All custom-builds the gripping mechanism and load capacity to match your exact stone block type and size.
Typical applications: Stone, building materials, and stone/gypsum product industries; lifting and rotating stone blocks for machining and installation in the desired orientation; safely handling stone blocks up to 50 kg with flexibility.
Quick Comparison — Manhattan (Lifting High) Series
Product
Item Code
Max Load
Lifting Mechanism
Key Feature
Cabinet Lifter
89-12105
150 kg
Mechanical gripper (fork)
Adjustable fork, padded prongs
Large Carton
89-11789
Custom
Vacuum suction cups
2.1m stroke, 2 interchangeable heads
Combi 89-11763
89-11763
Custom
Mechanical + vacuum
Heat exchangers, electric motors
Combi for Rotors
89-12106
50 / 140 kg
Mechanical + vacuum
Rotors (mechanical) + metal sheets (vacuum)
Drill Bit Lifter
89-12197
13.5 kg
Mechanical gripper
Grips drill collar, adjustable CoG
Car Door Lifter
89-12025
30 kg
Vacuum suction cups
Lift + tilt, automotive industry
Manhattan Mini
89-12052
30 kg
Vacuum suction cups
Lifts to 170cm, compact
Coil Lifter (camera)
89-12535
150 kg
Coil gripper
Steel/paper/wire/plastic coils + camera
Pallet Lifter
89-12178
45 kg
Suction (vacuum)
Lifting & stacking pallets
Coil Lifter
89-10117
Custom
Coil gripper
Safe, weightless coil handling
Plastic Box Lifter
89-10465
Custom
Gripper / suction cups
Places boxes on high shelves, popular
Carton Lifter
89-10224
Custom
Vacuum suction cups
Small spaces, replaces forklift
Tray Lifter
89-10310
96 kg
Mechanical gripper
Up to 12 bakery trays at once
Stone Block Lifter
89-10288
50 kg
Mechanical gripper
Lifts & rotates stone blocks
Lifts All AB Quality Commitment
1994
Founded
Over 30 years in the industry — Sweden
2.1 m
Lifting High
Beyond human reach
150 kg
Max Load
Manhattan Cabinet Lifter 89-12105
100%
Made in Sweden
Custom design — "Mini-Truck"
Scroll to zoom · Drag to move · Double-click to reset
