Smooth, Easy-to-Clean Stainless Arm

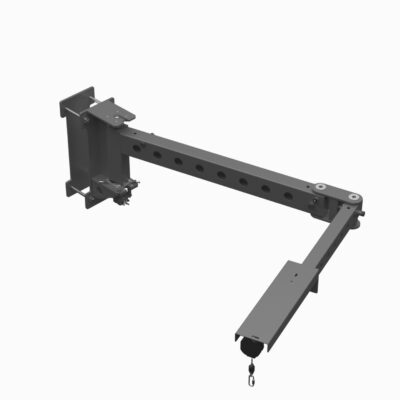

The MaxiCrane Mini SS316 is a stainless steel articulated jib crane, compact and flexible. The electropolished surface makes it very easy to clean while boosting corrosion and wear resistance — meeting the strict requirements of the pharmaceutical, food, cosmetics and cleanroom industries.
The crane offers the same 100 kg capacity as the MaxiCrane but with a shorter 3 m arm, especially suited to low-ceiling areas where a standard-sized crane will not fit. Its light weight combined with low-friction joint bearings makes for very smooth, gentle operation.
01
Electropolished SS316 Stainless
Electropolished stainless steel surface — easy to clean, dust-resistant, outstanding corrosion resistance, meets pharma/food cleanroom standards.
02
Low-Built Design
The Bal-Trol is neatly integrated into the outer arm, keeping the crane very low profile — fitting tight spaces and giving the operator maximum lifting height.
03
100 kg Capacity
Same lifting capacity as the standard MaxiCrane, but with a 3 m arm — suited to low-ceiling areas while still handling heavy loads.
04
Fast, Cost-Effective Installation
Compact and lightweight for quick installation at any height on a steel column. Reasonable installation cost, very quiet operation thanks to low-friction bearings.
Gripper Customized to Your Process
The MaxiCrane Mini SS316 can be combined with a variety of lifting devices (grippers): a hook for buckets and handled containers, a vacuum gripper for cartons, or a mechanical gripper for lifting and rotating rolls. Grippers are customized to optimize your material-handling process, and the operator can swap grippers in minutes — very simple.
Typical applications: Pharmaceutical cleanrooms, food and beverage plants, cosmetics production, chemical plants, low-ceiling areas requiring high hygiene, filling and packaging lines in sterile environments.
Flexible Mounting
The FlexiCrane is mounted on a steel column on a wall, ceiling or floor — depending on your workplace layout. It is compatible with all standard Lifts All columns. Column length is customizable and a telescoping column version is also available. The column can also be fitted with a mobile base if you need to lift at multiple positions. There's always room for a FlexiCrane system.
01
Light & Quiet
Lightweight, compact design — fast to install, low cost. Low-friction bearings keep operation very smooth and quiet.
02
Unlimited Rotation
The arm doesn't just rotate a full circle — it rotates endlessly, convenient for working in every direction.
03
Complete Lifting System
Combine with a Bal-Trol pneumatic cylinder and a gripper for a complete lifting system. Runs on compressed air — idle time costs nothing.
04
Stainless Steel Version
A plated stainless steel version is available as a new standard option — easy to clean, suited for sensitive environments like pharmaceuticals and food.

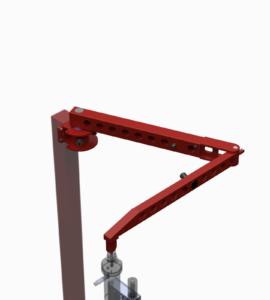

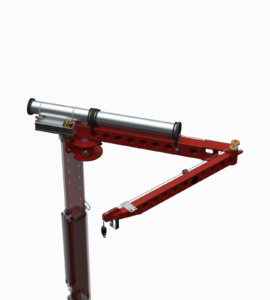

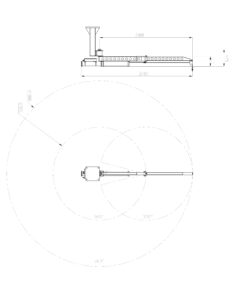

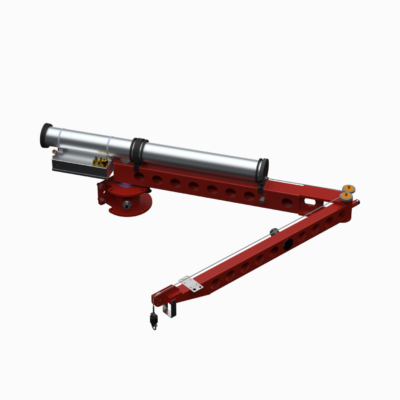

FlexiCrane 2 m Versions
The FlexiCrane 2 m is available in several standard versions to suit different mounting methods and environmental requirements — from over-mounted or under-mounted Bal-Trol, a ceiling-mount version, a custom RAL color, to an electropolished SS304 stainless version for cleanrooms.
| Image |
Item Code |
Version Name |
Length (m) |
Load (kg) |
Weight (kg) |
Bal-Trol Position |
Feature |
Mounting |
|
|

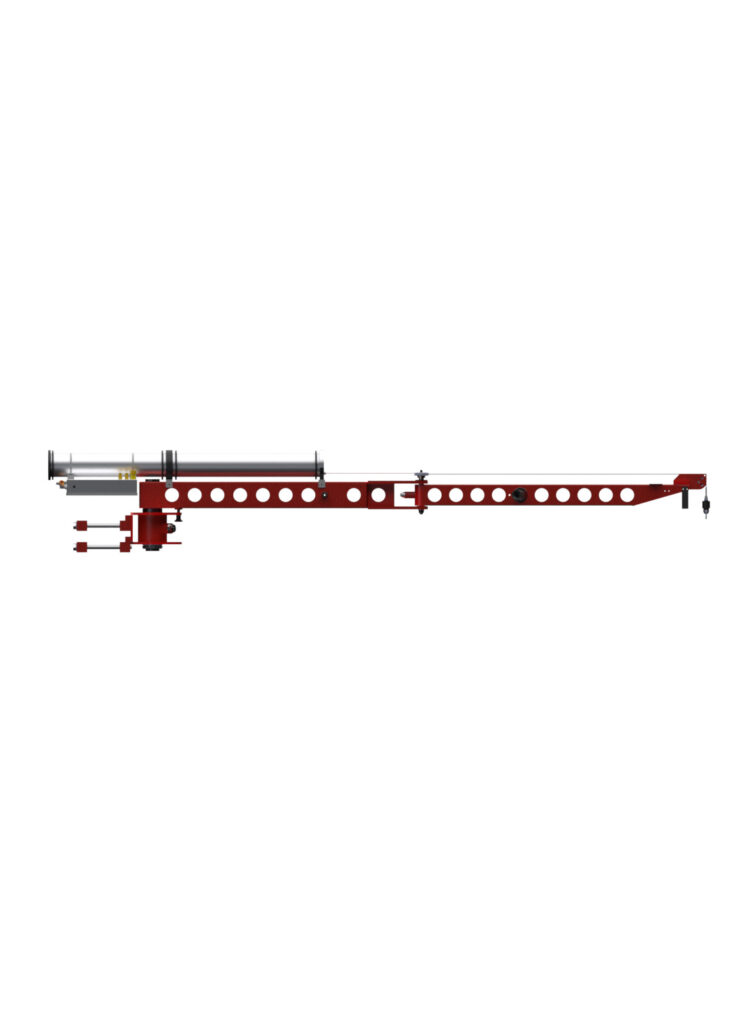

95-10113 |
FlexiCrane 2 m — Overmounted Bal-Trol, 65 kg |
2 |
65 |
30 |
Overmounted |
— |
— |
|
|

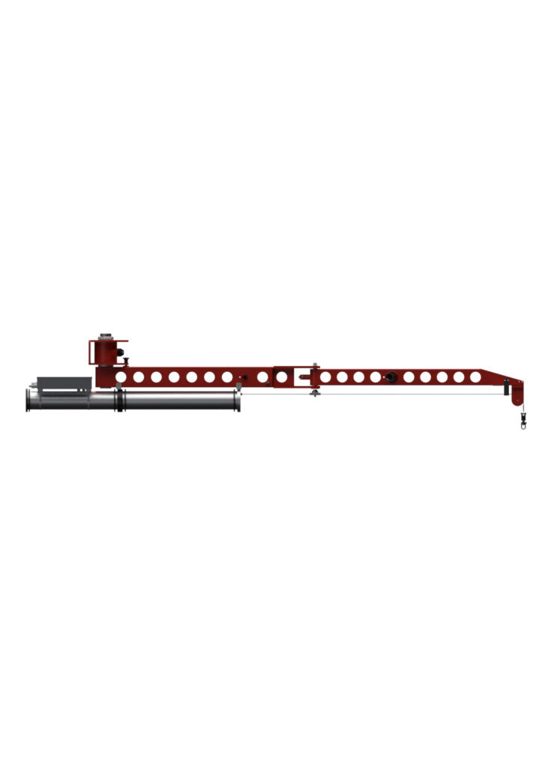

95-10114 |
FlexiCrane 2 m — Under-mounted Bal-Trol, 65 kg |
2 |
65 |
30 |
Under-mounted |
— |
— |
|
|
95-10252 |

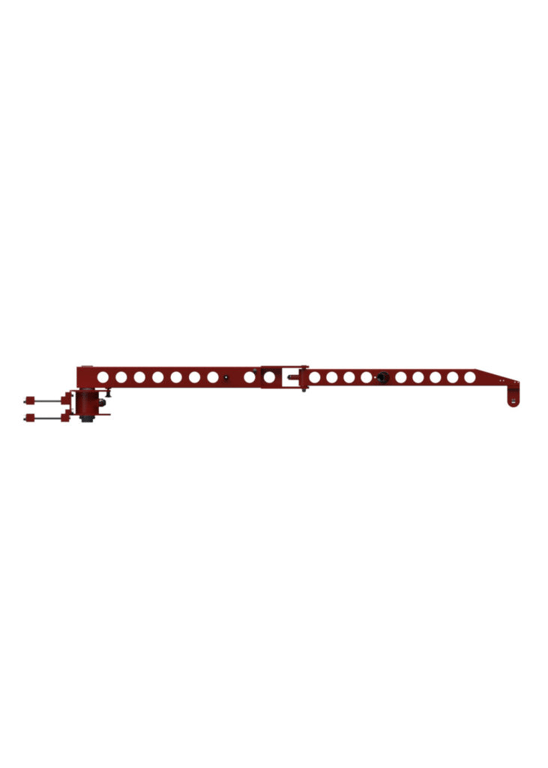

FlexiCrane 2 m (Basic) — standard version, 65 kg |
2 |
65 |
32 |
Basic version |
— |
— |
|
|
95-10252-fiktiv |

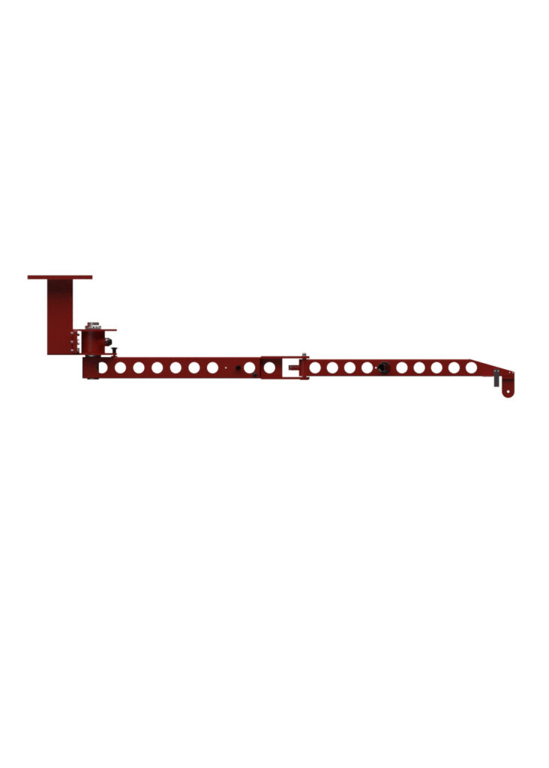

FlexiCrane 2 m (Basic) — ceiling mount, 65 kg |
2 |
65 |
— |
Basic version |
— |
Ceiling mount |
|
|
95-10252-RAL |
FlexiCrane 2 m (Basic) — custom RAL color, 65 kg |
2 |
65 |
32 |
Basic version |
— |
— |
|
|
95-10258 |
FlexiCrane 2 m — Under-mounted Bal-Trol, electropolished SS304 stainless, 65 kg |
2 |
65 |
40 |
Under-mounted |
Stainless steel (SS) |
— |
|
—
|
95-10286 |
FlexiCrane 2 m — cross-braced mounting |
2 |
— |
30 |
— |
— |
Cross-braced |
*Note: All versions share the same standard 160 mm Lifts All column and are compatible with the entire gripper range (vacuum, mechanical, hook). "Overmounted" Bal-Trol suits high-ceiling spaces; "under-mounted" suits low-ceiling spaces to maximize lifting height. The SS304 stainless version suits the pharmaceutical/food/cosmetics industries.
Typical applications: Fixed workstations in machine shops, packaging plants, assembly lines, pharmaceutical/food cleanrooms (stainless version), areas where overhead crane rail cannot be installed.
Flexible Articulated Crane

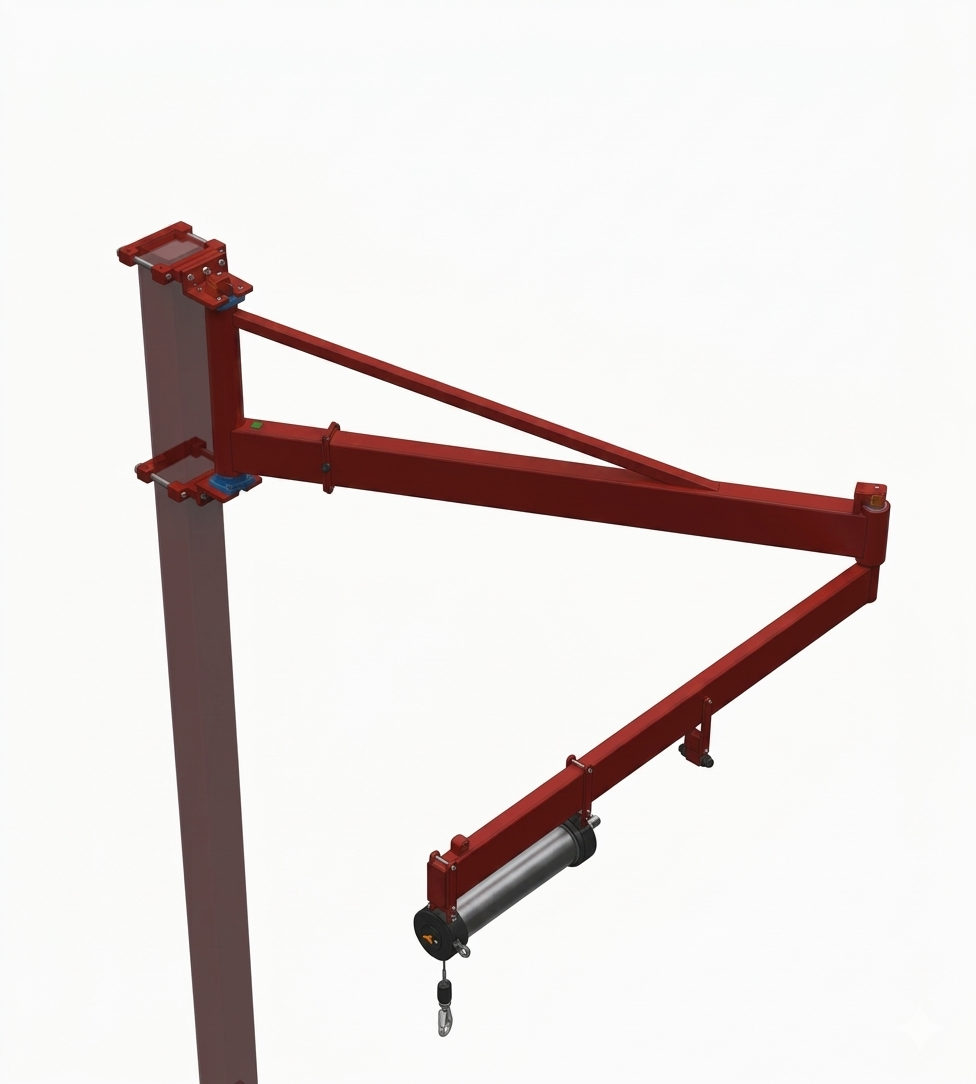

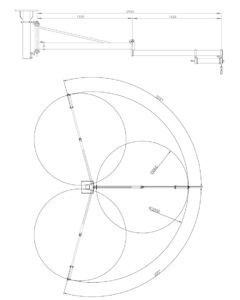

Because the FlexiCrane 3 m connects to the side of the column, it has a 210-degree rotation angle — while the FlexiCrane 2 m (which connects to the top of the column) rotates endlessly. The FlexiCrane 3 m is also slightly heavier and sturdier than the 2 m version. Like the classic 2 m crane, it can be fitted with a Bal-Trol pneumatic cylinder and a lifting device to form a complete lifting system.
01
Larger Radius
The 3 m arm covers a wider work area, lifting at a greater distance than the 2 m version.
02
Sturdy & Durable
Heavier, sturdier construction than the 2 m version — suited to long-term fixed installation on a column or wall.
03
Versatile Mounting
Best suited for fixed mounting on a column or wall. Compatible with all standard Lifts All columns.
04
Lifting System Consultation
Lifts All / FullSharp sales engineers will advise on the Bal-Trol and gripper configuration best suited to your layout and load type.
Typical applications: Workstations needing wide coverage, fixed mounting on a column/wall, production lines with work areas far from the column, machine shops, large-area packaging plants.
3 m Versions
The FlexiCrane 3 m is available in standard versions: the regular version, a custom RAL color version, and a stainless steel (SS) version for sensitive environments like food and pharmaceuticals. All share a 3 m reach, 65 kg load capacity and 786 mm height.
| Image |
Item Code |
Version Name |
Length (m) |
Load (kg) |
Weight (kg) |
Feature |
Height (mm) |
|
|

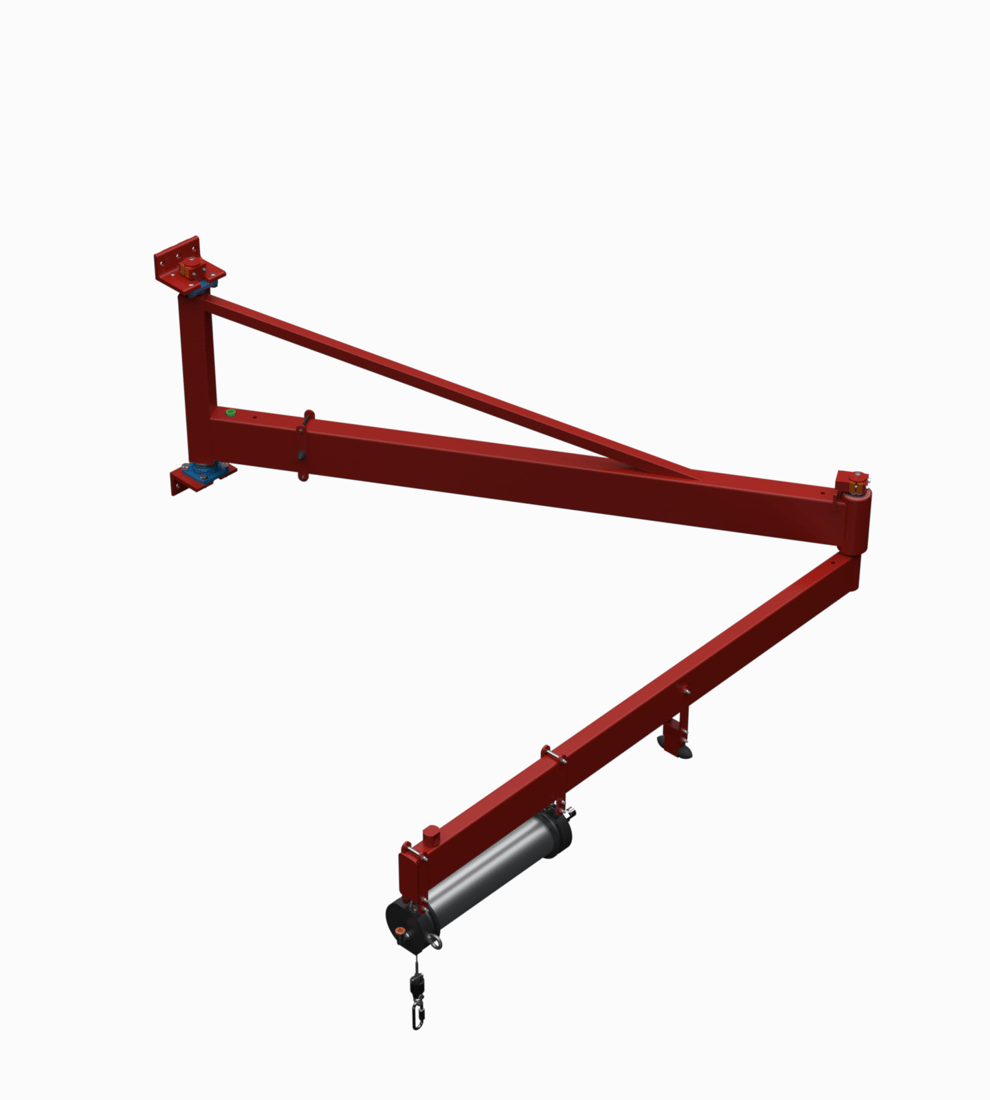

95-10289 |
FlexiCrane 3 m — 65 kg (standard version) |
3 |
65 |
58 |
— |
786 |
|
|
95-10289-RAL |
FlexiCrane 3 m — 65 kg, custom RAL color |
3 |
65 |
58 |
— |
786 |
|
—
|
95-10289-SS |
FlexiCrane 3 m — 65 kg, stainless steel (SS) |
3 |
65 |
— |
Stainless steel (SS) |
786 |

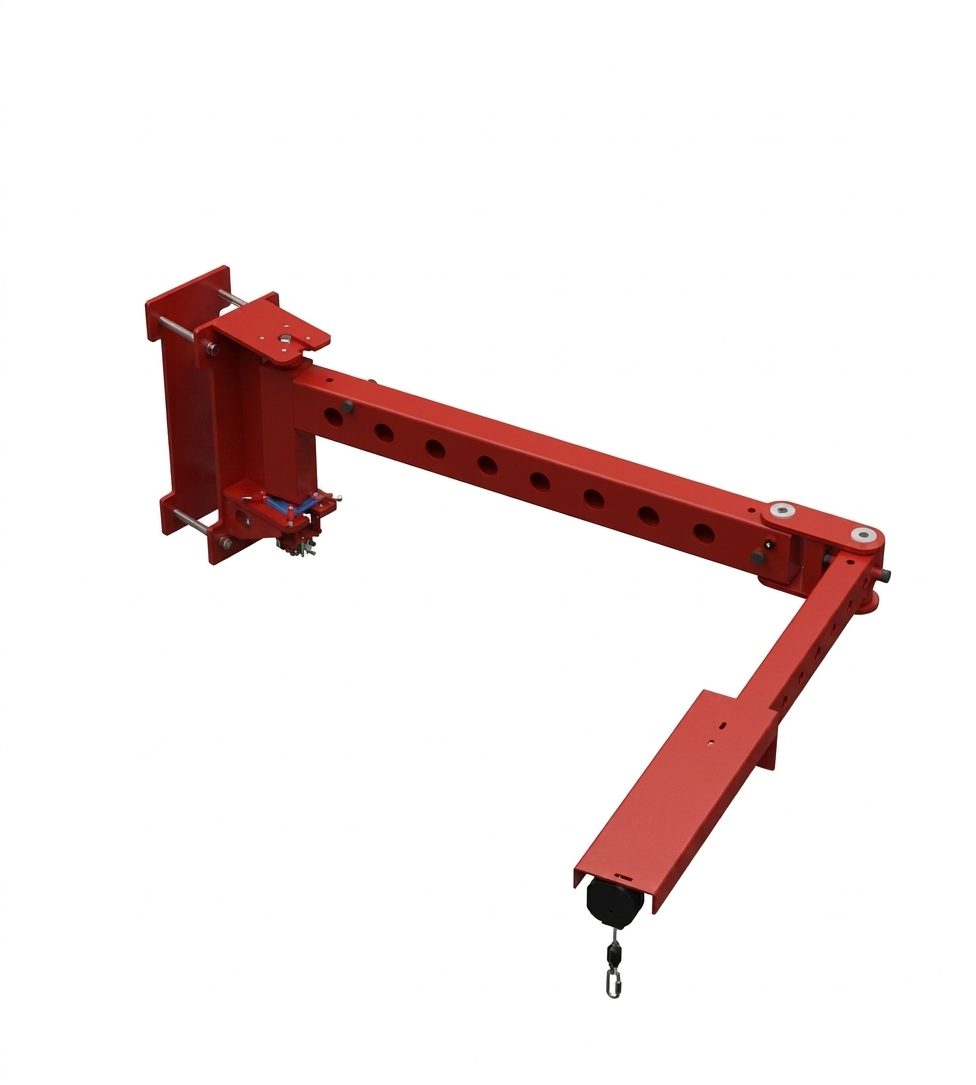

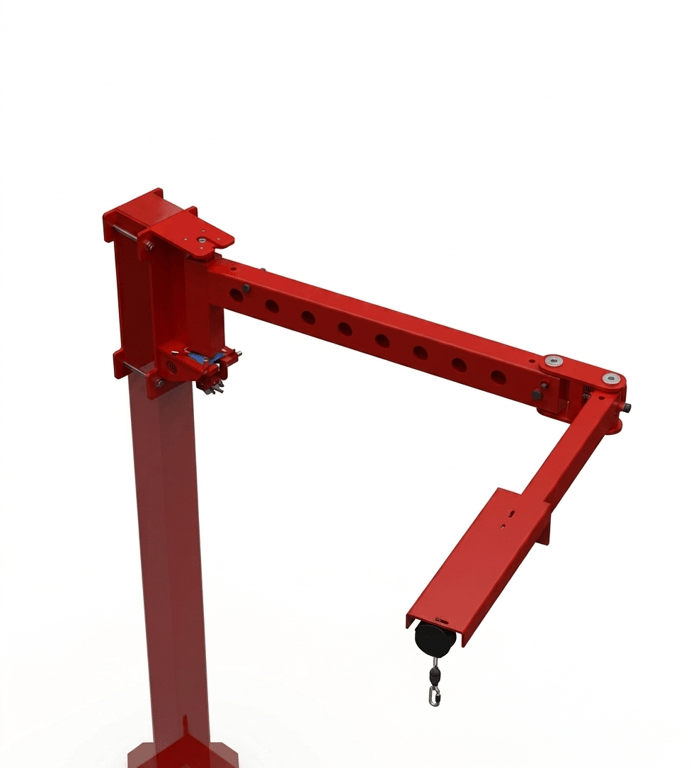

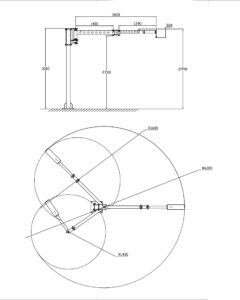

Smooth, Nimble Lifting Arm
Light weight combined with low-friction joint bearings makes the MaxiCrane Mini run very smoothly and comfortably. Like every Lifts All crane, its compact size and light weight allow for very fast installation — saving both time and cost — and it can be mounted at any height, securely bolted to a steel column.
01
Low-Profile Design
The Bal-Trol is built into the outer arm, creating a low-built crane — very practical for tight spaces and giving the operator maximum lifting height.
02
Optimized for Low Ceilings
The 3 m arm suits low-ceiling areas where a standard-sized crane will not fit.
03
Fast, Cost-Effective Installation
Light and compact for fast installation at any height, at a reasonable cost. Quiet operation thanks to low-friction bearings.
04
Multiple Grippers
Fit a hook to lift containers/cans, a vacuum gripper for cartons, or a mechanical gripper to lift and rotate rolls. The connection is usually the same — swap grippers in seconds.
Typical applications: Plants/basements with low ceilings, tight spaces needing maximum lifting height, compact workstations, lines lifting containers, cans, cartons, or rolls.

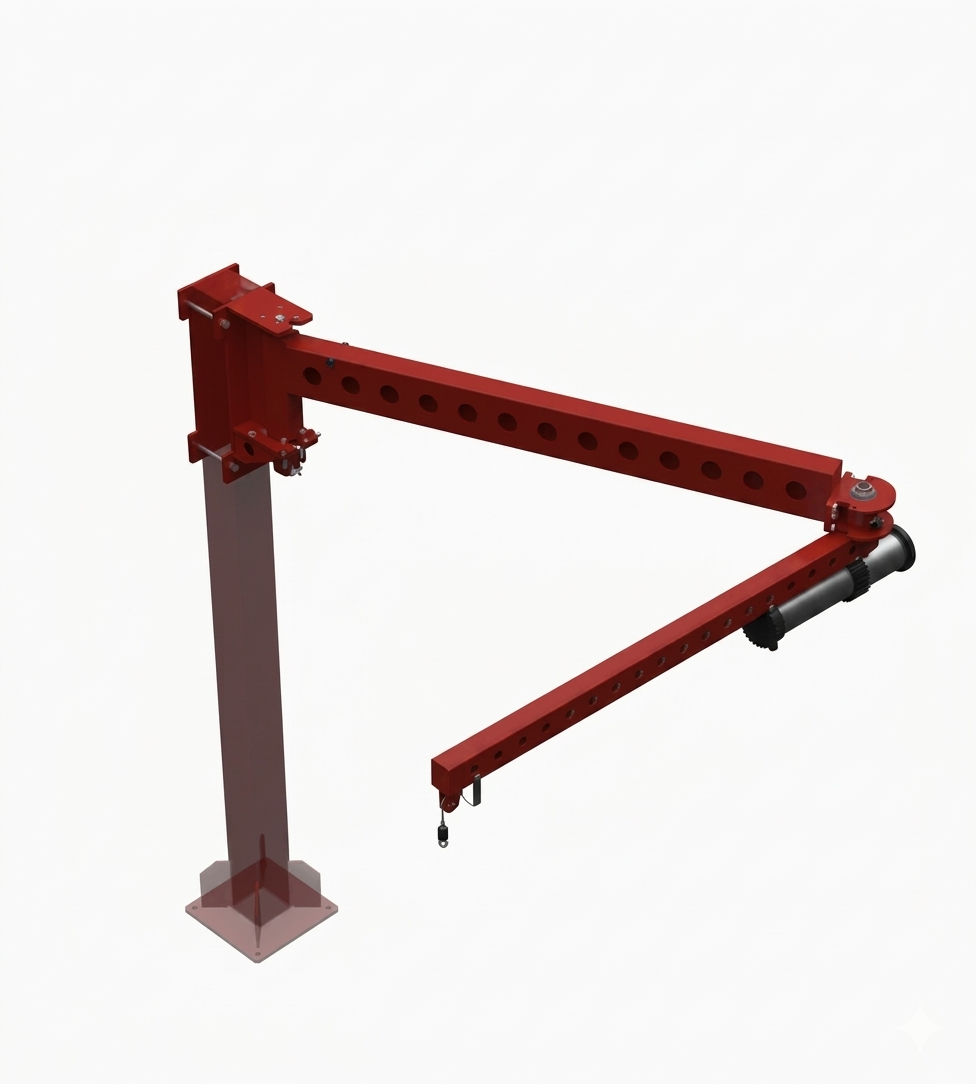

Unlimited Rotation, Superior Maneuverability

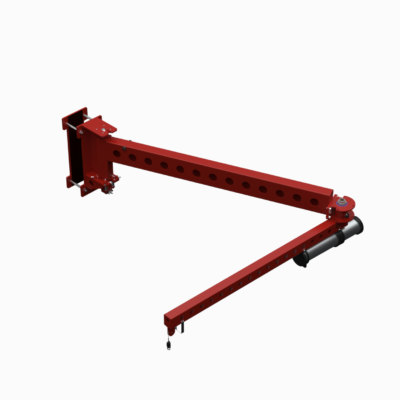

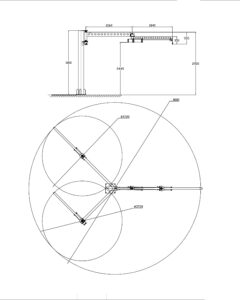

The MaxiCrane is usually mounted on a floor-fixed column, but can also be mounted on a ceiling or wall — highly versatile for many types of spaces. Compared to its "predecessor" the FlexiCrane, the MaxiCrane has a sturdier build and lifts heavier loads. Its work area reaches up to 4 m, with the inner arm rotating 270° and the outer arm rotating endlessly.
01
100 kg Capacity
Sturdier construction than the FlexiCrane, lifting heavier loads — easily handling even demanding tasks.
02
4 m Reach
A 4 m work area diameter, handling even the trickiest corners. Superior agility and flexibility compared to other crane types.
03
Flexible Installation
Mounts on a floor-fixed column, ceiling or wall. Light and compact for fast installation at reasonable cost, very quiet operation.
04
Add a Lifting Device
Combine with a gripper and Bal-Trol (pneumatic cylinder). Runs on compressed air for minimal energy cost — idle time costs nothing.
Typical applications: Workstations needing 4 m coverage, areas where overhead crane rail cannot be installed, heavy-duty machine shops, packaging plants, lines lifting drums/rolls/flat sheets up to 100 kg.
