Overhead Rail, Electric Hoist for Rolls

Material rolls are round, heavy, and prone to rolling away — setting one down on the floor scuffs the edge. Lifting a roll onto the machine by hand is slow and dangerous, especially over the full length of the plant. Narrow aisles also make it hard for forklifts to maneuver.

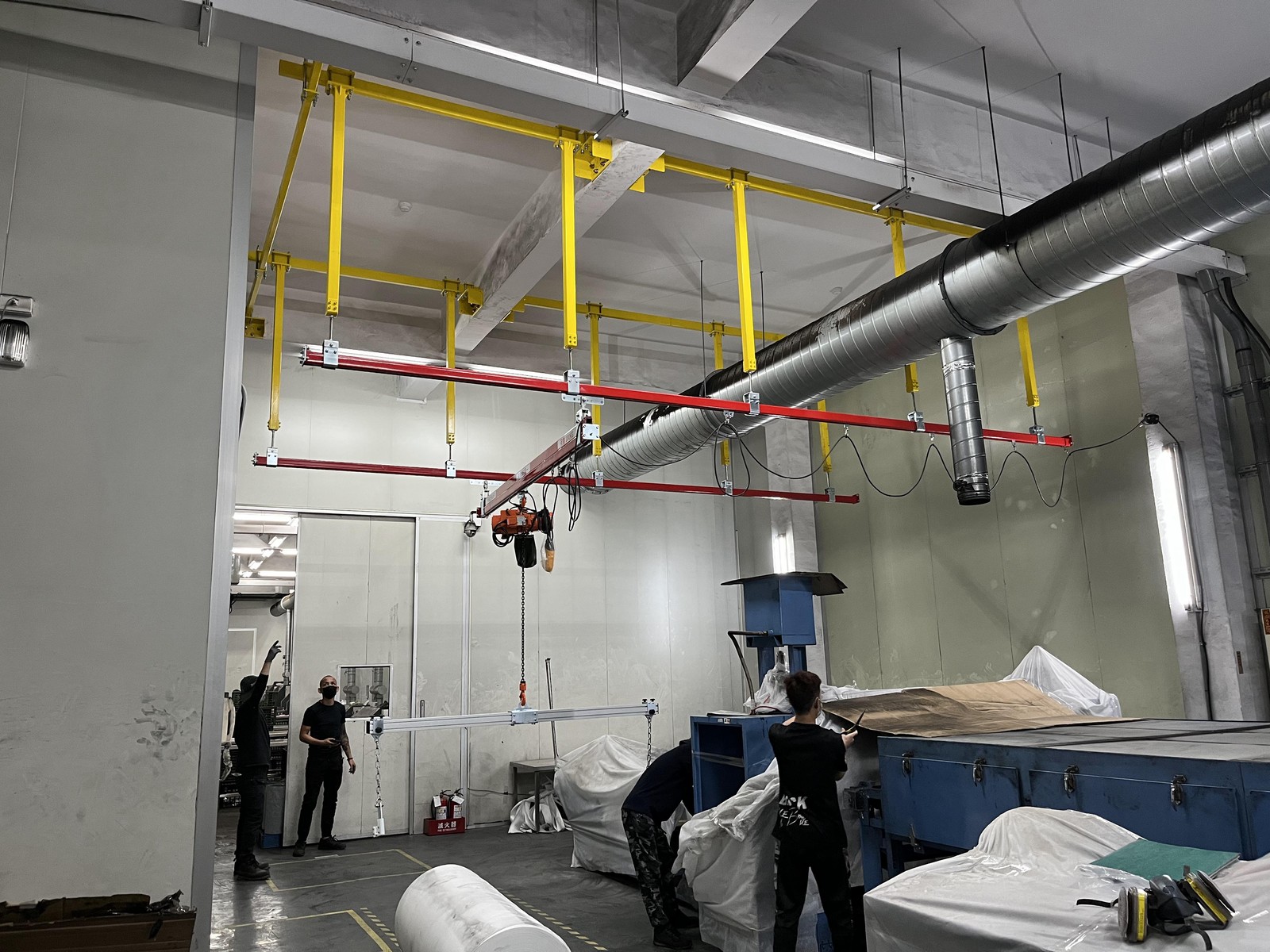

FullSharp installed an overhead rail running along the production line, carrying an electric hoist and a roll-hanging fork. The roll is hooked on, lifted with a button press, and pushed along the rail to the right machine. The whole system sits overhead, keeping the floor clear.

Overhead Rail and Electric Hoist for Lifting Material Rolls

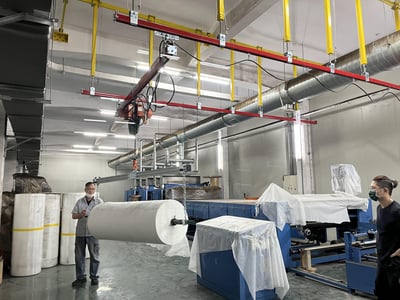

Overhead rail with electric hoist and hanging fork lifting a material roll in the plant.

Equipment Installed

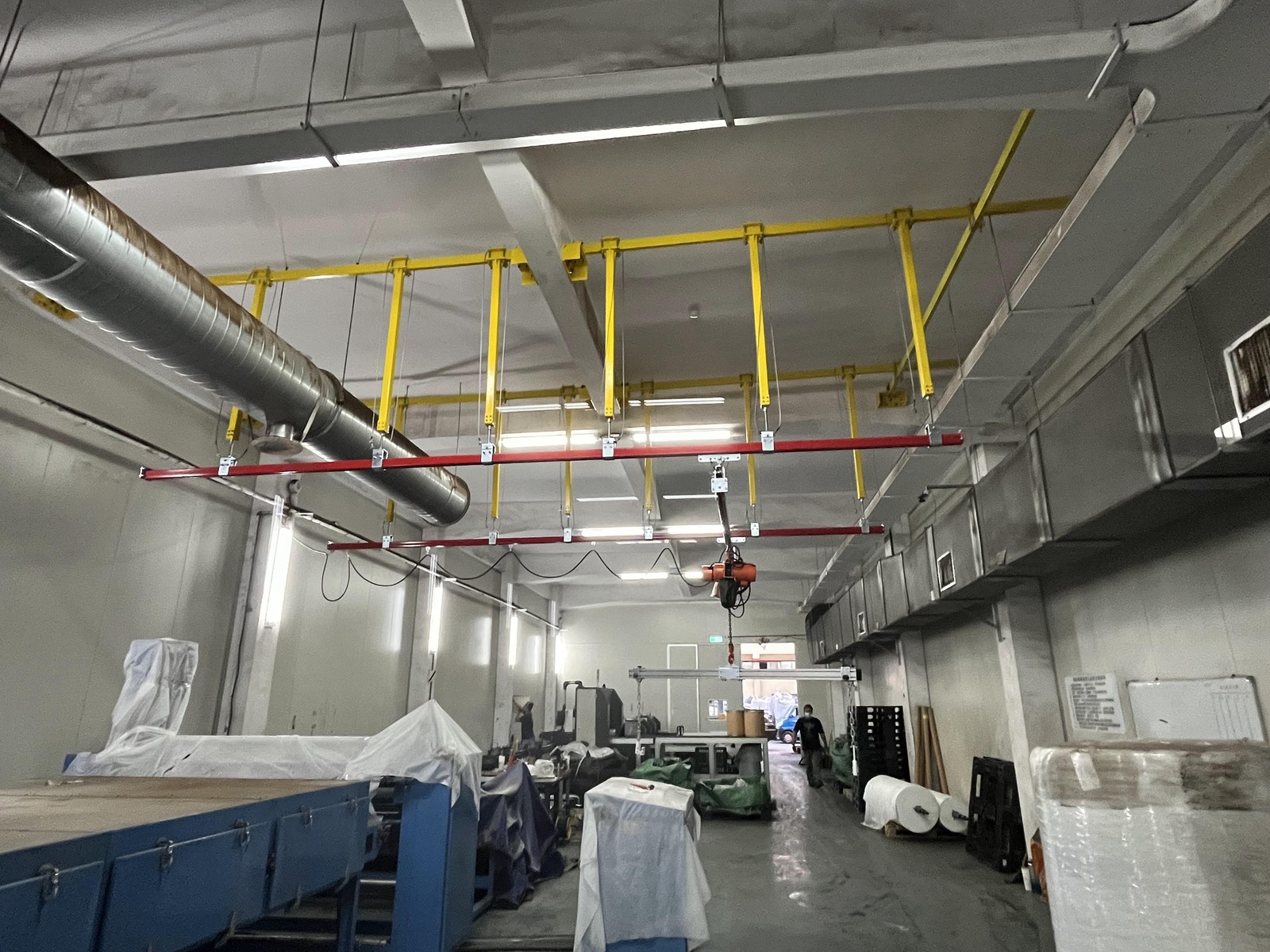

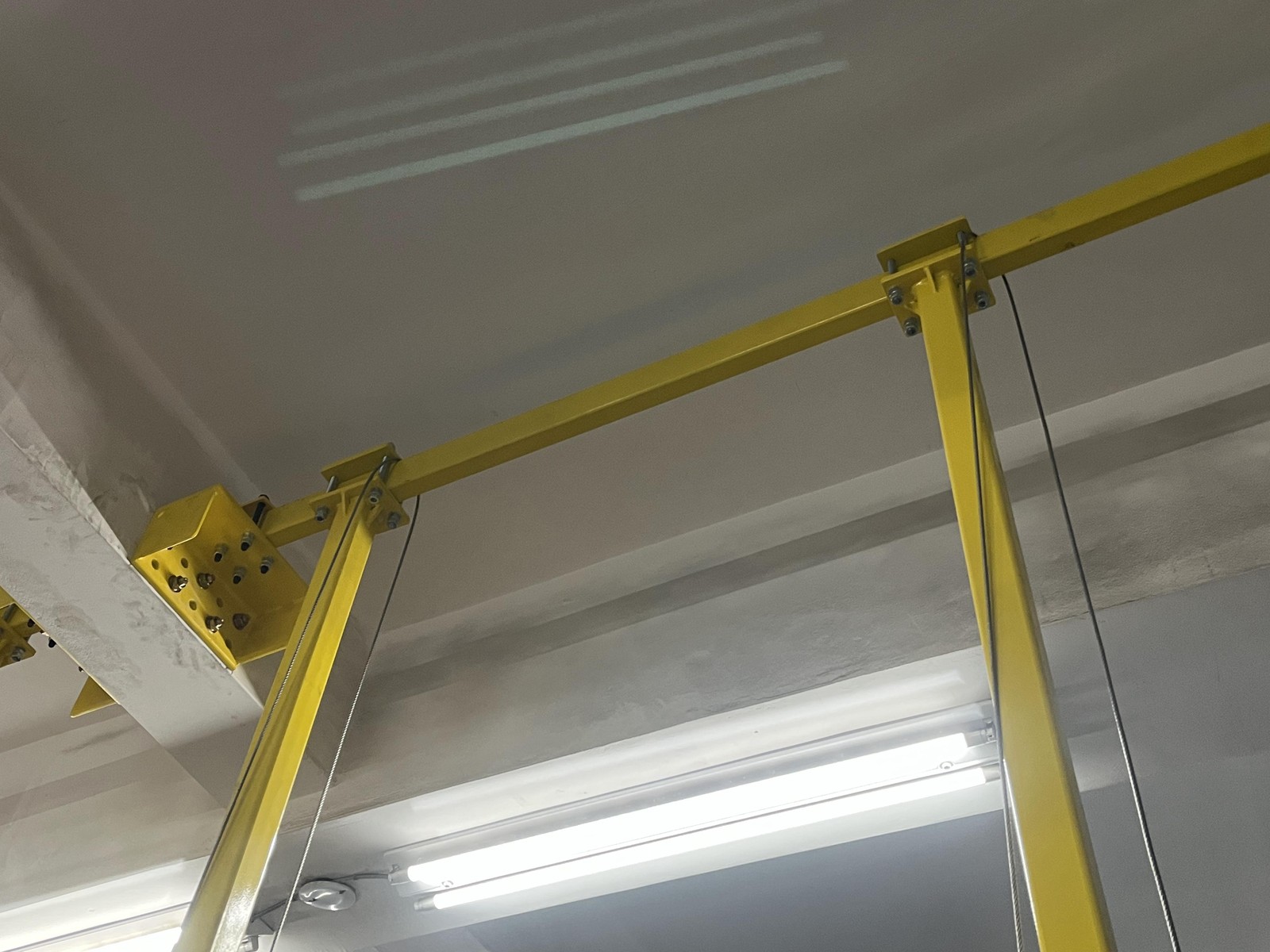

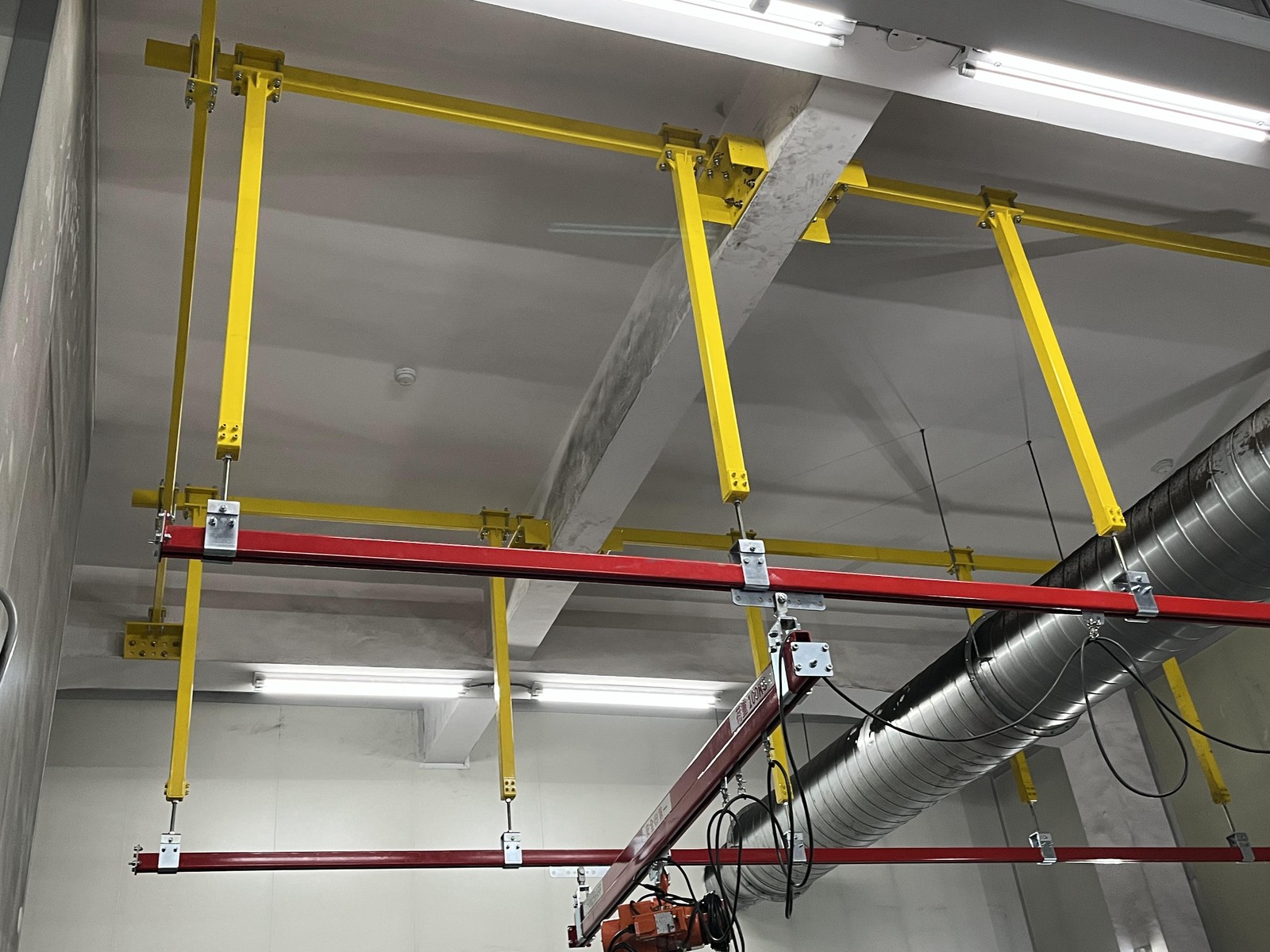

Overhead rail: mounted to the ceiling structure along the production line, taking up no floor space.
Electric hoist: lifts and lowers with a button, brake holds the load, slow descent when seating the roll into the machine.

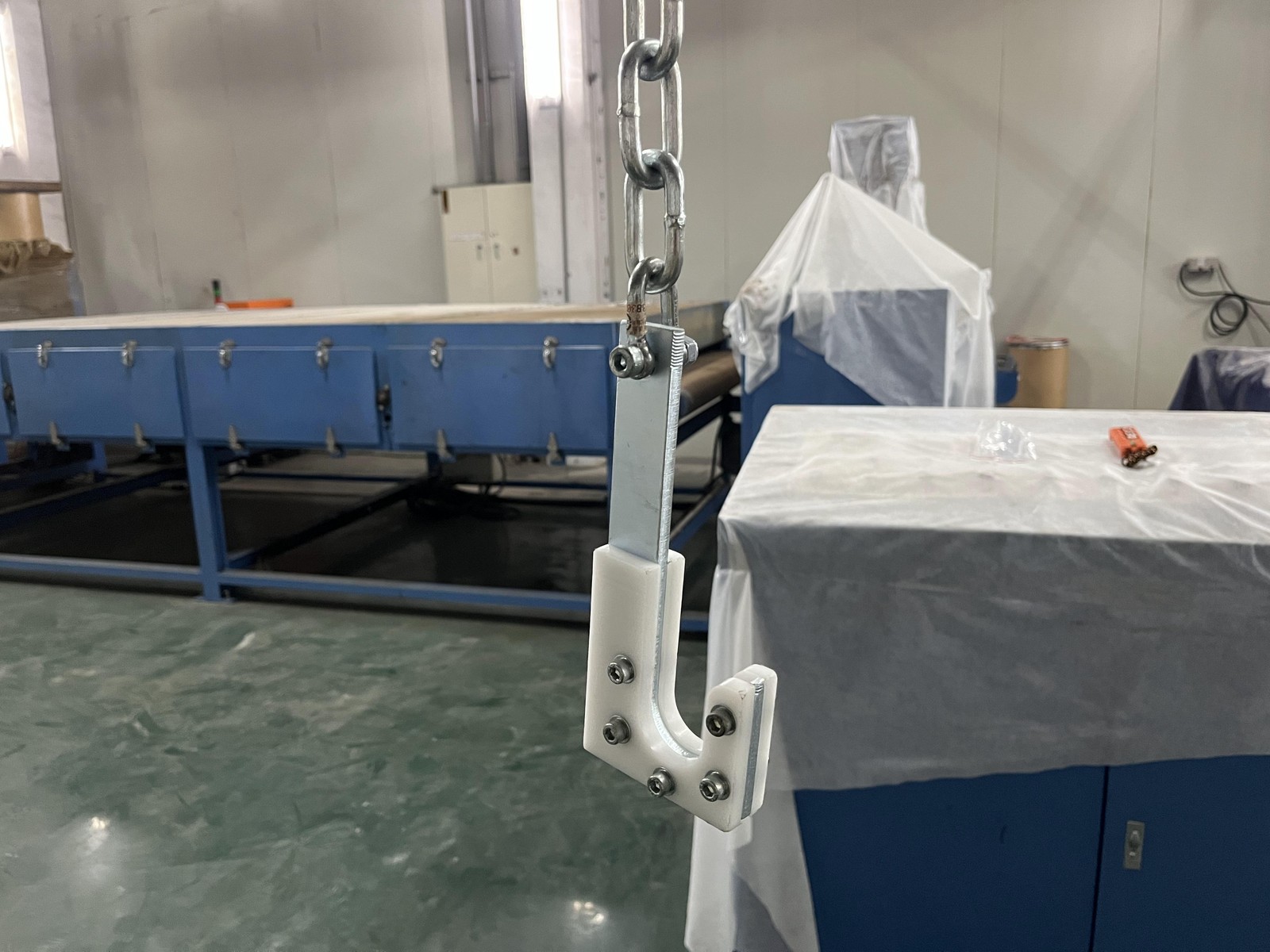

Roll-hanging fork: passes through the core or cradles the roll body, keeping it balanced and preventing it from rolling.
Trolley running along the rail: smooth rollers, a light push moves the roll the full length of the line.

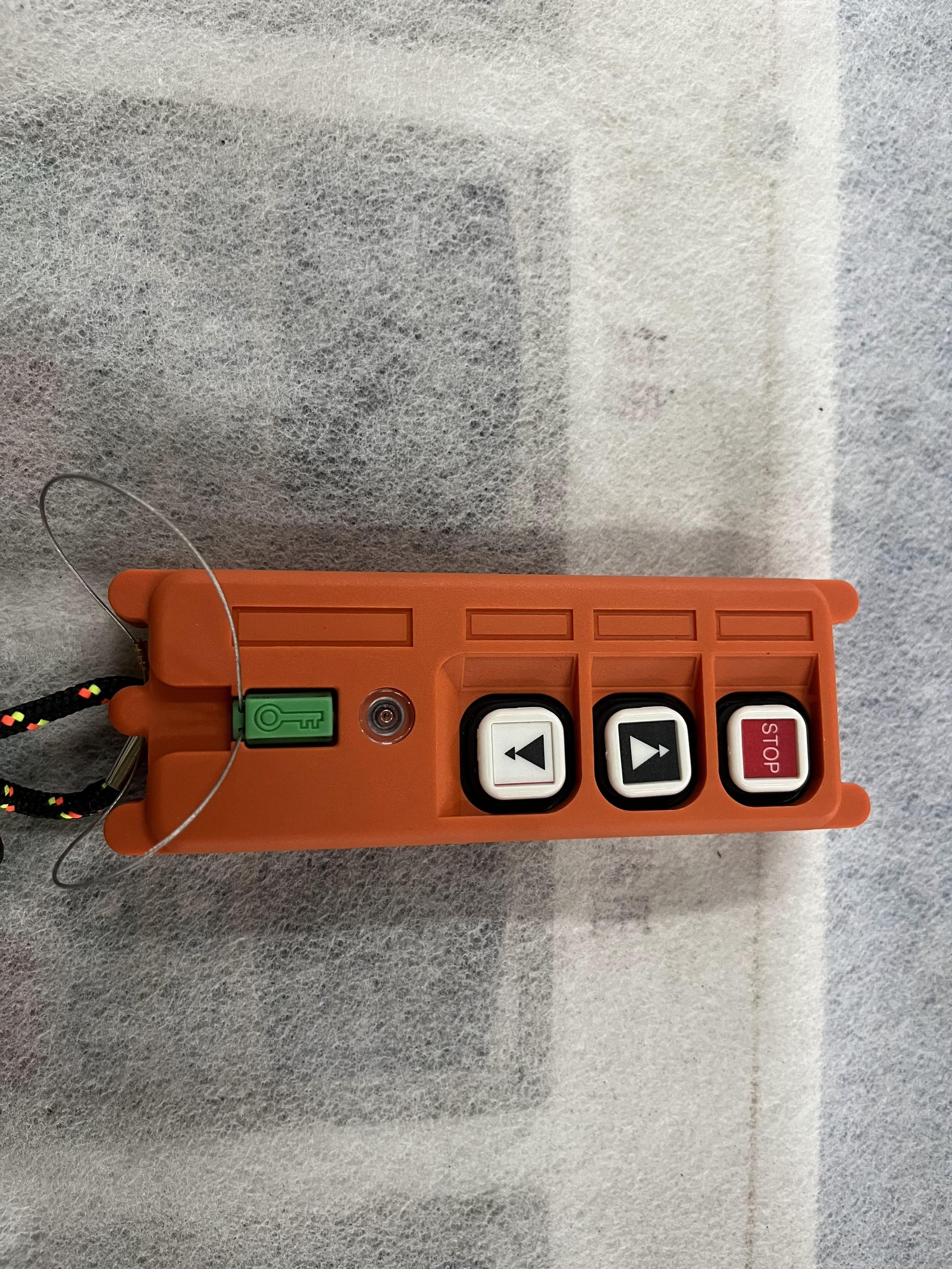

Pendant control box: the operator walks beside the load, watching and controlling it at the same time.

Benefits for Your Facility

Protects roll edges

The roll stays suspended the whole way, so the edges and outer layer are never damaged on the floor.

Follows a fixed path

The rail guides the load straight to the machine without blocking the aisle used by trolleys.

Fewer workers needed

One person lifts and delivers the roll, replacing a team of several carrying and pushing it.

Real Installation Photos

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 1

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 2

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 3

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 4

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 5

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 6

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 7

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 8

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 9

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 10

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 11

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 12

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 13

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 14

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 15

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 16

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 17

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 18

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 19

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 20

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 21

Overhead Rail and Electric Hoist for Lifting Material Rolls - ảnh 22

Click a photo to enlarge. Album of 22 photos taken on site.

Suitable Applications

Paper, fabric, and plastic film roll plants
Warehouses storing heavy material rolls
Industrial production and packaging lines
Plants needing lifting along a fixed path

Installation Consultation for Your Facility

FullSharp measures the roll's diameter, width, and weight to select the hanging fork and hoist capacity. Our technicians also survey the plant ceiling, the spacing between mounting points, and the rail length required. Contact FullSharp to schedule a survey date.
