5T Rail Ceiling Mount with KITO Hoist 100 kg

This area only needs to lift around 100 kg along a short run, but the floor is too tight to install a jib crane post. A makeshift winch or a hoist hooked onto an improvised steel bar is unsafe and cannot travel along the line.

FullSharp installed a ceiling-mounted model 5T light rail along the exact working line and fitted a KITO hand chain hoist running on a trolley. Pulling the chain lifts the load, and a gentle push slides the hoist along the rail. The entire load rests on the ceiling structure, so the workshop floor stays clear.

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity

Ceiling-mounted 5T light rail with a KITO hand chain hoist fitted on the trolley.

Installed Equipment

Model 5T rail: light-duty steel rail rated for 200 kg, ceiling-mounted with threaded rods and hanger brackets, extendable along the line.
Rail trolley: wheels grip the rail flange, sliding smoothly with a gentle push and staying put wherever it stops.
100 kg KITO hand chain hoist: raised and lowered by hand chain, with a self-locking brake that holds the load at any height.
Rail end stops: stoppers at both ends of the rail keep the trolley from running past its travel range.

Key Specifications

Lifting capacity100 kg
RailModel 5T, 200 kg rated
HoistKITO hand chain hoist
Mounting typeCeiling-mounted

Benefits for Your Plant

Keeps the floor clear

The entire hoisting system hangs from the ceiling along the exact line needed. Carts and walkways below stay unobstructed.

Fast installation, minimal downtime

The light rail just bolts to hanger rods — no foundation work needed. The plant barely has to pause production.

Holds the load securely

The KITO hoist's self-locking brake keeps loads safe even when stopped mid-lift. No electricity required to operate.

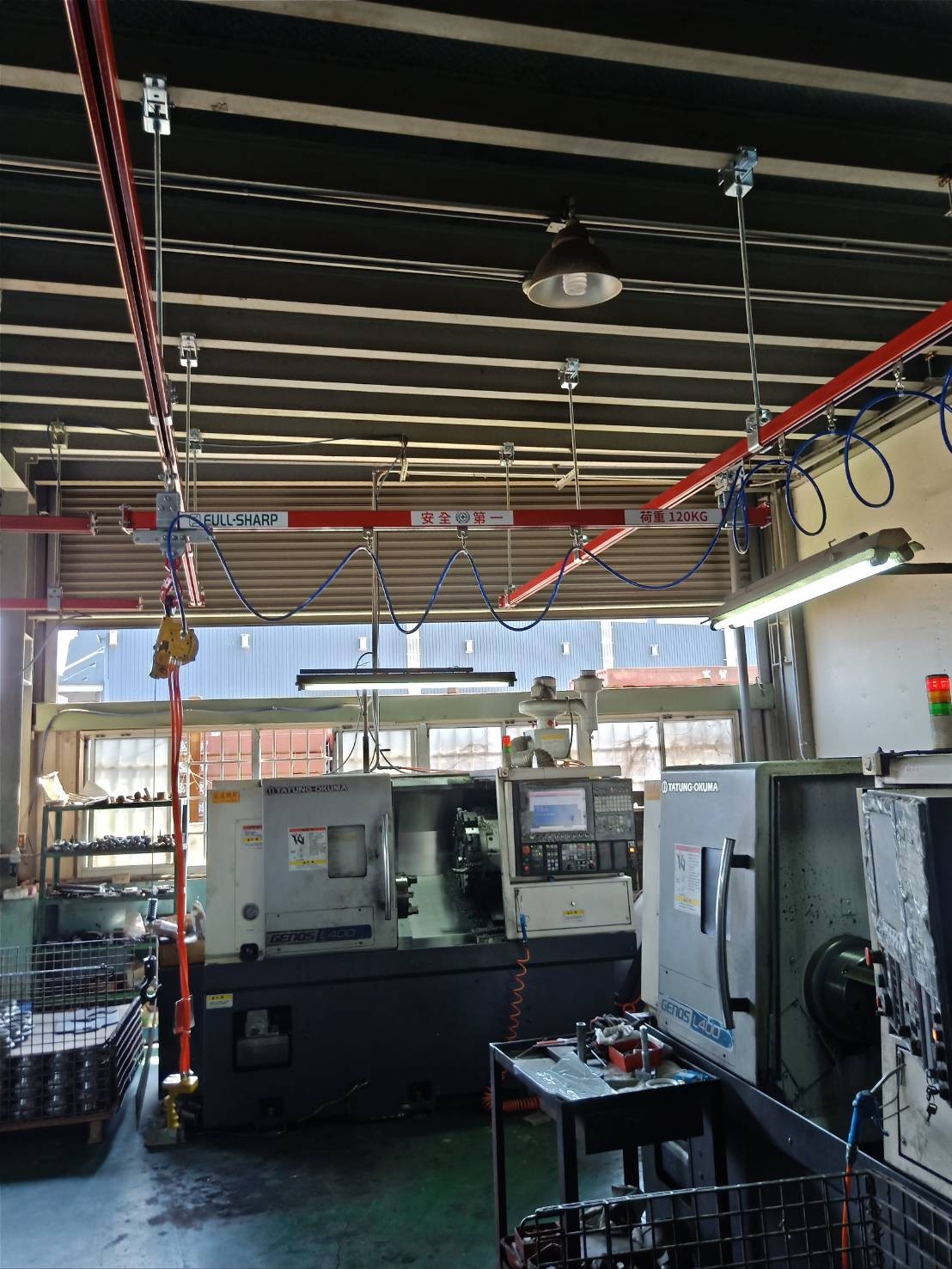

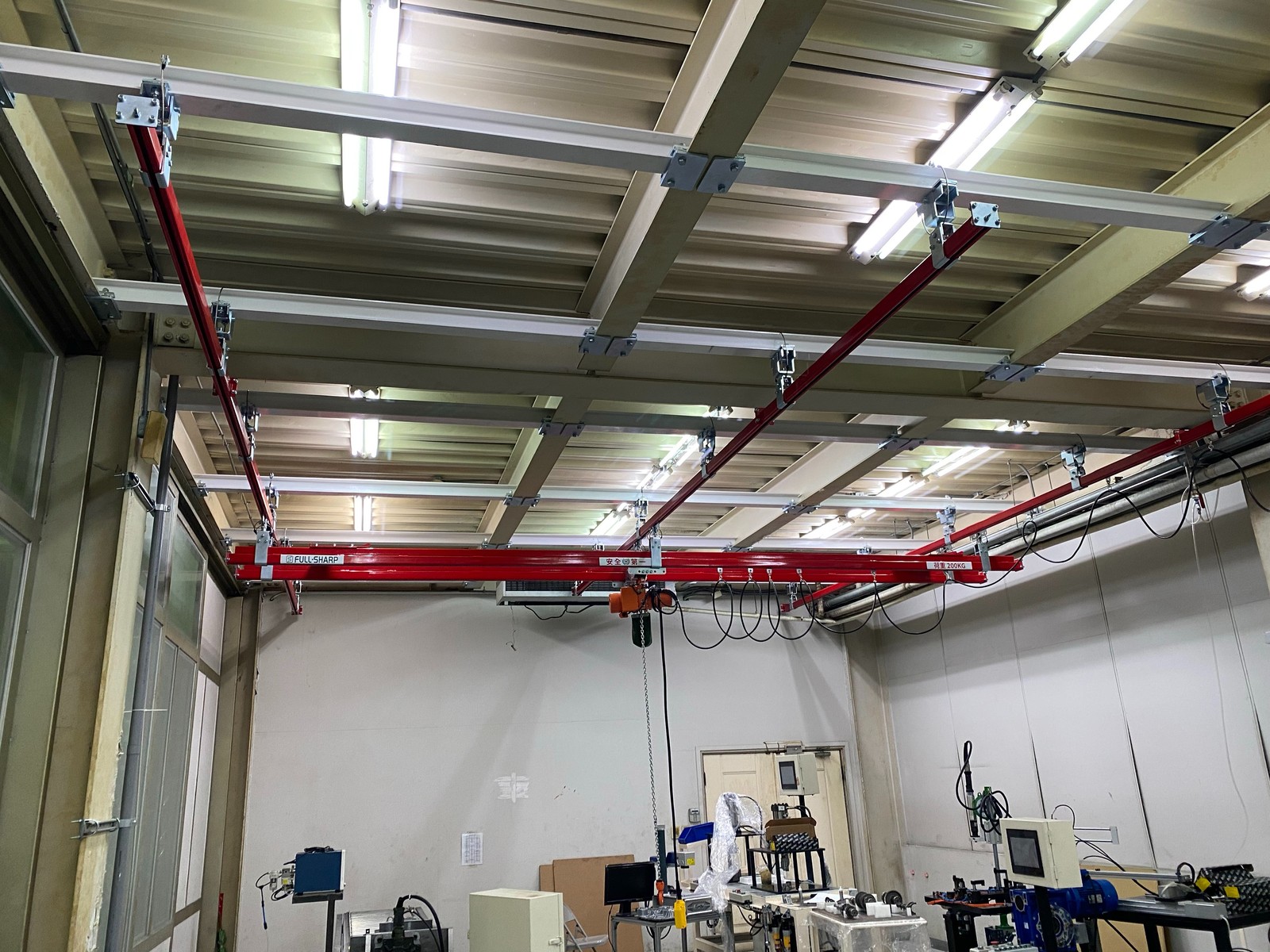

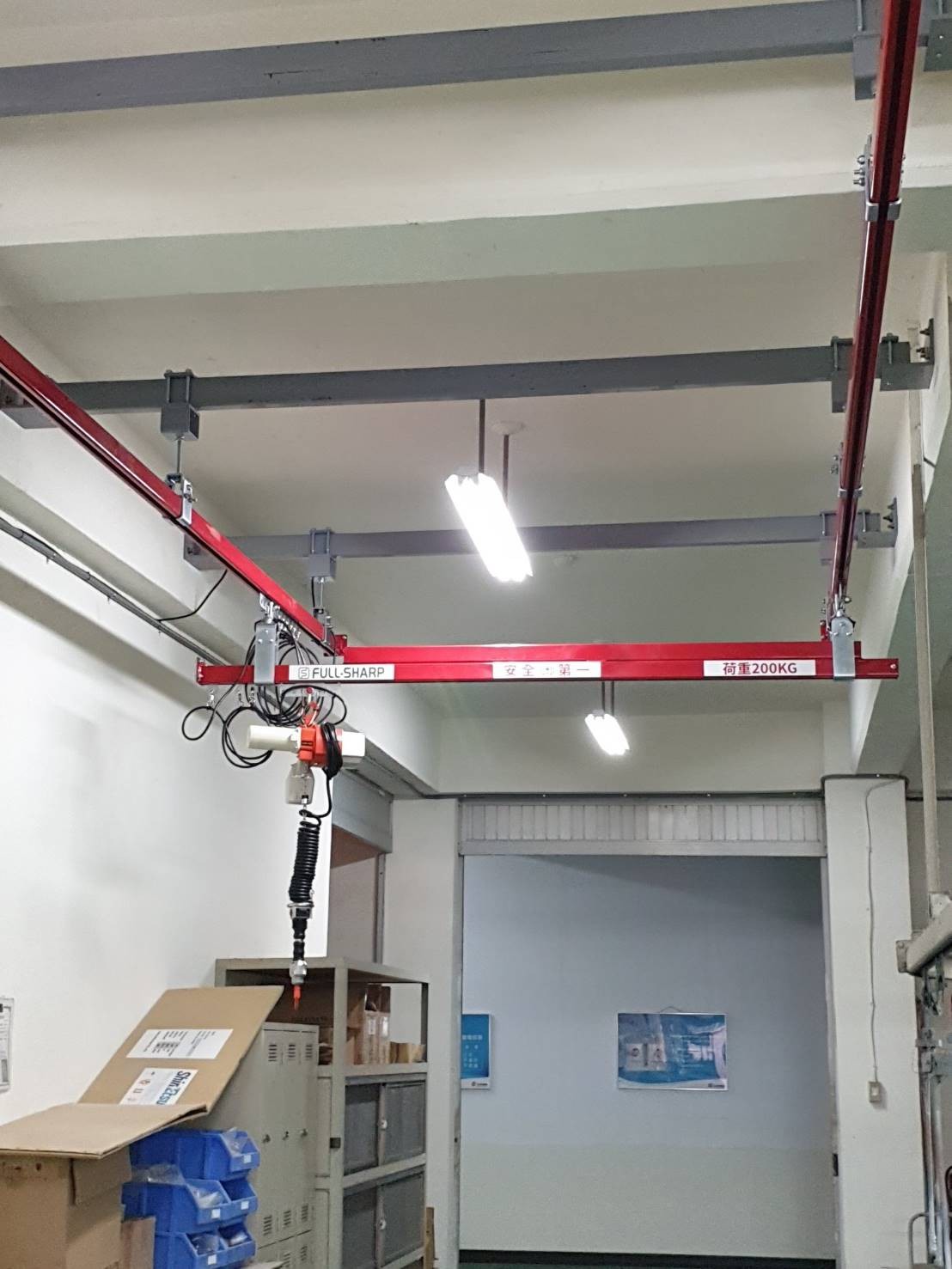

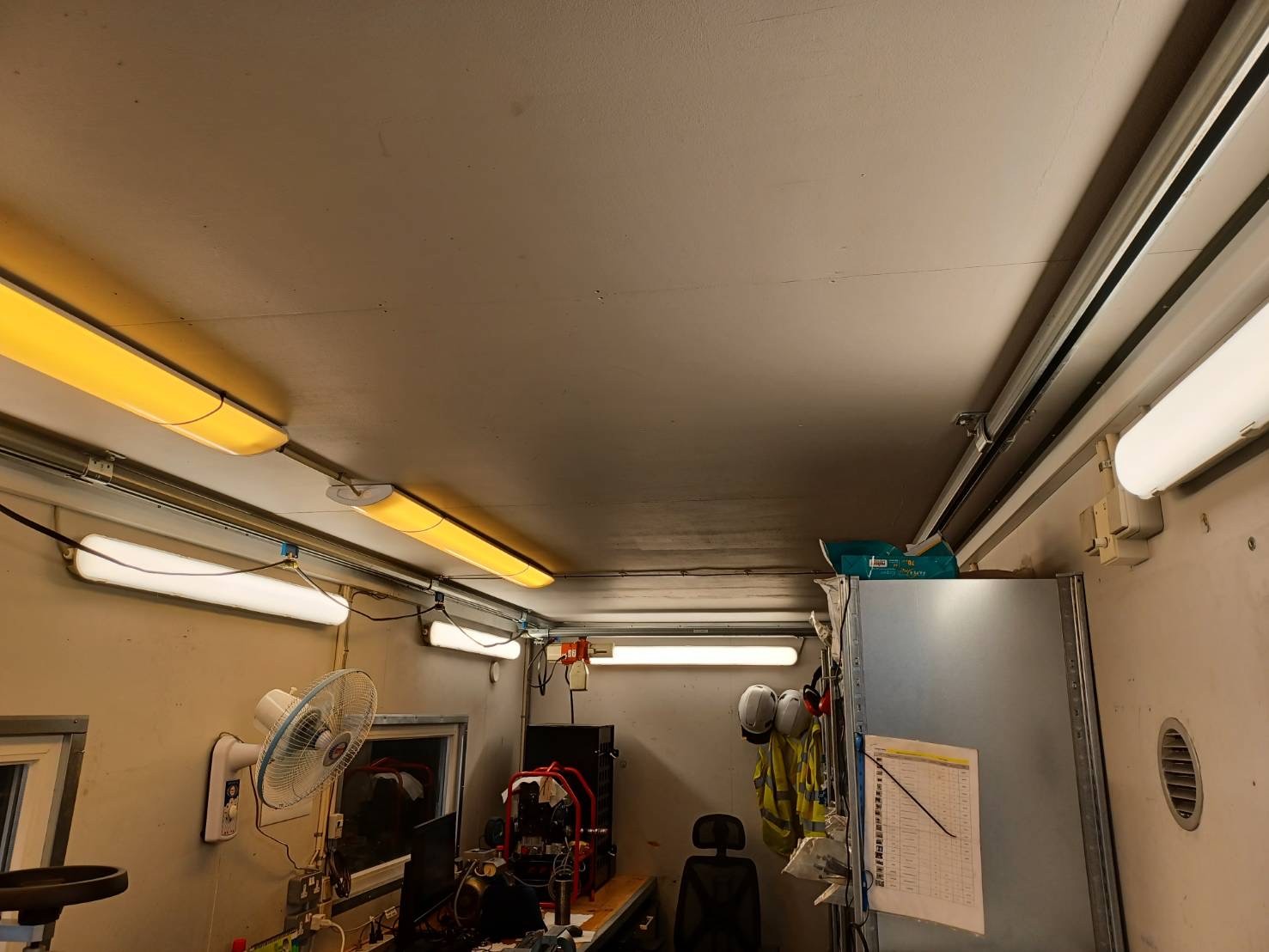

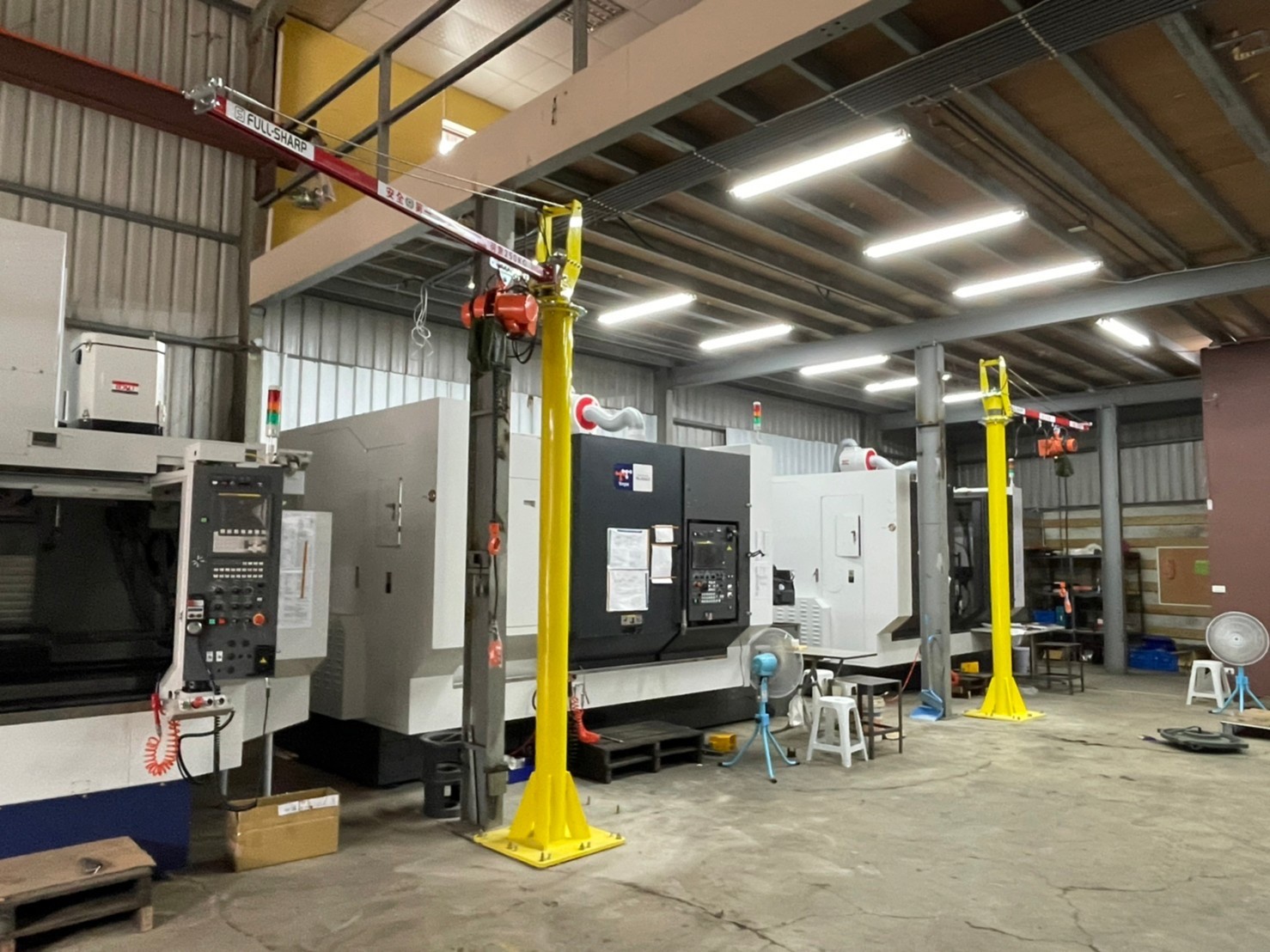

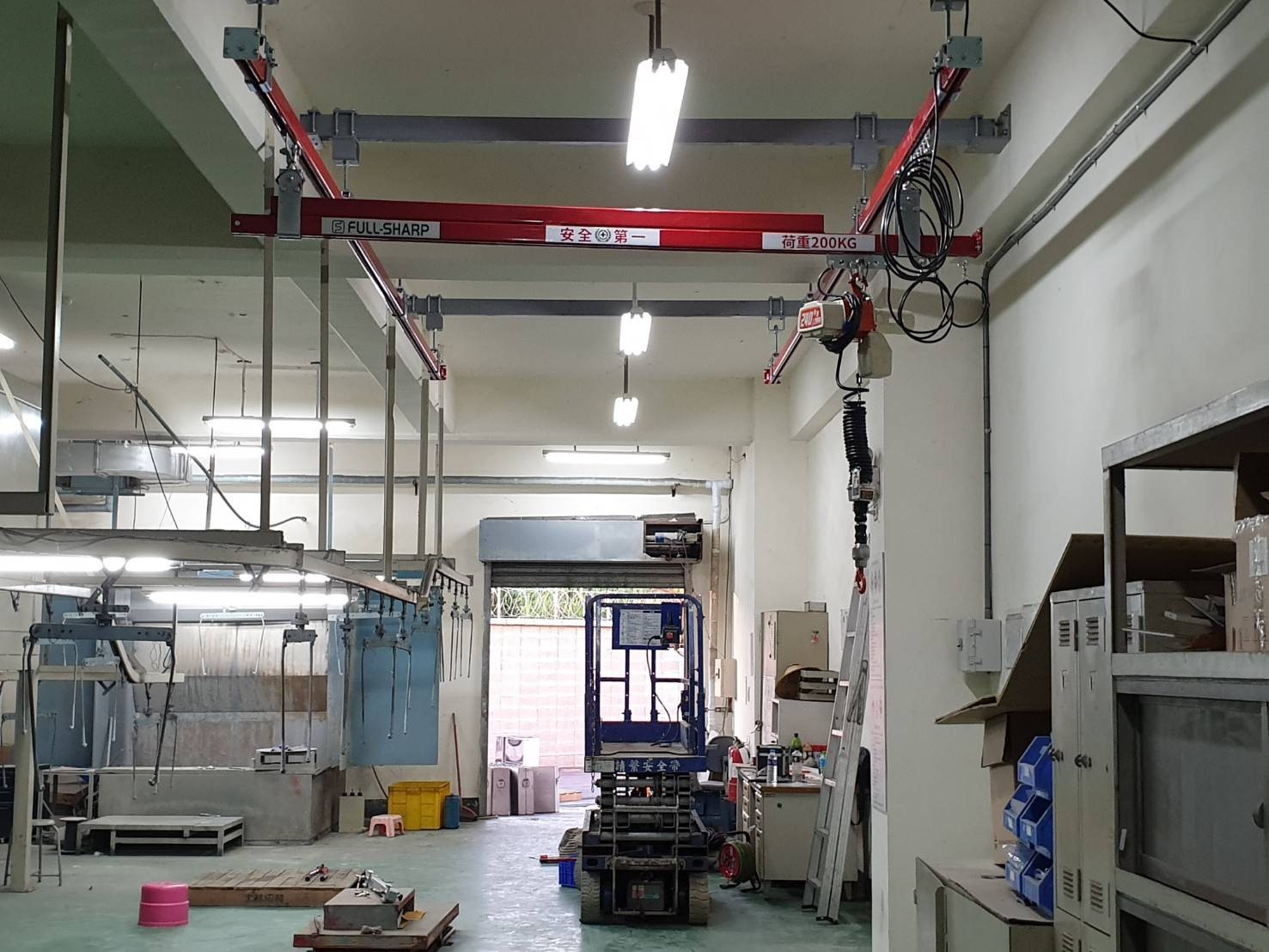

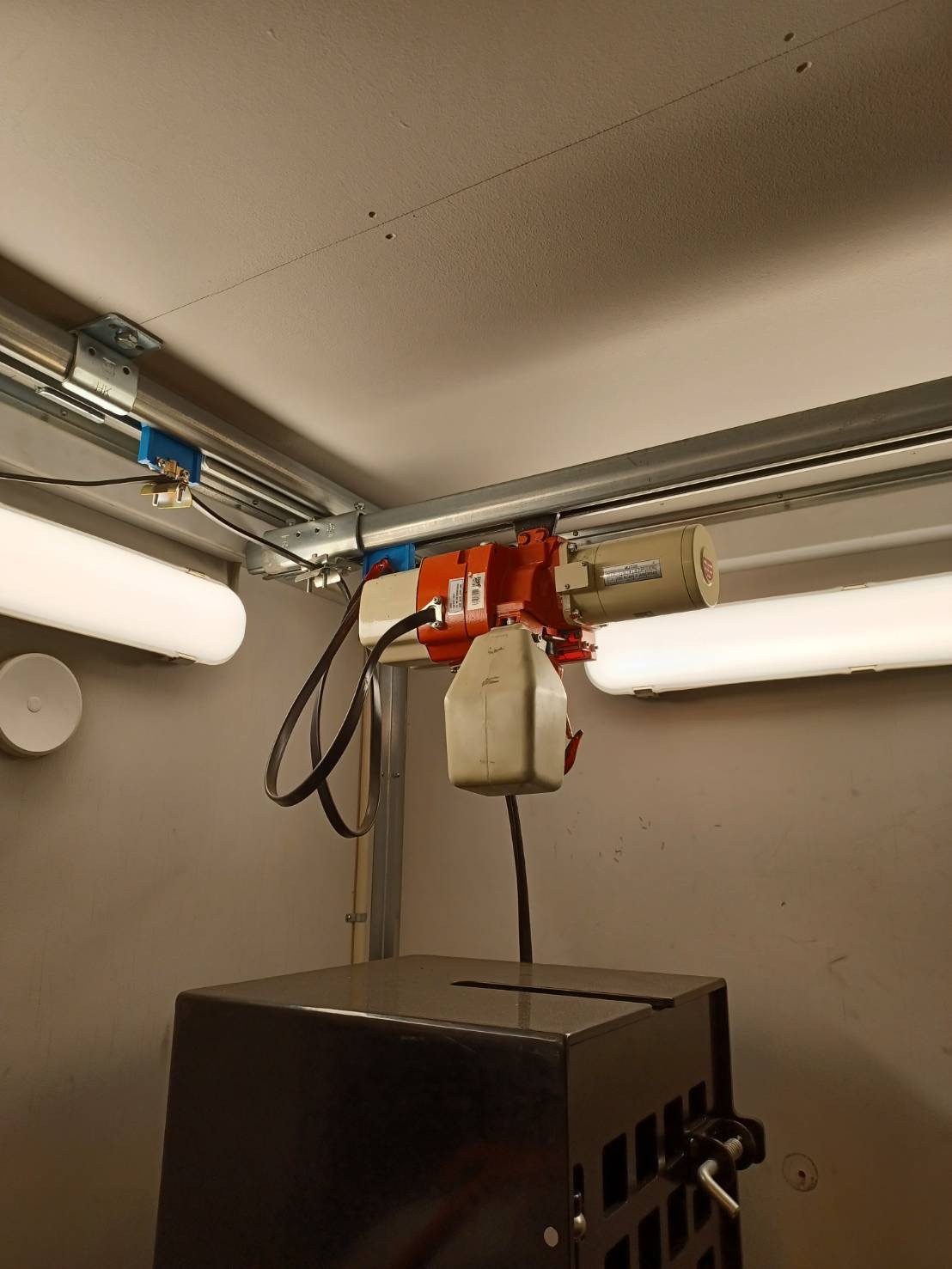

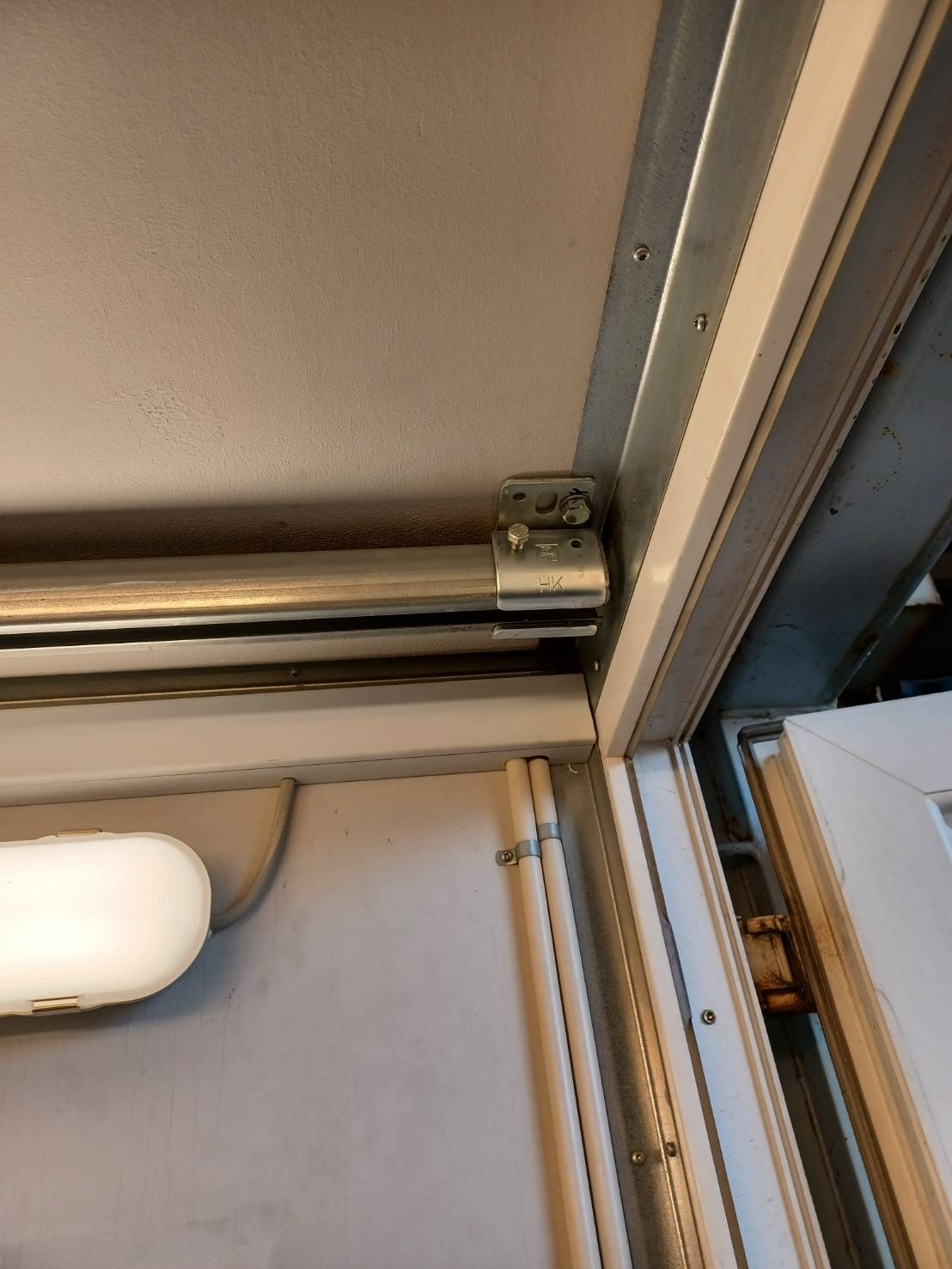

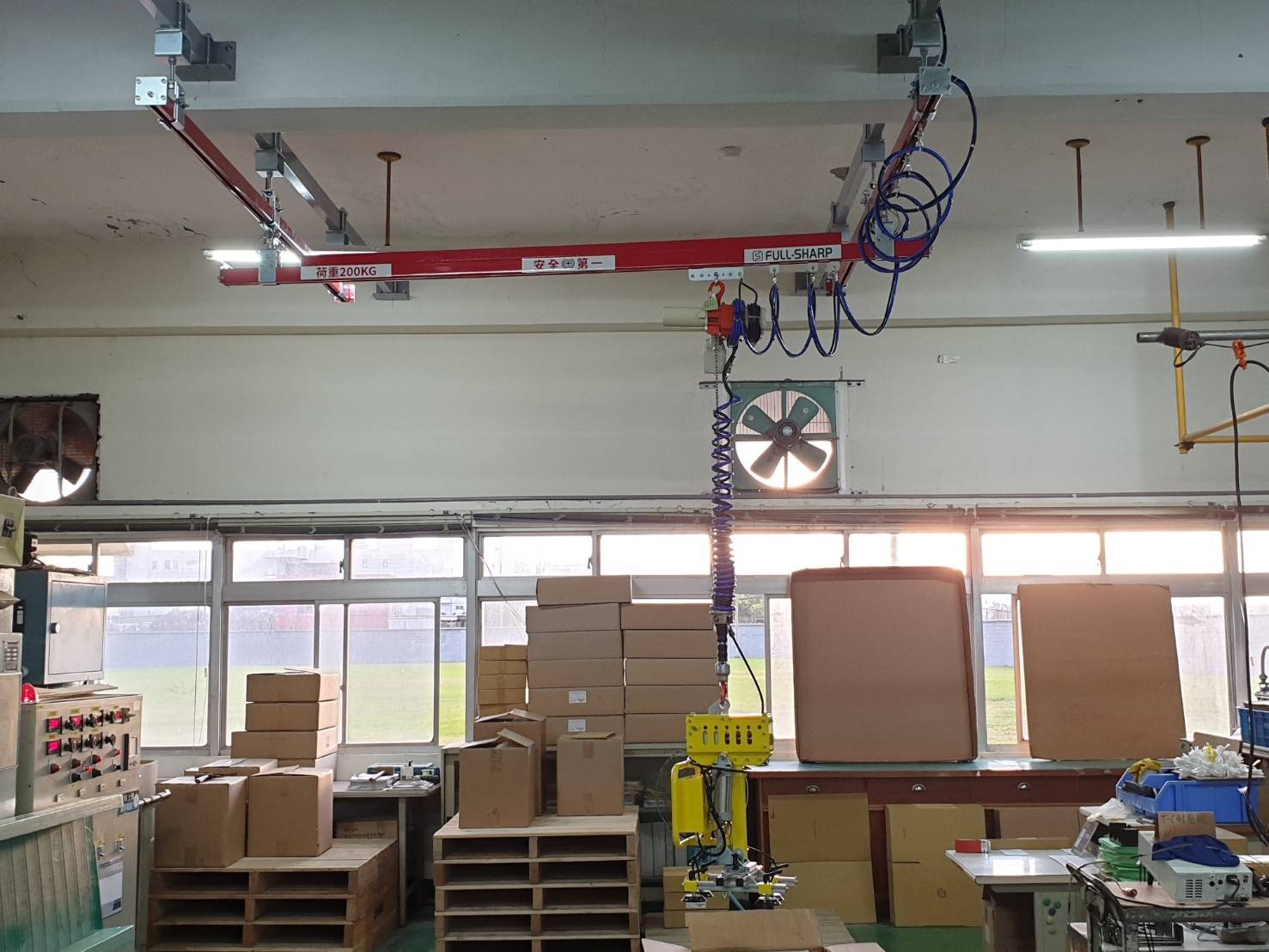

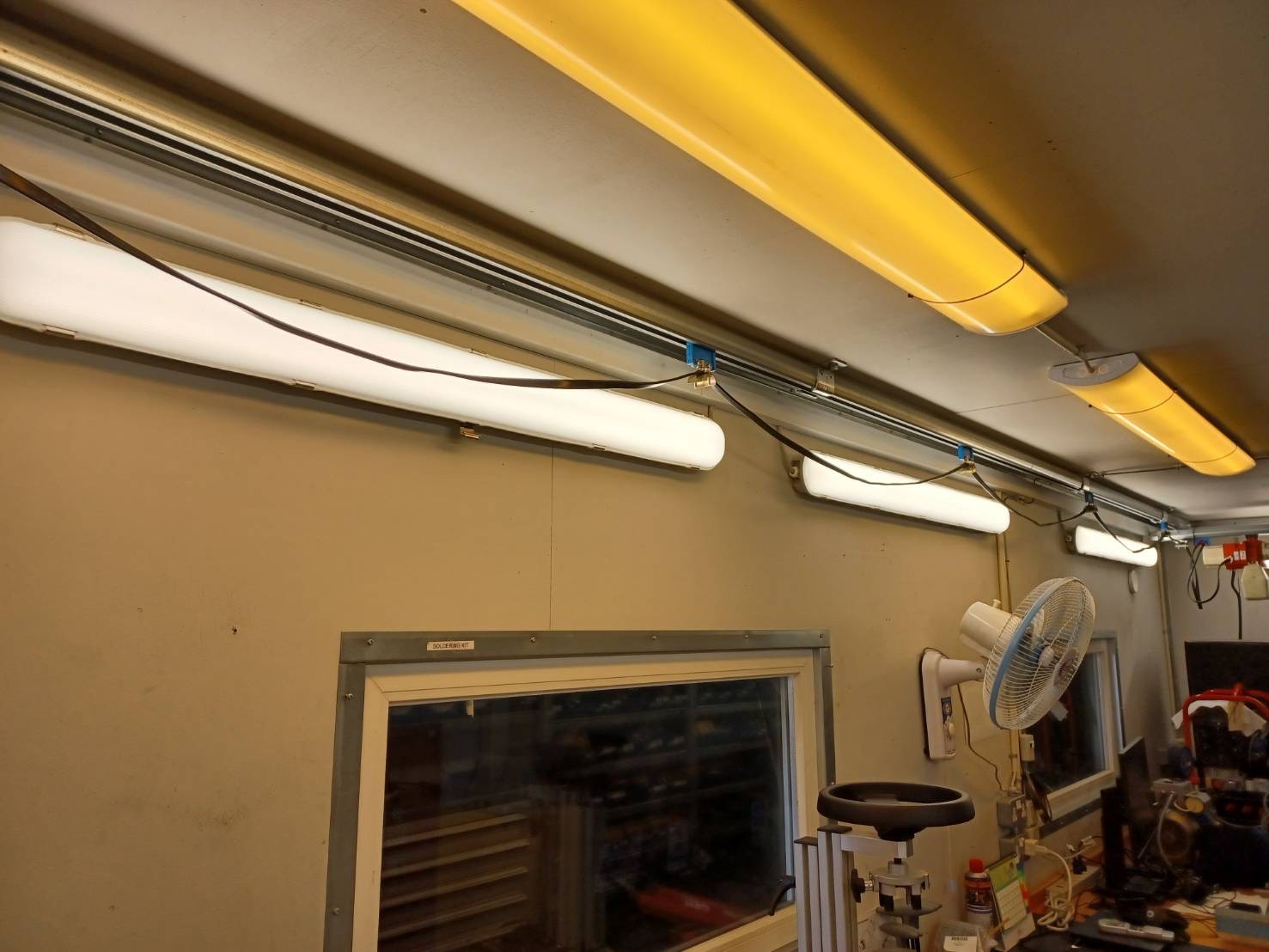

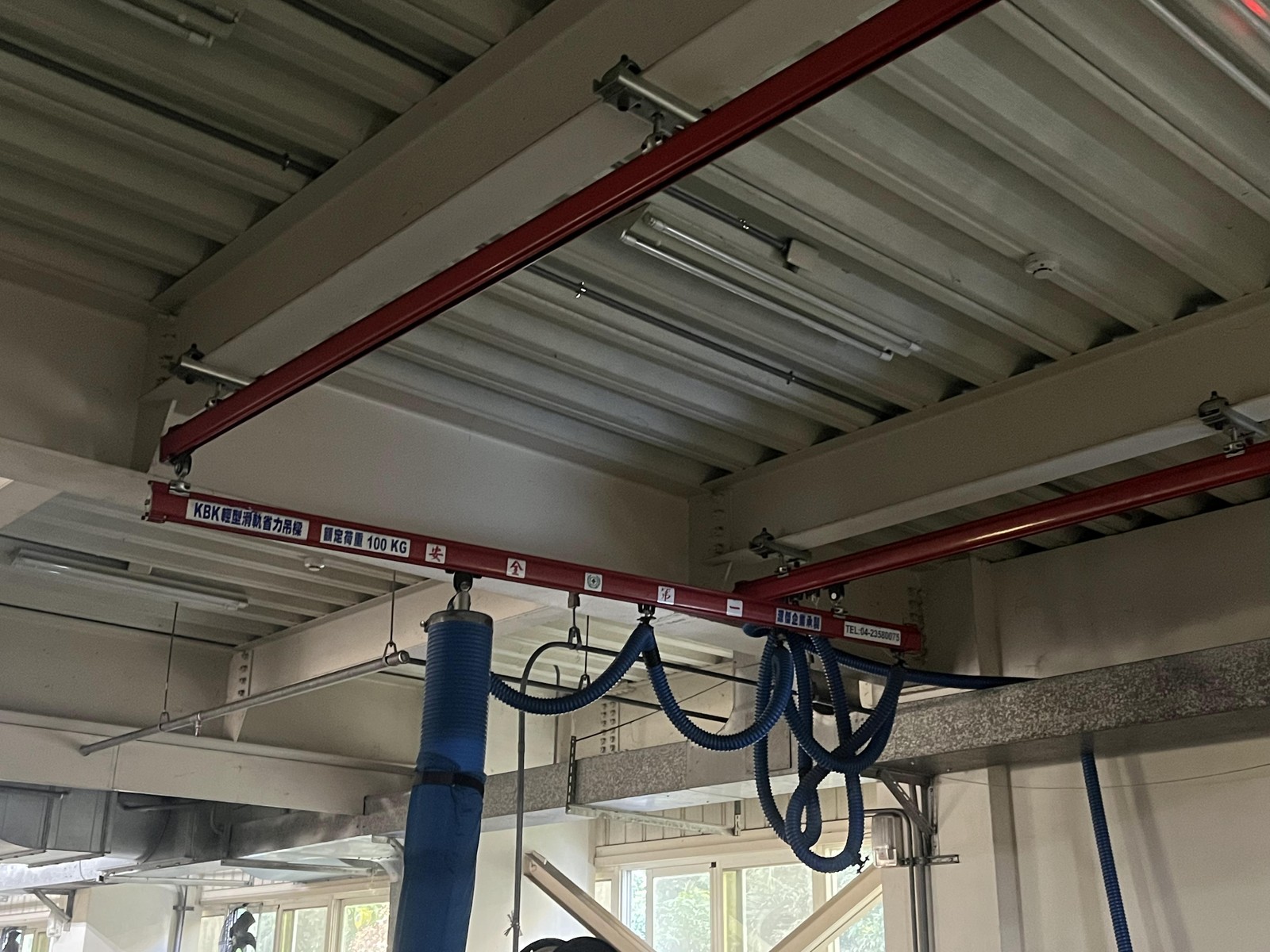

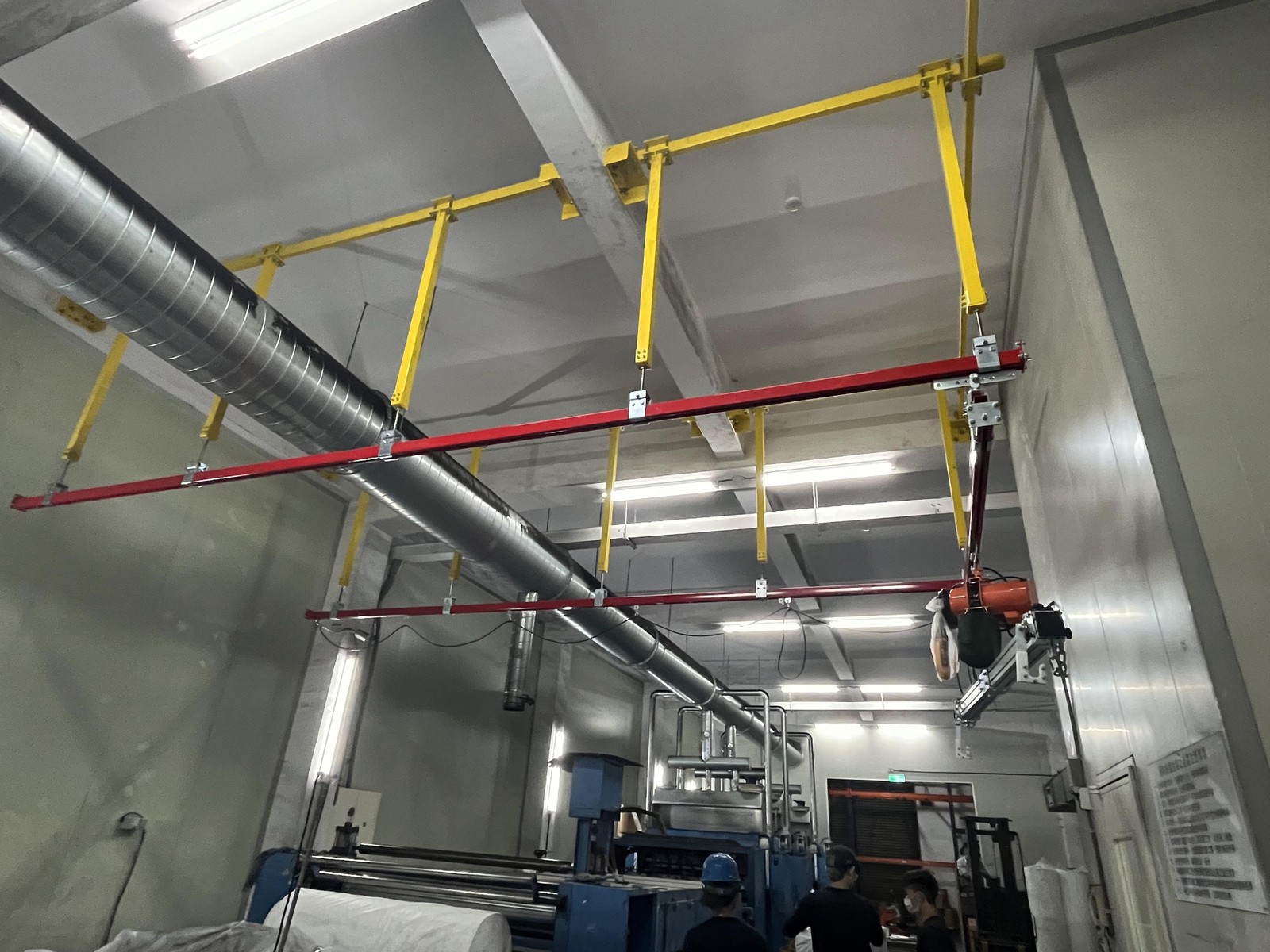

Installation Photos

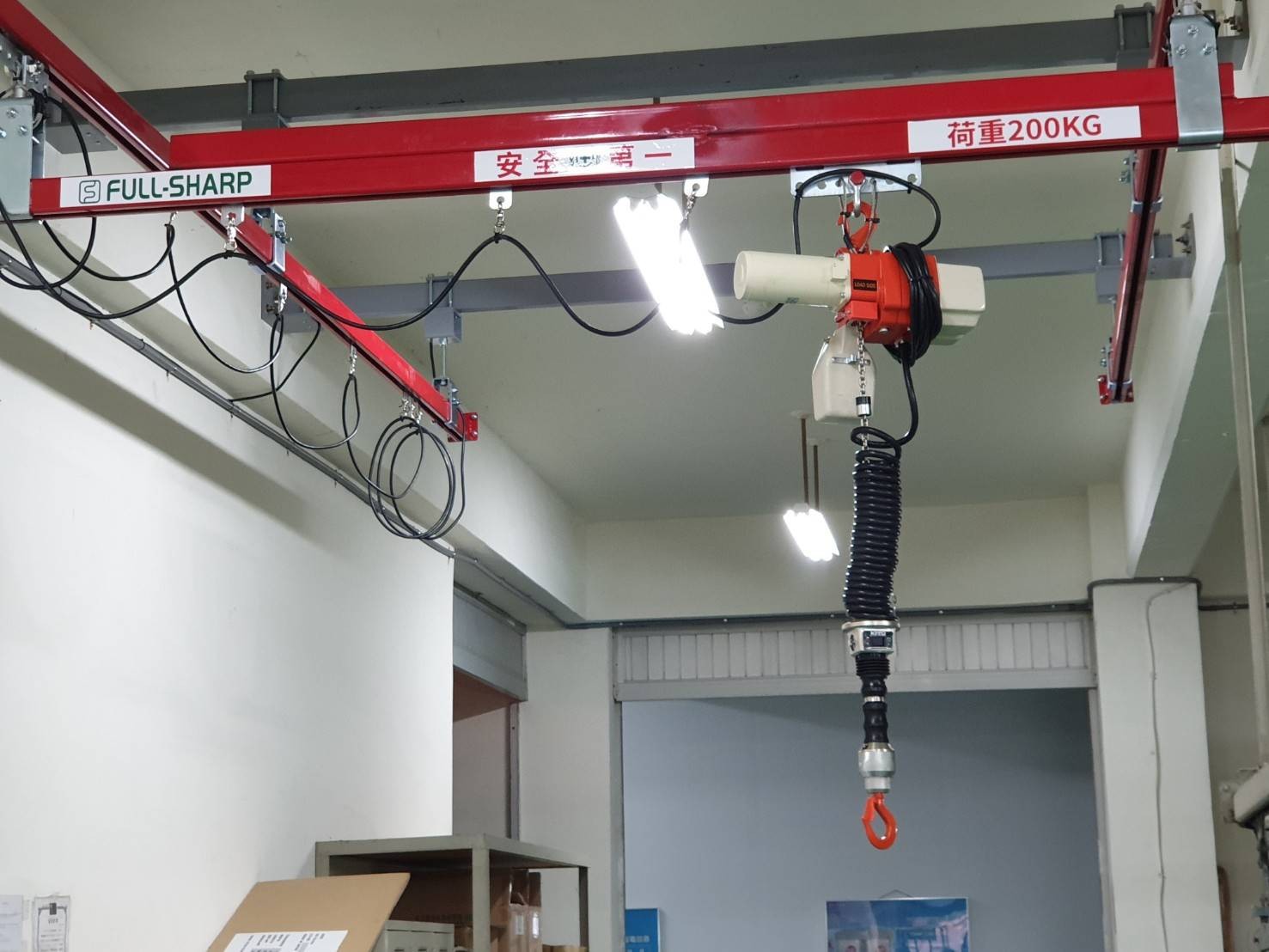

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 1

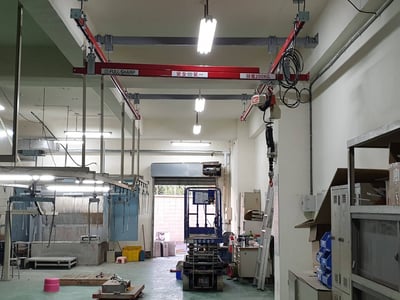

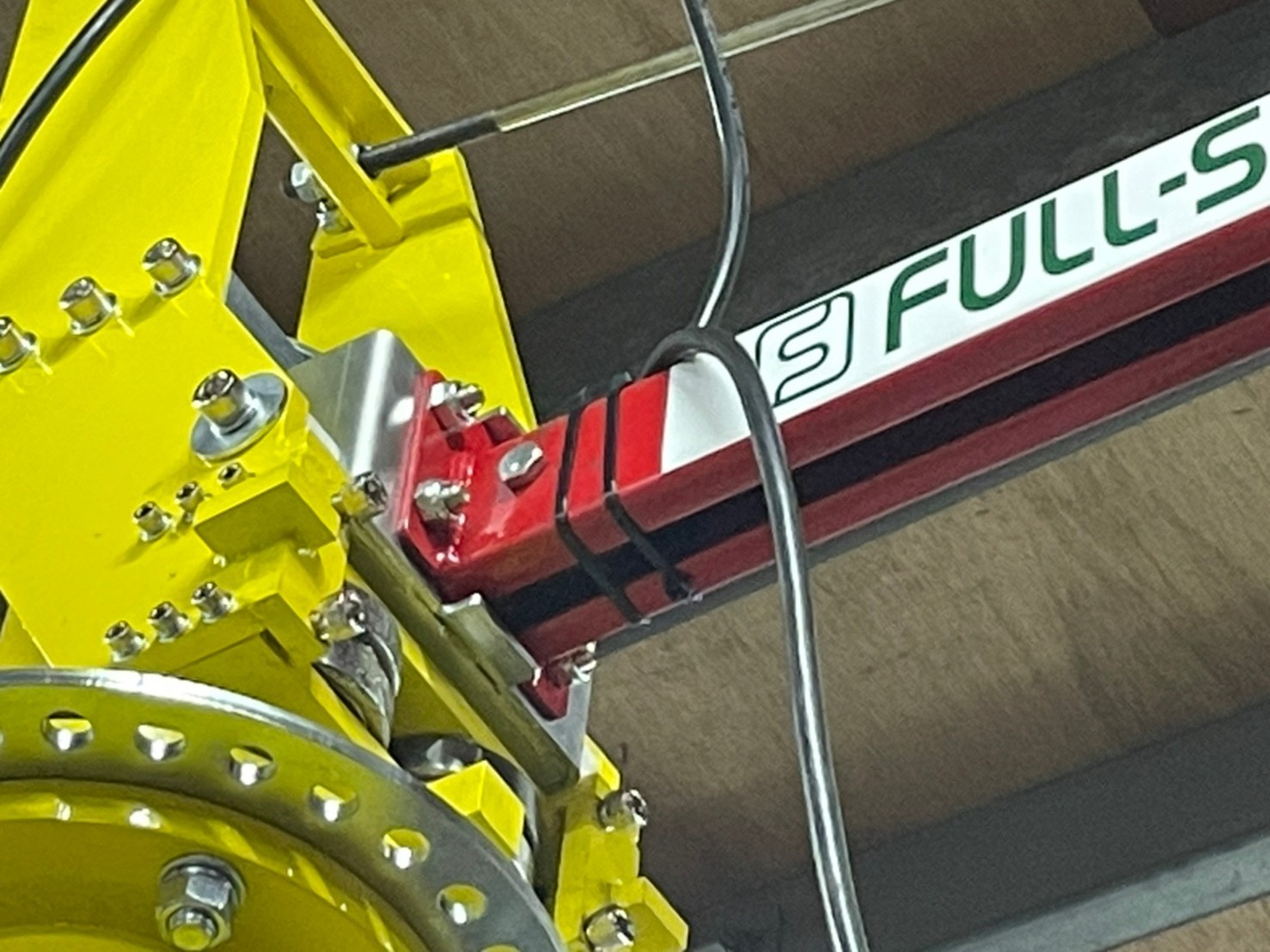

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 2

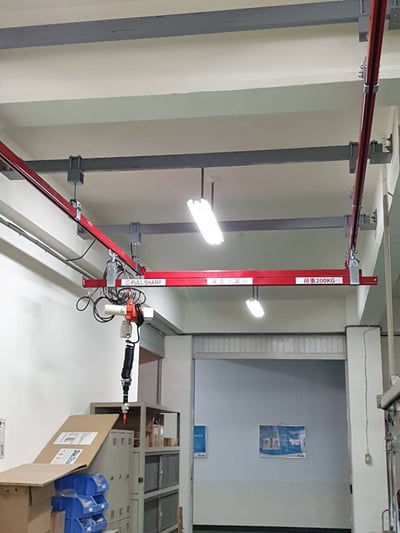

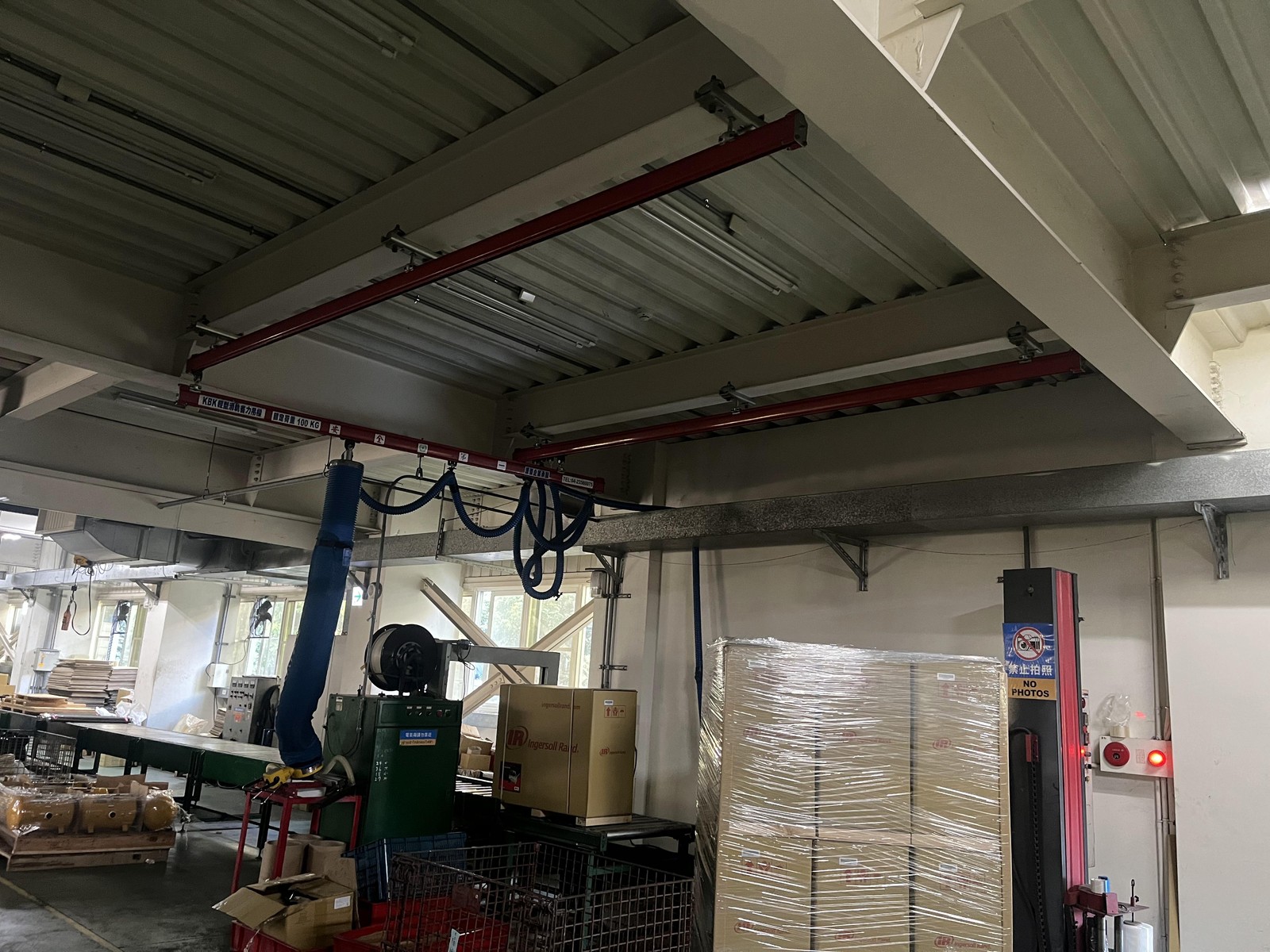

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 3

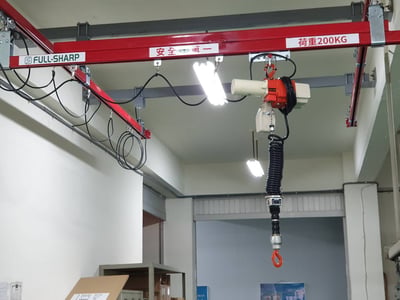

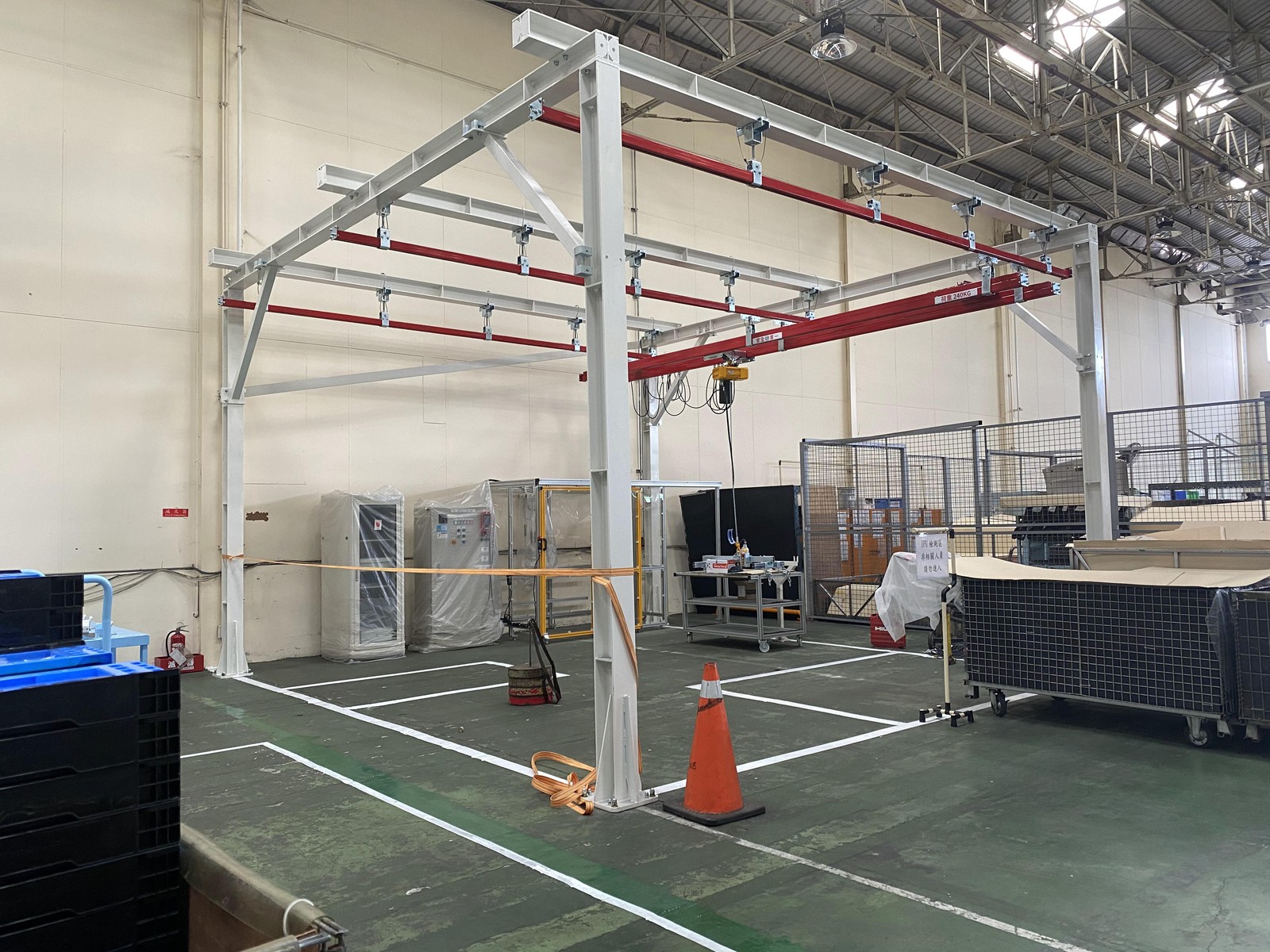

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 4

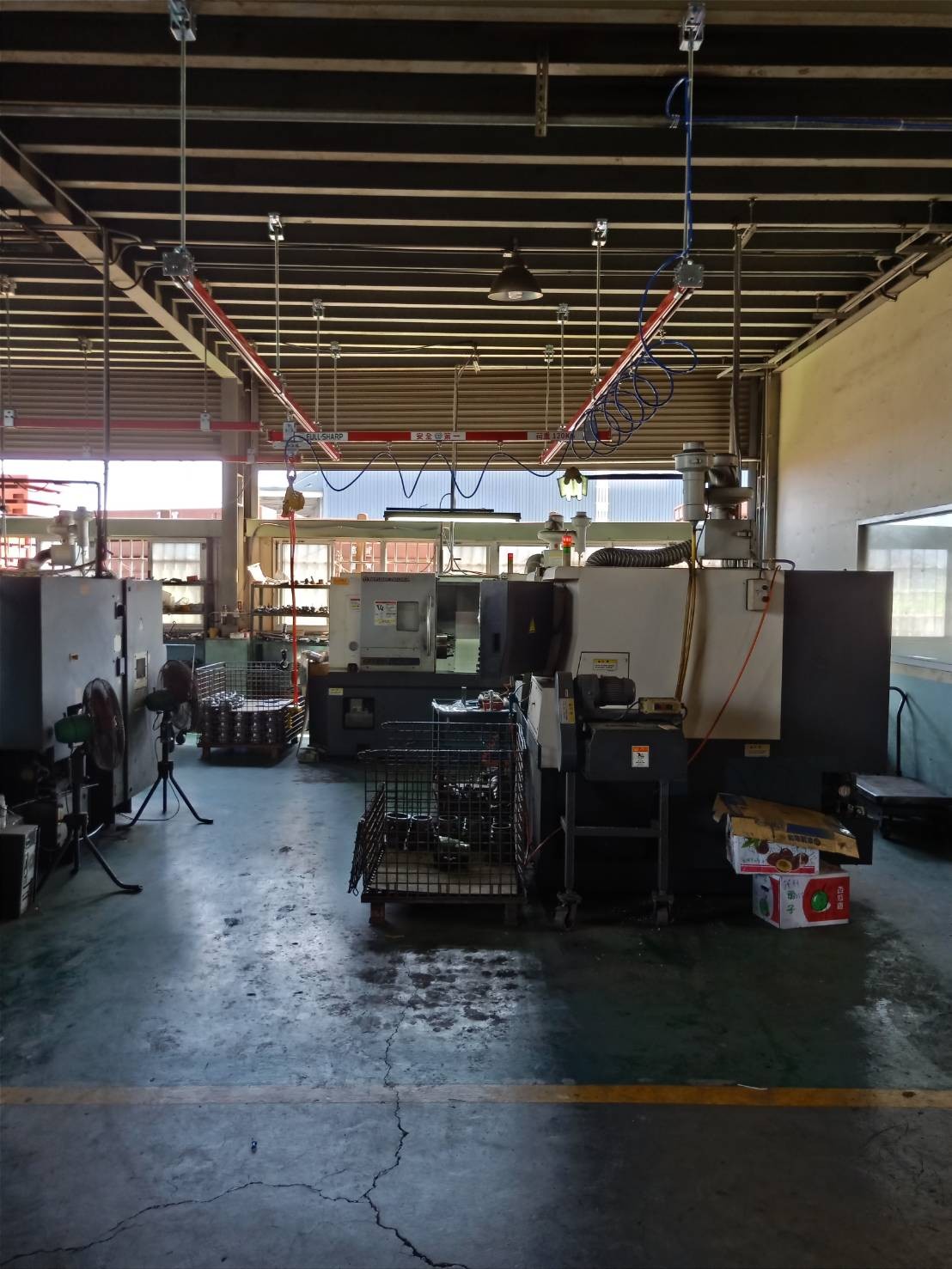

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 5

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 6

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 7

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 8

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 9

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 10

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 11

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 12

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 13

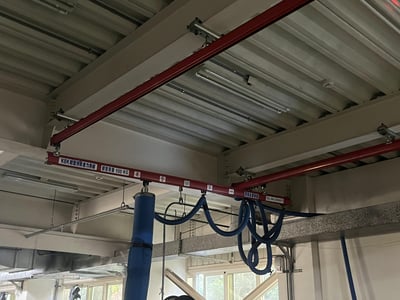

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 14

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 15

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 16

Ceiling-Mounted 5T Rail with KITO Hand Chain Hoist, 100 kg Capacity - ảnh 17

Click a photo to enlarge. 17-photo album taken on site.

Suitable Applications

Lifting molds and fixtures in machine shops
Maintenance areas for swapping machine components
Short-run assembly lines
Warehouses for moderately heavy materials

Consulting for Your Plant

FullSharp visits your plant to check the ceiling structure, the spacing between mounting points, and the clear headroom. We then finalize the rail line, number of hanger brackets, and the right KITO hoist model for your actual load. Contact FullSharp for a site survey and proposal.
