5T Ceiling Rail with 200 kg Mechanical Gripper

Many plants need to move goods regularly between machines, but the floor is already packed with equipment. Carts have to squeeze through narrow aisles — slow and prone to collisions — while carrying parts weighing several hundred kilograms by hand simply isn't feasible.

FullSharp installs a 5T ceiling-mounted rail system, using a pneumatic lifting cylinder combined with a mechanical gripper rated for 200 kg working loads. Goods are clamped, lifted, and run along the overhead rail line straight to where they're needed, with nothing in the way on the floor below.

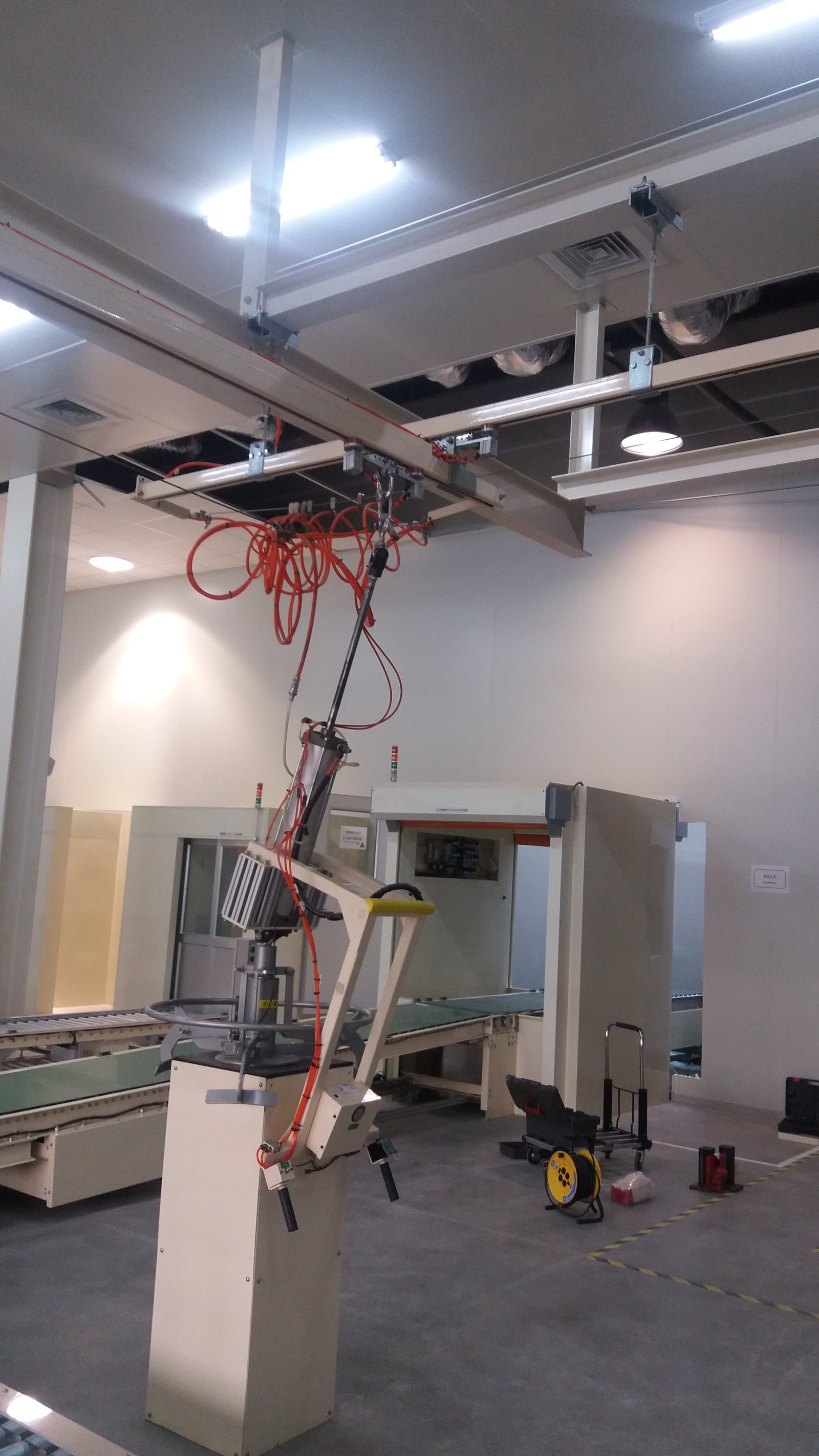

5T Ceiling-Mounted Steel Rail with Lifting Cylinder and Mechanical Gripper

A 5T ceiling-mounted rail system with a lifting cylinder and mechanical gripper in a production area.

Equipment Installed

5T ceiling-mounted rail system: a load-bearing rail suspended from the roof structure, with its line tracking the exact path goods travel.
Lifting cylinder: a fixed lifting stroke driven by compressed air, giving even speed and easy stop-point control.
Mechanical gripper: clamps using a mechanical mechanism — the heavier the load, the tighter the grip — with no dependence on electrical power.
Rail trolley: a hand push moves the whole unit along the line, stopping exactly where each machine needs to be fed.

Key Specifications

Rail system5T
Working load200 kg

Benefits for Your Facility

No floor space used

Goods travel overhead, so walkways and machine layouts stay exactly as they are — no need to reorganize the plant.

Secure grip, fewer failures

The mechanical gripper has few electronic parts, so it runs reliably and is simple to maintain.

Consistent cycles

The cylinder's fixed stroke makes every lift identical, so operators get faster with practice.

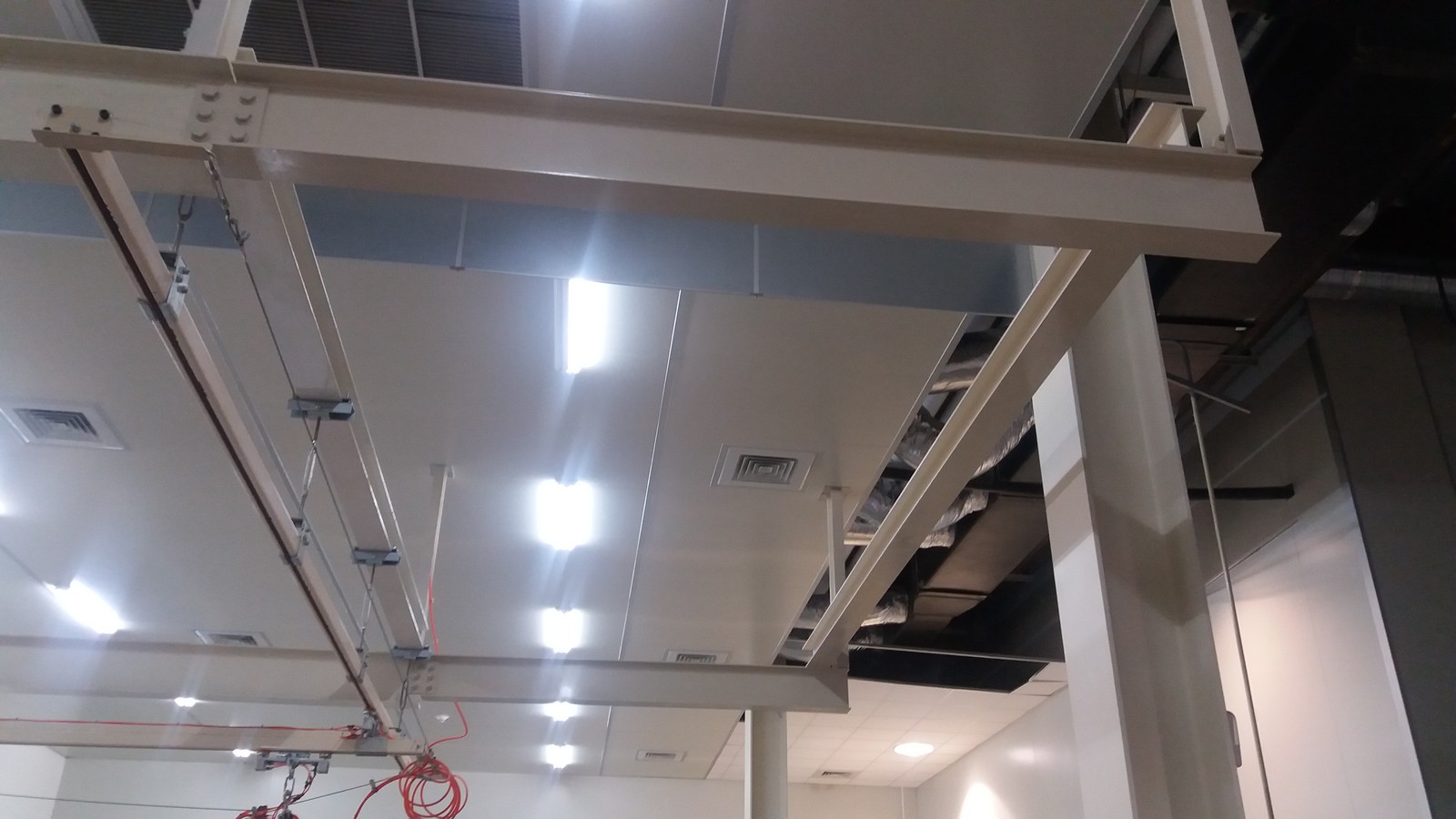

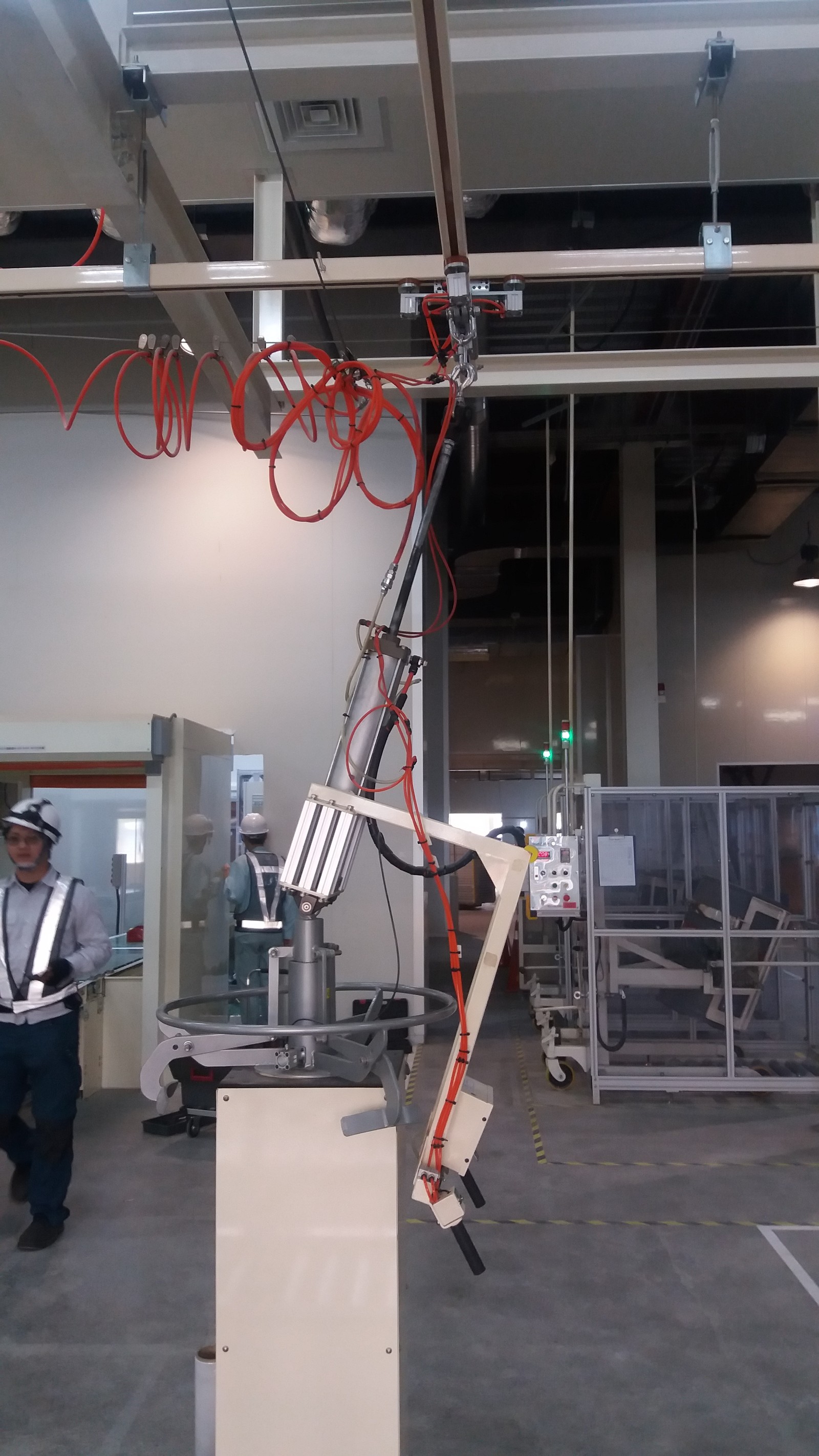

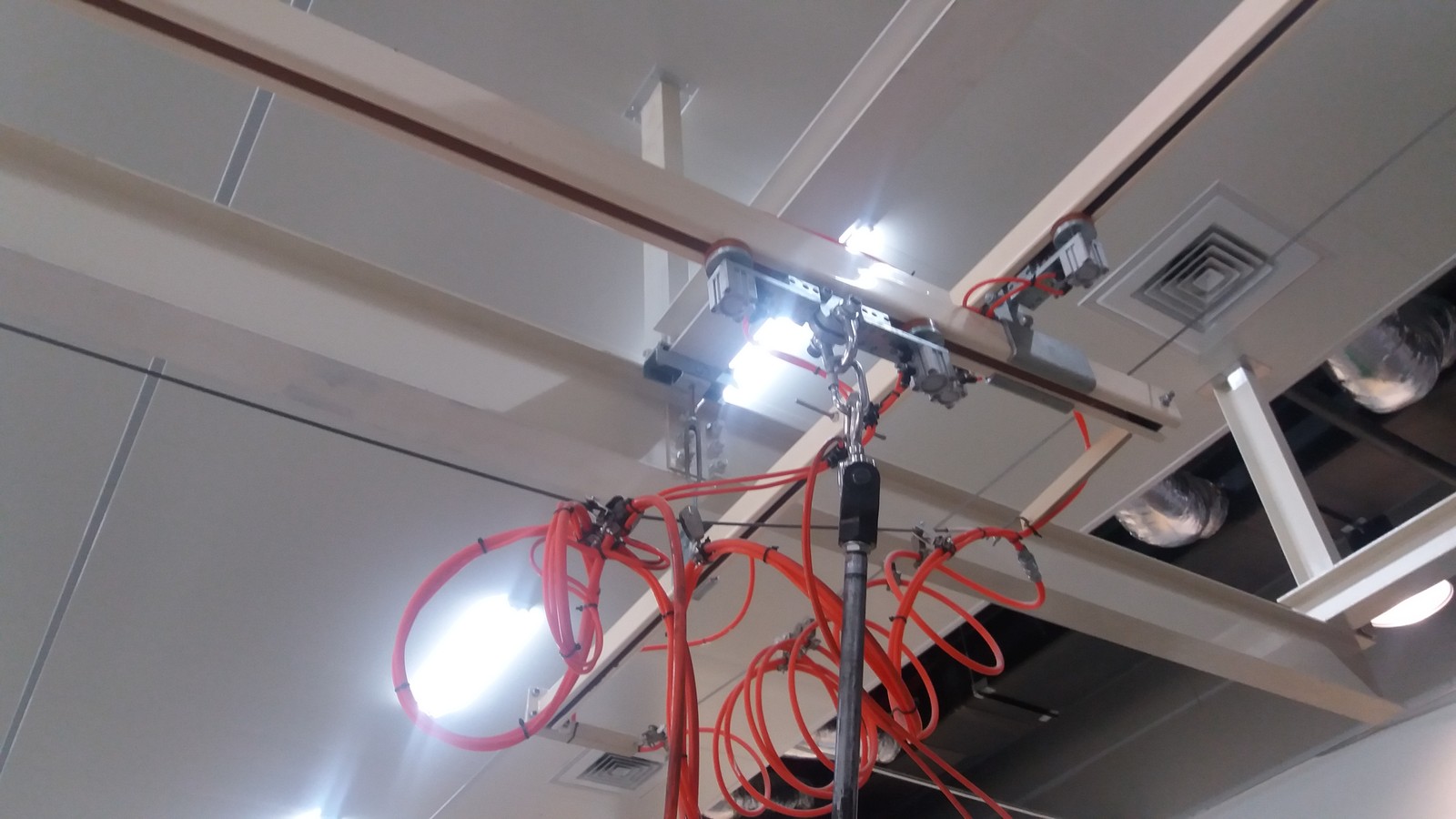

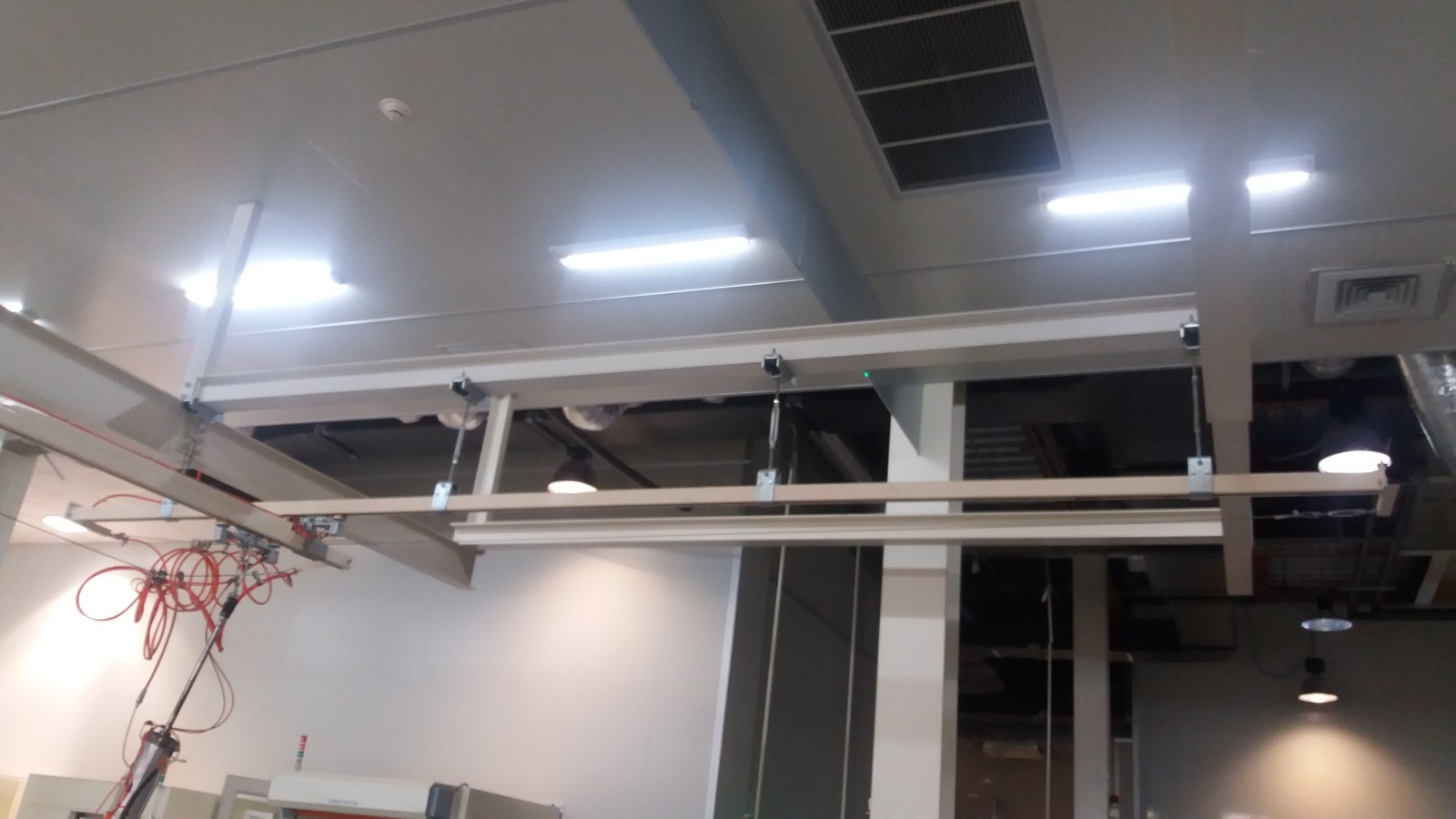

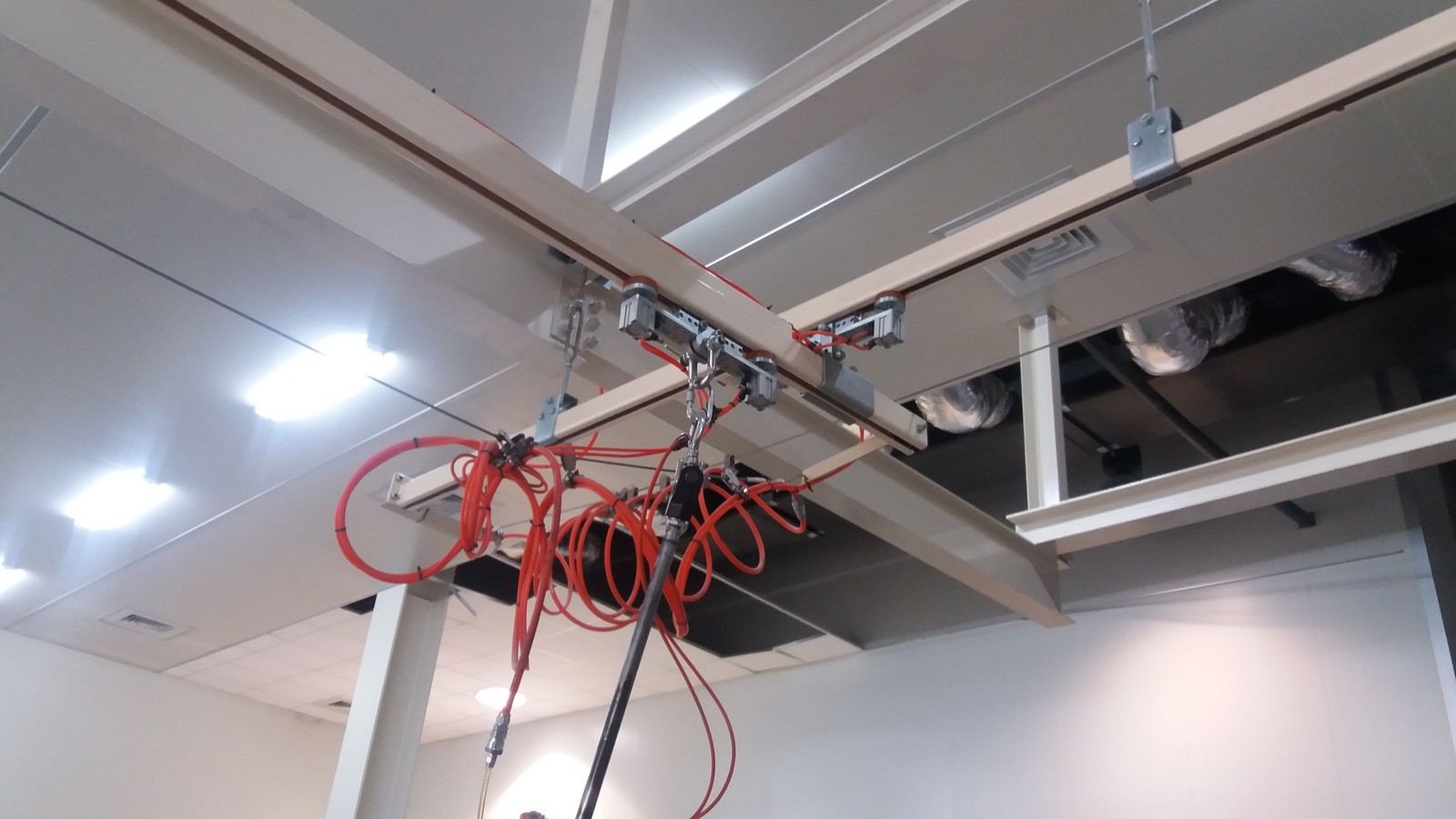

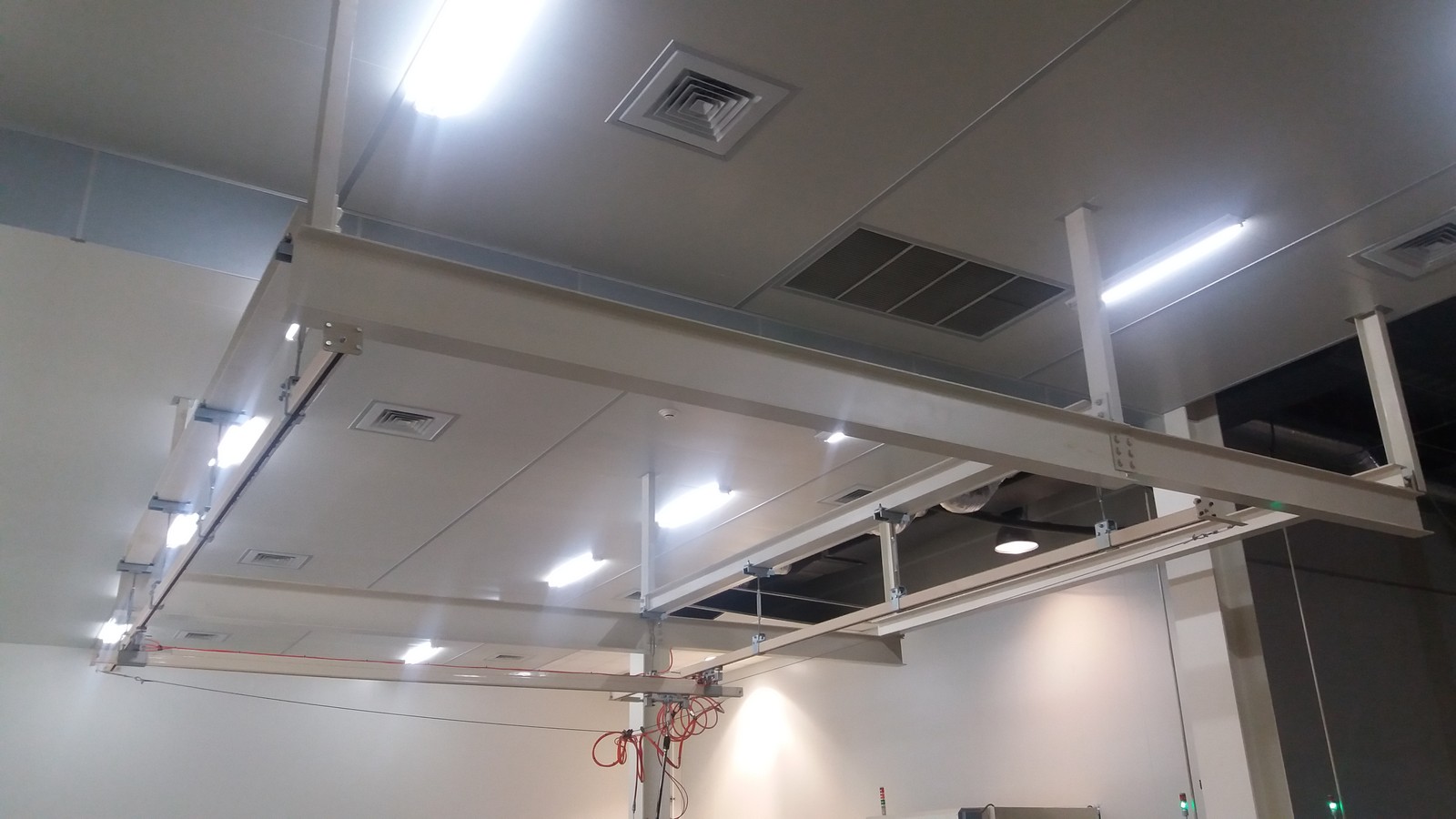

Real Installation Photos

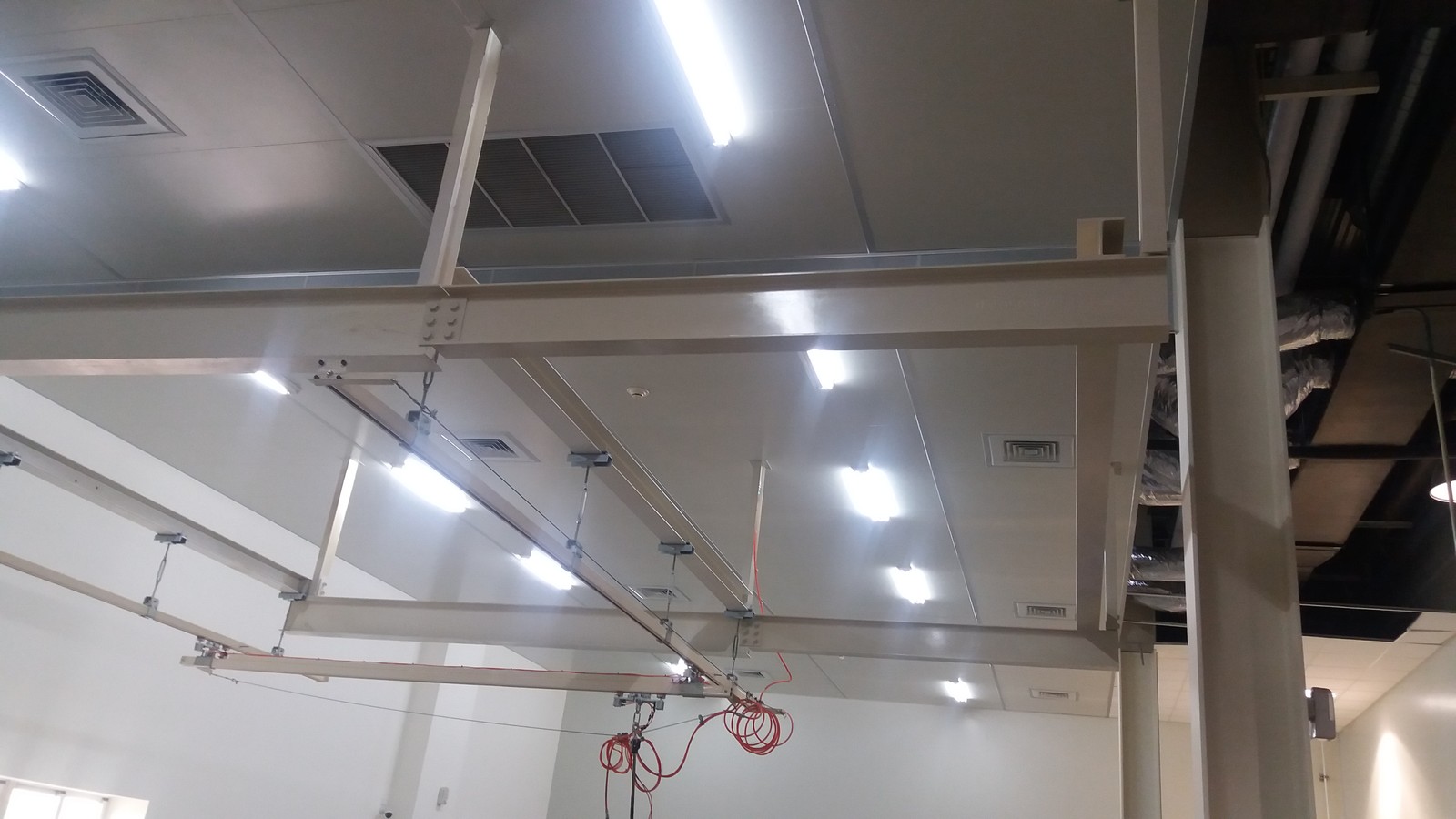

5T Ceiling-Mounted Steel Rail with Lifting Cylinder and Mechanical Gripper - ảnh 1

5T Ceiling-Mounted Steel Rail with Lifting Cylinder and Mechanical Gripper - ảnh 2

5T Ceiling-Mounted Steel Rail with Lifting Cylinder and Mechanical Gripper - ảnh 3

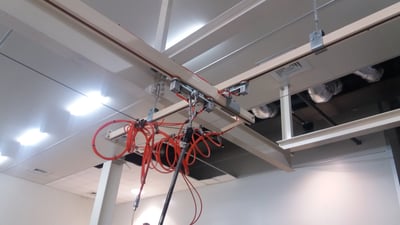

5T Ceiling-Mounted Steel Rail with Lifting Cylinder and Mechanical Gripper - ảnh 4

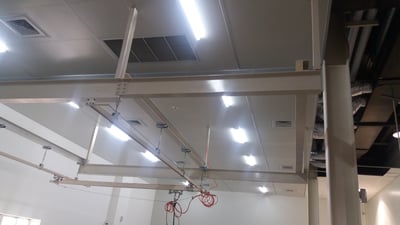

5T Ceiling-Mounted Steel Rail with Lifting Cylinder and Mechanical Gripper - ảnh 5

5T Ceiling-Mounted Steel Rail with Lifting Cylinder and Mechanical Gripper - ảnh 6

5T Ceiling-Mounted Steel Rail with Lifting Cylinder and Mechanical Gripper - ảnh 7

5T Ceiling-Mounted Steel Rail with Lifting Cylinder and Mechanical Gripper - ảnh 8

Click a photo to enlarge. An 8-photo album taken on site.

Suitable Applications

Machine shops feeding parts between machines
Surface treatment and dip-coating areas
Plants assembling heavy component clusters
Work-in-progress storage inside the plant

Installation Consulting for Your Facility

FullSharp inspects the roof structure and allowable load before finalizing the overhead rail line. Our engineers select the cylinder stroke, design the gripper to match your part's shape, then install it, load-test it, and train your team to operate it on site.
