5T Rail, ENDO Pneumatic Hoist

In a mixing area with solvents, plants restrict electrical equipment hanging over the tanks. Yet workers still need to raise and lower cans, trays, and parts many times a shift. Doing it by hand in the tight space between tanks is slow and unsafe.

FullSharp installed a 5T rail rated at 200 kg running along the work area, carrying an ENDO pneumatic hoist. The hoist draws air from the plant's existing compressed-air system, with no electric motor overhead. The operator pulls a cord or presses a lever to lift and lower; the load holds still the moment they let go.

5T Overhead Rail with ENDO Pneumatic Hoist for Flammable Zones

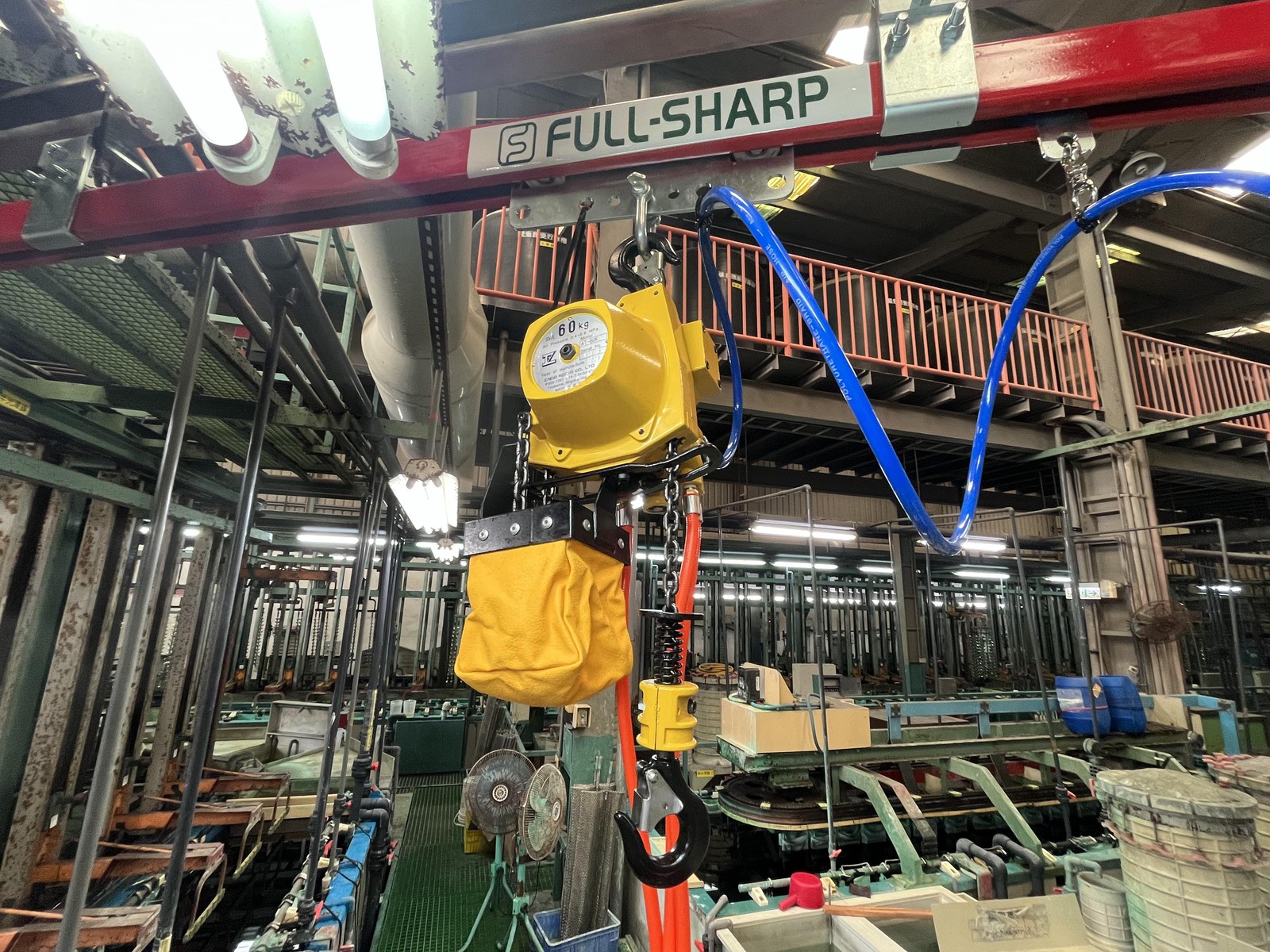

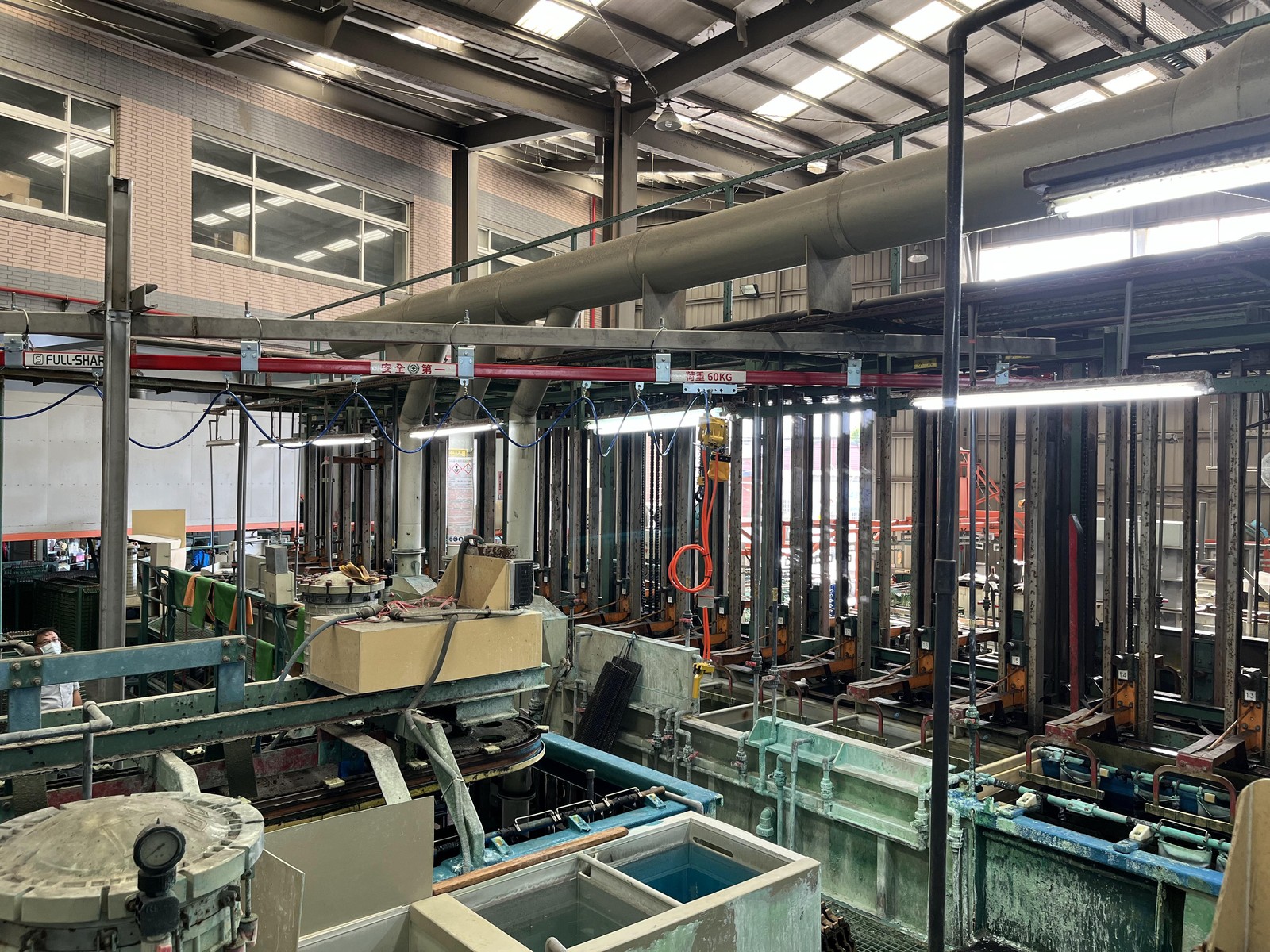

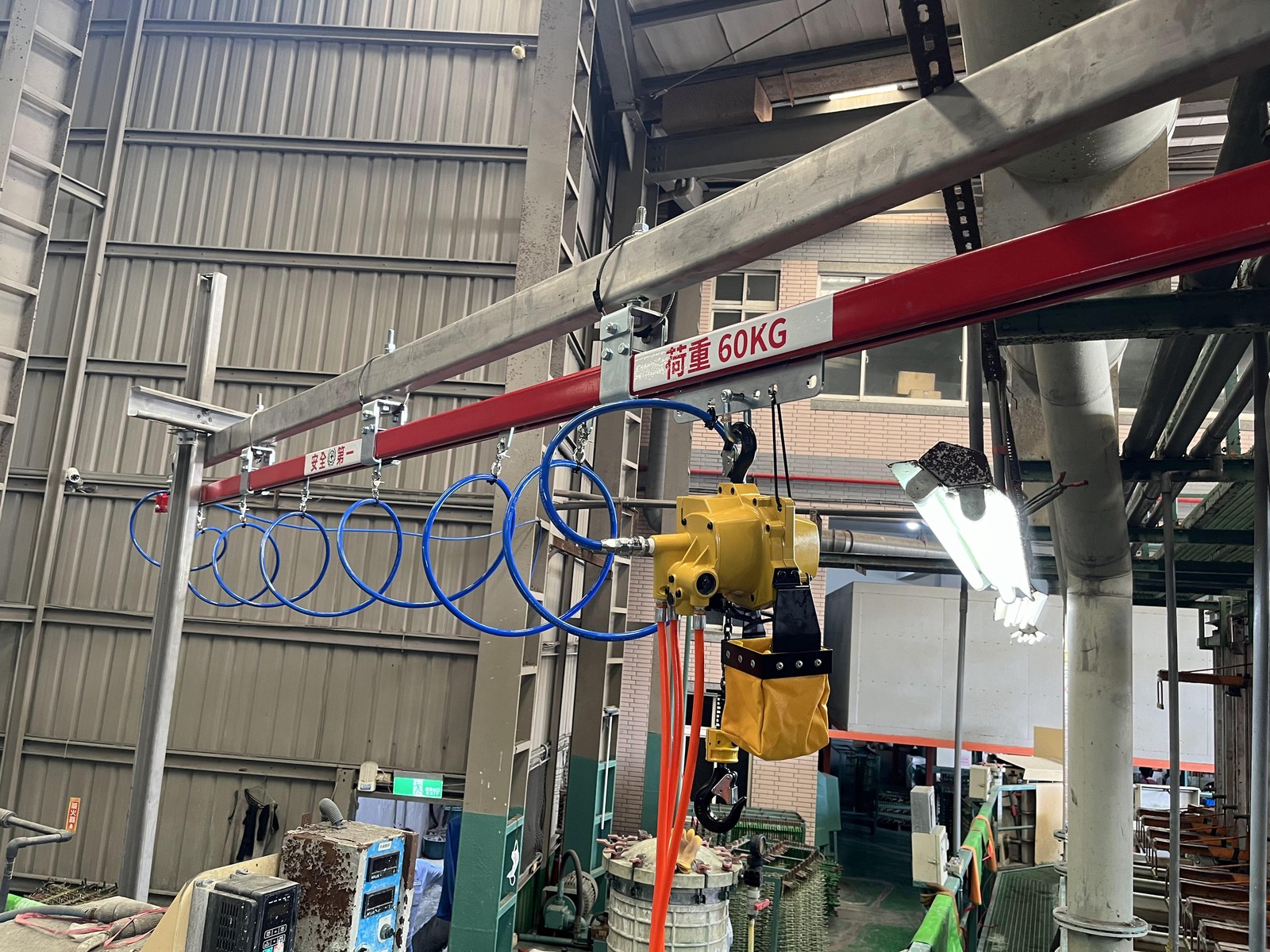

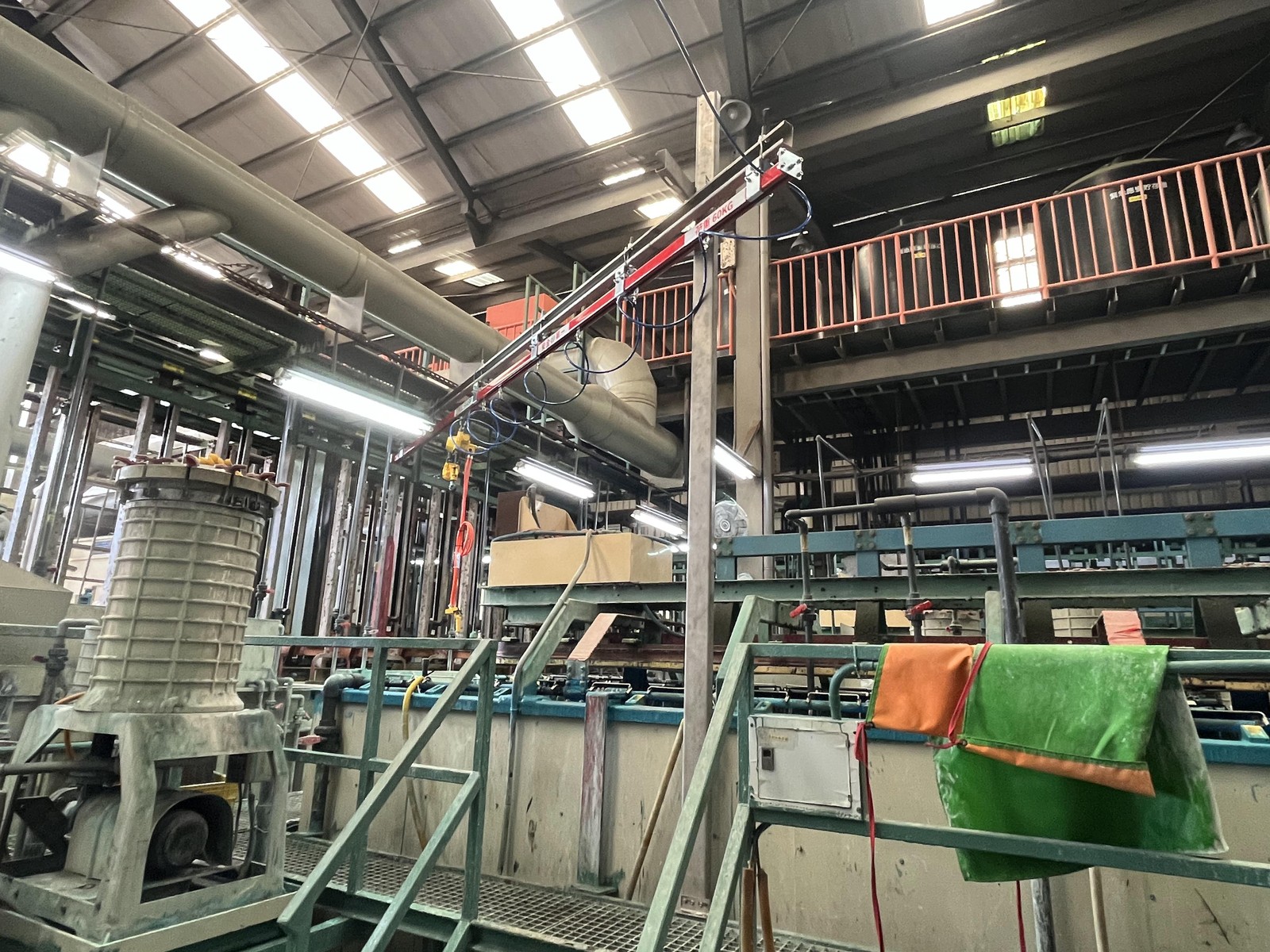

5T rail with ENDO pneumatic hoist installed above the work area in the plant.

Equipment Installed

5T steel rail: FullSharp's rail profile, rated at 200 kg, forming the fixed track for the hoist.

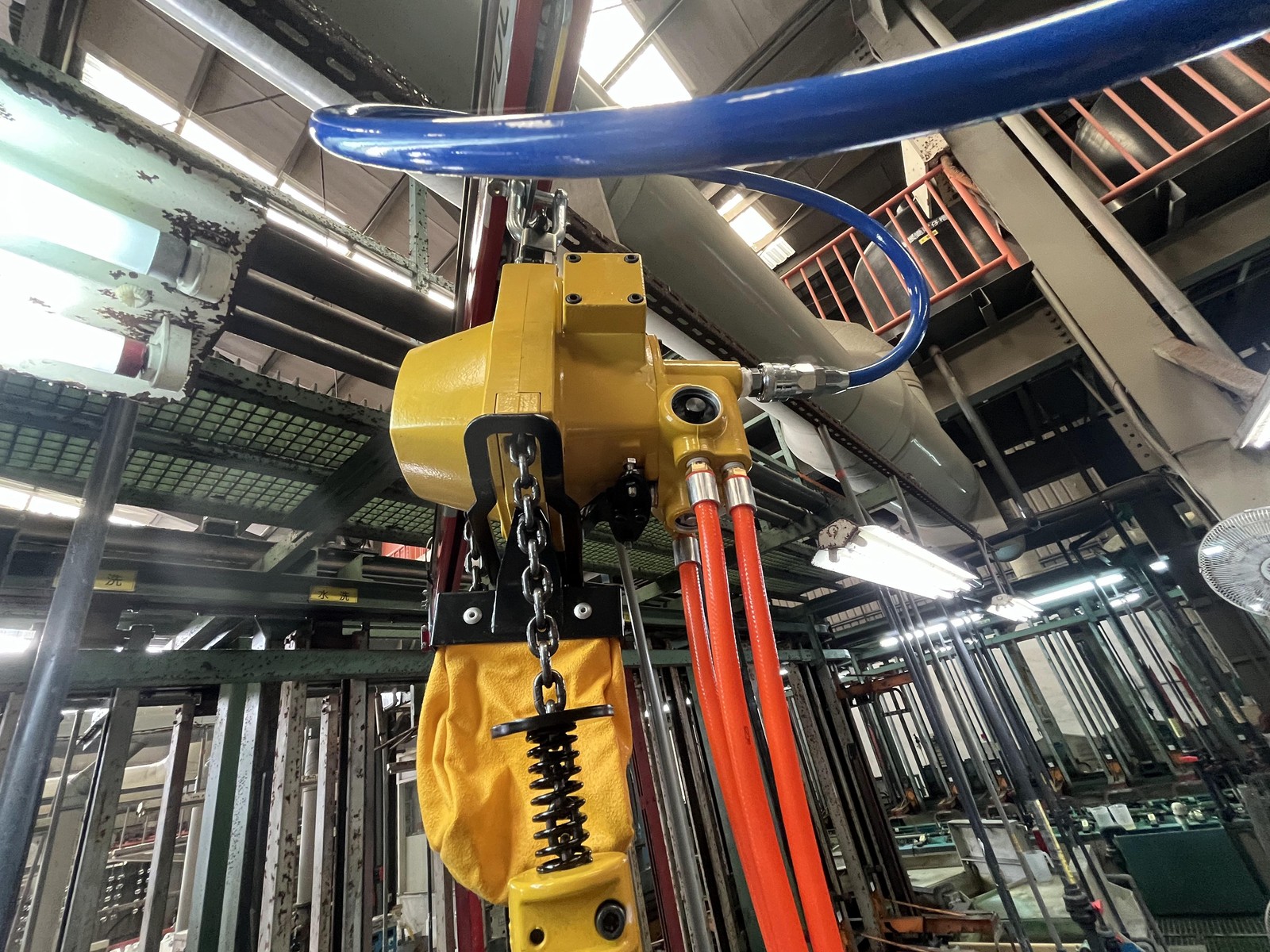

ENDO pneumatic hoist: air-driven, produces no electrical sparks, lifts and lowers smoothly and stops precisely.

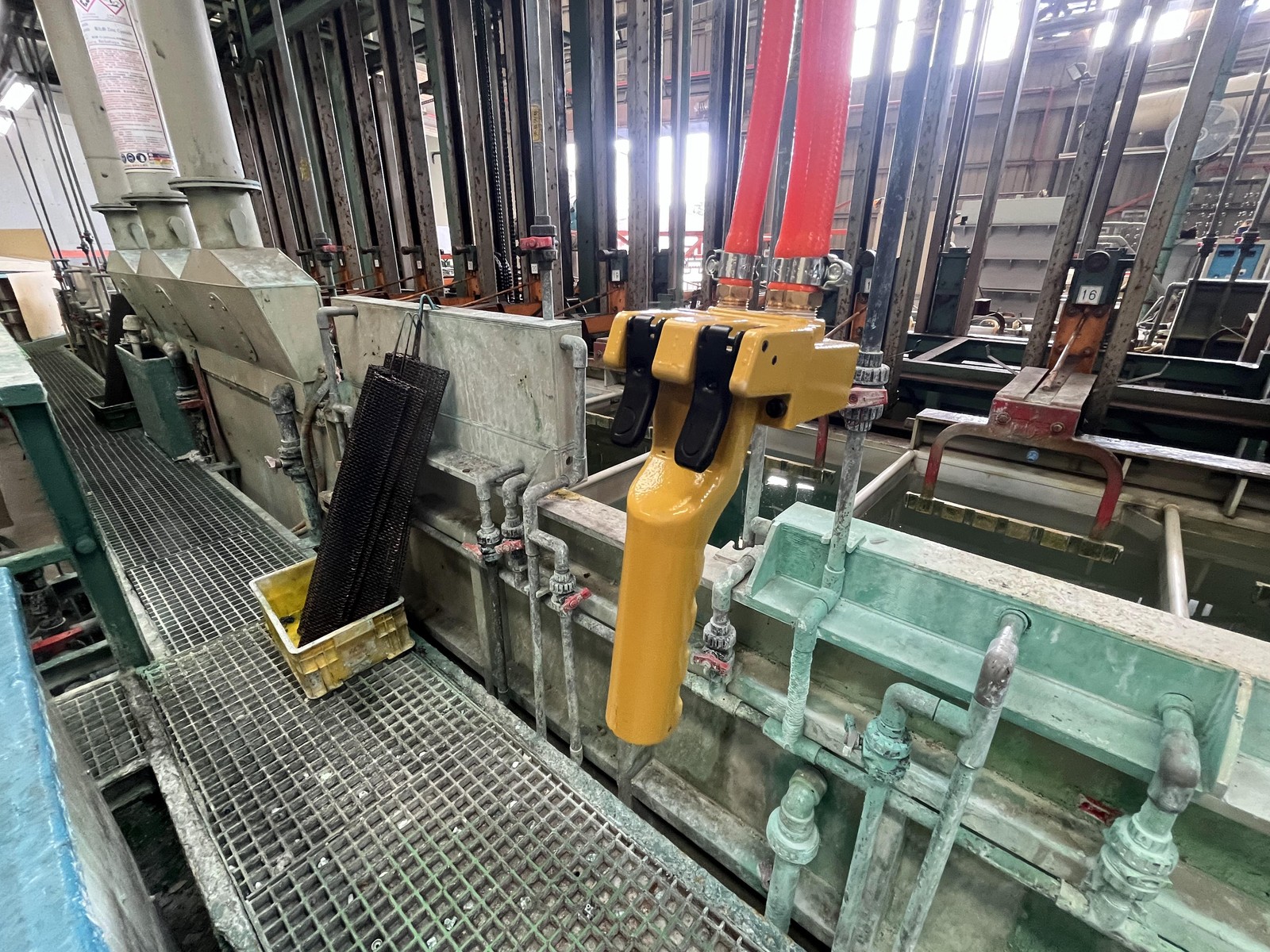

Pull-cord or lever control: single-handed operation; the load holds its position the moment the operator releases.

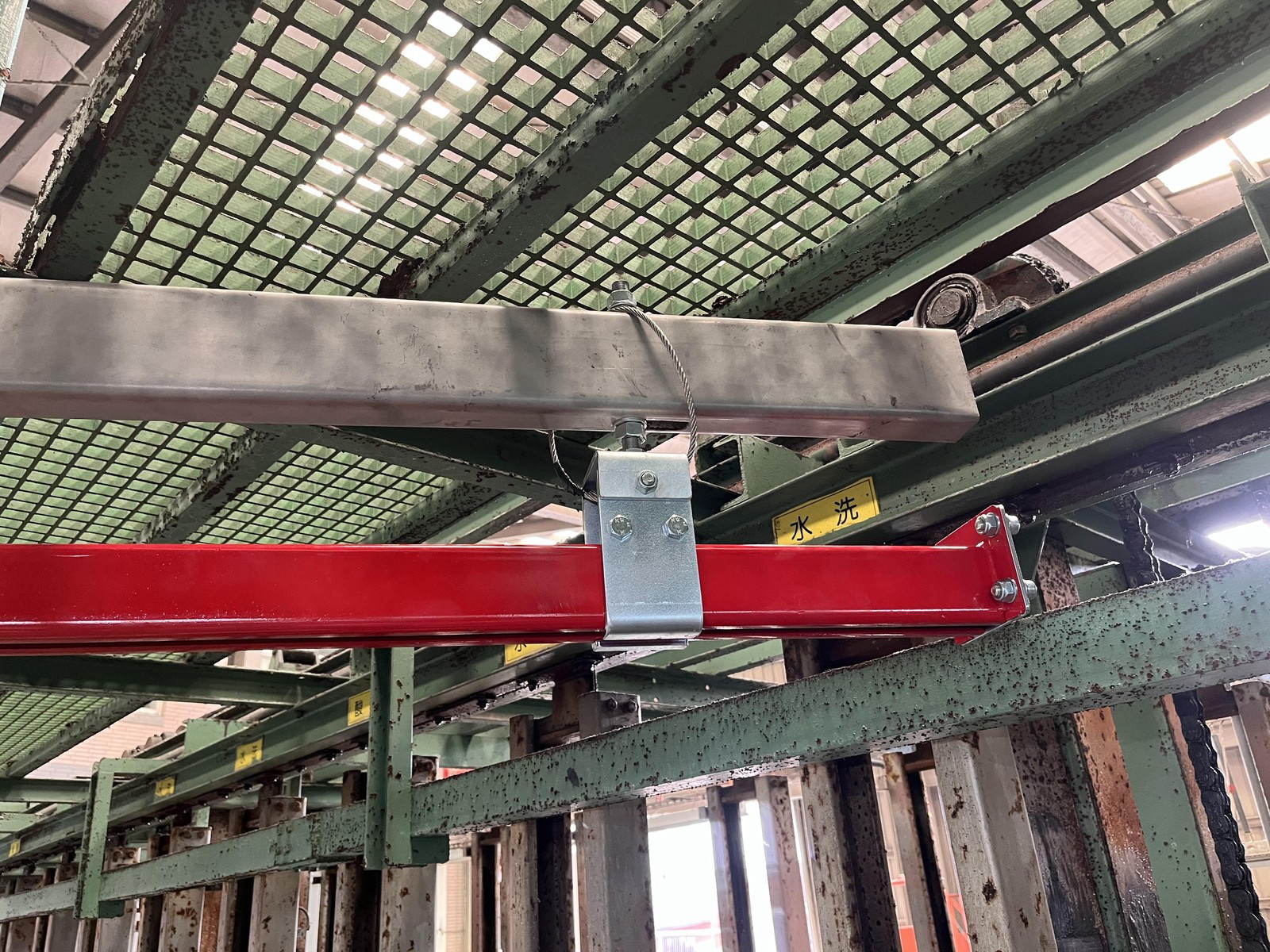

Trolley and rail suspension: runs along the track, bringing the lifting point to the right tank or workbench.

Key Specifications

Rail code5T steel rail
Rated load200 kg
HoistENDO pneumatic

Benefits for Your Facility

No electrical sparks

The air-driven hoist can be used in areas with solvents and flammable vapors.

Fewer breakdowns

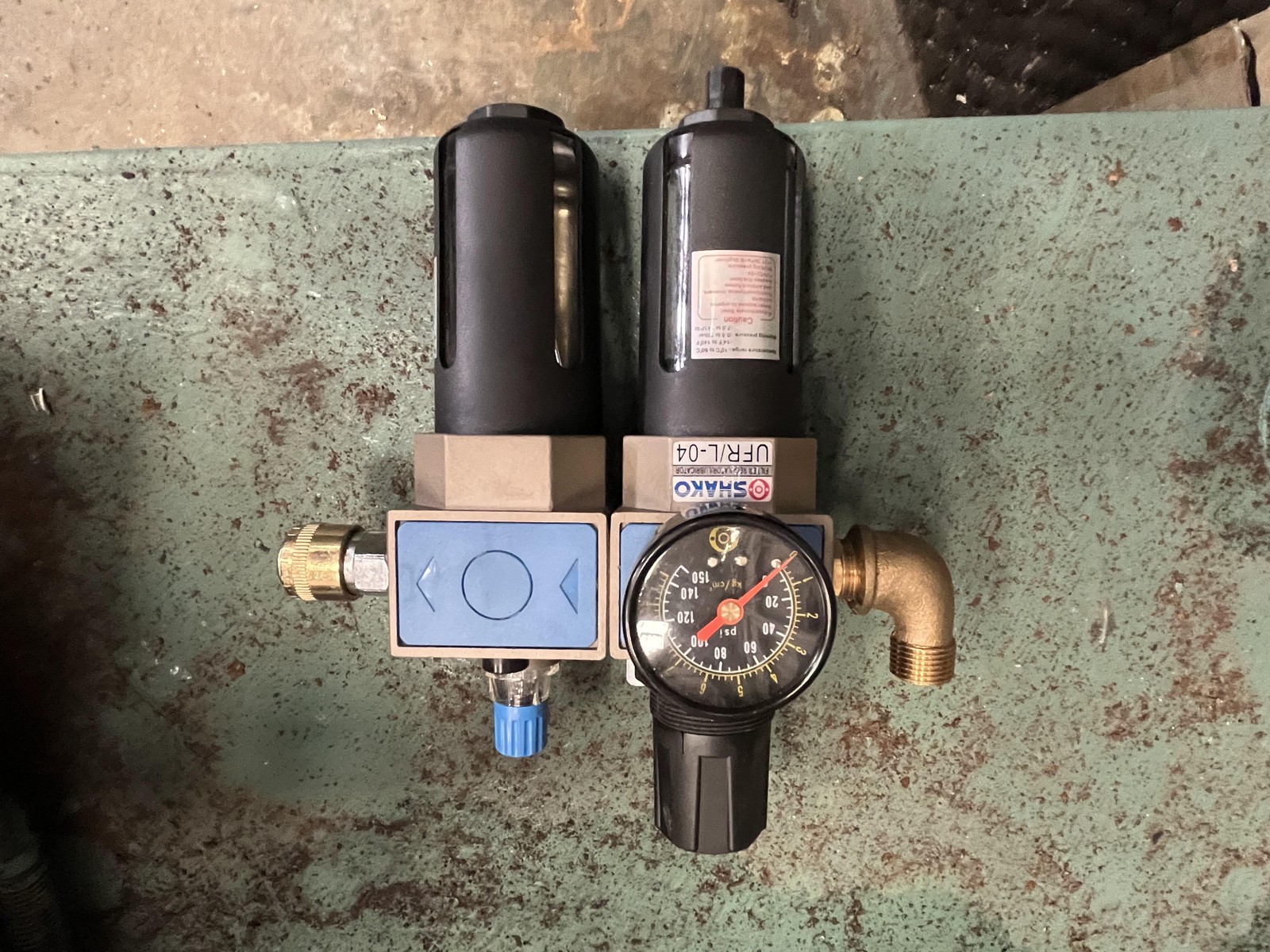

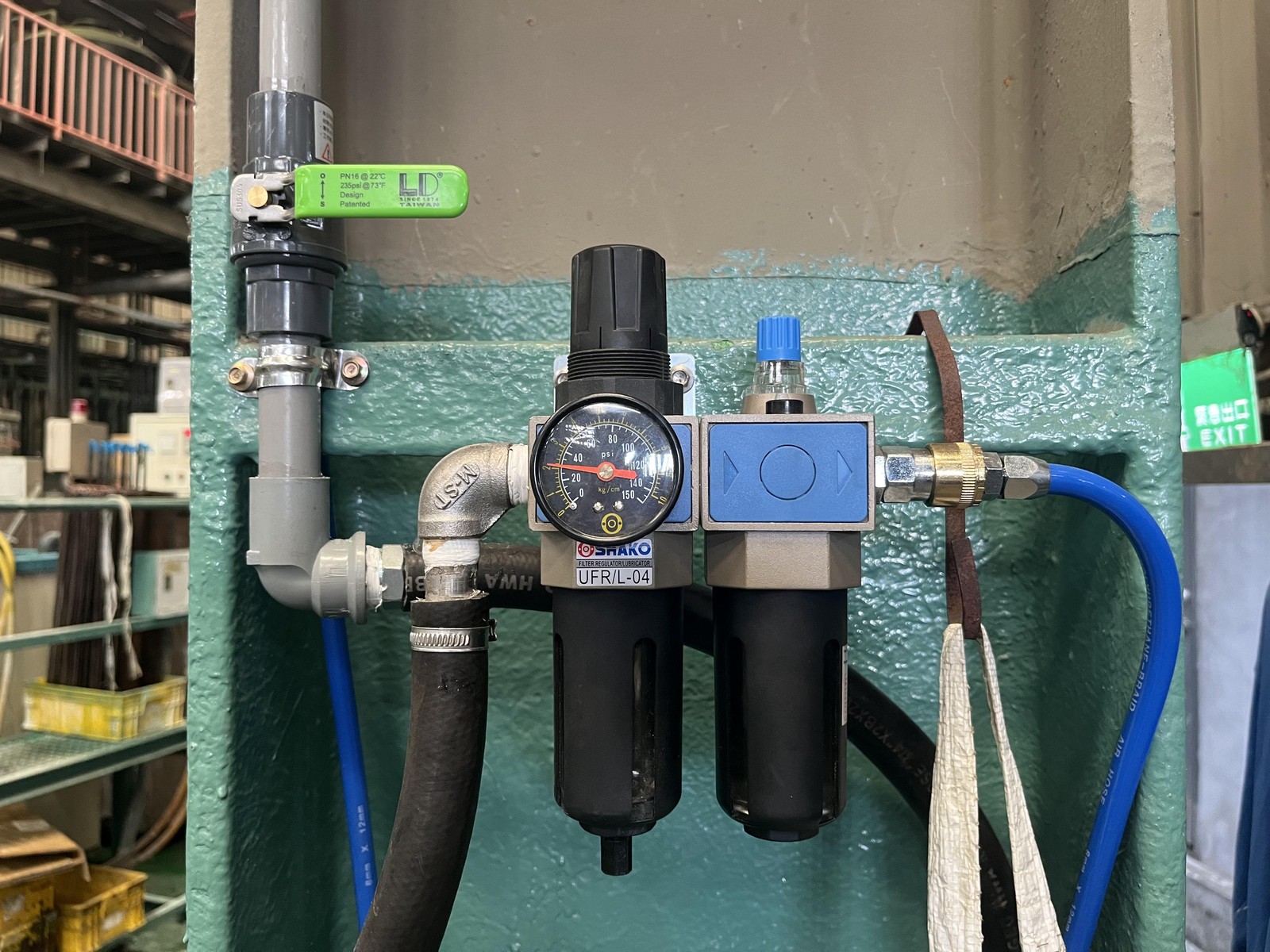

The pneumatic mechanism is simple; maintenance is mainly filter changes and periodic lubrication.

Holds the load securely

Releasing the control stops the hoist instantly, freeing the worker's hands to adjust the placement.

Real Installation Photos

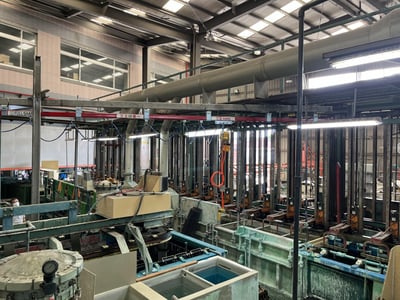

5T Overhead Rail with ENDO Pneumatic Hoist for Flammable Zones - ảnh 1

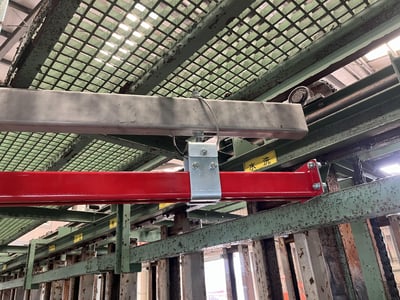

5T Overhead Rail with ENDO Pneumatic Hoist for Flammable Zones - ảnh 2

5T Overhead Rail with ENDO Pneumatic Hoist for Flammable Zones - ảnh 3

5T Overhead Rail with ENDO Pneumatic Hoist for Flammable Zones - ảnh 4

5T Overhead Rail with ENDO Pneumatic Hoist for Flammable Zones - ảnh 5

5T Overhead Rail with ENDO Pneumatic Hoist for Flammable Zones - ảnh 6

5T Overhead Rail with ENDO Pneumatic Hoist for Flammable Zones - ảnh 7

5T Overhead Rail with ENDO Pneumatic Hoist for Flammable Zones - ảnh 8

5T Overhead Rail with ENDO Pneumatic Hoist for Flammable Zones - ảnh 9

5T Overhead Rail with ENDO Pneumatic Hoist for Flammable Zones - ảnh 10

5T Overhead Rail with ENDO Pneumatic Hoist for Flammable Zones - ảnh 11

5T Overhead Rail with ENDO Pneumatic Hoist for Flammable Zones - ảnh 12

Click a photo to enlarge. Album of 12 photos taken on site.

Suitable Applications

Solvent mixing areas
Chemical and paint plants
Fuel filling stations
Plants with an existing central compressed-air system
Areas restricting overhead electrical equipment

Installation Consultation for Your Facility

FullSharp checks the plant's available air pressure and flow rate before selecting the hoist. Our technicians measure the rail run, mounting height, and distance to the air supply point to plan the piping. After the survey, we provide an installation plan with a materials list.
