Lifts All Z-Gripper

Max capacity 25, 65 kg, tool weight 4.5, 5 kg
Vacuum gripping for airtight loads
Drums, pails, cans, cartons, boxes, pallets, sacks
Quick-release coupling: swap cup or fit a hook
Compact, works in confined spaces

FullSharp – official Lifts All representative in Vietnam

Product overview

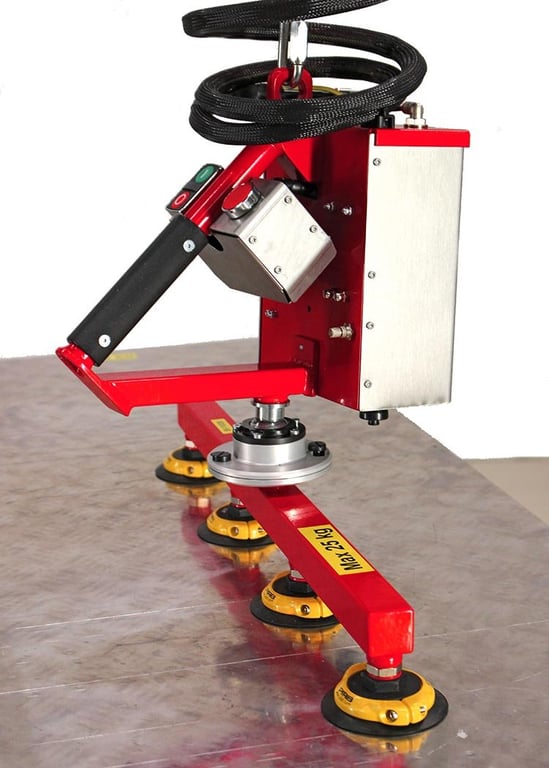

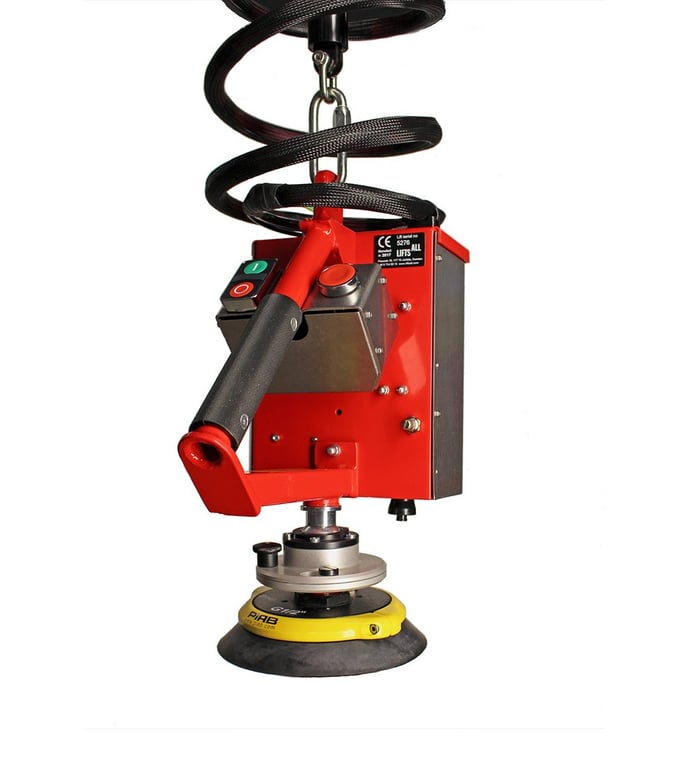

The Z-Gripper is an all-purpose gripper for lifting airtight drums, pails, boxes and pallets, and it also works well with other rigid objects that offer a suitable surface for vacuum gripping. It is available either pre-assembled with a vacuum cup or with a quick-release coupling that lets you swap the cup or fit a hook in moments, depending on what you need to lift. The Z-Gripper performs best with airtight loads.

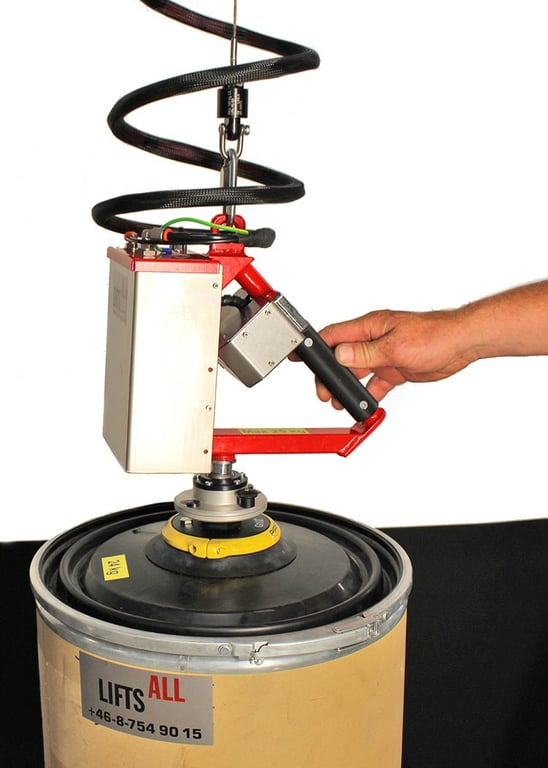

The vacuum gripper is ergonomically designed to feel like manual handling – without the weight. The load is held in a weightless state, so the operator guides it up and down smoothly by hand, making the handling of drums and other loads fast and highly precise. Heavy, awkward lifting is avoided and the operator can rely on the tool to handle its rated load. Small and flexible, the Z-Gripper can also be used in confined spaces.

Video

Technical specifications

Item	Specification
Tool weight (kg)	4.5, 5
Maximum capacity (kg)	25, 65
Gripping technology	Vacuum
Type of lifting object	Can, carton, box, pallet, sack, drum
Industry	Battery, beverage, pharmaceutical, food, metal, distribution and warehousing, automotive, wood and furniture, ventilation, engineering
Selectable control	Balancing
Other features	Basic lower bracket
Height (mm)	351, 368
Configuration height (mm)	-344, -360
Noise level (dB)	70

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
