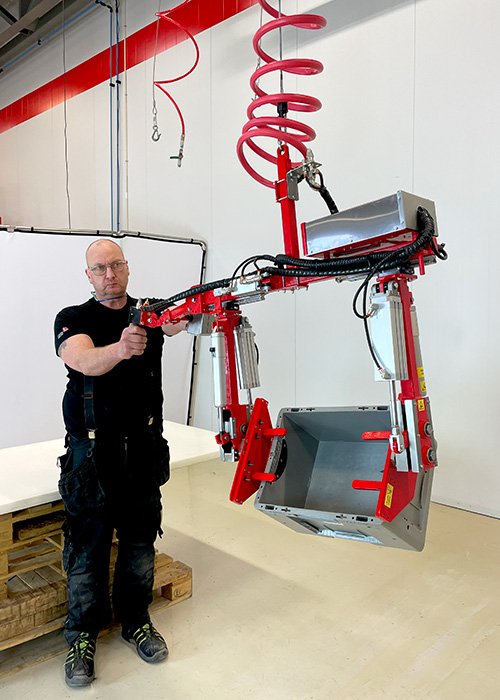

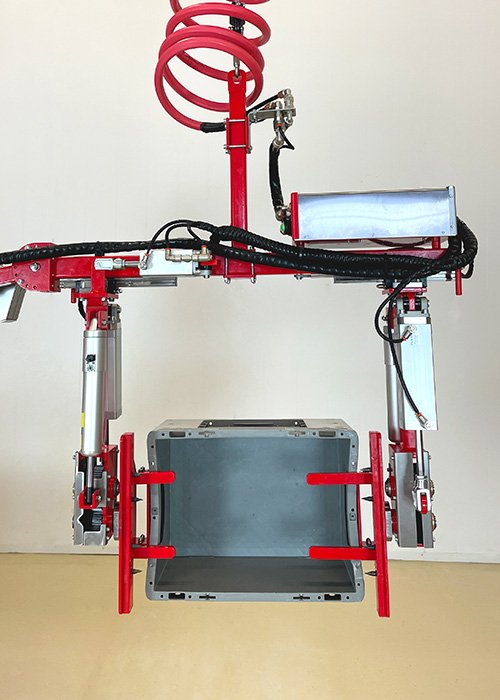

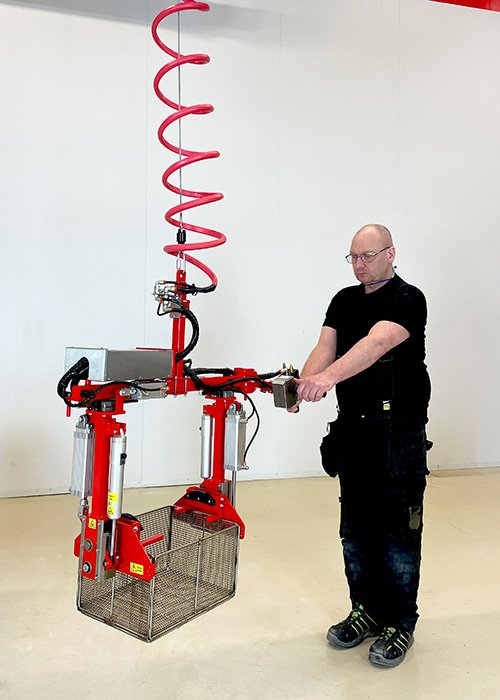

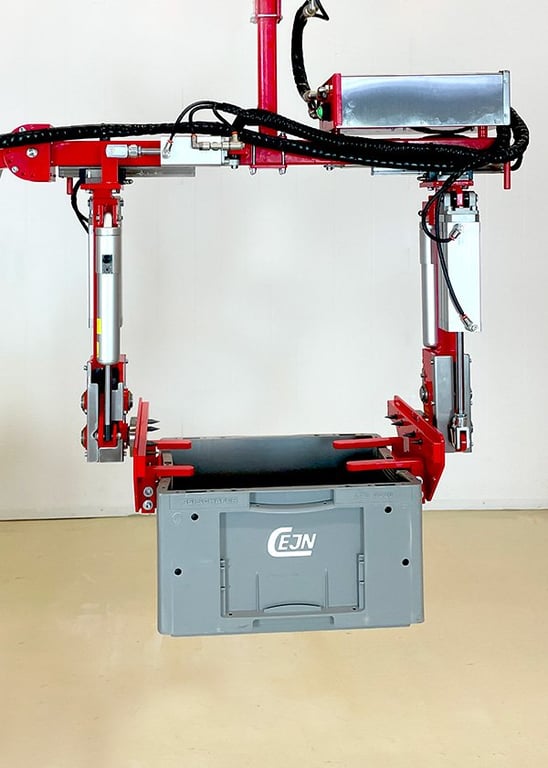

Lifts All gripper for wire baskets and crates 89-12125

Max capacity 33 kg, tool weight 33 kg
Mechanical / combi gripper, clamps the short sides
Tilts and rotates up to 180° for emptying
Optional PSH control, noise level 60 dB

FullSharp – official Lifts All representative in Vietnam

Product overview

This Lifts All gripper handles wire baskets and plastic crates. It is a mechanical gripper that lifts baskets and crates of different sizes and can tilt and rotate the load so the operator can empty it conveniently. The gripper itself weighs 33 kg. As an ergonomic lifting tool, it spares operators from awkward lifting and twisting that can cause neck, back and shoulder injuries.

Lifts All gripper for wire baskets and crates 89-12125

Easy operation

The gripper clamps the basket or crate on its short sides; simply press the green button to grip. The load can be tilted and rotated up to 180° so all contents are emptied. Rotation and unloading are controlled with the lever above the buttons on the left handle, and depending on the basket or crate, rotation can take place toward either side of the machine. To set the load down, place it and press the red button on the left to release. The green and red buttons on the right handle control lifting and lowering. The green indicator lights up when the load is gripped correctly, confirming it is safe to lift.

Customized lifting solutions

The tool is adapted to your lifting needs and working environment: maximum capacity, tilt, rotation and the way it grips the load are all set to your requirements. Lifts All has built several combi grippers for customers who want to lift different load types with a single tool.

Video

Technical specifications

Item	Specification
Article number	89-12125
Type of lifting object	Crate, basket
Maximum capacity (kg)	33
Weight (kg)	33
Serial number	A6747
Gripping technique	Combination, mechanical
Optional control	PSH
Noise level (dB)	60

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
