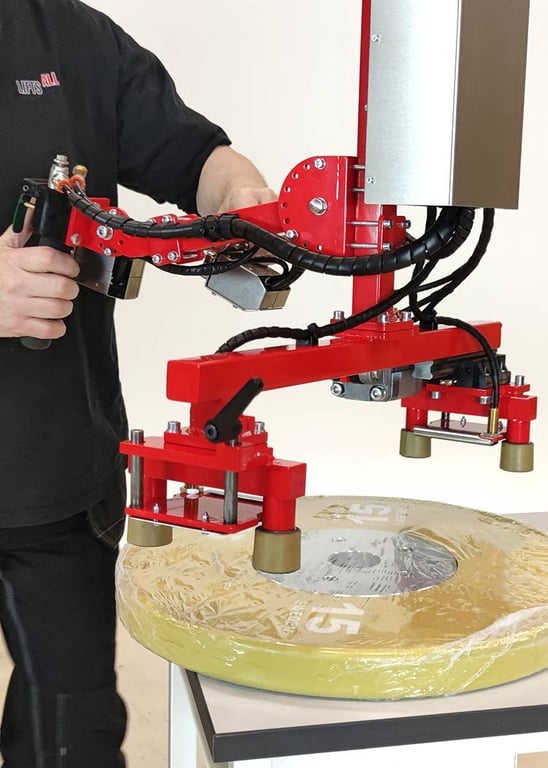

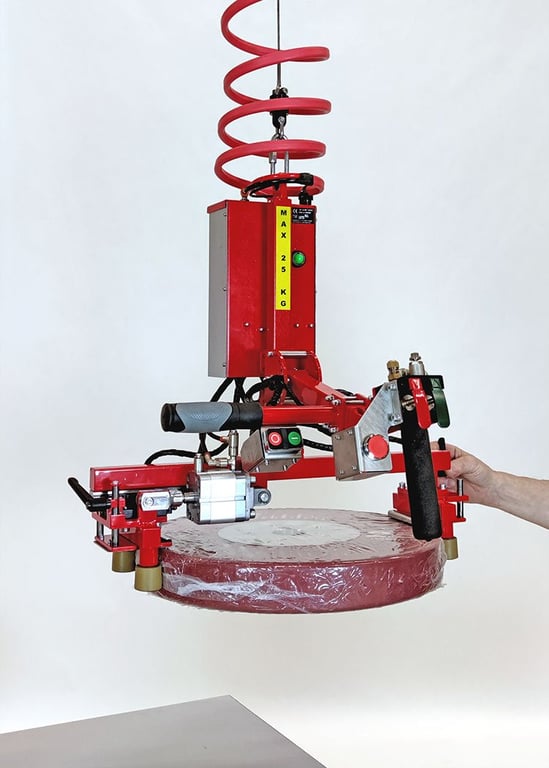

Weight Plate Gripper 89-12045

Maximum capacity 25 kg, tool weight 15.7 kg
Mechanical grip around the plate rim
Quick adjustment to different plate sizes
Load guard prevents release in mid-air
Two-hand release, PSH control; article 89-12045

FullSharp – official Lifts All representative in Vietnam

Gripper for weight plates

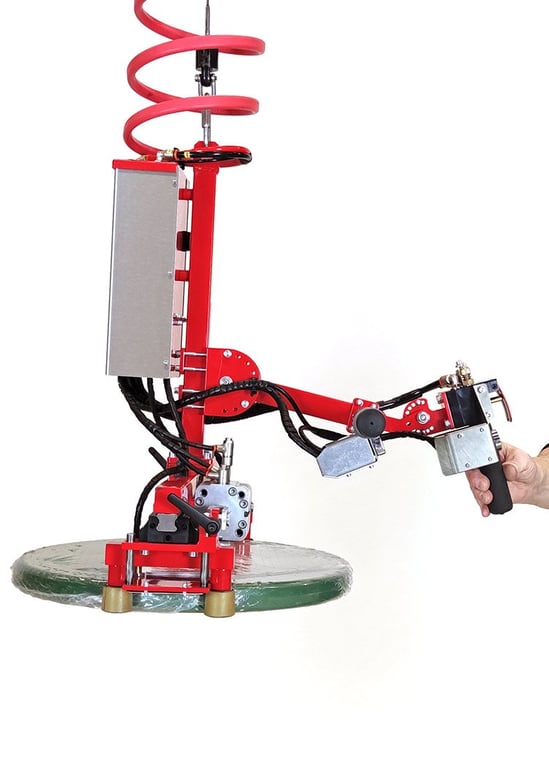

This gripper is used in a factory where rubber-coated steel weights are lifted during production. It was developed for industries that handle gym weights, dumbbell plates and other metal plates. The tool grips around the edge of the plate and is easily adjusted to different sizes, so the operator can lift a whole range of plates without changing gripper.

Safe, secure lifting

Safety comes first when lifting heavy objects. The tool has a load guard that makes it impossible to release the load in mid-air, and a two-hand grip that requires the operator to use both hands to release the plate – keeping the operator safe from pinch injuries.

Technical specifications

Item	Specification
Article number	89-12045
Type of lifting object	Other (weight plates)
Weight (kg)	15.7
Maximum capacity (kg)	25
Serial number	A6588
Optional control	PSH
Gripping technique	Mechanical
Noise level (dB)	74

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
