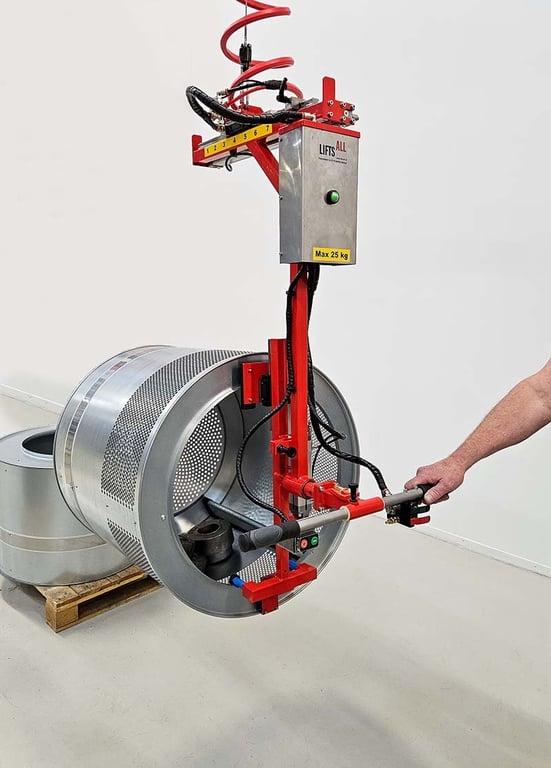

Lifts All gripper for washing machine drums 89-12413

Maximum capacity 25 kg, tool weight 21 kg
Mechanical grip from inside the drum
Drum rotation ±45°, centre-of-gravity bar
Load guard and built-in spirit levels
Optional PSH control, 60 dB

FullSharp – official Lifts All representative in Vietnam

Product overview

The Lifts All washing machine drum gripper makes drum handling simpler while keeping the operator safe and working in an ergonomic posture. It was developed specifically for household appliance plants.

Lifts All gripper for washing machine drums 89-12413

Easy-to-use mechanical grip

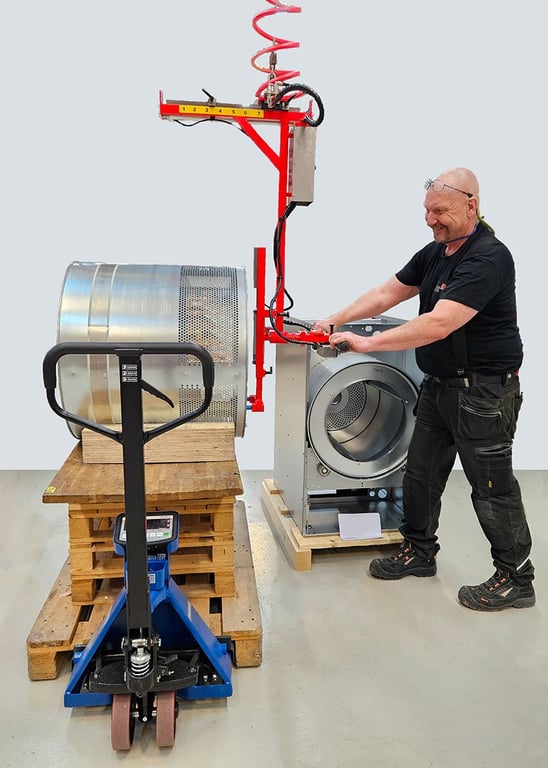

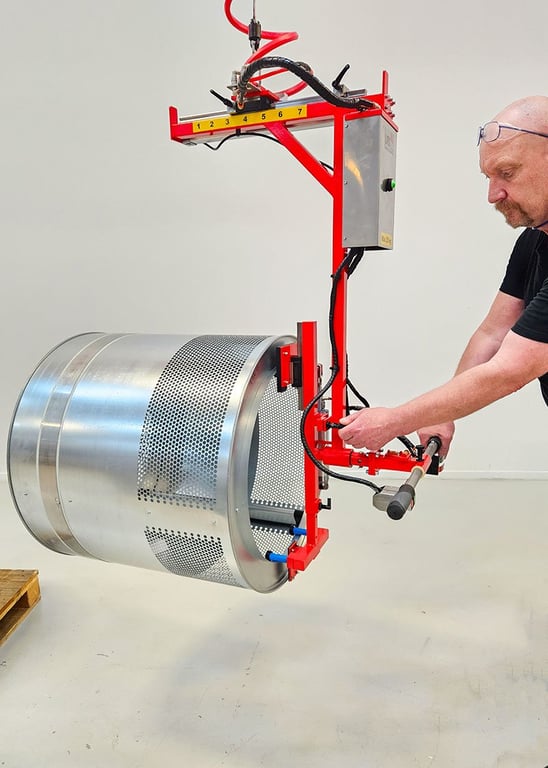

The gripper holds the washing machine drum mechanically from the inside. Using the controls, the operator can rotate the drum ±45 degrees and guide it accurately into the machine chassis. The same tool can also be used to take drums out of washing machines.

Automatic centre-of-gravity adjustment

An adjustable centre-of-gravity bar lets the tool balance drums of different sizes, so movement stays even and stable whatever the drum dimensions. Handling is smoother, cycle times are shorter and the risk of accidents is reduced.

Spirit levels built into the handle help the operator keep the drum level, which is especially important when fitting it into the washing machine.

Load guard for maximum safety

An integrated load guard protects both the drum and the user. The gripper will not release the drum, intentionally or by accident, while it is unsupported or hanging in the air, so the drum is shielded from knocks and impacts throughout the lift.

Adjustable speed and ergonomic handle

Maximum up and down speeds are adjustable, keeping every movement controlled and safe. The articulated control handle promotes a natural working posture, easing physical strain and reducing the risk of work-related injuries.

With this gripper, the daily task of lifting washing machine drums becomes noticeably easier on the factory floor.

Video

Technical specifications

Item	Specification
Article number	89-12413
Type of load	Electronics, household appliances
Weight (kg)	21
Maximum capacity (kg)	25
Serial number	A7323
Gripping technique	Mechanical
Optional control	PSH
Noise level (dB)	60

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
