Lifts All vacuum pipe gripper 89-12148

Max capacity 18 kg, tool weight 9 kg
Three vacuum cups grip the outside of the pipe
Rotation: picks pipes stacked horizontally or vertically
Balancing control with load sensor, 65 dB

FullSharp – official Lifts All representative in Vietnam

Product overview

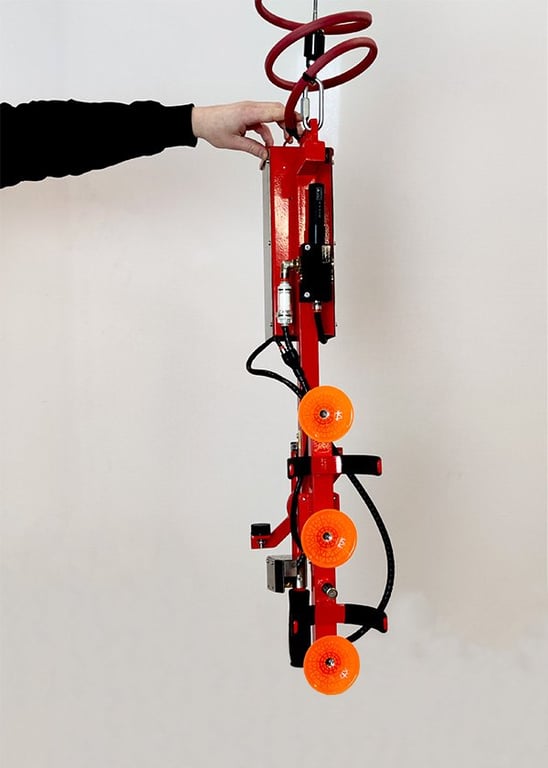

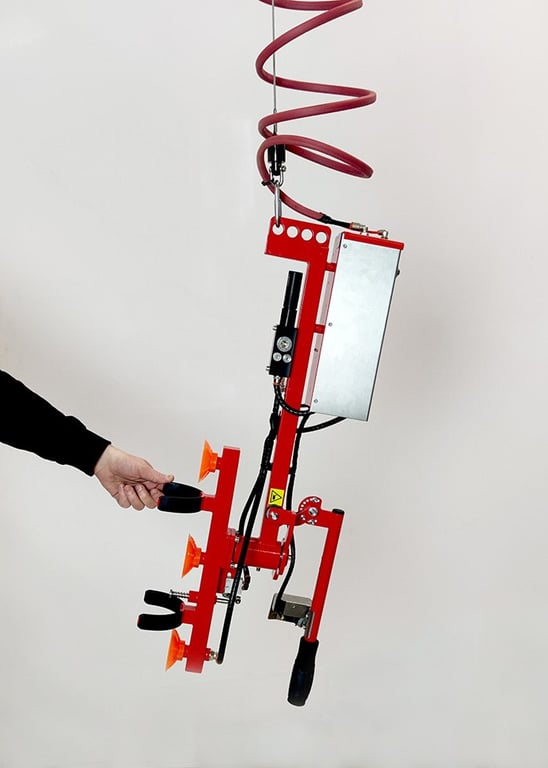

This Lifts All pipe gripper lifts steel pipes and other types of pipe. It is easy to use and ergonomic for the operator. Three vacuum cups attach to the outside of the pipe, holding the load securely for lifting and moving. The gripper can be rotated before pick-up to take pipes stacked horizontally or vertically, then rotated again after lifting to place the load in the required position. Maximum lifting capacity is 18 kg.

Lifting pipes without effort

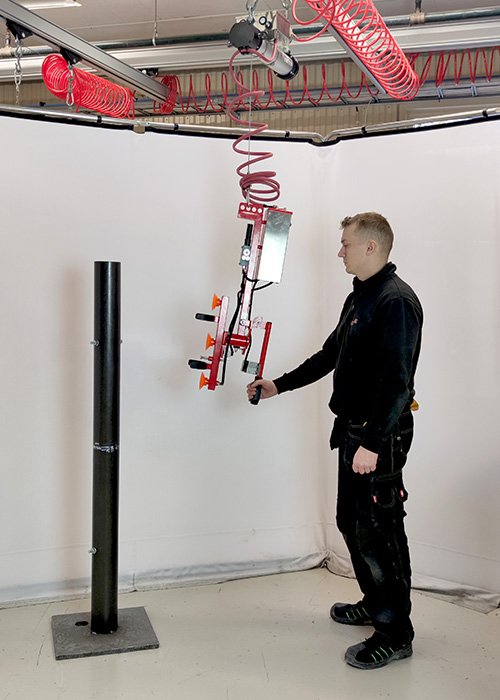

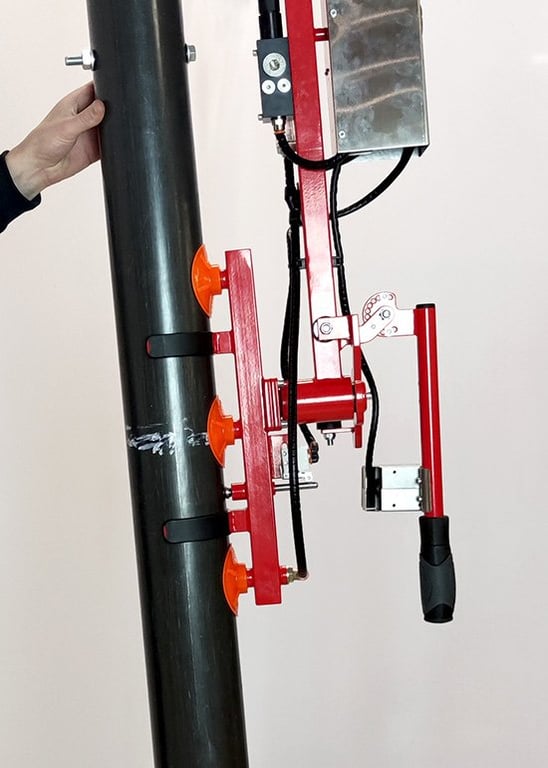

Steel pipes are awkward to handle and may take two people to lift. With this air-powered solution, one person can do it alone. The vacuum cups grip along the side of the pipe, and a sensor detects when it is time to grip the load. Once the pipe is held, the operator rotates it by hand to the unloading position, moves it into place and presses the release button, after which the tool lets go of the load.

Customized lifting aids

The tool is adapted to your lifting needs and working environment, with maximum load, rotation, tilt and gripping method set to your requirements. It can be supplied in your company color or any other color, or in stainless steel for cleanroom use.

Video

Technical specifications

Item	Specification
Article number	89-12148
Type of lifting object	Pipe
Weight (kg)	9
Maximum capacity (kg)	18
Serial number	A6790
Function	Rotation
Gripping technique	Vacuum
Control	Balancing
Noise level (dB)	65

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
