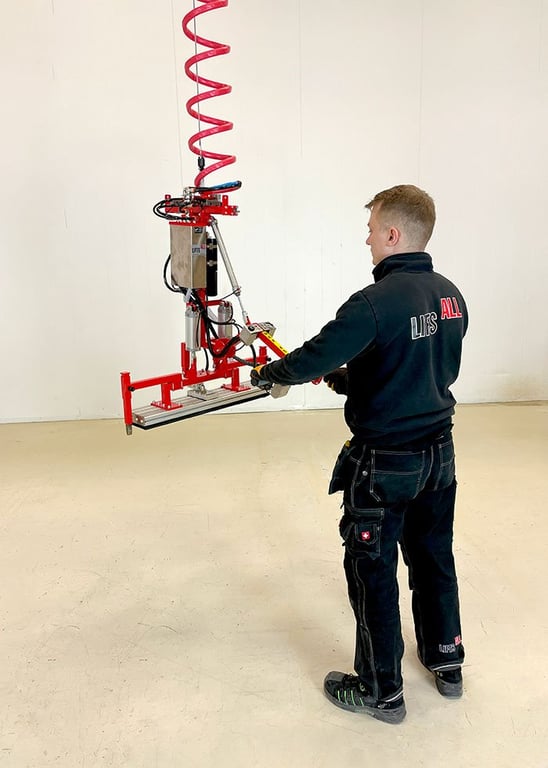

Lifts All vacuum pallet gripper 89-12178

Product overview

The Lifts All pallet gripper is a versatile lifting tool for pallets, pallet collars and pallet lids. Moving pallets by hand is physically demanding and usually takes at least two people. With this gripper, the job becomes easy, fast and something one operator can do alone, making it a natural fit for warehouses, manufacturing plants and distribution centers.

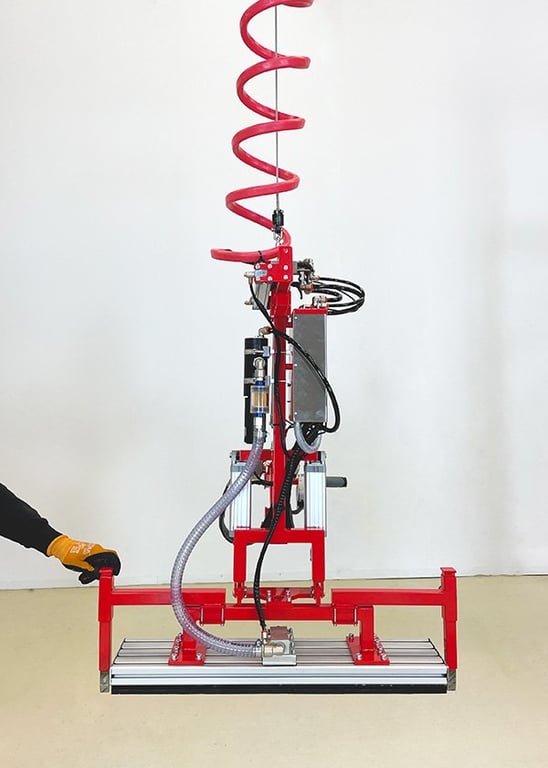

Vacuum suction plate

A vacuum suction plate gives the gripper a firm, dependable hold on the pallet. The vacuum keeps the load securely attached and minimizes the risk of slipping during handling.

High-speed operation

Built for a fast working pace, the gripper lets a single operator complete palletizing tasks that once required two workers. This is especially valuable in production areas where throughput matters when handling boxes, bags and packages.

Compact design

Its compact build makes the 89-12178 well suited to confined spaces. The small footprint also makes it easy to integrate with robots and existing palletizing machines without major engineering work.

Easy maintenance

The design allows quick maintenance and repair, cutting downtime and keeping the equipment available so production runs with minimal interruption.

Applications

The pallet gripper 89-12178 covers a wide range of palletizing tasks, including:

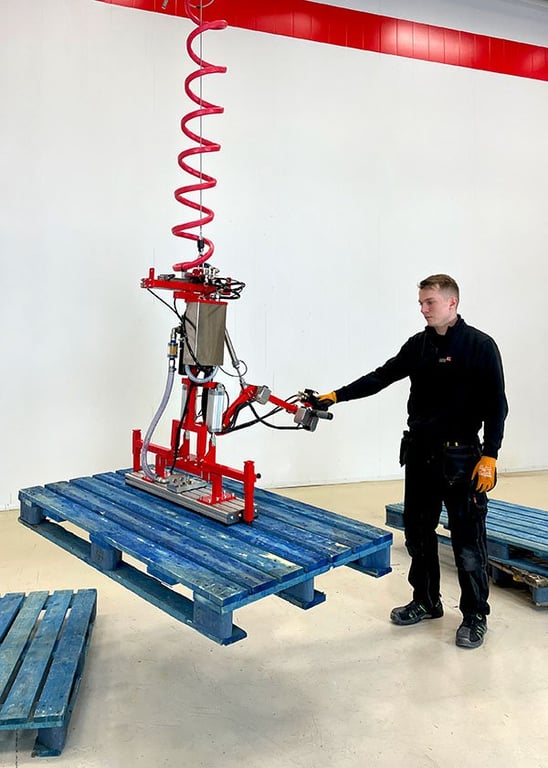

• Empty pallet handling: move, store and stack empty pallets efficiently, making the most of floor space.

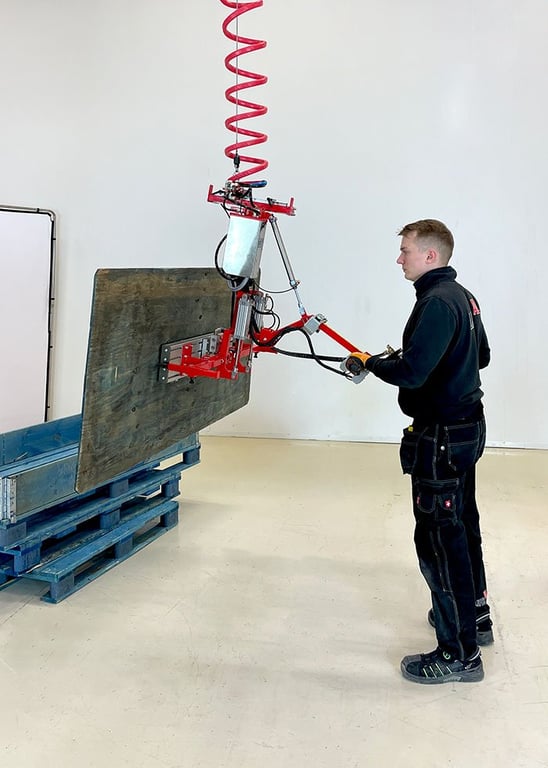

• Pallet lid and collar handling: beyond pallets, the tool easily lifts pallet lids and pallet collars of various shapes, a compact 3-in-1 solution that saves space and streamlines workflows involving different items.

Smooth production

Smooth operation makes the gripper suitable for high production speeds, so palletizing of bags, boxes and packages is completed quickly and efficiently.

Technical specifications

Pallet grippers are always built to the customer's requirements. The pallet gripper 89-12178 has the following specifications:

• Features: tilt function and proportional speed control
• Pallet sizes: 2400 × 800 mm, 1400 × 800 mm, 800 × 800 mm
• Tool weight: 32 kg
• Material: durable steel construction
• Working medium: vacuum

Note: specifications may vary depending on the gripper model and application.

What is a pallet gripper?

A pallet gripper is an ergonomic lifting device engineered for palletizing work. Lifts All offers several types to handle bulky, heavy pallets, letting the operator grip, lift and stack empty pallets as if they were weightless. Extended versions can also tilt or rotate the load or fold pallet collars. These grippers are commonly used at pallet stations, on production lines and on robots where palletizing requires precision.

How does a pallet gripper work?

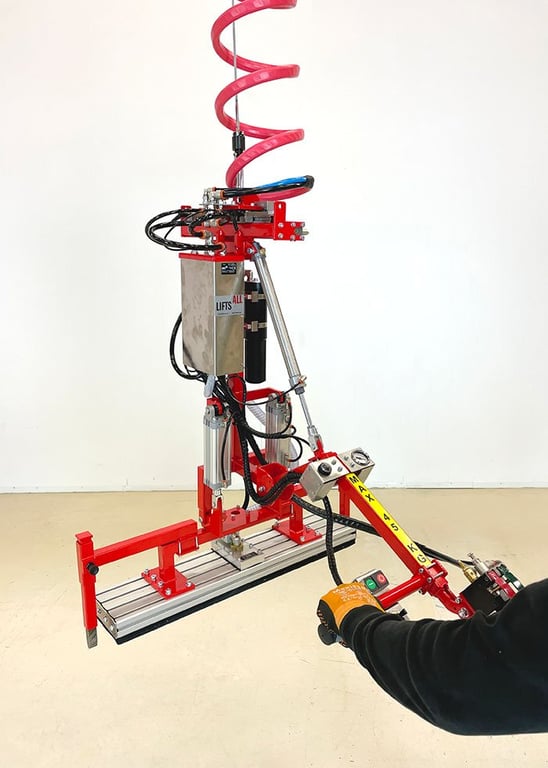

When the suction plate is placed on the material, the gripper attaches to the pallet, lid or collar, either on top of pallets and lids or on the side of pallet collars. The load is lifted by vacuum, giving a secure hold on different packages. A green indicator lights up once the vacuum level is correct, confirming it is safe to lift. After the pallet is moved into position, pressing the red button releases it.

Benefits of a pallet gripper

• Weightless, ergonomic lifting that protects your staff.
• Helps prevent wear-and-tear injuries caused by heavy lifting. The maximum load for this gripper is 45 kg.
• One person can handle palletizing tasks that used to need two, streamlining processes, raising output and freeing time for other work.
• Vacuum gripping supports high-frequency lifting of bags and packages, so operators keep up the pace while working comfortably.
• No more splinters or scratches, even when working without gloves.
• Stack empty pallets efficiently and maximize space in the facility.
• Ergonomic handles suit all arm sizes and both right- and left-handed operators.

Pallet lifters for different pallet types

Lifts All mainly builds grippers for EU pallets, full and half pallets, but they can be adapted to almost any pallet type and handle both loaded and empty pallets.

Each pallet gripper is tailored to the application: maximum capacity, grip pressure, gripping method and tilt or rotation functions are all designed around the products you lift. Whatever you handle and wherever you work, a suitable solution can be developed.

Different handling methods

Different products call for different handling methods. Besides vacuum pallet grippers, Lifts All offers a mechanical pallet gripper that holds the load with a clamping mechanism, often the better choice for porous materials. Another option is the versatile Basic multi-gripper, whose quick-change attachments can hook onto packages or lift with one or several vacuum cups.

Pallet gripper vs. pallet jack

A pallet jack is rolled under the pallet by hand and raised by leverage, after which the pallet is dragged away. A Lifts All pallet gripper needs no physical force or special technique: thanks to pneumatic vacuum technology, changing pallets is completely effortless.

The gripper is also mounted on a robot, a crane or an overhead rail system, so it can serve different parts of the workplace without being dragged around manually.

Frequently asked questions

What is the best way to lift a pallet?

A pallet gripper is the most ergonomic way. Unlike manual lifting or a traditional pallet jack, a vacuum pallet gripper puts no strain on the body; the load is lifted weightlessly, protecting workers while improving palletizing efficiency.

How do you lift a pallet without a pallet jack?

Use a pallet gripper. Instead of manual force, it attaches to the pallet surface by vacuum, making lifting and moving effortless. It is easier and significantly reduces the risk of workplace injuries.

How do I choose the right pallet gripper for my business?

Consider the pallet types you handle, their weight, your workspace layout and your palletizing tasks, as well as pallet material, whether you need tilt or rotation, and how often the tool will be used. FullSharp can assess your needs and recommend the most suitable pallet gripper.

Video

Technical specifications

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.
