Lifts All Vacuum Pads for Airtight and Porous Materials

Airtight up to 50 kg, porous up to 30 kg (by variant)
Perforated sheet, rough boards, cartons
Self-closing butterfly or ball valves
Lengths 140, 180, 300 and 420 mm
Fits Basic and Classic B-M lifting tools

FullSharp – official Lifts All representative in Vietnam

Vacuum pads – flexible lifting for many materials

The vacuum pad is an attachment for lifting both airtight and non-airtight materials. On airtight loads it lifts 50 kg; on loads that are not airtight the maximum is 30 kg. It is the recommended choice when one lifting tool must handle several types of objects, such as boxes, perforated metal plates or other loads that are not completely smooth. It holds the load gently, making it ideal for goods that need careful handling.

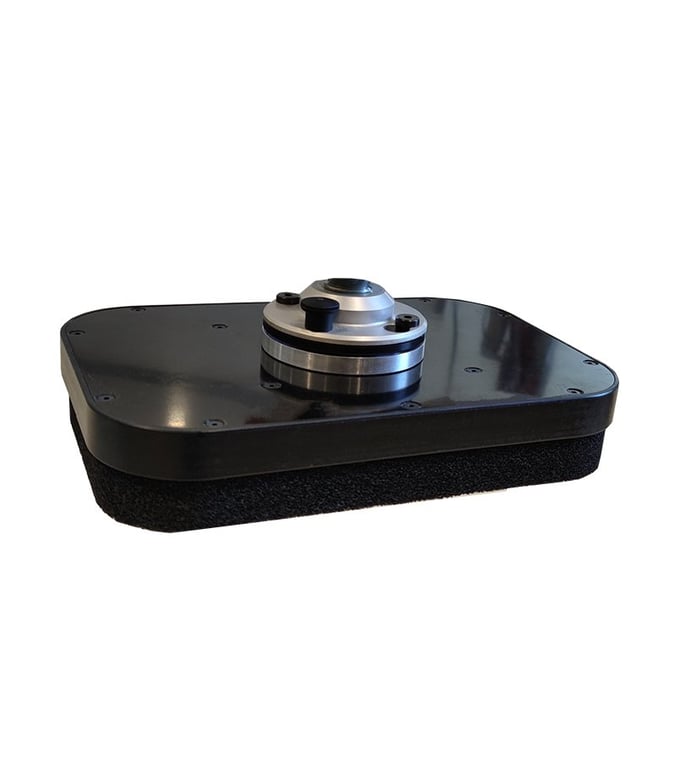

Lifts All Vacuum Pads for Airtight and Porous Materials

What can the vacuum pad lift?

A standard suction cup sometimes struggles to grip because the vacuum level is too low. That is where the vacuum pad excels, for example with:

Perforated or uneven metal sheets
Rough wooden boards
Cardboard boxes and packages
Steel or aluminium sheets with punched holes
Other materials that are not 100% airtight

Combine with Lifts All lifting systems

Vacuum pads come in several variants and attach easily to the Basic and Classic B-M lifting tools. By swapping pads you get a versatile tool that adapts to different loads and tasks.

Video

Technical specifications

Item	Specification
Height (mm)	136, 85
Weight (kg)	1.1, 1.8, 2, 2.5, 3, 4
Maximum capacity (kg)	27, 30, 50, 56
Maximum capacity, porous (kg)	15, 20, 22, 30, 40, 50
Maximum capacity, airtight (kg)	25, 27, 30, 50, 56, 58
Gripping technique	Vacuum
Length (mm)	140, 180, 300, 420
Configuration height (mm)	-126, -75
Function	Self-closing butterfly valves: vertical and horizontal grip; self-closing ball valves: horizontal grip

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
