Vacuum Gripper for Stands 89-12562

Maximum capacity 36.5 kg, tool weight 18 kg
Gripping: vacuum pad inserted inside, grips at the base
Automatic center of gravity balancing, load guard
Adjustable lifting speed, quiet operation
Optional PSH control

FullSharp – official Lifts All representative in Vietnam

Product overview

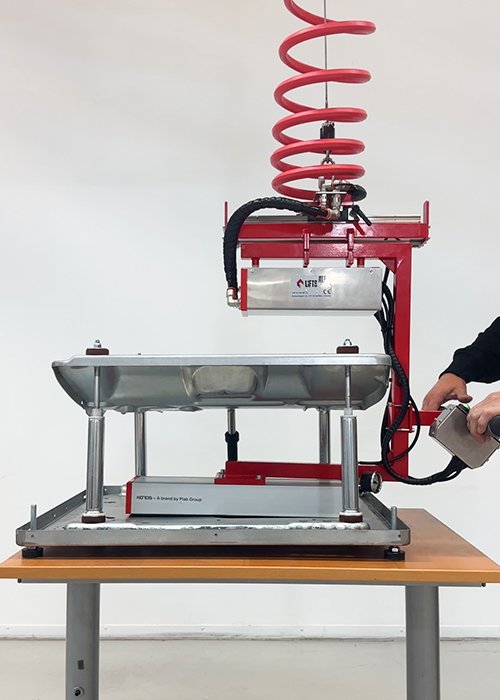

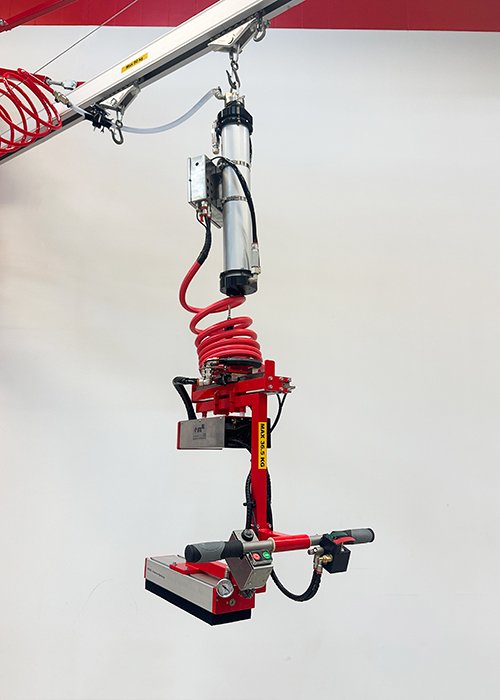

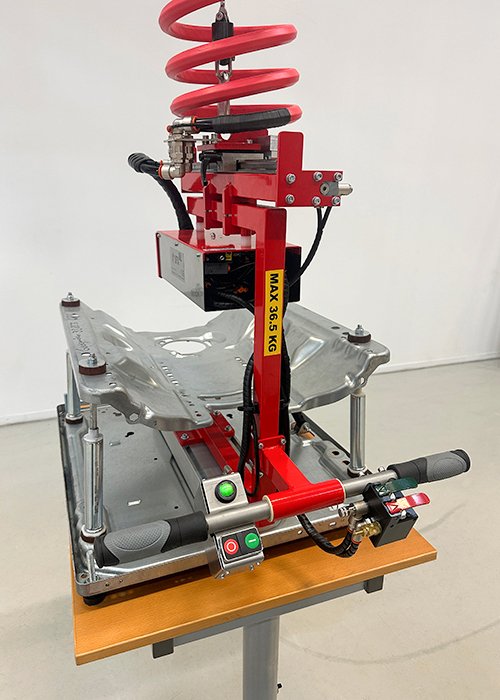

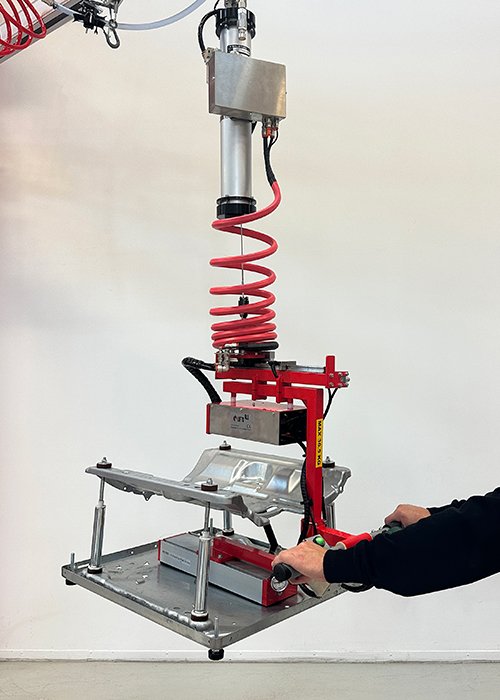

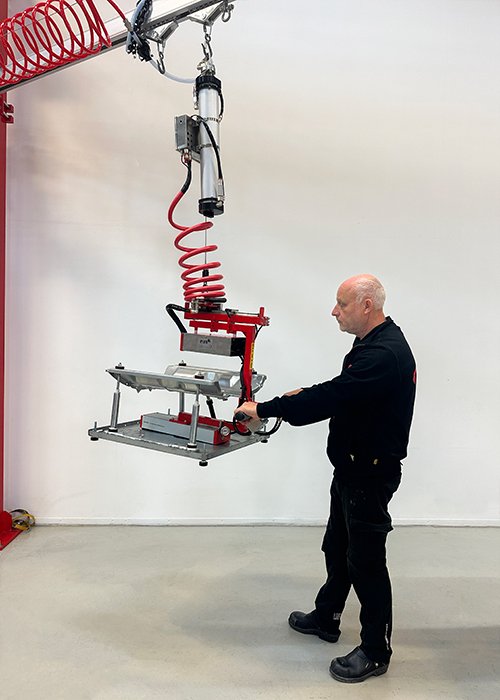

This vacuum gripper provides simple, safe and ergonomic handling of stands and similar supporting structures. The operator inserts the tool inside the stand, where a powerful suction pad grips directly at the base for a smooth, stable lift.

The solution relies on vacuum technology, holding the load by the pressure in the suction cups, while a pneumatic cylinder makes the load feel weightless and easy to maneuver.

Advantages

Efficient handling: adjustable up and down speed gives full control.
Load guard: the load cannot be released in the air, intentionally or by accident.
Quiet operation: low noise contributes to a better working environment.
Automatic center of gravity adjustment: the stand is balanced automatically for safe, easy handling.
Maximum capacity 36.5 kg: strong enough for most tripods without compromising ergonomics.

A customized lifting aid

The stand gripper is one example of a customized Lifts All lifting tool. If you have other loads to lift, in different sizes or weights, the tool can be redesigned to meet your specific needs.

Video

Technical specifications

Item	Specification
Article number	89-12562
Type of lifting object	Stand, tripod
Weight (kg)	18
Maximum capacity (kg)	36.5
Serial number	A7694
Gripping technique	Vacuum
Optional control	PSH

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.
