Lifts All vacuum door gripper for fire doors 89-10788

Max capacity 120 kg, tool weight 100 kg
Vacuum gripping with adjustable cups
180° tilt and center-of-gravity (COG) adjustment
PSH control and MG Handle
For use with a Bal-Trol PH20 balancer (not included)

FullSharp – official Lifts All representative in Vietnam

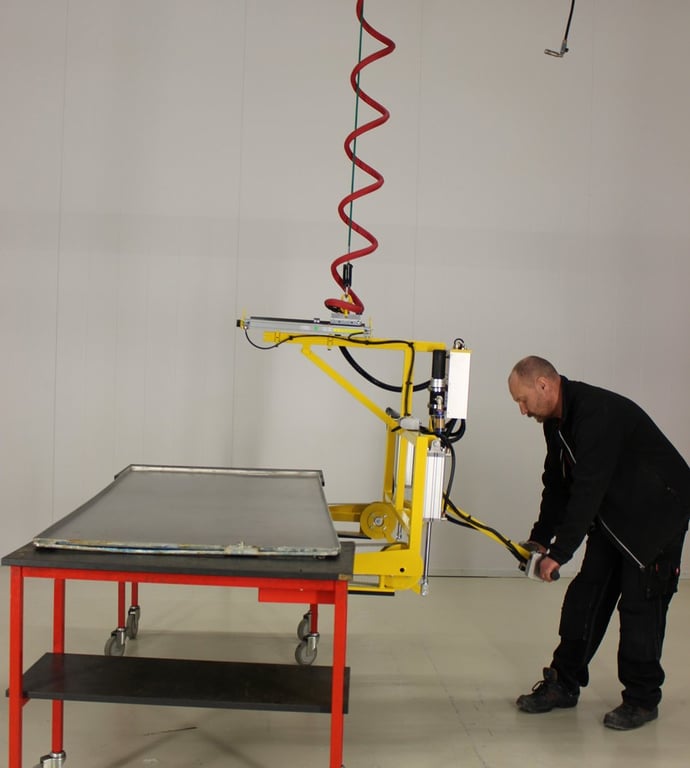

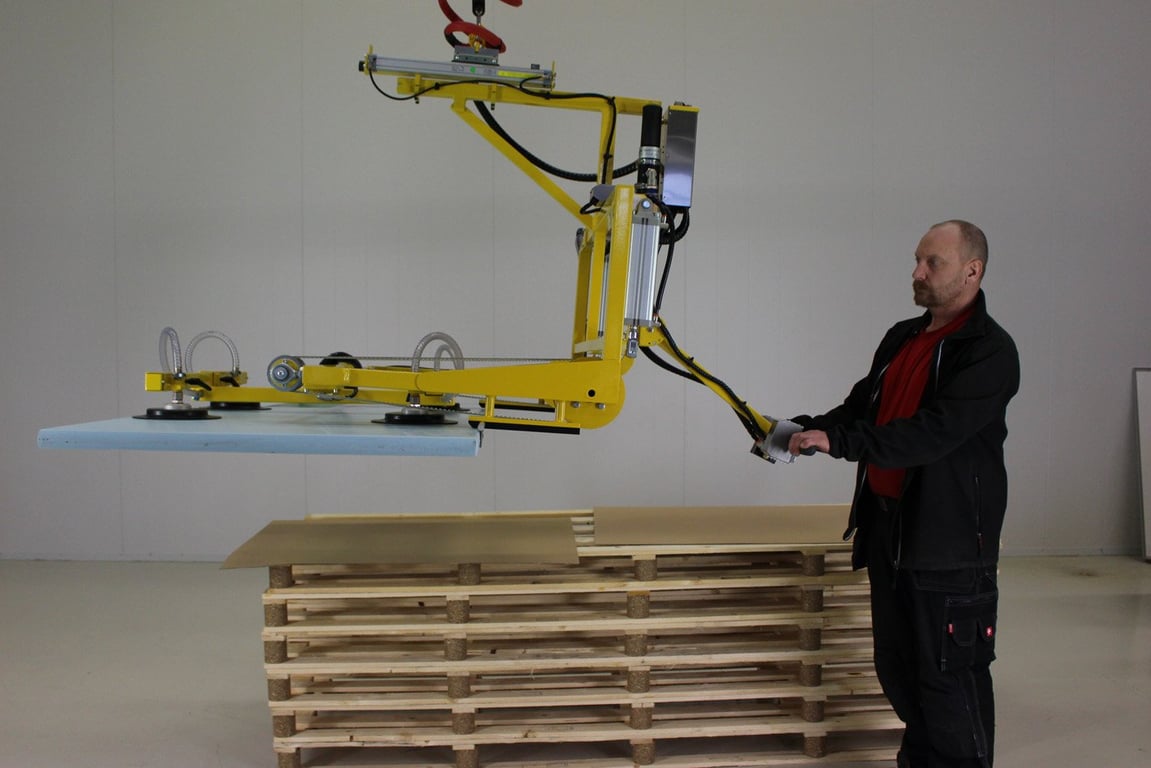

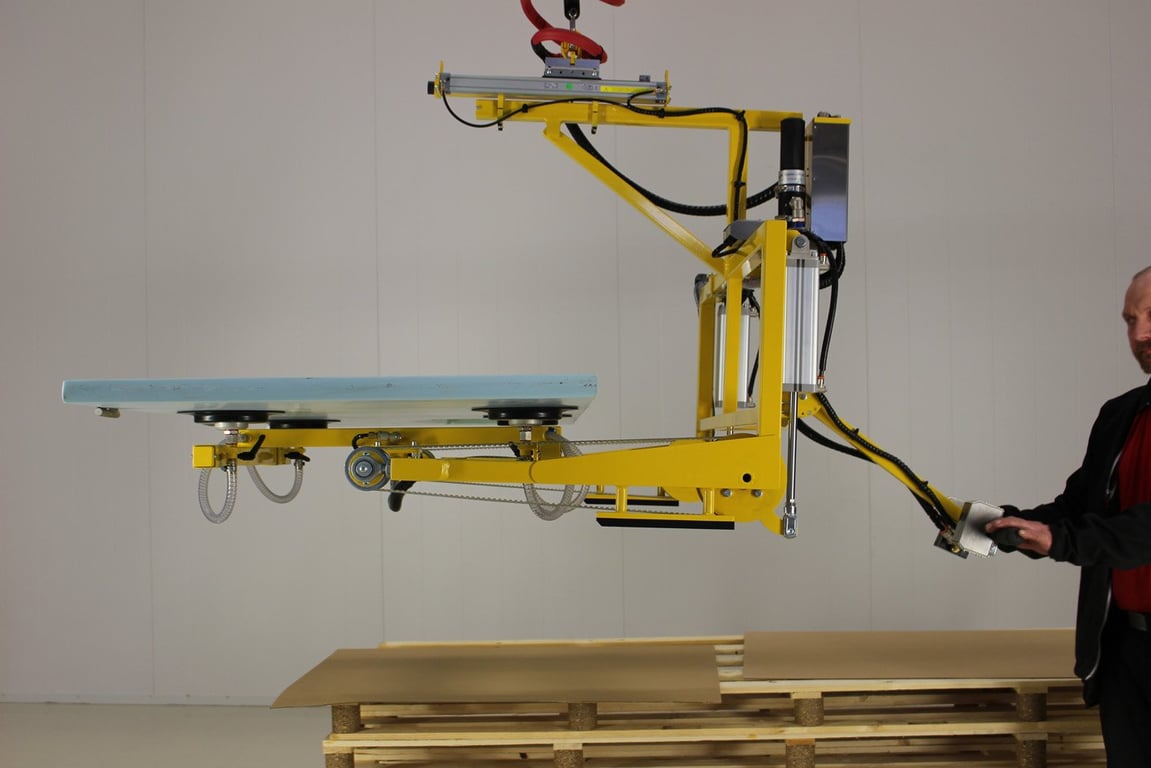

Vacuum gripper for fire doors

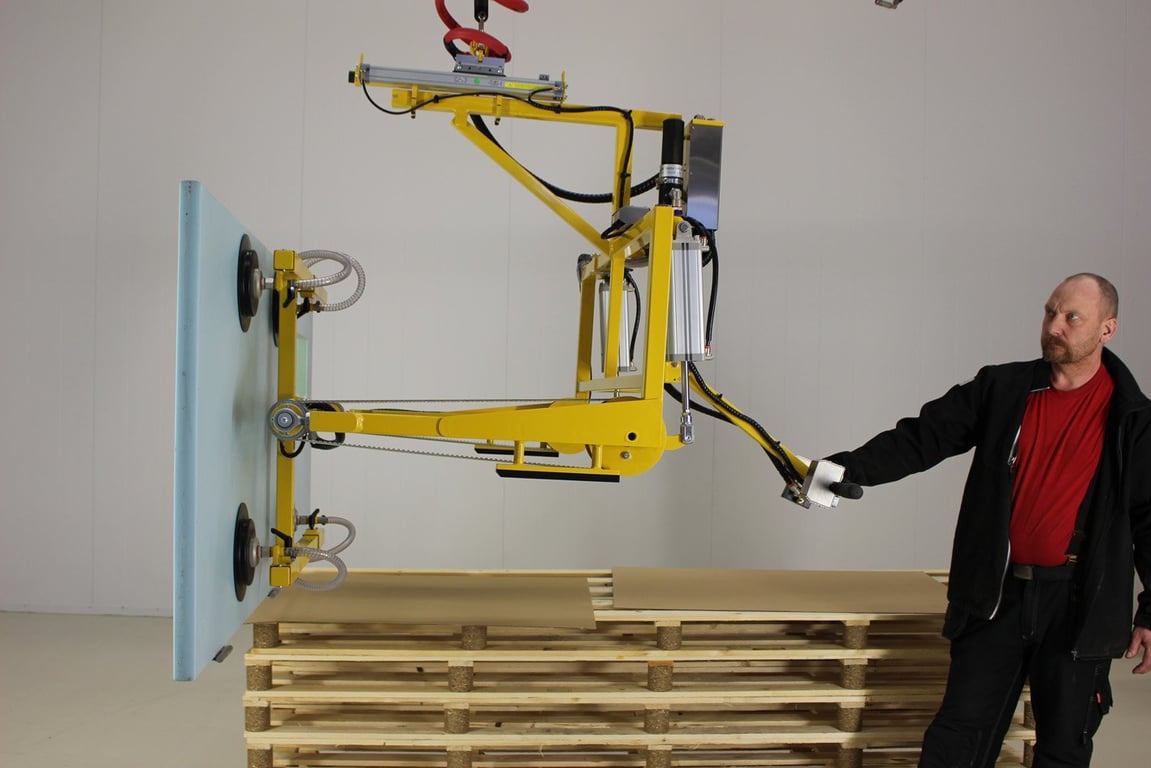

This vacuum gripper is built to lift fire doors with a maximum capacity of 120 kg. The door can be tilted 180°, and a center-of-gravity (COG) adjustment keeps it balanced while lifting and turning.

Lifts All vacuum door gripper for fire doors 89-10788

Key features

Maximum capacity 120 kg.
180° tilt and center-of-gravity (COG) adjustment.
Adjustable vacuum cups.

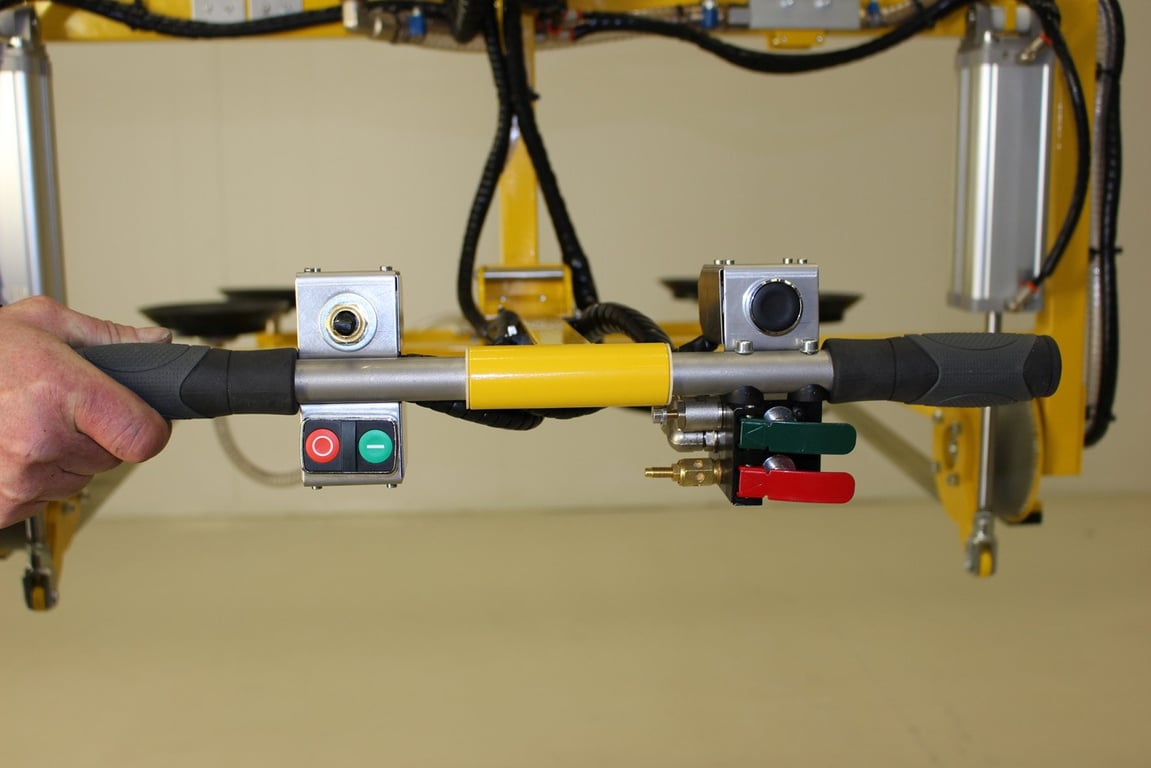

Controlled with a PSH (Pro-Speed Handle) and MG Handle.
For use with a Bal-Trol PH20 balancer (Made in USA), not included.

Technical specifications

Item	Specification
Article number	89-10788
Type of lifting object	Door
Industry	Wood and furniture industry
Serial number	5169
Weight (kg)	100
Maximum capacity (kg)	120
Function	Tilt
Optional control	PSH
Gripping technique	Vacuum

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

More images

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
