Vacuum Lifting Tool for Boxes 89-12338

Maximum capacity 12 kg, tool weight 9 kg
Vacuum cups grip the side of the box
Extended suspended control for out-of-reach lifts
PSH control with up and down buttons
Custom-built, article 89-12338

FullSharp – official Lifts All representative in Vietnam

Product overview

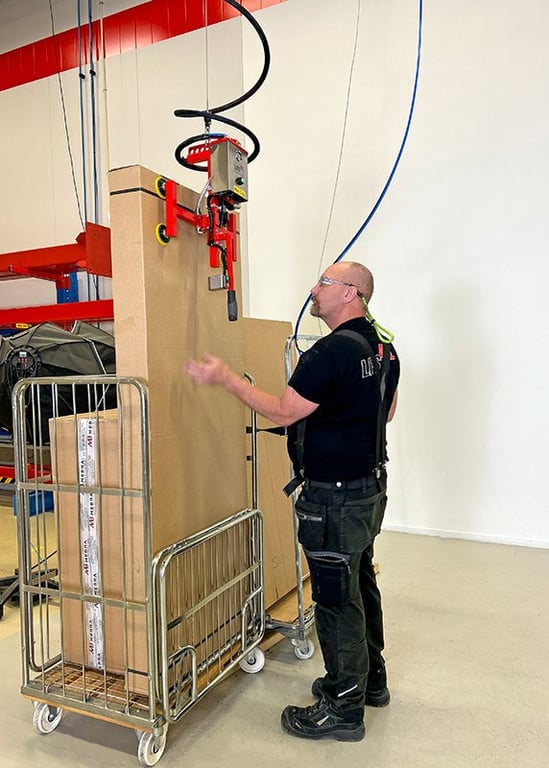

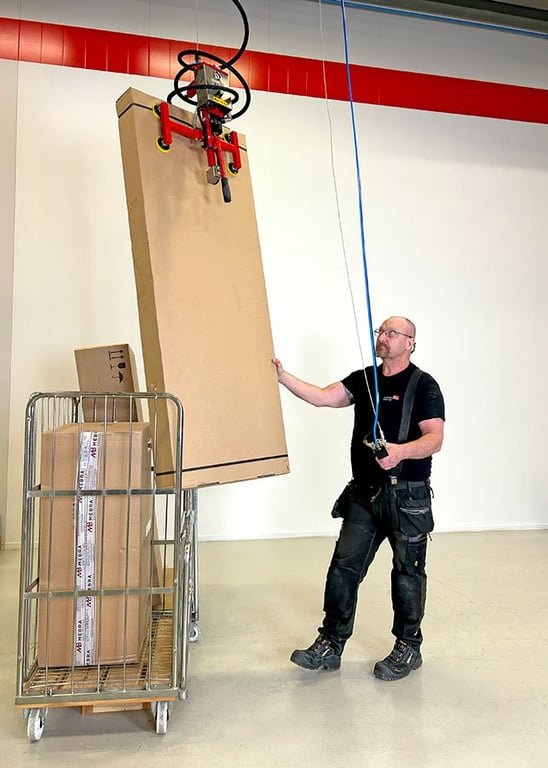

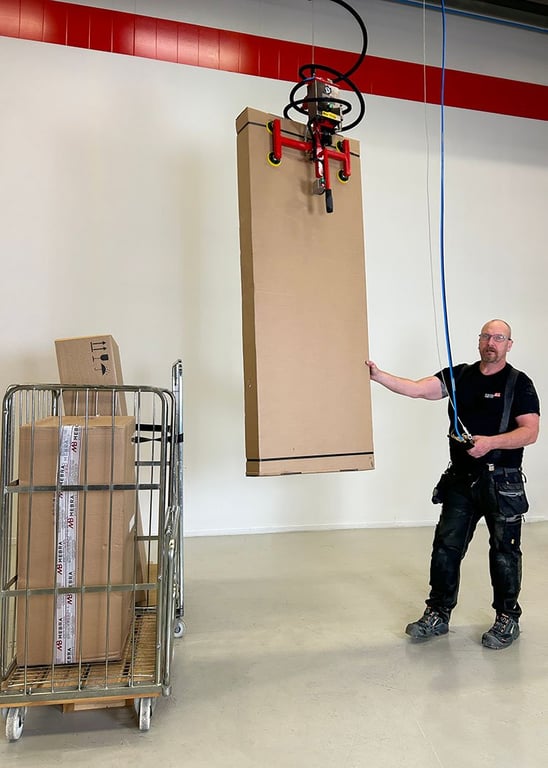

This lifting tool was customised for lifting tall boxes to high positions. It grips the side of the box with vacuum cups, after which the operator can let go of the tool and move the load up and down with an extended control unit. Because the operator does not need to hold the tool, boxes can be moved even when they are out of reach – particularly useful when large packages are loaded into and out of carts.

Lifting packages at height

Many industries need to lift packages from high carts and shelves or out of large bins, and balancing on a ladder or pallet with a bulky package is difficult. With a lifting tool, one person can do a job that used to require two. The tool has a comfortable rubberised handle with two buttons – one to grip the package and one to release it. A suspended control lifts and lowers the package smoothly and is very easy to learn, with just one button for up and one for down.

Advantages of a box gripper

A box gripper offers several advantages over lifting by hand:

The load feels weightless, sparing the operator's back and arms and leaving more energy at the end of the shift.
With no physical strain, the risk of repetitive strain injuries falls significantly.
Packages are lifted quickly and smoothly, so the work gets done more efficiently.

Video

Technical specifications

Item	Specification
Article number	89-12338
Type of lifting object	Cardboard box
Weight (kg)	9
Maximum capacity (kg)	12
Serial number	A7153
Gripping technique	Vacuum
Optional control	PSH
Noise level (dB)	72

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
