FullSharp · since 1991

Lifts All Speedy Picker Add-On – Forklift Crane Arm for Warehouses

Maximum capacity 25 kg, up to 120 lifts/hour
Gripping: vacuum, hook, mechanical
Add-On unit fits existing forklifts, runs on the truck's 24 V battery
Weighs only 300 kg, no support legs needed
Industry: distribution and warehousing

FullSharp – official Lifts All representative in Vietnam

Product overview

The Speedy Picker is an ergonomic, high-efficiency lifting solution for warehouses and distribution centers. It combines a crane arm with a lifting tool powered by a compressor, all mounted on the forklift the operator drives throughout the shift, so the lifting aid is always within reach. Because loads are no longer lifted by hand, the risk of lifting injuries drops sharply and the work becomes faster, easier and safer.

Lifts All Speedy Picker Add-On – Forklift Crane Arm for Warehouses

An ergonomic forklift crane arm that streamlines warehouse work

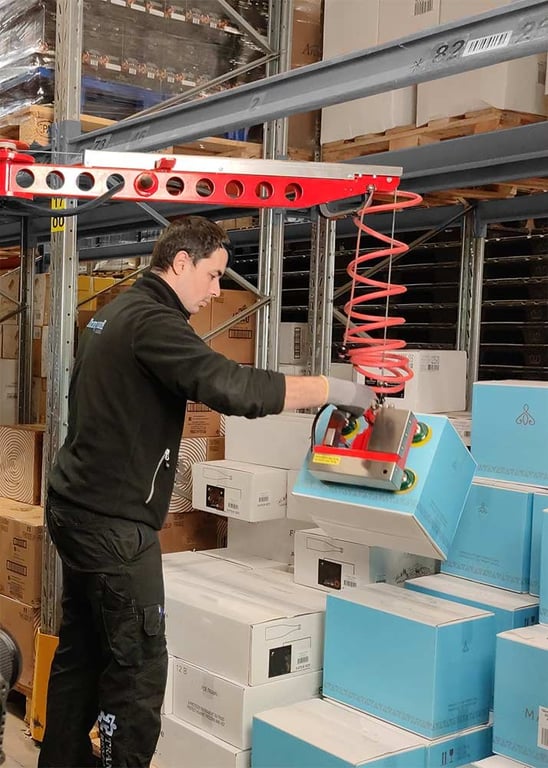

Order picking is repetitive, fast-paced work. Awkward positions and poor posture are major causes of wear-and-tear injuries and fatigue, which in turn reduce productivity. The Speedy Picker handles up to 120 lifts per hour, keeping operations productive while cutting injuries and improving ergonomics. The lifting tool is always ready to go.

The unit stays stable even with the crane arm extended, so there is no need to deploy support legs. Work continues without time-consuming stops.

Lifting tools for warehouses and distribution centers

The crane arm can be fitted with a range of lifting tools for handling goods and loading or unloading the truck:

Customized lifting tools

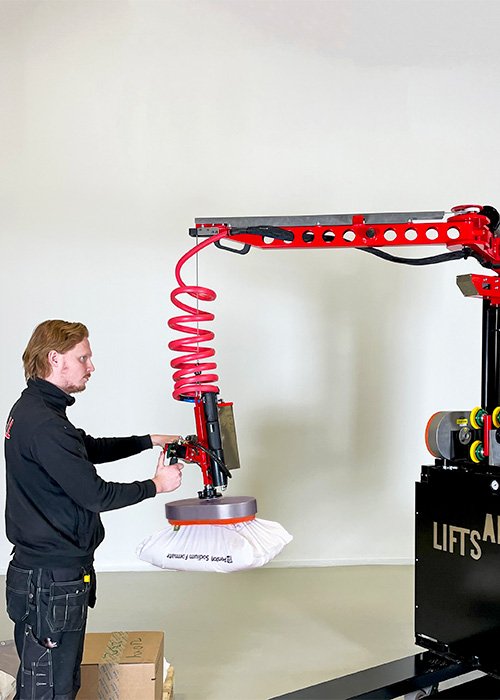

The Speedy Picker can carry a purpose-built tool for sacks, cans, boxes and more. The arm accepts vacuum, mechanical and magnetic lifting aids, including tools for gripping at awkward angles, so the application possibilities are practically unlimited.

Multi-gripper

Where a warehouse handles many different materials, a multi-gripper with a twist-and-lock system lets the operator swap quickly between vacuum heads and even a hook. One machine can then lift a wide variety of items in different ways.

Standard lifting tools

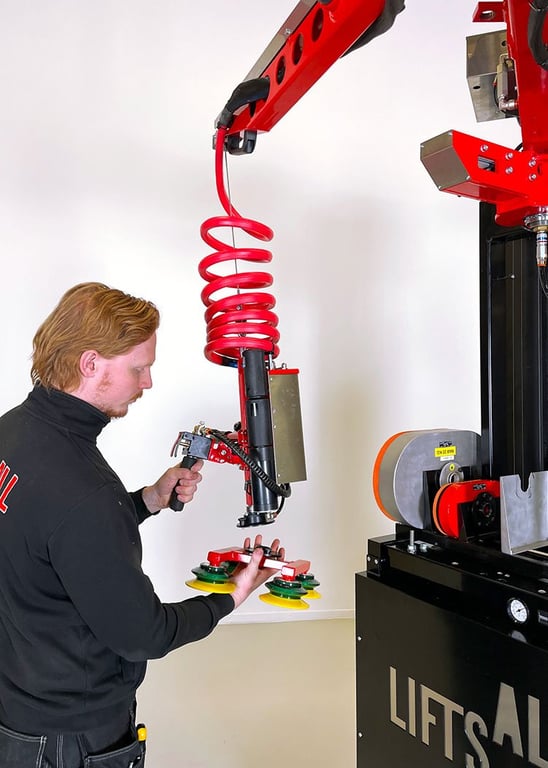

The standard box gripper activates automatically when it is placed firmly on a box, and the operator can then lift and guide the box with minimal effort. The handle suits both left- and right-handed users and has a single button, used to release the load once it is set down. A unique tilt function lets the operator pick from the top or the side, making it easy to reach the top of a high stack or to work in tight, low spaces.

A flexible forklift crane arm

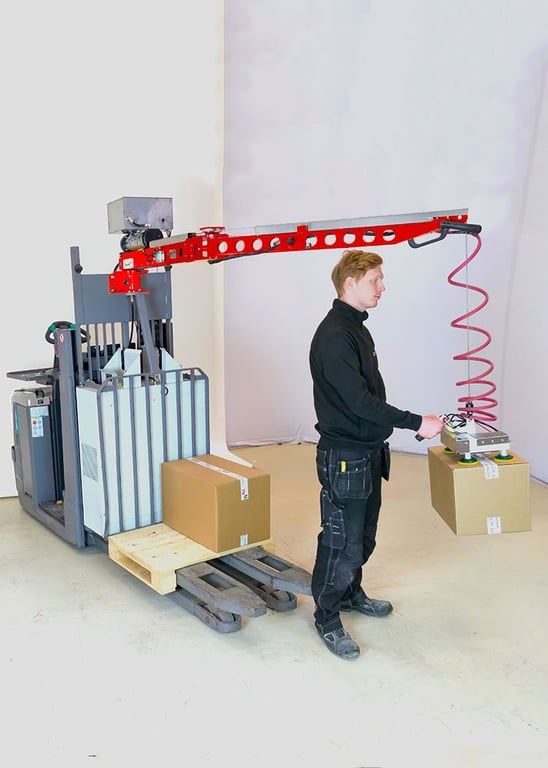

The compact, agile arm sits in the center of the truck, allowing quick picks from both sides and from behind. Its low build suits the limited headroom typical of warehouse aisles. When the job is done, the operator places the lifting tool in one of the docking stations, folds the arm into parking mode and drives safely to the next location.

Different mounting options

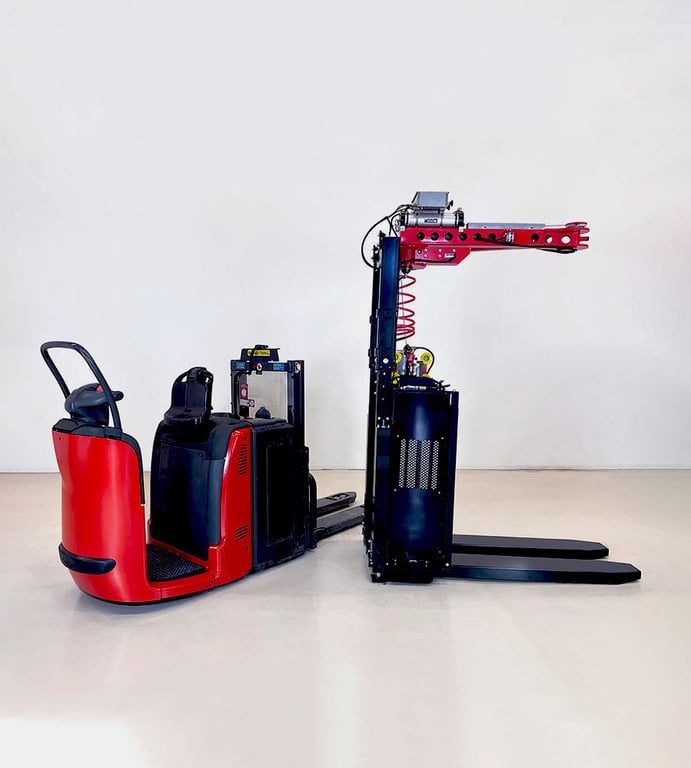

The Speedy Picker is available as a permanent installation or as a self-contained Add-On unit, with crane, compressor and lifting tools, that attaches to an existing forklift. The Add-On can be moved between trucks and switched off whenever the forklift is needed for other tasks.

Thanks to the different mounting methods, the crane suits virtually all articulated trucks. The best installation for each specific forklift is worked out together with the customer and the forklift manufacturer.

Durable, powerful and safe

The Speedy Picker is a cost-effective choice that can handle multi-shift operation.

Powered by the truck's own battery, so the operator has no separate charging to manage.
Draws energy only during the lift itself (about 3–5 seconds), making it durable and energy efficient.
Available in three power ratings: 1.3, 2.6 or 3.9 kW.
Weighs only 300 kg, leaving more payload before the truck's maximum load is reached.

Preventing wear-and-tear injuries

A warehouse worker may lift around 120 packages an hour, which can add up to 15–16 tonnes over an eight-hour shift (source: Handelsnytt). Under the regulations of the Swedish Work Environment Authority (Arbetsmiljöverket), employers must organize work so that the risk of strain disorders is reduced or avoided, which can include the use of technical aids. With the Speedy Picker carrying the load, pickers keep their speed and precision without wearing out their bodies.

A patent application for the Speedy Picker's unique technology is pending (filed 2020-12-01).

Video

Technical specifications

Item	Specification
Article number	95-SpeedyPickerAddOn
Weight (kg)	300
Gripping technique	Hook, mechanical, vacuum
Maximum capacity (kg)	25
Optional control	PSH, balancing
Voltage (V)	24
Industry	Distribution and warehousing
Height (mm)	2346
Configuration height (mm)	1838

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

More images

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
