Vacuum Gripper for Sanitary Ware 89-12030

Max capacity 25 kg, tool weight 15.6 kg
Vacuum suction cup grips the outside of the bowl
270° rotation, adjustable lifting and lowering speed
Load Guard safety function
Glazed and unglazed ceramics

FullSharp – official Lifts All representative in Vietnam

Product overview

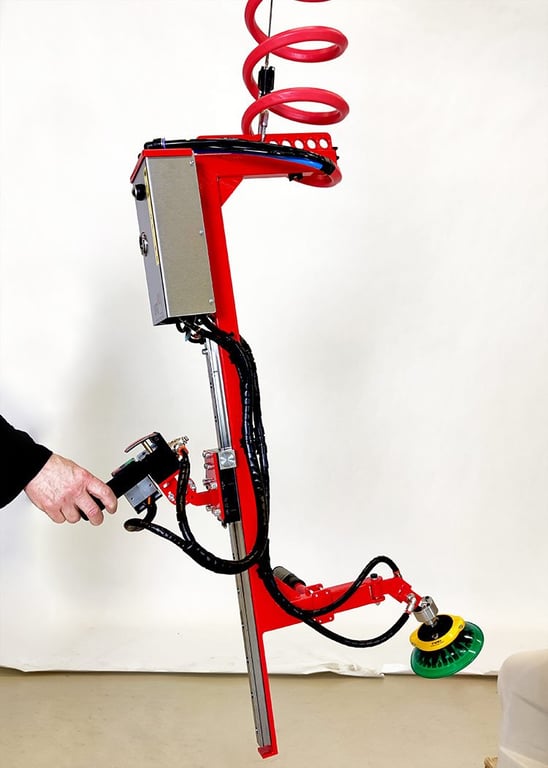

This sanitary ware gripper can lift various types of bathroom ware such as toilets, bidets and sinks. Model 89-12030 is designed specifically for toilet bowls and has a suction cup large enough to hold the bowl securely. It handles up to 25 kg, with adjustable lifting and lowering speed, and works with both glazed and unglazed ceramic toilets. The gripper can rotate the load 270°, making the operator's work easier and more efficient.
Further adaptations are possible, for example customising the gripper for other types of loads or different weights.

Vacuum Gripper for Sanitary Ware 89-12030

How the toilet bowl gripper works

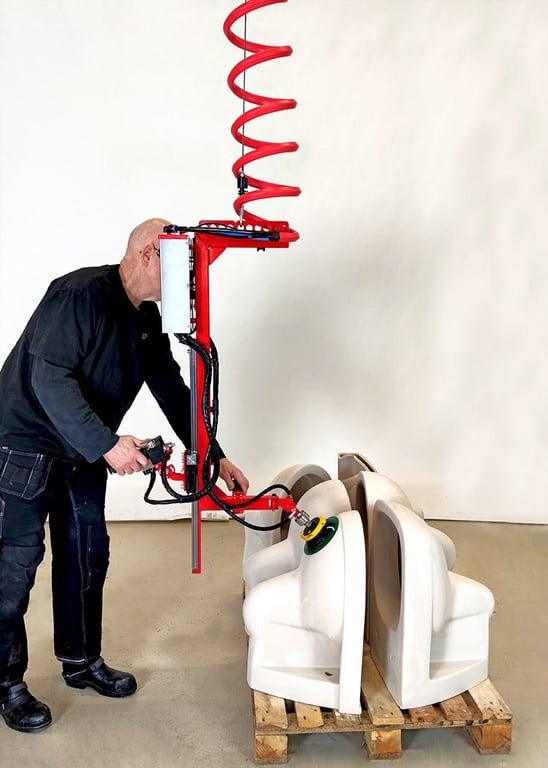

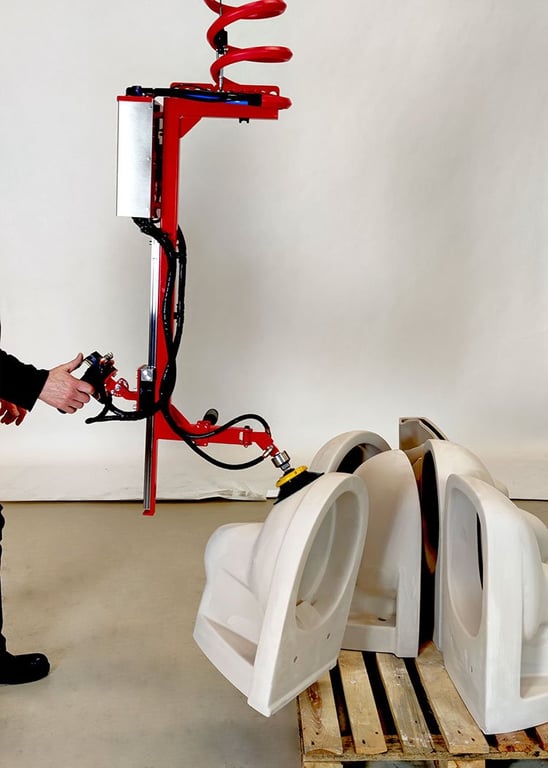

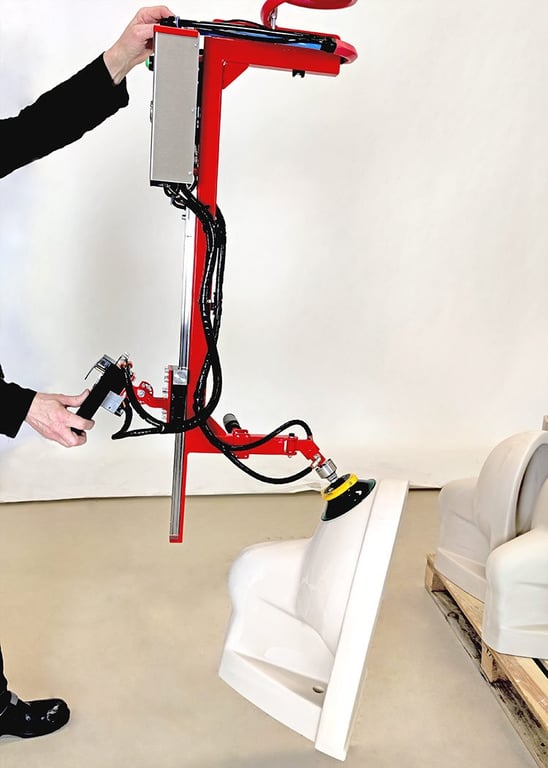

The bowl is moved using the gripper's air-pressure technology. The suction cup attaches to the outside of the toilet bowl: the operator places the cup on the bowl and presses the Grip button. The bowl can then be moved from pallet to pallet as if weightless. Once the bowl has been lowered onto a stable surface, the operator presses Release and the bowl is freed from the suction cup. A built-in Load Guard safety function ensures the bowl cannot be released until it rests on the floor or another stable surface.
Toilets are handled easily and safely, with no heavy lifting and no strain on the back.

Lifting other bathroom porcelain

If you need to lift other sanitary porcelain products such as sinks or bidets, a sanitary ware gripper can be customised for the purpose. The gripper is designed and built to suit your products while remaining safe and ergonomic for your operators.

Video

Technical specifications

Item	Specification
Article number	89-12030
Type of lifting object	Toilet
Tool weight (kg)	15.6
Maximum capacity (kg)	25
Serial number	A-6574
Function	Rotation
Optional control	PSH
Gripping technology	Vacuum
Noise level (dB)	75

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
