Lifts All Sack Suction Heads

Maximum capacity 50 kg, airtight and porous sacks
Soil, rice and sand bags, baggage
Three sizes: 250, 271 and 415 mm long
Weight 1.5 – 5.5 kg
Popular at airports and freight terminals

FullSharp – official Lifts All representative in Vietnam

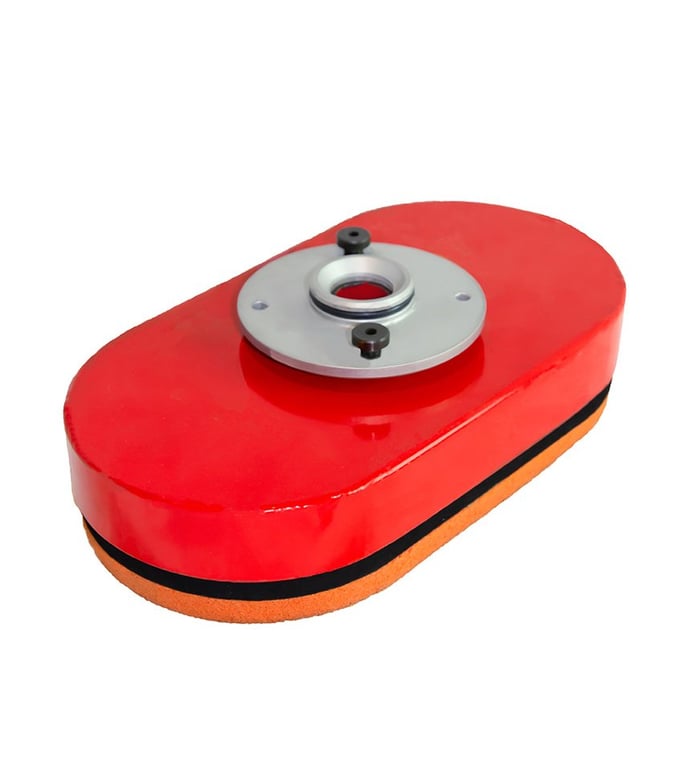

Suction heads for sacks and baggage

Lifts All sack suction heads are ideal for lifting porous or dense sacks and baggage of up to 50 kg. Compacted soil bags, rice sacks and sand bags can be lifted and moved easily – from pallet to pallet, for example. The suction heads are also widely used at airports and freight terminals for handling bags and luggage.

For the most porous bags, such as mail sacks or other loosely packed bags, the mechanical Sack Gripper is recommended instead.

Technical specifications

Item	Specification
Height (mm)	107, 73, 89
Weight (kg)	1.5, 2.5, 5.5
Maximum capacity (kg)	50
Maximum capacity, airtight (kg)	50
Maximum capacity, porous (kg)	50
Type of lifting object	Luggage, sack
Gripping technique	Vacuum
Length (mm)	250, 271, 415
Configuration height (mm)	-63, -79, -97

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

Versions

SKU	Name	Weight (kg)	Maximum capacity airtight (kg)	Maximum capacity porous (kg)
93-20015	Sack Suction Head M - (271 x 153 mm) - [50\|50]kg - (Bayonet Coupling)	2.5	50	50
93-20016	Sack Suction Foot L - (415 x 260 mm) - [50\|50]kg - (Bayonet Coupling)	5.5	50	50
93-20017	Baggage & Sack Cup - (250 x 135 mm) - [50\|50]kg - Aviation (Bayonet Coupling)	1.5	50	50

Versions according to Lifts All (Sweden) data. Contact FullSharp to choose the right version for your product and workstation.
