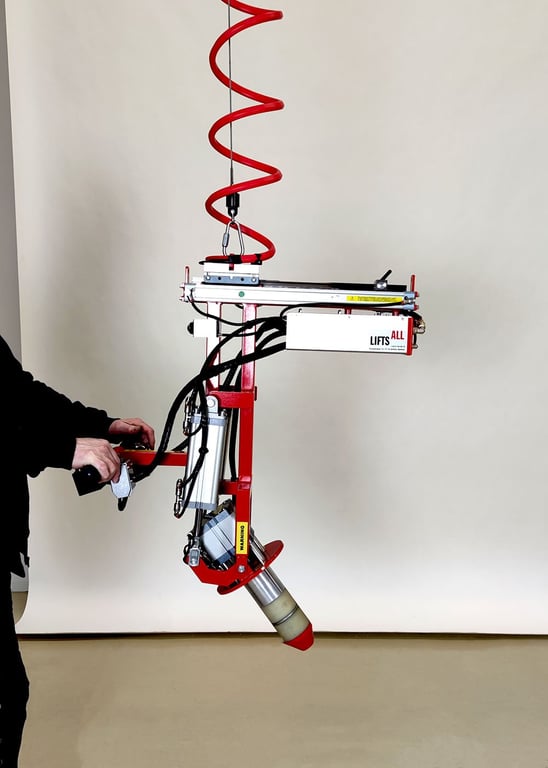

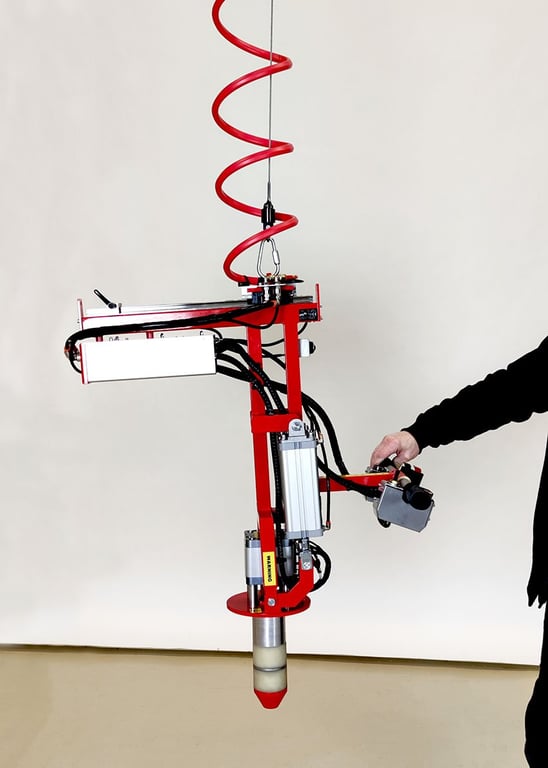

Roll Gripper 89-12155 (Expanding Core Shaft)

Max capacity 40 kg (adjustable to your needs)
Expanding shaft grips inside the roll core
Tilts rolls from horizontal to vertical
Optional PSH control
Large and small rolls with the same core diameter

FullSharp – official Lifts All representative in Vietnam

Product overview

This roll gripper lifts rolls weighing up to 40 kg. It is designed for fast, easy handling, taking rolls horizontally from the machine and placing them vertically on a pallet. The shaft enters the core and expands to hold the roll securely. The 40 kg capacity can be adapted to your needs. The gripper works with both large and small rolls, and one tool can serve several roll types as long as the core diameter is the same.

Roll Gripper 89-12155 (Expanding Core Shaft)

How does the roll gripper work?

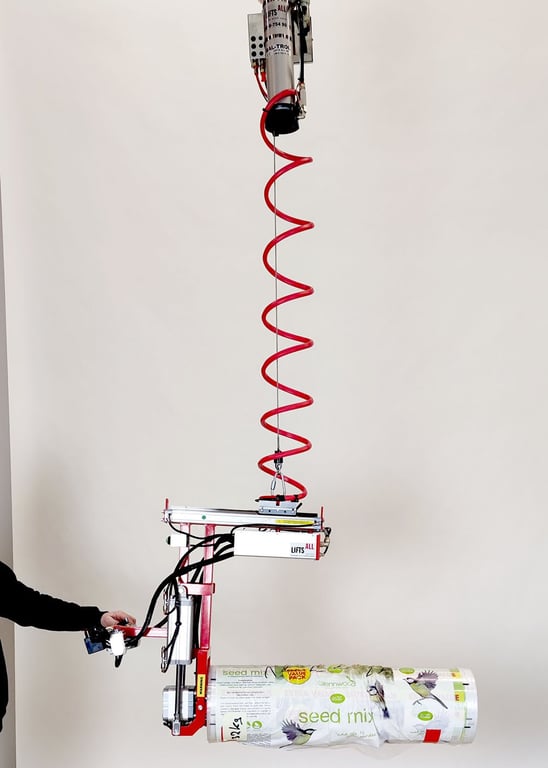

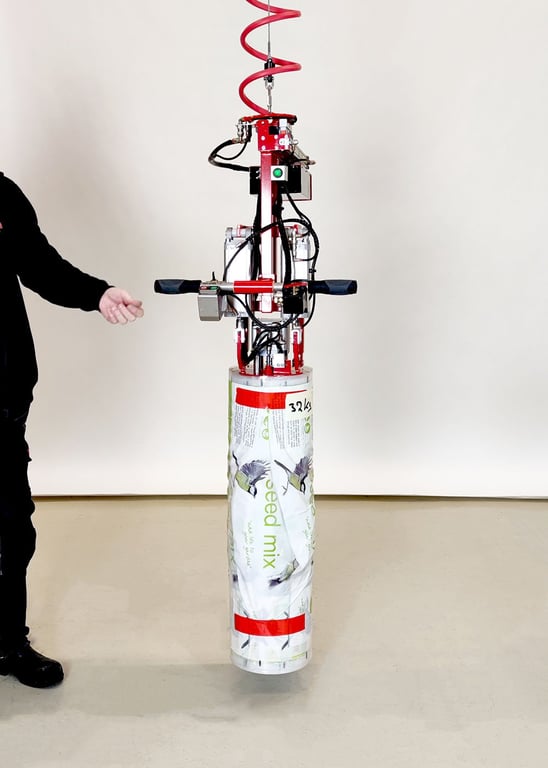

The shaft expands inside the roll core, gripping it from within. Once it is secure, the roll is moved to its destination. Rolls can be lifted vertically or horizontally, so rolls lying down can be picked up and stacked upright. When the roll rests on a stable, level surface, a push of a button releases the tool. The job is done safely and ergonomically, sparing the operator's back, neck and shoulders.

Lifting solutions designed for your needs

Several roll-handling solutions are available for different weights and requirements, including grippers that hold the roll from the outside for rolls that cannot be lifted with an expander, for example when they are to be placed on a spool. Each gripper is designed for optimal performance with your products and lifting needs.

Video

Technical specifications

Item	Specification
Article number	89-12155
Type of lifting object	Roll
Weight (kg)	27
Maximum capacity (kg)	40
Serial number	A6799
Function	Tilt
Gripping technology	Mechanical
Optional control	PSH
Noise level (dB)	73

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

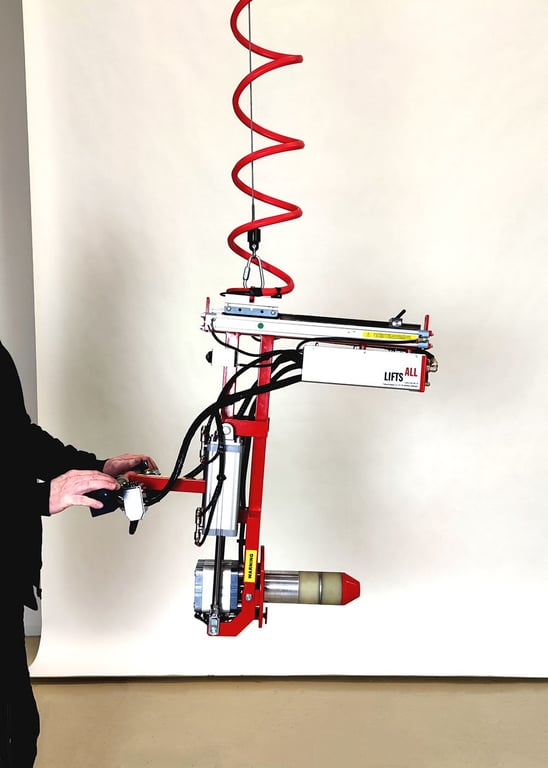

More images

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
