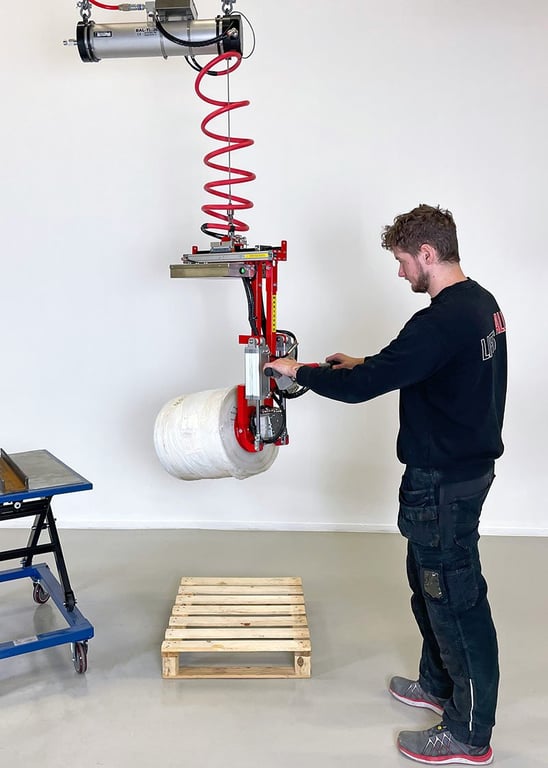

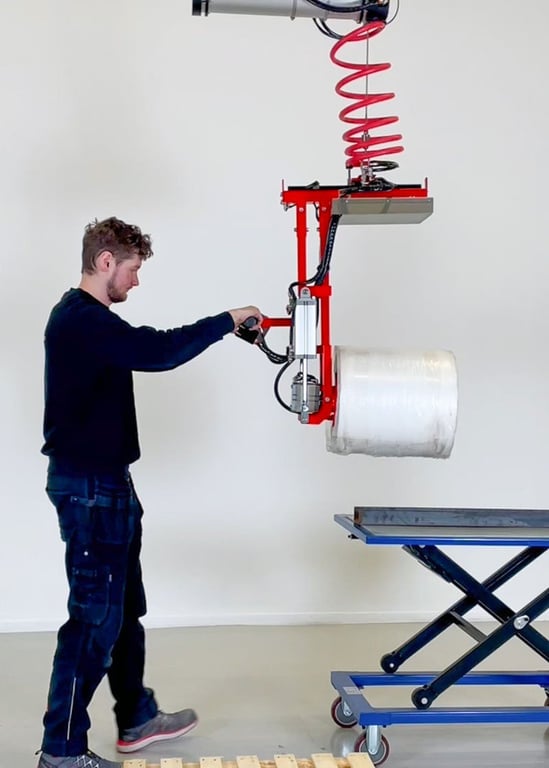

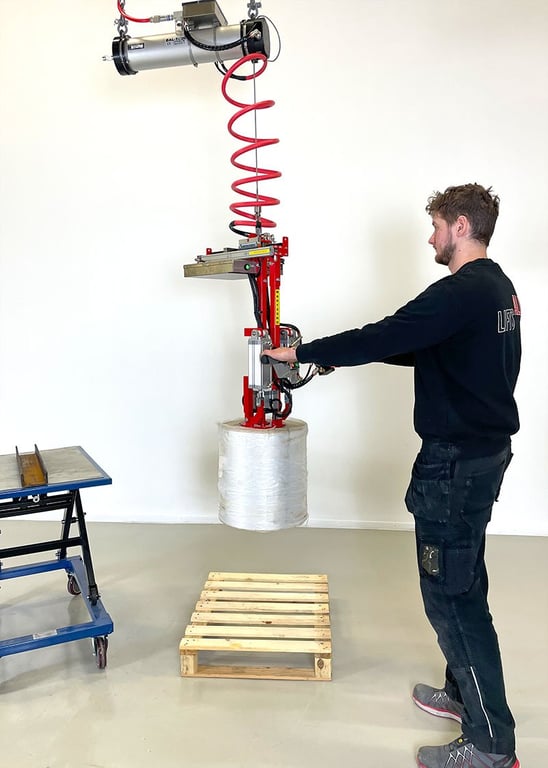

Lifts All Roll Gripper – 120 kg, 90° Tilt

Maximum capacity 120 kg, tool weight 28 kg
Core expander – no damage to the roll surface

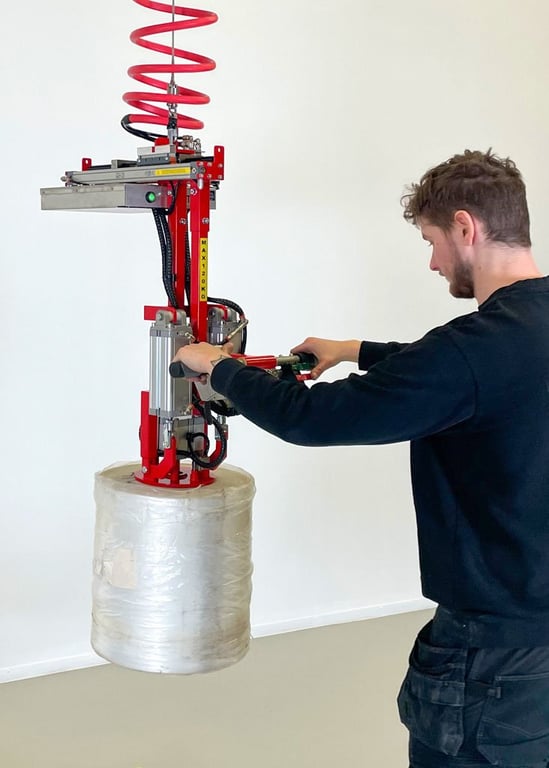

90° tilt: place rolls horizontally or vertically
Smooth PSH control, height-adjustable
Paper, film, aluminium and plastic rolls

FullSharp – official Lifts All representative in Vietnam

Product overview

The Lifts All Roll Gripper makes lifting rolls easy. A piston grips the roll by its core without damaging the outer layers, after which the roll can be turned horizontal or vertical depending on how it is to be positioned. The lift is height-adjustable, so rolls are easily placed on shelves or loaded into machines. The operator does the whole job without strenuous manual lifting – the roll becomes completely weightless.

Lifts All Roll Gripper – 120 kg, 90° Tilt

Adaptable to different rolls

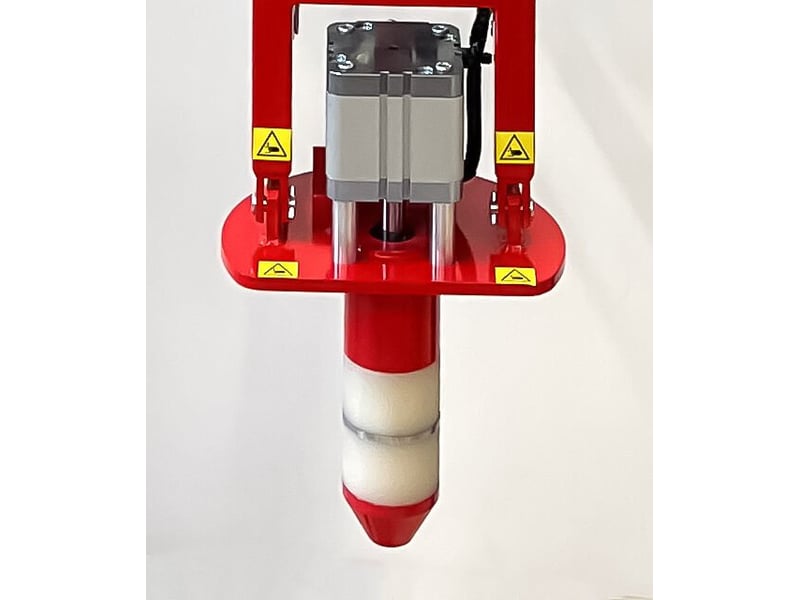

The gripper handles most rolls and spools with a hollow core – paper, film, aluminium foil or plastic, for example. It is fitted with a matching expander for an optimal fit in the core; a range of standard expanders is available and custom expanders can also be made.

Operation is simple, and the smooth PSH control lowers the roll gently. The unit takes up little space and is energy-efficient. This model lifts very heavy rolls of up to 120 kg, and capacity can be fully customised if heavier or lighter rolls need to be handled.

Roll grippers for many industries

The Lifts All roll gripper range includes tools that lift, rotate, tilt, mount and move rolls. That makes them a popular choice in manufacturing industries phasing out heavy manual lifting, such as paper, timber and beverages. With flexible lifting tools, operators work more ergonomically and are freed from unsustainable manual handling.

Video

Technical specifications

Item	Specification
Article number	92-10060-Mk2
Weight (kg)	28
Maximum capacity (kg)	120
Type of lifting object	Roll
Function	Tilt (90 degrees)
Height (mm)	1350, 740
Configuration height (mm)	-1077
Noise level (dB)	60

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

Compatible accessories and applications

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
