Plastic Box Gripper 89-12353

Max capacity 25 kg
Rubberized arms grip from inside the box
Boxes can be placed tightly together on pallets
Extended ergonomic handle; optional PSH
Food production, warehousing, conveyors

FullSharp – official Lifts All representative in Vietnam

Product overview

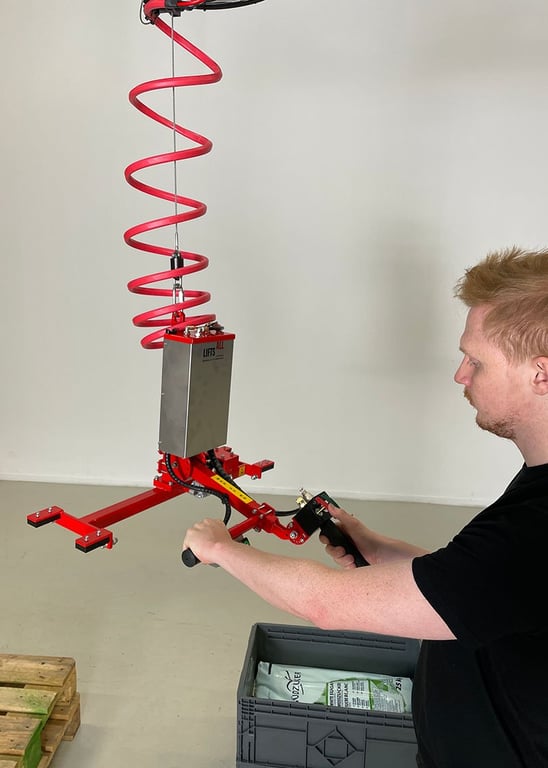

The Lifts All lifting tool for plastic boxes lifts boxes and containers easily and efficiently. It improves workflow and reduces the risk of work injuries, particularly in industries such as food production.

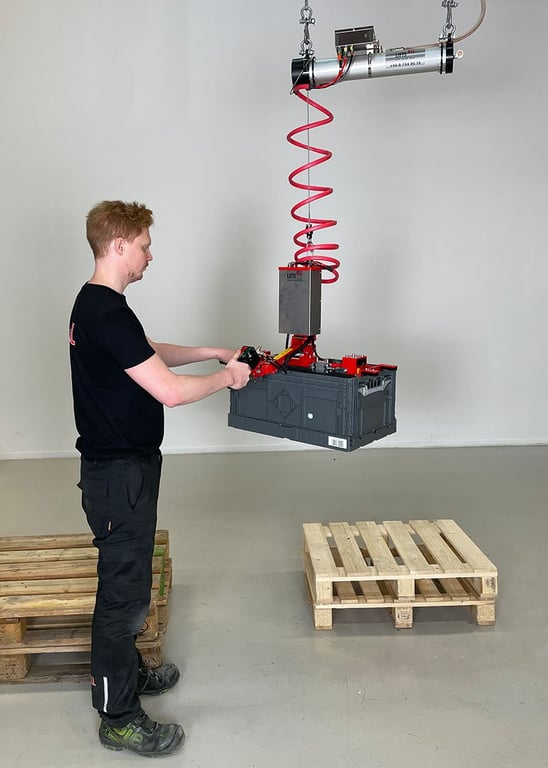

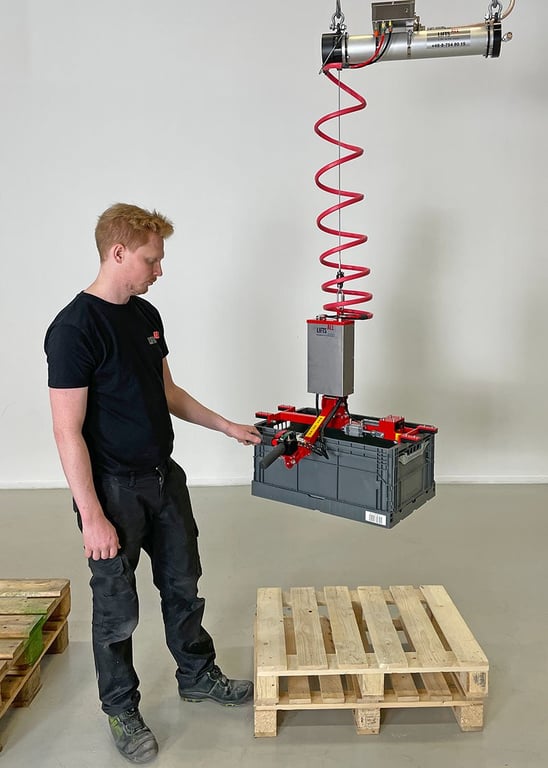

Rubberized gripping arms give a stable, secure lift every time. Because the arms grip from inside the box, boxes can be loaded and unloaded close together on pallets with nothing getting in the way. The boxes are moved weightlessly, for example from a pallet to a conveyor or back again.

Ergonomically extended handle

The extended handle lets the operator load without bending the back into awkward positions and makes it possible to reach the top layer of high stacks. Avoiding uncomfortable postures reduces the risk of strain injuries and supports a healthy work environment.

Mechanical lifting tool

The tool is driven by a pneumatic cylinder and works as a mechanical gripper. Because it clamps rather than relying on vacuum suction cups, it handles uneven, irregular or non-sealed surfaces effectively, making it the right choice when conventional vacuum lifters are not suitable.

Customized lifting tools for all boxes

The tool can be customized to optimise handling of plastic crates or other loads, providing a solution that matches your specific needs and improves efficiency and safety in your operation.

Video

Technical specifications

Item	Specification
Article number	89-12353
Type of lifting object	Box
Weight (kg)	11
Maximum capacity (kg)	25
Serial number	A7188
Optional control	PSH
Gripping technology	Mechanical

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
