Lifts All lifting tool for PET bottles 89-12380

Max capacity 60 kg, tool weight 75 kg
Mechanical gripper for 2 L and 1.5 L PET bottles
Interchangeable attachments: lift a group or a full tray
Optional PSH control, noise level 60 dB
Beverage industry, pallet to conveyor transfer

FullSharp – official Lifts All representative in Vietnam

Product overview

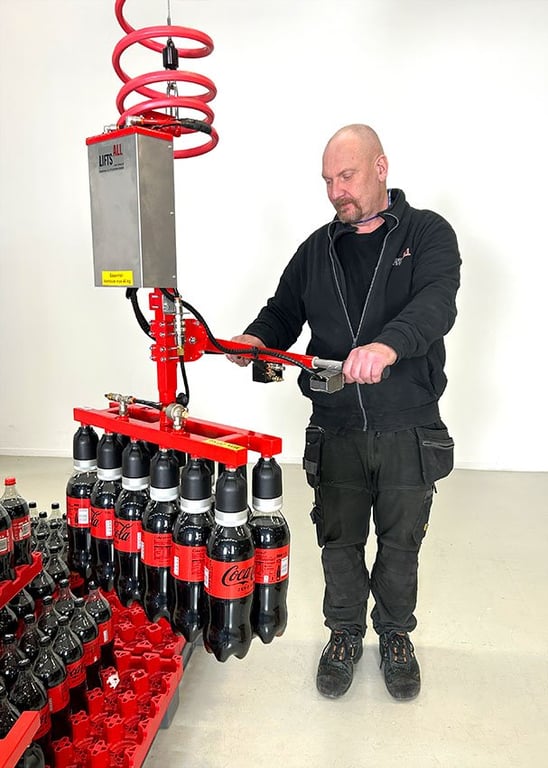

The Lifts All lifting tool for plastic bottles boosts production efficiency and takes the strain out of manual lifting. Designed for the beverage industry, it handles both 2-liter and 1.5-liter PET bottles with precision.

Lifts All lifting tool for PET bottles 89-12380

Features and functions

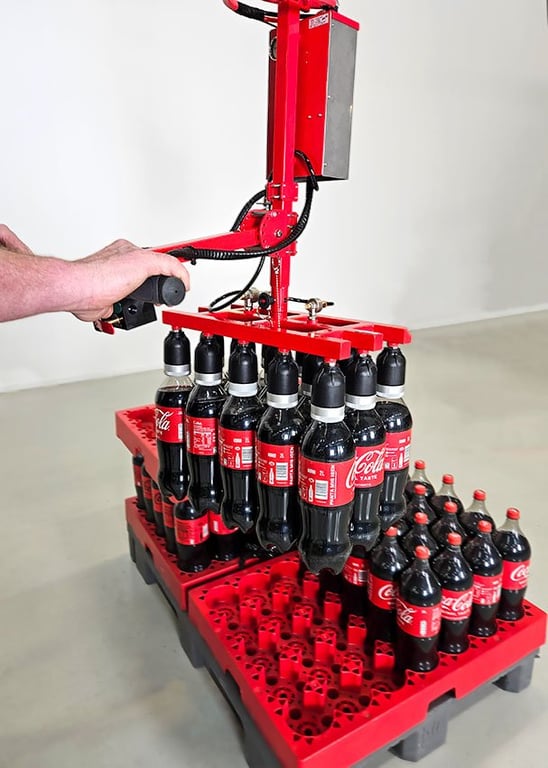

The tool is highly versatile and comes with interchangeable attachments, so you can lift a small group of PET bottles from the tray or all of them at once. Bottles can also be picked in different configurations to match how many the line needs per lift, and the attachments can be swapped to suit other bottle sizes. The result is a smoother workflow, higher productivity and lower cost, since several separate tools are no longer needed.

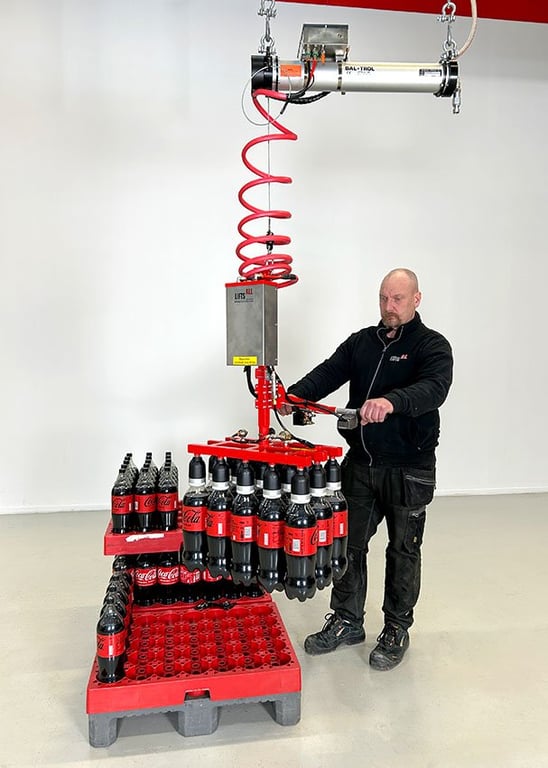

Bottles move from pallet to conveyor with minimal effort and maximum output, raising production speed while reducing the risk of work-related injuries and damaged products.

High-quality construction

Made from high-quality steel, the tool delivers long-lasting, reliable performance even under intensive use, making it a sound investment in both efficiency and sustainability.

Advantages of a bottle lifting tool

Lift plastic bottles safely from pallet to conveyor with minimal risk of dropping them.
Optimize production flow for higher efficiency and lower cost.
Reduce physical strain and improve the working environment.

A dedicated bottle lifting tool makes the production process smoother and more efficient, and it can be customized to the specific needs of each line.

Video

Technical specifications

Item	Specification
Article number	89-12380
Type of lifting object	Bottle
Weight (kg)	75
Maximum capacity (kg)	60
Industry	Beverage industry
Serial number	A7234
Gripping technique	Mechanical
Optional control	PSH
Noise level (dB)	60

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
