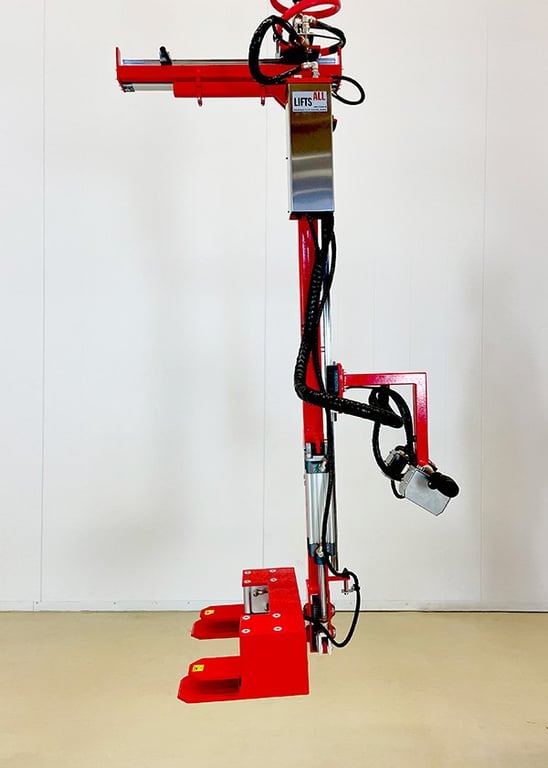

Pallet Turner 89-12421

Max capacity 45 kg; tool weight 50 kg
Mechanical grip with two clamping plates on the long side
Turns the pallet upside down at the push of a button
Optional PSH control
Warehousing, distribution, industry

FullSharp – official Lifts All representative in Vietnam

Product overview

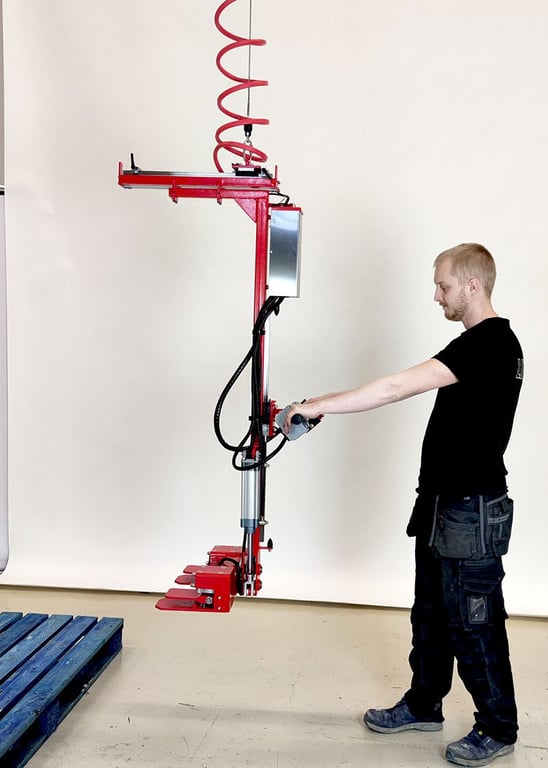

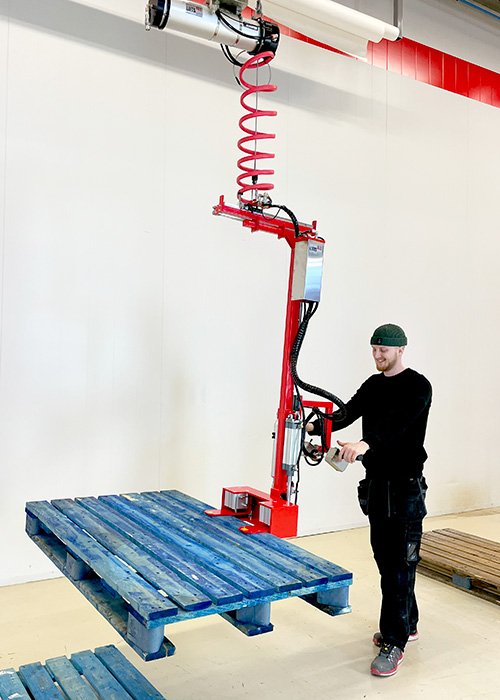

The pallet turner is a mechanical lifting tool for moving and/or turning pallets. Lifting pallets by hand causes wear on the body and can lead to accidents. This tool lets operators work quickly and ergonomically and is ideal for warehouses, industry and distribution. One tool handles different pallet sizes, and the operator adjusts it to the weight of the load. Maximum capacity is 45 kg (99 lb), while the gripper itself weighs 50 kg (110 lb).

How does the pallet turner work?

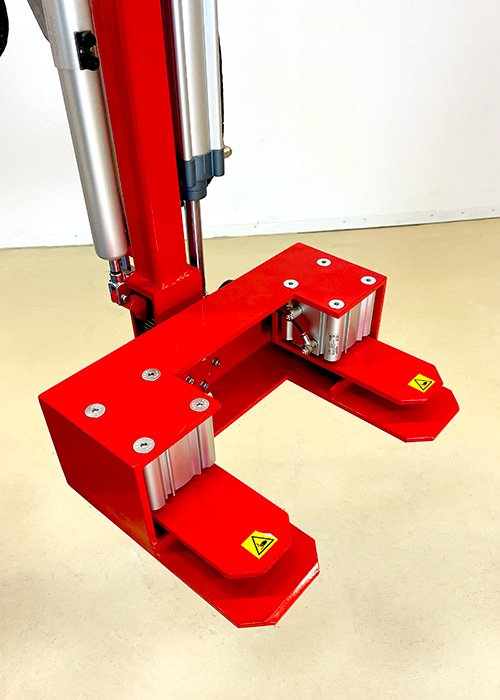

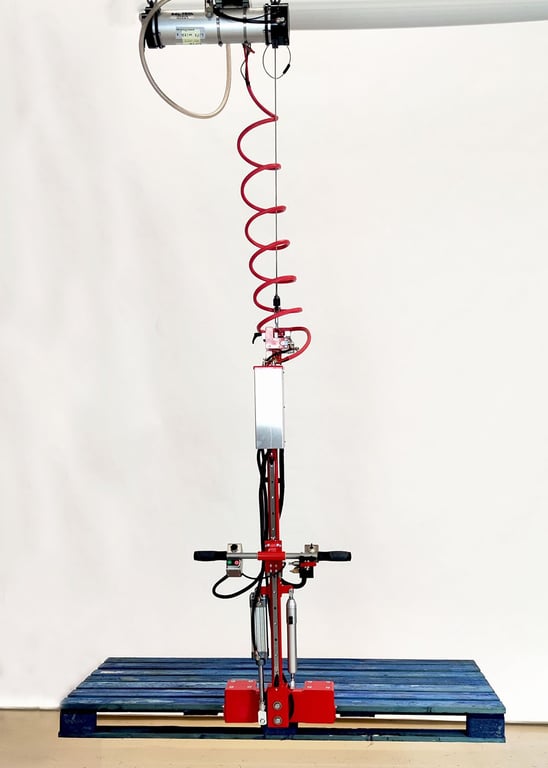

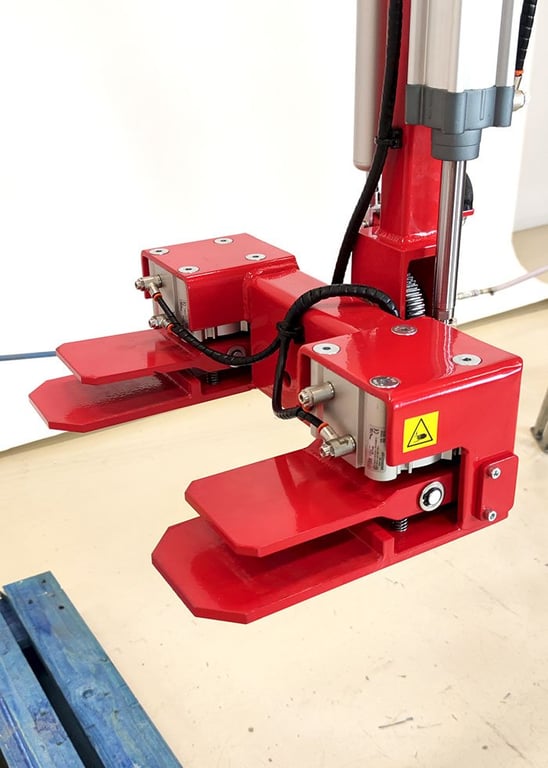

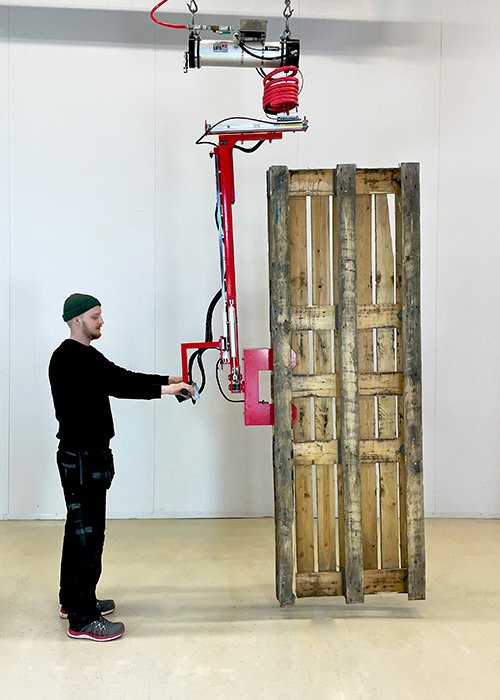

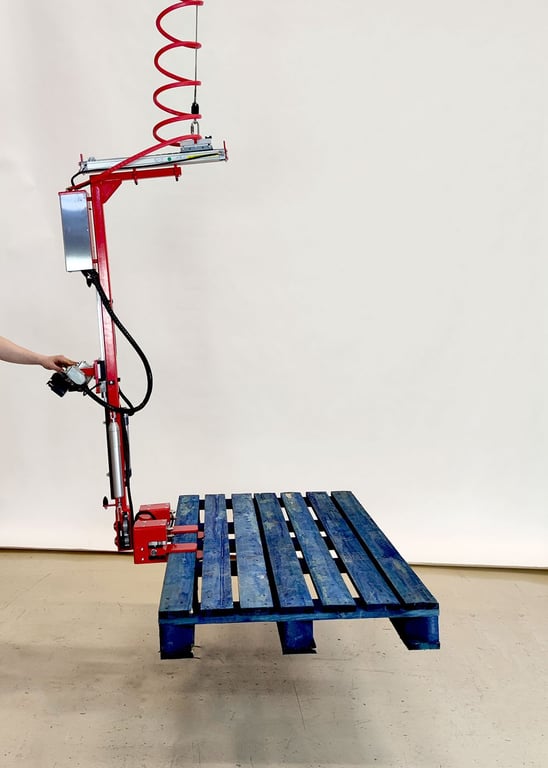

The tool grips the long side of the pallet with two clamping plates and holds it firmly throughout the lift. During the lift, the pallet can be turned upside down at the push of a button. Stacking pallets alternately deck-up and deck-down also saves space. Once the pallet is in place, a button press opens the plates and the tool can be removed.

Adapted to your pallet sizes

Lifting devices are usually made for full-size and half-size pallets, but they can be customized for other sizes. Each device is tailored to what you need to lift, with maximum capacity, tilt, rotation and other functions adjusted to your requirements.

Technical specifications

Item	Specification
Article number	89-12421 (alt. 89-12176)
Type of lifting object	Pallet
Weight (kg)	50
Maximum capacity (kg)	45
Serial number	A7356 (alt. A6842)
Function	Rotation
Gripping technology	Mechanical
Optional control	PSH
Industry	Distribution and warehousing
Noise level (dB)	59

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

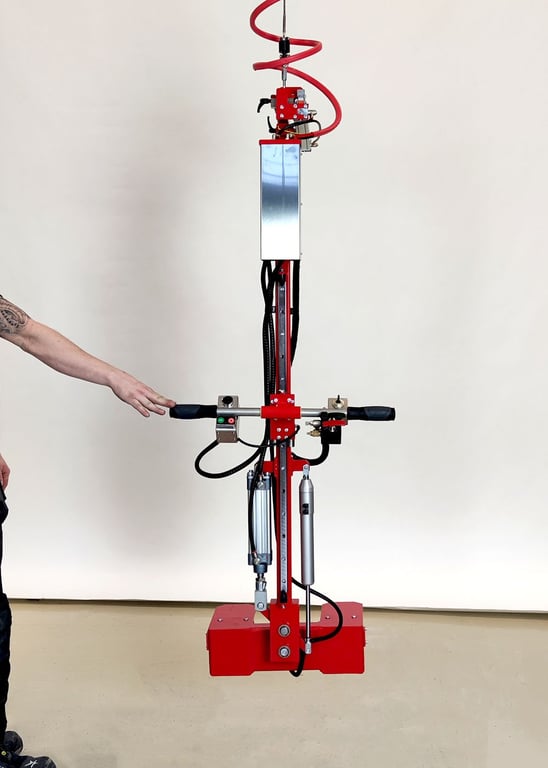

More images

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
